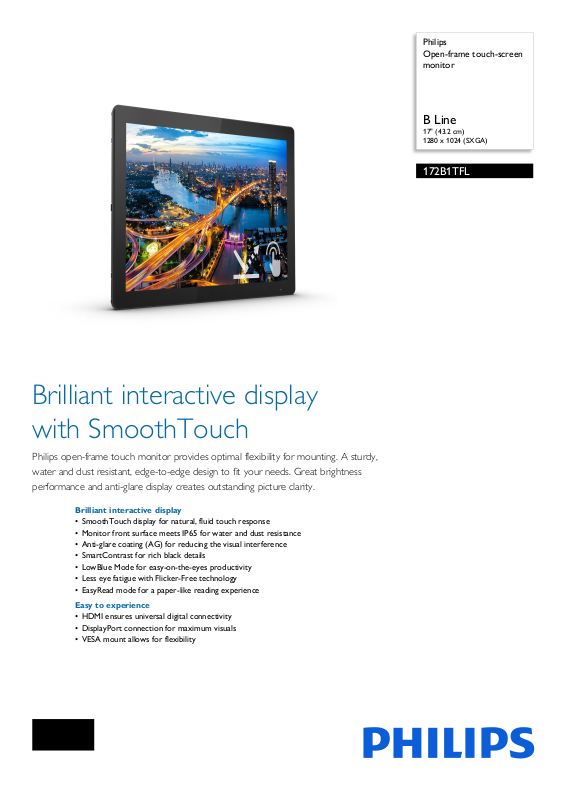

Page 1

Philips Open-frame touch-screen monitor

B Line

17" (43.2 cm) 1280 x 1024 (SXGA)

172B1TFL

Brilliant interactive display with SmoothTouch

Philips open-frame touch monitor provides optimal flexibility for mounting. A sturdy, water and dust resistant, edge-to-edge design to fit your needs. Great brightness performance and anti-glare display creates outstanding picture clarity.

Brilliant interactive display

• SmoothTouch display for natural, fluid touch response

• Monitor front surface meets IP65 for water and dust resistance

• Anti-glare coating (AG) for reducing the visual interference

• SmartContrast for rich black details

• LowBlue Mode for easy-on-the-eyes productivity

• Less eye fatigue with Flicker-Free technology

• EasyRead mode for a paper-like reading experience

Easy to experience

• HDMI ensures universal digital connectivity

• DisplayPort connection for maximum visuals

• VESA mount allows for flexibility

Page 2

172B1TFL/00

Open-frame touch-screen monitor

B Line 17" (43.2 cm), 1280 x 1024 (SXGA)

Highlights

SmoothTouch

This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers o

r play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

Water- and dust-resistant

Anti-glare coating

Anti-Glare Coating, abbreviated AG, can reduce the glare of your touch monitor screen. This chemical process is made in the back of the touch glass and therefore you don't need an addi tio nal film to ha ve c omfo rt i n you r eye s. Images are crystal clear with pure colour and great clarity.

SmartContrast

damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

EasyRead mode

For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.

SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

LowBlue Mode

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye

EasyRead mode for a paper-like reading experience

HDMI Ready

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

Page 3

172B1TFL/00

Open-frame touch-screen monitor

B Line 17" (43.2 cm), 1280 x 1024 (SXGA)

Specifications

Picture/Display

• LCD panel type: TFT-LCD (TN)

• Backlight type: W-LED system

•Panel Size: 17 inch/43.2 cm

• Effective viewing area: 337.92 (H) x 270.336 (V)

• Aspect ratio: 5:4

• Maximum resolution: 1280 x 1024 @ 75 Hz*

• Pixel Density: 96 PPI

• Response time (typical): 4 ms (Grey to Grey)*

• Brightness: 400 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast:

• Pixel pitch: 0.264 x 0.264 mm

• Viewing angle: 160º (H) / 140º (V), @ C/R > 10

• Picture enhancement: SmartImage

• Colour gamut (typical): NTSC 90% (CIE 1931)

• Display colours: 16.7 M

• Scanning Frequency: 30 - 83 kHz (H) / 50 - 75 Hz

(V)

•sRGB

• Flicker-free

•EasyRead

•LowBlue Mode

50,000,000:1

Touch

• Touch technology: Projected capacitive

• Touch points: 10 points

• Touch method: Stylus, Finger, Glove*

•Touch interface: USB

• Touch glass hardness: 7 H

• Touch glass coating: AG coatin

Gloss: 80 -/+ 10)

• Touch active area: 339.72 mm (H) x 270.336 mm

(V)

• Operating system: Windows 10 / 8.1 / 8 / 7;

oid 11 / 10 / 9 / 8*

Andr

• Palm rejection area: >= 30 x 30 mm

• Brightness: 340 nits (typ.)

• Ingress protection: IP65 - front only

• Sealability: Touchscreen sealed to bezel;

uchscreen sealed to LCD

g (Haze: 5% -/+ 3%,

Connectivity

• Signal Input: VGA (Analogue), DVI-D (digital,

HDCP), DisplayPort 1.2, HDMI 1.4

• USB:: USB 3.2 x 1 (Upstream), USB 3.2 x 2

stream with 1 fast charge B.C 1.2), mini USB

(Down x 1

• Sync Input: Separate Sync, Sync on Green

• Audio (In/Out): Audio out

Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian

• Other convenience: Kensington lock, OSD keypad ntrol, VESA mount (100 x 100 mm)

• Plug and Play Compatibility: DDC/CI, sRGB,

ws 10 / 8.1 / 8 / 7

Windo

Power

• ECO mode: 7.9 W (typ.)

• On mode: 12.1 W (typ.)

• Standby mode: 0.4 W (typ.)

• Off mode: 0.3 W (typ.)

• Power LED indicator: Operation - White, Standby

mode - White (f

• Power supply: External, 100–240 VAC, 50–60 Hz

lashing)

Dimensions

• Product without stand (mm): 383 x 329 x 49 mm

• Packaging in mm (W x H x D): 465 x 384 x 123 mm

Weight

• Product without stand (kg): 4.30 kg

• Product with packaging (kg): 5.83 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000 ft (3658 m), Noneration: +40,000 ft (12,192 m)

• MTBF (demonstrated): 70,000 hrs (excluded

klight)

bac

Sustainability

• Environmental and energy: RoHS

• Recyclable packaging material: 100 %

• Specific Substances: PVC/BFR free housing,

ry free, Lead free

Mercu

Compliance and standards

• Regulatory Approvals: CB, CE Mark, FCC Class B,

SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified

Cabinet

• Front bezel: Black

• Rear cover: Black

• Finish: Texture

Convenience

• User convenience: SmartImage, Input, Brightness, Menu, Power On/Off

• Control software: SmartControl

• OSD Languages: Brazil Portuguese, Czech, Dutch,

glish, Finnish, French, German, Greek,

Issue date 2021-02-08

Version: 2.0.1

12 NC: 8670 001 72402 EAN: 87 12581 77291 8

What's in the box?

• Monitor

• Cables: HDMI cable, DP cable, USB-A to B cable, er cable

Pow

•User Documentation

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* The maximum resolution works for either HDMI input or DP input. * Response time value equal to SmartResponse * NTSC Area based on CIE 1976 * sRGB Area based on CIE 1931 * Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm),

CPE (0.03 mm), PVC (0.12 mm)

* Please refer to "SmoothTouch" in the user manual for more details

on operating system support when using the touch function.

* The monitor may look different from feature images.
