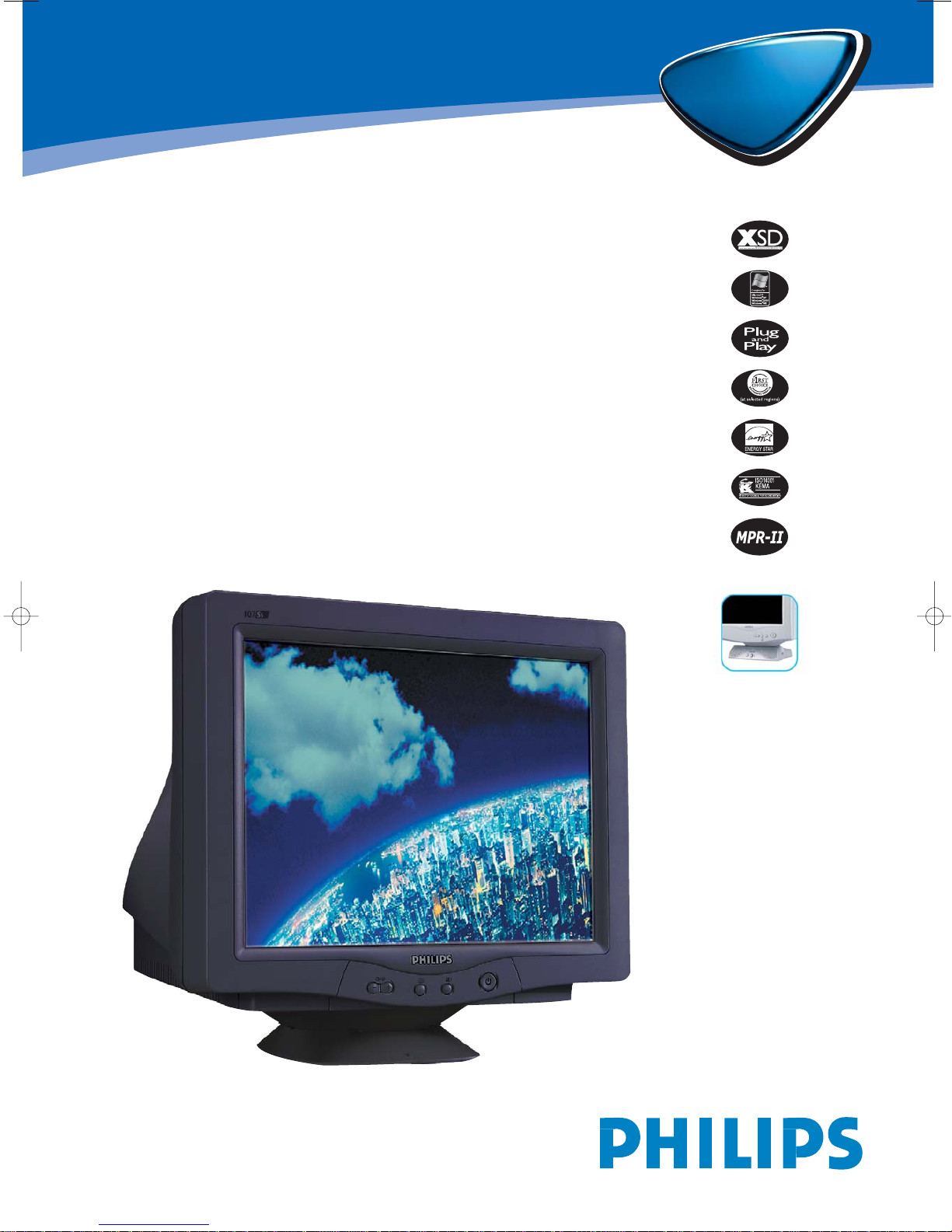

17" (16.0" VIS) Real Flat monitor
• 17-inch (16.0" VIS) Real Flat color monitor with excellent
front of screen performance for use with MACs and PCs
• Autoscan covers horizontal frequencies up to 71 kHz
offering a maximum resolution of 1280 x 1024 with
flicker free display of 1024 x 768 at up to 89 Hz
• Real Flat, High Contrast CRT with high-resolution
0.25 mm dot pitch (0.21 hdp)
• XSD-Xtra Space Design for large screen display in a
small footprint:World’s shortest 17-inch Real Flat
monitor with maximum depth of only 424 mm/16.7"
• Multimedia Base option
107S56
107S56
All accessories might not
available in all market.
Please check with your
local philips representative
for availability.
Optional Multimedia Base
(6G3B12)
Technical Specifications
CRT panel
• Size (inch/cm) 17"/ 41 cm
• Deflection angle (degrees) 90°
• Dot pitch 0.25 mm
• Horizontal pitch 0.21 mm
-Tube type Shadow mask, Real Flat, High Brightness,
High Contrast, Anti Glare,Anti Static,
Anti reflection, Light Transmission 45%
• Phosphor P22
• Recom. display area(mm) 306 x 230 mm
• Recom. display area(inch) 12.0" x 9.0"
• Max. display area(mm) 325 x 244 mm
• Max. display area(inch) 12.8" x 9.6"
Scanning
• Horizontal scanning 30 - 71 kHz
• Vertical scanning 50 - 160 Hz
Video
• Video dot rate 120 MHz
• Input impedance
-Video 75 Ohm
-Sync 2.2k Ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
• Sync polarities Positive and negative
White color temperature
Chromaticity CIE coordinates
• at 9300 K: x=0.283, y=0.297
• at 6500 K: x=0.313, y=0.329
Resolution & preset modes
• Max. resolution 1280 x 1024
• Recom. resolution 1024 x 768
• 8 user definable modes
• 14 factory preset modes
H.freq (KHz) V.freq (Hz)
640 x 350 31.5K 70
640 x 350 37.9K 85
640 x 480 37.9K 72
640 x 480 37.5K 75
640 x 480 50.6K 100
720 x 400 37.9K 85
800 x 600 37.9K 60
800 x 600 48.1K 72
800 x 600 63.9K 100
832 x 624 49.7K 75
1024 x 768 48.4K 60
1024 x 768 56.5K 70
1152 x 864 67.5K 75
1280 x 1024 64.0K 60
Plug and play compatibility
• Display Data Channel DDC 2B (VESA)
• Microsoft® Windows® 95/98/Me & 2000/NT/XP compatible
• sRGB
Power management
Complies with EPA Energy Star and NUTEK specifications
• Operation 68 W (typical)
• Off mode/Deep Sleep < 1 W
Low-emission characteristics
• Complies with MPR-II specifications
Monitor controls and functions
• Main 3-button OSD
Brightness +/- direct access
Contrast+/- direct access
• On Screen Display Language (English, Spanish, French,
German, Italian,Chinese, Portuguese,
Korean),zoom,horizontal, vertical,
pincushion, balanced,trapezoid,
parallelogram, color, reset, degauss,
moire, serial number, resolution,
frequency, sRGB
Connections and cables
• Connections
- Video 15-pin D-sub (analog)
• Cables D-Sub Video cable(fixed), power cord
Regulatory approvals
• MPR-II Low Emission
• TÜV/GS,TÜV/Ergo
• FCC-B, UL,CSA, DHHS
• SEMKO, Poland-B sign, C-Tick
• CE, BSMI,PSB
• NUTEK, Energy Star
Physical specifications
• Dim. incl.base
(WxHxD)
397 x 383 x 424 mm
• Dim. incl.base
(WxHxD)
15.6" x 15.1" x 16.7" inch
• Dim. excl.base
(WxHxD)
397 x 333 x 424 mm
• Dim. excl.base
(WxHxD)
15.6" x 13.1" x 16.7" inch
• Weight 15.5 kg
• Power supply Please refer to rating label
• Temperature
(operational)
0°C to 40°C/ 32°F to 104° F
• Temperature (storage) -25°C to 65°C/ -13°F to 149°F
• Relative humidity 5% to 95%
• MTBF > 75,000 H
Other
• Multimedia Base option type: 6G3B12
As an Energy Star partner, Philips has determined that this
product meets the Energy Star guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft
Corporation
MacOS is a registered trademark of Apple Computer, Inc.
All data subject to change without notice
Release date: January 2004
