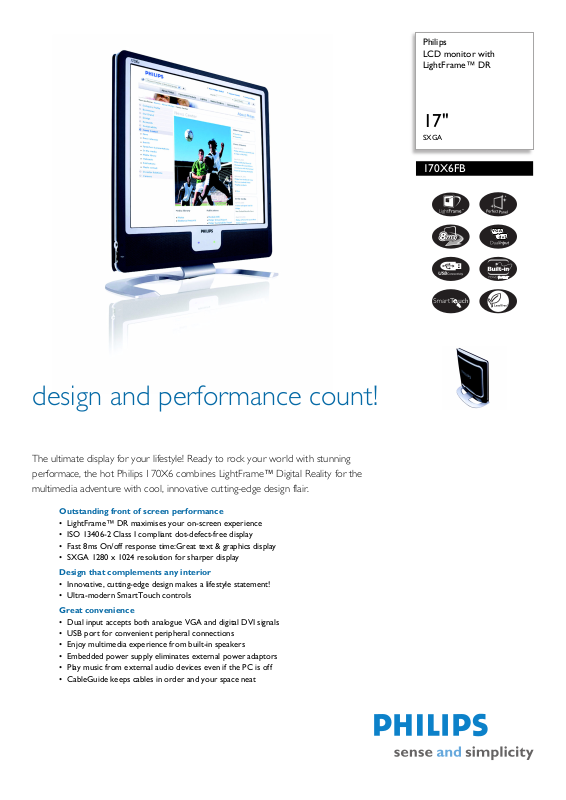

Page 1
Philips
LCD monitor with
LightFrame™ DR
17"
SXGA
170X6FB
design and performance count!
The ultimate display for your lifestyle! Ready to rock your world with stunning
performace, the hot Philips 170X6 combines LightFrame™ Digital Reality for the
multimedia adventure with cool, innovative cutting-edge design flair.
Outstanding front of screen performance
• LightFrame™ DR maximises your on-screen experience
• ISO 13406-2 Class I compliant dot-defect-free display
•Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
Design that complements any interior
• Innovative, cutting-edge design makes a lifestyle statement!
• Ultra-modern SmartTouch controls
Great convenience
• Dual input accepts both analogue VGA and digital DVI signals
• USB port for convenient peripheral connections
• Enjoy multimedia experience from built-in speakers
• Embedded power supply eliminates external power adaptors
• Play music from external audio devices even if the PC is off
• CableGuide keeps cables in order and your space neat
Page 2
LCD monitor with LightFrame™ DR
17" SXGA
170X6FB/00
Specifications Product highlights
Picture / Display
• LCD panel type: 1280 x 1024 pixels, Anti glare
polarizer, RGB vertical stripe
• Panel size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 600:1
• Display colours: 16 M
• Viewing angle: @ C/R > 5
• Viewing Angle (H / V): 160 / 160 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 /
y
= 0.329
• White Chromaticity, 9300K: x = 0.283 /
y
= 0.297
• Maximum resolution: 1280 x 1024 @ 75 Hz
• Recommended resolution: 1280 x 1024 @ 60
Hz
• Factory preset modes: 15 modes
• User definable modes: 16 modes
• Video dot rate: 140 MHz
• Horizontal scanning frequency: 30 - 83 kHz
• Vertical scanning frequency: 56 - 76 Hz
• Picture enhancement: LightFrame™ Digital
Reality
•sRGB
Connectivity
• Signal input: Analogue (VGA), DVI-D, PC audio
in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: 1 x USB 2.0
• Video sync input signal: Composite Sync,
Separate sync, Sync on green
Convenience
• Built-in audio: 2 W RMS x 2 stereo speakers
• Convenience enhancements: On screen display,
Stand-alone audio, SmartControl
• Monitor controls: Auto, Brightness control, Left
/ right, Menu (OK), Up / down, Volume control,
LightFrame, Power on / off
• OSD languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory approvals: CE Mark, E2000, EMC,
Energy Star, FCC-B, UL, CSA, MPR-II, low
emission, SEMKO, TÜV-Ergo
• Tilt: -5° to 25°
Accessories
• Included accessories: AC power cord, Audio
cable, USB cable, VGA cable
• User manual
Dimensions
• Dimensions (with base) (W x H x D):
388
x 400 x 181 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80 %
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Weight: 5.5 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 38 W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - Green,
Standby / sleep - Amber
• Power supply: Built in, 100-240VAC, 50/60Hz
•
LightFrame™ DR
LightFrame™ Digital Reality is an integrated software
and hardware solution for Philips high-end monitors that
delivers high quality visual display enhancements to
users through quick and convenient hardware or
software interfaces.
PerfectPanel™
Bright dots and dark dots are defects in a LCD panel.
While some manufacturers still consider bright and
dark defects in a LCD panel an inevitable part of the
manufacturing process, Philips doesn't. Philips monitors,
compliant with ISO 13406-2 Class I standard, are
pro du ce d w it h z er o t ol er an ce for LC D p an el de fe ct s a nd
backed by Philips PerfectPanel™ globally valid warranty
providing repair or replacement of any LCD monitors
that display even a single defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white)
and back to active (black) again. It is measured in
milliseconds. The faster the better. Lower response time
means faster transitions and, therefore, results in fewer
vi sib le i mag e ar tefact s in the dis pla y of tra nsi tio n of tex t
and graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
SmartTouch controls
SmartTouch controls are intelligent, ultra-responsive,
touch-sensitive icons which replace protruding buttons.
Responding to your lightest touch, SmartTouch controls,
for example, power up your monitor or brighten and
sharpen your display with SmartImage Lite. When
activated, SmartTouch icons glow to indicate that your
commands have been implemented.
Dual input
Dual input provides connectors to accommodate input
of both analog VGA and digital DVI signals.
Date of issue 2007-06-26
Version: 3.0
12 NC: 8639 000 16425
EAN: 87 10895 90785 9
USB 2.0 port
The universal serial bus or USB is a standard protocol
for linking PCs and peripherals. Because it delivers high
speed at a low cost, USB has become the most popular
method for connecting peripheral devices to a
computer. A port located on a monitor directly in the
user's line of sight provides easy, high-speed connectivity
for USB devices at a convenient location. (USB 2.0
support is dependent on your PC's USB configuration;
when connected to a PC that supports USB 2.0, your
monitor is USB 2.0 compatible)
Built-in speakers
Audio speakers built into a display device
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
