Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped

with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

● Consult a service technician if the monitor does not operate normally when you have followed

the instructions in this manual.

● The casing cover should be opened only by qualified service personnel.

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s

electronics.

● Do not block the ventilation holes on the cabinet.

● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds

before attaching the power cable or DC power cord for normal operation.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

● IMPORTANT: Always activate a screen saver program during your application. If a still image in

high contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost image' on front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases, the after-image will disappear gradually over a period of time after the power has been switched off. Be aware, that the after-

image symptom cannot be repaired and is not covered under warranty.

Consult a service technician if the monitor does not operate normally when the operating instructions given in this manual have been followed.

RETURN TO TOP OF THE PAGE

Installation Locations

●

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/safety/safety.htm (1 of 2) [3/1/2004 6:01:42 PM]

Safety and Troubleshooting Information

Avoid exposure to heat and extreme cold

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme

cold.

● Avoid moving the LCD monitor between locations with large temperature differences. Choose a

site that falls within the following temperature and humidity ranges.

❍ Temperature: 5-35°C 41-95°F ❍ Humidity: 20-80% RH

● Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the

LCD monitor in the trunk of a car.

● Take care not to mishandle this product by either knocking or dropping it during operation or

transportation.

● Do not store or use the LCD monitor in locations where there is a high level of humidity or in

dusty environments. Do not allow water or other liquids to spill on or into the LCD monitor.

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/safety/safety.htm (2 of 2) [3/1/2004 6:01:42 PM]

About This Manual

• About This Guide

• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems as well

as other related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers

along with help desk phone numbers and information on the warranty applicable to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/about/about.htm (1 of 2) [3/1/2004 6:01:44 PM]

About This Manual

NOTE: This icon indicates important information and tips that help you make better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

RETURN TO TOP OF THE PAGE

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/about/about.htm (2 of 2) [3/1/2004 6:01:44 PM]

Product Information

• Product Features

•

LightFrame

for Windows

•Technical Specifications

•Resolution & Preset Modes

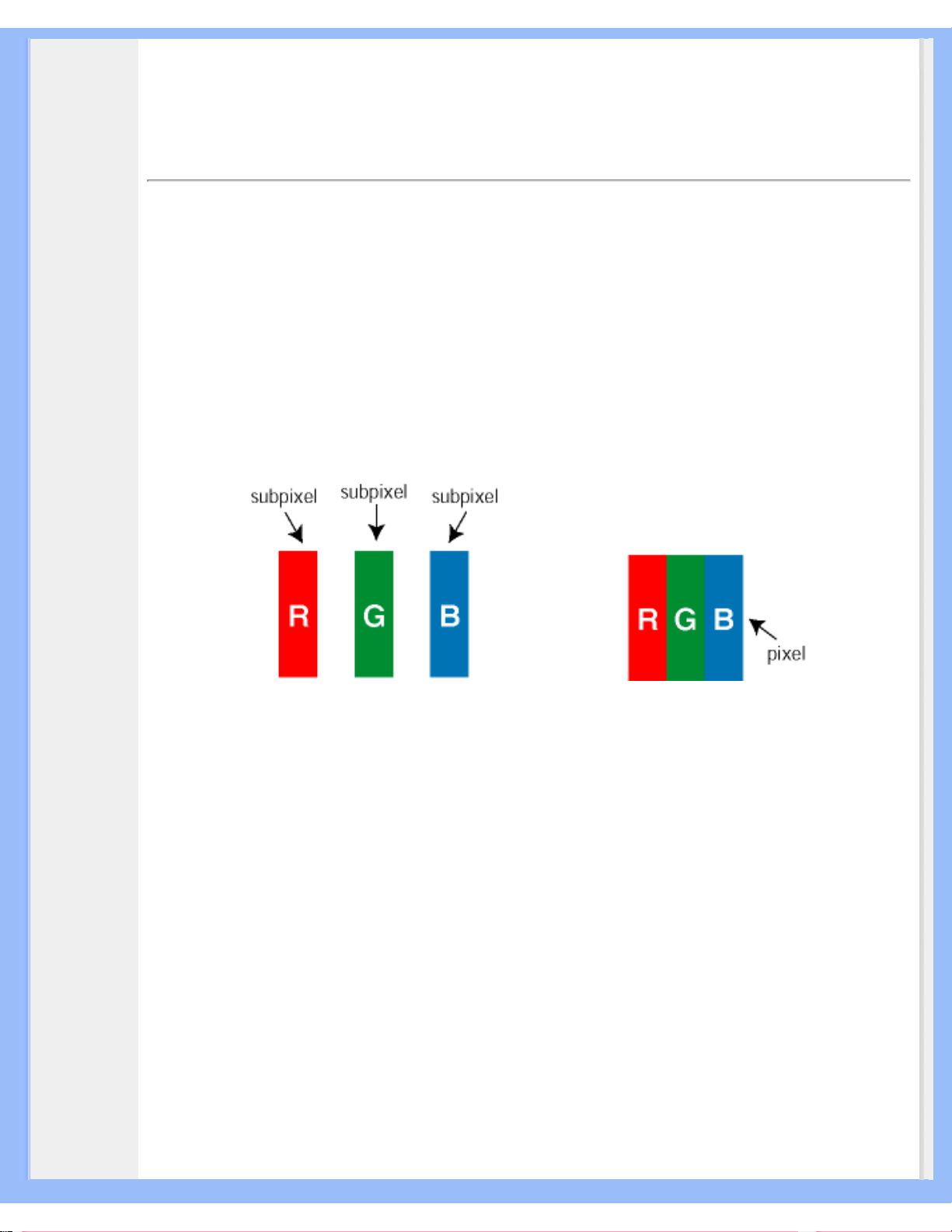

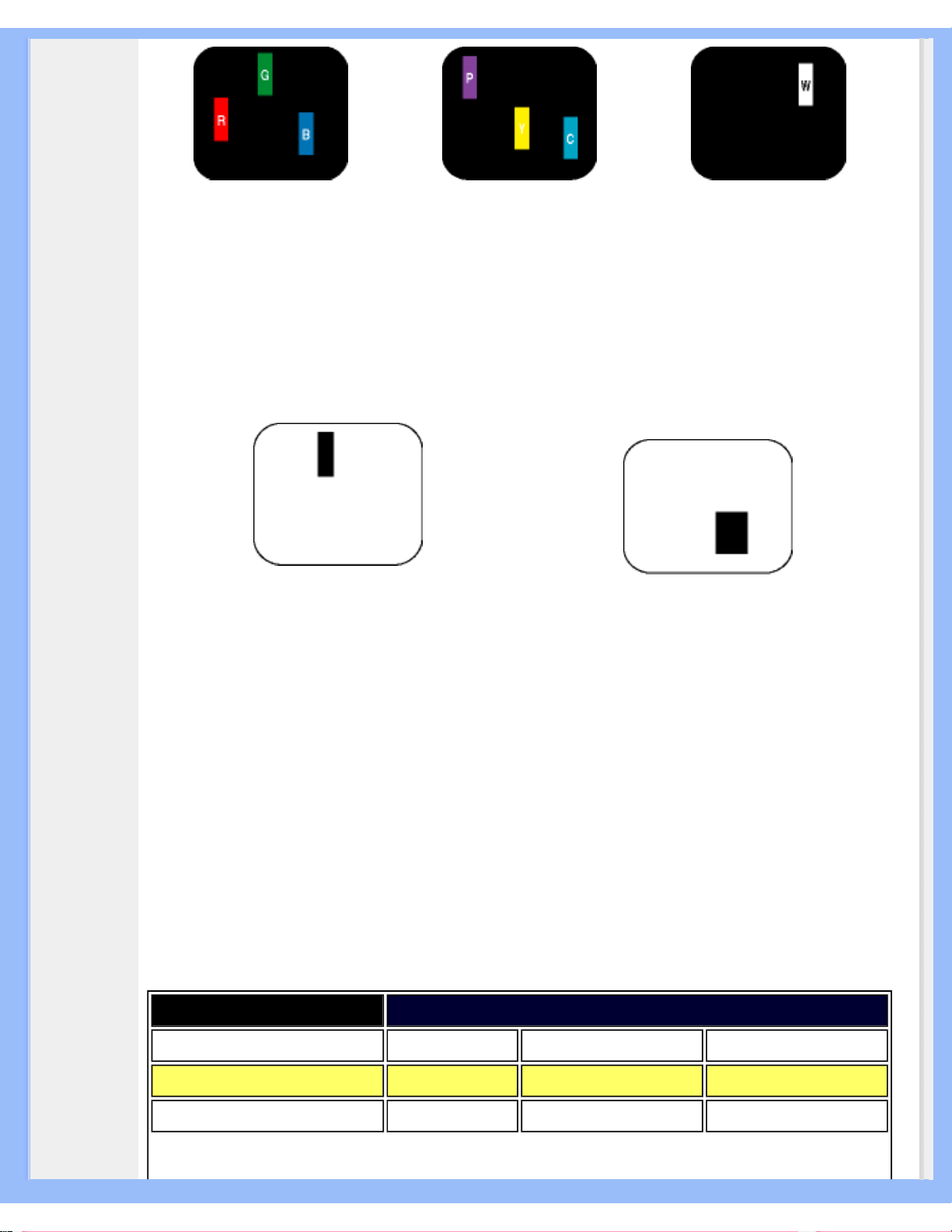

•Philips Pixel Defect Policy

•Automatic Power Saving

•Physical Specification

•Pin Assignment

•Product Views

•Physical Function

Product Information

Product Features

170X4

LightFrame

for the brightest, sharpest and vivid images plus the best Internet surfing ever!

● Stereo 2W/channel RMS x 2*

● Stylish design for the fashionable home

● AUTO adjustment optimizes picture quality

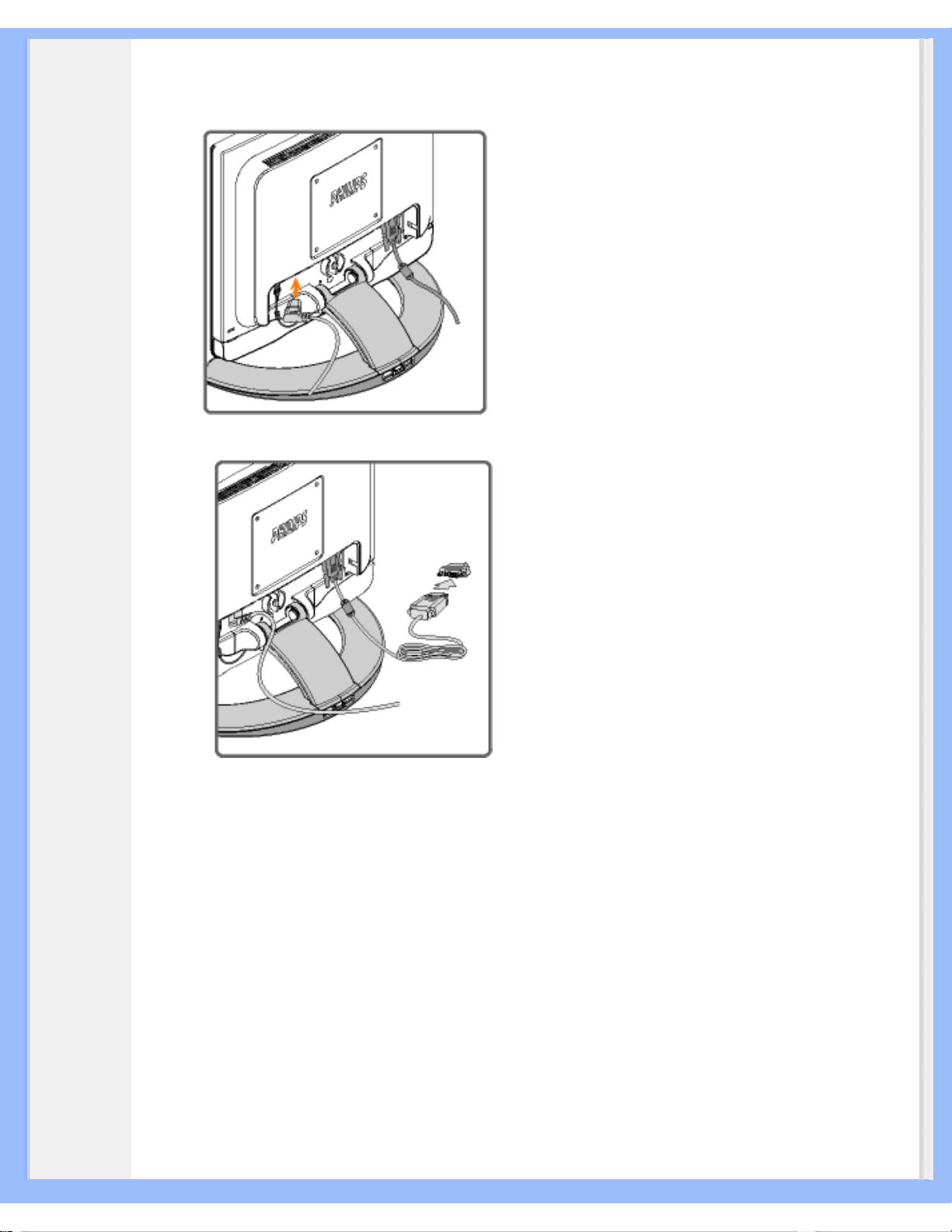

● Intelligent cable management keeps desk clear of unsightly wires

● Embedded universal AC power supply

● Adjustable tilt function

● sRGB compliant

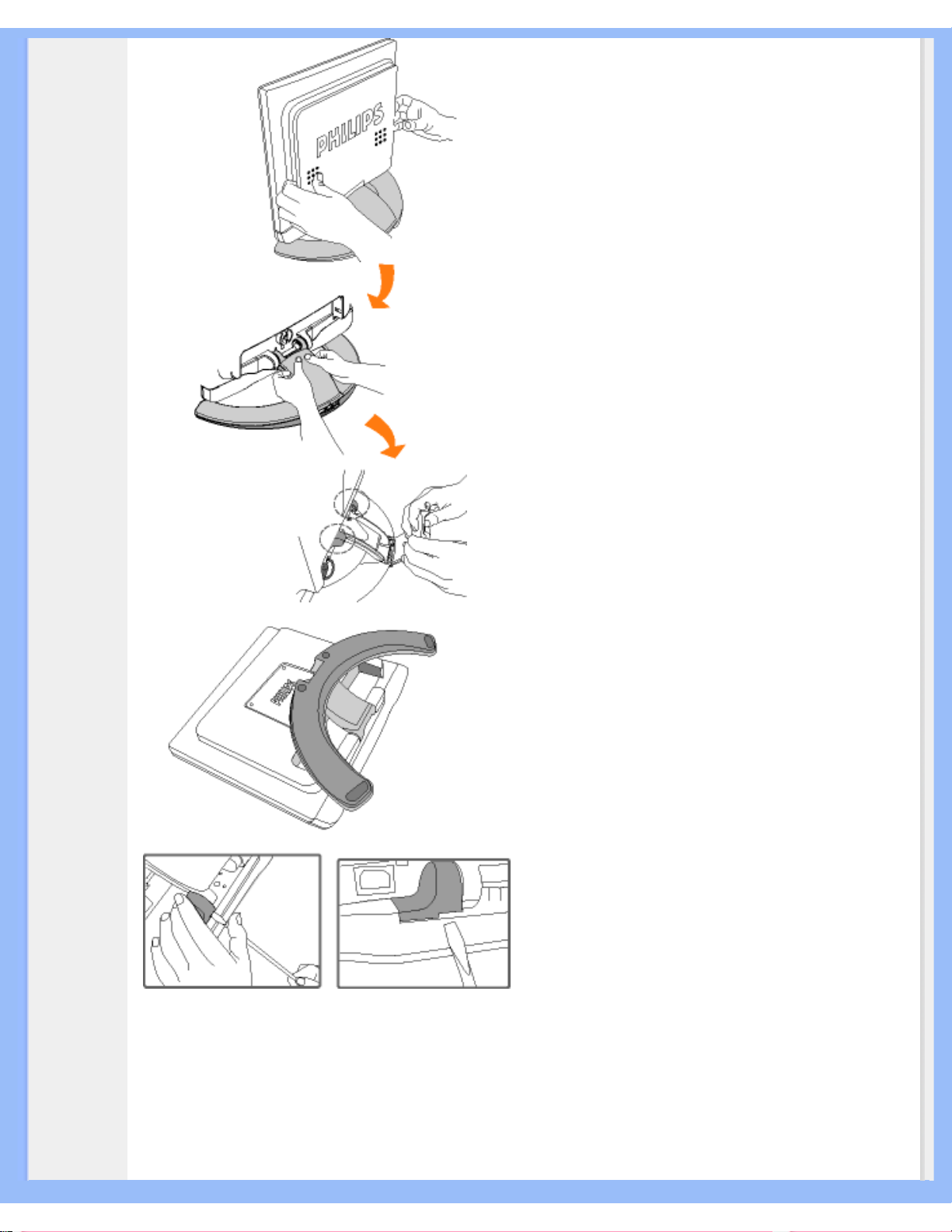

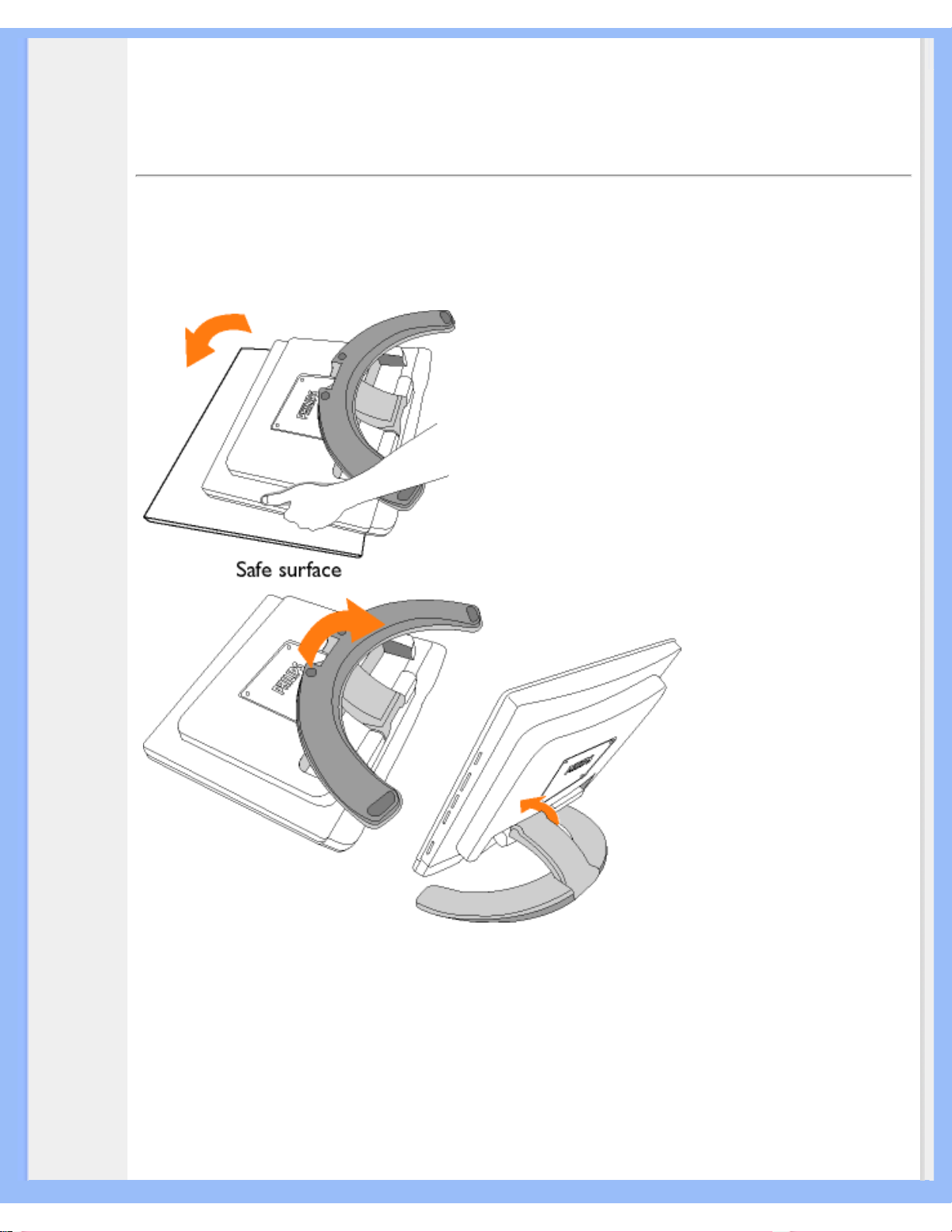

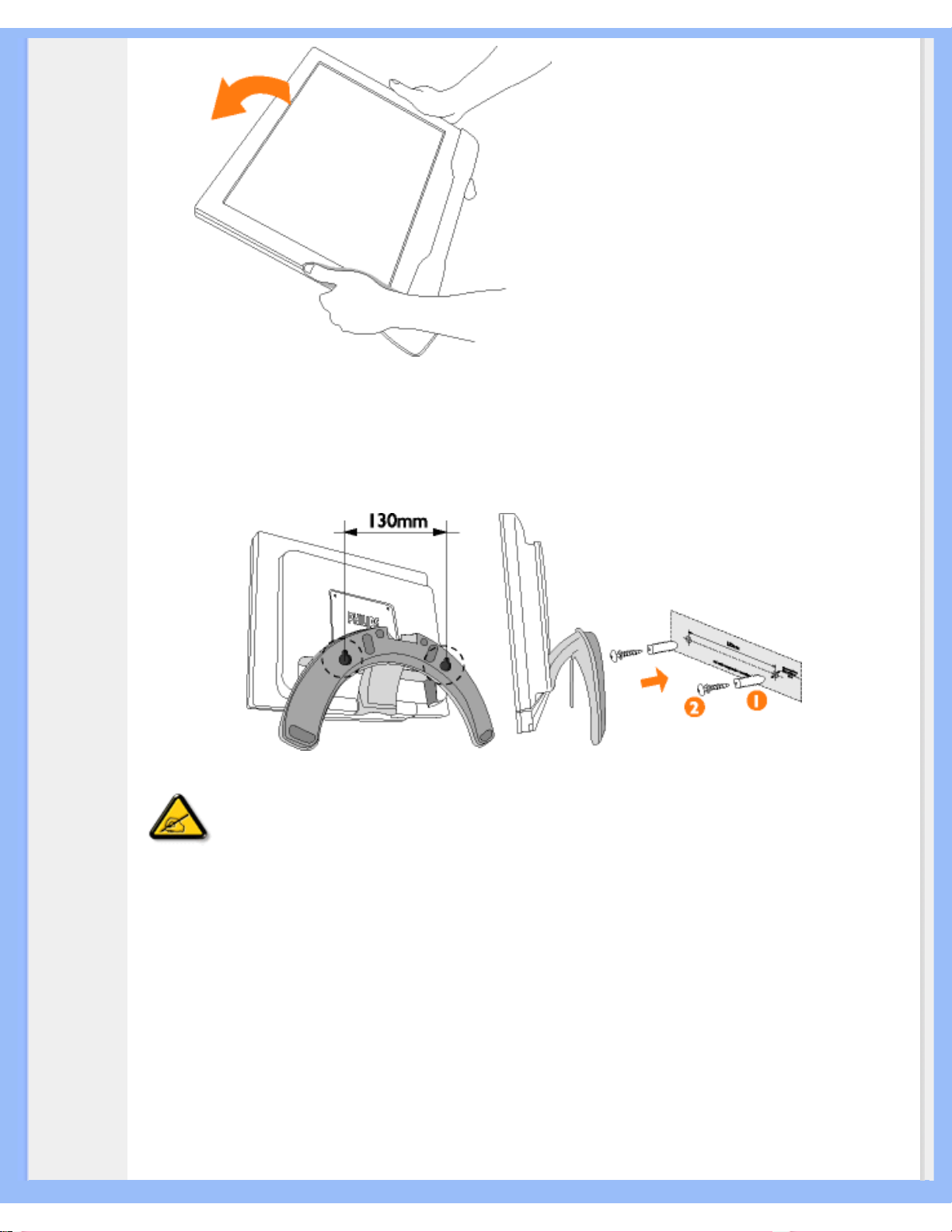

● Foldable base available for easy wall mounting

* 2 Watt per channel RMS x 2 channels, 200 Hz-12kHz, 16 ohm. THD=10%

RETURN TO TOP OF THE PAGE

LightFrame

for Windows

Introduction

Philips LightFrame

feature enriches the experience of pictures and video on a Philips monitor.

LightFrame

will boost the brightness and sharpness of photos and videos on the monitor screen.

To control the LightFrame

feature in your monitor, you have to install the LightFrameTM application

which you will find on this CD-ROM.

Note

Philips LightFrame

will only work with monitors that have been built to use this software. Earlier Philips monitors or other manufacturers’ monitors will not work with this special software. It is recommended that you install this software only on a Philips monitor designed to use it. These monitors can be identified by

the LightFrame

logo on the front of the monitor.

LightFrame

will work with true Windows-based programs and DOS-based programs that operate in a

Windows® environment. It will not work with DOS-based programs operating only in a DOS environment.

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (1 of 10) [3/1/2004 6:01:59 PM]

Product Information

Language Selection

While English is the default language of LightFrame

, the User Interface can be set up to operate in

Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese or Korean.

Installation

1) To install LightFrame

, place the CD in the CD-ROM drive.

2) Next, when the menu of items on the CD appears on your screen, click on 'Install LightFrame

3) Now, follow the on-screen prompts to properly install the program. The software checks to see if you have a compatible monitor. You must agree to the license agreement terms for the software to install.

4) After installation, LightFrame

automatically loads and the icon appears in the taskbar.

Notes

If LightFrame

detects that your monitor is not LightFrameTM compatible, a message appears on the

monitor screen. If you see this message, you can select to abort or continue the installation. However, if you continue the installation, LightFrame

will probably not work on the monitor.

How to use LightFrame

After installation, LightFrameTM starts up automatically whenever the computer is started.

For information about using LightFrame

please refer to the help information which is available after

installation.

Compatibility

This version of LightFrame

is compatible with Windows® 95 Windows® 98 Windows® Me (Millennium Edition) Windows® XP Windows® 2000 Professional Edition.

LightFrameTM 3 -- Frequently Asked Questions (and answers)

Q: Is LightFrame

2 compatible with LightFrameTM 3?

A: No. If you run LightFrame

1 or 2 software with a Philips LightFrameTM 3 monitor, nothing will

happen.

Q: Can I use LightFrame

3 software on my LightFrameTM 1 / 2 monitor.

A: No for a LightFrame

1 or 2 monitor you need to use LightFrameTM 1 or 2 software. It is however

possible to use the LightFrame

2 software on a LightFrameTM 1 monitor.

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (2 of 10) [3/1/2004 6:01:59 PM]

Product Information

Q: What is the difference between LightFrameTM 1, LightFrameTM 2 and LightFrameTM 3?

A: LightFrame

1 was the very first generation of the LightFrameTM feature introduced by Philips. In that

version the user needs to manually turn on/off the feature and select the window or area to apply it to.

LightFrame

2 offers the automatic detection in Internet Explorer on top of the LightFrameTM 1 functions.

With this feature LightFrame

will automatically scan a web page in Internet Explorer, find the largest

picture and enhance it. LightFrame

3 offers everything that LightFrameTM 2 has but now with the possibility to enhance multiple

pictures at the same time. So in a web page LightFrame

will find all the pictures and enhance them

simultaneously or in a photo viewing application you can enhance multiple photos at once. Furthermore LightFrame

3 comes with an easy to activate full screen function. This is especially handy for games

and movies. Just one click on the full screen button and LightFrame

enhances your total monitor.

Q: Can I upgrade my current Philips monitor to LightFrame

A: No. For LightFrame

3 Philips developed special hardware which is build into the monitor. Therefore

upgrading from LightFrame

1 or 2 to 3 is not possible. It is however possible to upgrade your

LightFrame

1 monitor to LightFrameTM 2 by installing the LightFrameTM 2 software.

Q: Can I install LightFrame

3 over an older version?

A: When you install LightFrame

3 the setup wizard will scan your system to check if you have an older version installed. If so, the setup wizard will remove that version before continuing with the installation of the new version. Please be aware that for LightFrame

3 you also need a monitor which is capable of

running the LightFrame

3 feature.

Q: How many windows can I enhance at the same time?

A: In LightFrame

3 it is possible to enhance up to 7 windows at the same time. It is however important to understand that when other windows, toolbars or menus overlap the enhanced windows, the maximum number of enhanced windows can be less.

Q: How many pictures can LightFrame

enhance in Internet Explorer?

A: In Internet Explorer LightFrame

3 can enhance up to 14 pictures at the same time. LightFrameTM 3 filters the pictures it finds based on the minimum size of the picture therefore it may happen that some pictures are not enhanced when you open a web page.

Q: Can I enhance two or more area’s at the same time?

A: Yes. With LightFrame

3 you have the possibility to select several windows with pictures and videos

and enhance them at the same time.

Q: Some times my mouse changes to a light bulb with a plus sign and sometimes with a minus

sign. What is the difference?

A: The mouse pointer in the shape of a light bulb indicates that LightFrame

is ready to accept a selection from you for which window should be enhanced. If there is a minus sign it means that you are moving over a window where LightFrame

is already active

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (3 of 10) [3/1/2004 6:01:59 PM]

Product Information

and clicking this window will switch the enhancement off. A plus sign appears when moving over a window which is not enhanced and clicking that one will enable LightFrame

on that window.

Q: What is wrong when my mouse changes into a light bulb with a red cross?

A: Nothing. It just means that your mouse moves outside the application where you already have one or

more windows enhanced. You can only select windows with in the same application. The cross indicates that you move into an area where you cannot make a selection.

Q: Can I use LightFrame

with Netscape?

A: You can use LightFrame

with Netscape, but its functions are limited to manually highlighting the

entire Netscape client window. Since LightFrame

is specifically designed for bright, high contrast photo

and video display, highlighting an entire Web page -- including text -- is not recommended.

For best results, we recommend you use LightFrame

with Microsoft Internet Explorer version 5.0 or higher. You can downloaded Internet Explorer free of charge from the Microsoft website (www.microsoft.com). A copy of Internet Explorer 5.5 is also included on the CD-ROM shipped with your

monitor.

Q: Can I activate LightFrame

on my entire screen?

A: Yes you can. And with LightFrame

3 this becomes even easier. You just press the LightFrameTM

button on the bezel to activate it.

Q: When I apply LightFrame

to a text document I get blurry characters, what is wrong?

A: Nothing is wrong. The effect which you see is due to the sharpness enhancement that LightFrame

is doing on your monitor. This sharpness improves a photo or video significantly however on black text on a light background the effect is less favorable. Please keep in mind that LightFrame

is developed to

enhance your photos and videos and not really for text or synthetic pictures. You can decrease this effect by lowering the sharpness setting in the LightFrame

3 control panel.

Q: How can I tell if my monitor comes with LightFrame

A: All Philips LightFrame

monitors display this logo on their front bezel:

Q: How do I use the LightFrameTM 3 control bar that appears at the top my screen?

A: The control bar is another upgrade that helps you run all LightFrame

3's neat, new features. The

illustration below describes the tasks each button performs.

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (4 of 10) [3/1/2004 6:01:59 PM]

Product Information

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 17 inch / 43.2 cm

• Pixel Pitch 0.264 x 0.264mm

• LCD Panel type

1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated

• Effective viewing area 337.9 x 270.3mm

• Display Colors 16.7M colors

SCANNING

• Vertical refresh rate 56Hz-76Hz

• Horizontal frequency 30kHz-82kHz

VIDEO

• Video dot rate 135 MHz

• Input impedance

- Video 75 ohm

- Sync 2K ohm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync Composite sync Sync on Green

• Sync polarities Positive and negative

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (5 of 10) [3/1/2004 6:01:59 PM]

Product Information

• Input Frequency

SXGA Hsync 64-81 kHz, Vsync 60-76 Hz (N.I.) XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.)

AUDIO

• Input signal level 0.5 V RMS

• Input signal connector 3.5mm mini jack

• Loudspeaker

4W Stereo Audio (2W/channel RMS x2, 200Hz-12kHz, 16 ohm, THD=10%)

OPTICAL CHARACTERISTICS

• Contrast ratio 400 (typ.)

• Brightness

260 cd/m

(typ.)

• Peak contrast angle 6 o'clock

• White Chromaticity

x: 0.283 y: 0.297 (at 9300° K) x: 0.313 y: 0.329 (at 6500° K) x: 0.313 y: 0.329 (at sRGB)

• Viewing Angle (C/R >5)

Upper >80° (typ.)

Lower >80° (typ.)

Left >80° (typ.)

Right >80° (typ.)

• Response time <=25ms (typ.)

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again.

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (6 of 10) [3/1/2004 6:01:59 PM]

Product Information

Exit this OSD.

After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.

For more information on sRGB, please visit: www.srgb.com

Note: sRGB mode is not available while 'LightFrame

' function is activated.

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum

1280 x 1024 at 75Hz

• Recommended 1280 x 1024 at 60Hz

34 user definable modes

16 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.2 688 x 556 50

31.5 640 x 350 70

31.5 720 x 400 70

31.5 640 x 480 60

35.0 640 x 480 67

37.5 640 x 480 75

35.2 800 x 600 56

37.9 800 x 600 60

46.9 800 x 600 75

49.7 832 x 624 75

48.4 1024 x 768 60

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (7 of 10) [3/1/2004 6:01:59 PM]

Product Information

60.0 1024 x 768 75

69.0 1152 x 870 75

71.8 1152 x 900 76

63.9 1280 x 1024 60

80.0 1280 x 1024 75

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 40W (typ.) Green

OFF Blanked No No < 1W Amber

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension incl. Pedestal (WxHxD) *

399 x 398.2 x 197.2 mm

• Weight * 4.7 kg

• Tilt (Forward / Backward) - 5° / 20°

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (8 of 10) [3/1/2004 6:01:59 PM]

Product Information

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 40 W (typ.)

• Temperature (operating) 5° C to 35° C

• Relative humidity

20% to 80%

• System MTBF

50K hrs (excluding CCFL 40Khrs)

• Cabinet color Silver

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable:

No.

Assignment

No.

Assignment

Red video input

DDC +5V

Green video input

Cable detect

Blue video input

Identical output - connected to pin 10

Serial data line (SDA)

Ground

H. Sync / H+V

Red video ground

V. Sync

Green video ground

Data clock line (SCL)

Blue video ground

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (9 of 10) [3/1/2004 6:01:59 PM]

Product Information

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

Tilt

RETURN TO TOP OF THE PAGE

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/product/product.htm (10 of 10) [3/1/2004 6:01:59 PM]

Installing Your LCD Monitor

•

Front View Produt Description

•

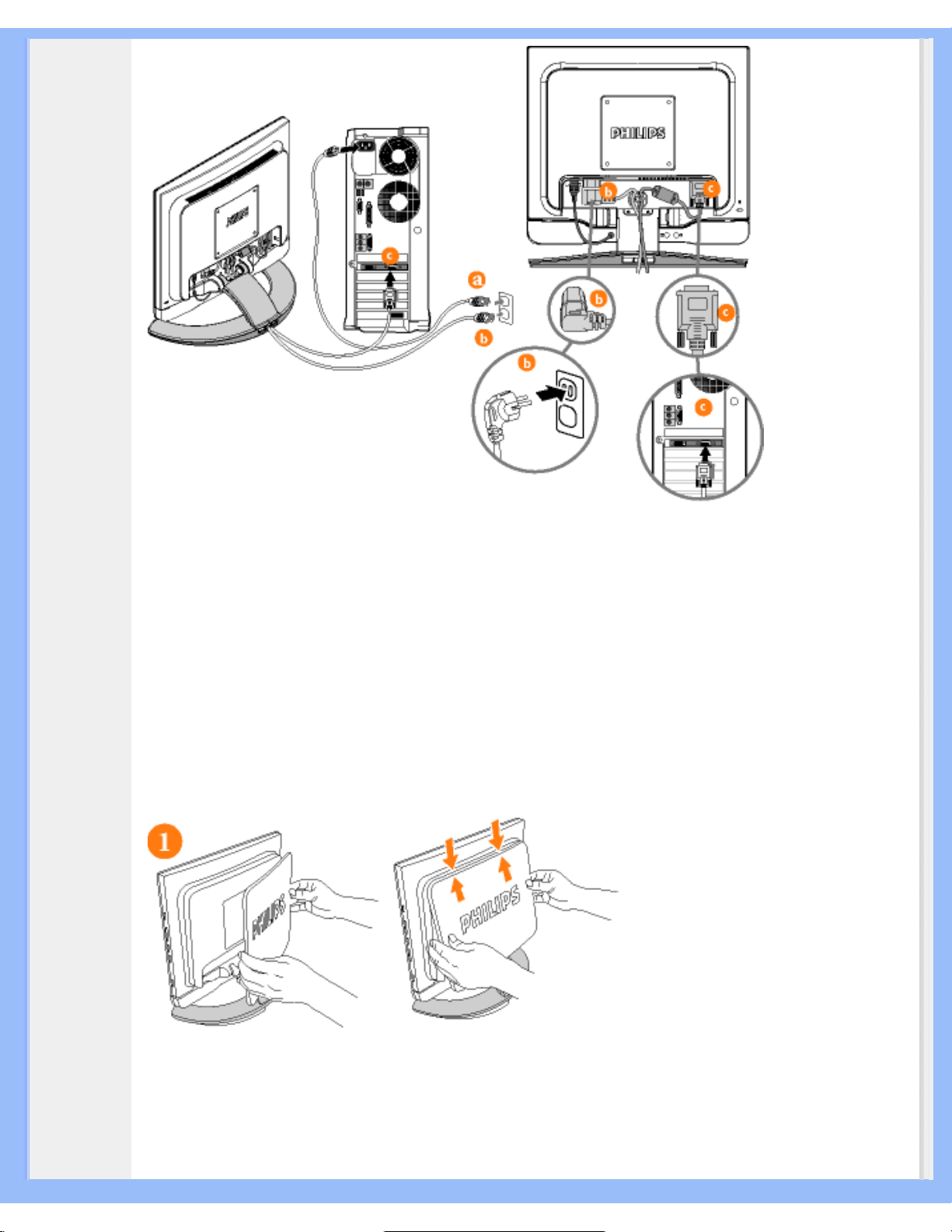

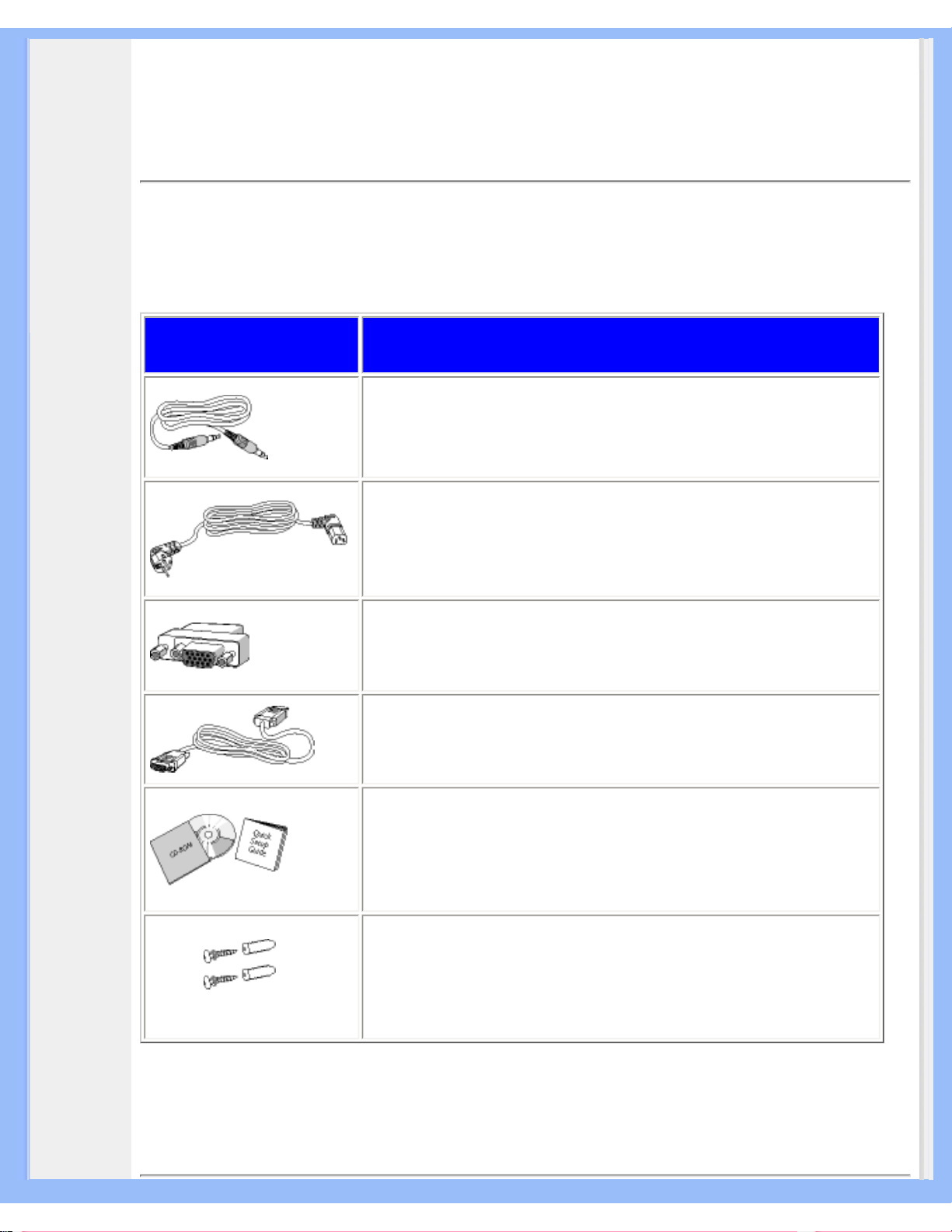

Connecting to Your PC

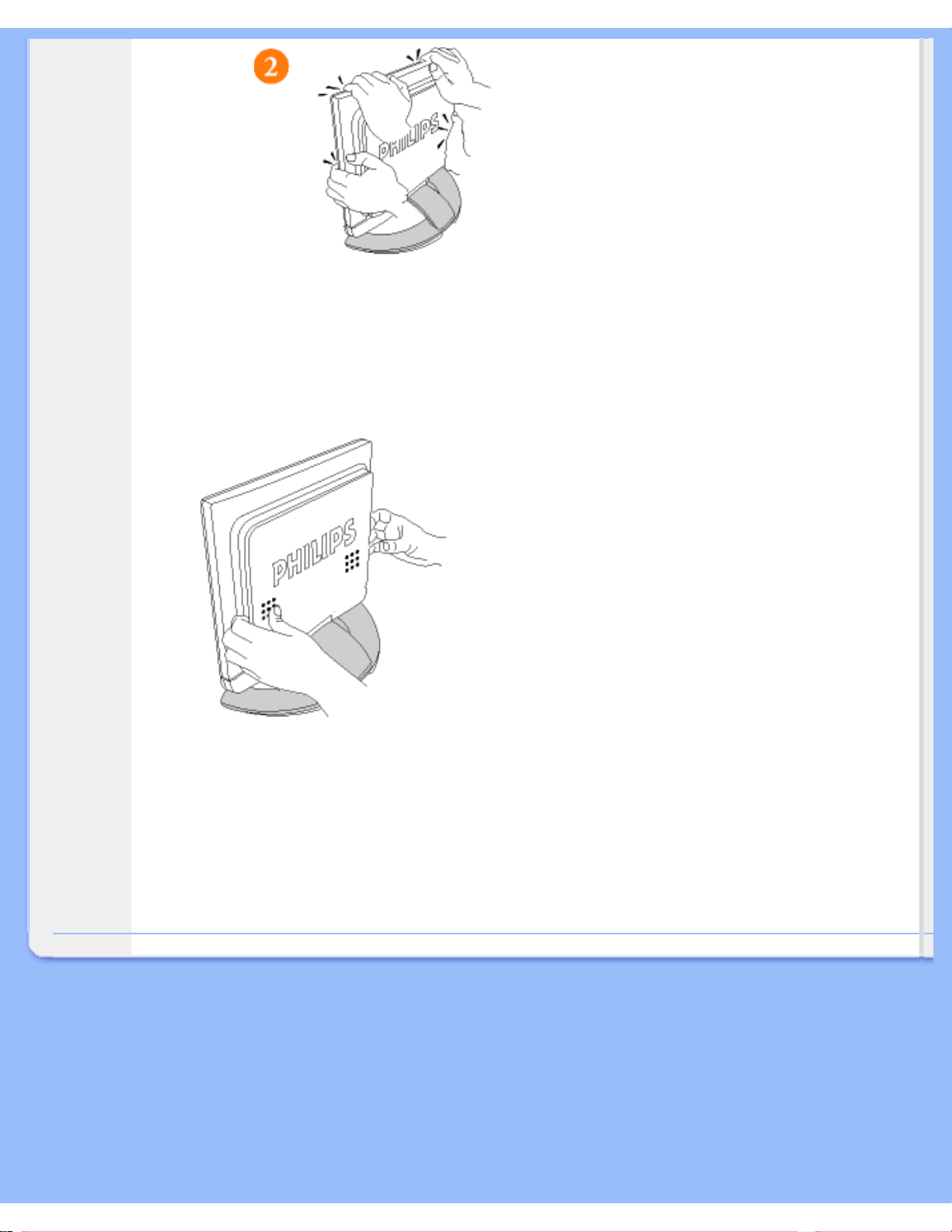

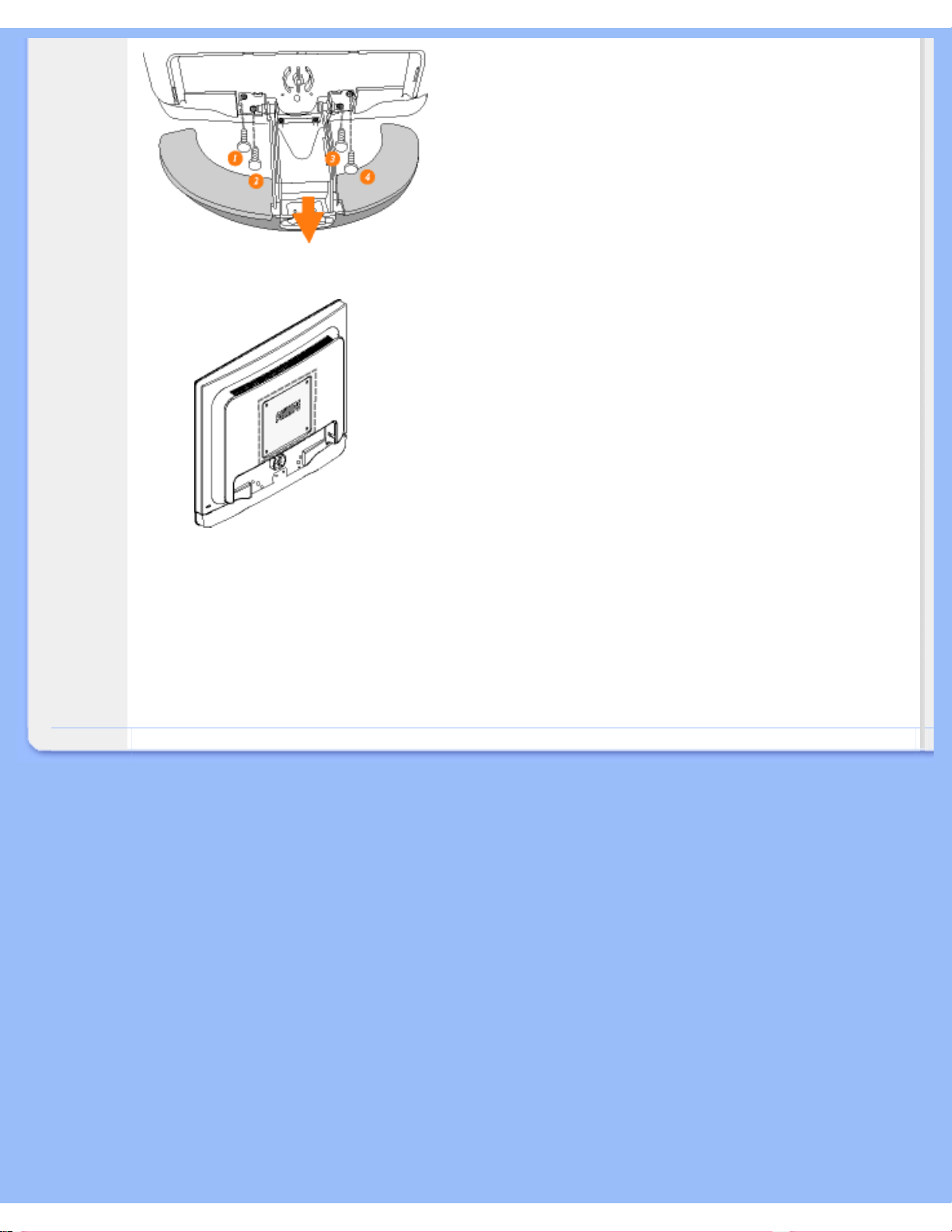

• The Base

•

Getting Started

•

Optimizing Performance

Installing Your LCD Monitor

Front View Product Description

UP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used

in adjusting the OSD of your monitor. BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are

pressed, the adjustment controls for the BRIGHTNESS will show up.

OK button which when pressed will take you to the OSD controls

POWER button switches your monitor on

Automatically adjust the horizontal position, vertical position, phase and clock setting.

LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode

file:///D|/My%20documents/dfu/B2C/ENGLISH/170X4/install/install.htm (1 of 2) [3/1/2004 6:02:01 PM]

Installing Your LCD Monitor

RETURN TO TOP OF THE PAGE

Optimizing Performance

● For best performance, ensure that your display settings are set at 1024x768@60Hz (for 14"/15") or

1280x1024, 60Hz (for 17"/18").

Note: You can check the current display settings by pressing the 'OK' button once.

Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

● You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best

performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program.

More about FP_setup04.exe

RETURN TO TOP OF THE PAGE
