Philips 170V9FB/97, 170V9FB/05, 170V9FB/93, 170V9FB/94, 170V9FB/62 Service Manual

17" LCD Color Monitor Chassis: HUDSON 9

/

(1)

Service

Service

Service

170V9FB/97(1)

170V9FB/62

170V9FB/27

170V9FB/00

170V9FB/05

170V9FB/93

170V9FB

94

170V9FB/97(2)

170V9FB/93

(1)

(1)

170V9FB/94(2)

170V9FB/00(2)

(1)

170V9FB/05(2)

(1)

170V9FB/62(2)

(1)

170V9FB/27(2)

(2)

Description Page Description Page

Table Of Contents........................................………….1

Page

Revision List................................................…………….2

Important Safety Notice………….................................3

1. Monitor Specifications….............................................4

2. LCD Monitor Description….........................................5

3. Operation instructions….......................6

3.1General Instructions……………………………….…...6

3.2 Control buttons…………..……………………………6

3.3 Adjusting the Picture….............................................8

3.4 Connecting to the PC ………………………….........10

4. Input/Output Specification.........................………….11

4.1 Input Signal Connector...........................…………..11

4.2 Factory Preset Display Modes...............................11

4.3 Pixel Defect Policy……………………………………12

4.4 Failure Mode of Panel ………………………………15

5. Block Diagram……………………………................16

5.1 Software Flow Chart............................………….....16

5.2 Electrical Block Diagram..................……….........18

6. Schematic Diagram…………………….....................20

6.1 Main Board…….……………..….……………………20

6.2 Power Board…………………………..…………………25

6.3 Key Board…….………………………..…………………29

7. PCB Layout………………………………………………...30

7.1 Main Board……………………………………………...30

7.2 Power Board…………………………………………...…32

7.3 Key Board………...………………………………………36

8. Wiring Diagram……………………………………….…..37

9. Scalar Board Overview………………………………....38

10. Mechanical Instructions………………………………....39

11. Trouble shooting………………………………………….43

12. Repair Flow Chart…….…….……………………………45

13. ISP Instructions...….....................................................51

14. DDC Instructions…......................................................59

15. White Balance, Luminance Adjustment……............68

16. Monitor Exploded View….............................................70

17. Recommended & Spare Parts List...……...................71

18. Different Parts List.............................……...................75

19. General Product Specification………………….……….79

http://www.wjel.net

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN

SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

SAFETY NOTICE

REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES

Copyright 2008 Philips Consumer Lifestyle Subject to modification ○K Mar, 19, 2008

GB

3122 785 17830

2

HUDSON 9

Revision List

Version Release Date Revision History

A00 Mar.19, 2008 Initial release, Draft Version

Add CTV Model 170V9FB/62, 170V9FB/27, 170V9FB/05,170V9FB/00

A01 Apr.03, 2008

Add Philips 12NC for 170V9FB/97

A02 Apr.17, 2008 Add a new panel 750GLU70G1D42N

A03 Apr.25, 2008 Add CTV Model 170V9FB/93 and 170V9FB/94

Add CTV Model 170V9FB/97(2)

A04 May.27, 2008

Add CTV Model 170V9FB/93(2)

A05 Jun.13,2008

A06 July 10, 2008

A07 July.18.2008

A08 Aug 10,2008

Add CTV Model 170V9FB/94(2), 170V9FB/00(2), 170V9FB/05(2) and

update the spare parts by FN/ECR.

Add CTV Model 170V9FB/62(2)

Change Panel 750GLU70G1D3QN,

Change FFC for 170V9FB/94

Add CTV Model 170V9FB/27(2)

Update BOM for 170V9FB/94(2)

Update BOM for 170V9FB/27(2),170V9FB/93(2),170V9FB/94(2)

Add FFC for 170V9FB/93(2), 170V9FB/97(2)

750GLU70G1D4QN 7

http://www.wjel.net

HUDSON 9

3

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all Philips Company Equipment. The service

procedures recommended by Philips and described in this service manual are effective methods of performing

service operations. Some of these service operations require the use of tools specially designed for the purpose.

The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read

in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways

in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has

not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is

not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of

the equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, Philips Company will be referred to as Philips.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics may create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from Philips.

Philips assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiation when open. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION

OF THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth

http://www.wjel.net

may damage the panel.)

4

1. Monitor Specifications

HUDSON 9

http://www.wjel.net

(

HUDSON 9

5

2. LCD Monitor Description

The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic,

brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips

each voltage.

Power board

Include: adapter, inverter)

AC-IN

100V-240V

Monitor Block Diagram

CCFL Drive.

Key Board

Flat Panel and

CCFL backlight

Main Board

HOST Computer

RS232 Connector

For white balance

adjustment in factory

mode

Video signal, DDC

http://www.wjel.net

6

HUDSON 9

3. Operating Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at the front of the

panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

The power cord should be connected.

-

Connect the video cable from the monitor to the video card.

-

Press the power button to turn on the monitor, the power indicator will light up.

-

3.2 Control Buttons

Front View

http://www.wjel.net

Rear View

HUDSON 9

7

http://www.wjel.net

8

3.3 Adjusting the Picture

Description of the On Screen Display

When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls

HUDSON 9

window will pop up and you can then start making adjustments to your monitor's various features. Use the

make your adjustments.

keys to

To Lock/Unlock OSD function (User Mode)

The OSD function can be locked by pressing “MENU” button for more than 10 seconds.

Locked OSD function can be released by pressing “MENU” button for more than 10 seconds again.

http://www.wjel.net

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want

to work your way around the different adjustments later on.

HUDSON 9

9

http://www.wjel.net

10

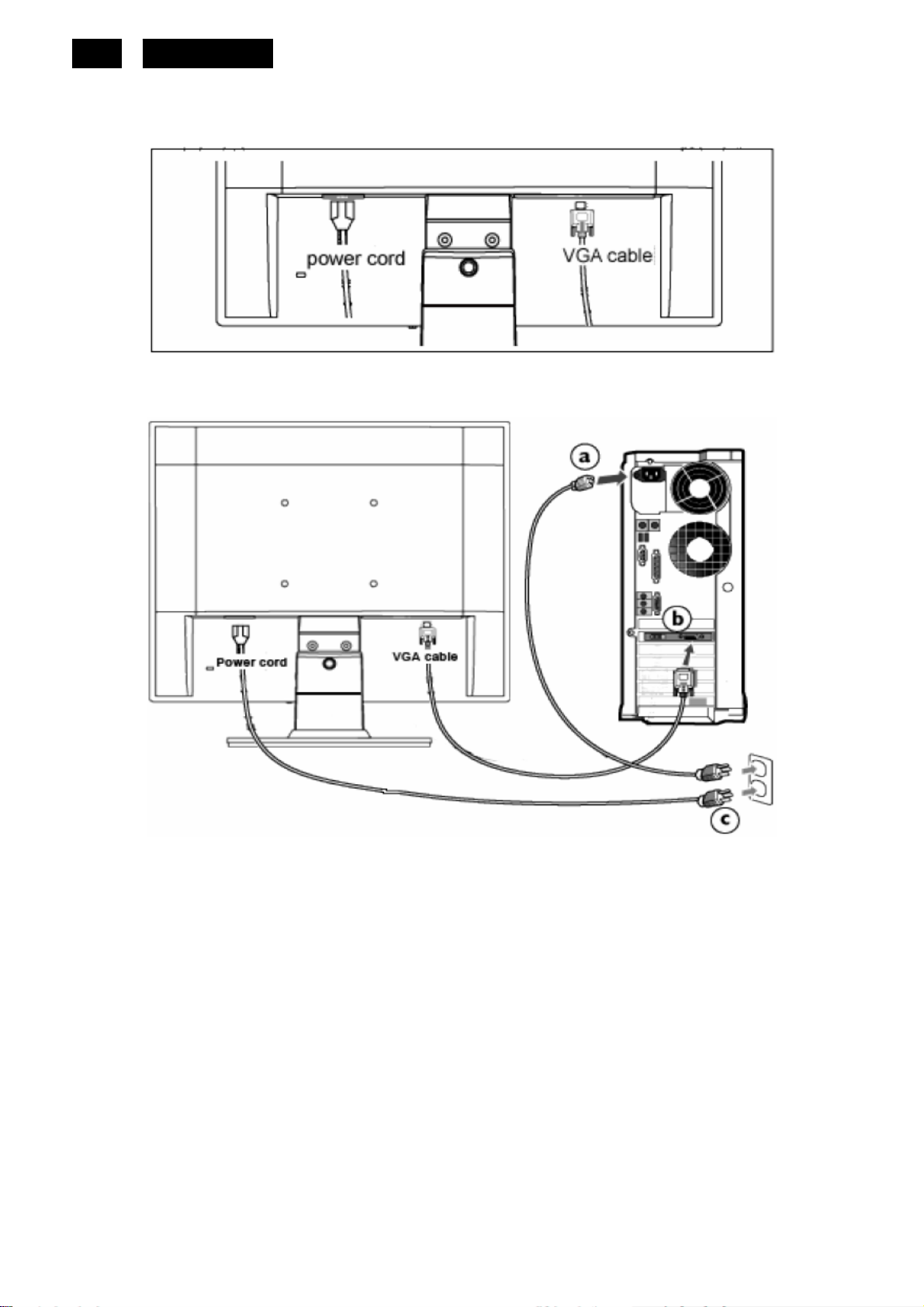

3.4 Connecting to the PC

1) Connect the power cord to the back of the monitor firmly.

HUDSON 9

2) Connect to PC

(a) Turn off your computer and unplug its power cable.

(b) Connect the monitor signal cable to the video connector on the back of your computer.

http://www.wjel.net

(c) Plug the power cord of your computer and your monitor into a nearby outlet.

(d) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

4. Input/ Output Specification

4.1 Input Signal Connector

Analog connectors

Pin No. Description Pin No. Description

1. Red video input 9. DDC+5V

2. Green video input/SOG 10. Logic Ground

3. Blue video input 11. Ground

4. Sense (GND) 12. Serial data line (SDA)

5. Cable detect (GND) 13. H. Sync/ H+ V.Sync

6. Red video ground 14. V. Sync

7. Green video ground 15. Data clock line (SCL)

8. Blue video ground

VGA connector layout

HUDSON 9

11

4.2 Factory Preset Display Modes

http://www.wjel.net

12

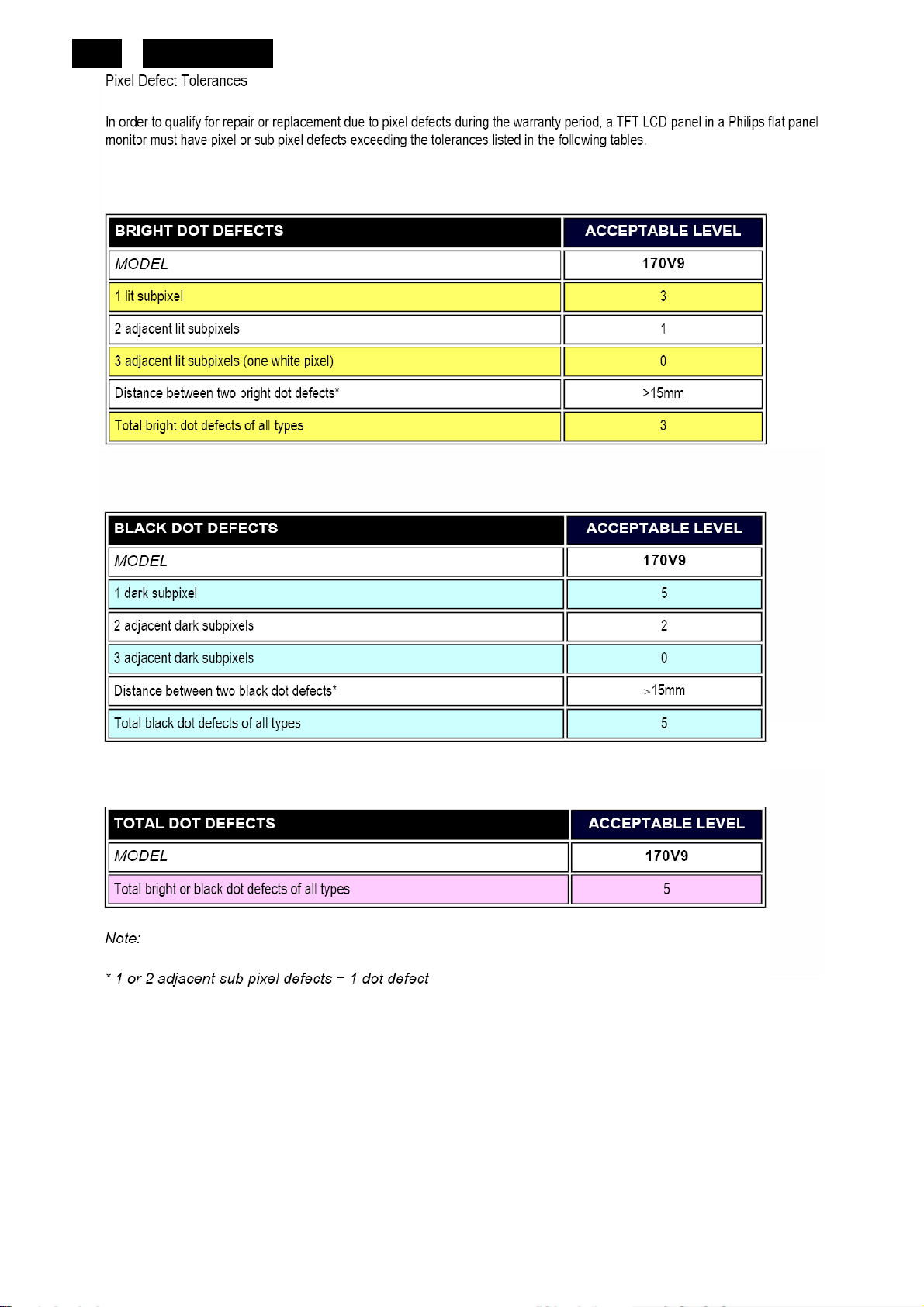

4.3 Pixel Defect Policy

HUDSON 9

http://www.wjel.net

HUDSON 9

13

http://www.wjel.net

14

HUDSON 9

http://www.wjel.net

g

g

g

g

g

4.4 Failure Mode Of Panel

Quick reference for failure mode of LCD panel



this pa

e presents problems that could be made by LCD panel.
It is not necessary to repair circuit board. Simply follow the mechanical
instruction on this manual to eliminate failure by replace LC D panel.

Polarizer has bubbles

HUDSON 9

15

Failure description

Vertical block defect

Vertical dim lines

Vertical lines defect
(Always bri

Horizontal block defect

ht or dark)

Phenomenon

Polarizer has bubbles

Foreign material inside
polarizer. It shows liner or
dot shape.

Concentric circle formed

Horizontal dim lines

Horizontal lines defect
(Always bri

Has bri

ht or dark)

ht or dark pixel

Bottom back light of LCD is
brighter than normal

Back light un-uniformity

http://www.wjel.net

ht has foreign material.

Backli
Black or white color, liner or
circular type

16

HUDSON 9

5. Block Diagram

5.1 Software Flow Chat

1

2

N

4

5

Y

6

7

Y

Y

N

N

3

9

10

Y

N

http://www.wjel.net

18

N

12

Y

14

19

N

11

13

15

17

N

Y

N

Y

16

Y

1) MCU initialize.

2) Is the EPROM blank?

3) Program the EPROM by default values.

4) Get the PWM value of brightness from EPROM.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EPROM.

Turn on the LED and set it to green color.

Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are there any signals coming?

HUDSON 9

17

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappear.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

http://www.wjel.net

18

HUDSON 9

5.2 Electrical Block Diagram

5.2.1 Main Board

Keypad Interface

(CN401)

SST25VF010A-33-4C

Flash Memory

(U402)

(Include MCU, ADC, OSD)

Crystal

14.31818MHZ

(X401)

Panel Interface

(CN403)

Scalar TSUM1PFR-LF

(U401)

D-Sub

Connector

(CN101)

H sync

V sync

RGB

EEPROM

M24C16

(U403)

VGA_SDA,

VGA_SCL

VGA_R+,

VGA_G+,

VGA_B+

EEPROM

AZC099-04S

(U103)

EEPROM

AZC099-04S

(U102)

http://www.wjel.net

5.2.2 Inverter/Power Board

AC input

EMI filter

Start Circuit: R904、R905、R906

Bridge
Rectifier
and Filter

PWM
Control IC

Transformer

Rectifier
diodes

Feedback

Circuit

HUDSON 9

16V

19

5V

Lamp

Output

Circuit

Transformer

MOSFET

ON/OFF

Feedback
Circuit

Over
Voltage

PWM
Control IC

ON/OFF
Control

DIM

DIM

http://www.wjel.net

20

HUDSON 9

6. Schematic

6.1 Main Board

715G2904-1

1

2

3

4

5

Top

TSUM16FWR SCHEMATIC

A A

XGA/SXGA

LVDS OUTPUT

DSUB_R+

DSUB_R-

DSUB_G+

DSUB_G-

DSUB_SOG

DSUB_5V

CMVCC1

VCC3.3

B B

DSUB_5V

CMVCC1

VCC3.3

DSUB_B+

DSUB_B-

DSUB_H

DSUB_V

DDC1_SDA

DDC1_SCL

DET_CABLE

DSUB_R+
DSUB_R-

DSUB_G+
DSUB_G­DSUB_SOG
DSUB_B+
DSUB_B­DSUB_H
DSUB_V
DDC1_SDA
DDC1_SCL
DET_CABLE

VCC1.8

VCC3.3

CMVCC

CMVCC1

VCC1.8

VCC3.3

CMVCC

CMVCC1

02.Input

VCC1.8

VCC3.3

DSUB_5V

C C

D D

CMVCC

CMVCC1

VCC1.8

VCC3.3

CMVCC

CMVCC1

05.Power

on_BACKLIGHT

Mute

Volume#

PANEL_ID#DSUB_5V

Adj_BACKLIGHT

VCTRL

on_BACKLIGHT

Mute
Volume#
PANEL_ID#

Adj_BACKLIGHT

VCTRL

03.Scalar

http://www.wjel.net

PA[0..1]

PA[4..9]

PB[0..9]

PPWR_ON#

PA[0..1]

PA[4..9]

PB[0..9]

PA[0..1]

PA[4..9]

PB[0..9]

PPWR_ON#

04.Output

CMVCC

CMVCC

1

2

3

4

5

1

2

3

4

5

6

HUDSON 9

7

8

Input

A A

R101 0R05 1/10W 5%

H_Sync
V_Sync

VCC3.3

R121

R120

GND POWER

DSUB_SDA

DSUB_SCL

VGA_G+

10K 1/16W 5%

R110
100R 1/16W 5%

R113
100R 1/16W 5%

DGND

U103

1

I/O1

I/O4

2

GND

VDD

3 4

I/O2 I/O3

AZC099-04S

U102

1

I/O4

I/O1

2

VDD

GND

3 4

I/O2 I/O3

AZC099-04S

DSUB_SCL VGA_PLUG

H_Sync

6
5

V_Sync

6
5

VGA_B+VGA_R+

15

14

13

12

11

ESD_VCC

ESD_VCC

C115
NC

C114
NC

10K 1/16W 5%

DDC1_SCL5

B B

DDC1_SDA5

C C

D D

DDC1_SCL

DDC1_SDA DSUB_SDA

R105

2K2 1/16W 5%

CN101

10
5
9
4
8
3
7
2
6
1

DB15

17 16

ESD_VCC 5

DSUB_5V

VGA_B­VGA_B+
VGA_G­VGA_G+
VGA_R­VGA_R+

R106
2K2 1/16W 5%

ZD103

UDZSNP5.6B

C102

22pF

1 2

R102 100R 1/16W 5%
R103 100R 1/16W 5%

C103

22pF

DSUB_5V

ZD104
UDZSNP5.6B

1 2

DSUB_5V 5

DSUB_H 5
DSUB_V 5

VGA_B+

VGA_B-

VGA_G+

VGA_G-

VGA_R+

VGA_R-

FB102

1 2

BEAD

FB103

1 2

BEAD

FB101

1 2

BEAD

R107

75R 1/16W 5%

R112

75R 1/16W 5%

R116

75R 1/16W 5%

R104

100R 1/16W 5%

C104

5pF/50V

R108

100R 1/16W 5%

R109

390 OHM 1/16W

R111

100R 1/16W 5%

C108

5pF/50V

R114

100R 1/16W 5%

R115

100R 1/16W 5%

C111

5pF/50V

R117

100R 1/16W 5%

VGA_PLUG

C101

0.047uF

C105

0.047uF

C106

0.047uF

C107

0.047uF

C109

0.047uF

C110

0.047uF

C113

0.047uF

VCC3.3

R118
1K 1/16W 5%

VCC3.3 7

DET_CABLE 5

DSUB_B+ 5

DSUB_B- 5

DSUB_SOG 5

DSUB_G+ 5

DSUB_G- 5

DSUB_R+ 5

DSUB_R- 5

CN101 B3
C101 A7
C102 A4
C103 A4
C104 A6
C105 B7
C106 B7
C107 B7
C108 C6
C109 C7
C110 C7
C111 C6
C113 C7
C114 E3
C115 D3
FB101 C5
FB102 A5
FB103 B5
R101 A3
R102 A4
R103 A4
R104 A6
R105 A3
R106 A3
R107 A6
R108 B6
R109 B6
R110 B2
R111 B6
R112 B6
R113 B2
R114 C6
R115 C6
R116 C6
R117 C6
R118 D7
R120 B2
R121 B2
U102 D2
U103 D2
ZD103 B4
ZD104 B4

21

E E

http://www.wjel.net

1

2

3

4

5

6

7

8

22

HUDSON 9

1

Scalar

2

3

4

5

6

7

8

9

10

11

A A

AVDD

U401

R403 390 OHM 1/16W

C401

0.1uF/16V

R4560R05 1/16W

R4570R05 1/16W

R401

R402

C416

0.1uF/16V

13

RIN0P

12

RIN0M

10

GIN0P

9

GIN0M

11

SOGIN0

8

BIN0P

7

BIN0M

16

HSYNC0

17

VSYNC0

18

DDCA_SDA/RS232_TX

19

DDCA_SCL/rs232_RX

4

REXT

15

REFP

14

REFM

21

SDO

22

SCZ

23

SCK

24

SDI

28

GPIO_P27/PWM1

54

RST

1

XIN

2

XOUT

31

MODE[0]

32

MODE[1]

http://www.wjel.net

C417

R404

0.1uF/16V

10K 1/16W 5%

DSUB_R+3
DSUB_R-3
DSUB_G+3
DSUB_G-3
DSUB_SOG3
DSUB_B+3
DSUB_B-3
DSUB_H3

C411 22pF

C412 22pF

VCC3.3

R427

3.9K OHM 1% 1/16W

C414

0.1uF/16V

DSUB_V3
DDC1_SDA3
DDC1_SCL3

AVDD

R405 100R 1/16W 5%

0R05 1/16W

X401

14.31818MHz

1 2

0R05 1/16W

R428

3.9K OHM 1% 1/16W

C415

0.1uF/16V

B B

C C

D D

E E

F F

G G

H H

VCC3.3

C408

0.22uF16V

R408

10K 1/16W 5%

CMVCC1

CMVCC17

CN401

CONN

C410

10uF/50V

1
2
3
4
5
6

+

NC/10K 1/16W 5%

U402

1

CE#

2

SO

WP

3

WP#

4 5

VSS SI

SST25VF010A-33-4C-SAE

R417

10K 1/16W 5%

R421

HOLD#

VDD

SCK

8
7
6

C413

NC/0.1uF/16V

VDDP

6

51

VDDP

AVDD_ADC

LVDS

GND

GND

GND

5

29573

TSUM1PFR-LF

R407

10K 1/16W 5%

VDDC

30

GPIO_P10/I2C_MCL

GPIO_P11/I2C_MDA

KEY1

POWER_KEY#
LED_GRN/BLUE
LED_ORANGE

53

VDDC

VDDC

GPIO_P15/PWM0
PWM2/GPIO_P24

GPIO_P12

PWM1/GPIO_P25

GPIO_P00/SAR1
GPIO_P01/SAR2

GPIO_P06
GPIO_P07

PWM0/GPIO_P26

GPIO_P13
GPIO_P14

VCTRL

LVA3P
LVA3M

LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M

LVB3P
LVB3M

LVBCKP

LVBCKM

LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M

52

PA0

33

PA1

34

PA4

35

PA5

36

PA6

37

PA7

38

PA8

39

PA9

40

PB0

41

PB1

42

PB2

43

PB3

44

PB4

45

PB5

46

PB6

47

PB7

48

PB8

49

PB9

50

R424 100R 1/16W 5%

20
27

55
56

RSTN

R411 100R 1/16W 5%

58

R412 100R 1/16W 5%

59

R414 120R 1/16W 5%

60

R410 120R 1/16W 5%

61

R418 NC/100R 1/16W 5%

62
63

R419 NC/100R 1/16W 5%

64

Max condition for LED:

1. Vcc = 3.3 V

2. Current = 12 mA
FW need to be
modified.

26

R413 100R 1/16W 5%

25

POWER_KEY#

LED_ORANGE
LED_GRN/BLUE

PA[0..1]

PA[4..9]

PB[0..9]

KEY2
KEY1

LED_GRN/BLUE
LED_ORANGE

R429 NC
R430 NC
R431 NC
R432 NC

R425

NC

PA[0..1] 5

PA[4..9] 5

PB[0..9] 5

KEY_LEFT
KEY_RIGHTKEY2
KEY_AUTO

VCTRL 7

EE_WP

C418

NC

on_BACKLIGHT 7
adj_BACKLIGHT 7

Volume# 7

Mute 7

PPWR_ON# 6
DET_CABLE 4

1
2
3
4
5
6
7
8

CN402

NC \ CONN

VCC3.37

VCC1.87

R426 NC/100R 1/16W 5%

R452 100R 1/16W 5%

R420 NC/100R 1/16W 5%

R451 100R 1/16W 5%

MSCL
MSDA

U403

M24C04-WMN6TP

C419

R424 NC100R 1/16W 5%

R433

100R 1/16W 5%

R434

100R 1/16W 5%

R435

10K 1/16W 5%

R436

10K 1/16W 5%

R437

10K 1/16W 5%

VCC3.3

VDDP

FB401

300OHM

C403

0.1uF/16V

VCC1.8

VDDC

C406

0.1uF/16V

R453

10K 1/16W 5%

PANEL_ID# 7

R454

10K 1/16W 5%

R455

10K 1/16W 5%

EE_WP

MSDA

POWER_KEY#

MSCL

For NVRAM Without NVRAM

NC

0.22uF16V

NC

NC

NC

NC

NC

NC

AVDD

C404

0.1uF/16V

C407

0.1uF/16V

CMVCC

CMVCC 7

R406

10K 1/16W 5%

R409

20K OHM 1/16W

C409 0.1uF/16V

VCC3.3

U403

8

VCC

7

WC

6

SCL

M24C16

When NVRAM is used,
POWER_KEY# and PANEL_ID#
will be used for I2C
Bus.

PANEL_ID# and POWER_KEY#
could be optional.

C429

0.22uF16V

1

NC

2

NC

3

NC

45

VSSSDA

CN401 G1
CN402 G7
C401 C3
C403 A9
C404 A9
C406 B9
C407 B9
C408 C1
C409 D10
C410 D1
C411 D2
C412 D2
C413 H2
C414 H2
C415 H3
C416 H3
C417 H4
C418 C7
C429 E10
FB401 A9
R401 D3
R402 D3
R403 C3
R404 H3
R405 D3
R406 C9
R407 H4
R408 D1
R409 D9
R410 D5
R411 D5
R412 D5
R413 E5
R414 D5
R417 D2
R418 D5
R419 D5
R420 D7
R421 G2
R424 C5
R425 C6
R426 C7
R427 G2
R428 G3
R429 G6
R430 G6
R431 G6
R432 H6
R451 D7
R452 D7
R453 E8
R454 E8
R455 E9
R456 D3
R457 D3
U401 A3
U402 C2
U403 E9
X401 D3

Near to Connect

1

2

3

4

5

6

7

8

9

10

11

1

2

3

4

HUDSON 9

5

23

Output

A A

PA[0..1]5 PB[0..9]5

PA[4..9]5

B B

C C

PPWR_ON#5

PA[0..1]

PA[4..9]

R435

4K7 1/16W 5%

PPWR_ON#

PA0
PA1

PA4
PA5
PA6
PA7
PA8
PA9

R433

10K 1/16W 5%

Q404
PMBS3906

R436

100K 1/16W 5%

PB[0..9]

C419

0.1uF/16V

CMVCC

Q405
AO3401

CMVCC 7

FB402

120OHM

PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9

PANEL_VCC

C421

+

100uF25V

1

G

AO3401L

PANEL_VCC

R434

330 OHM 1/4W

3

D

2

S

C420

0.1uF/16V

PA0
PA1
PB2
PB3
PA4
PA5

PA6
PA7

PA8
PA9
PB0
PB1
PB2
PB3

PB4
PB5
PB6
PB7
PB8
PB9

CN403

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

CONN

CN403 A5
C419 C2
C420 A4
C421 C3
FB402 C3
Q404 C2
Q405 C3
R433 C2
R434 A4
R435 C1
R436 C2

D D

http://www.wjel.net

1

2

3

4

5

24

HUDSON 9

1

2

3

4

5

6

7

8

Power

Due to LG doen't request PC'99 Function.

A A

ESD_VCC 2

CMVCC

CMVCC5, 6

CN404

1
2

CMVCC

3

CONN

4
5
6
7
8
9

BKLT-VBRI
BKLT-EN
C_PANEL_INDEX
Volume
Mute

R450 NC

B B

SM340A

D402

R458

NC

NC(R0402)

DSUB_5V

2

3

PANEL_ID# 5

1

CMVCC1

D401
BAV99

R449

NC

DSUB_5V 2

CMVCC1 5

Mute 5

VCC3.3 VCC3.3

R437

C425

NC

10K 1/16W 5%

Q406
2N3904S-RTK/PS

BKLT-ENCMVCC

R440

4K7 1/16W 5%

R439

10K 1/16W 5%

on_BACKLIGHT 5

LG

OTHER NC

VCTRL5

NC

BAV99

VCC3.3

D401

0Ohm 1/16W

Q410
KN2907AS

Q409
KN2907AS

R458

C432

0.1uF/16V

VCC1.8

C423

+

100uF25V

VCC1.8 5

CN404 B1
C422 D6
C423 B7
C425 B3
C426 D5
C427 D7
C428 D5
C432 B7
D401 A2
D402 B2
FB403 C6
Q406 B4
Q408 D3
Q409 B6
Q410 B6
R437 B4
R439 B4
R440 B4
R441 C1
R442 D1
R446 C3
R447 C4
R448 D4
R449 B3
R450 B2
R458 A2
U404 C6

C C

VCC3.3

R446

R441

1K 1/16W 5%

BKLT-VBRI

D D

R442

100R 1/16W 5%

adj_BACKLIGHT 5

Volume

NC

Q408
NC/2N3904S-RTK/PS

VCC3.3VCC3.3

R448
NC/4K7 1/16W 5%

R447

NC/10K 1/16W 5%

Volume# 5

CMVCC1

+

C426

100uF25V

MVCC

C428

0.1uF/16V

FB403 NC

VIN

VOUT

ADJ(GND)

U404
AP1117D33LA

VCC3.3

3
2
1

C422

0.1uF/16V

+

VCC3.3 4, 5

C427

100uF25V

U404 can use package 232 or 252.

E E

http://www.wjel.net

1

2

3

4

5

6

7

8

6.2 Power Board

715G2824-1

for 170V9FB/97(1)

1

Power

A A

HUDSON 9

2

3

4

5

6

7

8

25

8
7

9
10

12
11

IC903

PC123X2YFZOF

43

12

C924

0.1uF

IC904
AZ431AZ-AE1

R918100 OHM 1/4W

R919100 OHM 1/4W

R920100 OHM 1/4W

R925

1K 1/8W

R926
1K 1/10W 1%

C912

0.001uF

2

3

D906A

FCH10U15

R935 100 OHM 1/4W

R961 100 OHM 1/4W

R962 100 OHM 1/4W

D907
31DQ06FC3

+5V

DIM

ON/OFF

1

1000uF/25V

+5V1

C917

680uF25V

C929

0.001uF

L904

3.5uH

+

C918

+

680uF25V

L903

+

C939

C931

0.1uF

3.5uH

R924

150R 1/8W 5%

MUTE

470uF/16V

PID

VOL

+

C915

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

ZD921
RLZ22B

1 2

R942
1K 1/10W 1%

R946
150OHM2W

Q903
PMBS3904

ZD922
RLZ5.6B

1 2

C932

0.001uF

ZD902
RLZ18B

R943

470R 1/8W

R939
1K 1/8W

R940
NC

R927

2.43K OHM 1% 1/10W

R930

2.43K OHM 1% 1/10W

F903

FUSE

+16V

+5V

BD901 A1 CN901 D1
CN902 D6 C900 D4
C901 D1 C902 D1
C903 C1 C904 B1
C905 B2 C906 B3
C907 B3 C908 B3
C909 C3 C912 A5
C915 B6 C917 B5
C918 B6 C920 D4
C921 C4 C924 C4
C928 C3 C929 B5
C931 E6 C932 B7
C939 B5 D900 B3
D901 B3 D903 C3
D906A B5 D907 B5
FB902 B3 FB903 B4
FB904 A2 F901 D2
F903 B7 IC901 C2
IC903 C4 IC904 C4
L901 B1 L903 B6
L904 A6 NR901 D2
Q901 C3 Q903 B7
R901 C1 R902 C1
R903 B3 R904 B2
R905 B2 R906 B2
R909 B4 R910 C3
R912 C3 R914 C3
R915 C2 R918 A5
R919 A5 R920 A5
R924 B6 R925 C5
R926 C5 R927 C7
R930 D7 R935 B5
R938 C3 R939 B7
R940 B7 R942 C6
R943 B7 R946 A7
R961 B5 R962 B5
T901 B4 ZD902 A7
ZD921 B6 ZD922 B7

FB904

1

!

+

2

-

4

B B

!

C904
NC

1

4

L901

30.0mH

2

3

!

1M 1/4W

!

C901

1000pF

C903

0.47uF/275V

R902

1M 1/4W

!

C C

D D

1 2

BEAD

BD901

KBP208G

3

+

C905

100uF450V

c938

NC

1500P/2KV

!

4 5

RT NC

!

R915

0.047uF/25V

R901

12

NR901

NTCR

!

t

!

F901
FUSE

C902

1000pF

3
2
1

VCC
COMP
GND

LD7552DPS

IC901

R904
300K OHM 1/4W

R905
300K OHM 1/4W

R906
300K OHM 1/4W

CS
VCC
OUT

C928
1000pF

6
7
8

FB902 80OHM

1 2

220 OHM 1/4W

C907

0.1uF

R910

10R 1/4W

R912

C909
470pF/25V

!

T901

POWER X'FMR

4

FB903

1 2

BEAD

R909

5.1 OHM 1/4W

5

6
1

3

!

C921
NC

C900
2200pF 250V

C920
1000pF 250V

R903

C906
1500pF2KV

100K OHM 2W

D901
FR103

C908
22uF/50V

R938
10K 1/8W

D900

PR1007R

Q901

!

STP9NK65ZFP

R914

0.43 5% 2W

+

D903

1N4148W

!

3

12

CN901
SOCKET

E E

http://www.wjel.net

1

2

3

4

5

6

7

8

26

Inverter

HUDSON 9

1

2

3

4

5

6

7

8

+16V

ON/OFF

A A

DIM

PID

R801

2.4K OHM 1/10W

B B

C C

D D

E E

R813
470K 1/10W 5%

C803
NC

R815
NC

R816

10K 1/10W 1%

C804

2.2uF/16V

R814
NC

C805

0.01uF

ZD801
RLZ5.6B

1 2

C806

1uF/16V

R817
1M 1/10W 5%

R850

100K 1/10W 5% /NC

Q801
PMBS3904

R802
22R 1/8W

100K 1/10W 5%

ZD802
RLZ5.6B

5K1 1/8W

1 2

R818

R819

100K 1/10W 5%

C813

33NF 25V

R803

C801

0.047uF

IC801

1

DRV1

PGND

2

VDDA

DRV2

3

TIMER

GNDA

4

DIM

5

ISEN

SSTCMP

6

VSEN

LCT

7

OVPT

ENA

8 9

NC1 NC2

OZ9938GN

R823

510R 1/10W 1%

CT

SST

16
15
14
13
12
11
10

Q802

RK7002

1 2

R825

510R 1/10W 5%

R824

6.8K 1/10W

ZD803
RLZ5.6B

C802

0.047uF

D804 1N4148W

R820
20K 1/10W 5%

C807
1uF

CT

C814
390P 50V

RK7002

Q803

C815 0.047uF

R805
100R 1/10W 5%

D801 1N4148W

R806 100R 1/8W

R804 5K1 1/8W

R807 100R 1/10W 5%

D803 1N4148W

R808 100R 1/8W

R822
20K OHM 1% 1/8W

R821

1M 1/10W 5%

C808
180K 1/10W

C809
560pF50V

D805

1N4148W

R826

1M 1/10W 5%

D802 1N4148W

C811

C812

+

1000uF 25V

CT
SST

C810

0.047uF

0.1uF

3

3

3

D806

D807

D808

10K 1/10W 5%

Q805

4

G

3

S

2

G

1

S

AM4502C-T1-PF

Q806

4

G

3

S

2

G

1

S

AM4502C-T1-PF

2

BAV70

1

2

BAV70

1

2

BAV70

1

R842

5

D

6

D

7

D

8

D

5

D

6

D

7

D

8

D

6.2M OHM 1/2W

R829

6K8 1/8W

R843

10K 1/10W 5%

6

2
5

R828

R830
NC

R844

10K 1/10W 5%

PT801

POWER X'FMR

8

91

62K 1/10W 5%

R838 1M 1/10W 5%

R839 1M 1/10W 5%

R840 1M 1/10W 5%

R841 1M 1/10W 5%

R845

10K 1/10W 5%

C816
22pF/6KV

C824
22pF/6KV

C817

2pF/3KV

C818

220pF

R836

R837
8K2 1/10W

C819
68pF/3KV

LV1

C820
68pF/3KV

L801

LV2

1

Line Filter

2 3

1

NC

R827

2 3

Line Filter

LV1

LV2

LV3

LV4

RST CHIP MAX 0R05 1/10W

C823

NC

Q804
NC

R846

L802

C821
22pF/3KV

LV3

C822
22pF/3KV

R848

NC

4

4

RST CHIP MAX 0R05 1/10W

CN801

1
2

CN802

1
2

CN803

1
2

1
2

CN804

LV4

R847
NC

3

D809

BAV99

1

2

R849

CN801 A7 CN802 A7
CN803 C7 CN804 C7
C801 B3 C802 B3
C803 C1 C804 C1
C805 C2 C806 C2
C807 C3 C808 C3
C809 C4 C810 C4
C811 B4 C812 B4
C813 D2 C814 D3
C815 D4 C816 A6
C817 B6 C818 B6
C819 A7 C820 A7
C821 C6 C822 C7
C823 D6 C824 B6
D801 A4 D802 A4
D803 B4 D804 B4
D805 D4 D806 C4
D807 C4 D808 D4
D809 D7 IC801 C3
L801 B6 L802 B6
PT801 A5 Q801 B2
Q802 D3 Q803 D3
Q804 E7 Q805 A5
Q806 B5 R801 B2
R802 B2 R803 A3
R804 A3 R805 A4
R806 A4 R807 B4
R808 B4 R813 B1
R814 B1 R815 C1
R816 C1 R817 C2
R818 C2 R819 C2
R820 C3 R821 C3
R822 C4 R823 D3
R824 D3 R825 D3
R826 E4 R827 B6
R828 B5 R829 C5
R830 C5 R836 C6
R837 C5 R838 C5
R839 C5 R840 D5
R841 D5 R842 D5
R843 D5 R844 D5
R845 D5 R846 D7
R847 C7 R848 D7
R849 E7 R850 D2
ZD801 B2 ZD802 A2

http://www.wjel.net

1

2

3

4

5

6

7

8

HUDSON 9

715G2824-1-2

for 170V9FB/97(2)

1

A A

FB904

FB904
BEAD

BEAD

4

3

!

C903

C903

0.47uF/275V

0.47uF/275V

1

+

+

-

-

4

1

2

R901

R901

1M 1/4W

1M 1/4W

3

!

!!

1000pF

1000pF

C901

C901

12

1 2

BD901A

BD901A
2A 800V

2A 800V

2

L901L901

F901

F901

FUSE

FUSE

12

NTCR

NTCR

t

t

100uF450V

100uF450V

NR901

NR901

C905A

C905A

C910

C910

0.047uF

0.047uF

+

+

C928

C928
1000pF

1000pF

C938

C938

NC/1500pF2KV

NC/1500pF2KV

U901

U901

RT4NC

3

VCC

2

COMP

1

GND

LD7552DPS

LD7552DPS

!

HS2

HS2
EMI shield (NC/H85G0002-1)

EMI shield (NC/H85G0002-1)

1
2

HS3

HS3
Heat-sink(Q90G6263-6)

Heat-sink(Q90G6263-6)

1
2

1

! !

+

+

2

BD901

BD901

B B

NC/GBU408

NC/GBU408

3

3

-

-

4

!

C C

R902

R902
1M 1/4W

1M 1/4W

D D

E E

C902

C902

1000pF

1000pF

!

CN901

CN901
SOCKET

SOCKET

R904

R904
300K OHM 1/4W

300K OHM 1/4W

R905

R905
300K OHM 1/4W

300K OHM 1/4W

R906

R906
300K OHM 1/4W

300K OHM 1/4W

CS
VCC
OUT

5
6
7
8

2

FB902

FB902
80OHM

80OHM

1 2

ZD906

ZD906

NC/RLZ22B

NC/RLZ22B

C909

C909
470pF/25V

470pF/25V

Heat-sink(Q90G6263-6)

Heat-sink(Q90G6263-6)

1
2

HS5

HS5

Heat-sink(Q90G6263-6)

Heat-sink(Q90G6263-6)

1
2

1206 0 ohm

C907

C907

0.1uF

0.1uF

D903 1N4148WD903 1N4148W

R910

R910

10R 1/4W

10R 1/4W

R912

R912

220 OHM 1/4W

220 OHM 1/4W

HS4

HS4

3

D909

D909

NC/31DQ10FC

NC/31DQ10FC

R918

R925

R925

1K 1/8W

1K 1/8W

C924

C924

0.1uF

0.1uF

R926

R926

R918

R919

R919

R920

R920

3

D906

D906

FCH10A15

FCH10A15

R935100 OHM 1/4WR935100 OHM 1/4W

R961100 OHM 1/4WR961100 OHM 1/4W

R962100 OHM 1/4WR962100 OHM 1/4W

D907

D907

31DQ06FC3

31DQ06FC3

12

FB901NCFB901
NC

R949NCR949

NC

R950NCR950

NC

R951NCR951

NC

C912

C912

0.001uF

0.001uF

2

C917

C917

680uF25V

680uF25V

1

C929

C929

0.001uF

0.001uF

C935

C935

0.001uF(NC)

0.001uF(NC)

2

3

D908NCD908

NC

C906

C906

1500pF2KV

1500pF2KV

+

+

C908

C908

22uF/50V

22uF/50V

D901

D901
FR103

FR103

R938

R938

10K 1/8W

10K 1/8W

!

R903

R903
100KOHM +-5% 2WS

100KOHM +-5% 2WS

D900

D900
FR107

FR107

Q901

Q901
STP10NK70ZFP

STP10NK70ZFP

12

FB903

FB903
BEAD

BEAD

R914

R914

0.39 OHM 2W

0.39 OHM 2W

R909

R909

5.1 OHM 1/4W

5.1 OHM 1/4W

!

T901

T901

POWER X'FMR

POWER X'FMR

4

5

6
1

3

PC123X2YFZOF

PC123X2YFZOF

!

KIA431A-AT/P

KIA431A-AT/P

IC903

IC903

43

IC904

IC904

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

8
7

9
10

12
11

12

1K 1/10W 1%

1K 1/10W 1%

!

C900

C900
3300pF 250V

3300pF 250V

CN902

CN902
CONN

CONN

1
2
3

+5V

DIM

ON/OFF

VOL

http://www.wjel.net

MUTE

+5V1

C931

C931

0.1uF

0.1uF

4
5
6
7
8

9
10
11
12
13

4

L904L904

R946

R946
150 OHM 2W

ZD921

ZD921
RLZ20B

RLZ20B

1 2

R942

R942
1K 1/10W 1%

1K 1/10W 1%

150 OHM 2W

Q903

Q903
PMBS3904

PMBS3904

ZD922

ZD922
RLZ5.6B

RLZ5.6B

1 2

+

+

+

+

C918

C918
680uF25V

680uF25V

L903L903

+

+

C939

C939
1000uF25V

1000uF25V

R924

R924
150R 1/8W

150R 1/8W

1

+

+

C916

C916
NC

NC

+

+

C915

C915

470uF16V

470uF16V

L905L905

NC

C934

C934

+

+

NC

NC

C932

C932

0.001uF

0.001uF

L906NCL906

NC

C930NCC930
NC

5

ZD902

ZD902
RLZ18B

RLZ18B

R943

R943
470R 1/8W

470R 1/8W

R939

R939
1K 1/8W

1K 1/8W

R927

R927

2.43K OHM 1% 1/10W

2.43K OHM 1% 1/10W

R930

R930

2.43K OHM 1% 1/10W

2.43K OHM 1% 1/10W

JUMP

F902NCF902
NC

2A(INVERTER)

1.5A(main PCB )

JUMP

F903

F903
FUSE

FUSE

R940NCR940
NC

3.5A(USB&AUDIO)

+5V1

C940NCC940
NC

CN902 D3 C930 D5
HS3 D2 HS2 D2
C939 B4 HS5 D2
C915 B4 R914 C2
F901 C1 D901 B2
C910 B1 R918 A3
R904 B2 L904 A4
C909 C2 C932 B5
C907 B2 F903 B5
R919 A3 R939 B5

+16V

D900 B2 R905 B2
IC904 C3 C934 D4
C929 B4 C901 C1
L903 B4 C912 A4
C931 D3 C903 C1
R943 A5 R951 C3
BD901 A1 FB901 B3
C918 A4 ZD922 B5

+5V

R961 B3 D903 B2
R938 B2 R912 C2
L901 B1 NR901 C1
ZD906 B2 C935 C4
C916 D4 FB903 C2
R924 B4 R935 B3
R942 C4 C900 C3
R920 A3 R901 C1
C924 C3 HS4 D2
R950 C3 T901 B3
FB902 A2 CN901 D1
C917 A4 R926 C3
ZD902 A5 C940 D5
L906 C5 C905A B1
R909 B3 U901 B2
R940 B5 R927 B5
L905 C4 C906 B2
C928 C2 Q901 B2
C902 C1 BD901A A1
D907 B3 R946 A5
F902 C5 IC903 B3
C908 B2 R949 B3
D909 A3 R962 B3
R925 B3 ZD921 B4
C938 B2 D906 A3
R910 B2 R930 C5
R902 C1 R903 B2
R906 B2 Q903 B5
D908 C4 FB904 A1

27

1

2

3

4

5

28

+16V

A A

B B

C C

D D

Q808

Q808
RK7002

RK7002

ON/OFF

HUDSON 9

1

R808

R808
10K 1/10W 1%

10K 1/10W 1%

R813

R813
100R 1/10W 5%

DIM

R827

R827
1K 1/10W 1%

1K 1/10W 1%

C814

C814

0.1uF/16V

0.1uF/16V

100R 1/10W 5%

68K OHM 1% 1/10W

68K OHM 1% 1/10W

R828

R828

47K 1/10W

47K 1/10W

D807

D807

1N4148W

1N4148W

R836

R836

1M 1/10W 5%

1M 1/10W 5%

R809

R809
1M 1/10W 5%

1M 1/10W 5%

R816

R816

Q802

Q802

PDTC144WK

PDTC144WK

C802

C802

1uF/16V

1uF/16V

C819

C819

1uF/16V

1uF/16V

R820

R820
560K OHM 1/10W

560K OHM 1/10W

D811

D811
1N4148W

1N4148W

2.2uF/16V

2.2uF/16V

1M 1/10W 5%

1M 1/10W 5%

R821

R821

D806

D806

BAW56

BAW56

B

3

C

E

D808

D808
BAW56

BAW56

B

3

C

E

2M 1/10W

2M 1/10W

C808

C808

R818

R818

1

2

1

2

D803

D803
1N4148W

1N4148W

Q803

Q803
PMBS3904

PMBS3904

C806

C806

1uF/16V

1uF/16V

D812

D812
1N4148W

1N4148W

10K 1/10W 5%

10K 1/10W 5%

R823

R823

R822 47K 1/10WR822 47K 1/10W

R829

R829

68K OHM 1% 1/10W

68K OHM 1% 1/10W

C815

C815

0.0022uF

0.0022uF

C818

C818

0.0022uF

0.0022uF

R802

R802
100R 1/8W

100R 1/8W

Q801

Q801
PDTA144WK

PDTA144WK

R819

R819
10K 1/10W 1%

10K 1/10W 1%

R824 10K 1/10W 1%R824 10K 1/10W 1%

R831

R831

10K 1/10W 1%

10K 1/10W 1%

R833

R833

10K 1/10W 1%

10K 1/10W 1%

C813

C813

0.0022uF

0.0022uF

R838

R838

10K 1/10W 1%

10K 1/10W 1%

R840

R840

10K 1/10W 1%

10K 1/10W 1%

C817

C817

0.0022uF

0.0022uF

2

C807

C807

0.1uF/16V

0.1uF/16V

C809 220pFC809 220pF

R817

R817

1M 1/10W 5%

1M 1/10W 5%

DTC

R842

R842
47K 1/10W

47K 1/10W

51K OHM 1% 1/8W

51K OHM 1% 1/8W

1M OHM 1% 1/8W

1M OHM 1% 1/8W

R825

R825

C820

C820

1uF/16V

1uF/16V

OLP1

OLP2

OLP3

OLP4

R815

R815

27K 1/10W

27K 1/10W

56K OHM 1% 1/10W

56K OHM 1% 1/10W

C804

C804

R843

R843

DTC

R814

R814

0.1uF/16V

0.1uF/16V

R826

R826
221KOHM1/8W

221KOHM1/8W

Q807

Q807
PMBS3904

PMBS3904

FB

U801 TL494IDRU801 TL494IDR

1

1IN+

2

1IN-

3

FEEDBACK

4

DTC

5

CT

6

RT

7

GND

8

C1

D813

D813
NC/LL4148

NC/LL4148

NC/RK7002

NC/RK7002

OUTPUT CTRL

Q812

Q812

R853

R853

10K 1/10W 1%

10K 1/10W 1%

16

2IN+

15

2IN-

14

REF

13
12

VCC

11

C2

10

E2

9

E1

3

R805

R805

NC/4K7 1/10W 5%

NC/4K7 1/10W 5%

ZD801

ZD801
NC/RLZ6.8C

NC/RLZ6.8C

1 2

R803

R803
NC /1K 1/10W 5%

NC /1K 1/10W 5%

0.1uF/25V

0.1uF/25V

R852

R852

10K 1/10W 1%

10K 1/10W 1%

D817

D817

NC/SM260A 2A/60V

NC/SM260A 2A/60V

D815

D815

NC / SM260A 2A/60V

NC / SM260A 2A/60V

PMBS3904

PMBS3904

PMBS3906

PMBS3906

C810

C810

12

15R 1/4W 5%

15R 1/4W 5%

C821

C821

1500PF/50V

1500PF/50V

1 2

Q810

Q810

Q805

Q805

R844

R844
22R 1/10W 5%

22R 1/10W 5%

R848

R848
1K 1/10W 1%

1K 1/10W 1%

C827

C827
1500PF/50V

1500PF/50V

1

2

S

G

D8D7D6D

Q809

Q809

AM9945N-T1-PF

AM9945N-T1-PF

R850

R850

Q804

Q804

AM9945N-T1-PF

AM9945N-T1-PF

D8D7D6D

S1G2S3G

R845

R845
68R 1/10W 5%

68R 1/10W 5%

1500PF/50V

1500PF/50V

3

4

S

G

5

R810

R810

15R 1/4W 5%

15R 1/4W 5%

C803

C803

1500PF/50V

1500PF/50V

5

D814

D814
NC/SM260A 2A/60V

NC/SM260A 2A/60V

1 2

C805

C805

4

470uF/25V

470uF/25V

R846

R846
68R 1/10W 5%

68R 1/10W 5%

C828

C828

12

0.1uF/25V

0.1uF/25V

D816

D816
NC/SM260A 2A/60V

NC/SM260A 2A/60V

4

+

+

C823

C823

0.1uF/25V

0.1uF/25V

Q811

Q811

PMBS3904

PMBS3904

Q806

Q806
PMBS3906

PMBS3906

C816

C816

1500PF/50V

1500PF/50V

R837

R837
15R 1/4W 5%

15R 1/4W 5%

C824

C824

R851

R851
15R 1/4W 5%

15R 1/4W 5%

C822

C822

1500PF/50V

1500PF/50V

R847

R847

22R 1/10W 5%

22R 1/10W 5%

R849

R849

1K 1/10W 1%

1K 1/10W 1%

+

+

C811

C811

470uF/25V

470uF/25V

T801

T801

6

3

4

1 8

POWER X'FMR

POWER X'FMR

T802

T802

6

3

4

1 8

POWER X'FMR

POWER X'FMR

5

D802

D802
BAV99

BAV99

D810

D810
BAV99

BAV99

2

2

R801 0R05 1/8WR801 0R05 1/8W

4

1

R804 0R05 1/8WR804 0R05 1/8W

R807

R807
1K 1/8W

1K 1/8W

3

1

R830 0R05 1/8WR830 0R05 1/8W

4

1

R832 0R05 1/8WR832 0R05 1/8W

R835

R835
1K 1/8W

1K 1/8W

3

1

7

C801

C801
18pF/3KV

18pF/3KV

C825

C825
18pF/3KV

18pF/3KV

R806

R806
1K 1/8W

1K 1/8W

3

1

C812

C812

18pF/3KV

18pF/3KV

C826

C826

18pF/3KV

18pF/3KV

3

1

OLP1 OLP2

R811

R811
1K5 1/8W

1K5 1/8W

R834

R834
1K 1/8W

1K 1/8W

OLP3

R839

R839
1K5 1/8W

1K5 1/8W

D801

D801
BAV99

BAV99

2

FB

7

D809

D809
BAV99

BAV99

2

FB

3

2

R812

R812
1K5 1/8W

1K5 1/8W

3

2

OLP4

R841

R841
1K5 1/8W

1K5 1/8W

L801

L801
NC / L

NC / L

L802

L802
NC / L

NC / L

1
2

1
2

1
2

1
2

http://www.wjel.net

1

2

3

4

5

CN801

CN801
CONN

CONN

HV
LV

CN802

CN802
CONN

CONN

HV
LV

CN803

CN803
CONN

CONN

HV
LV

CN804

CN804
CONN

CONN

HV
LV

C822 D4 R811 A5
D813 A3 D808 C1
C810 C3 Q811 B4
R850 A4 C820 C2
D810 D5 C804 B2
R832 C5 R820 B1
C802 A1 R836 C1
R838 C2 R835 C5
C809 C2 C821 A4
D809 D4 R804 A5
R842 B2 R808 A1
C815 C2 R845 B4
R830 C5 R826 C2
R827 C1 C814 C1
D801 A4 R841 D5
R817 A2 C812 C4
R815 A2 R833 C2
C813 C2 D802 A5
R821 B1 Q808 C1
C827 C3 R844 B3
L802 C5 D806 C1
Q807 C2 R843 C2
C818 D2 Q806 B4
R812 A5 R816 B1
C808 C2 R810 A4
Q801 A2 T802 C4
C817 D2 R848 C3
C825 A4 Q809 C3
R831 C2 D816 C4
R851 C4 Q805 B3
R805 A3 C824 C4
R823 C2 R819 B2
R847 B4 C806 B2
C823 B4 R853 B3
R846 B4 D817 C3
R822 C2 R813 A1
D812 B2 CN803 C5
R837 C4 R839 D5
R828 C1 D814 B4
C826 C4 R849 C4
R824 C2 Q804 B4
Q803 A2 C805 B4
C811 C4 R807 A5
R809 A1 R818 B2
ZD801 A3 C801 A4
D815 B3 R802 A2
C819 B1 R801 A5
T801 A4 CN801 A5
C807 B2 Q802 A1
R840 D2 D811 B1
U801 B3 Q810 B3
C803 A4 R825 C2
D807 C1 R834 C5
R829 C2 R814 A2
L801 A5 Q812 A3
CN804 C5 C828 C4
C816 C4 CN802 A5
R803 A3 R852 C3
D803 A2 R806 A5

HUDSON 9

6.3 Key Board

715G3016-1

1

A A

2

3

4

5

6

7

29

8

LED_RED#

CN001

LBADC1

1

LBADC2

2

DC_POWERON

CONN

3
4
5
6

LED_GRN#
LED_RED#

SGND

C001

NC/0.001uF

C002

NC/0.001uF

C003

NC/0.001uF

B B

C C

D D

CONNECTOR

(MENU) LED(Power)

E E

(OK)(UP) (DOWN)

LED_GRN#

1

3

LED001

LED

2

R007 0R05 1/4W

C004

NC/0.001uF

C005

NC/0.001uF

R001 4.3K OHM 1% 1/8W

R002 2.4K OHM 1% 1/8W

R003 910R 1/8W

R004 4.3K OHM 1% 1/8W

R005 2.4K OHM 1% 1/8W

ZD002NC/UDZS5.6B

C007NC/0.1uF

SGND SGND

GND

SW005

3 4

SW002

ZD004NC/UDZS5.6B

3 4

DOWN

21

5

SW

OK

21

5

SW

C008NC/0.1uF

SW004

UP

21

5

SW

ZD005NC/UDZS5.6B

C009NC/0.1uF

3 4

SW001

MENU

21

5

SW

ZD001NC/UDZS5.6B

C006NC/0.1uF

3 4

SGND SGND SGNDSGND SGND SGNDSGND

SGND

CN001 B1 C001 B2
C002 B2 C003 B3
C004 B3 C005 B4
C006 C7 C007 C5
C008 C5 C009 C6
C010 C8 LED001 A3
R001 B4 R002 B4
R004 B4 R005 B4
R007 C3 SW001 C7
SW002 C6 SW003 C8
SW004 C6 SW005 C5
ZD001 C7 ZD002 C5
ZD003 C8 ZD004 C5

SW003

SW

ZD003NC/UDZS5.6B

C010NC/0.1uF

3 4

http://www.wjel.net

POWER

21

5

1

2

3

4

5

6

7

8

30

HUDSON 9

7. PCB Layout

7.1 Main Board

715G2904-1

C101 B2 FB101 B2 R418 B1

C102 B2 FB102 B2 R419 B1

C103 B2 FB103 B2 R420 B1

C104 B2 FB401 B2 R421 B1

C105 B2 FB402 A2 R424 B2

C106 B2 FB403 A1 R425 B2

C107 B2 FDT2 ?1 R426 A2

C108 B2 FDT3 ?6 R427 B1

C109 B2 Q404 A2 R428 B1

C110 B2 Q405 A2 R429 B1

C111 B2 Q406 B1 R430 B1

C113 B2 Q408 B1 R431 B1

C114 B2 Q409 A1 R432 B1

C115 B2 Q410 A1 R433 A2

C401 B2 R101 B2 R434 A2

C403 B1 R102 B2 R435 A2

C404 B2 R103 B2 R436 A2

C406 A2 R104 B2 R437 B1

C407 A1 R105 B2 R439 B1

C408 A2 R106 B2 R440 A1

C409 A1 R107 B2 R441 A1

C410 A1 R108 B2 R442 A1

C411 B1 R109 B2 R446 B1

C412 B1 R110 B2 R447 B1

C413 B1 R111 B2 R448 B1

C414 B1 R112 B2 R449 B1

C415 B1 R113 B2 R450 B1

C416 B1 R114 B2 R451 B1

C417 B1 R115 B2 R452 A2

C418 B2 R116 B2 R453 B2

http://www.wjel.net

C419 A2 R117 B2 R454 B2

C420 A2 R118 B2 R455 B2

C427 B1 R404 B1 SEN3 A2

C428 B1

R405 B2

SEN4 B1

C429 B2

R406 A1

U102 B2

C432 A1

R407 B1

U103 B2

CN101 B2

R408 B2

U401 A2

CN401 B1

R409 B1

U402 A2

CN402 B1

R410 B1

U403 B2

CN403 A1

R411 B1

U404 B1

CN404 A1

R412 B1

X401 B1

D401 B2

R413 A2

ZD103 B2

D402 A1

R414 B1

ZD104 B2

D403 B1

R417 A1

HUDSON 9

31

http://www.wjel.net

32

HUDSON 9

7.2 Power Board

715G2824-1

for 170V9FB/97(1)

BD901 D3 J821 B2

BD901A D3 J823 B1

BD901B D3 J824 B2

C604 D4 J825 C2

C812 B2 J826 D1

C816 C1 J829 C4

C817 B1 J830 D1

C819 A1 J831 D1

C820 B1 J832 D4

C821 C1 J833 D3

C822 C1 J834 D1

C824 C1 J835 D4

C900 B3 J836 C4

C901 D2 J837 D4

C902 D2 J838 D4

C903 D2 J901 C4

C905 C3 J902 C3

C905A C3 J903 C3

C906 B3 J904 B2

C908 C2 J905 B3

C915 A4 J906 B2

C916 A4 J907 A2

C917 A2 J908 A2

C918 A2 J909 A4

C920 B2 J910 A4

C921 B4 J911 B4

C934 B4 J912 B4

C938 C3 L801 A1

C939 B3 L802 D1

http://www.wjel.net

CN601 D3 L901 D2

CN602 D4 L903 A3

CN801 A1 L904 A3

CN802 B1 L905 B4

HUDSON 9

33

C601 D3 R818 A2

C602 D4 R819 A2

C603 D4 R820 A2

C606 D3 R821 A2

C608 D3 R822 B2

C609 D3 R823 A2

C610 D3 R824 A2

C611 D3 R825 B2

C612 D3 R826 B2

C613 D3 R827 D1

C801 B2 R829 C1

C802 C2 R830 C1

C803 B2 R836 B1

C804 B2 R837 A1

C805 A2 R838 A1

C806 B2 R839 A1

C807 A2 R840 A1

C808 A2 R841 A1

C809 B2 R842 A1

C810 A2 R843 A1

C811 B2 R844 A1

C813 A2 R845 A1

C814 B2 R846 D1

C815 B2 R847 D1

C818 B1 R848 D1

C823 D1 R849 D1

C907 C3 R850 A2

C909 C3 R901 C2

C912 A2 R902 D2

C924 B2 R904 C3

C928 C3 R905 C3

C929 A3 R906 C3

C930 B4 R909 B3

C931 A4 R910 C3

C932 A3 R912 C3

http://www.wjel.net

C935 B4 R915 C3

C940 C4 R918 B2

D801 C2 R919 B2

D802 B2 R920 B2

D803 C2 R924 B2

D804 C2 R925 B2

D805 B2 R926 B2

D806 A2 R927 B2

D807 A1 R930 B2

D808 A2 R935 B3

D809 D1 R938 B4

D903 C3 R939 A3

FB902 C3 R940 B2

IC801 B2 R942 B2

IC901 C3 R943 A3

J802 A2 R949 B4

Q601 D3 R950 B4

Q801 A2 R951 B4

Q802 B2 R961 B3

Q803 B2 R962 A3

Q804 D1 RJ610 D3

Q805 B2 RJ801 A2

Q806 C2 RJ802 A2

Q903 A3 RJ804 D1

R601 C4 RJ805 A2

R602 D4 RJ901 C3

R603 D4 SG12 =4

R604 D3 SG13 D2

R605 D3 SG14 D2

R606 D3 SG15 D2

R607 D3 SG16 D2

R608 D3 SG18 D1

R609 D3 SG19 D2

R610 C4 SG20 D2

R801 A2 SG21 D2

R802 A2 SG22 D2

R803 C2 SG23 D2

R804 C2 SG24 D2

R805 C2 SG25 D2

R806 B2 SG26 C2

R807 C2 SG27 C2

R808 C2 ZD801 A2

R813 A2 ZD802 C2

R814 A2 ZD803 C2

R815 B2 ZD902 A3

R816 B2 ZD921 B2

R817 A2 ZD922 B2

34

HUDSON 9

for 170V9FB/97(2)

715G2824-1-2

BD901 D3 BD901A D3
C1 B4 C2 C3
C3 E2 C4 E2
C5 E2 C6 E1
C7 D3 C8 E2
C9 E2 C10 D3
C11 C2 C604 D4
C605 E3 C801 B1
C805 C2 C811 C2
C812 C1 C825 C1
C826 D1 C900 B4
C901 E1 C902 E2
C903 D2 C905 C3
C905A D3 C906 C3
C908 C2 C915 A3
C916 A4 C917 A2
C918 A3 C934 B4
C938 D3 C939 B3
CN601 E3 CN602 E4
CN801 B1 CN802 A1
CN803 E1 CN804 D1
CN901 E2 CN902 A4
D900 C3 D901 C2
D906 B2 D907 A3
D908 B4 D909 A3
F901 E2 F902 C4
F903 A4 FB1 A1
FB602 E4 FB901 B4
FB903 D4 FB904 C3
IC601 E4 IC903 C3
IC904 B2 J1 D3
J2 D3 J3 E3
J4 A1 J22 D1

J23 D1 J24 D1
J25 C1 J27 E1
J28 D1 J29 B1
J30 C1 J31 B1
J32 B1 J34 A1
J35 A1 J36 D1
J601 E3 J602 E4
J603 E4 J604 D4
J605 E4 J606 E4
J801 E1 J802 E1
J803 D2 J804 C2
J806 B2 J807 C2
J809 C2 J810 C2
J811 B2 J812 B2
J813 B2 J814 B2
J815 A2 J816 A1
J817 A2 J818 A1
J819 A2 J820 A1
J821 E1 J822 D2
J823 C2 J901 D4
J902 D3 J903 D3
J904 B3 J905 B3
J906 C4 J907 A2
J910 A4 J911 B4
J912 B4 J915 C2
L801 A1 L802 E1
L901 D2 L903 A3
L904 A3 L905 B4
L906 A4 NR901 E2
Q901 C4 R903 C3
R914 D4 R946 A3
T801 B1 T802 C1
T901 B3

http://www.wjel.net

C601 E4 C602 E4
C603 E4 C606 E4
C608 E4 C609 E4
C610 E3 C611 E3
C612 E4 C613 E4
C802 A2 C803 C1
C804 A2 C806 A2
C807 A2 C808 A2
C809 B2 C810 B2
C813 A1 C814 B1
C815 A1 C816 C1
C817 E1 C818 E1
C819 A2 C820 B2
C821 B1 C822 D1
C823 C2 C824 C2
C827 C2 C828 D2
C907 C3 C909 D3
C910 D3 C912 B3
C924 B3 C928 C3
C929 A3 C930 B4
C931 A4 C932 A3
C935 B4 C940 C4
D801 A1 D802 A1
D803 A2 D806 A1
D807 B1 D808 E1
D809 E1 D810 E1
D811 A2 D812 B2
D813 A2 D814 C2
D815 C2 D816 D2
D817 D2 D903 C4
FB902 C3 Q607 D4
Q608 E4 Q801 A2
Q802 A2 Q803 A2
Q804 C2 Q805 B2
Q806 C2 Q807 B2
Q808 B1 Q809 D2
Q810 B2 Q811 C2
Q812 A1 Q903 A3
R601 D4 R602 E4
R603 E4 R604 E3
R605 E3 R606 E3
R607 E3 R608 E3
R609 E4 R610 D4
R611 D4 R612 E4
R801 A1 R802 A2
R803 A2 R804 A1
R805 A2 R806 A1

HUDSON 9

R807 A1 R808 A2
R809 A2 R810 C1
R811 A1 R812 A1
R813 A2 R814 A2
R815 A2 R816 A2
R817 A2 R818 A2
R819 A2 R820 A1
R821 A2 R822 B2
R823 A2 R824 A2
R825 B2 R826 B2
R827 B1 R828 B1
R829 B2 R830 E1
R831 A1 R832 E1
R833 A1 R834 E1
R835 E1 R836 B1
R837 C1 R838 E1
R839 E1 R840 E1
R841 E1 R842 B2
R843 B2 R844 B2
R845 B2 R846 C2
R847 C2 R848 B2
R849 C2 R850 B1
R851 D1 R852 B2
R853 B2 R901 D2
R902 E2 R904 C3
R905 D3 R906 C3
R909 C3 R910 C4
R912 D3 R918 B3
R919 B3 R920 B3
R924 B3 R925 B3
R926 B3 R927 B2
R930 B3 R935 B3
R938 C4 R939 A3
R940 B2 R942 B3
R943 A3 R949 B4
R950 B4 R951 B4
R961 B3 R962 B3
RJ610 E3 RJ801 E1
RJ802 E1 RJ803 D2
RJ804 B2 RJ805 B2
RJ806 C2 RJ807 B1
RJ808 A1 RJ809 A2
RJ810 A1 RJ901 C3
U801 A2 U901 C3
ZD801 A2 ZD902 A3
ZD906 C3 ZD921 B2
ZD922 B2

35

http://www.wjel.net

36

HUDSON 9

7.3 Key Board

715G3016-1

CN001 A3

GND1 A1

GND2 A3

LED001 A2

SW001 A1

SW002 A2

SW003 A1

SW004 A2

SW005 A3

C001 A3

C002 A2

C003 A2

C004 A3

C005 A1

C006 A1

C007 A3

C008 A2

C009 A2

C010 A1

R001 A1

R002 A1

R003 A2

R004 A2

R005 A2

R007 A3

http://www.wjel.net

ZD001 A1

ZD002 A3

ZD003 A1

ZD004 A2

ZD005 A2

6

A

HUDSON 9

37

8. Wiring Diagram

CN802

CN801

CN804

CN803

Power Board

CN901

CN902

C IN

1

14Pin

14

HARNESS 14P (SAN)-9P

95G 82014X507

HARNESS6P (SANW)-6P

95G820H 6X508

89G179E30N568

FFC Cable

30

30 Pin

CN403

1

1

9Pin

9

1

Pin

6

CN404

6

CN401

Main Board

TSUM1PFR-LF

U401

CN101

D-SUB

6

Pin

Key Board

1

CN001

Note: The wiring diagram can be used for 170V9FB/97(1) and 170V9FB/97(2). The differences between

170V9FB/97(2) and 170V9FB/97(1) are the wire harness and FFC cable. Noted in the diagram are for

170V9FB/97(1). The FFC cable for 170V9FB/97(2) is 089G179J30N568.

http://www.wjel.net

38

HUDSON 9

9. Scalar Board Overview

DC-DC Converters

DC-DC Converters

D-SUB

Morning Star chip

D-SUB

http://www.wjel.net

EEPROM

Flash ROM

HUDSON 9

39

10. Mechanical Instructions

1. Back View as Fig1

Place the monitor face down on a smooth surface as Fig 1. Be careful to avoid scratch and injury during the

uninstallation.

Fig1

2. Remove the hinge as Fig2.

Remove the three screws remarked in red to remove the hinge as Fig2.

http://www.wjel.net

Fig2

40

3. Remove bezel and rear cover as Fig3~ Fig5.

HUDSON 9

Fig3

http://www.wjel.net

Fig4

Fig5

HUDSON 9

41

4. Remove main frame cover as Fig6~Fig7.

a. Remove the two screws marked in red as Fig6.

b. Disconnect the four connector marked in blue as Fig6.

c. Remove the two screws marked in red as Fig7.

Fig6

http://www.wjel.net

Fig7

42

5. Remove power board as Fig8.

a. Remove the two screws marked in red as Fig8.

b. Disconnect the connector marked in blue as Fig8.

6. Remove scalar board as Fig9~Fig10.

HUDSON 9

Fig8

a. Remove the screw remarked in red as Fig9.

b. Disconnect the two connectors marked in blue as Fig9.

c. Remove the two screws remarked in red as Fig10.

Fig9

http://www.wjel.net

Fig10

11. Trouble Shooting

This page deals with problems that can be corrected by a user. If the problem still persists after you

have tried these solutions, contact Philips customer service representative.

HUDSON 9

43

http://www.wjel.net

44

HUDSON 9

http://www.wjel.net

HUDSON 9

45

12. Repair Flow Chart

12.1 Main Board

(1). No Power

No power

Press power key and look

if the picture is normal

NG

Please reinsert and make sure

the AC of 100-240 is normal

OK

NG

Reinsert or check the

Adapter/Inverter section

Measure U404 PIN2=3.3V

Q409 V

OK

collector

=1.8V

NG

Check U404, Q409 and Q410

X401 oscillate waveforms

are normal

NG

OK

Replace X401

http://www.wjel.net

Replace U401

46

(2). No Picture

No picture

HUDSON 9

The button if

under control

OK

Measure U404 PIN2=3.3V

Q409 V

OK

X401 oscillate

waveform is normal

collector

NG

NG

=1.8V

Check U404, Q409 and Q410

X401 oscillate

waveform is normal

Check reset circuit of

U401 is normal

Replace U401

OK

OK

NG

NG

Replace X401

Check Correspondent
component

OK

NG

Replace X401

Check HS VS from

Replace U401

CN101 is normal

OK

Replace U401

NG

Check Correspondent
component

http://www.wjel.net

p

p

(3). White screen

HUDSON 9

47

Check Correspondent
com

onent.

White screen

Measure Q404 base

is low level?

OK

Check Q404, Q405 is broken

or CN403 solder?

NG

OK

Replace Panel

NG

X401 oscillate
waveform is normal

NG

OK

Check reset circuit of

U401 is normal

NG

OK

Replace U401

Replace X401

Check Correspondent
com

onent.

http://www.wjel.net

48

HUDSON 9

11.2. Power/Inverter Board

(1) No power

Check ZD902 (-) = 16V

NG

Check AC line volt 110V or 220V

OK

NG

Check AC input

Check the voltage of C905 (+)

OK

NG

Check bridge rectified circuit and F901 circuit

Check start voltage for the pin3 of IC901

OK

NG

Check R904, R905, R906 and Change IC901

Check the auxiliary voltage is bigger than

10V and smaller than 20V

OK

NG

1) Check IC901

2) Check R909, D901 circuit

Check IC901 pin8 PWM wave

http://www.wjel.net

OK

NG

Check IC901

Check Q901, D903, IC903, IC904, ZD921, ZD922

(2) W / LED, No Backlight

HUDSON 9

49

Check CN902 pin4 = 16V

OK

NG

Check adapter or MB

Check ON/OFF signal

OK

NG

Check Interface board

Check IC801 PIN2=5V

OK

NG

Check Q801 and ZD801

Check IC801 PIN1, 15 have the output of square wave at short

OK

NG

Change IC801

Check Q805 and Q806 PIN5, 6, 7, 8 have the output of square wave at short time.

NG

OK

Check Q805, Q806

Check the output of PT801

http://www.wjel.net

OK

NG

Change PT801

Check connecter & lamp

50

12.3 Key Board

HUDSON 9

Is Key Pad Board connecting normally?

OSD is unstable or not working

Y

Is Button Switch normally?

Y

Is Key Pad Board normally?

Y

N

Connect Key Pad Board

N

Replace Button Switch

N

Replace Key Pad Board

Check Main Board

http://www.wjel.net

HUDSON 9

51

13. ISP Instruction

1. When do the part, need the tools as follow:

a. An i486 (or above) personal computer or compatible.

b. Microsoft operation system Windows 95/98/2000/XP.

c. “ PORT95NT.exe” program

d. Software ISP SN Alignment kits

The kit contents:

a. ISP BOARD x1

b. Printer cablex1

c. VGA cable x1

2. Install the “PORT95NT.EXE”, and restart the computer.

You must install the

at the first. The processing as follows:

http://www.wjel.net

52

HUDSON 9

http://www.wjel.net

HUDSON 9

53

http://www.wjel.net

54

HUDSON 9

http://www.wjel.net

Click to complete the installation.

HUDSON 9

55

Note: After installation, you must restart the PC to take the setup to effect.

3. Connect the ISP board as follow:

Connect to

the PC LPT

http://www.wjel.net

Connect to the

Philips 170V9

56

4. The process of ISP write is as follows.

HUDSON 9

a. Double-click ，running the program as follows:

http://www.wjel.net

b. Click icon, search the program” 170V9_TSUM1PFR_LM170E03_Q2PowerBoard_20080520_V101”,

and click open:

HUDSON 9

57

c. Click icon. If connects success, it will show as the follow picture:

http://www.wjel.net

58

d. Click icon and click icon. If burn in success, it will show as the follow picture:

HUDSON 9

http://www.wjel.net

HUDSON 9

59

14. DDC Instruction

General

DDC Data Re-programming

In case the main EEPROM with Software DDC which store all factory settings were replaced because a defect,

repaired monitor’ the serial numbers have to be re-programmed.

It is advised to re- soldered the main EEPROM with Software DDC from the old board onto the new board if

circuit board have been replaced, in this case the DDC data does not need to be re-programmed.

Additional information about DDC (Display Data Channel) may be obtained from Video Electronics Standards

Association (VESA). Extended Display Identification Data (EDID) information may be also obtained from

VESA.

1. An i486 (or above) personal computer or compatible.

2. Microsoft operation system Windows 95/98/2000/XP.

3. “ PORT95NT.exe, WinDDC_ setup” program.

4. Software OSD SN Alignment kits

The kit contents:

a. OSD SN BOARD x1

b. Printer cablex1

c. VGA cable x1

d. Digital cable x1

e. 12V DC power source

1. Install the “PORT95NT.EXE”, and restart the computer.

The process of installing “PORT95NT” has been specified in Item12, so it will not be specified again. If you

have any problem, please read it in Item12.

http://www.wjel.net

60

2. Install the “WinDDC_ setup”

HUDSON 9

Second, you must install the

. The processing as follows:

http://www.wjel.net

HUDSON 9

61

http://www.wjel.net

62

Click to complete the installation.

HUDSON 9

3. Connect the DDC board as follow:

When you write analog

EDID, Connect this port

to the Philips 170V9’s

VGA port

12V Input

http://www.wjel.net

Connect to the

PC LPT

4. Take analog DDC write for example, as follow

HUDSON 9

63

a. Double-click

，appear as follow Figs：

http://www.wjel.net

64

b. Click , then click “OK”. It will appear as follow.

HUDSON 9

c. Double-click , appear as follow Figs：

http://www.wjel.net

d. Key “1”, press “Enter” key, and key 14 numbers after “Input Serial Number” as follow,

HUDSON 9

65

e. Now analog DDC Write completes, as bellow,

http://www.wjel.net

66

HUDSON 9

170V9 EDID

Analog

128 bytes EDID Data (Hex):

x0 x1 x2 x3 x4 x5 x6 x7 x8 x9 xA xB xC xD xE xF

0: 00 FF FF FF FF FF FF 00 41 0C 1F C0 E0 D9 01 00
10: 17 0D 01 03 0E 22 1B 78 2A AD B0 A2 57 4A 9C 25
20: 11 50 54 BF EF 80 71 4F 81 40 81 80 01 01 01 01
30: 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
40: 13 00 52 0E 11 00 00 1E 00 00 00 FF 00 31 32 33
50: 31 33 32 33 31 32 31 33 31 32 00 00 00 FC 00 50
60: 68 69 6C 69 70 73 20 31 37 30 56 0A 00 00 00 FD
70: 00 38 4C 1E 53 0E 00 0A 20 20 20 20 20 20 00 0D

Decoded EDID data

<---Header--->

Header: 00 FF FF FF FF FF FF 00

<-x-Header-x->

<---Vendor/Product Identification--->
ID Manufacturer Name: PHL
ID Product Code: C01F
ID Serial Number: e0d90100
Week of Manufacture: 23
Year of Manufacture: 2003
<-x-Vendor/Product Identification-x->

<---EDID Structure Version/Revision--->
EDID Version#: 01
EDID Revision#: 03
<-x-EDID Structure Version/Revision-x->

<---Basic Display Parameters/Features--->
Video i/p definition: Analog
Signal Level Standard: 0.700V/0.300V(1.000Vpp)
Setup: Blank-to-Black not expected
Separate Sync Support: Yes
Composite Sync Support: Yes
Sync. on green video supported:Yes
Serration of the Vsync.Pulse is not required.
Max. H. Image Size : 34cm.
Max. V. Image Size : 27cm.
Display Gamma: 2.2
DPMS Features, Stand-by: No.
DPMS Features, Suspend: No.
DPMS Features, Active off: Yes.
Display Type: R.G.B color display.
Standard Default Color Space: R.G.B color.
Preferred Timing Mode: In First Detailed Timing.
GTF supported: No.
<---Basic Display Parameters/Features--->

<---Color Characteristics--->
Red x: 0.6347656250
Red y: 0.3417968750

http://www.wjel.net

Green x: 0.2929687500
Green y: 0.6103515625
Blue x: 0.1464843750
Blue y: 0.0693359375
White x: 0.3125000000
White y: 0.3281250000
<-x-Color Characteristics-x->

<---Established Timings--->
Established Timings 1: BF

-720x400 @70Hz VGA,IBM

-640x480 @60Hz VGA,IBM

-640x480 @67Hz Apple,Mac II

-640x480 @72Hz VESA

-640x480 @75Hz VESA

-800x600 @56Hz VESA

-800x600 @60Hz VESA
Established Timings 2: EF

-800x600 @72Hz VESA

-800x600 @75Hz VESA

-832x624 @75Hz Apple,Mac II

-1024x768 @60Hz VESA

-1024x768 @70Hz VESA

-1024x768 @75Hz VESA

-1280x1024 @75Hz VESA
Established Timings 3: 80

-1152x870 @75Hz Apple,Mac II
<-x-Established Timings-x->

<---Standard Timing Identification--->

-1152x864 @75 Hz

-1280x960 @60 Hz

-1280x1024 @60 Hz
<-x-Standard Timing Identification-x->

<---Detailed Timing Descriptions--->
Detailed Timing: 1280x1024 @ 60Hz.
<-x-Detailed Timing Descriptions-x->

<---Detailed Timing Descriptions--->
Detailed Timing: FF (Monitor SN) '123132312131'
Detailed Timing: FC (Monitor Name) 'Philips 170V'
Detailed Timing: FD (Monitor limits)
Min. V. rate: 56Hz
Max. V. rate: 76Hz
Min. H. rate: 30KHz
Max. H. rate: 83KHz
Max. Pixel Clock: 140MHz
<-x-Detailed Timing Descriptions-x->

Extension Flag: 00
Checksum: 0D

http://www.wjel.net

HUDSON 9

67

68

HUDSON 9

15. White Balance, Luminance Adjustment

1. Apparatuses and program: analyzer CA-210, PC, tool, FGA adjustment program (PHILIPS170V9.DDCI),

Pattern generator.

2. Equipment installation:

a. Connect analyzer CA-210 to PC by USB connector, install drive program CA-SDK Ver4.00 for CA-210 and

restart PC after finish installing.

b. Install Port95NT drive program, set PC printer connector mode as ECP mode and restart PC after finish

installing.

c. Connect tools as follow:

(Note: It is not necessary to connect Port2)

3. Adjustment

Preparation before adjustment:

(1) Monitor should be warmed up for more than half an hour.

(2) Make sure that the tools are connected right and drive programs have been installed OK.

Adjustment process:

(1) Press the power of CA-210, shut off the lens, press 0-Cal and open the lens after analyzer reset.

(2) Start white balance adjustment program, select the right parameter according with the program and click OK.

(3) Make sure that the lens of CA-210 aims at the center of the screen, then click Start and start adjusting.

(4) After finish adjusting, the adjustment program displays pass, and the Start Button is changed to Next, which

means you can adjust another monitor.

http://www.wjel.net

HUDSON 9

69

4. Color Temp confirmation

Connect the signal to the monitor, the monitor display white-picture, use CA-210 to measure the Color Temp of the

screen center and select the OSD to make sure whether the Color Temps accord with the SPEC.

http://www.wjel.net

70

HUDSON 9

16. Monitor Exploded View

1

170V9

A

1

5432

2

4

6

5

87

A

B

C

D

8

E

Item

1

BEZEL

2

PANEL
SCALAR BOARD ASSY

3

POWER BOARD ASSY

4
5

F

REAR COVER 170V9

6

STAND_BASE ASS'Y

7

KEY BOARD ASSY

KEY PAD

8

Part No.

http://www.wjel.net

12

3

3

7

6

45

6

7

8

B

C

D

E

F

HUDSON 9

71

17. Recommended & Spare Parts List

170V9FB/97(1)

Item Location Philips 12NC PCM Codes Description Remark

1 FQ106 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V)

2 E750 750GLU70G1D3QN PANEL M170EG01 VD0B FQ AUO

2 E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO

3 FQ002 996510014909 CBPC7AM5P1Q1 SCALER BOARD ASSY AUO

4 FQ003 996510014911 PWPC7941MQAJ POWER BOARD ASSY(AUO)

5 FQ105 996510014904 Q34G0272ADT 2B0100 REAR COVER 170V9

6 FQ103 996510014906 705GQ834027 STAND_BASE ASS'Y

7 FQ004 996510014830 KEPC7QV9 KEY BOARD ASSY

8 FQ405 996510014903 Q33G0170ADT 1L0100 KEY PAD

E08902 996510014810 089G 725HAA DB D-SUB CABLE(AUO)

E08907 996510014899 089G179E30N568 FFC CABLE(AUO)

E08901 996510015663 089G404A15N IS POWER CORD

E08901 996510017347 089G404A15N YH POWER CORD 2nd source

FQ201 996520034000 Q40G 17N81332A RATING LABEL

FQ205 996510015862 705GQ8CS003 CUSHION ASSY

FQ202 996510015867 Q44G7089813 1A 17"LCD CARTON

FQ203 996510015864 Q45G 88609 96 EPE BAG FOR MONITOR

FQ204 996510015865 Q70G170081318A CD MANUAL

FQ108 996510014907 Q34G0267ADT 1B0100 STAND

FQ107 996510014818 Q34G0266ADT 1B0100 STAND TOP

FQ109 996510014820 Q34G0367ADT 1B0133 BASE

http://www.wjel.net

FQ110 996510014908 Q37G0074011 HINGE

IC801 996500036059 056G 608 10 0Z9938(AUO)

IC901 996510014843 056G 379 98 IC LD7552DPS SOP-8(AUO)

72

HUDSON 9

IC903 996500036055 056G 139 3A PC123Y22FZOF

IC904 996510002780 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

U102 996510014826 056G 662 13 IC AZC099-04S SOT23-6L

U103 996510014826 056G 662 13 IC AZC099-04S SOT23-6L

U401 996510014825 056G 562557 IC TSUM1PFR-LF

U402 996510014910 705GQ756434 MCU ASS'Y AUO

U403 996500037783 056G1133 56 M24C16-WMN6TP

U404 996510005697 056G 563 52 IC AP1117D33LA TO252-3L ATC

X401 996510014824 093G 22 53 J 14.31818MHZ/32PF/49US

T901 996510014838 080GL22T 3 N XFMR 510uH YUVA-822

PT801 996510014840 S80GL19T32V TRANSFORMER ASSY

PT801 996510014836 080GL19T 32 DN XFMR 787mH TK.2027R.101

F903 996510013724 084G 56 4 B FUSE 4A 250V

F901 996510013724 084G 56 4 B FUSE 4A 250V

http://www.wjel.net

170V9FB/97(2)

Item Location Philips 12NC PCM Codes Description Remark

1 FQ106 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V)

2 E750 996510017346 750GLC170A7P13M0PH PANEL CLAA170EA07P 8H4 FZ CPT

2 E750 996510017345 750GLC170A7P12M0PH PANEL CLAA170EA07P 8H4 WJ CPT

2 E750 996510017349 750GLC170A7P23M0PH PANEL CLAA170EA07P 8J4 FZ CPT

2 E750 996510017348 750GLC170A7P22M0PH PANEL CLAA170EA07P 8J4 WJ CPT

2 E750 996510016076 750GLG170E3G23M0PH PANEL LM170E03-TLG2 GZ LPL 3rd source

2 E750 996510016077 750GLG170E3G43M0PH PANEL LM170E03-TLG4 GZ LPL 3rd source

3 FQ002 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY CPT

3 FQ002 996510017838 CBPC8GM5P1Q1 SCALER BOARD ASSY LPL

4 FQ003 996510017350 PWPC8742CQA8 POWER BOARD ASSY

4 FQ003 996510017837 PWPC8742LQBY POWER BOARD ASSY 3rd source

5 FQ105 996510014904 Q34G0272ADT 2B0100 REAR COVER 170V9

6 FQ103 996510014906 705GQ834027 STAND_BASE ASSY

7 FQ004 996510014830 KEPC7QV9 KEY BOARD ASSY

8 FQ405 996510014903 Q33G0170ADT 1L0100 KEY PAD

U401 996510014825 056G 562557 IC TSUM1PFR-LF 3rd source

U402 996510017354 705GQ756071 MCU ASSY CPT

U402 996510017840 705GQ856009 MCU ASS'Y LPL

U403 996500037783 056G1133 56 M24C16-WMN6TP

U404 996510005697 056G 563 52 IC AP1117D33LA TO252-3L ATC

X401 996510014824 093G 22 53 J 14.31818MHZ/32PF/49US

F901 996510017352 084G 56 3 B FUSE 3.15A 250V

F903 996510017352 084G 56 3 B FUSE 3.15A 250V

T801 996510017351 080GL20T510 DN XFMR INVERTER 142UH

T802 996510017351 080GL20T510 DN XFMR INVERTER 142UH

T901 996510014838 080GL22T 3 N XFMR 510UH YUVA-822

U801 996510006256 056G 379 22 IC TL494IDR SOIC-16

http://www.wjel.net

HUDSON 9

73

74

HUDSON 9

U901 996510014843 056G 379 98 IC LD7552DPS SOP-8

IC903 996500036055 056G 139 3A PC123Y22FZOF

IC904 996500036054 056G 158 12 KIA431A-AT/P TO-92

U102 996510014826 056G 662 13 IC AZC099-04S SOT23-6L 3rd source

U103 996510014826 056G 662 13 IC AZC099-04S SOT23-6L 3rd source

FQ107 996510014818 Q34G0266ADT 1B0100 STAND TOP

FQ108 996510014907 Q34G0267ADT 1B0100 STAND

FQ109 996510014820 Q34G0367ADT 1B0133 BASE 190VW

FQ110 996510014908 Q37G0074011 HINGE

FQ202 996510015867 Q44G7089813 1A 17"LCD CARTON

FQ203 996510015864 Q45G 88609 96 EPE BAG FOR MONITOR

FQ204 996510015865 Q70G170081318A CD MANUAL

FQ205 996510015862 705GQ8CS003 CUSHION ASSY

E08901 996510015663 089G404A15N IS POWER CORD

E08902 996510014809 089G 725CAA DB D-SUB WIRE

E08902 996510014810 089G 725HAA DB D-SUB CABLE 3rd source

E08907 996510014900 089G179J30N568 FFC CABLE

E08907 996510014899 089G179E30N568 FFC CABLE 3rd source

E08907 996510017569 089G179W30N568 FFC CABLE

Service Kit

Description Philips 12NC PCM Codes Remark

DDC KIT 9965 000 43197 715L2005C2 FOR ALL MODEL

OSD SN KIT 9965 000 43252 715GT033 C FOR ALL MODEL

FOR ALL HUDSON 7

NOVATEK ISP KIT 9965 000 43198 715LT035A

MSTAR ISP KIT 996510010027 715GT039 A 200CW8 190VW9 170V9
REALTEK ISP KIT 996510010027 715GT039 A 170CW8

http://www.wjel.net

FOR 170A8, 190B8, 150S8,
170S8,190S8, 170V8,190V8

HUDSON 9

75

18. Different Parts List

The BOMS of 170V9FB/62(1) and 170V9FB/00(1) are the same as 170V9FB/97(1).

Diversity of 170V9FB/27(1) compared with 170V9FB/97(1)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

E08901 089G402A15N CX POWER CORD 996510015663 089G404A15N IS POWER CORD

Diversity of 170V9FB/00(1) compared with 170V9FB/97(1)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

E08901 089G410A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

Diversity of 170V9FB/05(1) compared with 170V9FB/97(1)

170V9FB/27(1) 170V9FB/97(1)

170V9FB/00(1) 170V9FB/97(1)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

E08901 089G410A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

Diversity of 170V9FB/93(1) compared with 170V9FB/97(1)

170V9FB/93(1) 170V9FB/97(1)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

FQ106 996510017836 Q34G0369ADTF1B0130 BEZEL 170V9 996510017733 Q34G0369ADTE1B0130 BEZEL L17-8QPH1(HUDSON9-170V)

FQ202 996510015863 Q44G7089813 2A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON

FQ301 996510015859 089G414A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

FQ206 996510015861 Q41G780081369A QSG

170V9FB/05(1) 170V9FB/97(1)

http://www.wjel.net

76

HUDSON 9

Diversity of 170V9FB/94(1) compared with 170V9FB/97(1)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

FQ301 996510015866 089G417A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

170V9FB/94(1) 170V9FB/97(1)

Diversity of 170V9FB/05(2) compared with 170V9FB/97(2)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

FQ301 089G410A15N IS POWER CORD WALL-OUT FOR UK 996510015663 089G404A15N IS POWER CORD

170V9FB/05(2) 170V9FB/97(2)

Diversity of 170V9FB/27 (2) compared with 170V9FB/97(2)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

E08901 089G402A15N CX POWER CORD 996510015663 089G404A15N IS POWER CORD

FQ202 Q44G7089813 3A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON

FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY

170V9FB/27(2) 170V9FB/97(2)

FQ002 KEPC7QV9 KEY BOARD ASSY 996510014830 KEPC7QV9 KEY BOARD ASSY

E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO

E750 750GLV170G1D31N000 PANEL TPM170E5(EG01) VD0B FQ TPV

Diversity of 170V9FB/62 (2) compared with 170V9FB/97(2)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

FQ205 705GQ834027 STAND_BASE ASS'Y 996510014906 705GQ834027 STAND_BASE ASSY

FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY 996510017353 CBPC7CM5P1Q1 SCALER BOARD ASSY

E750 750GLU70G1D4QN PANEL M170EG01 VD0C FQ AUO

E750 750GLV170G1D31N000 PANEL TPM170E5(EG01) VD0B FQ TPV

170V9FB/62(2) 170V9FB/97(2)

http://www.wjel.net

HUDSON 9

77

Diversity of 170V9FB/93(2) compared with 170V9FB/97(2)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

FQ106 996510015860 Q34G0369ADTD1B0130 BEZEL 170V9

FQ106 Q34G0369ADTF1B0130 BEZEL 170V9

FQ202 996510015863 Q44G7089813 2A 17"LCD CARTON 996510015867 Q44G7089813 1A 17"LCD CARTON

E08901 996510015859 089G414A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

FQ002 CBPCRM5P1Q1 SCALER BOARD ASSY CBPC8GM5P1Q1 SCALER BOARD ASSY

FQ206 996510015861 Q41G780081369A QSG

E750 750GLV170G1D31N000 TPM170E5 VD0B FQ TPV

170V9FB/93(2) 170V9FB/97(2)

996510017733 Q34G0369ADTE1B0130

BEZEL
L17-8QPH1(HUDSON9-170V)

Diversity of 170V9FB/94(2) compared with 170V9FB/97(2)

Location

Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description

E750 996510017540 750GLC170A7P12N000 CLAA170EA07P 8H4 WJ CPT 996510017345 750GLC170A7P12M0PH CLAA170EA07P 8H4 WJ CPT

170V9FB/94(2) 170V9FB/97(2)

E750 996510017541 750GLC170A7P13N000 CLAA170EA07P 8H4 FZ CPT 996510017346 750GLC170A7P13M0PH CLAA170EA07P 8H4 FZ CPT

E750 996510017542 750GLC170A7P22N000 CLAA170EA07P 8J4 WJ CPT 996510017348 750GLC170A7P22M0PH CLAA170EA07P 8J4 WJ CPT

E750 996510017543 750GLC170A7P23N000 CLAA170EA07P 8J4 FZ CPT 996510017349 750GLC170A7P23M0PH CLAA170EA07P 8J4 FZ CPT

FQ106 996510014905 Q34G0369ADTC1B0130 BEZEL 996510017733 Q34G0369ADTE1B0130

FQ301 996510015866 089G417A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD

BEZEL
L17-8QPH1(HUDSON9-170V)

http://www.wjel.net

78

HUDSON 9

19. General Product Specification

CONTENTS

1 FOREWORD

2 PRODUCT PROFILE

2.1 LCD

2.2 SCANNING FREQUENCIES

2.3 AMBIENT TEMPERATURE: 0 °C - 40 °C

3 ELECTRICAL CHARACTERISTICS

3.1 INTERFACE SIGNALS

3.2 INTERFACE

3.3 SOFTWARE CONTROL FUNCTIONS VIA OSD /CONTROL ADJUSTABLE FUNCTIONS

3.4 TIMING REQUIREMENT

3.4.1 Mode storing capacity

3.4.2 Factory preset modes (9 modes)

3.4.3 Software control functions via OSD / control adjustable functions

3.4 HORIZONTAL SCANNING

3.6 VERTICAL SCANNING

3.7 POWER INPUT CONNECTION

3.8 POWER MANAGEMENT

3.9 VGA DISPLAY IDENTIFICATION

3.10 DDC/ CI SUPPORT

3.11 EDID

3.12 HOT-KEY DEFINITION

4 VISUAL CHARACTERISTICS

4.1 TEST CONDITIONS

4.2 BRIGHTNESS

4.3 IMAGE SIZE

4.4 BRIGHTNESS UNIFORMITY

4.5 CHECK CROSS TALK (S)

4.6 WHITE COLOR ADJUSTMENT

5 MECHANICAL CHARACTERISTICS

5.1 COSMETIC PHILIPS ID

5.2 MECHANICAL DATA FILES PROE FILES REQUIRED

5.3 LOCATION OF PHILIPS LOGO PER PHILIPS MAKE-UP SHEET

http://www.wjel.net

5.4 GAP BETWEEN PANEL AND FRONT BEZEL 1.4MM (TYPE)

5.5 LOCATION OF CONTROL ICONS- PER PHILIPS GRAPHIC SHEET

5.6 COLOR FOR RESIN/PAINT PER PHILIPS MAKE-UP SHEET

5.7 RESINS

5.8 IF RAINT IS USED

5.9 PLASITIC MOLD TOOLING

5.10 PLASTICS FLAMMABILITY

5.11 TEXTURE/GLOSSING OF HOUSING

5.12 TILT BASE

5.13 KENNSINGTON LOCK

5.14 LABEL

5.15 PRODUCT DIMENSION/WEIGHT/ WEIGHT (REFER TO PHILIPS APPROVED SHT 191)

5.16 TRANSPORTATION

5.16.1 Transportation packages

5.16.2 Transportation Test

5.17 PALLET/CONTAINER LOADING (REFER TO PHILIPS APPROVED SHT 560)

6. ENVIRONMENTAL CHARACTERISTICS

6.1 SUSCEPTIBILITY OF DISPLAY TO EXTERNAL ENVIRONMENT

6.2 TRANSPORTATION TESTS

6.3 DISPLAY DISTURBANCES FROM EXTERNAL ENVIRONMENT

6.4 DISPLAY DISTURBANCES TO EXTERNAL ENVIRONMENT

7. RELIABILITY

7.1 MEAN TIME BETWEEN FAILURES

8. QUALITY ASSURANCE REQUIREMENTS

8.1 ACCEPTANCE TEST

9. PHILIPS’ FLAT PANEL MONITORS PIXEL DEFECT POLICY

HUDSON 9

79

10. REGULATORY COMPLIANCE

10.1 WORLDWIDE REGULATORY

10.2 EMC REQUIREMENTS

10.3 ROHS

10.4 WEEE

10.5 ONGOING REGULATORY

http://www.wjel.net

80

1. FOREWORD

HUDSON 9

This specification describes a 17" SXGA multi-scan color TFT LCD monitor with maximum resolution up to 1280 x

1024 /76 Hz non-interlaced. All optical characteristics (including WHITE-D, Brightness, and so on) are determined

according to panel specification after warming up approximate 30 minutes that brightness stability is optimal, and

follow strictly after panel specification.

2. PRODUCT PROFILE

This display monitor unit is a color display monitor enclosed in PHILIPS styling cabinet which has an integrated tilt

base.

2.1 LCD

Priority : AUO/CPT

Type : TN + film

AUO M170EG01 VD0B/VD0C

Resolution : 1280 x 1024 (SXGA)

Outside dimensions :

Pitch ( mm ) : 0.264 mm x 0.264 mm

Color pixel arrangement : RGB vertical stripes

Display surface : Hard coating (3H), Anti-glare treatment of the front polarizer

Color depth : 16.7M colors (RGB 6-bits+FRC data)

Backlight : CCFL edge light system

Active area(WxH) : 337.9*270.3

View angle (CR>10) : 170/160(Typ)

Contrast ratio : 1000:1(typ)

White luminance : 300nits(typ)

Color gamut : NO Define

Gate IC :

Source IC :

Response time : 5ms

MTBF : 50000 hours

CPT CLAA170EA07P-8H4/8J4

Resolution : 1280 x 1024 (SXGA)

Outside dimensions :

Pitch ( mm ) : 0.264 mm x 0.264 mm

Color pixel arrangement : RGB vertical stripes

http://www.wjel.net

Display surface : Anti-glare

Color depth : 16.7M (6 Bit+Hi-FRC)

Backlight : CCFL, 4 tables, edge-light(top*2/bottom*2)

Active area(WxH) : 337.9*270.3

View angle (CR>10) : 160/160(Typ)

Contrast ratio : 800:1(typ)

White luminance : 300nits(typ)

Color gamut : >=72%

Response time : 5ms (typ.)

MTBF : 40000 hours

2.2 Scanning frequencies

HUDSON 9

81

Hor. : 30 – 83 K Hz

Ver.: 56 - 76 Hz

Video dot rate: < 140 MHz

Power input: 90-264 V AC, 50/60 ± 2 Hz

Power consumption : <40W maximum,< 36W ( Typ.)

Functions:

(1) D-SUB analog R/G/B separate inputs, H/V sync separated, Composite (H+V) TTL level, SOG sync

2.3 Ambient temperature: 0 °C - 40°C

3. Electrical characteristics

3.1 Interface signals

1). D-Sub Analog

Input signal : Video, Hsync., Vsync

Video : 0.7 Vp-p, input impedance, 75 ohm @DC

Sync. : Separate sync TTL level , input impedance 2.2k ohm terminate

Hsync Positive/Negative

Vsync Positive/Negative

Composite sync TTL level, input impedance 2.2k ohm terminate (Positive/Negative)

Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive)

3.2 Interface

3.2.1 D-Sub Cable

Length : 1.5 M +/- 50 mm

Fix with monitor when packing, with transplant pin protective cover.

Connector type : D-Sub male with DDC2B pin assignments.

Blue connector thumb-operated jack screws

Pin assignments:

Pin No. Signal

http://www.wjel.net

1 Red

2 Green/ SOG

3 Blue

4 Sense (GND)

5 Cable Detect (GND)

6 Red GND

7 Green GND

8 Blue GND

9 DDC +3.3V or +5V

10 Logic GND

11 Sense (GND)

12 Bi-directional data

13 H/H+V sync

14 V-sync

15 Data clock

82

3.3 Software control functions via OSD / control adjustable functions:

Please refer to following Hudson8 OSD definitions

3.4 Timing requirement

Factory Preset mode definition :

1. Perfect FOS while presenting all required timings.

2. Required timings need to be specified in User's Manual

User mode

1. Can be showed (not over scalar or Panel spec.)

2. It needs to reserve the 20 timings space in memory size.

3.4.1 Mode storing capacity

Factory preset modes : 9

User modes : 20

Note: 1. Screen displays perfect picture at 9 factory-preset modes.

HUDSON 9

2. Screen displays visible picture with OSD warning when input modes are the 29 preset modes.

3.4.2 Factory preset modes (9 modes)

Factory modes and preset modes are defined in the following timing table file.

Resolution

DOS 640x350/70 25.18 31.47 70.09 449 p / n

DOS 720x400/70 28.32 31.47 70.09 449 n / p

DMT 4:3 640x480/60 25.18 31.47 59.94 525 n / n

MAC 640x480/67 30.24 35.00 66.67 525 n / n

DMT 4:3 640x480/72 31.50 37.86 72.81 520 n / n

DMT 4:3 640x480/75 31.50 37.50 75.00 500 n / n

DMT 4:3 800x600/56 36.00 35.16 56.25 625 p / p

DMT 4:3 800x600/60 40.00 37.88 60.32 628 p / p

DMT 4:3 800x600/72 50.00 48.08 72.19 666 p / p

DMT 4:3 800x600/75 49.50 46.88 75.00 625 p / p

MAC 832x624/75 57.28 47.73 74.55 667 n / n

DMT 4:3 1024x768/60 65.00 48.36 60.00 806 n / n

DMT 4:3 1024x768/70 75.00 56.48 70.07 806 n / n

DMT 4:3 1024x768/75 78.75 60.02 75.03 800 p / p

DMT 1152x864/75 108.00 67.50 75.00 900 p / p

MAC 1152x870/75 100.00 68.68 75.06 915 n / n

SUN 1152x900/66 92.94 61.80 65.95 937 p / p

SUN 1152x900/76 105.56 71.71 76.05 943 p / p

CVT 16:9 1280x720/60 74.50 44.77 59.86 748 n / p

CVT 16:9 1280x720/75 95.75 56.46 74.78 755 n / p

CVT 15:9 1280x768/60 79.50 47.78 59.87 798 n / p

CVT 15:9 1280x768/75 102.25 60.29 74.89 805 n / p

CVT 1280x800/60 83.50 49.70 59.81 831 n / p

CVT 1280x800/75 106.50 62.80 74.93 838 n / p

DMT 4:3 1280x960/60 108.00 60.00 60.00 1000 p / p

DMT 5:4 1280x1024/60 108.00 63.89 60.02 1066 p / p

SUN 5:4 1280x1024/66 117.00 71.70 67.00 1067 p / p

DMT 5:4 1280x1024/75 135.00 79.98 75.03 1066 p / p

SUN 5:4 1280x1024/76 138.01 81.10 76.00 1066 n / n

http://www.wjel.net

Pixel Rate

( MHz )

Horizontal

( KHz )

Vertical

( Hz )

V_total
( Line )

Polarity

( H / V )

3.4.3 Software control functions via OSD / control adjustable functions:

Any deviation, then refer to PVT Exit sample.

Please refer to following Hudson8 OSD definitions

Level 1 Level 2 Level 3 Default

Picture Brightness (0~100) 100

Contrast (0~100) 50

Color Color Temp. (5000K,6500K,7500K,8200K,9300K,11500K) 6500K

sRGB

User Define (Red:0~100) 100

(Green:0~100) 100

(Blue:0~100) 100

Language English (English)

Espanol

Francais

Deutsch

Italiano

HUDSON 9

83

Portugues

Russia

S.Chinese

OSD Setting Horizontal (0~100) 50

Vertical (0~100) 50

Transparency (Off, 1, 2, 3, 4) Off

OSD Time out (5, 10, 20, 30, 60) 20

Setup Phase (0~100)

Clock (0~100)

H.Position (0~100)

V.Position (0~100)

Reset (Yes, No) No

Resolution Notification (On, Off)

Information

Power On Logo : Power On Æ show up Philips logo 3 seconds Æ change to input signal .

Off

http://www.wjel.net

84

3.5 Horizontal scanning

Sync polarity : Positive or Negative

Scanning frequency : 30 – 83 K Hz

3.6 Vertical scanning

Sync polarity : Positive or Negative

Scanning frequency : 56 - 76 Hz

3.7 Power input connection

Power cord length : 1.5 M

Power cord type : 3 leads power cord with protective earth plug.

3.7 Power management

The monitor must comply with the Microsoft on Now specification, and meet EPA requirements.

HUDSON 9

Mode HSYNC VSYNC Video Power-cons. Indication Rec. time

Power-On On On active

off Off Off blanked < 1W Amber LED < 3 s

DC Power Off N/A < 1W LED Off

< 40W Max.

<36W Typ.

Green LED --

3.9 VGA Display identification

In accordance with VESA Display Channel Standard Ver.1.0 and DDC 2B capability

3.10 DDC/ CI Support

In accordance with VESA DDC/CI and MCCS ver.2.0, the monitor should be workable with Protrait Display

Tune at least.

3.11 EDID

1 User visible strings on .inf file Philips 170V (17inch WIDE LCD MONITOR 170V9)
2 Manufacturer ID ( EDID data) PHL
3 Product ID, "xxxx" 4 codes MSB(byte 12): C0

LSB (byte 11): 1F
4 maximum resolution 1280x1024
5 Horizontal Frequency Range 30~83 KHz
6 Vertical Frequency Range 55~76Hz
7 Monitor Name (13 characteries max.) Philips 170V

3.12 Hot-key definition

Item Key Key press time OSD Timeout OSD Message

Monitor Controls
Lock

Factory Mode [AUTO]+[Menu]+[Power]

DDC/CI On/OFF
for VISTA

http://www.wjel.net

Monitor Controls Locked

[Menu] 6 sec 5 sec

[MENU]+[DOWN] 5 sec 5 sec

Monitor Controls
Unlocked (default)

DDC/CI On (default)
DDC/CI Off

If any deviation, then refer to PVT Exit sample.

4. Visual characteristics

4.1 Test conditions

HUDSON 9

85

Unless otherwise specified, this specification is defined under the following conditions.

(1) Input signal : As defined in 3.3, 1280 x 1024

non-interlaced mode (1280 x 1024@60Hz 108MHz), signal

sources must have 75 ohm output impedance.

(2) Luminance setting : controls to be set to 300 nits (typical) with

full screen 100 % duty cycle white signal

(3) Warm up: more than 30 minutes after power on with signal supplied.

(4) Ambient light: 400 -- 600 lux.

(5) Ambient temperature: 20 ± 5 °C

4.2 Brightness

Follow panel specification.

4.3 Image size

Actual display size: Refer to 2.1 LCD PANEL spec.

4.4 Brightness uniformity

Set contrast at 100% and turn the brightness at 100%

Apply the Fig 1, it should comply with the following formula:

B_min

X 100% >75%

B_max

Where B_max =Maximum brightness, B_min = Minimum brightness

4.5 Check Cross talk (S)

Apply Pattern 2. Set contrast and brightness at 100 %.

Measure YA. Then output Pattern 3 and measure YB.

the cross talk value :

ABS ( YA - YB )

⎯⎯⎯⎯⎯⎯⎯⎯⎯ X 100% < 1.5 %

YA

4.6 White color adjustment

There are three factory preset white color 9300K, 6500 and sRGB Align by FGA function.

Apply full gray64 pattern, with brightness in 100 % position and the contrast control at 50 % position.

The 1931 CIE Chromaticity (color triangle) diagram (x , y) coordinate for the screen center should be:

Product specification

CIE coordinates (x,y)

9300K

6500K/sRGB

sRGB

http://www.wjel.net

x = 0.283 ± 0.02
y = 0.297 ± 0.02

x = 0.313 ± 0.02
y = 0.329 ± 0.02

x = 0.313 ± 0.02
y = 0.329 ± 0.02

86

Production alignement specification

HUDSON 9

CIE coordinates (x,y)

9300K

x = 0.283 ± 0.005
y = 0.297 ± 0.005

6500K/sRGB

sRGB

Quality Inspection specification:

x = 0.313 ± 0.005
y = 0.329 ± 0.005

x = 0.313 ± 0.005
y = 0.329 ± 0.005

CIE coordinates (x,y)

9300K

6500K/sRGB

sRGB

x = 0.283 ± 0.015
y = 0.297 ± 0.015

x = 0.313 ± 0.015
y = 0.329 ± 0.015

x = 0.313 ± 0.015
y = 0.329 ± 0.015

5. Mechanical characteristics

5.1 Cosmetic - Philips ID

5.2 Mechanical data files - ProE files required

5.3 Location of Philips logo - Per Philips make-up sheet

5.4 Gap between panel and front bezel < 1.4mm (typ)

5.5 Location of Control icons - Per Philips Graphic sheet

5.6 Color for resin/paint - Per Philips make-up sheet

5.7 Resins

z RoHS required

z WEEE required.

z Resin type/selection refer to Project Book Section 7.2 Plastic material.

5.8 If paint is used

z RoHS required

z WEEE require

z If new painting type need to implement, refer to UN-D 1235.

5.9 Plastic mold tooling

z Tooling to be designed to minimize cosmetic defects induced by molding process (sink, blush, weld lines,

gate marks, ejector marks, etc.). Refer to “TYV61-90007”.

z Painting to cover up cosmetic defects due to molding is strongly discouraged.

z China RoHS mark requested

5.10 Plastics flammability

http://www.wjel.net

z Bezel/Rear cover to be flame retardant UL 94-HB.

z Base / Pedestal to be Flame Retardant UL 94-HB.

z All major plastic parts (bezel, back cover) need to be molded from same resin.

z Plastic resin type selection should be referred to “TY R83-2-9002-1”.

A

5.11 Texture/Glossing of housing

z The texture area and texture no should follow Philips make-up sheet.

z The exterior surfaces shall have a uniform texture.

z Philips must approve the mold texturing.

z Detail document for texture refer to “UN-D249”, “UN-D 600”.

5.12 Tilt and swivel base

z Tilt angle : -5 ° +2/- 0 ° (forward)

+20 °+0/-2 ° (backward)

z Tilt for left and right:

︱A-B︱≤4.0MM

HUDSON 9

87

z Black side and cut side：

U

L R

D

1. Visual area

H：｜L-R｜≤1. 5 ㎜

V：｜U-D｜≤1. 5 ㎜

2.Black side on the left and right is symmetrical, not cut side.

z Gap between bezel and rear cover 0.4 mm（Typ.）

z Step between bezel and rear cover

B

Left, right and top : ≤0.6mm Bottom and corner: ≤1.1mm

z "Wobble", "Twist", etc (front to back or side to side)

Whole monitor set shall retain stability within a short time after the applied external force disapear.
20NT , 6secs（typ.） back to stable.

http://www.wjel.net

5.13 Kensington Lock

z Must meet Kensington_slot.spec “TYE-M0004”.

5.14 Label

z Carton label should follow Philips requirement.

z Regulatory label follow TPV OTS.

z China RoHS label

z Detail document refer to Philips Engineering Reference Book.

88

5.15 Product dimension / Weight (Refer to SHT 191 )

HUDSON 9

z Unit dimension : 371(W)*373(H)*191(D)

z Packed unit dimension : 375(W)* 419(D)*145(H)

z Net weight : 4.034Kg

z Gross weight : 4.874Kg.

5.16 Transportation

Transportation standards follow TPV standard.

5.16.1 Transportation packages

Packaging and wrapping shall be sufficient to protect the product against damage or loss during shipment from

the supplier to the destination specified in the purchase order. All packaging materials are subject to test and

evaluation per TPV standard. The cushion material shall be constructed using EPS material.

5.16.2 Transportation Test

Follow TPV standard

5.17 Pallet / Container loading

Transportation standards refer to following TPV standard.

• Air shipment -

• Sea container 20'(pallet/slip sheet)

• Sea container 40'(pallet/slip sheet)

• Sea container 40' High Cube (pallet/slip sheet)

• Land 53‘ MEGA Trailer (pallet/slip sheet)

• Land 53‘ MEGA Trailer per HQ (pallet/slip sheet)

• Truck shipment-

6. Environmental characteristics

The following sections define the interference and susceptibility condition limits that might occur between

external environment and the display device.

6.1 Susceptibility of display to external environment

Operating

- Temperature : 0 to 40 degree C

- Humidity : 85% max

- Altitude : 0-3658m

- Air pressure : 600-1100m BAR

Storage

- Temperature : -20 to 60 degree C

- Humidity : 95% max

- Altitude : 0-12192m

http://www.wjel.net

- Air pressure : 300-1100 mBAR

Note: recommend at 5 to 35°C, Humidity less than 60 %

6.2 Transportation tests

Refer to 5.15.2

6.3 Display disturbances from external environment

According to IEC 801-2 for ESD disturbances

6.4 Display disturbances to external environment

7. Reliability

7.1 Mean Time Between Failures

System MTBF (Including the LCD panel and CCFL) : Refer to 2.1 panel MTBF

8. Quality assurance requirements

8.1 Acceptance test

HUDSON 9

89

According to MIL-STD-105D Control II level

AQL: 0.4 (major)

1.5 (minor)

(Please also refer to annual quality agreement)

Customer acceptance criteria: UAW0377/00

9. Philips’ Flat Panel Monitors Pixel Defect Policy

Philips’ Flat Panel Monitors Pixel Defect Policy

BRIGHT DOT DEFECTS ACCEPTABLE LEVEL

MODEL

1 lit sub-pixel 3

2 adjacent lit sub-pixels 1

3 adjacent lit sub-pixels (one white pixel) 0

Distance between two bright dots 15mm

Bright dot defects within 20 mm circle 0

Total bright dot defects of all type 3

BLACK DOT DEFECTS ACCEPTABLE LEVEL

MODEL

1 dark sub-pixel 5

2 adjacent dark sub-pixels 2

3 adjacent dark sub-pixels (one white pixel) 1

Distance between two black dots 15mm

Black dot defects within 20 mm circle* 1

170V9

170V9

Total black dot defects of all type 5

TOTAL DOT DEFECTS ACCEPTABLE LEVEL

http://www.wjel.net

MODEL

Total bright or black dot defects of all type 5

170V9

90

Fig 1: Measurement locations of Brightness Uniformity

Fig 2: Cross talk pattern

HUDSON 9

Gray level 46 (64 Gray level)

Fig 3: Cross talk Pattern

Center at Gray level 0 (Black)

1/3 1/3

http://www.wjel.net

1/6

1/2

YA

1/2

1/6

1/3

1/3

YB

1/3

1/2

1/2

10. REGULATORY COMPLIANCE

10.1 Worldwide Regulatory

HUDSON 9

91

Region

(RSO)

World

wide

Europe

Country

(NSO)

World wide Sa

EUROPE

Domain

Sa

Safety / EMC /
Ergonomics /
Standards

IEC60950-1:2001.
Group and
national
differences of all
countries listed in
CB Bulletin No.
107A

European Low
Voltage Directives
73/23/EEC and
93/68/EEC,
2004/108/EC

Documents

CB Report,
certificate

Declaration of
Conformity and
Identity declaration

Reference

Logo

OEM Yes Yes

Applicant Mandatory V-Line

OEM Yes Yes

Sample

Q'ty

Remark

Manufacture and
Applicant is
Philips
Maximum
ambient
temperature:40°C

http://www.wjel.net

92

HUDSON 9

GERMANY

European
Electromagnetic
Compatibility
Directive
2004/108/EC
EN55022:2006,

E

Sa EN60950-1:2001 TUV certificate

EN55024:1998+A
1:2001+A2:2003,
EN61000-3-2:200
6,
EN61000-3-3:199
5+A1:2001+A2:20
05

EMC/CE test report OEM Yes Yes

OEM Optional No

HDMI have to test
PC mode and
DVD mode

Philips is OEM
license holder

TUV-ERG certificate

O

O

LCD: ISO13406-2,
pr EN 50279:1998

GS-Mark /
EK1-ITB 2000

and
TUV ISO13406-2
report

TUV-GS certificate

OEM Optional No

OEM Optional No

Philips is OEM
license holder

Philips is OEM
license holder

http://www.wjel.net

O ISO13406-2

TUV ISO13406-2
certificate

OEM Optional No

Philips is OEM
license holder

O TUV MPR-II

TUV MPR-II
certificate

OEM Optional No

HUDSON 9

Philips is OEM
license holder

93

SWEDEN

Switzerland

Sa EN60950-1:2001 SEMKO certificate

O TCO'99

TCO'03, or

O

O TCO'06

Sa EN60950-1:2001 S+ PZ1 certificate Yes No

E EN55020,

TCO'0x
supersedes new
standard

EN55024,
IEC61000-3-2,
IEC61000-3-3

http://www.wjel.net

TCO report and
certificate

TCO report and
certificate

TCO report and
certificate

S+ PZ1 ce

rtificate

OEM Optional No

OEM Optional No

OEM Optional No

OEM Optional No

OEM

Yes No

Philips is license
holder

To add all sales
name into
certificate

To add all sales
name into
certificate

To add all sales
name into
certificate

Supplier to
contact Philips
NSO Heidi and
apply for
Switzerland
certification.
Supplier to pay
approbation cost
2450 CHF each
model and each
extend model 300
CHF. To provide
CB, EMC report,
Identity
Declaration, DFU,
Label, Circuit
diagram, PO,
Power of
Attorney. To add
all sales name

94

HUDSON 9

O EMF EN 50392 EN 50392 report Yes No

1 set

and /00, /05, /69
into certificate.

Supplier ship out
1 samples to
Netherlands and
provide EN50392
report (test fee
750EU)

Sa EN60950-1:2001

Eastern
Europe

E

RUSSIA Sa

ISRAEL Sa

ISRAEL E CISPR22

EN55022,EN5502
4,
IEC61000-3-2 ,IE
C61000-3-3

GOST R
50377-1992

IS 1121,
IEC60950/IEC609
50-1

http://www.wjel.net

Certificate of
Conformity

Certificate of
Conformity

GOST certificate

Certificate of
Conformity

Certificate of
Conformity

Philips Yes Yes

Philips Yes Yes

Philips Yes Yes

OEM Yes No

OEM Yes No

3 sets

Supplier ship out
3 samples to
Hungary and pay
transportation
cost.
Supplier to
provide CB, EMC
report, Identity
Declaration, DFU,
Label, Circuit
diagram.

Supplier to
provide CB, EMC,
ISO13460-2
report and TCO
certificate

Need to provide
Israel user
manual and Local
representative

OEM Yes No

AP

Sa

Korean Safety
Control law IEC
60950

EK certificate

HUDSON 9

NOT REQUIRED

95

KOREA

SINGAPOR

E

CHINA

Regulations laws:

E

Sa IEC60950 PSB certificate

Sa GB4943-2001 CCC certificate OEM Yes Yes

EMI 1996-78, 80.
EMS 1996-79,81

MIC certificate

OEM Yes No

OEM Yes Yes

E

O CSC/G1205-2004 CECP certificate

GB9254-1998;

17625.1-2003

CCC certificate

OEM Yes Yes

OEM Optional No

NOT REQUIRED

Supplier to
provide local
representative

Supplier have to
check regulation
information on
rating label, carter
label, user
manual to meet all
mandatory
regulation.
Supplier to
provide CCC
permission of
printing

TAIWAN

Sa

E

O

CNS-14336
(IEC 60950-1)

CNS-13438
(CISPR22) Class
B

http://www.wjel.net

Criteria 18
( Monitor ) ( LCD )

BSMI certificate OEM Yes Yes

BSMI certificate

Green Mark /
certificate

OEM Yes Yes

OEM Optional No

To add all sales
name into
certificate

NOT REQUIRED

96

HUDSON 9

AUSTRALIA

/

NEW-ZEAL

AND

E

AS/NZS3548:199
5
AS/NZS
CISPR22: 2002
Class B

CB, EMC report

Supplier ship out
1 sample to
Australia and pay

OEM Yes Yes

1 set

transportation
cost, Supplier to
apply for C-Tick
through Philips
NSO

NAFTA

Saudi

Arabia

Saudi

Arabia

Japan E

Cambodia Sa EN60950-1:2001 ISC certificate

Kuwait Sa

Sa EN60950-1:2001 SASO OEM Yes Yes

EN55022,

Sa

EN61000-3-2,
EN61000-3-3,
EN55024

VCCI class B
( CISPR 22 )

EN60950-1:2001,
‘Kuwait
Conformity
Assurance
Scheme’
(KUCAS)

SASO OEM Yes Yes

VCCI Certificate

KUCAS registration OEM Yes Yes

http://www.wjel.net

USA

Sa UL 60950-1: 2003 UL certificate, CUL

OEM Yes No

OEM Yes No

OEM Optional Yes

NOT REQUIRED

E

FCC Part 15
Class B

FCC report and DOC

OEM Yes Yes

HUDSON 9

To list
manufacture in
FCC report

97

LATAM

O Energy Star EPA test data

Sa

CANADA

E ICES-003 issue 3 Statement on label OEM Yes Yes

MEXICO Sa

Argentina Sa EN60950-1:2001

Sa

E

O Energy Star EPA test data OEM Optional No

Brazil

O TCO'99

CSA C22.2 No
60950

NOM-019-SCFI-1
994

UL 60950-1:
2003

FCC Part 15
Class B

CSA certificate
or CUL

NOM certificate

TUV S-mark or
IRAM

UL certificate or CUL OEM Optional No

FCC report and DOC OEM Yes Yes

TCO report and
certificate

OEM Optional No

OEM Optional No

OEM Optional No

Philips Yes No

OEM Yes No

2 sets

NOT REQUIRED

To add all sales
name into
certificate

O TCO'03

O TCO'06

http://www.wjel.net

TCO report and
certificate

TCO report and
certificate

To add all sales

OEM Optional No

OEM Optional No

name into
certificate

To add all sales
name into
certificate

98

HUDSON 9

South
Africa

SOUTH

AFRICA

Sa

E

SABS IEC 60950
and IEC
60950-1

EN55022 or
Crisper 22

Certificate of
Conformity

Certificate of
Conformity

Sa = Safety

E = Electromagnetic Compatibility

O = Other which including recycling, energy saving, ergonomics, Green Mark

X=X-Ray

Remark:

1. Supplier to provide all approbation documents, samples before CR

2. Supplier to pay approbation samples and transportation cost.

3. Suppliers to pay Switzerland approbation cost 2450 CHF and provide EN50392 report.

4. HDMI has to test PC mode if user manual have HDMI connect to PC function

5. Supplier to provide EMC, safety report if monitor with portrait and landscape function

Philips Yes Yes

Philips Yes Yes

Supplier to
provide CB, EMC
report

6. AC/DC adaptors have to meet California Energy Commission requirement

7. Suppliers have to support Philips NSO to get local approbation.

8. Supplier have to check regulation information on rating label, carton label, user manual to meet all mandatory regulation

9. Suppliers need to add Philips sales name, model no into BSMI, TCO, EK, MIC certificate

10. Suppliers have to apply all mandatory regulation based on sales country.

http://www.wjel.net

10.2 EMC Requirements

Supplier DVT EMI test result must be submitted prior to DVT samples delivery, and PVT EMI test result must be

submitted again prior to PVT samples delivery, which also has to meet Philips' immunity testing specification.

10.3 RoHS

Restriction on the use of certain hazardous substances.

Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Bipheny1 (PBB) and Polybrominated

HUDSON 9

99

Bipheny1 Ether (PBDE)(flame retardant)

10.4 WEEE

Producer (Philips) responsible for retailer take back schemes and recycling.

--System implemented.

--Collection and recycle targets.

10.5 Ongoing Regulatory

There's a possibility that other regulatory certificates will be required during the life of the product. It is the

responsibility of the supplier to provide related documentation.

.

http://www.wjel.net

100

HUDSON 9

TELEVISION/MONITOR SAFFTY GUIDELINES FOR THE PROFESSIONAL SERVICE TECHNICIAN

Safety Checks

After the original service problem has been corrected,a complete safety check
should be made. Be sure to check over the entire set, not just the areas
where you have worked. Some previous servicer may have left an unsafe
condition,which could be unknowingly passed on to your customer. Be sure
to check all of the following:

Fire and Shock Hazard

1. Be sure all components are positioned in such a way as to avoid the
possibility of adjacent component shorts. This is especially important
on those chassis which are transported to and from the service shop.

2. Never release a repaired unit unless all protective devices such as

insulators, barries, covers, strain reliefs, and other hardware have been
installed in accordance with the original design.

3. Soldering and wiring must be inspected to locate possible cold solder

joints,solder splashes,sharp solder points, frayed leads, pinched leads,

or damaged insulation ( including the ac cord).Be certain to remove

loose solder balls and all other loose foreign particles.

4. Check across-the-line components and other components for physical

evidence of damage or deterioration and replace if necessary. Follow
original layout,lead length, and dress.

5. No lead or component should touch a receiving tube or a resistor rated

at 1 watt or more. Lead tension around protruding metal surfaces or
edges must be avoided.

6. Critical components having special safety characteristics are identified

withansbytheRef.No.inthepartslistandenclosedwithinabrokenline

* (where several critical components are grouped in one area) along with

the safety symbols on the schematic diagrams and/or exploded views.

7. When servicing any unit, always use a separate isolation transformer
for the chassis Failure to use a separate isolation transformer may
expose you to possible shock hazard, and may cause damage to
servicing instruments.

8. Many electronic products use a polarized ac line cord (one wide pin on
the plug.) Defeating this safety feature may create a potential hazard to
the service and the user. Extension cords which do not incorporate the
polarizing feature should never be used.

9. After reassembly of the unit, always perform an leakage test or resistance
test from the line cord to all exposed metal parts of the cabinet. Also check
all metal control shafts(with knobs removed), antenna terminals, handles,
screws, etc. to be sure the unit may be safety operated without danger of
electrical shock.

* Broken line

Implosion

1. All picture tubes used in current model receivers are equipped with an

integral implosion system. Care should always be used, and safety
glasses worn,whenever handling any picture tube. Avoid scratching or

otherwise damaging the picture tube during installation.

2. Use only replacement tubes specified by the manufacturer.

X-radiation

1. Be sure procedures and instructions to all your service personnel cover

the subject of X-radiation. Potential sources of X-rays in TV receivers are
the picture tube and the high voltage circuits. The basic precaution which
must be exercised is to keep the high voltage at the factory recommended
level.

2. To avoid possible exposure to X-radiation and electrical shock, only the

manufacturer's specified anode connectors must be used.

3. It is essential that the service technician has an accurate HV meter
available at all times. The calibration of this meter should be checked
periodically against a reference standard.

4. When the HV circuitry is operating properly there is no possibility of an x­radiation problem. High voltage should always be kept at the manufacturer's

rated value-no higher - for optimum performance. Every time a color set is

serviced, the brightness should be run up and down while monitoring the
HV with a meter to be certain that the HV is regulated correctly and does
not exceed the specified value. We suggest that you and your technicians
review test procedures so that HV and HV regulation are always checked as

a standard servicing procedure, and the reason for this prudent routine is

clearly understood by everyone. It is important to use an accurate and

reliable HV meter. It is recommended that the HV recorded on each
customer's invoice, which will demonstrate a proper concern for the
customer's safety.

5. When troubleshooting and making test measurements in a receiver with

a problem of excessive high voltage, reduce the line voltage by means of
a Variac to bring the HV into acceptable limits while troubleshooting. Do
not operate the chassis longer than necessary to locate the cause of the
excessive HV.

http://www.wjel.net

6. New picture tubes are specifically designed to withstand higher operathng
voltages without creating undesirable X-radiation. It is strongly
recommended that any shop test fixture which is to be used with the new
higher voltage chassis be equipped with one of the new type tubes
designed for this service. Addition of a permanently connected HV meter
to the shop test fixture is advisable. The CRT types used in these new

sets should never be replaced with any other types, as this may result in

excessive X-radiation.

7. It is essential to use the specified picture tube to avoid a possible X-diation
problem.

8. Most TV receivers contain some type of emergency "Hold Down" circuit to
prevent HV from rising to excessive levels in the presence of a failure
mode. These various circuits should be understood by all technicians
servicing them, especially since many hold down circuits are inoperative
as long as the receiver performs normally.

Leakage Current Cold Check

1. Unplug the ac line cord and connect a jumper between the two prongs of

the plug.

2. Turn on the power switch.

3. Measure the resistance value between the jumpered ac plug and all

exposed cabinet parts of the receiver, such as screw heads, antennas,
and control shafts. When the exposed metallic part has a return path to
the chassis, the reading should be between 1 megohm and 5.2 megohms.
When the exposed metal does not have a return path to the chassis, the
reading must be infinity. Remove the jumper from the ac line cord.

TO
INSTRUMENTS
EXPOSED
METAL PARTS

Leakage Current Hot Check

1. Do not use an isolation transformer for this test. Plug the completely

reassembled receiver directly into the ac outlet.

2. Connect a 1.5k, 10w resistor paralleled by a 0.15uf. capacitor between

each exposed metallic cabinet part and a good earth ground such as a
water pipe, as shown above.

3. Use an ac voltmeter with at least 5000 ohms volt sensitivity to measure
the potential across the resistor.

4. The potential at any point should not exceed 0.75 volts. A leakage current

tester may be used to make this test; leakage current must not exceed

0.5 milliamps. If a measurement is outside of the specified limits, there is
a possibility of shock hazard. The receiver should be repaired and
rechecked before returning it to the customer.

5. Repeat the above procedure with the ac plug reversed.( Note: An ac
adapter is necessary when a polarized plug is used. Do not defeat the
polarizing feature of the plug.)

Picture Tube Replacement

The primary source of X-radiation in this television receiver is the picture
tube. The picture tube utilized in this chassis is specially constructed to limit
X-radiation emissions. For continued X-radiation protection, the replacement
tube must be the same type as the original, including suffix letter, or a Philips
approved type.

Parts Replacement

Many electrical and mechanical parts in Philips television sets have special
safety related characteristics. These characteristics are often not evident from
visual inspection nor can the protection afforded by them necessarily be
obtained by using replacement components rated for higher voltage, wattage,
etc. The use of a substitute part which does not have the same safety
characteristics as the Philips recommended replacement part shown in this
service manual may create shock, fire, or other hazards

0.15 uF

1500 ohm, 10W

WATER
PIPE
EARTH
GROUND

WARNING OFF

SERVICE NOTE

:

Before removing the CRT anode cap, turn the unit and short the HIGH VOLTAGE to the CRT DAG ground.

:

The CRT DAG is not at chassis ground.
