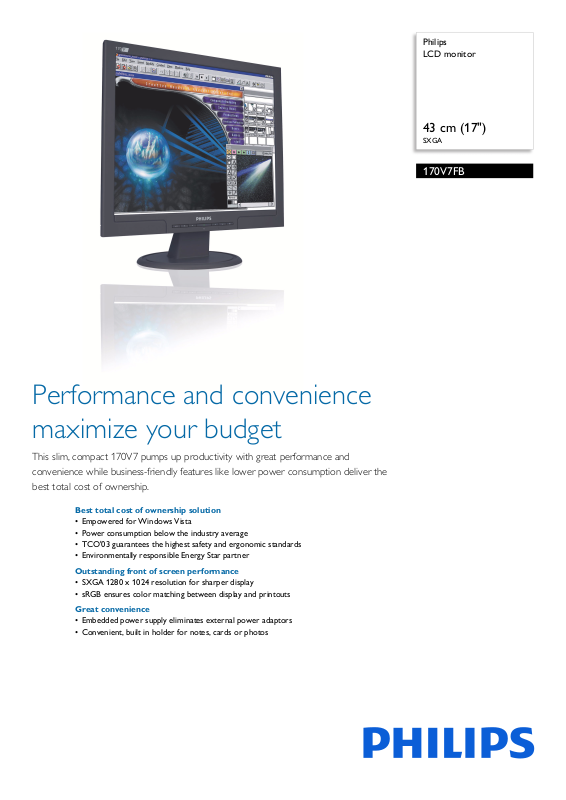

Page 1
Philips
LCD monitor
43 cm (17")
SXGA
170V7FB
Performance and convenience
maximize your budget
This slim, compact 170V7 pumps up productivity with great performance and
convenience while business-friendly features like lower power consumption deliver the
best total cost of ownership.
Best total cost of ownership solution
• Empowered for Windows Vista
• Power consumption below the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
Outstanding front of screen performance
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• Convenient, built in holder for notes, cards or photos
Page 2
170V7FB/00
LCD monitor
43 cm (17") SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 270 cd/m²
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: 160º (H) / 145º (V), @ C/R > 5
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
g input)
(analo
• Optimum resolution: 1280 x 1024 @ 60 Hz
g input)
(analo
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness Control (Up/
), Left/Right, Menu (OK), Power On/Off
Down
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
Separate Sync, Sync
ench, German, Italian,
n lock compatible,
• Regulatory approvals: CE Mark, EMC,
FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS,
TÜV Ergo
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Energy Star,
Accessories
• Included accessories: AC Power Cord, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
•Box dimensions (W x H x D):
449 x 182 x 489 mm
• Box dimensions in inch (W x H x D):
.7 x 7.2 x 19.3 inch
17
•Set dimensions (W x H x D):
0 x 327 x 57.5 mm
38
• Set dimensions in inch (W x H
15 x 12.9 x 2.3 inch
• Set dimensions with stand (W x H x D):
0 x 387 x 200 mm
38
•Set dimensions with st
15 x 15.2 x 7.9 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.7 kg
• Product weight (+stand) (lb): 10.4 lb
• Weight incl. Packaging: 6.1 kg
• Weight incl. Packaging (lb): 13.4 lb
x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
30 W (Typical)
de): < 1 W
Highlights
Windows Vista ready
Philips Vista-ready monitors are empowered for
vibrant, exciting display of this new, visually
sophisticated and demanding Windows operating
system, designed to enhance your entertainment
experience, make you more productive and help you
control your computing experience at home and in
the office, making viewing, finding and organizing
information for work or play quick, efficient and
easy.
Lower power consumption
Reduction of the electrical power required to
operate a device.
TCO '03 compliance
A TCO (Swedish Confederation of Professional
Employees) standard even more stringent than MPRII for safety and ergonomics, especially concerning
alternating electric fields (AEF).
Energy Star partner
A manufacturer in compliance with power
conservation requirements set forth by the
Environmental Protection Agency of the U.S.
government.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen resolution signifies
the number of dots (pixels) on the entire screen. For
example, a 1280-by-1024 pixel screen is capable of
displaying 1280 distinct dots on each of 1024 lines, or
about 1.3 million pixels.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
Issue date 2017-07-04
Version: 3.0.4
12 NC: 8639 000 17043
EAN: 87 10895 96814 0
FlexiHolder
FlexiHolder is a slim groove on the top of monitor
that neatly and conveniently stores favorite photos,
reminders, to-do lists or phone numbers in your line
of sight.
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
