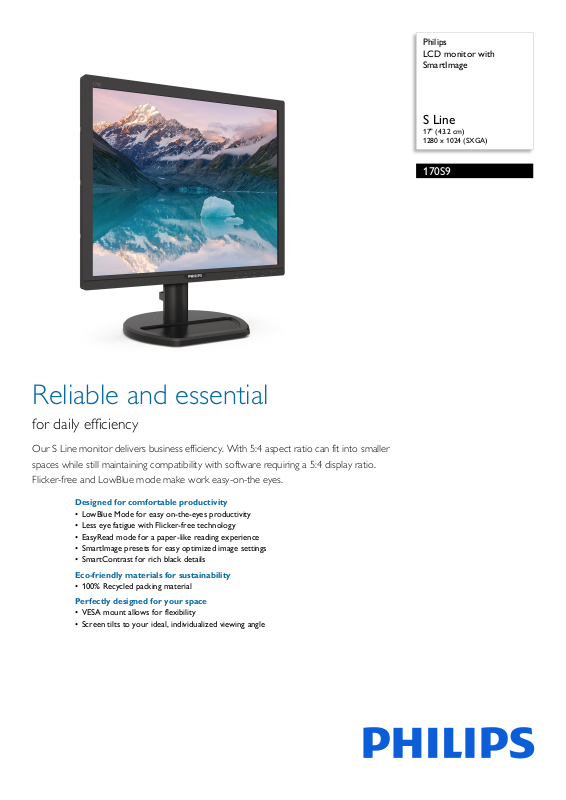

Page 1
Philips
LCD monitor with
SmartImage
S Line
17" (43.2 cm)
1280 x 1024 (SXGA)
170S9
Reliable and essential
for daily efficiency
Our S Line monitor delivers business efficiency. With 5:4 aspect ratio can fit into smaller
spaces while still maintaining compatibility with software requiring a 5:4 display ratio.
Flicker-free and LowBlue mode make work easy-on-the eyes.
Designed for comfortable productivity
• LowBlue Mode for easy on-the-eyes productivity
• Less eye fatigue with Flicker-free technology
• EasyRead mode for a paper-like reading experience
• SmartImage presets for easy optimized image settings
• SmartContrast for rich black details
Eco-friendly materials for sustainability
• 100% Recycled packing material
Perfectly designed for your space
• VESA mount allows for flexibility
• Screen tilts to your ideal, individualized viewing angle
Page 2
170S9/69
LCD monitor with SmartImage
S Line 17" (43.2 cm), 1280 x 1024 (SXGA)
Highlights
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce
harmful shortwave blue light.
Flicker-free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
EasyRead mode
EasyRead mode for a paper-like reading
experience
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
100% Recycled packing material
100% Recycled packing material for less
e
nvironmental impact.
Page 3
170S9/69
LCD monitor with SmartImage
S Line 17" (43.2 cm), 1280 x 1024 (SXGA)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 17 inch / 43.2 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 337.9 x 270.3 mm
• Aspect ratio: 5:4
• Optimum resolution: 1280 x 1024 @ 60Hz
• Pixel Density: 96 PPI
• Response time (typical): 1 ms (GtG)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.264 x 0.264 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Flicker-free
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Color gamut (typical): NTSC
• Scanning Frequency: 30 -83
•sRGB
•EasyRead
•LowBlue Mode
50,000,000:1
87%*, sRGB 103%*
kHz (H) / 50 -76 Hz (V)
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• HDCP: HDCP 1.4 (DVI)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Input, Brightness,
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Tilt: -5 ~ 25 degree
Power
• ECO mode: 8.3 W (typ.)
• On mode: 8.87 W (typ.) (EnergyStar test method)
• Standby mode: 0.3 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 367 x 393 x 196 mm
• Product without stand (mm): 367 x 309 x 46 mm
• Packaging in mm (WxHxD): 450 x 453 x 127 mm
Weight
• Product with stand (kg): 2.34 kg
• Product without stand (kg): 2.00 kg
• Product with packaging (kg): 3.55 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 70,000 hrs (excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 8.0,
EPEAT*, RoHS, WEEE
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 25%
• Specific Substances: PVC / BFR free housing
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, EPA, CCC, CECP, CEL
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2022-04-21
Version: 4.0.1
12 NC: 8670 001 62661
EAN: 87 12581 76218 6
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Response time value equal to SmartResponse
* NTSC Area based on CIE1976
* sRGB Area based on CIE1931
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* The monitor may look different from feature images.
