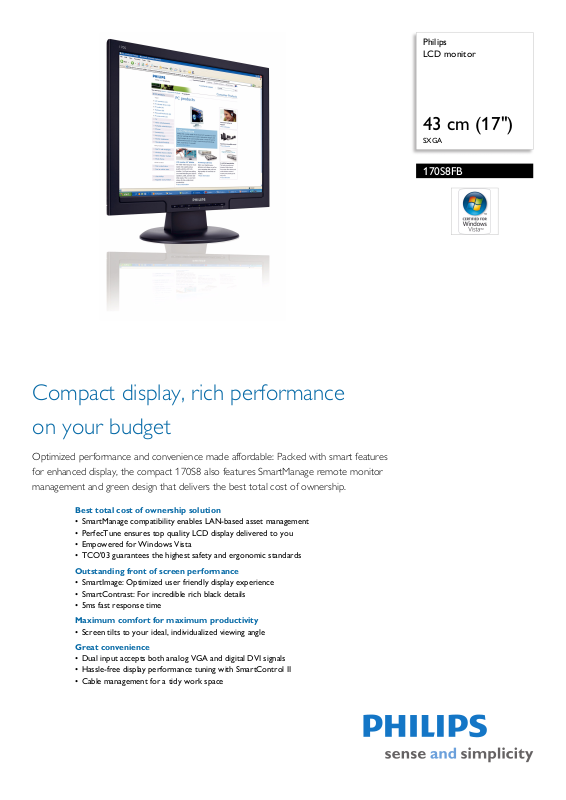

Philips
LCD monitor
43 cm (17")
SXGA
170S8FB
Compact display, rich performance
on your budget
Optimized performance and convenience made affordable: Packed with smart features
for enhanced display, the compact 170S8 also features SmartManage remote monitor
management and green design that delivers the best total cost of ownership.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• PerfecTune ensures top quality LCD display delivered to you
• Empowered for Windows Vista
• TCO'03 guarantees the highest safety and ergonomic standards
Outstanding front of screen performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• 5ms fast response time
Maximum comfort for maximum productivity
• Screen tilts to your ideal, individualized viewing angle
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• Cable management for a tidy work space
LCD monitor
43 cm (17") SXGA
Highlights
170S8FB/27
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
PerfecTune
PerfectTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
TCO '03 compliance
A TCO (Swedish Confederation of
Profe
ssional Employees) standard even more
checking status of display devices
stringent than MPR-II for safety and
ergonomics, especially concerning alternating
electric fields (AEF).
SmartImage
SmartImage is an exclusive leading edge Philips
te
chnology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartContrast
SmartContrast is a Philips t
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
d crystal cell to go from active (black)
echnology that
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Adjustable tilt
Adjustable tilt is backward and forward
moveme
custom positioning for an ideal viewing angle
and more comfort for people who spend long
hours working on the computer.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
SmartControl II
SmartControl II is monitor-based software
w
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Cable management
Cable management is a system that maintains
t
required for the operation of a display device.
nt of a screen on its base to achieve
te input of both analog VGA and
ith an easy-to-use on-screen graphic
idy workspace by organizing cables and wires
LCD monitor
43 cm (17") SXGA
Specifications
170S8FB/27
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 13
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3000:1
• Display colors: 16.7 M
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Picture enhancement: SmartImage
•sRGB
.3 x 10.6 inch
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display,
SmartManage enabled, SmartControl II
• Monitor Controls: SmartImage
Power On/Off, Brightness Control (Up/Down),
Menu (OK)
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensingto
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
, Input, Auto (Back),
ench, German, Italian,
n lock compatible,
• Regulatory approvals: CE Mark, EMC,
FCC-B, UL, CSA, SEMKO, TÜV/GS, TÜV Ergo,
TCO '03
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Energy Star,
Accessories
• Included accessories: AC Power Cord, VGA cable,
DVI-D cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
•Box dimensions (W x H x D):
451 x 391 x 159 mm
• Box dimensions in inch (W x H x D):
.8 x 15.4 x 6.3 inch
17
•Set dimensions (W x H x D):
9.3 x 327.1 x 57.5 mm
37
• Set dimensions in inch (W x
14.9 x 12.9 x 2.3 inch
• Set dimensions with stand (W x H x D):
9.3 x 387.1 x 210.8 mm
37
•Set dimensions with st
14.9 x 15.2 x 8.3 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.6 kg
• Product weight (+stand) (lb): 10.1 lb
• Weight incl. Packaging: 5.88 kg
• Weight incl. Packaging (lb): 13.0
H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): < 33 W (Typical)
• Consumption (economy mode): 27 W
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
de): < 1 W
Issue date 2013-01-31
Version: 3.0.5
12 NC: 8670 000 25315
UPC: 6 09585 12205 5
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
