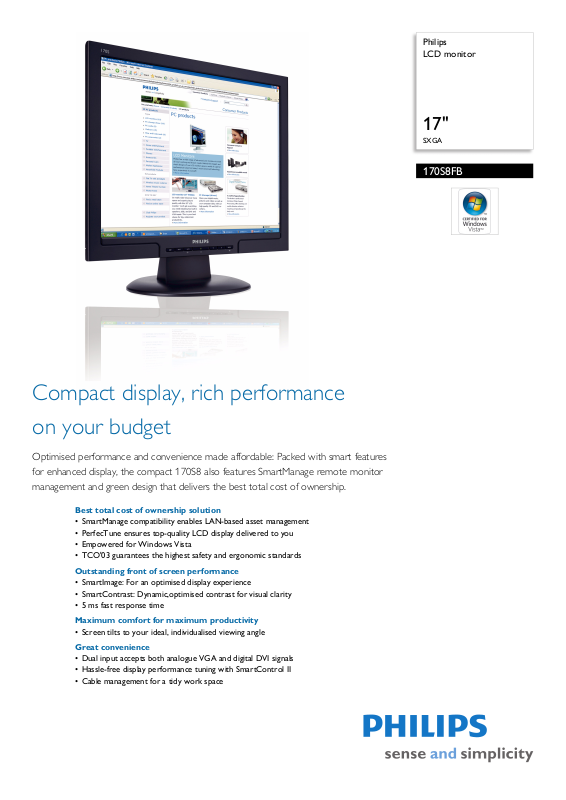

Page 1
Philips
LCD monitor
17"
SXGA
170S8FB
Compact display, rich performance
on your budget
Optimised performance and convenience made affordable: Packed with smart features
for enhanced display, the compact 170S8 also features SmartManage remote monitor
management and green design that delivers the best total cost of ownership.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• PerfecTune ensures top-quality LCD display delivered to you
• Empowered for Windows Vista
• TCO'03 guarantees the highest safety and ergonomic standards
Outstanding front of screen performance
• SmartImage: For an optimised display experience
• SmartContrast: Dynamic,optimised contrast for visual clarity
• 5 ms fast response time
Maximum comfort for maximum productivity
• Screen tilts to your ideal, individualised viewing angle
Great convenience
• Dual input accepts both analogue VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• Cable management for a tidy work space
Page 2
LCD monitor
17" SXGA
Highlights
170S8FB/05
SmartManage enabled
SmartManage is a system for monitoring,
managing and che
devices as well as delivering remote support to
users who experience difficulties - all
accomplished over a LAN.
PerfecTune
PerfecTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of colour
accuracy and display quality in every new
monitor.
Windows Vista-ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organising
information for work or play quick, efficient
and easy.
TCO '03 compliance
A TCO (Swedish Confederation of
Profe
ssional Employees) standard even more
stringent than MPR-II for safety and
ergonomics, especially concerning alternating
electric fields (AEF).
cking the status of display
SmartImage
SmartImage is an exclusive leading-edge Philips
technology that analyses the content displayed
on your screen. Based on a scenario you select,
SmartImage dynamically enhances the contrast,
colour saturation and sharpness of images and
videos for ultimate display performance - all in
real time and at the press of a single button.
SmartContrast
SmartContrast is Philips technology that
analyses the contents you are displaying,
automatically adjusting colours and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and
optimum contrast for better entertainment
when viewing videos or playing games where
dark hues are displayed; when you select the
Economy mode, contrast is adjusted and
backlighting fine-tuned for just-right display of
everyday office applications and lower power
consumption.
5 ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
d crystal cell to go from active (black)
again. It is measured in milliseconds. Faster is
better: lower response time means faster
transitions and, therefore, results in fewer
visible image artefacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Adjustable tilt
Adjustable tilt is backward and forward
moveme
custom positioning for an ideal viewing angle
and more comfort for people who spend long
hours working on the computer.
Dual input
Dual input provides connectors to
accommodate input of both analogue VGA and
digital DVI signals.
SmartControl II
SmartControl II is monitor-based software
w
interface that guides you through fine-tuning
resolution, colour calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Cable management
Cable management is a system that maintains
ti
required for the operation of a display device.
nt of a screen on its base to achieve
ith an easy-to-use on-screen graphic
dy workspace by organising cables and wires
Page 3
LCD monitor
17" SXGA
Specifications
170S8FB/05
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polariser, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• SmartContrast ratio (dynamic): 3000:1
• Display colours: 16.7 M
• Viewing angle: 176º (H)/170º (V),
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313/y = 0.329
• White Chromaticity, 9300K: x = 0.283/y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum Resolution: 1280 x 1024 @ 60 Hz
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Picture enhancement: SmartImage
•sRGB
@ C/R > 5
Connectivity
• Signal Input: VGA (Analogue), DVI-D
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Green
Convenience
• User convenience: On-screen Display,
SmartManage enabled, SmartControl II
• Monitor Controls: SmartImage
Power On/Off, Brightness Control (Up/Down),
Menu (OK)
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensingto
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
, Input, Auto (Back),
ench, German, Italian,
n lock compatible,
• Regulatory Approvals: CE Mark, EMC, Energy Star,
F
CC-B, UL, CSA, SEMKO, TÜV/GS, TÜV Ergo,
TCO '03
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Lead, VGA cable
• Optional accessories: Super Ergo Base
•User manual
Dimensions
•Box dimensions (W x H x D):
451 x 391 x 159 mm
• Box dimensions in inch (W x H x D):
.8 x 15.4 x 6.3 inch
17
•Set dimensions (W x H x D):
9.3 x 327.1 x 57.5 mm
37
• Set dimensions in inch (W x
14.9 x 12.9 x 2.3 inch
• Set dimensions with stand (W x H x D):
9.3 x 387.1 x 210.8 mm
37
•Set dimensions with st
14.9 x 15.2 x 8.3 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.6 kg
• Product weight (+stand) (lb): 10.1 lb
• Weight incl. Packaging: 5.88 kg
• Weight incl. Packaging (lb): 13.0
H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): < 33 W (Typical)
• Consumption (economy mode): 27 W
•Consumption (Off Mo
• Power LED indicator: Operation - green, Standby/
eep - Amber
sl
• Power supply: Built-in, 100-240 VAC, 50/60 Hz
•
de): < 1 W
Issue date 2009-04-11
Version: 1.0.3
12 NC: 8670 000 36857
EAN: 87 12581 39390 8
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
