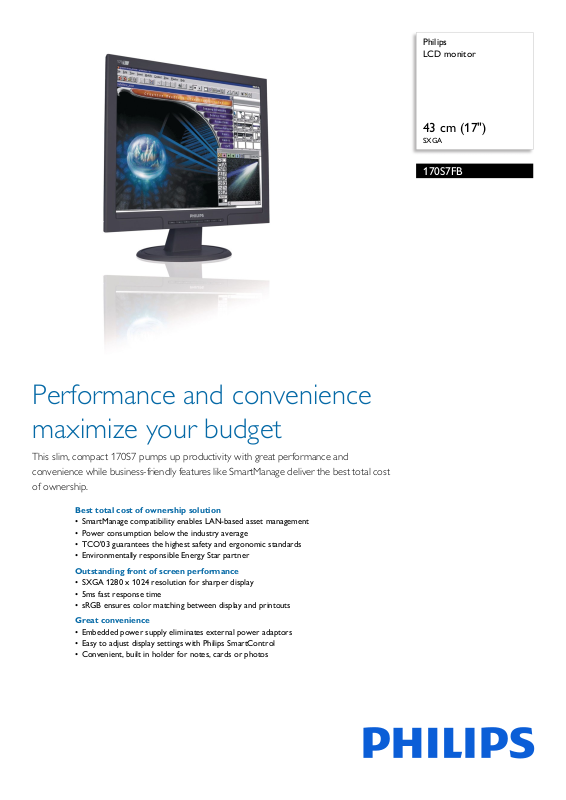

Page 1
Philips
LCD monitor
43 cm (17")
SXGA
170S7FB
Performance and convenience
maximize your budget
This slim, compact 170S7 pumps up productivity with great performance and
convenience while business-friendly features like SmartManage deliver the best total cost
of ownership.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• TCO'03 guarantees the highest safety and ergonomic standards
• Environmentally responsible Energy Star partner
Outstanding front of screen performance
• SXGA 1280 x 1024 resolution for sharper display
• 5ms fast response time
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• Easy to adjust display settings with Philips SmartControl
• Convenient, built in holder for notes, cards or photos
Page 2
170S7FB/05
LCD monitor
43 cm (17") SXGA
Highlights
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
TCO '03 compliance
A TCO (Swedish Confederation of
Profe
ssional Employees) standard even more
stringent than MPR-II for safety and
ergonomics, especially concerning alternating
electric fields (AEF).
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
checking status of display devices
d crystal cell to go from active (black)
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
sRGB ready
sRGB is an industry standard that ensures the
be
st possible match between the colors
displayed on your screen and those in your
printouts.
Embedded power supply
An embedded power supply is a power
adapto
r built into the body of a display device
that replaces a bulky external power adaptor.
SmartControl
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way.
FlexiHolder
FlexiHolder is a slim groove on the top of
moni
tor that neatly and conveniently stores
favorite photos, reminders, to-do lists or
phone numbers in your line of sight.
Page 3
170S7FB/05
LCD monitor
43 cm (17") SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• Display colors: 16.7 M
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
g input)
(analo
• Optimum resolution: 1280 x 1024 @ 60 Hz
g input)
(analo
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control, Left/
ight, Menu (OK), Power On/Off, Up/Down
R
• OSD Languages: English, Fr
Spanish, Russian
• Other convenience: Kensingto
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP
Windo
ench, German, Italian,
n lock compatible,
• Regulatory approvals: CE Mark, EMC,
FCC-B, UL, CSA, SEMKO, TÜV/GS, TÜV Ergo,
TCO '03
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Energy Star,
Accessories
• Included accessories: AC Power Cord, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
•Box dimensions (W x H x D):
449 x 182 x 489 mm
• Box dimensions in inch (W x H x D):
.7 x 7.2 x 19.3 inch
17
•Set dimensions (W x H x D):
0 x 327 x 57.5 mm
38
• Set dimensions in inch (W x H
15 x 12.9 x 2.3 inch
• Set dimensions with stand (W x H x D):
0 x 387 x 200 mm
38
•Set dimensions with st
15 x 15.2 x 7.9 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.7 kg
• Product weight (+stand) (lb): 10.4 lb
• Weight incl. Packaging: 6.1 kg
• Weight incl. Packaging (lb): 13.4 lb
x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
30 W (Typical)
de): < 1 W
Issue date 2022-04-21
Version: 5.0.10
12 NC: 8639 000 17027
EAN: 87 10895 96589 7
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
