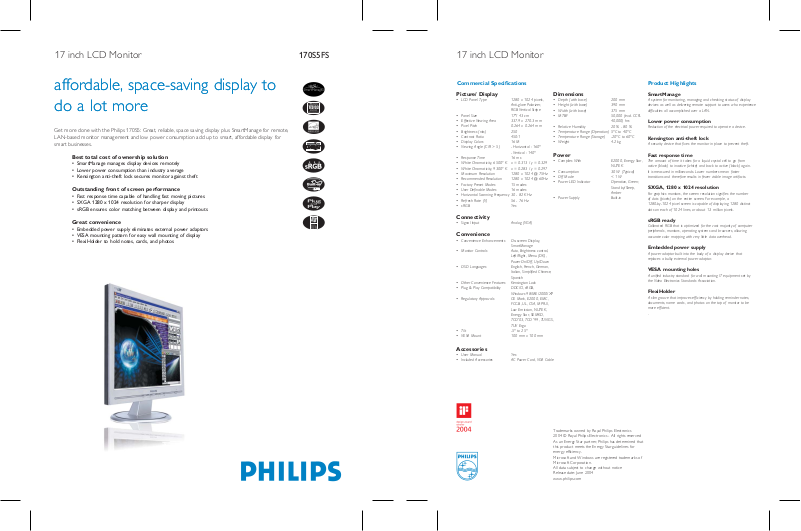

Philips 170S5FS User Manual
17 inch LCD Monitor 17 inch LCD Monitor
affordable, space-saving display to
affordable, space-saving display to
do a lot more
do a lot more
Get more done with the Philips 170S5: Great, reliable, space saving display plus SmartManage for remote,
LAN-based monitor management and low power consumption add up to smart, affordable display for
smart businesses.
Best total cost of ownership solution
• SmartManage manages display devices remotely
• Lower power consumption than industry average
• Kensington anti-theft lock secures monitor against theft
Outstanding front of screen performance
• Fast response time capable of handling fast moving pictures
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
170S5FS
Great convenience
• Embedded power supply eliminates external power adaptors
• VESA mounting pattern for easy wall mounting of display
• FlexiHolder to hold notes, cards, and photos
Commercial Specifications
Product Highlights
Picture/ Display
• LCD Panel Type 1280 x 1024 pixels,
Anti-glare Polarizer,
RGB Vertical Stripe
Panel Size 17"/ 43 cm
•
Effective Viewing Area 337.9 x 270.3 mm
•
Pixel Pitch 0.264 x 0.264 mm
•
Brightness (nits) 250
•
Contrast Ratio 450:1
•
Display Colors 16 M
•
Viewing Angle (C/R > 5) - Horizontal : 160°
•
- Vertical : 140°
• Response Time 16 ms
• White Chromaticity, 6500º K x = 0.313 / y = 0.329
• White Chromaticity, 9300º K x = 0.283 / y = 0.297
• Maximum Resolution 1280 x 1024 @ 75Hz
• Recommended Resolution 1280 x 1024 @ 60Hz
• Factory Preset Modes 15 modes
• User Definable Modes 16 modes
• Horizontal Scanning Frequency 30 - 82 KHz
• Refresh Rate (V) 56 - 76 Hz
• sRGB Yes
Connectivity
• Signal Input Analog (VGA)
Convenience
• Convenience Enhancements On-screen Display,
SmartManage
• Monitor Controls Auto, Brightness control,
Left/Right, Menu (OK),
Power On/Off, Up/Down
• OSD Languages English, French, German,
Italian, Simplified Chinese,
Spanish
• Other Convenience Features Kensington Lock
• Plug & Play Compatibility DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals CE Mark, E2000, EMC,
FCC-B, UL, CSA, MPR-II,
Low Emission, NUTEK,
Energy Star, SEMKO,
TCO'03, TCO '99, TUV/GS,
TUV Ergo
• Tilt -5° to 25°
• VESA Mount 100 mm x 100 mm
Dimensions
• Depth (with base) 200 mm
• Height (with base) 390 mm
• Width (with base) 375 mm
• MTBF 50,000 (excl. CCFL
40,000) hrs
• Relative Humidity 20 % - 80 %
• Temperature Range (Operation) 5°C to 40°C
• Temperature Range (Storage) -20°C to 60°C
• Weight 4.2 kg
Power
• Complies With E2000, Energy Star,
NUTEK
• Consumption 30 W (Typical)
• Off Mode < 1 W
• Power LED Indicator Operation, Green;
Stand by/Sleep,
Amber
• Power Supply Built-in
SmartManage
A system for monitoring, managing and checking status of display
devices as well as delivering remote support to users who experience
difficulties all accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to operate a device.
Kensington anti-theft lock
A security device that fixes the monitor in place to prevent theft.
Fast response time
The amount of time it takes for a liquid crystal cell to go from
active (black) to inactive (white) and back to active (black) again.
It is measured in milliseconds. Lower numbers mean faster
transitions and therefore results in fewer visible image artifacts.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen resolution signifies the number
of dots (pixels) on the entire screen. For example, a
1280-by-1024 pixel screen is capable of displaying 1280 distinct
dots on each of 1024 lines, or about 1.3 million pixels.
sRGB ready
Calibrated RGB that is optimized for the vast majority of computer
peripherals, monitors, operating systems and browsers, allowing
accurate color mapping with very little data overhead.
Embedded power supply
A power adaptor built into the body of a display device that
replaces a bulky external power adaptor.
VESA mounting holes
A unified industry standard for wall mounting IT equipment set by
the Video Electronics Standards Association.
FlexiHolder
A slim groove that improves efficiency by holding reminder notes,
documents, name cards, and photos on the top of monitor to be
more efficient.
.
Accessories
• User Manual Yes
• Included Accessories AC Power Cord, VGA Cable
Trademarks owned by Royal Philips Electronics
2004 © Royal Philips Electronics - All rights reserved
As an Energy Star partner, Philips has determined that
this product meets the Energy Star guidelines for
energy efficiency.
Microsoft and Windows are registered trademarks of
Microsoft Corporation.
All data subject to change without notice
Release date: June 2004
