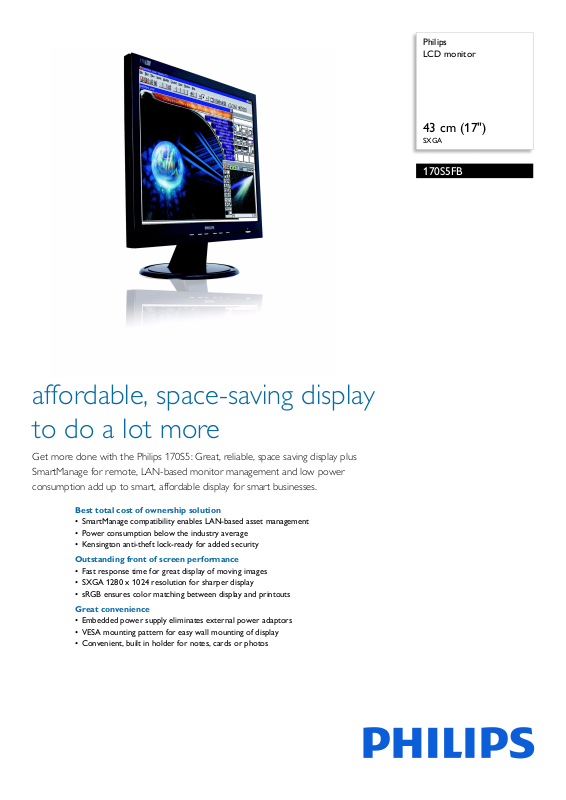

Philips
LCD monitor
43 cm (17")
SXGA
170S5FB
affordable, space-saving display
to do a lot more
Get more done with the Philips 170S5: Great, reliable, space saving display plus
SmartManage for remote, LAN-based monitor management and low power
consumption add up to smart, affordable display for smart businesses.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• Kensington anti-theft lock-ready for added security
Outstanding front of screen performance
• Fast response time for great display of moving images
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• VESA mounting pattern for easy wall mounting of display
• Convenient, built in holder for notes, cards or photos
LCD monitor
43 cm (17") SXGA
Highlights
170S5FB/75
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
Kensington lock compatible
Small apertures built into the display's frame
for use w
display to a fixed object for added protection
against theft.
Fast response time
Response time measures signal reaction speed
in
milliseconds. On/off response time
measures the time required for the screen to
turn from completely white to completely
checking status of display devices
ith a locking device that secures a
black and vice versa. Fast on/off response time
improves display of text. Gray-to-grey
response time measures the average time of
transition between several sets of random gray
levels - Lower numbers mean faster
transitions. Faster is better because a fast
response time eliminates visible image artifacts
that could dampen your experience when
viewing fast moving images or objects.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen
signifies the number of dots (pixels) on the
entire screen. For example, a 1280-by-1024
pixel screen is capable of displaying 1280
distinct dots on each of 1024 lines, or about 1.3
million pixels.
sRGB ready
sRGB is an industry standard that ensures the
be
st possible match between the colors
resolution
displayed on your screen and those in your
printouts.
Embedded power supply
An embedded power supply is a power
adapto
r built into the body of a display device
that replaces a bulky external power adaptor.
VESA mounting holes
A unified industry standard for wall mounting
IT equip
ment set by the Video Electronics
Standards Association.
FlexiHolder
FlexiHolder is a slim groove on the top of
moni
tor that neatly and conveniently stores
favorite photos, reminders, to-do lists or
phone numbers in your line of sight.
LCD monitor
43 cm (17") SXGA
Specifications
170S5FB/75
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 450:1
• Display colors: 16 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 140 degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 16 modes
• Horizontal Scanning Frequency: 30 - 82 kHz
• Refresh Rate (V): 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
Convenience
• User convenience: On-screen Display,
SmartManage
• Monitor Controls: Auto, Brightness Control, Left/
ight, Menu (OK), Power On/Off, Up/Down
R
• OSD Languages: English, Fr
ench, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC CI, sRGB,
Windo
ws 98/ME/2000/XP
• Regulatory approvals: CE Mark, E2000, EMC, FCC-
L, CSA, NUTEK, Energy Star, SEMKO, TCO
B, U
'99, TÜV/GS, TÜV Ergo
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
375 x 390 x 200 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
•Weight: 4.2 kg
Power
• Complies with: E2000, Energy Star, NUTEK
•Consumption (On mod
•Consumption (Off Mo
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in
•
e): 30W (Typical)
de): < 1 W
Issue date 2014-02-05
Version: 1.0.2
12 NC: 8639 000 15917
EAN: 87 10895 87716 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
