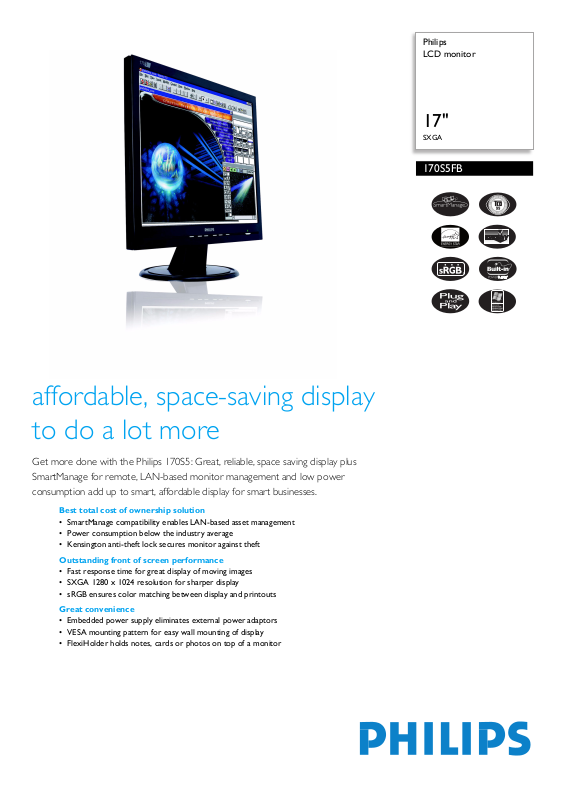

Philips 170S5FB User Manual
Philips
LCD monitor
17"
SXGA
170S5FB
affordable, space-saving display
to do a lot more
Get more done with the Philips 170S5: Great, reliable, space saving display plus
SmartManage for remote, LAN-based monitor management and low power
consumption add up to smart, affordable display for smart businesses.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• Kensington anti-theft lock secures monitor against theft
Outstanding front of screen performance
• Fast response time for great display of moving images
• SXGA 1280 x 1024 resolution for sharper display
• sRGB ensures color matching between display and printouts
Great convenience
• Embedded power supply eliminates external power adaptors
• VESA mounting pattern for easy wall mounting of display
• FlexiHolder holds notes, cards or photos on top of a monitor
LCD monitor
17" SXGA
170S5FB/00
Technical specifications Product highlights
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 450:1
• Display colors: 16 M
• Viewing angle: - C/R > 5
• Viewing angle (h / v): 160 / 140 degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Recommended Resolution: 1280 x 1024 @ 60
Hz
• Factory Preset Modes: 15 modes
• User definable modes: 16 modes
• Horizontal Scanning Frequency: 30 - 82 KHz
• Refresh Rate (V): 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA)
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage
• Monitor Controls: Auto, Brightness Control,
Left/Right, Menu (OK), Power On/Off, Up/
Down
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, EMC,
FCC-B, UL, CSA, NUTEK, Energy Star, SEMKO,
TCO '99, TÜV/GS, TÜV Ergo
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, VGA
cable
• Optional accessories: Super Ergo Base
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
375x390x200mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature Range (Operation): 5° C to 40° C
• Temperature Range (Storage): -20°C to 60° C
• Weight: 4.2 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 30W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation, green, Stand
by/sleep, Amber
• Power supply: Built-in
•
SmartManage enabled
SmartManage is a system for monitoring, managing
and checking status of display devices as well as
delivering remote support to users who experience
difficulties - all accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to operate a
device.
Kensington lock compatible
A security device that fixes the monitor in place to
prevent theft.
Fast response time
Response time is the period required for a liquid crystal
cell to go from active (black) to inactive (white) and
back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time
means faster transitions and, therefore, results in fewer
visible image artifactsin the display of fast-moving
images.
SXGA, 1280 x 1024 resolution
Fo r grap hics m onito rs, th e scre en res oluti on sig nifies the
number of dots (pixels) on the entire screen. For
example, a 1280-by-1024 pixel screen is capable of
displaying 1280 distinct dots on each of 1024 lines, or
about 1.3 million pixels.
sRGB ready
Calibrated RGB that is optimized for the vast majority
of computer peripherals, monitors, operating systems
and browsers, allowing accurate color mapping with
very little data overhead.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
VESA mounting holes
A unified industry standard for wall mounting IT
equipment set by the Video Electronics Standards
Association
Date of issue 2006-03-23
Version: 4.0
12 NC: 8639 000 15314
EAN: 87 10895 83086 7
FlexiHolder
FlexiHolder is a slim groove on the top of monitor that
improves efficiency by storing to-do lists, documents,
business cards and photos at a convenient location in
your line of sight.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
