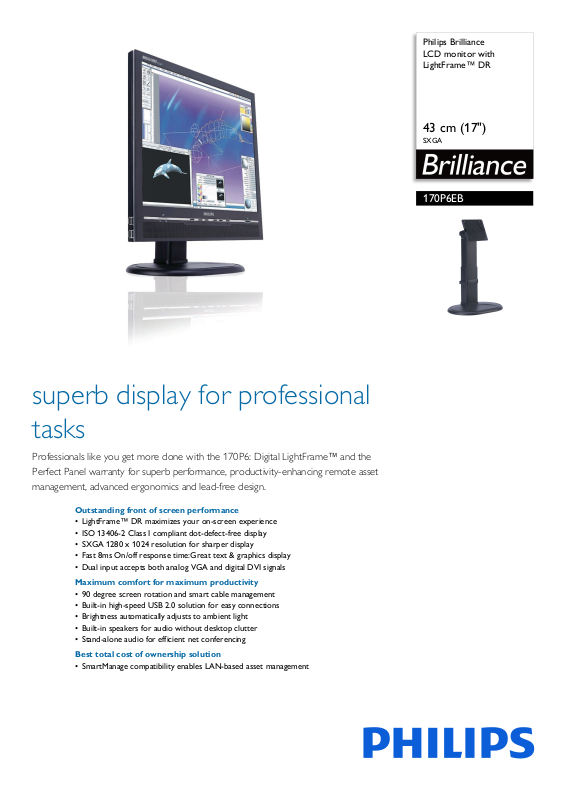

Page 1
Philips Brilliance
LCD monitor with
LightFrame™ DR
43 cm (17")
SXGA
170P6EB
superb display for professional
tasks
Professionals like you get more done with the 170P6: Digital LightFrame™ and the
Perfect Panel warranty for superb performance, productivity-enhancing remote asset
management, advanced ergonomics and lead-free design.
Outstanding front of screen performance
• LightFrame™ DR maximizes your on-screen experience
• ISO 13406-2 Class I compliant dot-defect-free display
• SXGA 1280 x 1024 resolution for sharper display
• Fast 8ms On/off response time:Great text & graphics display
• Dual input accepts both analog VGA and digital DVI signals
Maximum comfort for maximum productivity
• 90 degree screen rotation and smart cable management
• Built-in high-speed USB 2.0 solution for easy connections
• Brightness automatically adjusts to ambient light
• Built-in speakers for audio without desktop clutter
• Stand-alone audio for efficient net conferencing
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
Page 2
170P6EB/27
LCD monitor
43 cm (17") SXGA
Highlights
LightFrame™ DR
LightFrame™ Digital Reality is an integrated
s
oftware and hardware solution for Philips
high-end monitors that delivers high quality
visual display enhancements to users through
quick and convenient hardware or software
interfaces.
PerfectPanel™
Bright dots and dark dots are defe
panel. While some manufacturers still consider
bright and dark defects in a LCD panel an
inevitable part of the manufacturing process,
Philips doesn't. Philips monitors, compliant
with ISO 13406-2 Class I standard, are
produced with zero tolerance for LCD panel
defects and backed by Philips PerfectPanel™
globally valid warranty providing repair or
replacement of any LCD monitors that display
even a single defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
d crystal cell to go from active (black)
cts in a LCD
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Super Ergo Base
The Super Ergo base is a monitor base that
d
elivers ergonomic display comfort and
provides intelligent cable management. The
base's people-friendly height, swivel, tilt and
rotation angle adjustments position the
monitor for maximum comfort that can ease
the physical strains of a long workday;
intelligent cable management reduces cable
clutter and keeps the workspace neat and
professional.
USB connectivity solution
The universal serial bus or
protocol for linking PCs and peripherals.
Because it delivers high speed at a low cost,
USB has become the most popular method for
connecting peripheral devices to a computer.
USB is a standard
By placing a USB 2.0 solution in a monitor,
Philips provides a conveniently located, easyto-use, high-speed USB connection for reading,
writing, loading and transferring programs,
data, digital media or music files to, from or
among your PC and one or more USB devices.
SmartBright
SmartBright is an exclusive Philips feature that
e
mploys a built-in sensor to automatically
adjust display settings, delivering the very best
viewing experience, reduced energy
consumption and prolonged monitor life while
eliminating bright-screen-dark-room and darkscreen-bright-room eyestrain fatigue - all
without the bother of manually adjusting
display brightness as room lighting conditions
change.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
checking status of display devices
Page 3
170P6EB/27
LCD monitor
43 cm (17") SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 160 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Optimum resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 MHz
• Picture enhancement: LightFrame™ Digital Reality
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: USB 2.0
• Sync Input: Composite Sync,
on Green
Separate Sync, Sync
Convenience
• Built-in Audio: 2 W RMS x 2 Stereo Speakers
• User convenience: On-screen Display,
SmartManag
• Monitor Controls: Auto, Brightness Control, Left/
e enabled
ght, LightFrame, Menu (OK), Power On/Off, Up/
Ri
Down, Volume control
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory approvals: CE Mark, E2000, EMC,
ergy Star, FCC-B, UL, CSA, SEMKO, TCO '99,
En
TÜV/GS, TÜV Ergo
•Swivel: +/- 45°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
ench, German, Italian,
n lock compatible
Accessories
• Included accessories: AC Power Cord, Audio
Cable, DVI-D cable, USB cable, VGA cable
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
375 x 395 x 201 mm
• Height adjustment range: 130 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
•Weight: 5.6 kg
Power
• Complies with: E2000, Energy Star, NUTEK
•Consumption (On mode):
•Consumption (Off Mo
• Power LED indicator: Operation - Blue, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
43 W (Typical)
de): < 1 W
Issue date 2021-02-16
Version: 3.0.11
12 NC: 8639 000 16166
UPC: 0 37849 95978 7
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
