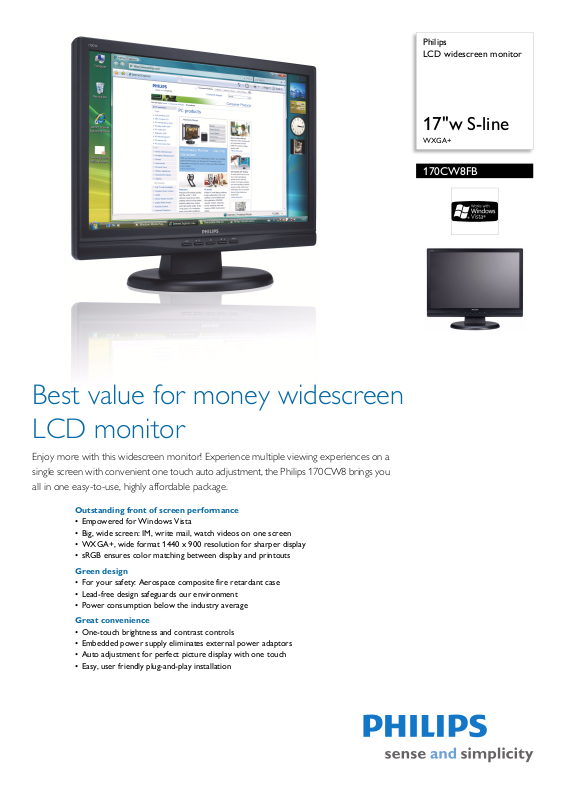

Philips
LCD widescreen monitor
17"w S-line
WXGA+
170CW8FB
Best value for money widescreen
LCD monitor
Enjoy more with this widescreen monitor! Experience multiple viewing experiences on a
single screen with convenient one touch auto adjustment, the Philips 170CW8 brings you
all in one easy-to-use, highly affordable package.
Outstanding front of screen performance
• Empowered for Windows Vista
• Big, wide screen: IM, write mail, watch videos on one screen
• WXGA+, wide format 1440 x 900 resolution for sharper display
• sRGB ensures color matching between display and printouts
Green design
• For your safety: Aerospace composite fire retardant case
• Lead-free design safeguards our environment
• Power consumption below the industry average
Great convenience
• One-touch brightness and contrast controls
• Embedded power supply eliminates external power adaptors
• Auto adjustment for perfect picture display with one touch
• Easy, user friendly plug-and-play installation
LCD widescreen monitor
17"w S-line WXGA+
170CW8FB/94
Highlights
Windows Vista ready
Philips Vista-ready monitors are empowered for
vibrant, exciting display of this new, visually
sophisticated and demanding Windows operating
system, designed to enhance your entertainment
experience, make you more productive and help you
control your computing experience at home and in
the office, making viewing, finding and organizing
information for work or play quick, efficient and
easy.
Widescreen design
A wide screen has a wider aspect ratio for displaying
more entertainment or information to have more
fun and get more done.
WXGA+ 1440 x 900 resolution
WXGA+ or Wide Extended Graphics Array plus is
a standard indicating a graphics monitor's ability to
display up to the resolutions 1440 by 900 pixels and
supports simultaneous display of more than one
million colors. WXGA allows monitors to be noninterlaced for better display performance and
increased color accuracy.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Flame retardant cabinet
PC/ABS plastic composite is the industry's best and
toughest flame-retardant casing material; and is a
space-age compound deployed in the aerospace and
automotive industries as well as in fire detectors that
is compliant with most stringent fire safety
standards.
Lead-free
Lead-free display products are designed and
produced in compliance with strict European
Community Restriction of Hazardous Substances
(RoHS) standards that restrict lead and other toxic
substances that can harm the environment.
Lower power consumption
Reduction of the electrical power required to
operate a device.
Brightness and contrast button
Conveniently located buttons on the front bezel that
provide one-touch brightness and contrast
adjustments.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
One-touch auto adjustment
The auto adjustment key restores optimal screen
position, phase and clock settings with the press of a
single button - without navigation through OSD
menus and control keys.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A
plug and play display device can be connected to a PC
and operate without requiring user intervention to
adjust complicated settings.
Specifications
Picture/Display
• LCD panel type: 1440 x 900 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 367.2 x 229.5 mm
• Pixel pitch: 0.255 x 0.255 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 500:1
• Display colors: 262 K
• Viewing angle: 140º (H) / 130º (V), @ C/R > 10
• Response time (typical): 8 ms
• Maximum Resolution: 1440 x 900 @ 75 Hz (analog
t)
inpu
• Optimum Resolution: 1440 x 900 @ 60 Hz (analog
t)
inpu
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 55 - 75 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness (Left), Power
/Off, Contrast (Right), Menu (OK)
On
• OSD Languages: English, French, Portuguese,
Simplifi
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
Windo
• Regulatory Approvals: CE Mark, EMC, Energy Star,
CC-B, UL, CSA, SEMKO, TÜV/GS, TÜV Ergo
F
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, VGA cable
• User Manual
Green
ed Chinese, Spanish, Traditional Chinese
n lock compatible
ws 98/ME/2000/XP/Vista
Issue date 2009-11-06
Version: 1.0.3
12 NC: 8670 000 42077
EAN: 87 12581 44159 3
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Dimensions
• Box dimensions (W x H x D):
472 x 377 x 170 mm
• Box dimensions in inch (W x H x D):
.6 x 14.8 x 6.7 inch
18
• Set dimensions (W x H x D): 400 x 287 x 77 mm
• Set dimensions in inch (W x H x D):
.7 x 11.3 x 3.0 inch
15
• Set dimensions with stand (W x H x D):
332 x 210 mm
0 x
40
• Set dimensions with stand in inch (W x H x D):
.7 x 13.1 x 8.3 inch
15
• MTBF: 40,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 3.4 kg
• Product weight (+stand) (lb): 7.5 lb
• Weight incl. Packaging: 4.4 kg
• Weight incl. Packaging (lb): 9.7 lb
Power
• Complies with: Energy Star
• Consumption (On mode):
• Consumption (Off Mode): < 1 W
•Power LED indicator: Operation
sleep - Amber
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
< 36 W (Typical)
- green, Stand by/
