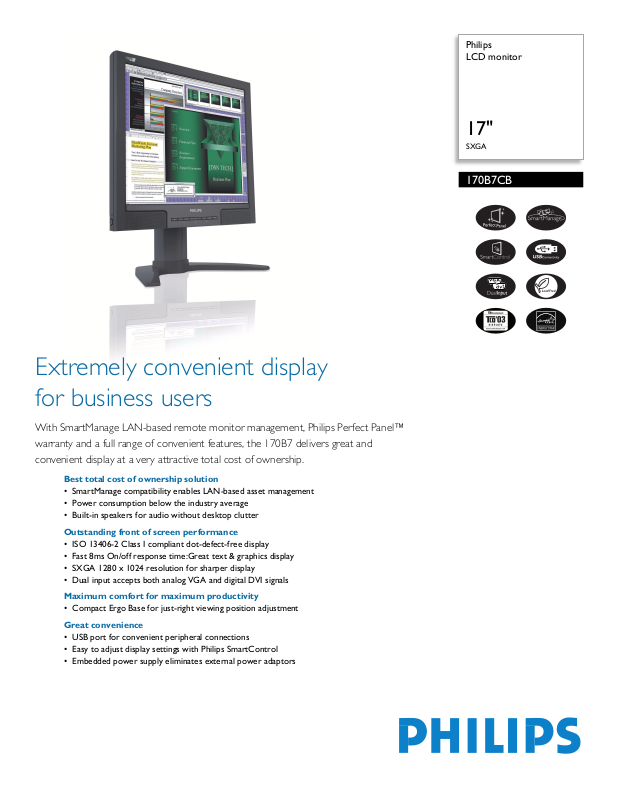

Philips
LCD monitor
17"
SXGA
170B7CB
Extremely convenient display
for business users
With SmartManage LAN-based remote monitor management, Philips Perfect Panel™
warranty and a full range of convenient features, the 170B7 delivers great and
convenient display at a very attractive total cost of ownership.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
• Built-in speakers for audio without desktop clutter
Outstanding front of screen performance
• ISO 13406-2 Class I compliant dot-defect-free display
• Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analog VGA and digital DVI signals
Maximum comfort for maximum productivity
• Compact Ergo Base for just-right viewing position adjustment
Great convenience
• USB port for convenient peripheral connections
• Easy to adjust display settings with Philips SmartControl
• Embedded power supply eliminates external power adaptors
Page 2
For preview purpose only
LCD monitor
17" SXGA
Technical specifications Product highlights
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Antiglare polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 13.3 x 10.6 inch
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 600:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (h / v): 160 / 160 degree
• Response time (typical): 8ms
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
(digital input)
• Recommended Resolution: 1280 x
1024 @ 60 Hz (digital input)
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-D, PC
Audio in
• Audio output: Stereo Audio (3.5 mm jack)
1x
• USB: USB 2.0
• Video Sync Input Signal: Composite Sync,
Separate Sync, Sync on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Built-in Audio: 2 W RMS x 2 Stereo Speakers
• Convenience Enhancements: On-screen
Display, SmartManage enabled
• Monitor Controls: Auto, Brightness Control
(Up/Down), Left/Right, Menu (OK), Power
On/Off, Volume control
• OSD Languages: English, French, Portuguese,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
compatible, FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, EMC,
Energy Star, FCC-B, UL, CSA, SEMKO, TCO
'03, TÜV/GS, TÜV Ergo
• Swivel: +/- 60°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord,
Audio Cable, DVI-D cable, USB cable, VGA
cable
• Optional accessories: Super Ergo Base
•User Manual
Dimensions
• Box dimensions (W x H x D):
449x182x452mm
• Box dimensions in inch (W x H x D):
17.7x7.2x17.8inch
• Set dimensions (W x H x D):
382.5 x 342.8 x 61.5 mm
• Set dimensions in inch (W x H x D):
15.1 x 13.5 x 2.4 inch
• Set dimensions with stand (W x H x D):
382.5 x 387.2 x 198.7 mm
• Set dimensions with stand in inch
(W x H x D): 15.1 x 15.2 x 7.8 inch
• Height adjustment range: 60 mm
• Height adjustment range (inch): 2.4 inch
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to
40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (incl. stand): 5.2 kg
• Product weight (+stand) (lb): 11.5 lb
• Weight incl. Packaging: 6.5 kg
• Weight incl. Packaging (lb): 14.3 lb
Power
• Complies with: Energy Star
• Consumption: 33W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green,
Stand by/sleep - Amber
• Power supply: Built-in, 100-240VAC, 50/
60Hz
•
170B7CB/27
SmartManage enabled
SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to operate a
device.
Built-in speakers (B)
Audio speakers built into a display device.
PerfectPanel™
Bright dots and dark dots are defects in a LCD panel.
While some manufacturers still consider bright and dark
defects in a LCD panel an inevitable part of the
manufacturing process, Philips doesn't. Philips monitors,
compliant with ISO 13406-2 Class I standard, are
produced with zero tolerance for LCD panel defects and
backed by Philips PerfectPanel™ globally valid warranty
providing repair or replacement o f an y LCD mon ito rs t hat
display even a single defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white) and
back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time means
faster transitions and, therefore, results in fewer visible
image artifacts in the display of transition of text and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
Dual input
Dual input provides connectors to accommodate input of
both analog VGA and digital DVI signals.
Compact Ergo Base
The Compact Ergo Base is a 'people friendly' Philips
monitor base that tilts, swivels and height adjusts so each
user can position the monitor for maximum viewing
comfort and efficiency.
USB 2.0 port
The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Because it delivers high speed
at a low cost , USB has become the most popular meth od
for connecting peripheral devices to a computer. A port
located on a monitor directly in the user's line of sight
provides easy, high-speed connectivity for USB devices at
a convenient location. (USB 2.0 support is dependent on
your PC's USB configuration; when connected to a PC that
supports USB 2.0, your monitor is USB 2.0 compatible)
SmartControl
PC software for fine tuning display performance and
settings. Philips offers users two choices for display setting
adjustment. Either navigate the multilevel On Screen
Display menu through buttons on the display itself or use
the Philips SmartControl software to easily adjust the
various display settings in a familiar way.
Date of issue 2006-09-23
Version: 7.0
12 NC: 8639 000 16893
UPC: 6 09585 11159 2
Embedded power supply
An embedded power supply is a power adaptor built into
the body of a display device that replaces a bulky external
power adaptor.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
