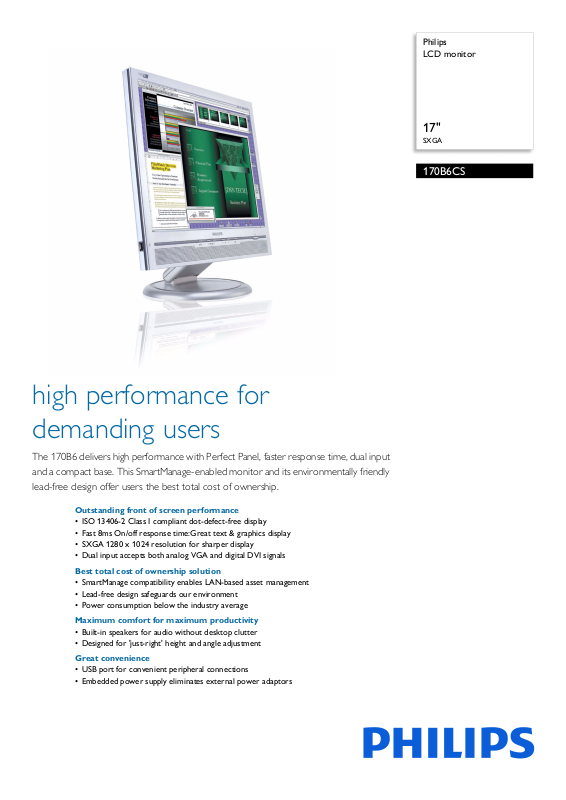

Philips
LCD monitor
17"
SXGA
170B6CS
high performance for
demanding users
The 170B6 delivers high performance with Perfect Panel, faster response time, dual input
and a compact base. This SmartManage-enabled monitor and its environmentally friendly
lead-free design offer users the best total cost of ownership.
Outstanding front of screen performance
• ISO 13406-2 Class I compliant dot-defect-free display
• Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analog VGA and digital DVI signals
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Lead-free design safeguards our environment
• Power consumption below the industry average
Maximum comfort for maximum productivity
• Built-in speakers for audio without desktop clutter
• Designed for 'just-right' height and angle adjustment
Great convenience
• USB port for convenient peripheral connections
• Embedded power supply eliminates external power adaptors
170B6CS/69
LCD monitor
17" SXGA
Highlights
PerfectPanel™
Bright dots and dark dots are defe
panel. While some manufacturers still consider
bright and dark defects in a LCD panel an
inevitable part of the manufacturing process,
Philips doesn't. Philips monitors, compliant
with ISO 13406-2 Class I standard, are
produced with zero tolerance for LCD panel
defects and backed by Philips PerfectPanel™
globally valid warranty providing repair or
replacement of any LCD monitors that display
even a single defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
d crystal cell to go from active (black)
cts in a LCD
Dual input
Dual input provides connectors to
accommodat
digital DVI signals.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Lead-free
Lead-free display products are designed and
produced
Community Restriction of Hazardous
Substances (RoHS) standards that restrict lead
and other toxic substances that can harm the
environment.
Lower power consumption
Reduction of the electrical power required to
o
perate a device.
e input of both analog VGA and
checking status of display devices
in compliance with strict European
Ergonomics design
Ergonomic design makes Philips monitors
'pe
ople friendly' with tilt, swivel and height
adjustment so each user can position the
monitor for maximum viewing comfort and
efficiency.
USB 2.0 port
The universal serial bus or USB is a standard
p
rotocol for linking PCs and peripherals.
Because it delivers high speed at a low cost,
USB has become the most popular method for
connecting peripheral devices to a computer.
A port located on a monitor directly in the
user's line of sight provides easy, high-speed
connectivity for USB devices at a convenient
location. (USB 2.0 support is dependent on
your PC's USB configuration; when connected
to a PC that supports USB 2.0, your monitor is
USB 2.0 compatible)
Embedded power supply
An embedded power supply is a power
adapto
r built into the body of a display device
that replaces a bulky external power adaptor.
170B6CS/69
LCD monitor
17" SXGA
Specifications
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 155 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Recommended Resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-D, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
Green
Convenience
• Built-in Audio: 2 W RMS x 2 Stereo Speakers
• Convenience Enhancements: On-screen Display,
SmartManag
• Monitor Controls: Auto, Brightness Control, Left/
ght, Menu (OK), Power On/Off, Up/Down,
Ri
Volume control
e enabled
• OSD Languages: English, Fr
Simplified Chinese, Spanish
• Other convenience: Kensingto
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP
Windo
• Regulatory Approvals: CE Mark, E2000, EMC,
ergy Star, FCC-B, UL, CSA, SEMKO, TCO '03,
En
TÜV/GS, TÜV Ergo
• Swivel: +/- 125°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
ench, German, Italian,
n lock compatible,
Accessories
• Included Accessories: AC Power Cord, Audio
Cable, USB cable, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
375 x 377 x 210 mm
• Height adjustment range: 70 mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
•Weight: 4.8 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 33W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
Issue date 2019-05-09
Version: 1.0.3
12 NC: 8639 000 16348
EAN: 87 10895 89939 0
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
