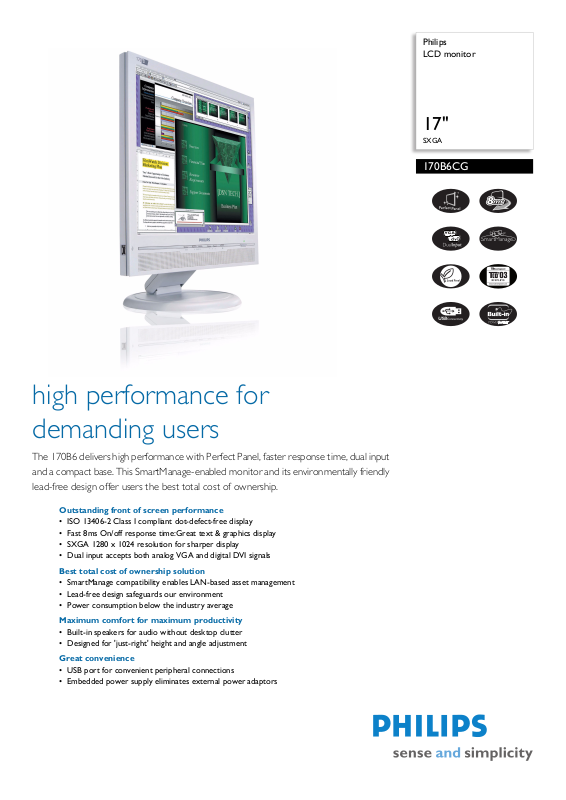

Page 1
Philips
LCD monitor
17"
SXGA
170B6CG
high performance for
demanding users
The 170B6 delivers high performance with Perfect Panel, faster response time, dual input
and a compact base. This SmartManage-enabled monitor and its environmentally friendly
lead-free design offer users the best total cost of ownership.
Outstanding front of screen performance
• ISO 13406-2 Class I compliant dot-defect-free display
•Fast 8ms On/off response time:Great text & graphics display
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analog VGA and digital DVI signals
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Lead-free design safeguards our environment
• Power consumption below the industry average
Maximum comfort for maximum productivity
• Built-in speakers for audio without desktop clutter
• Designed for 'just-right' height and angle adjustment
Great convenience
• USB port for convenient peripheral connections
• Embedded power supply eliminates external power adaptors
Page 2
LCD monitor
170B6CG/00
17" SXGA
Specifications Product highlights
Picture/Display
• LCD panel type: 1280 x 1024 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 500:1
• Display colors: 16.2 M
• Viewing angle: @ C/R > 5
• Viewing angle (H / V): 160 / 155 degree
• Response time (typical): 8 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1280 x 1024 @ 75 Hz
• Recommended Resolution: 1280 x 1024 @ 60 Hz
• Factory Preset Modes: 15 modes
• User definable modes: 50 modes
• Video Dot Rate: 140 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-D, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
Convenience
• Built-in Audio: 2 W RMS x 2 Stereo Speakers
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control, Left/
Right, Menu (OK), Power On/Off, Up/Down,
Volume control
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible,
FlexiHolder
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, E2000, EMC,
Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03,
TÜV/GS, TÜV Ergo
• Swivel: +/- 125°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, Audio
Cable, USB cable, VGA cable
• Optional accessories: Super Ergo Base
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
375
x 377 x 210 mm
• Height adjustment range: 70 mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Weight: 4.8 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 33W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Stand
by/sleep - Amber
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
PerfectPanel™
Bright dots and dark dots are defects in a LCD panel.
While some manufacturers still consider bright and dark
defects in a LCD panel an inevitable part of the
manufacturing process, Philips doesn't. Philips monitors,
compliant with ISO 13406-2 Class I standard, are
produced with zero tolerance for LCD panel defects and
backed by Philips PerfectPanel™ globally valid warranty
providing repair or replacement of any LCD mon ito rs that
display even a single defective bright or dark dot.
8ms response time (On/Off)
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white)
and back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time means
faster transitions and, therefore, results in fewer visible
image artifacts in the display of transition of text and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
Dual input
Dual input provides connectors to accommodate input of
both analog VGA and digital DVI signals.
SmartManage enabled
SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.
Lead-free
Lead-free display products are designed and produced in
compliance with strict European Community Restriction
of Hazardous Substances (RoHS) standards that restrict
lead and other toxic substances that can harm the
environment.
Lower power consumption
Reduction of the electrical power required to operate a
device.
Ergonomics design
Ergonomic design makes Philips monitors 'people friendly'
with tilt, swivel and height adjustment so each user can
position the monitor for maximum viewing comfort and
efficiency.
USB 2.0 port
The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Because it delivers high
speed at a low cost, USB has become the most popular
method for connecting peripheral devices to a computer.
A port located on a monitor directly in the user's line of
sight provides easy, high-speed connectivity for USB
devices at a convenient location. (USB 2.0 support is
dependent on your PC's USB configuration; when
connected to a PC that supports USB 2.0, your monitor is
USB 2.0 compatible)
Embedded power supply
An embedded power supply is a power adaptor built into
the body of a display device that replaces a bulky external
power adaptor.
Issue date 2007-08-04
Version: 4.0
12 NC: 8639 000 16159
EAN: 87 10895 88984 1
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
