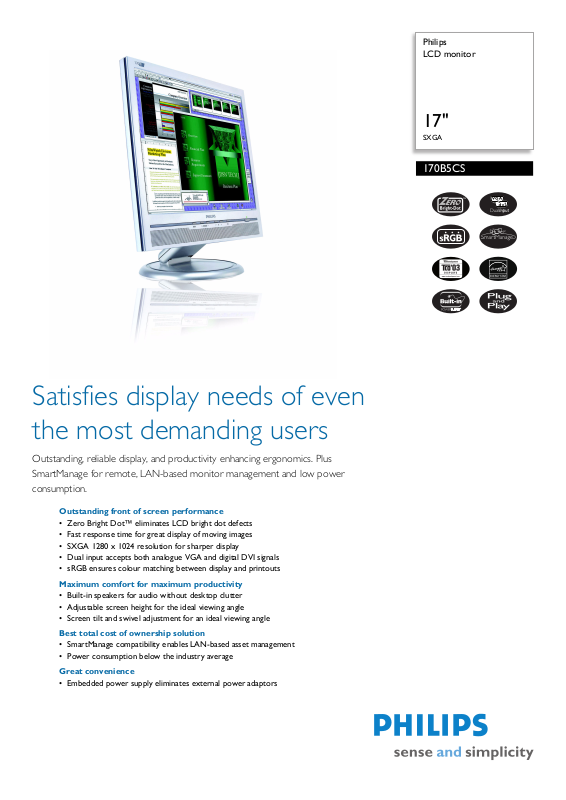

Page 1
Philips
LCD monitor
17"
SXGA
170B5CS
Satisfies display needs of even
the most demanding users
Outstanding, reliable display, and productivity enhancing ergonomics. Plus
SmartManage for remote, LAN-based monitor management and low power
consumption.
Outstanding front of screen performance
• Zero Bright Dot™ eliminates LCD bright dot defects
• Fast response time for great display of moving images
• SXGA 1280 x 1024 resolution for sharper display
• Dual input accepts both analogue VGA and digital DVI signals
• sRGB ensures colour matching between display and printouts
Maximum comfort for maximum productivity
• Built-in speakers for audio without desktop clutter
• Adjustable screen height for the ideal viewing angle
• Screen tilt and swivel adjustment for an ideal viewing angle
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
Great convenience
• Embedded power supply eliminates external power adaptors
Page 2
LCD monitor
17" SXGA
170B5CS/00
Specifications Product highlights
Picture / Display
• LCD panel type: 1280 x 1024 pixels, Anti glare
polarizer, RGB vertical stripe
• Panel size: 17"/ 43 cm
• Effective viewing area: 337.9 x 270.3 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 450:1
• Display colours: 16 M
• Viewing angle: @ C/R > 5
• Viewing Angle (H / V): 160 / 140 degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 /
y
= 0.329
• White Chromaticity, 9300K: x = 0.283 /
y
= 0.297
• Maximum resolution: 1280 x 1024 @ 75 Hz
• Recommended resolution: 1280 x 1024 @ 60
Hz
• Factory preset modes: 15 modes
• User definable modes: 16 modes
• Horizontal scanning frequency: 30 - 82 kHz
• Refresh rate (V): 56 - 76 Hz
•sRGB
Connectivity
• I/O interface on pad: Headphone jack
• Signal input: Analogue (VGA), DVI-D, PC audio
in
Convenience
• Built-in audio: 2 W RMS x 2 stereo speakers
• Convenience enhancements: On screen display,
SmartManage
• Monitor controls: Auto, Brightness control, Left
/ right, Menu (OK), Power on / off, Up / down,
Volume control
• OSD languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play compatibility: DDC CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory approvals: CE Mark, E2000, EMC,
FCC-B, UL, CSA, NUTEK, Energy Star, SEMKO,
TCO '99, TÜV/GS, TÜV Ergo, TCO '03
• Swivel: +/- 125°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC power cord, Audio
cable, VGA cable
• User manual
• Optional accessories: Super Ergo Base
Dimensions
• Dimensions (with base) (W x H x D):
375
x 372 x 210 mm
• Height adjustment range: 70 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80 %
• Temperature range (operation): 5°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Weight: 5.4 kg
Power
• Complies with: E2000, Energy Star, NUTEK
• Consumption: 33W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - Green,
Standby / sleep - Amber
• Power supply: Built in
•
Zero Bright Dot™
Bright dots are defects in a LCD panel once thought to
be an inevitable part of the manufacturing process.
With Zero Bright Dot™, Philips monitors are
guaranteed without dot defects.
Fast response time
Response time measures signal reaction speed in
milliseconds. On/off response time measures the time
required for the screen to turn from completely white to
completely black and vice versa. Fast on/off response
time improves display of text. Grey-to-grey response
time measures the average time of transition between
several sets of random grey levels - Lower numbers
mean faster transitions. Faster is better because a fast
response time eliminates visible image artifacts that
could dampen your experience when viewing fast
moving images or objects.
SXGA, 1280 x 1024 resolution
Fo r graph ics monit ors, th e sc reen re sol utio n si gnifie s th e
number of dots (pixels) on the entire screen. For
example, a 1280-by-1024 pixel screen is capable of
displaying 1280 distinct dots on each of 1024 lines, or
about 1.3 million pixels.
Dual input
Dual input provides connectors to accommodate input
of both analog VGA and digital DVI signals.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colours displayed on your
screen and those in your printouts.
Built-in speakers
Audio speakers built into a display device
Adjustable height
Adjustable height is the ability of a monitor to travel up
or down on its base and lock into position when the
desired height is reached, delivering a comfortable,
individualised viewing angle that is just right for the
user's height, weight, body-type and posture, alleviating
possible eyestrain or fatigue that can come from long
hours working on a computer.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into the base
allowing the monitor to swivel and tilt backward or
forward.
Date of issue 2007-02-20
Version: 5.0
12 NC: 8639 000 15091
EAN: 87 10895 82412 5
SmartManage enabled
A system for monitoring, managing and checking the
status of display devices as well as delivering remote
support to users who experience difficulties all
accomplished over a LAN.
Lower power consumption
Reduction of the electrical power required to operate a
device.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
