Philips 170B2B, 170B2, 170B2T Specifications

Page 1

170B

170B2

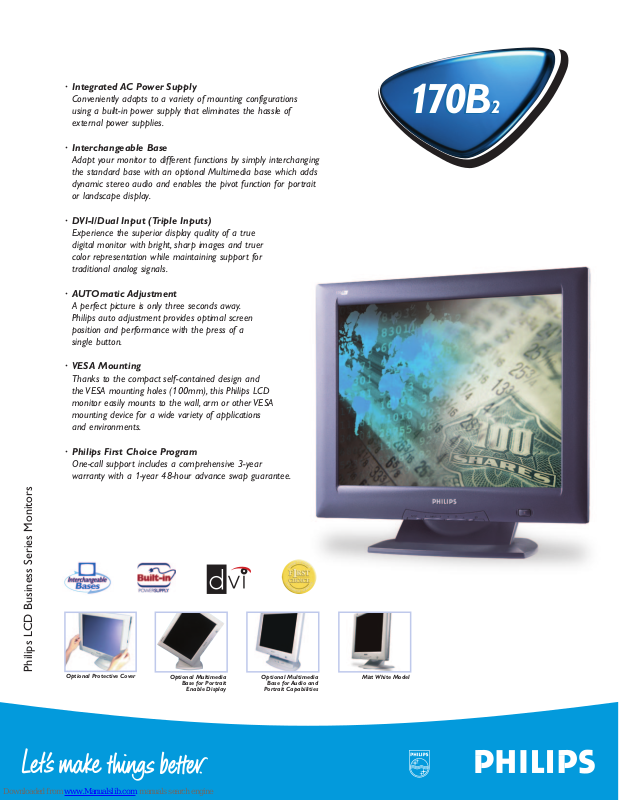

Philips LCD Business Series Monitors

· Integrated AC Power Supply

Conveniently adapts to a variety of mounting configurations using a built-in power supply that eliminates the hassle of external power supplies.

· Interchangeable Base

Adapt your monitor to different functions by simply interchanging the standard base with an optional Multimedia base which adds dynamic stereo audio and enables the pivot function for portrait or landscape display.

·DVI-I/Dual Input (Triple Inputs)

Experience the superior display quality of a true digital monitor with bright, sharp images and truer color representation while maintaining support for traditional analog signals.

·AUTOmatic Adjustment

A perfect picture is only three seconds away. Philips auto adjustment provides optimal screen position and performance with the press of a single button.

· VESA Mounting

Thanks to the compact self-contained design and the VESA mounting holes (100mm),this Philips LCD monitor easily mounts to the wall, arm or other VESA mounting device for a wide variety of applications and environments.

· Philips First Choice Program

One-call support includes a comprehensive 3-year warranty with a 1-year 48-hour advance swap guarantee.

Optional Multimedia

Base for Portrait

Enable Display

Optional Multimedia

Base for Audio and

Portrait Capabilities

Mist White Model

Optional Protective Cover

Page 2

Product Number170B2T (Stealth Black)

170B2B (Mist White)

Technical Specifications LCD Panel

• Panel Active Matrix TFT LCD

• Screen Size 17"/43.2 cm

• Pixel Pitch 0.264 x 0.264mm

• Display Format 1280 x 1024 pixels, R.G.B Vertical Stripe Anti-glare Polarizer, Hard Coated

• Display Area 13.03" x 10.64" / 337.9 x 270.3mm

Scanning

•Vertical Refresh Rate 56~76 Hz

• Horizontal Frequency 30~82 KHz

Video

• Video Dot Rate 135 MHz

• Input Impedance

- Video 75Ω

- Sync 2KΩ

• Input Signal Levels 0.7 Vpp

• Sync Input Signal Separate Sync Composite Sync Sync on Green

• Sync Polarities Positive and Negative

• Video Interface Triple input (two connectors); D-Sub (analog) and DVI-I (accepts both digital and analog) are available and user selectable

Optical Characteristics

• Contrast Ratio 400:1 (typ.)

• Brightness 250 cd/m2 (typ.)

•Peak Contrast Angle 6 o'clock

• White Chromaticity x: 0.281 y: 0.311 (at 9300°K)

x: 0.312 y: 0.338 (at 6500°K)

• Viewing Angle V=160° Upper ≥ 80°(typ.)

(C/R >5) Lower ≥ 80°(typ.)

H=160° Left ≥ 80°(typ.)

Right ≥ 80°(typ.)

• Number of Colors 8 bits interface (16M colors)

• Response Time ≤40 ms (typ.)

Resolution & Preset Modes

• Maximum Resolution 1280x1024 at 75Hz

• Recommended Resolution 1280x1024 at 60Hz

• 32 User Definable Modes

• 15 Factory Preset Modes:

(Interlace mode is not applicable)

Plug and Play Compatibility

• Display Data Channel DDC 2B (VESA)

• Microsoft®Windows®95/98/ Me & 2000/XP Compatible

Power Management

Complies with EPA Energy Star and NUTEK specifications

•Typical Operation 40W (typical)

• Sleep Mode 2W

Low-emission Characteristics

• Complies with MPR-II and TCO’99 (170B2B)or TCO’95 (170B2T) Specifications

Monitor Controls and Functions

•Front Power On/Off OK Auto Up/Down (Brightness) Left/Right

• LED Indicator Green - Power On Amber - Stand By/Sleep Mode Flashing Green - New Mode

Connections and Cables

• Connections

- Video 15-pin D-sub (analog) DVI-I (digital/analog)

- DC Output 12V, 6.5mm DC Connector

- Power IEC/CEE-22 Type Male Power Inlet on Monitor Body

• Cables D-Sub Video Cable, Power Cord

Optional Accessories

• USB Hub (PCUH411) 1 Up Stream, 4 Down Stream Ports, Self Powered

•Protective Cover (XG3P30) Mist White Only

• Multimedia Base (VG3P31) Mist White

(VG3P32) Stealth Black

Regulatory Approvals

• TUV/GS,TUV-Ergo • FCC-B, UL,CSA • TCO ’99 (170B2B)

• MPR-II Low Emission • CE Mark • TCO ’95 (170B2T)

• NUTEK, Energy Star • SEMKO

Physical Specifications

• UPC Code 170B2T 0 37849 92497 6

170B2B 0 37849 91635 3

• Unit Dimension (WxHxD) 16.29" x 15.98" x 7.08"

414 x 406 x 180 mm (incl. Pedestal)

• Unit Weight 15.43 lbs/7.0 Kg

• Carton Dimension (WxHxD) 9.25" x 20.08" x 19.33"

235 x 510 x 491 mm

• Carton Weight 21.1 lbs/9.57 Kg

• Tilt/Swivel -5°~35° / ±175°

•Power Supply 100 – 240 VAC, 50/60 Hz

•Power Consumption 40 W* (typ.)

•Temperature (operating) 41°F to 95°F / +5°C to +35°C

•Temperature (storage) -4°F to 140°F / -20°C to +60°C

• Relative Humidity 20% to 80%

• System MTBF 50K hrs (excluding CCFL 50K hrs)

Carton contains: 170B2 LCD Monitor, power cord,VGA cable and user’s manual on CD.

INTERNET ADDRESS: http://www.philips.com TECHNICAL SUPPORT: (877) 835-1838 (USA)

(903) 242-4804 (outside USA)

Specifications subject to change without notice.

170B

170B2

Printed in the U.S.A., ©2002 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp. We recommend using 1280 x 1024 at 60Hz non-interlaced mode for the best picture quality. As an Energy Star partner,Philips has determined that this product meets the Energy Star guide-

lines for energy efficiency.Microsoft and Windows are registered trademarks of Microsoft Corporation Macintosh is a registered trademark of Apple Computer, Inc. * Resolution 1280 x 1024,standard size,contrast max., brightness 50%, 9300°K,full white pattern, without Audio/USB.

1191- 02/02

Literature Order Number: 170B2T, 170B2B

Resolution H.freq V.freq

640 x 350 31.5(kHz) 70(Hz) 720 x 400 31.5 70 640 x 480 31.5 60 640 x 480 35.0 67 640 x 480 37.8 73 640 x 480 37.5 75 800 x 600 35.2 56

Resolution H.freq V.freq

800 x 600 37.9 60 800 x 600 48.0 72 800 x 600 46.9 75 832 x 624 49.7 75 1024 x 768 48.4 60 1024 x 768 56.5 70 1024 x 768 60.0 75
