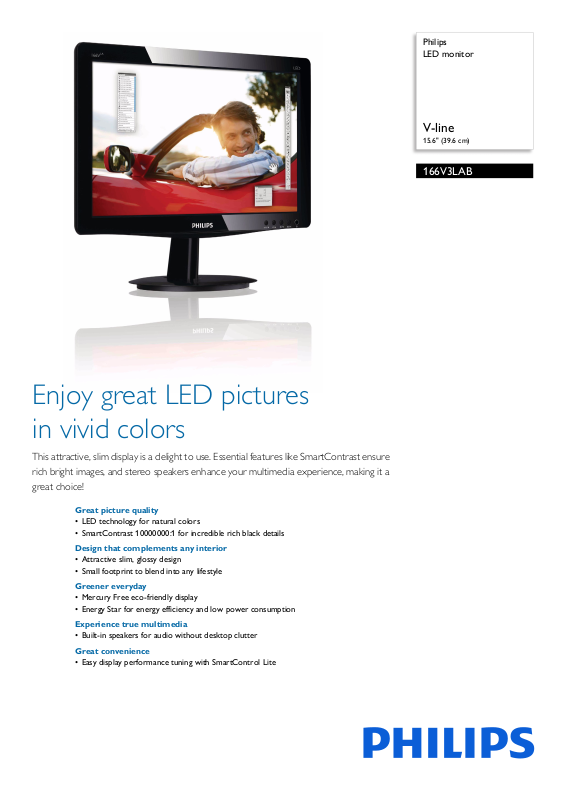

Philips LED monitor

V-line

15.6" (39.6 cm)

166V3LAB

Enjoy great LED pictures in vivid colors

This attractive, slim display is a delight to use. Essential features like SmartContrast ensure rich bright images, and stereo speakers enhance your multimedia experience, making it a great choice!

Great picture quality

• LED technology for natural colors

• SmartContrast 10000000:1 for incredible rich black details

Design that complements any interior

• Attractive slim, glossy design

• Small footprint to blend into any lifestyle

Greener everyday

• Mercury Free eco-friendly display

• Energy Star for energy efficiency and low power consumption

Experience true multimedia

• Built-in speakers for audio without desktop clutter

Great convenience

• Easy display performance tuning with SmartControl Lite

LED monitor

SmartContrast

10,000,000:1

V-line 15.6" (39.6 cm)

166V3LAB/00

Specifications

Picture/Display

• LCD panel type: TFT-LCD

• Backlight type: W-LED system

• Panel Size: 15.6 inch / 39.6 cm

• Effective viewing area: 359.8 (H) x 210 (V)

• Aspect ratio: 16:9

• Optimum resolution: 1366 x 768 @ 60 Hz

• Response time (typical): 8 ms

• Brightness (nits): 200 nit

• SmartContrast:

• Contrast ratio (typical): 500:1

• Pixel pitch: 0.252x 0.252 mm

• Viewing angle: 90º (H) / 50º (V), @ C/R > 10

• Display colors: 16.7 M

• Scanning Frequency: 30 -83

•sRGB

Connectivity

• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)

• Sync Input: Separate Sync, Sync on Green

• Audio In/Out: PC audio-in

Convenience

• Built-in Audio: 1.5W x 2

• User convenience: Volum Auto, Power On/Off

• OSD Languages: English, F Italian, Russian, Simplified Chinese, Portuguese, Turkish

• Other convenience: Kensington lock

• Plug & Play Compatibility: DDC/CI, Windows 7, Mac OS X

Stand

• Tilt: -5/+20 degree

10,000,000:1

kHz (H) / 56 -75 Hz (V)

e, Brightness, Menu,

rench, German, Spanish,

, sRGB

Slim design

Power

• On mode: 7.85 W (EnergyStar 5.0 test method)

• Standby mode: 0.5 W

• Off mode: 0.5 W

• Power LED indicator: Operation - White, Standby mode- White (blinking)

• Power supply: Built-in, 100-240VAC, 50/60Hz

Dimensions

• Product with stand (mm): 392 x 318 x 174 mm

• Product without stand (mm): 392 x 242 x 44 mm

• Packaging in mm (WxHxD): 432 x 337 x 100 mm

Weight

• Product with stand (kg): 1.66 kg

• Product without stand (kg): 1.41 kg

• Product with packaging (kg): 2.49 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature Range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• MTBF: 30,000 hour(s)

Sustainability

• Environmental and energy: EPEAT Silver, RoHS, EnergyStar 5.0, Lead-free, Mercury Free

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: BSMI, CE Mark, SEMKO, GOST, TUV/GS, TUV Ergo, UL/cUL, FCC Class B, PSB, SASO, WEEE

Cabinet

• Color: Black

• Finish: Glossy (front bezel) /Texture (rear cover)

•

Highlights

LED technology

White LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.

Built-in speakers

A pair of stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design.

SmartContrast ratio 10000000:1

You want the LCD flat display with the highest contrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlight boosting technology results in vibrant images. SmartContrast will increase the contrast with excellent blacklevel and accurate rendition of dark shades and colors. It gives a bright, lifelike picture with high contrast and vibrant colors.

SmartControl Lite

SmartControl Lite is the next generation 3D icon based GUI monitor control software. This allows user to fine-tune most parameters of the monitor like Color, Brightness, screen calibration, Multimedia, ID management, etc with the mouse.

Issue date 2014-03-14

Version: 4.0.1

12 NC: 8670 000 76467 EAN: 87 12581 60348 9

Mercury Free

Philips monitors with LED backlighting are free of Mercury content, one of the most toxic natural substances which affects humans and animals. This allows for a eco-friendly display through out its lifecycle from manufacturing to disposal.

Energy Star 5.0

Energy Star is a US EPA sponsored energy efficiency program also adopted by many other countries. Energy Star certification ensures that you are buying a product which meets the latest power efficiency standards which operates with maximum power efficiency at all operational levels. New Philips monitors are certified for Energy Star 5.0 specifications and meet or exceed the standard. For example, in sleep mode Energy Star 5.0 requires less than 1watt power consumption, whereas Philips monitors consume less than 0.5watts. Further details can be obtained from www.energystar.gov
