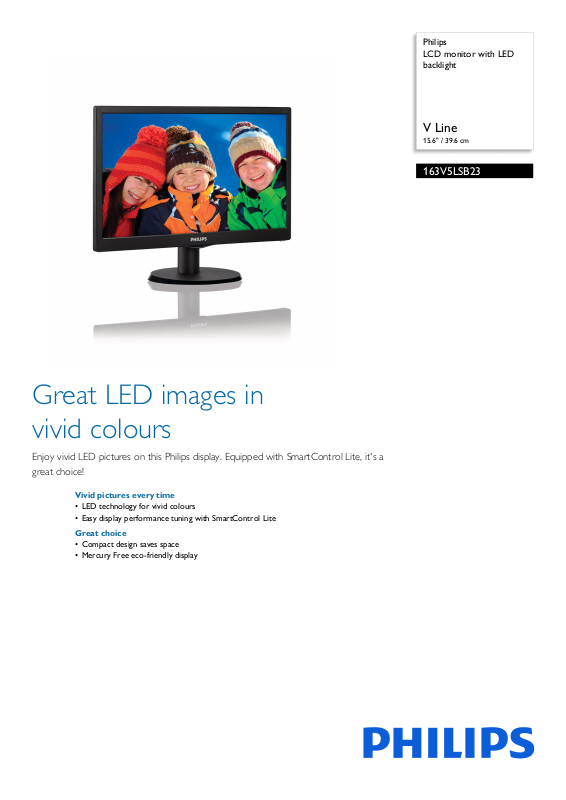

Philips
LCD monitor with LED
backlight
V Line
15.6" / 39.6 cm
163V5LSB23
Great LED images in
vivid colours
Enjoy vivid LED pictures on this Philips display. Equipped with SmartControl Lite, it's a
great choice!
Vivid pictures every time
• LED technology for vivid colours
• Easy display performance tuning with SmartControl Lite
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
Page 2
163V5LSB23/57
LCD monitor with LED backlight
V Line 15.6" / 39.6 cm
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 15.6 inch/39.6 cm
• Effective viewing area: 344.2 (H) x 193.5 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1366 x 768 @ 60 Hz
• Response time (typical): 12 ms
• Brightness: 220 cd/m²
• Contrast ratio (typical): 500:1
• Pixel pitch: 0.252 x 0.252 mm
• Viewing angle: 90º (H) / 60º (V), @ C/R > 10
• Display colours: 262 K
• Scanning Frequency: 30-60 kHz (H) / 58-62 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analogue)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Power On/Off
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Turkish, Traditional Chinese, Ukrainian
• Other convenience: Kensington lock
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Power
• On mode: 6.97 W (typ.)
• Standby mode: 0.5 W
• Off mode: 0.5 W
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (mm): 375 x 300 x 141 mm
• Product without stand (mm): 375 x 233 x 47 mm
• Packaging in mm (W x H x D): 432 x 301 x 108 mm
Weight
• Product with stand (kg): 0.94 kg
• Product without stand (kg): 0.79 kg
• Product with packaging (kg): 1.74 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, Lead-free,
Mercury Free
• Recyclable packaging material: 100 %
Highlights
LED technology
White LED's are solid state devices which light up to
full, consistent brightness faster saving startup time.
LED's are free from mercury content, which allows
for eco-friendly recycling and disposal process. LED's
allow for better dimming control of the LCD
backlight, resulting in a super high contrast ratio. It
also gives superior colour reproduction thanks to
consistent brightness across the screen.
SmartControl Lite
SmartControl Lite is the next generation 3D iconbased GUI monitor control software. This allows the
user to fine-tune most parameters of the monitor
like Colour, Brightness, screen calibration,
Multimedia, ID management etc. with the mouse.
Mercury Free
Philips monitors with LED backlighting are free from
Mercury, one of the most toxic natural substances,
which affects humans and animals. This reduces the
environmental impact of the display throughout its
lifecycle, from manufacturing to disposal.
Stand
• Tilt: -3/10 degree
Cabinet
• Colour: Black
• Finish: Hairline (front bezel)/Texture (rear cover)
•
Issue date 2019-11-29
Version: 11.0.1
12 NC: 8670 001 03118
EAN: 87 12581 68811 0
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
