AutoScan Color Monitor
English Operating Instructions .................... 2 - 23
Français Mode d'emploi ……………... 24 - 45
Appendix
English Information for Users in the U.S. ........ A1
Declaration FCC ........ A2
Warranty/address ........ A3
TCO'95 A6 ........ A7
ENERGY DECLARATION ........ A8
Français Declaration FCC ........ A4
Deutsch Hinweis/GS/ACHTUNG ........ A5
IB7948B001
This "exclamation point" calls attention to a feature for which
you should read the enclosed literature carefully to prevent operating
and maintenance problems.
This "bolt of lightning" indicates that uninsulated material
within your unit may cause an electrical shock. For the safety
of everyone, do not remove product covering.
CAUTION
ATTENTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
CAUTION TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER(OR BACK)
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
For Customer Use:
Enter below the Serial No. which is located on the
back of the cabinet. Retain this information for
future reference.
Model No. 15B1322Q11
Serial No.
2
E
N
Introduction
The PHILIPS 105B colour monitor displays sharp and brilliant images
of text and graphics with a maximum resolution up to 1280x1024 pixels.
It is optimal for Windows, CAD / CAM / CAE, desktop publishing,
spread sheets, multi-media, and any other application which demands
large screen size and high resolutions.
This monitor automatically scans horizontal frequencies from 30KHz to
70KHz, and vertical frequencies from 50Hz to 120Hz. With
microprocessor based digital controlled circuit, the monitor can
automatically adjust itself to the video card’s scanning frequency and
displays an image with precise parameters you desire. The wide range
of scanning frequency supports variety of operating platforms, such as
IBM PC and compatibles, Apple’s Macintosh, Quadra and Centris
families, Power PC and workstations.
Feature Highlights
• On-Screen-Display function provides more informations when the
user operates the control functions. This feature provides userfriendliness and ease-of-use when operating the monitor.
• Anti-Glare and Anti-Static screen coating eliminate any bad effects
caused by the screen surface such as reflection of the room lights
and dust attraction.
• With Color Adjustment function you can easily choose different
preset color temperatures or set your own customized color
parameters.
• Image Tilt Adjustment function provides correction of rotated image.
This correction can minimize the distortions caused by outside
environments, such as earth magnetic field.
• With built-in Audio Functions and Microphone the monitor can
connect with an MPC system, sound card, CD-ROM, or any sound
source to operate for multi-media applications.
• Green Design including automatic power saving function (NUTEK)
and low emission TCO'95 (15B1322Q) compliance shows our
commitment in environmental care.
• DDC1/DDC2B allows communication between the monitor and PC
system for optimal video configuration.
3
E
N
Note: If you experienced your monitor display is changing from color to
mono, it's possible that you are using a non-VESA-DDC-standard video
card. Please consult with your local Philips dealer for more information.
As an Energy Star partner, PHILIPS, has determined that this product
meets the Energy Star guidelines for energy effficiency.
ENERGY STAR is a U.S. registered mark.
IBM, IBM PC and Power PC are registered trademarks of International
Business Machines Corporation.
Apple, Macintosh, Quadra and Centris are registered trademarks of
Apple Computer, Inc.
Some of the functions mentioned above such as Audio and Tilt correction
are optional. You may have different options with the monitor you
purchased.
4
E
N
◆
Safety precautions and maintenance
◆ Disconnect the monitor from the mains supply if the monitor is not to
be used for an extended period of time.
◆ Do not attempt to remove the back cover, as you will be exposed to
a shock hazard. The back cover should only be removed by qualified
service personnel.
◆ Do not place objects on top of the monitor cabinet, which could fall
into vents or which could cover them and prevent proper cooling of
the monitor’s electronic devices.
Do not expose the monitor to rain or excessive moisture to avoid the
risk of shock or permanent damage to the set.
◆ Do not use alcohol or ammonia based liquid to clean the monitor. If
necessary, clean with a slightly damp cloth. Disconnect the monitor
from the mains supply before cleaning.
◆ Consult a service technician if the monitor does not operate normally
when operating instructions of this manual are followed.
Package
Your PHILIPS 105B package includes the following items:
• The monitor (integrated with tilt / swivel pedestal)
• Power cord
• Interface cable (flying-in)
• Audio cable
• Microphone connector cable
• MAC adapter
End of life disposal
Your new set contains materials which can be recycled and reused.
Specialized companies can recycle your product to increase the amount
of reusable materials and to minimize the amount of materials to be
disposed of.
Please inform yourself on local regulations on disposal of your old set.
5
E
N
Installation
Important: Please refer to the user’s manuals of your computer
and video adapter to make sure these equipments are properly
installed and configured before installing the monitor.
Positioning / Ventilation
◆ Avoid exposing the monitor to direct sunlight, stoves or any other
heat sources.
◆ To prevent overheating, make sure that the ventilation openings of
the monitor are not covered.
◆ Keep moisture and dust away.
◆ Keep away from any magnetic objects, such as speakers, electric
motors, transformers, ...etc.
◆ When positioning this monitor, make sure that the mains plug and
socket are easily accessible.
Pedestal
With the built-in pedestal you can tilt and / or swivel the monitor for a
most comfortable viewing angle.
B
105
6
E
N
Monitor rear view
Important: Please make sure the AC power to your computer is
“OFF” before connecting or disconnecting any display
peripheral. Failure to do so may cause serious personal injury
as well as permanent damage to your computer equipments.
Connection
1. IBM PC, PC/XT, PC/AT, PS/2, or the compatibles:
• Connect the monitor to the computer using the supplied interface
cables. Connection with computer system other than IBM PC or
Apple computers may need diff erent type of adapters. Please consult
your computer supplier for these adapters. Connect the shielded
power cord to a wall outlet after the interface cable is properly
connected.
Apple adapter
VIDEO IN
VIDEO IN
7
E
N
2.Earphone Connection :
Connect your earphone plug (must be mini Jack type) to the
earphone connector on the left side of the monitor.
The speakers will be switched off when earphone is plugged in.
3.External Microphone Connection :
Connect your microphone plug to the microphone connector on
the left side of the monitor.
The internal microphone will be switched off when external
microphone is plugged in.
8
E
N
Descriptions of knobs and keypads on front control panel
➀ • Rotary control knob (adjust OSD function).
➁ • Activate/terminate contrast OSD menu.
➂ • Activate/terminate OSD main menu.
√ • Activate/terminate brightness OSD menu.
➄ • Activate/terminate volume OSD menu.
Control locations and functions
Monitor control panel
CONTR AST
45%
BR I GHTNES S & CONTRAST
BR I GHTNESS
45%
VOLUME
45%
①②③④⑤
9
E
N
First level Second level Third level
SIZE & POSITION
HORIZONTAL POSITION
HORIZONTAL SIZE
VERTICAL POSITION
VERTICAL SIZE
CANCEL
GEOMETRY
COLOR TEMPERATURE
SPECIAL
ROTARY DEFAULT
USER COLOR #1
6500K
9300K
USER COLOR #2
RED
GREEN
BLUE
SAVE
CANCEL
POWER SAVING
DEGAUSSING
SAVE
CANCEL
RECALL PRESETS
RECALL COLOR TEMPERATURE
RECALL SIZE & POSITION
RECALL ALL PRESETS
SAVE
CANCEL
DEFAULT BRIGHTNESS
DEFAULT CONTRAST
DEFAULT VOLUME
SAVE
CANCEL
LANGUAGE
DISPLAY MODE
ENGLISH
FRANCE
GERMAN
ITALIAN
SPANISH
SAVE
CANCEL
SAVE
BRIGHTNESS & CONTRAST
BRIGHTNESS
CONTRAST
SAVE
CANCEL
TRAPEZOID
PIN/BARREL
TILT
SAVE
CANCEL
SAVE
CANCEL
SAVE
CANCEL
No
Yes
AUDIO
EXIT
VOLUME
OSD main menu tree structure
10
E
N

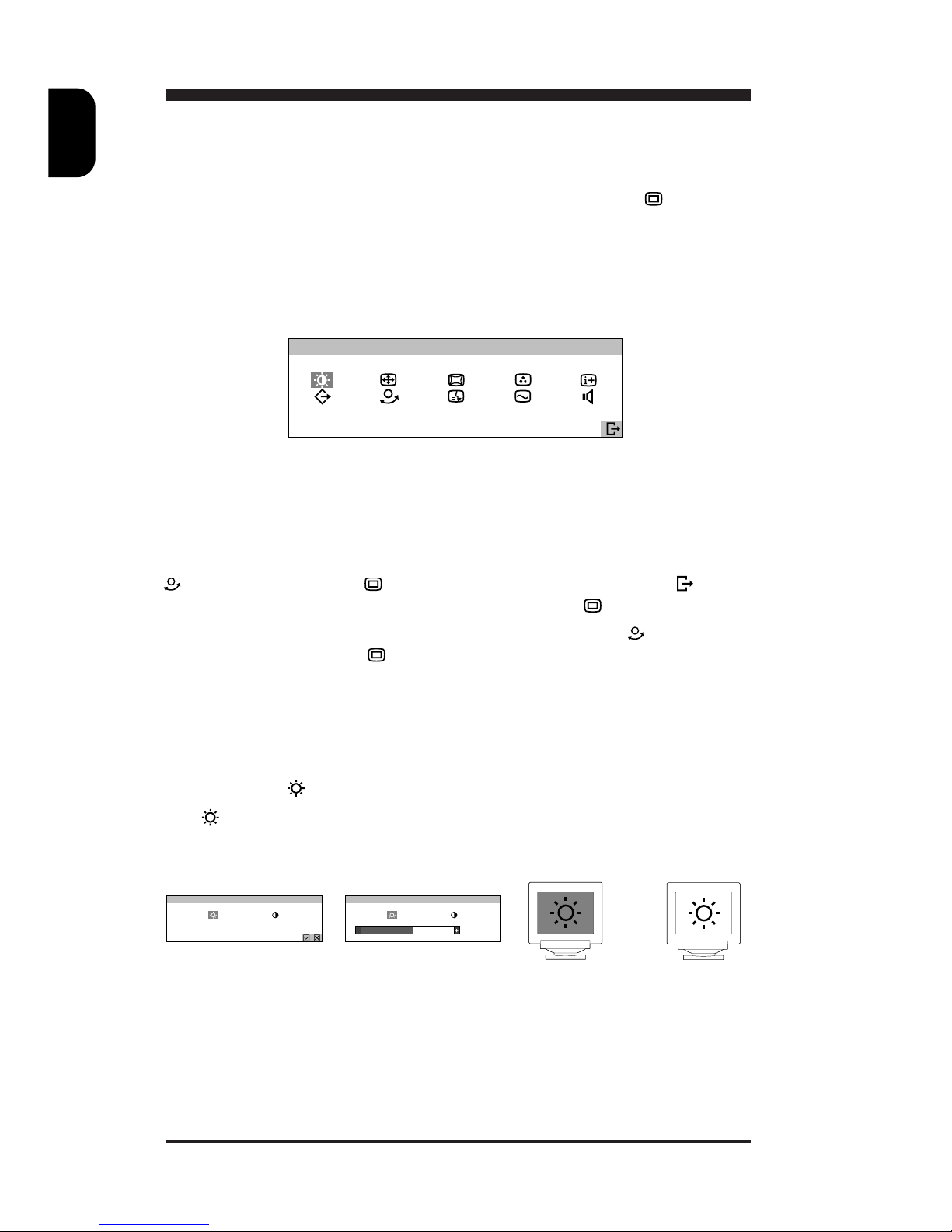

On-Screen-Display
Activating the On-Screen-Display
The monitor controls are accessed by pressing button
to enable
OSD (On-Screen-Display). The main menu will be displayed as follows.
Each Sub-Menu (1-10) is selected by highlighting it via the rotary control
and pressing button to confirm. To exit OSD, highlight at the
bottom of the main menu and press select button
.
While operating Sub-Menu, please use rotary control
to select or
adjust and press button
to confirm.
Note: If adjustment or selection of any OSD menu is not made for more
than 12 seconds, the current setup will be saved and the OSD will
disappear automatically.
Sub Menu-1: BRIGHTNESS & CONTRAST
● BRIGHTNESS : Adjusts background brightness
BR I GHTNES S & CONTRAST
BRI GHTNESS BRI GHTNESS
45%
11
E
N
● CONTRAST : Adjusts contrast between foreground and
background.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
Sub Menu-2: SIZE & POSITION
● HORIZONTAL SIZE : Adjusts image width
● HORIZONTAL POSITION : Moves image left or right
CONT RAST CONT RAST
45%
A
A
A
A
HOR I ZON TAL S I Z E HORI ZONTAL S IZE
45%
HOR I ZONTA L P OS I T ION HOR I ZONTA L P OS I T ION
45%
12
E
N

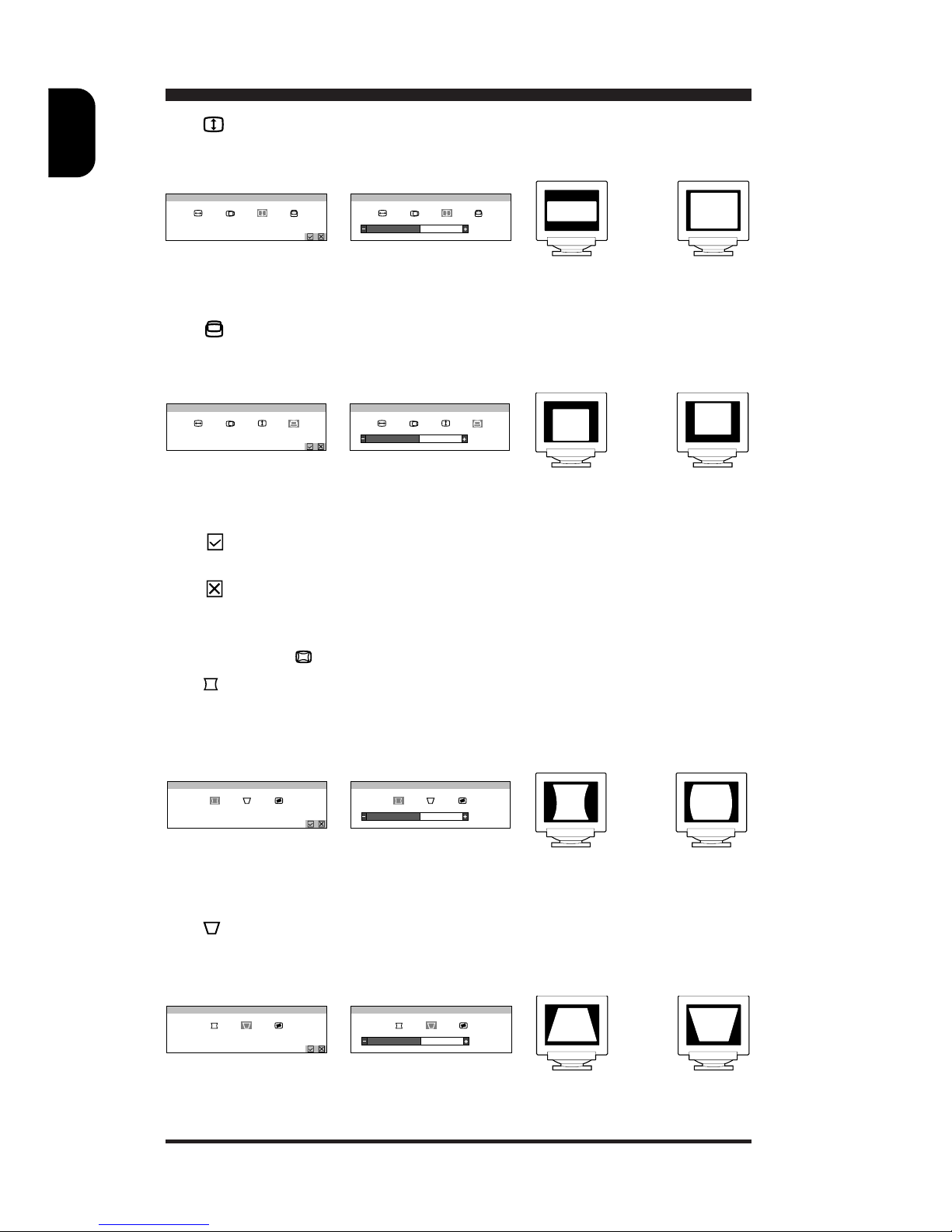

● VERTICAL SIZE : Adjusts image height
● VERTICAL POSITION : Moves image up or down
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
Sub Menu-3: GEOMETRY
● PIN/BARREL : Adjusts the amount of curvature on the vertical
edges.
● TRAPEZOID : Equalizes the length of the top and bottom edges.
A A
VERTICAL S IZE VERTICAL S IZE
45%
A
A
VERT ICAL POS I T ION VERT ICAL POS I T ION
45%
PIN/BARRE L PIN/BARRE L
45%
A
A
AA
TRAP E ZOI D TRAP E ZOI D
45%
13
E
N
● PICTURE ROTATION : Tilts the image clockwise or counter-
clockwise.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.

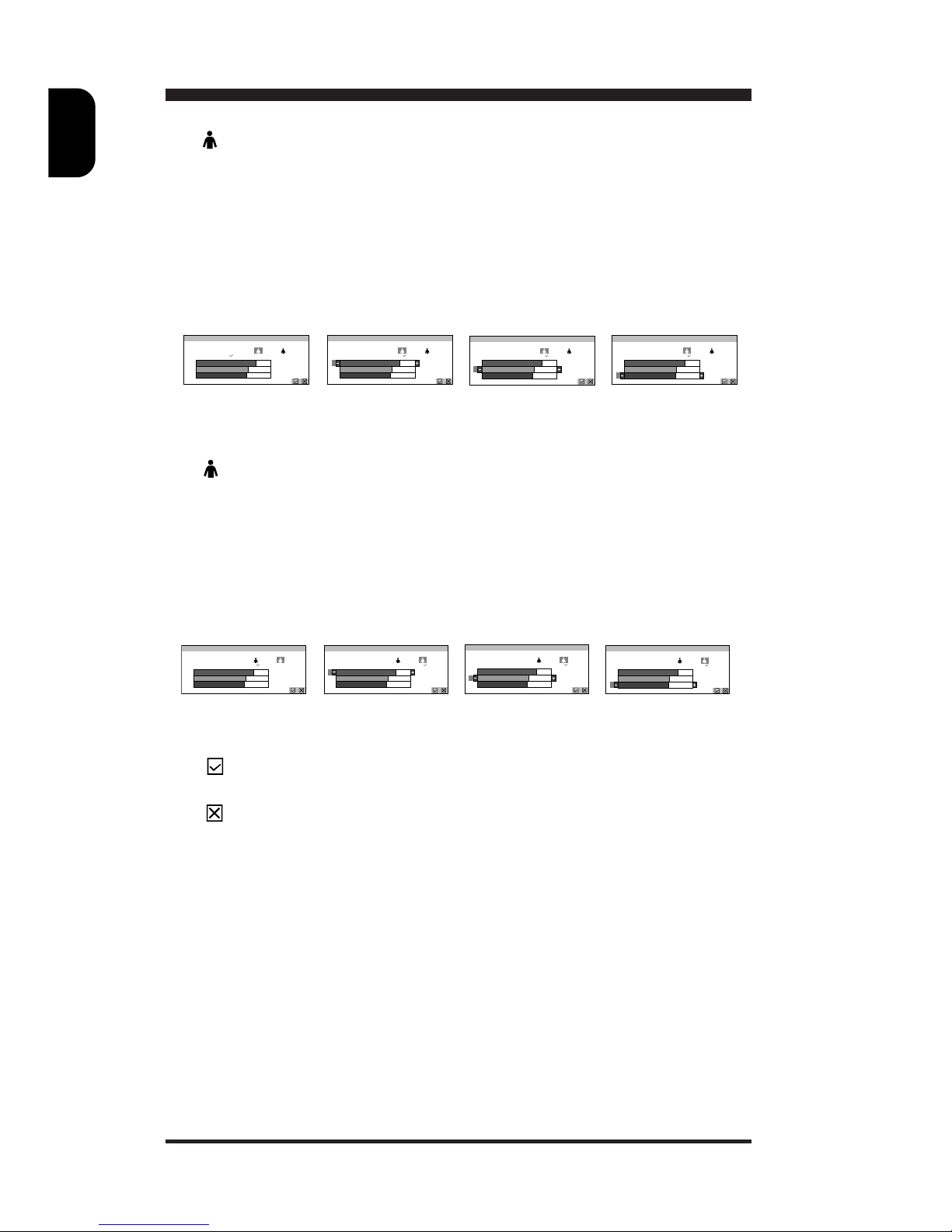

Sub Menu-4: COLOR TEMPERATURE
● 9300°K : Factor y preset color temperature of 9300°K.
● 6500°K : Factor y preset color temperature of 6500°K.
A
A
PICTURE ROTATION PICTURE ROTATION
45%
DEFAULT 1
78%
78%
78%
1
2
9300ºK
6500ºK
DEFAULT 1
78%
78%
78%
1
2
9300ºK
6500ºK
DEFAULT 2
86%
75%
73%
1
2
9300ºK
6500ºK
DEFAULT 2
86%
75%
73%
1
2
9300ºK
6500ºK
14
E
N
● USER 1 : User set 1 for color temperature then select R, G or
B for adjustment.
R : Adjusts red intensity.
G : Adjusts green intensity.
B : Adjusts blue intensity.
1
● USER 2 : User set 2 for color temperature then select R, G or
B for adjustment.
R : Adjusts red intensity.
G : Adjusts green intensity.
B : Adjusts blue intensity.
2
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
USER 1
86%
75%
73%
2
9300ºK
6500ºK
1
USER 1
86%
75%
7
G
B 3%
2
9300ºK
6500ºK
1
R
USER 1
86%
75%
7B 3%
2
9300ºK
6500ºK
1
R
USER 1
86%
75%
7
G
3%
2
9300ºK
6500ºK
1
R
G
B
USER 2
86%
75%
73%
9300ºK
6500ºK
1
USER 2
86%
75%
7
G
B 3%
9300ºK
6500ºK
1
R
2 2
USER 2
86%
75%
7B 3%
9300ºK
6500ºK
1
R
G
2
USER 2
86%
75%
7
G
3%
9300ºK
6500ºK
1
R
B
2
15
E
N
Sub Menu-5: SPECIAL
● POWER SAVING : Enable/Disable power saving function.
POWER SAVING POWER SAVING POWER SAVING
● DEGAUSS :Discoloration of the image can be caused by
gradual magnetization of the monitor components.
This is particularly likely to occur when the monitor
is moved or rotated. The monitor may "buzz"
momentarily when the user control is selected and
the image will change color and wobble for a few
seconds. These effects are normal.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
DEGAUSS
16
E
N
Sub Menu-6: RECALL PRESETS
● RECALL COLOR TEMPERATURE : Recall color temperature
presets.
● RECALL SIZE & POSITION : Recall size and position presets.
● RECALL ALL PRESETS : Recall all presets and return to
factory presets.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
R ECA L L CO LOR TEMP E RAT UR E
RECALL SIZE & POSITI ON
RECALL ALL PRESETS
17
E
N
Sub Menu-7: ROTARY DEFAULT
● DEFAULT - BRIGHTNESS : Define rotary knob as the trigger
of the brightness adjustment.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
● DEFAULT - CONTRAST : Define rotary knob as the trigger
of the contrast adjustment.
● DEFAULT - VOLUME : Define rotar y knob as the trigger
of the volume adjustment.
D E F A U LT - BR I GHT N E S S D E F A U LT - BR I GHT N E S S
DEF AULT - CONTRA ST DEFAULT - CONTRAST
DEF AULT - VOLUME DEF AULT - VOLUME
18
E
N
Sub Menu-8: LANGUAGE
● ENGLISH: Select English as the OSD language.
● FRANÇAIS: Select French as the OSD language.
● DEUTSCH: Select German as the OSD language.
● ITALIANO: Select Italian as the OSD language.
● ESPAÑOL: Select Spanish as the OSD language.
● SAVE : Save user adjustment and return to main menu.
● CANCEL : Abandon setup and return to main menu.
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
LANGUAGE
ENGL I SH
FRANCAI S
DEUT S CH
ITAL IANO
ESPANOL
19
E
N
Sub Menu-9: DISPLAY MODE
● DISPLAY MODE: Display monitor resolution and scanning
frequency.
Sub Menu-10: AUDIO
● VOLUME: Adjusts speaker volume.
● EXIT: Exit the OSD main-menu.
* Whenever the signal cable is disconnected, the screen will appear
a message as below:
DISPLAY MODE
1024x768 6 9K 85Hz
VOLUME
45%
EX I T
CHEC K S I GNAL CA BL E
20
E
N
Frequence Sync polarity
Mode Resolution H(KHz) V(Hz) H V
M01 VGA 640x400 31.5 70 – +
M02 VGA 640x480 31.5 60 ––
M03 VGA 640x480 37.5 75 – –
M04 VGA 640x480 43.3 85 ––
M05 SV GA 800x600 53.7 85 + +
M06 SV GA 800x600 37.8 60 + +
M07 SV GA 800x600 46.9 75 + +
M08 EV GA 1024x768 68.7 85 + +
M09 EV GA 1024x768 48.4 60 ––
M10 EV GA 1024x768 60.0 75 + +
M11 EVGA 1280x1024 64.0 60 + +
Data Storage
(A) Factory preset mode:
This monitor has 11 factory-preset modes as indicated in the following
table:
(C) New mode
The monitor is reversed for 4 new modes in case non-standard video
modes are used.
(B) User mode
In addition to factory preset modes, the monitor can also provides
additional 11 User-defined modes.
If the input video signal is different from our factory-preset modes,the
new timing data will be automatically stored. However, the displayed
parameters may need to be adjusted. User can adjust the parameters
via OSD, as preceding procedures which already described on
"Adjustment via On-Screen-Display" section.
21
E
N
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed
in your PC, the monitor can automatically reduce its power consumption
when not in use. And if an input from keyboard, mouse or other input
devices is detected, the monitor will automatically “wake up”. T h e
following table shows the power consumption and signalling of this
automatic power saving feature:
Power Management Definition
VESA's mode Video H-sync V-sync Power Power LE D
used saving(%) color
ON Active Yes Yes < 100W 0% Green
Stand-by Blanked No Yes < 15W 85% Yellow
Suspend Blanked Yes No < 15 W 85% Yellow
OFF Blanked No No < 5W 95% Amber
This monitor is Energy Star compliant and TCO'92 power
management compatible.
AS AN ENERGY STAR PARTNER, PHILIPS, HAS DETERMINED
THAT THIS PRODUCT MEETS THE ENERGY STAR
GUIDELINES FOR ENERGY EFFICIENCY.
22
E
N
Specification*
(I) General
CRT
Screen size : 15" (13.8" VIS) flat & square
Focusing method : Static focus
Dot pitch : 0.28 mm
Phosphor : P22 or equivalent, medium short
persistence
Screen treatment : Anti-glare, anti-static
Display area
Factory preset : 260 mm (H) x 195 mm (V)
Maximum usable : 280 mm (H) x 210 mm (V)
Scanning frequency
Horizontal (line) : 30-70 kHz (AutoScan)
Vertical (frame) : 50-120 Hz (AutoScan)
Input power : 100-240 VAC, 60-50 Hz
Power consumption : 70 Watt normal, 100 Watt maximum
Input signal
Video : 0.7 Vpp, 75 Ohm inpedence
Audio : 600mVrms linear/22K Ohm
Sync : Separate sync. TTL level
Composite sync. TTL level
Pedestal
Tilt : 5° forward, 11° backward
Swivel : 90° leftward, 90° rightward
Physical
Unit dimension (WxHxD) : 382 x 392 x 424 (mm)
Net weight : 14 kg
Operating condition
Temperature : 0° C - 40° C
Humidity : 20% - 80%
Storage condition
Temperature : -25° C - 70° C
Humidity : 10% - 95%
White Color Coordinates:
Red: x= 0.625 Blue: x= 0.150
y= 0.340 y= 0.065
Green: x= 0.285
y= 0.605
* Because of a policy of continuous product improvement, the above specifications
are subjected to change without notice.
23
E
N
1 Red video input 9 No pin
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output
4 Identical output - connected to pin 10
- Connected to pin 10 12 Serial data line (SDA)
5 Ground 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SDA)
8 Blue video ground
Pin No. Assignment Pin No. Assignment
(2) The 15-pin D-sub connector (male) of the adapter ( Apple
Macintosh systems):
1 Red ground 9 Blue video
2 Red video 10 Sense 2
3 Composite Sync, H+V 11 Composite Sync &
4 Sense 0 V.Sync ground
5 Green video 12 V. Sync
6 Green ground 13 Blue video ground
7 Sense 1 14 H. Sync ground
8 Not connected 15 H. Sync
Pin No. Assignment Pin No. Assignment
(II) Pin assignment:
(1) The 15-pin D-sub connector (male) of the signal cable (IBM systems):
5
15
1
6
11
8
15
1
9
10
(1)
(2)
Loading...
