Philips 14PV210 01, 14PV210 07 User Manual

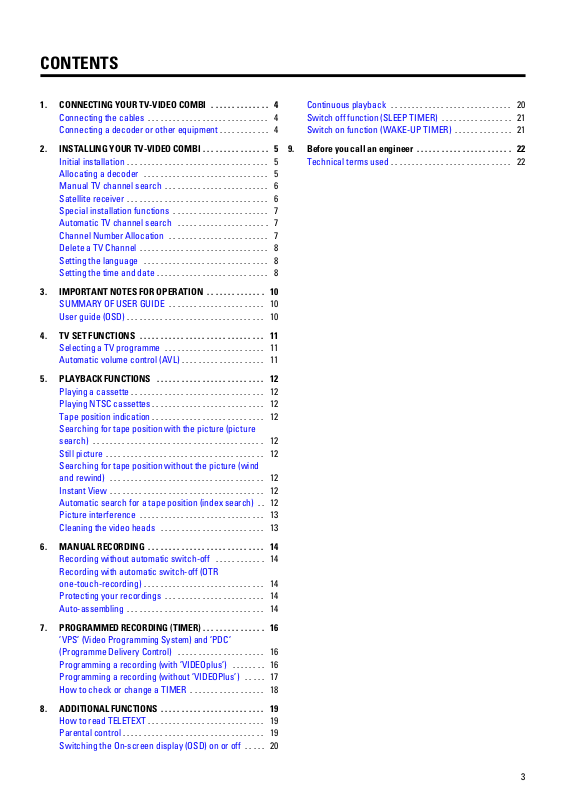

CONTENTS

1. CONNECTING YOUR TV-VIDEO COMBI 4..............

Connecting the cables 4.............................

Connecting a decoder or other equipment 4............

2. INSTALLING YOUR TV-VIDEO COMBI 5................

Initial installation 5..................................

Allocating a decoder 5..............................

Manual TV channel search 6.........................

Satellite receiver 6..................................

Special installation functions 7.......................

Automatic TV channel search 7......................

Channel Number Allocation 7........................

Delete a TV Channel 8...............................

Setting the language 8..............................

Setting the time and date 8...........................

3. IMPORTANT NOTES FOR OPERATION 10..............

SUMMARY OF USER GUIDE 10.......................

User guide (OSD) 10.................................

4. TV SET FUNCTIONS 11..............................

Selecting a TV programme 11........................

Automatic volume control (AVL) 11....................

5. PLAYBACK FUNCTIONS 12..........................

Playing a cassette 12................................

Playing NTSC cassettes 12...........................

Tape position indication 12...........................

Searching for tape position with the picture (picture

search) 12.........................................

Still picture 12......................................

Searching for tape position without the picture (wind

and rewind) 12.....................................

Instant View 12.....................................

Automatic search for a tape position (index search) 12..

Picture interference 13..............................

Cleaning the video heads 13.........................

Continuous playback 20.............................

Switch off function (SLEEP TIMER) 21.................

Switch on function (WAKE-UP TIMER) 21..............

9. Before you call an engineer 22.......................

Technical terms used 22.............................

6. MANUAL RECORDING 14............................

Recording without automatic switch-off 14............

Recording with automatic switch-off (OTR

one-touch-recording) 14.............................

Protecting your recordings 14........................

Auto-assembling 14.................................

7. PROGRAMMED RECORDING (TIMER) 16...............

’VPS’ (Video Programming System) and ’PDC’

(Programme Delivery Control) 16.....................

Programming a recording (with ’VIDEOplus’) 16........

Programming a recording (without ’VIDEOPlus’) 17.....

How to check or change a TIMER 18..................

8. ADDITIONAL FUNCTIONS 19.........................

How to read TELETEXT 19............................

Parental control 19..................................

Switching the On-screen display (OSD) on or off 20.....

3

OPERATING INSTRUCTIONS IN BRIEF

The remote control

TELETEXT e TELETEXT: To switch TELETEXT on or off

STANDBY m Switch off : To switch off set, interruptmenu

function, interrupt a programmed recording
(TIMER)

0-9 Number buttons:0-9

CLEAR Delete: To delete lastentry or clear

programmed recording (TIMER)

TIMER k TIMER: To make a manual TIMER

programming or to alter or clear a
programmed TIMER

MENU Menu : To call up or end main menu

OK Store/Confirm: To store or confirmentry

P pAB Programme number: To select a programme

number up or down

AP q Select: One line up
P rB Select: One line down

SpDC Volume: To regulate the volume

DSr Select: Cursor left
SqC Select: Cursor right

y Volume off: To switch the volume on or off

z Previous programme number: To select the

previous programme number

PLAY G Playback: To play a recorded cassette

H Rewind: During STOP and STANDBY:rewind,

during PLAYBACK: reverse scanning

STOP h Pause/Stop: To stop the tape, except while a

TIMER-recording is being made

I Forward wind: During STOP and STANDBY:forward wind, during PLAYBACK:

forward scanning

INDEX E Index search: In combinationwith H / I : to search for previous/next

recording on the cassette.

RECORD/OTR n Record: To record the programme selected

STILL R Still picture: To stop the tape and show a still picture

Coloured TELETEXT-buttons: To select TELETEXT pages directly

(red) Select page/chapter shown in red at the bottom of the screen

(green) Select page/chapter shown in green at the bottom ofthe screen

(yellow) Select page/chapter shown in yellow at the bottom of the screen

(blue) Select page/chapter shown in blue at the bottom of the screen

Front of the set

Back of the set

8 Power switch : To switch off the set

Beware: If you switch the set off with the power switch 8

possible!

Standby : To switch off, interrupt a function, interrupta programmed recording (TIMER)

m

Programme number : To select programme number up or down

P p

Sp

Volume: To regulate the volume

Record: To record the programme selected

5

Rewind : During STOP and STANDBY: rewind, during PLAYBACK:reverse scanning

H

Forward wind: During STOP and STANDBY: forward wind,during PLAYBACK: forward

I

scanning

Playback : To play a recorded cassette

G

Pause/Stop, eject cassette: To stop the tape and during STOPeject the cassette

?

Audio input socket

AUDIO

Video input socket : To connect a camcorder or videogames

VIDEO

Headphones socket: To connect headphones

w

, TIMER-recordings are not

EXT.1 Scart socket: To connect a satellite receiver, decoder, video recorder, etc.

Aerial input socket: To connect the aerial cable

2

OPERATING INSTRUCTIONS PHILIPS 14PV210/07

Congratulations! You now own one of the most sophisticated

and simple-to-use TV-VIDEO Combinations on the market.
With this TV-VIDEO Combi you can record and play
VHS-standard cassettes.

Please take the time to read this operating manualbefore
using your TV-VIDEO Combi.

Safety instructions and other notes

ADanger: High voltage!

Do not remove the top cover asthere is a risk of an electrical
shock!

AThe TV-VIDEO Combi does not contain any componentsthat can

be repaired by the customer. To switchoff the TV-VIDEO Combi
completely you must switch itoff with the power switch

BMake sure that air can circulate freelythrough the ventilation

slots on the TV-VIDEO Combi.

8 .

So that you can identify your machine in the eventof theft,
enter the serial number (PROD.NO) here. The serialnumber is
printed on the type plate fixed at the rear of the set.

MODEL NO. 14PV210/07

PROD.NO: ......

This product complies with therequirements of the Directive
73/23/EEC + 89/336/EEC + 93/68/EEC.

Technical information

Measurements in cm (W / H / D): 39.2/ 40.7 / 39.8
Power consumption (Standby) : less than 45W(less than 4W)
Voltage : 198-264V 50Hz
Headphones : Output resistance less than 120Ohms maximum

output voltage more than 2.6V at 120 Ohms

BMake sure that no objects or liquids enterthe TV-VIDEO Combi.

If liquid is spilt intoit, disconnect the TV-VIDEO Combi
immediately from the powersupply and call the After-sales
Service for advice.

BThe TV-VIDEO Combi should not be used immediatelyafter

transportation from a cold to a hot areaor vice versa, or in

conditions of extreme humidity.
After unpacking the TV-VIDEO Combi,it should be allowed to
acclimatize for at least three hours beforeinstallation.

C These operating instructionshave been printed on nonpolluting

paper.

C Deposit old batteriesat the relevant collection points.
C Please make use ofthe facilities available in your countryfor

disposing of the packaging of the TV-VIDEOCombi in a way that
helps to protect the environment.

C This electronic equipmentcontains many materials that can be

recycled. Please inquire about the possibilitiesfor recycling
your old set.

DVIDEOPlus+ and PlusCode are registered trademarksof

Gemstar Development Corporation.The VIDEOPlus+ system is
manufactured under licence from GemstarDevelopment
Corporation.

Emergency interrupt

You can use the STANDBY m button on the TV-VIDEO Combi or
the remote control to interrupt any function. Ifyou want to
interrupt a running Timer recording, hold the STANDBY m
button for several seconds.
So if you are having operating problems, you can justinterrupt
the function and start again.
And you can practise operating your set without anyworries.
No matter which buttons you press, you cannot damage it.

1

Special functions on your TV-VIDEO Combi

If a television programme, which transmitsTELETEXT, is stored with programme
number ’P01’, time and date will be set automatically.

When you have plugged your TV-VIDEO Combi into the mains,you will be
welcomed with an OSD picture. All you have to do isfollow the instructions in
the "intelligent help line" for the next step. Enjoythe Automatic TV channel
search/save function and the automatic time adjustment.

Automatic Volume Leveller. It minimises sudden changes in TV volume when
commercial spots are transmitted.

Philips has developed a system which produces thebest possible playback
quality. It reduces disturbance on old, worn videocassettes, and emphasises
the detail on very good quality cassettes.

Simple programming system for TV-VIDEO Combis.Makes programming as easy
as making a telephone call. Simply enter the programmecode which you will
find in your listings magazine.

We guarantee that your TV-VIDEO Combi will switchto the new millennium with
no problems whatsoever.

2

1. CONNECTING YOUR TV-VIDEO COMBI

Important for the United Kingdom

This machine is fitted with an approved moulded 13Amp plug.
To change a fuse in this type of plug, please followthese
instructions.

a Take off the fuse cover and take out the fuse.
b Put in a new fuse which should be a BS1362 5A, A.S.T.A.

or BSI approved type.

c Refit the fuse cover.

If the plug fitted is not suitable for yoursocket, cut it off and fit
another type.
If the plug you fit contains a fuse, it shouldbe a 5Amp fuse. If
you fit a plug which does not need a fuse, make surethe fuse
on your fuse box is not greater than 5 Amps.

DNote: Please destroy the plug you have cut off so that it

cannot be used in a 13 Amp socket somewhere else.

How to connect a plug

The wires in the lead from the video recorder are coloured as
follows.
* Blue - ’neutral’ (’N’).
* Brown - ’live’ (’L’).

d Connect the blue wire to the terminal in the plug which is

marked with the letter ’N’ or coloured black.

e Connect the brown wire to the terminal in the plug which

is marked with the letter ’L’ or colouredred.

Connecting the cables

a Insert the aerial plug into the 2 socket.
b Insert the plug of the mains cable into the wall socket.
c If the little red light at the front of the set isnot alight,

please switch on the set. The power switch 8 is
located on the left side panel of the set.

Connecting a decoder or other equipment

You can also connect additional equipment to the EXT.1
socket. For instance, a satellite receiver,decoder or
camcorder.

f Do not connect either of the wires to the terminal in the

plug which is marked with the letter ’E’, thesymbol \or
coloured green or green and yellow.

Before you refit the plug cover, make sure thatthe grip at the
bottom of the plug is clamped over the plastic coverof the
lead, not just over the two wires.

4

2. INSTALLING YOUR TV-VIDEO COMBI

Initial installation

a Open up the battery compartment of your remote control

and place the batteries in it as shown in the picture.

b Close the battery compartment.
c If you have connected the aerial to the TV-VIDEO Combi,

press the OK button.
’Automatic TV channel search’ starts. This picturewill
appear on the screen:

Searching...
CHANNELS FOUND:

Allocating a decoder

Some TV stations will send coded TV channels, that youcan
only watch when you use a decoder. You can connect such a
decoder (descrambler) to your TV-VIDEO Combi. Withthe
following function, the connected decoder will automatically
be activated for the TV programme you want to watch.

a Choose the TV channel on which you wish to use the

decoder with the P pAB button on the TV-VIDEO
Combi or the number buttons 0-9 on the remotecontrol.

b Press the MENU button on the remote control. The main

menu will appear.

c Select the line ’Installation’ with the P rB or

AP q buton and confirm with the SqC button.

d Select the line ’Manual store’with the P rB or

AP q button and confirm with the SqC button.

e Select the line ’Decoder’ with the P rB or

AP q button.

//////,,,,,,,,,,,,,,,,,,,,,

Wait until all TV channels have been found. This can take
several minutes.

DIf you have connected a decoder, you must install it

as described in the next section.

DIf you have connected a satellite receiver, please

read the section ’satellite receiver’.

MANUAL STORE

Channel/Frequency FREQU.

Search 125
Fine tuning (,,,,,,n=,,,,,,$
Name edit xxx
Programme number 01
Decoder OFF

ã Exit:
« press MENU

f Select function ’ON’ with the DSr or SqC

button. When you select ’OFF’, the function willbe
switched off.

g Confirm with the OK button.
h To end, press the MENU button.

Your decoder has now been allocated to this TV channel.

i Press the MENU button again.

5

Manual TV channel search

In certain cases the ’Automatic TV channel search’ maynot be
able to find all of the TV channels (e.g. coded TV channels).In
that case, use this manual method to set the channels.

a Press the MENU button on the remote control. The main

menu will appear.

b Select the line ’Installation’ with the P rB or

AP q button and confirm with the SqC button.

c Select the line ’Manual store’with the P rB or

AP q button and confirm with the SqC button.

i If you want to change the automatic tv channel setting,

select the line ’Fine tuning’.
With the DSr or SqC button you can vary the
automatic tv channel setting. Important: This re-tuning is
only necessary and useful in special cases, e.g.:when
there are stripes on the picture with cable-TV systems.

j Press the OK button to store the TV channel.

DIf you want to search for further TV channels, start

again at step e.

k To end, press the MENU button.

Satellite receiver

MANUAL STORE

Channel/Frequency FREQU.

Search 125
Fine tuning (,,,,,,n=,,,,,,$
Name edit xxx
Programme number 01
Decoder OFF

ã Exit:
« press MENU

d In the line ’Channel/Frequency’, selectthe

display for:

’FREQU.’: frequency
’CCH’: channel
’SCH’: special channel

e If you know the frequency or channel of the desired TV

channel, you can enter the data in line ’Search’with
the digit buttons 0-9 .

DIf you don’t know the frequency or channel of the TV

channel of your choice, press the SqC button to
start the channel search.

You can receive channels from the satellite receivervia the
scart socket EXT.1 .
To do this, select the channel number ’E1’ with the

P pAB button. You will have to select the channels to be

received by the satellite receiver on the receiveritself.

f In the line ’Programme number’ select the

programme number you want e.g.: ’01’, using the

DSr or SqC button.

g If you want to change the TV channel name, press the

SqC button in line ’Name edit’.

E Select the letter or number you want to change with the

DSr or SqC button. Change it with the

P rB or the AP q button. Select the next letter or

number in the same way.

h Press the OK button to store the changes you have

made.

6

Special installation functions

Channel Number Allocation

You can select one of the following installation functionsin
order to adapt the TV-VIDEO Combi to your own specific
requirements.

Automatic TV channel search

Your TV-VIDEO Combi will search for all TV channels.
If you want to start the automatic TV channel searchagain,
then follow the instructions below.

a Press the MENU button on the remote control. The main

menu will appear.

b Select the line ’Installation’ with the P rB or

AP q button and confirm with the SqC button.

c Select the line ’Autoinstall’ with the P rB or

AP q button.

d Press the SqC button. The ’Automatic TV channel

search’ starts.

Searching...
CHANNELS FOUND:

//////,,,,,,,,,,,,,,,,,,,,,

a Press the MENU button. The main menu will appear.
b Select the line ’Installation’ with the buttons

P rB or AP q and confirm with the button
SqC .

c Select the line ’Sort channels’with the buttons

P rB or AP q and confirm with the button
SqC .

SORT CHANNELS

01 xxx

02 yyy
03 zzz

ã Exit: To move:
« press MENU press OK

04 aaa

05 bbb
06 ccc

d With the buttons P rB , AP q , DSr or

SqC , select the TV channel to which you want to

allocate a programme number and press the OK button.

e With the buttons P rB , AP q , DSr or

SqC , shift the TV channel to the programme number

you wish to allocate to this TV channel and pressthe

OK button.

e When the TV channel search is complete,

’Installation comp.’ will appear on the
screen.

How to search for a TV channel manually, you can read in the
section ’Manual TV channel search’.

DAutomatic Channel Installation:

Some cable companies or broadcasters offer the
possibility to install TV channels automaticallywith ’ACI’.
Information about the installation offered and how to
select it, will appear on the screen.
This set will recognize and install TV channels with’ACI’
automatically.
TV channels will be stored from programme number 1
onward.
If ’ACI’ cannot identify a TV channel, you can searchfor it
using the method as described in the section ’Manual TV
Channel Search’.

f Repeat steps dto euntil you have allocated a

programme number to all the required TV channels.

g To end, press the MENU button.

7

Delete a TV Channel

Setting the time and date

a Press the MENU button. The main menu will appear.
b Select the line ’Installation’ with the buttons

P rB or AP q and confirm with the button
SqC .

c Select the line ’Sort channels’with the buttons

P rB or AP q and confirm with the button
SqC .

SORT CHANNELS

01 xxx

02 yyy
03 zzz

ã Exit: To move:
« press MENU press OK

04 aaa

05 bbb
06 ccc

d With the buttons P rB , AP q , DSr or

SqC , select the TV channel you want to delete and

press the CLEAR button.

e Repeat step d, until you have deleted all the required

TV channels.

f To end, press the MENU button.

a Press the MENU button on the remote control. The main

menu will appear.

b Select the line ’Installation’ with the buttons

P rB or AP q and confirm with the button

SqC .

c Select the line ’Set clock’with the P rB or

AP q button and confirm with the SqC button.

SET CLOCK
Time 15:36

Year 1999
Month 6
Date 8
Smart clock ACT.

ã Exit:
« press MENU

d Check the time in line ’Time’. If required, please change

the time with the 0-9 buttons on the remote control.

e Check ’Year’, ’Month’ and ’Date’ in the sameway.

You can switch between entry fields with P rB or

AP q button. Confirm with the OK button.

f To end, press the MENU button.

Setting the language

You can select the language for the on-screen display (OSD).

a Press the MENU button on the remote control. The main

menu will appear.

b Select the line ’Installation’ with the P rB or

AP q button and confirm with the SqC button.

c Select the line ’Language’ with the P rB or

AP q button.

d Select your language with the DSr or SqC

button.

e To end, press the MENU button.

8

Automatic clock and date setting
(SMART CLOCK)

DIf a TV programme, which transmits TELETEXT, is stored

with programme number ’P01’, time and date willbe set
automatically.

DThe clock will automatically be adjusted to winter time

and summer time. Confirm with the OK button.

a Press the MENU button on the remote control. The main

menu will appear.

b Select the line ’Installation’ with the buttons

P rB or AP q and confirm with the button
SqC .

c Select the line ’Set clock’with the P rB or

AP q button and confirm with the SqC button.

d Select the line ’Smart clock’with the buttons

P rB or AP q .

e Switch the function on with the buttons DSr or

SqC .

f To end, press the MENU button.

9

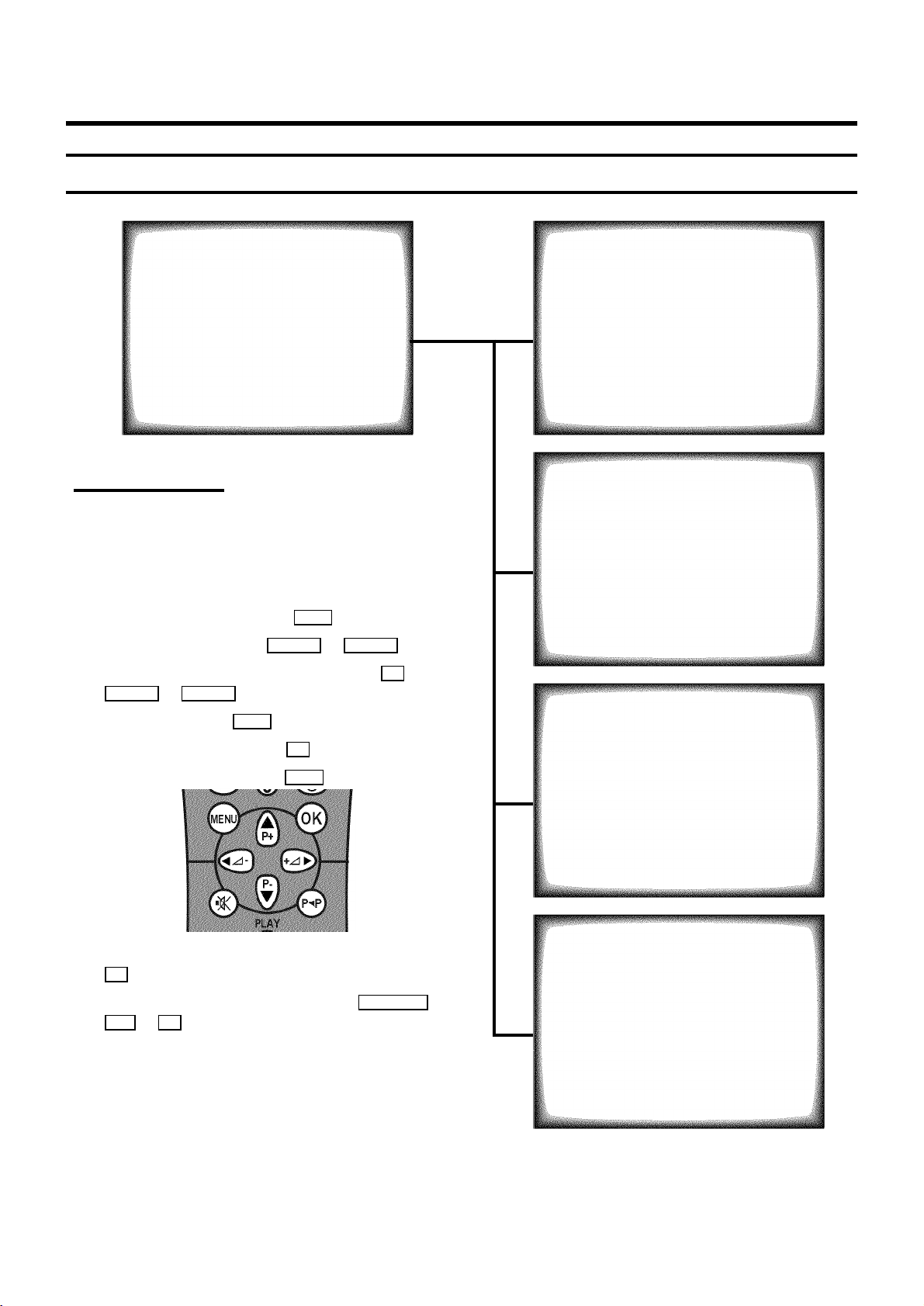

3. IMPORTANT NOTES FOR OPERATION

SUMMARY OF USER GUIDE

The OSD menu offers the following functions. Moredetails on each can be found in the appropriate chapter.

MAIN MENU

Sound
Setup
Tape
Installation

ã Exit:
« press MENU

User guide (OSD)

The OSD (On-screen display) shows the variousfunctions in
the form of a menu on the television screen. You can then
choose the settings you require. There is a summaryof the
menus on this page. The main button functions are displayed
in a help line along the bottom of the screen.

E To call up the menu: With the MENU button.
E To select a line: With the DSr or qSC button.
E To enter or change your selection: With the 0-9 ,

DSr or qSC button.

E To cancel: With the MENU button.

Brightness (,,,,,,,,,,,,

Colour (,,,,,,,,,,
Contrast (,,,,,,,
Sharpness (,,,,,,,,
Store as pref.

ã Exit:
« press MENU

Chapter: ’TV SET FUNCTIONS’

SOUND
Volume (,,,,,,,,,,,,

Auto volume cont. OFF
Store as pref. YES

ã Exit:
« press MENU

Chapter: ’TV SET FUNCTIONS’

E To save or confirm: With the OK button.
E To close the menu: With the MENU button.

E To confirm the messages in red on the screen: Pressthe

OK button.

E You can switch the machine on with the P pAB ,

z or 0-9 button or by putting in a cassette.

SETUP
Parental control OFF

Display MAX

ã Exit:
« press MENU

Chapter: ’ADDITIONAL FUNCTIONS’

TAPE

Tape speed SP

Repeat play OFF
Jitter N. ACT.
Tracking (,,,,,,=,,,,,$
Cleaning N. ACT.

ã Exit:
« press MENU

Chapter: ’PLAYBACK FUNCTIONS’

10

4. TV SET FUNCTIONS

Selecting a TV programme

Select the required TV channel (=programme number) with the

P pAB button or with the digit buttons 0-9 on the remote

control.

DIf you don’t know the programme number of the required

TV channel:

a Press the P pAB button for more than 2

seconds. The TV channel list will appear on the
screen.

b Select the required TV channel with the

P pAB button.

After 1 second the TV-VIDEO Combi will switchto
the selected programme number.

Picture settings

a Press the MENU button. The main menu will appear.

b Select the line ’Picture’ with the buttons P rB or

AP q and confirm with the button SqC .

Volume control

You can control the volume level with the SpDC button.
If you want to mute the sound temporarily (e.g.:during a
telephone call), press the y button on the remote control.
When you press the y button again, the sound will return at
its original volume level.

Sound settings

a Press the MENU button. The main menu will appear.

b Select the line ’Sound’ with the P rB or AP q

button and confirm with the SqC button.

SOUND
Volume (,,,,,,,,,,,,

Auto volume cont. OFF
Store as pref. YES

Brightness (,,,,,,,,,,,,

Colour (,,,,,,,,,,
Contrast (,,,,,,,
Sharpness (,,,,,,,,
Store as pref. NO

ã Exit:
« press MENU

c Select the required line with the buttons P rB or

AP q and alter with the buttons DSr or
SqC .

DTo store this setting as a standard setting, select the

line ’Store as pref.’ with the menu buttons

P rB or AP q . Select ’YES’ and confirm with

the OK button.

ã Exit:
« press MENU

c Select the required line with the P rB or AP q

button and alter with the DSr or SqC button.

DTo store this setting as a standard setting, select the

line ’Store as pref.’ with the menu buttons

P rB or AP q . Select ’YES’ and confirm with

the OK button.

DTo call up the standard settings, switch the TV-Video

Combi off and on again.

Automatic volume control (AVL)

E Switch on ’Auto volume cont.’ to activate the

automatic volume control. It minimises suddenchanges
in TV volume when commercial spots are transmitted.

11

5. PLAYBACK FUNCTIONS

Playing a cassette

a Put a cassette into the cassette slot.

b Press the PLAY G button.

c If you press the STOP h button once, the TV-VIDEO

Combi will switch to pause. To stop, pressthe STOP h
button again.

d To eject the cassette, press the ? button.

DSome hired cassettes may have a poor picture or

poor sound quality. This is not a fault in your
machine. Please read ’Eliminating picture
interference’.

DSome functions switch off automatically after a

while (for example, pause, still picture, picture
search). This helps to protect the cassette and
avoids wasting power.

Playing NTSC cassettes

With this set you can play cassettes that have been recorded
on another video recorder in the NTSC standard (for example,
American cassettes).

DSome special features (for example, still picture) are not

possible while you are playing an NTSC cassette.

Still picture

a Press the STILL R button. A still picture will appear on

the screen.

b Each time you press STILL R again, the picture will

move on one step.

Searching for tape position without the
picture (wind and rewind)

a Stop the tape with the STOP h button.

b Press the H (reverse) or I (forward) button.

c To stop at a certain picture, press the STOP h button.

Instant View

With this function you can switch to picturesearch during
wind and rewind.

a If you hold the H (rewind) or I (wind) button

during wind or rewind, you will switch to picturesearch.

b When you release the button, the TV-VIDEO Combi will

automatically switch back to rewind or wind.

Automatic search for a tape position (index
search)

Tape position indication

DPress the OK button to display the current tape position.

Searching for tape position with the picture
(picture search)

a While a cassette is playing, press the H (reverse) or

I (forward) button once or several times.

b To stop at a certain picture, press the PLAY G button.

DDuring picture search, the picture quality may not be

so good and there will be no sound.

At the start of each recording, the TV-VIDEO Combiwill write
an index code on the tape.

a Press the INDEX E button. Press the I button to

select the next code mark or the H button for the
previous code mark.

b When the TV-VIDEO Combi finds the code mark, it will

automatically switch to play.

12

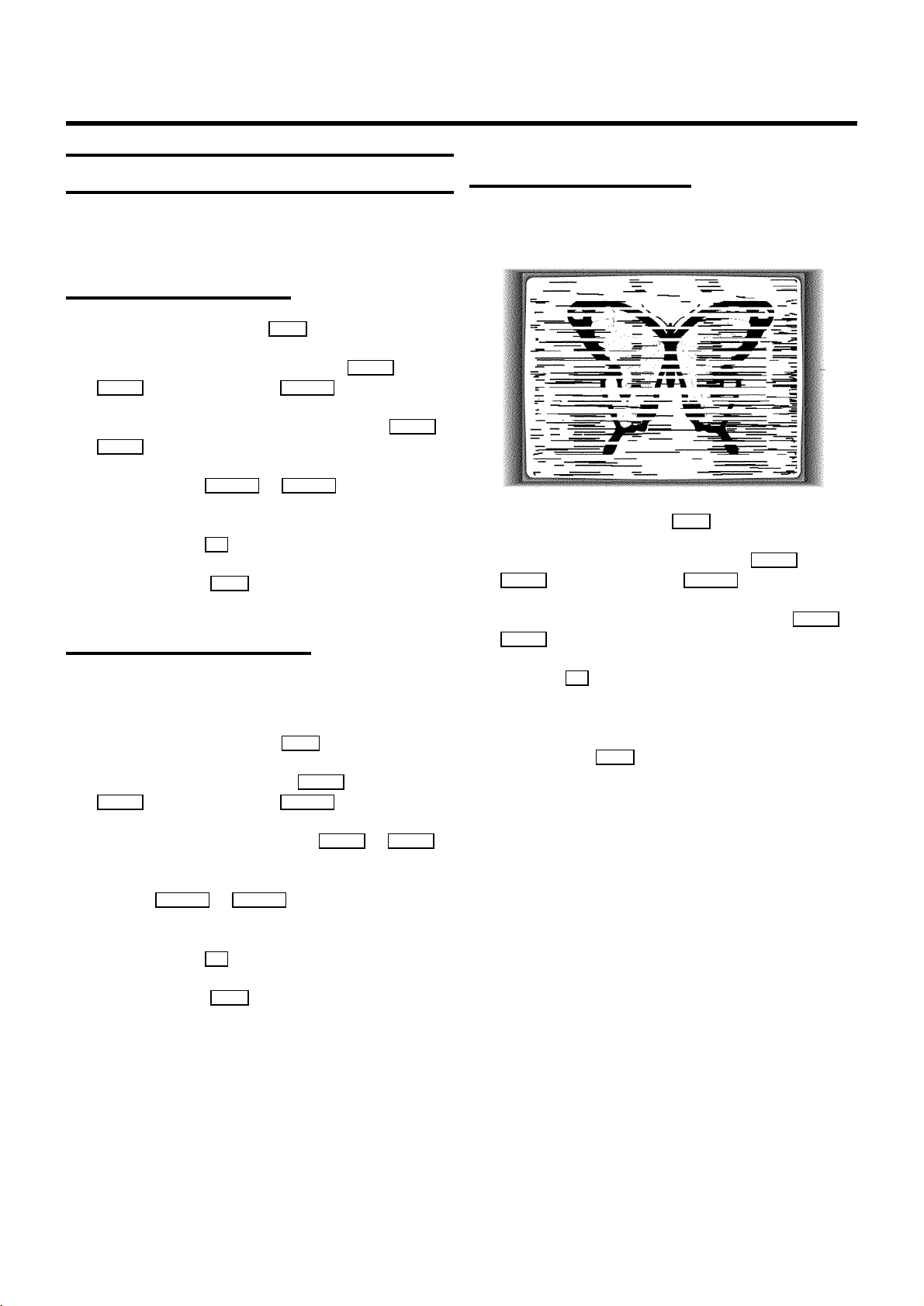

Picture interference

Cleaning the video heads

When the picture quality is poor when you play a cassette,
please follow these instructions.

Tracking during playback

a During playback, press the MENU button.

b Select the line ’Tape’ with the buttons P rB or

AP q and confirm with the SqC button.

c Select the line ’Tracking’ with the buttons P rB or

AP q .

d Hold the buttons DSr or SqC until the playback

quality is at its best.

e Confirm with the OK button.

f To end, press the MENU button. This setting will remain

until you remove the cassette.

Tracking during still picture

If horizontal lines appear on the screen when you playa
cassette, you should clean the video heads.

a During playback, press the MENU button.

b Select the line ’Tape’ with the buttons P rB or

AP q and confirm with the SqC button.

c Select the line ’Cleaning’ with the buttons P rB or

AP q .

If the still picture vibrates vertically,you can improve the still
picture as follows:

a During still picture, press the MENU button.

b Select the line ’Tape’ with the P rB button or

AP q and confirm with the SqC button.

c Select the line ’Jitter’ with the P rB or AP q

button.

d Hold the DSr or SqC button until the picture

quality is at its best.

e Confirm with the OK button.

f To end, press the MENU button.

DPlease note, however, that interference may still

occur with poor quality cassettes.

d Press the OK button. ’CLEANING’ will appear on the

screen.

e Wait a few seconds, until the message disappears and

then press the MENU button.

13

6. MANUAL RECORDING

Use ’Manual Recording’ to make a spontaneous recording (for
example, a programme currently being shown).

E If you want to start and stop a recording manually,read

the section: ’Recording without automatic switch-off’.

E If you want to start a recording manually buthave it

stopped automatically, read the section: ’Recording with
automatic switch-off’.

Recording without automatic switch-off

a Insert a cassette.

b Use the P pAB button to select the programme

number you want to record, for example, ’P01’.

DProgramme number ’E1’ is provided for recording

from external sources (via the EXT.1 scart socket).

c To start recording, press the RECORD/OTR n button on the

remote control or 5 on the TV-VIDEO Combi.
When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.

d Stop recording with the STOP h button.

DDuring a recording you can only watch the current

programme.

DTo switch off the screen, press the STANDBY m

button.

Recording with automatic switch-off (OTR
one-touch-recording)

a Put a cassette in the machine.

b Use the P pAB button to select the programme

number you want to record.

c Press the RECORD/OTR n button on the remote control.

When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.

d Press the RECORD/OTR n button again and again until the

display on the TV-VIDEO Combi shows the desiredend
time or length of the recording.

DTo cancel this information, press the CLEAR button.

e Confirm with the OK button.

f To end, press the MENU button.

Protecting your recordings

So that you don’t accidentally delete an important recording,
remove the special tab on the narrow side of the cassettewith
a screwdriver or slide the special tab to theleft. Later, if you
no longer want to protect your recording, you can sealthe gap
again with sticky tape or slide the special tab to the right.

14

Auto-assembling

You can use the auto-assembling function to join individual
recordings without any major picture disturbance between
them.

a While the cassette is playing, search for the correct

position on the tape.

b Stop the cassette by pressing the STOP h button.

’Pause’ will appear on the TV screen.

c Now start recording as usual by pressing the

RECORD/OTR n button on the remote control.

Selecting the recording speed (SP or LP)

You can reduce the recording speed by half. This makes it
possible to record, for example, eight-hours insteadof
four-hours on an ’E240’ (four-hour) cassette.

a Press the MENU button. The main menu will appear.

b Select the line ’Tape’ with the P rB or AP q

button, and confirm with the SqC button.

c Select the line ’Tape speed’with the P rB or

AP q button, and confirm with the SqC button.

d Select the required recording speed with the DSr or

SqC button.

D’LP’: Long Play = half recording speed (double

recording time).
’SP’: Standard Play = normal recording speed.

DThe picture quality will be adversely affected when

recording at half recording speed (’LP’).

DFor playback, the correct recording speed will

automatically be selected.

e Confirm with the OK button.

f To end, press the MENU button.

15

7. PROGRAMMED RECORDING (TIMER)

Use programmed recording to automatically startand stop a
recording at a later date.

To make a programmed recording, your TV-VIDEO Combi
needs to know:

* the date you want to make the recording;
* the programme number for the TV channel you want to
record;
* the start and stop time of the recording;
* whether you want to use VPS or PDC;
* the recording speed (SP/LP).

The TV-VIDEO Combi stores all the information ina TIMER
block. You can programme up to 6 TIMER blocks a monthin
advance.

’VPS’ (Video Programming System) and
’PDC’ (Programme Delivery Control)

With ’VPS and PDC’, the TV station controls thestart time and
the length of the recording. This means that the TV-VIDEO
Combi switches itself on and off at the righttime even if a TV
programme you want to record begins earlier or finisheslater
than expected.
Usually the start time is the same asthe VPS or PDC time. But
if your TV guide gives a VPS or PDC time which is different to
the programme’s start time (for example,20.15 and VPS 20.14),
you must enter ’20.14’ as the starttime.
If you want to programme a time that is differentfrom the VPS
or PDC time, you must switch off VPS orPDC.

Programming a recording (with ’VIDEOplus’)

All the information required for a programming iscontained in
the PlusCode-programming number.

a Press the TIMER k button on the remote control.

b Select the line ’Videoplus’ with the buttons

P rB or AP q and confirm with the SqC button.

c Enter the entire PlusCode-programming number (up to 9

digits) printed in your TV guide next to the starttime of a
TV programme.
For example, 5-234-89 or 5 23489
Enter 523489 for the PlusCode-programmingnumber.
If you make a mistake, you can clear your instructions
with the CLEAR button.

VIDEOPLUS

CODE REPEAT

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

123456((( ONCE

0-9 Store:

press OK

16

d In line ’REPEAT’ select daily or weekly programming

with the P rB or AP q button.
’Mo-Fr’: If you want to make a recordingevery day
from Monday to Friday.
’Mo-Su’: If you want to make a recordingevery day
from Monday to Sunday.
’WEEKLY’: If you want to make a recordingevery week
on the same day of the week.
’ONCE’: If you want to make only one recording.

e Confirm with the OK button. Your programming details

will then appear on the TV screen.

TIMER PROGRAMMING

DATEPROG. START END LP PDC REP.

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

15 xxx 15:36 15:50 - * ONCE

VPS

DA programmed recording can only start, when the

machine is switched to standby.

g If you confirmed with the OK button, exit the menu with

the TIMER k button.

Programming a recording
(without ’VIDEOPlus’)

ã Exit: Start:
« press TIMER press è

DIf VIDEOPlus+ does not recognise the TV channel,

’P??’ will appear on the TV screen. Instead of
’P??’, you can select the programme number you
want with the number buttons 0-9 .

DIf ’Code error’ appearson the TV screen, this

means you entered an incorrect PlusCode number
or the incorrect date. Correct your instructionsor
end with the TIMER k button.

DIf ’Daily error’ appearson the TV screen, the

date was incorrectly entered.

DUnder ’VPS/PDC’, use the P rB or AP q

button to switch ’VPS or PDC’ on or off.

DUnder ’LP’, use the P rB or AP q button to

select the recording speed ’SP’ or ’LP’.

DThe TIMER lamp on the front of the set will light up

when one or more of the TIMER blocks are
occupied.

DWhen you are recording, the red recording light at

the front of the TV-VIDEO Combi will be alight.

DIf the end of the cassette is reached during a

recording, the TV-VIDEO Combi automatically ejects
the cassette.

a Press the TIMER k button on the remote control.

b Select the line ’Timer programming’with the

buttons P rB or AP q and confirm with the

SqC button.

TIMER PROGRAMMING

DATEPROG. START END LP PDC REP.

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

-- -- --:-- --:-- - - -----

ã Exit: Start:
« press TIMER press è

VPS

c Select a free TIMER block with the P pAB button.

Press the OK button.

TIMER PROGRAMMING

DATEPROG. START END LP PDC REP.

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

15 xxx 15:36 15:50 - * ONCE

VPS

DIf you forget to load a cassette, ’No cassette’

will appear.

DIf you inserted a cassette with erase protection

when you want to start a recording, the cassettewill
be ejected.

f Confirm with the OK button.

E ’Press STANDBY to start recording’

will appear on the screen. If you have programmed a
recording that should start within the next fewminutes,
confirm with the STANDBY m button. If you have
programmed a recording that will start at somelater point
in time, confirm with the OK button.

ã Exit: Start:
« press TIMER press è

d Select the entry field with the DSr or SqC

button.

e Enter information with the buttons P rB or AP q or

with the digit buttons 0-9 .

17

DUnder ’REP.’, use the P rB or AP q button to

select daily or weekly programming.
’Mo-Fr’: If you want to make a recordingevery day
from Monday to Friday.
’Mo-Su’: If you want to make a recordingevery day
from Monday to Sunday.
’WEEKL’: If you want to make a recordingevery
week on the same day of the week.
’ONCE’: If you want to make only one recording.

DUnder ’LP’, use the P rB or AP q button to

select the recording speed ’SP’ or ’LP’.

How to check or change a TIMER

a Press the TIMER k button on the remote control.
b Select the line ’Timer programming’with the

buttons P rB or AP q and confirm with the

SqC button.

c Select the TIMER you want to check or change with the

P rB or AP q button and confirm with the OK

button.

DUnder ’VPS/PDC’, use the P rB or AP q

button to switch ’VPS or PDC’ on or off.

f Confirm with the OK button when the information is

correct.

E ’Press STANDBY to start recording’

will appear on the screen. If you have programmed a
recording that should start within the next fewminutes,
confirm with the STANDBY m button. If you have
programmed a recording that will start at somelater point
in time, confirm with the OK button.

DA programmed recording can only start, when the

machine is switched to standby.

DIf you entered the wrong date for a daily/weekly

recording, your TV-VIDEO Combi will correct it
automatically.

g If you confirmed with the OK button, exit the menu with

the TIMER k button.

DThe programming information has been stored in a

TIMER block.

h Make sure that the cassette you have put in can be

recorded on.

d Select the entry field with the DSr or SqC

button.

e Change any information with the P rB or AP q

button or with the 0-9 buttons.

DUnder ’LP’, use the P rB or AP q button to

select the recording speed ’SP’ or ’LP’.

f Confirm with the OK button when the information is

correct.

g Confirm the message on the screen with the OK button.

A TIMER recording can only start, if the setis not used for
other video recorder functions (e.g. playback).

DThe programming information has been stored in a

TIMER block.

h To end, press the TIMER k button.
i Make sure that the cassette you have put in can be

recorded on.

How to clear a TIMER

a Press the TIMER k button on the remote control.

18

b Select the line ’Timer programming’with the

buttons P rB or AP q and confirm with the

SqC button.

c Select the TIMER you want to clear with the buttons

P rB or AP q .

d Press the CLEAR button.
e Switch off with the TIMER k button.

8. ADDITIONAL FUNCTIONS

How to read TELETEXT

E Press the TELETEXT e button to switch the TXT decoder

on and off. The TV-VIDEO Combi is now receiving the TXT
of the TV channel currently selected.

E To store the current page, press the OK button.

The next time you call up TELETEXT, you will
automatically turn to this page.

E If you want to select an other page, type in thenumber of

the page with the digit buttons 0-9 . With the colour
buttons on your remote control you can directly select
the page numbers/chapters shown at the bottom of the
TV screen.

Extra TELETEXT functions

To use the extra TELETEXT functions, press the MENU button,
when you are in TELETEXT.

E To enlarge the print, select the symbol ’g’ andconfirm

with the OK button.

E To switch off the TELETEXT decoder temporarily, select

the symbol ’d’ and confirm with the OK button.

Parental control

This function will prevent unauthorised use of yourTV-VIDEO
Combi. All button-functions will be locked.

DYou can make programmed recordings while the parental

control is on.

a Press the MENU button. The main menu will appear.

b Select the line ’Setup’ with the P rB or AP q

button and confirm with the SqC button.

SETUP
Parental control OFF

Display MAX

ã Exit:
« press MENU

E To call up a TELETEXT sub-page:

a Select the symbol ’}’ and confirm with the OK

button.

b Enter the page number of the sub-page with the

0-9 -buttons (for example: 0123).

E To call up concealed information, select the symbol ’b’

and confirm with the OK button.

E To stop the pages from being turned over, select the

symbol ’f’ and confirm with the OK button.

E To show TELETEXT transparently, select the symbol’-’

and confirm with the OK button.

c In the line ’Parental control’select ’ON’ with

the DSr or SqC button.

d Confirm with the OK button.

e To end, press the MENU button.

Keep the remote control in a safe place.

f If you want to switch off the parental control, select

’OFF’ in line ’Parental control’.

DIf a button is pressed with activated parental

control, ’Parental Control active’ will
appear in the display.

DIf you want to eject a cassette with activated

parental control, press the STOP h button several
seconds.

19

Switching the On-screen display (OSD) on
or off

You can switch the On Screen Display of the current operating
information on or off.

Continuous playback

You can automatically play a cassette again and again. When
the end of the tape or the recording has been reached, it will
rewind and start again.

a Press the MENU button. The main menu will appear.

b Select the line ’Setup’ with the buttons P rB or

AP q and confirm with the SqC button.

SETUP
Parental control OFF

Display MAX

ã Exit:
« press MENU

c Select the line ’Display’ with the buttons P rB or

AP q .

d Select one of the options indicated with the buttons

SqC or DSr .

’MAX’: OSD appears for a few seconds each timean
operating mode is selected and then disappears.

’MIN’: OSD is minimised.
’PROGR.’: the programme number is constantly

indicated.
’COUNTER’: the counter is constantlyindicated.

a Press the MENU button. The main menu will appear.

b Select the line ’Tape’ with the buttons P rB or

AP q . Confirm with the menu buton SqC .

TAPE

Tape speed SP

Repeat play OFF
Jitter N. ACT.
Tracking (,,,,,,=,,,,,$
Cleaning N. ACT.

ã Exit:
« press MENU

c Select the line ’Repeat play’with the buttons

P rB or AP q .

d Select ’ON’ with the buttons DSr or SqC . If you

select ’OFF’, the function will be switchedoff.

e Confirm with the OK button.

f Press the MENU button.

e Confirm with the OK button.

f To end, press the MENU button.

DYou can use the OK button to show the current

operating mode on your TV screen.

20

Switch off function (SLEEP TIMER)

Switch on function (WAKE-UP TIMER)

You can programme your set to switch off aftera
predetermined period.

a Press the TIMER k button on the remote control.

b Select line ’Sleep timer’with the P rB or

AP q button and confirm with the SqC button.

c Determine the time left until switch off in 15 minutes

intervals using the P rB or AP q button.

DYou can switch the function off with the CLEAR

button on the remote control.

d Confirm with the OK button.

e To end, press the TIMER k button.

You can programme your set to switch on at a predetermined
time.

a Press the TIMER k button on the remote control.

b Select line ’Wake-up timer’with the P rB or

AP q button and confirm with the SqC button.

c Select the entry field with the DSr or SqC

button.

d Enter the information with the P rB or AP q button

or with the number buttons 0-9 .

e In the line ’ON’, switch the function on or off.

f Confirm with the OK button.

g To end, press the TIMER k button.

21

9. Before you call an engineer

If, contrary to expectation, you have any problemsusing this
TV-VIDEO Combi, it may be caused by one of the reasons
mentioned below. You can also call the customer service
centrein your country.
You will find the phone number in the enclosed guarantee
leaflet.

Your TV-VIDEO Combi does not respond to any button being
pressed:

• There is no powersupply: check the power supply

• A programmedrecording is currently being made: cancelthe

programmed recording with the

• Parental control ison: switch the parental control off.

• Continuous playbackis on: switch the continuous playback off.

• There is a technicalproblem: switch off with the

switch for 30 seconds, thenswitch it on again.

STANDBY m button.

8 power

Cassette is jammed in the TV-VIDEO Combi:

• Don’t use force.Switch off with the 8 power switch for a
moment.

Remote control does not work:

• Remote control not pointedtoward the TV-VIDEO Combi: point it
at the TV-VIDEO Combi.

• Batteries haverun out: change the batteries.

No picture when you play a cassette:

• There is no recordingon the cassette: change the cassette.

Poor picture quality when you play a cassette:

• The cassette badlyworn or of poor quality: use new cassette.

• Tracking isnot properly adjusted or the video heads aredirty:

turn to chapter ’PLAYBACK’ and readthe section ’Eliminating
picture interference’.

• You are playinga cassette with a LongPlay recording on it:
Excellent picture quality is onlyguarateed with recordings made
in StandardPlay recording speed.

The TV-VIDEO Combi will not record:

• The TV channel you wantto record is not stored or you selected
the wrong programme number: checkTV channels stored.

• You have loaded a cassettewhich cannot be recorded on: undo
the erase protection on the cassette.

Programmed recording does not work:

• You have not set theTIMER properly: check the TIMER blocks.

• You have programmedthe wrong time or date: check time and

date.

• You have put in acassette that cannot be recorded on: undo the
erase protection on the cassette.

• ’PDC’ or ’VPS’switched on but ’PDC/VPS time’ wrong:enter PDC

(WwnnNNNwwnwNNnwnWwnNnwnNWWNnwn)

or VPS time exactly to the minute.Have the aerial checked.

’Smart Clock’ setting does not work:

• You have stored a TVchannel on programme number ’P01’ that
does not transmit TELETEXT: On ’
transmits TELETEXT.

• Poor TELETEXT reception:On ’
good TELETEXT reception.

• You have not activatedthe Smart Clock function: Switch the
function ’

ON’.

P01’ store a TV channel that

P01’ store a TV channel with

You hear a very short and soft noise coming fromyour
TV-VIDEO Combi at 3:00 at night:

• ’Smart Clock’is checking the time: Swith off the SmartClock
function.

TELETEXT does not start at page 100:

• You have stored a differentpreferred page: Store page 100 as
preferred page.

Technical terms used

Current tape position : The part of the tape currentlybeing

played.
External source : A device connected via a socket (for
example, scart socket) which is transmittingaudio/video
signals to the TV-VIDEO Combi.
Index marking : A marking which is automaticallymade on the
tape at the beginning of every recording. This marking
(recording ID) can be searched for with the Index search
function.
Scart cable : Also known as a Euro-AV cable. This standard
cable is an easy method of connecting various TV, audio and
video devices, such as a HIFI and Dolby Surroundset, video
recorder, DVD player, SAT receiver, decoder, computerand
similar devices. Other signals in addition to audio and video
signals can be transmitted on it.
TV system : There are various systemsfor transmitting
television signals, for example, PAL, SECAM,PAL BG, SECAM
DK, SECAM L/L, NTSC etc. The system usedby your television
depends on which country you are in.

TXT : Also known as Teletext, Fasttext,Videotext, FLOF etc.
OTR : One touch recording. This function enables you to select

the switch-off time in intervals of 30minutes.

3103 166 22783

9311/011 14PV210/07

22
