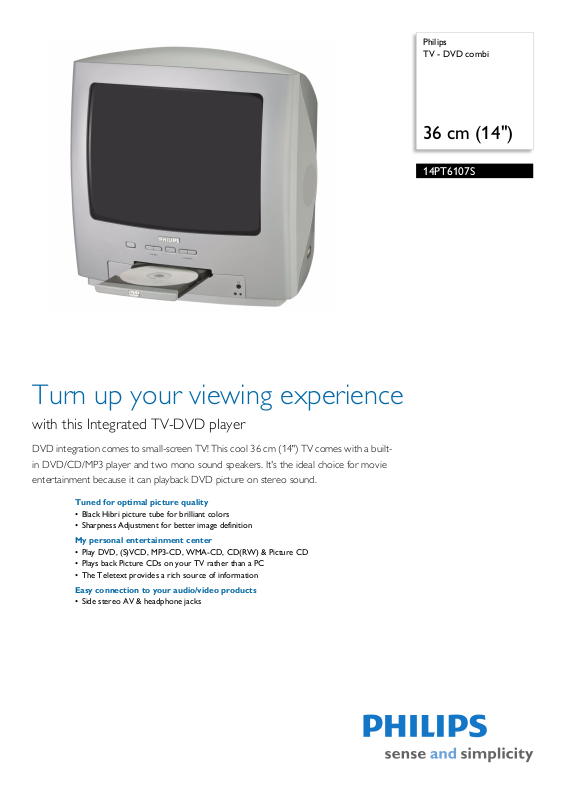

Philips
TV - DVD combi
36 cm (14")
14PT6107S
Turn up your viewing experience
with this Integrated TV-DVD player
DVD integration comes to small-screen TV! This cool 36 cm (14") TV comes with a builtin DVD/CD/MP3 player and two mono sound speakers. It's the ideal choice for movie
entertainment because it can playback DVD picture on stereo sound.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Sharpness Adjustment for better image definition
My personal entertainment center
• Play DVD, (S)VCD, MP3-CD, WMA-CD, CD(RW) & Picture CD
• Plays back Picture CDs on your TV rather than a PC
• The Teletext provides a rich source of information
Easy connection to your audio/video products
• Side stereo AV & headphone jacks
Page 2
TV - DVD combi
36 cm (14")
14PT6107S/05
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 14 inch / 37 cm cm
• Color cabinet: Silver Shadow (10811)
• Visible diagonal screen size: 34 cm cm
• Display screen type: Black Hibri picture tube
• Picture enhancement: Crystal Clear, Black stretch,
lor Temperature Adjustment, Sharpness
Co
Adjustment
• Picture processing: 50 Hz
Sound
• Sound System: Mono, Stereo Playback
• Output power (RMS): 2 x 3w
• Music Power: 12 W
Loudspeakers
• Built-in speakers: 2
Tuner/Reception/Transmission
• Aerial Output: 75 ohm coaxial (IEC75)
• Tuner bands: Hyperband, S-Channel, UHF, VHF
•TV system: PAL I
•Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning, Sorting, Plug & Play, Smart ATS and
ACI
• Ease of Use: Smart Picture, Smart Sound
• Remote control type: RCLE016
• Teletext: 1 page Teletext
• Teletext enhancements: Program information Line
• Screen Format Adjustments: 16:9 compress, 4:3
and, 4:3
exp
• Clock: Sleep Timer, Smart Clock
• Child Protection: Parental Control
Dimensions
• Product weight: 9.8 kg
• Weight incl. Packaging: 12.5 kg
•Box dimensions (W x H x D):
0 x 460 x 470 mm
46
•Set dimensions (W x H x D): 384 x 384 x 384
mm mm
Connectivity
•Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Other connections: Audio constant level out,
Digital coax
•Front / Side connections: C
Out, Audio L/R in
• Headphone: 3.5 mm
ial out
VBS in, Headphone
Built-in DVD
• Playback media: Audio CD, CD-R, CD-RW, JPEG,
MP3, VCD, Picture CD, DVD+R, DVD-R,
DVD+RW, DVD-RW, DVD-Video
Power
• Power consumption: 50 W
• Standby power consumption: < 3 w
• Mains power: AC 160 - 270 V, 50/60 Hz
Related Products
• Complementary Products: Shrek II DVD disc
•
Highlights
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips
small-screen TVs, giving good color reproduction on
smaller sets.
Sharpness Adjustment
Sharpness Adjustment for better image definition
Play DVD, MP3, WMA, Picture CD
The Philips player is compatible with most DVD and
CD discs available in the market. DVD, (S)VCD,
MP3-CD, WMA-CD, CD(RW) and Picture CD - all
of them can play on the player. SVCD stands for
"Super VideoCD". The quality of a SVCD is much
better than a VCD, especially much more sharpen
picture than a VCD because of the higher resolution.
CD(RW) is a shorthand term for a CD drive that can
accept the common rewritable CD format.
Picture CD Playback (jpeg)
A Picture CD contains digital still pictures in JPEG
format. Most Philips DVD players and recorders
support playback of Picture CDs – both home
created discs as well as ones from photo shops.
Teletext
The Teletext is a communication system transmitted
by most broadcasters in Europe, which contains a
rich variety of information. This information can only
be viewed by a set equipped with a Teletext
decoder.
Side Stereo AV & headphone
Side stereo AV & headphone makes it more
convenient to connect external devices like audio
equipment, games and video cameras. It's the easy
way to enjoy an extra audio sensation or a totally
immersive gaming experience.
Issue date 2012-01-20
Version: 11.0.12
12 NC: 8670 000 22209
EAN: 87 10895 87497 7
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
