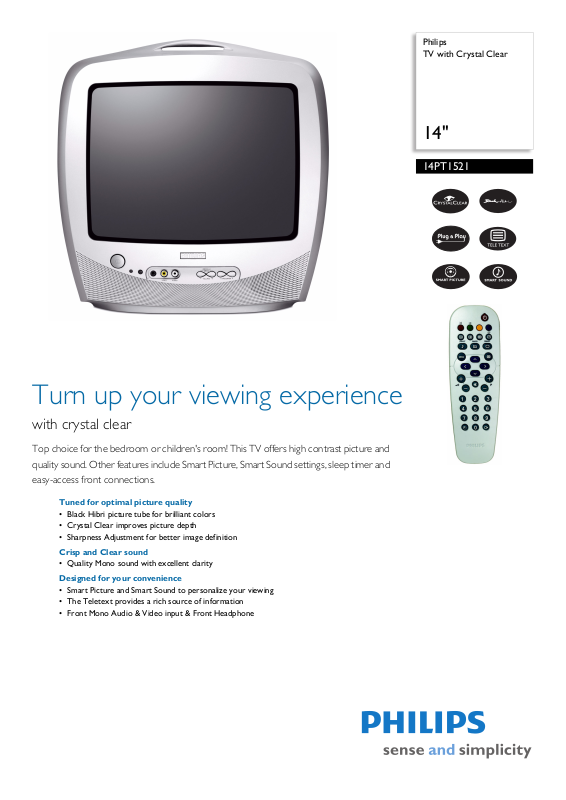

Philips 14PT1521 User Manual
Philips
TV with Crystal Clear
14"
14PT1521
Turn up your viewing experience
with crystal clear
Top choice for the bedroom or children's room! This TV offers high contrast picture and
quality sound. Other features include Smart Picture, Smart Sound settings, sleep timer and
easy-access front connections.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
Crisp and Clear sound
• Quality Mono sound with excellent clarity
Designed for your convenience
• Smart Picture and Smart Sound to personalize your viewing
• The Teletext provides a rich source of information
• Front Mono Audio & Video input & Front Headphone
TV with Crystal Clear
14PT1521/12
14"
Specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 14 inch / 37 cm
• Visible diagonal screen size: 34 cm
• Display screen type: Black Hibri picture tube
• Picture enhancement: Black stretch, Color
Temperature Adjustment, Crystal Clear,
Sharpness Adjustment
• Picture processing: 50 Hz
Sound
• Output power (RMS): 1W
• Music Power: 1 W
• Sound System: Mono
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Sorting
• Ease of Use: Smart Picture Control, Smart Sound
Control
• Remote control type: RCLE011
• Remote Control: TV
• Teletext: 1 page Teletext
• Screen Format Adjustments: 16:9 compress, 4:3,
4:3 expand
• Clock: Sleep Timer
• Child Protection: Child Lock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Connectivity
• Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB, Audio in/out
• Front / Side connections: Audio in, CVBS in
• Headphone: 3.5 mm
Power
• Power consumption: 50 W
• Standby power consumption: < 3W
• Mains power: AC 220-240V, 50/60Hz
Dimensions
• Set dimensions (W x H x D):
388
x 380 x 372 mm
• Product weight: 9 kg
• Weight incl. Packaging: 10.25 kg
• Box dimensions (W x H x D):
447
x 467 x 443 mm
• Color cabinet: Silver Frost (11027)
•
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips smallscreen TVs, giving good color reproduction on smaller
sets.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture depth.
Sharpness Adjustment
Quality Mono sound
Crisp and clear mono sound
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture and sound modes.
Teletext
The Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Front AV & Headphone
Front Mono Audio & Video input & Front Headphone
Issue date 2008-08-09
Version: 4.0.12
12 NC: 8670 000 24009
EAN: 87 10895 95407 5
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
