Page 1

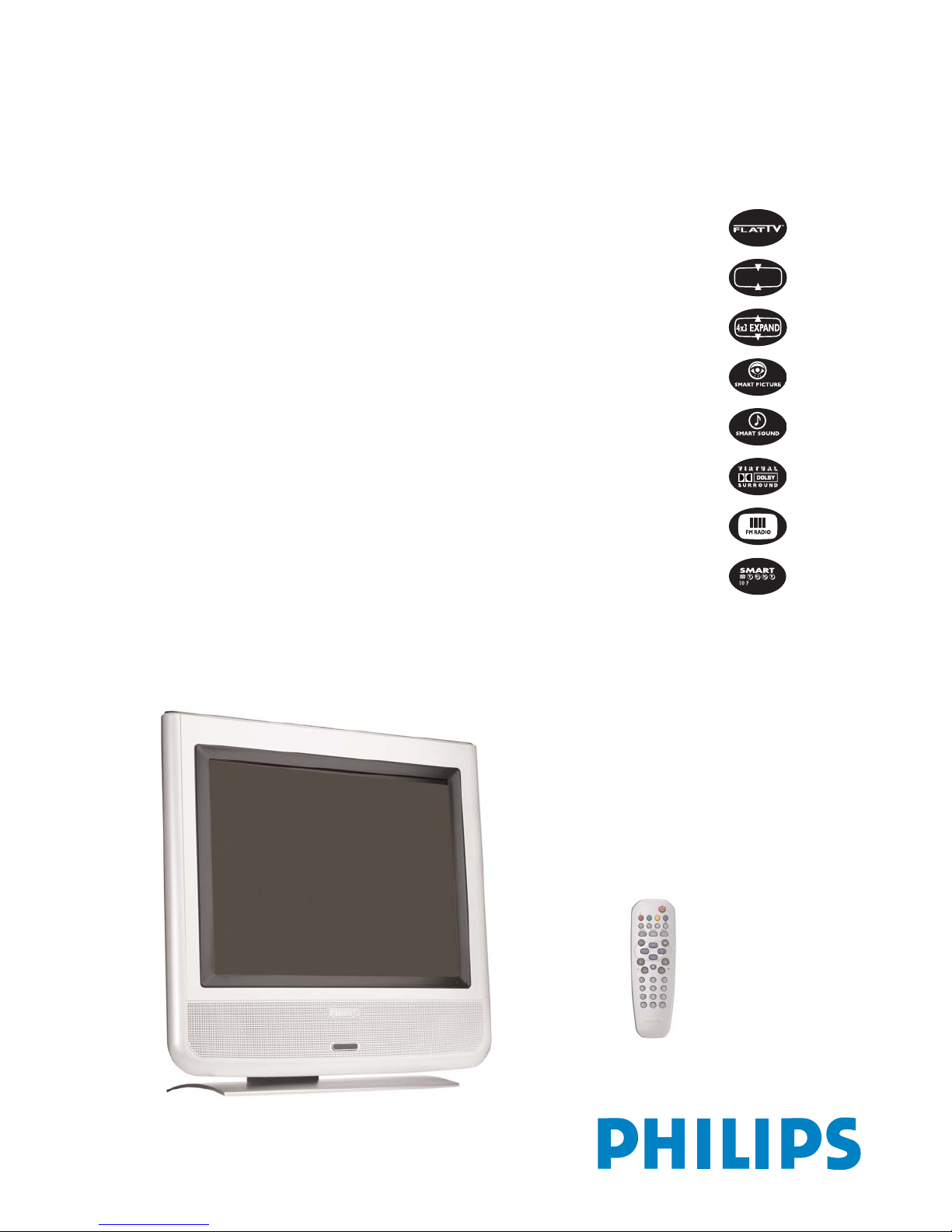

14” LCD Flat TV™
16x 9
COMPRESS
Best value with great features
Tuned to deliver optimal picture quality
• Enhanced Definition VGA panel for better picture resolution
• Wide viewing angle for best entertainment experience sharing
• High brightness projects a high brightness picture even in daylight
• High contrast picture with deep black and pure white colors
• Fast response time capable of handling fast moving pictures
Impressive sound
• Virtual Dolby®Surround for cinema like audio experience
Great convenience
• LCD TV with integrated tuner for terrestrial reception
• FM radio tuner to enhance your personal enjoyment
Freedom of placement
• Compact, sleek design and small size that fits in every room
• Ergonomic handle for easy portability
Get the best value with a high brightness LCD panel with wide viewing angles, FM radio and a
compact design that can fit anywhere within the home.
14PF7846
Page 2
• Screen (diagonal) : 14” (36 cm)
• Visible screen size : 14” (36 cm)
•Aspect ratio : 4:3 Standard format
• Display : LCD Active Matrix
TFT VA
• Response Time : 16 ms
• Resolution : 640 x 480
• Brightness : 450 nits
• Contrast Ratio : 500:1
• Viewing Angle : 170 H/170 V
• Anti Glare Coated Screen
Sound Quality
• Sound Power : 4 watt rms
•Music Power : 8 watt rms
•2 on board speakers
Ease of Installation
• Plug & play
• 100 Preset channels
• Autostore
• Fine tuning
• Sorting
• Manual store
• Smart ATS/A CI
Ease of Use
•Top controls
• Smart Picture (5 modes)
• Smart Sound (4 modes)
• Smart Listening (AVL) + Delta Volume
• Picture modes : 4:3, 4:3 expand,
16:9 compressed
• Multi-language OSD and menu control
•Program List (100 presets)
• Ergonomic Remote Control (RC19335019/01)
Side Connections
• S-Video
• Headphone (mini jack)
• Video CVBS
Rear Connections
• EXT I : Euro AV Connector
(RGB in,CVBS in/out)
Information
• 10 Page Smart Text
•Twin Page Text
FM Radio
• Stereo FM Radio
• 40 Preset Channels
• Autostore/Manual store
• Sorting
•Preset List
Reception
Tuning System : PLL
Tuner : VHF,UHF,S-channel,
Hyperband
Colour system : See Table
Stereo system : See Table
Aerial Input : 75 Ohm Coaxial
Miscellaneous
Ambient T emperature : +5/45°C
Main : AC 90 – 240
Net W eight : 5.1 Kg
Gross W eight : 7 Kg
Set Dimensions : 377 x 362 x 89 mm/
(WxHxD) 377 x 388 x 179 mm
without Stand/
With Stand
Box Dimensions : 489 x 466 x 193 mm
(WxHxD)
Power consumption : 40 W
(power on mode)
Power consumption : 1.2 W
(standby mode)
Technical specifications
14” LCD FlatTV
™
14PF7846
Product highlights
Enhanced Definition XGA LCD panel
It uses the latest panel technology which offers
superior entertainment at 640 X 480 pixel resolution.
Minimal ‘color shift’ i.e. uniform natural colors when
viewed from different angles,is a key picture
performance factor for LCD TVs.It also has a wider
viewing angle, a faster response time and natural
brilliant colors.
Virtual Dolby
®
Surround
Enjoy enhanced cinema surround sound effect without
the need for rear speakers.
FM Radio
Listen to all your favorite radio channels (40 presets).
10 page teletext
The teletext is a common system transmitted by
most broadcasters. 10 pages give you fast access to
changing pages.
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
stereo system
transmission system
••••••••••••
Predecessor :15PF7835
Chassis :LC04C
Introduction :Year 2004
Dolby and the double-D symbol are trademarks
of Dolby Laboratories Licensing,Inc.
Features and specifications subject to change without notice.
2004 Royal Philips Electronics—All rights reserved.
