PHILIPS 14HT3153, 14HT3253, 14HT3303, 14HT4203, 17HT3153 Service manual & schematics

Colour Television Chassis

CL 06532004_024.eps

130100

L9H.2E

AA

Contents Page Contents Page

1. Technical Specifications 2

2. Safety- and maintenance instructions, 4 warnings and notes. 5

3. Directions for use 6

4. Mechanical instructions 9

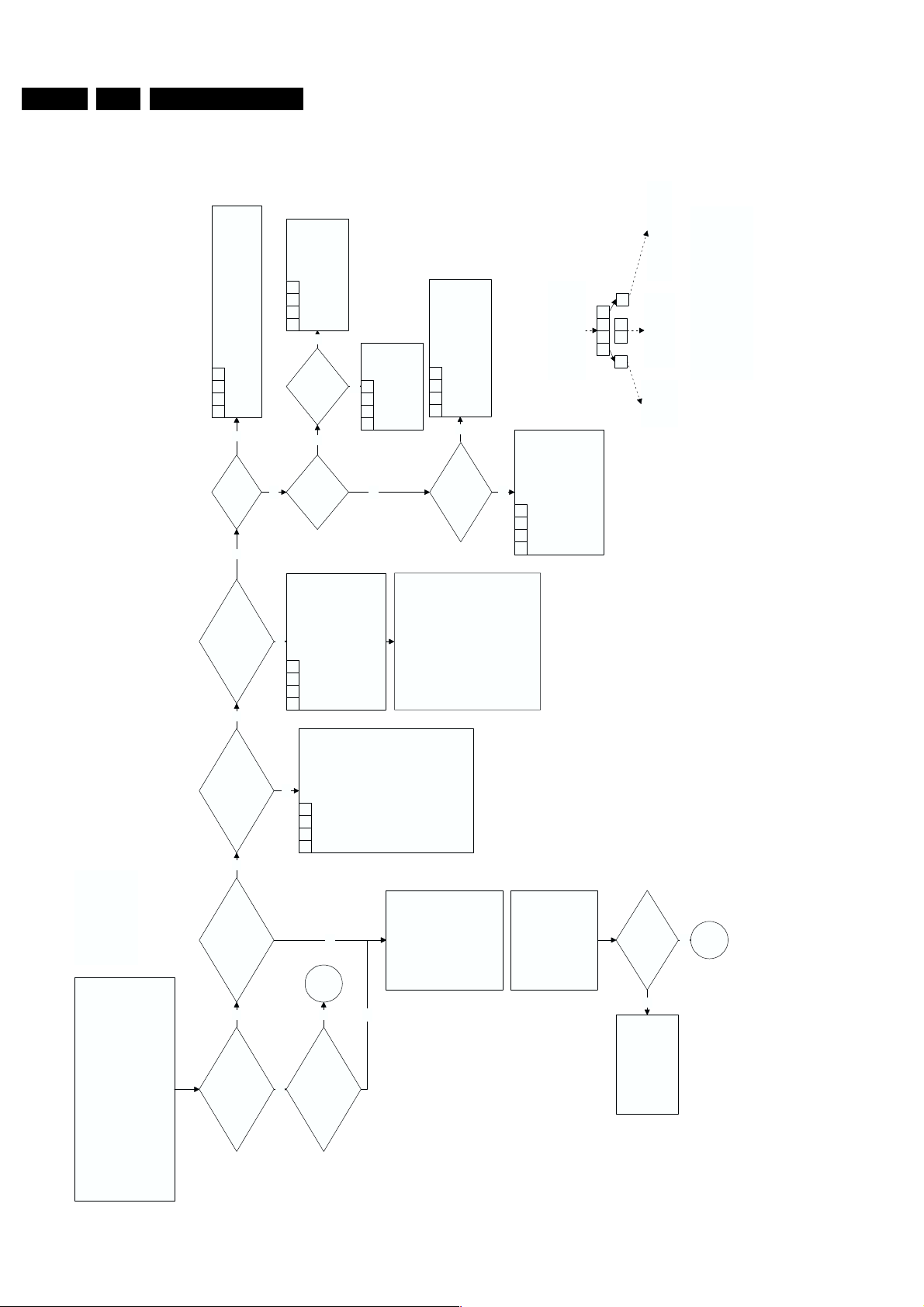

5. Service modes, repair tips and faultfindingtrees 9

6. Wiring diagram 21

2

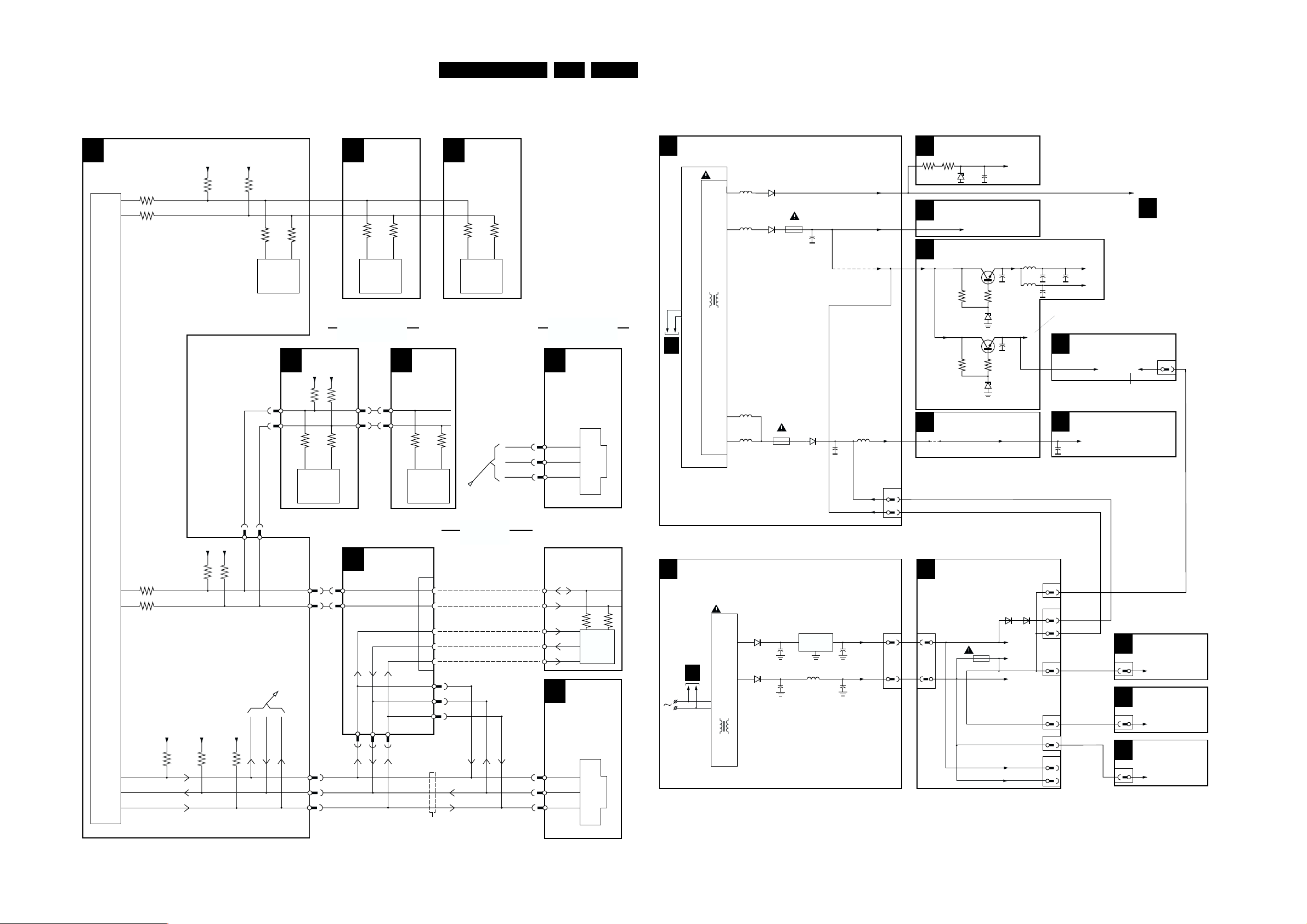

C bus interconnection diagram 22

I Supply voltage diagram 22/23 Blockdiagram 24 Testpointsoverview and oscillograms 25

Electrical diagram’s en PWB’s Diagram PWB

7. Power supply (Diagram A1) 26 27/28 Horizontal deflection (Diagram A2) 29 27/28 Vertical deflection (Diagram A3) 30 27/28 Synchronisation (Diagram A4) 30 27/28 Tuner en video IF (Diagram A5) 31 27/28 Diversity table A5 32 Video processing (Diagram A6) 33 27/28 Control (Diagram A7) 34 27/28 Front control (Diagram A8) 35 27/28 AV Mono demodulator (Diagram A9) 36 27/28 Sound amplifier (Diagram A10) 37 27/28 Headphone (Diagram A11) 38 27/28 Rear IO Cinches (Diagram A13) 39 27/28 CRT Panel (Diagram B) 40 41 External power supply (Diagram F) 41 41 Clock (Diagram G1) 42 42 Radio - SP/LS (Diagram H1) 43 42 Smart plug / loudspeaker (Diagram I) 45 45 Smart card interface (Diagram J) 46 44

8. Alignments 47

9. Circuit description new circuits and 52 list of abbreviations 58

10. Spare parts list 61

©

Copyright reserved 2000 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by FM 0062 Service PaCE Printed in the Netherlands Subject to modification 5 3122 785 10065

GB 2 L9H.2E1.

Technical Specifications

1. Technical Specifications

1.1 Introduction:

1.1.1 Range L9H.2E Chassis

Basic: This execution is provided with a “Smart loader” and “External loudspeaker socket”. Basic plus: Same as “Basic” and additional with “Teletext” ane “LED Clock”. Basic plus radio: Same as “Basic plus” and additional with “FM radio”. System: Same as “Basic plus” and additional a DCM interface panel To the DCM interface panel so called “smart cards” can be connected. For powering the smart card also when the set is switched off, an external power supply is added inside.

1.1.2 Remote controls

Two types of remote controls are available: – Standard Remote control for normal consumer use: – So called “set-up” remote control, type T374A, This remote

works on RC5 system 7 code . With this remote control specific non consumer functions can be executed.

1.1.3 TV Commercial / Consumer mode

The software gives the possibility to switch between “commercial” and “consumer mode”. In the consumer mode a limited user functions are avaiable.

Selection can be performed with the set up remote. Selection: Press on remote control “ 0 2 4 9 9 5 and MENU key, then use the “left” or ”right” key to select Commercial or Consumer mode. Highlight STORE and press “left” or “right” key to store changes. TV will go into standby mode after storing.

1.2 Specifications

Mains voltage : 150V - 276Vac; Mains frequency : 50 - 60Hz Maximum power consumption :

• 14" : 40W +/- 10%

• 20" : 56W +/- 10%

• 21" : 58W +/- 10% Standby power consumption : 10W +/- 10% Max. Antenne-input : Off air : 100dBV On air : 90dBV Audio output :

• Stereo : 2 * 3W; 2 * 1W

• Mono : 2 * 2W; 4W; 3W; 2W; 1W

Tuners :

• UV 1316/AI-2 (PAL)

• UV 1316/AIU-2 (PAL)

• UV 1356C/AI (PAL)

1.3 Specification of the terminal sockets

IR

Red

BATHROOM

SPEAKER

CONNECTION

SMART LOADER

CONNECTION

++

--

ChannelVolume

CL 86532104_011.eps

RESESS FOR 32 PIN SMART CARD CONNECTION

EXT1

CL 96532159_024.eps

080299

201299

Technical Specifications

6

5

4

3

2

1

U1

RJI1

Clock

Data-in

+5V

Data-out

Ground

IR-data

1, 4 Speaker 2 Speaker +

SMART PLUG LOADER PHONE JACK

FOR BATHROOM SPEAKER

CL 96532141_002.eps

071299

4

1

2

116

17

32

CL96532141_001.eps

070100

32 PIN SMART CARD CONNECTOR

1 N.C. 2 GROUND (POWER) 3 +12Veps 4 GROUND (IIC) 5 IR-DATA 6 POR FOR DCM 7 TV-CLOCK 8 DCM-DATA 9 TV-DATA 10 +5Veps 11 HORIZONTAL SYNC 12 VERTICAL SYNC 13 GROUND CVBS-IN 14 SCL2 15 SDA2 16 N.C.

17 ANALOG BLUE 18 ANALOG GREEN 19 ANALOG RED 20 FAST BLANKING 21 GROUND CVBS-OUT 22 CVBS-OUT 23 AUDIO OUT MONO 24 N.C.

25 AUDIO OUT MONO 26 GROUND AUDIO IN 27 AUDIO RIGHT OUT 28 AUDIO LEFT OUT 29 AUDIO RIGHT IN 30 AUDIO LEFT IN 31 CVBS/Y IN 32 "C" IN

GB 3L9H.2E 1.

1.4 Specification of the terminal sockets

1.4.1 Scart 1: CVBS(in/out) + RGB(in) - tuner at output

121

CL96532137_056.eps

1 - Audio Out R (0.5Vrms ≤ 1kΩ) 2 - Audio In R (0.2-2Vrms ≥ 10kΩ) 3 - Audio Out L (0.5Vrms ≤ 1kΩ) 4 - Earth screen 5 - Earth screen 6 - Audio In L (0.2-2Vrms ≥ 10kΩ) 7 - Blue (0.7Vpp/75Ω) 8 - CVBS status (INT = 0-2V, EXT(16:9) = 4.5-7V,

9 - Earth screen 10- - 11- Green (0.7Vpp/75Ω) 12- - 13- Earth screen 14- Earth screen 15- Red (0.7Vpp/75Ω) 16- FBL (>0.9V RGB mode ) 17- Earth screen 18- Earth screen 19- CVBS 20- CVBS (1Vpp/75Ω) 21- Earth screen

202

171199

EXT(4:3) = 9.5-12V)

1.4.3 Smart plug loader

k

j

k

H

H k k

1.4.4 Smart card connector

H

j

H

j

H

H k

j

H

1.4.2 Headphone

- Jack 3.5mm 8-600Ω (4mW)

1.5 PCB location drawing

G1

RADIO + SP/LS + VBAT

H1

I

(SMARD PLUG LOADER

+LOUDSPEAKER SOCKET )

J

F EPS

CLOCK

OR

SP/LS + VBAT

OR

SP/LS

INTERFACE

SMARD CARD

(EXTERNAL

POWER SUPPLY)

NON SYSTEM

SYSTEM

t

CRT PANEL

MAIN

POWER SUPPLY

LINE DEFLECTION

FRAME DEFLECTION

SYNCHRONISATION

TUNER VIDEO IF

VIDEO PROCESSING

CONTROL

FRONT CONTROL

AM MONO DEMODULATOR

SMART SOUND + MONO SOUND AMPLIFIER

HEADPHONE

REAR I/O SCART

CL 06532004_005.eps

B

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A13

130100

GB 4 L9H.2E2.

Safety instructions, maintenance instruction, warnings and Notes

2. Safety instructions, maintenance instruction, warnings and Notes

2.1 Safety instructions for repairs

1. Safety regulations require that during a repair: – The set should be connected to the mains via an

isolating transformer;

– Safety components, indicated by the symbol h,

should be replaced by components identical to the original ones;

– When replacing the CRT, safety goggles must be

worn.

2. Safety regulations require that after a repair the set must be returned in its original condition. In particular attention should be paid to the following points. – As a strict precaution, we advise you to resolder the

solder joints through which the horizontal deflection current is flowing, in particular ('general repair instruction'):

• All pins of the line output transformer (LOT);

• Fly-back capacitor(s);

• S-correction capacitor(s);

• Line output transistor;

• Pins of the connector with wires to the deflection

coil;

• Other components through which the deflection current flows.

• Note:

• This resoldering is advised to prevent bad

connections due to metal fatigue in solder joints and is therefore only necessary for television sets older than 2 years.

– The wire trees and EHT cable should be routed

correctly and fixed with the mounted cable clamps.

– The insulation of the mains lead should be checked for

external damage.

– The mains lead strain relief should be checked for its

function in order to avoid touching the CRT, hot components or heat sinks.

– The electrical DC resistance between the mains plug

and the secondary side should be checked (only for sets which have a mains isolated power supply). This check can be done as follows:

• Unplug the mains cord and connect a wire between the two pins of the mains plug;

• Set the mains switch to the "on" position (keep the mains cord unplugged!);

• Measure the resistance value between the pins of the mains plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 MΩ and 12 M

• Switch off the TV and remove the wire between the two pins of the mains plug.

– The cabinet should be checked for defects to avoid

touching of any inner parts by the customer.

hhhh

2.2 Maintenance instruction

It is recommended to have a maintenance inspection carried out by a qualified service employee. The interval depends on the usage conditions: – When the set is used under normal circumstances, for

example in a living room, the recommended interval is 3 to 5 years.

– When the set is used in circumstances with higher dust,

grease or moisture levels, for example in a kitchen, the recommended interval is 1 year.

– The maintenance inspection contains the following actions:

• Execute the above mentioned 'general repair

instruction'.

• Clean the power supply and deflection circuitry on the chassis.

• Clean the picture tube panel and the neck of the picture tube.

2.3 Warnings

1. ESD

2. All ICs and many other semiconductors are susceptible to

3. Available ESD protection equipment:

4. In order to prevent damage to ICs and transistors, all high-

5. Together with the deflection unit and any multipole unit, the

6. Be careful during measurements in the high-voltage

7. Never replace modules or other components while the unit

8. When making settings, use plastic rather than metal tools.

9. Wear safety goggles during replacement of the picture

w

electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

– Complete kit ESD3 (small table mat, Wristband,

Connection box, Extension cable and Earth cable) 4822 310 10671

– Wristband tester 4822 344 13999

voltage flashovers must be avoided. In order to prevent damage to the picture tube, the method shown in Fig. 2.1 should be used to discharge the picture tube. Use a highvoltage probe and a multimeter (position DC-V). Discharge until the meter reading is 0V (after approx. 30s).

flat square picture tubes used form an integrated unit. The deflection and the multipole units are set optimally at the factory. Adjustment of this unit during repair is therefore not recommended.

section and on the picture tube.

is switched on.

This will prevent any short circuits and the danger of a circuit becoming unstable.

tube.

2.4 Notes

The direct voltages and oscillograms should be measured with regard to the tuner earth (H), or hot earth (I) as this is called. The direct voltages and oscillograms shown in the diagrams are indicative and should be measured in the Service Default

Ω

Mode (see chapter 8) with a colour bar signal and stereo sound (L:3 kHz, R:1 kHz unless stated otherwise) and picture carrier at 475.25 MHz. Where necessary, the oscillograms and direct voltages are measured with (D) and without aerial signal (E). Voltages in the power supply section are measured both for normal operation (G) and in standby (F). These values are indicated by means of the appropriate symbols. The picture tube PWB has printed spark gaps. Each spark gap is connected between an electrode of the picture tube and the Aquadag coating. The semiconductors indicated in the circuit diagram and in the parts lists are completely interchangeable per position with the semiconductors in the unit, irrespective of the type indication on these semiconductors.

Safety instructions, maintenance instruction, warnings and Notes

V

CL 26532098/042

140792

Figure 2-1

GB 5L9H.2E 2.

GB 6 L9H.2E3.

Directions for use

3. Directions for use

Brightness

Colour

Contrast

Sharpness

SETUP MENU

TV Installation

Radio Installation

Language

Number of Programs

Clock Installation

Stereo

Bass

Treble

1

ENGLISH : DEUTSCH :

Language

AVL

Min Volume

Max Volume

Volume Bar

Balance

Switch On Program

Power On

Keyboard Lock

Switch On Volume

Volume Fixed

Buzzer Volume

Program Display

Free protected

ESP

System Interface

Reminder

Audio/Video Mute

Security

Welcome Message

Program Guide

The Language function is shown in the Menu as

'LANGUAGE', and its valid states are

'FRANCAIS ':"ITALIANO ".

No. of Programs

This item of the Setup Menu is activated by

highlighting the ite m using the cursor up/down

keys, then pressin g the cursor right key.

Installing the TV

sides and 10 cm from the top for good

• Place your TV on a stable and strong base.

• Leave at least a free pace of 5 cm on both

ventilation of the set.

items such as newspapers, cloths etc.

• Do not cover the ventilation openings with

Connecting the mains

control.

Insert the main plug into the wall socket and

switch on. Please refer to the specification at the

back of the TV for the correct operating voltage.

Installing the remote control

• Remove the cover at the back of the remot e

• Insert the correct type and size batteries into

You can secure your batteries by fastening

an appropriate screw into the hole.

the compartment m aking sure they are the

right way around.

•

Tips and Alerts

always contact a qualified technician.

recycled and reused by specialized

companies. Please find out about local

regulations on the disposal of your old TV

set.

Energy consumption contributes to air and

water pollution. We advise you to switch off

your TV overnight instead of leaving it in

stand-by mode.

L9 Quick DFU

• Never try repairing the set by yourself,

• Your T V contains material which can be

• TV c onsumes energy in the stand-by mode.

Accessing the Set-up Menu

Accessing the Set- up Menu, while the set is in

the Security High state, can only be done by a

T374AH Institutional Setup remote Menu

command.

While the set is in the Security Standard State

the Setup Menu may be accessed with a normal

guest cursor remote control by a sequence of

numbers (319753MUTE)

12NC: 3119 105 24841

4

9

3

6

5

8

7

12

4

TEXT

SMART

b

OK

0

`

MENU

2

MESSAGESLEEP

4

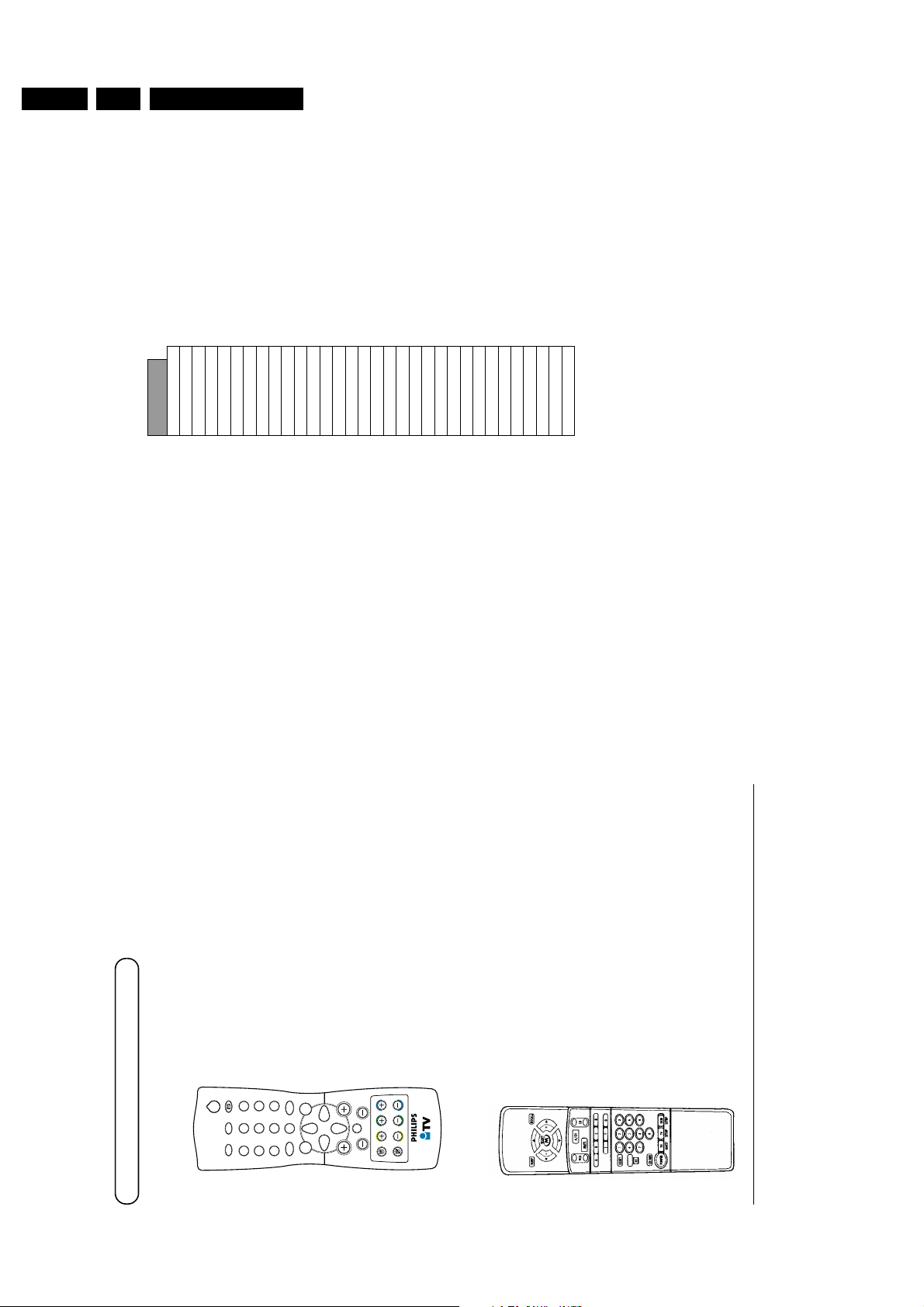

RC2882/01

Remote Controls used

For explanation in this manual, RC2882/01

is used. Remote control T374AH is an

accessory to be purchased separately . Refer to its

accompanying guide T374AH Remote Control Instruc-

tions for details of its operation.

TV

INFO

H

PAY TV RADIO

ALARM

A

ALARM OFF

T374AH

(RG4172BK)

(Optional)

Directions for use

Brightness

The brightness control contains 64 discrete

values from the minimum to maximum setting.

Colour

The color control contains 64 discrete values

STORE

To store the data of the menu, press right button.

from the minimum to maximum setting.

Contrast

The picture control contains 64 discrete values

from the minimum to maximum setting.

Sharpness

The sharpness control contains 64 discrete values

from the minimum to maximum setting.

Noise Reduction

Switch this on to reduce picture noise

Forced mono (for stereo TVs only)

This command is used to activate or to deactivate

the stereo feature, in stereo sets; toggle ON, OFF

using the right/left cursor.

Balance (for stereo TVs only)

It balances the sound output from TV’s speakers

Treble (for stereo TVs only)

It sets the treble frequencies of sound output

from TV’s speakers.

Bass (for stereo TVs only)

It sets the bass frequencies of sound output from

TV’s speakers.

AVL (Automatic Volume Leveller)

GB 7L9H.2E 3.

3

Protection

This menu item will be used to “Protect” or

“Lock” each program individually.

Label

This menu item will be used to add a label/name

for each program.

Store

This menu item is used to store the information

displayed in the Radio installation sub menu

Clock Installation

The Clock Installation menu is displayed when

the Clock Installation menu item is selected by

has a protection or not. With the cursor left/right

keys the protection can toggle between “YES”

and “NO”.

Label

This menu item will be used to add a label/name

for each program. Pressing the left/right buttons

you may enter or exit the label field; pressing the

up/down cursor you may insert alphanumeric

characters.

TXT Language

This menu enables the user to select the teletext

character set to be used for the selected channel.

With cursor left/right you can select a letter

corresponding to the different language clusters.

highlighting the Clock Installation menu item

with either Cursor Up or Cursor Down.

Time Setting

This menu item will be used to set the time for

the clock.

Display Standby

This menu item will be used to set the intensity

of the display of the clock when the TV is in

standby mode.

Display On

This menu item will be used to set the intensity

Video Blank

This item can change between “YES” and “NO”

to indicate if a picture mute is necessary.

Audio Mute

This item can change between “YES” and “NO”

to indicate if a sound mute is necessary.

Remarks

TV up/down, INFO up/down, PAY-TV up/down

and RADIO up/down are active in menu mode

and the TV reacts the same way as in TV mode.

Radio Installation Menu

of the display of the clock when the TV is in the

On mode.

Time Downloading

This menu item will be used to activate or

deactivate the time downloading function.

Teletext Program

This menu item will be used to select the channel

from which to retrieve the correct time from the

teletext. When this item is selected the TV set

tunes to the selected program.

Time Offset

This menu item will be used to set the offset

This menu appears only if an internal radio is

installed. The following subset of the TV

installation menu items is displayed and has the

same functionality: search, program, label,

protection, store, exit. The frequency range for

internal radio is 87.50 - 108.00 MHz FM. Beside

program “RAD XX” appears, where XX is the

selected program number; the type is RAD and is

not selectable.

Search

The Search function is activated by pressing the

“+” or Cursor Right button via the local

keyboard or remote control.

L9 Quick DFU

needed to adjust the time received from the

teletext channel to represent the current time in

the current location.

Program

The user can cursor down to the “Program”

menu item until it is highlighted and select a

program number via the Digits, Cursor Right, or

Cursor Left commands.

12NC: 3119 105 24841

2

Number of TV, Pay TV, Radio and Info

programs can be set and stored.

TV Installation Sub-Menu for the Set-up

Menu.When this menu is open, all the protections are

inactive.

To exit any menu press Menu button.

Input

The “Input” menu item selects the desired input

source that will be assigned to the program.

Possible values are Front End, AV1, and

AV2YC (internal interface, for system TVs

only).

System

Sets for East regions will have 2 states, WEST

EU (PAL/SECAM-BG) and EAST EU

(PAL/SECAM-DK).

Sets for West regions will have 3 states, WEST

EU (PAL/SECAM-BG), UK (PAL-I), FRANCE

(SECAM-L/L').

Manual Search

3 digits can be entered for a frequency in MHz or

radio tuner is present in the chassis), “RADIO”

is displayed, if the radio is internal there will be a

separate radio installation menu. If the program

number of a certain type is 0, the corresponding

type is not displayed.

right cursor for auto search; during frequency

entry the not yet entered digits are displayed as

dashes ‘-‘.

Program no.

The programme type can be selected with the

cursor left/right buttons. These buttons will

toggle between all available types: “TV”,

“INFO”, “PAY-TV”; if the radio is external (no

Store

fine-tuning.

Protection

The present program information, is stored after

pressing the cursor left/right button. Press Menu

to exit without storing.

Fine Tune

This bit indicates whether the selected program

Using the “control left/right” commands starts

L9 Quick DFU

12NC: 3119 105 24841

GB 8 L9H.2E3.

Directions for use

5

Guide

Welcome Message

When the “Welcome Message” menu item is

highlighted, the message “Press +” will appear in

The Power On Menu function is shown as

'POWER ON', and its valid states are

‘FORCED’: 'STANDARD'.

Program

This feature checks for program labels that have

been assigned to the programs via the LABELS

function, and if those programs are in the

the status section. When the user depresses “+”

or Cursor Right key, the following sub-menu

will be displayed: Message, Line 1, Line2,

Program Display

Program Display values can be: Number, Label,

program ring, will display in a “list” or “page”,

the program numbers with the associated labels.

All, None.

Keyboard Lock

In Commercial Mode, the Keyboard Lockout

menu function controls whether any Local

When the Reminder function is highlighted, the

status message displays the current state of the

Reminder

Keyboard commands, except for the Service

entry command can be generated.

The Keyboard Lockout menu function is shown

control.

This menu function is shown as 'REMINDER',

and its states are ‘ON’: 'OFF'.

as “KEYBOARD LOCKOUT” and its states are

‘ON’:’OFF’.

Security

The menu function “SECURITY” allows the

user to select one of two states “HIGH” or

“STANDARD”. The default is “STANDARD”.

Free protected programs

With this item all protected programs can be

freed. If “free protected programs” is set to

“yes”, all programs are accessible for the user, if

the item is “no” protected programs can be

selected but with picture and sound are muted.

While the set is in the Security High state the

setup menu can only be accessed by a T374AH

Institutional Setup remote menu command.

While the set is in the Security Standard state the

Setup Menu may be accessed with a normal

guest cursor remote control by a sequence of

numbers.

ESP

Energy Saving Programmability Mode (ESP)

controls the maximum continuous viewing time

allowed by the control system.

its valid values are 00 - 99 (in hours).

It is provided to allow the installed establishment

to limit the time the television remains activated

once a Guest has checked-out of their room.

The ESP Menu function is shown as ‘ESP’, and

System Interface

L9 Quick DFU

4

is used to enable or disable communication with

the DCM.

This item is only present in “system” sets and it

Audio/Video Mute

The Audio/Video Mute menu function

determines whether the video should be blanked

and the audio should be muted if the currently

tuned channel has no valid video information.

12NC: 3119 105 24841

The Automatic Volume Leveler feature is

shown as 'AVL' in the menu and its valid states

are ‘ON’: 'OFF'.

Volume Bar

To display volume bar when adjusting volume,

select ON; to hide the bar, select off.

Min Volume

It sets the limit for the minimum volume allowed

for the TV set; use right/left cursor to adjust.

Max Volume

It sets the limit for the maximum volume

allowed for the TV set; use right/left cursor to

adjust.

Switch on Volume

It sets the TV’s volume at switch on; use the

right/left cursor to adjust.

Volume Fixed

The feature is displayed as ‘VOLUME FIXED’

in the Setup menu and the valid toggle states are

‘ON’ and ‘OFF’.

Buzzer Volume

It sets the volume of the alarm buzzer; use

right/left cursor to adjust.

Switch On Program

This feature sets the current program that the

television will be tuned to when brought to

POWER ON condition.

Power On

The Power On menu function directs the control

system to activate the television receiver

whenever AC Power is applied to the television

and ignore any command that would deactivate

the television.

L9 Quick DFU

12NC: 3119 105 24841

Mechanical instructions

4. Mechanical instructions

GB 9L9H.2E 4.

4.1 Service positions

See figure 4-1 for the service position. Disconnect the connecting cable feeding the right-hand and the left-hand speaker, also disconnect the degaussing cable.

1

11

The mono-carrier is removed by pushing the two centre clips at both chassis brackets outwards and pulling the panel forward.

A B

Figure 4-1

CL 96532047_015.eps

280599

5. Service Modes, DST, error messages, protections, fault finding and repair tips

In this chapter the following paragraphs are included:

5.1 Test points

5.2 Service Modes

5.3 The menus and submenus

5.4 Error code buffer and error codes

5.5 The “blinking LED” procedure

5.6 Customer service mode ( CSM )

5.7 ComPair

5.8 Ordering compare

5.9 Trouble shooting tips

5.1 Test points

The main chassis is equipped with test points in the service printing. These test points are referring to the functional blocks:

• A1-A2-A3, etc.: Test points for the AM Mono Demodulator ( A9 ), ITT panel ( D1) and Sound amplifier ( D2 )

• C1-C2-C3, etc.: Test points for the control circuit ( A7 ) and the front control ( A8 )

• F1-F2-F3, etc.: Test points for the frame deflection circuit ( A3 )

• I1-I2-I3, etc.: Test points for the Tuner Video IF circuit ( A5 )

• L1-L2-L3, etc.: Test points for the Line deflection circuit (

A2 )

• P1-P2-P3, etc.: Test points for the power supply ( A1 )

• S1-S2-S3, etc.: Test points for the synchronisation circuit (

( A4 )

• V1-V2-V3, etc.: Test points for the video processing circuit panel ( A6 ) and CRT panel ( B )

Measurements are performed under the following conditions:

• Video: colour bar signal

• audio: 3kHz left, 1kHz right

• Set in SDM mode

5.2 Service modes

The set has four services modes:

• Service Default Mode (SDM)

• Service Alignment Mode (SAM)

• Customer Service Mode (CSM)

• COMPAIR mode

5.2.1 Service Default Mode (SDM)

The purpose of the SDM is:

GB 10 L9H.2E5.

Service Modes, DST, error messages, protections, fault finding and repair

• provide a situation with predefined settings to get the same measurements as in this manual

• start the blinking LED procedure

• Setting of options controls

• Inspect the error buffer

Entering the SDM:

• By transmitting the "DEFAULT" command with the RC7150 Dealer Service Tool (this works both while the set is in normal operation mode or in the SAM)

• RC sequence 062596 followed by the key “MENU” (only via set up remote, T374A)

The information displayed on the screen in the SDM mode is given in fig. 5.1 (SDM menu).

Exit the SDM:

Switch the set to Standby or press EXIT on the DST (the error buffer is also cleared). Note: When the mains power is switched off while the set is in SDM, the set will switch to SDM immediately when the mains is switched on again. ( The error buffer will not be cleared ).

Pre-defined conditions

The SDM sets the following pre-defined conditions:

• Pal/Secam sets: tuning at 475.25 PAL (For France select the L’-signal )

• Volume level is set to 25% (of the maximum volume level).

• Other picture and sound settings are set to 50%.

The following functions are “ignored” in SDM since they interfere with diagnosing/repairing a set. “Ignoring” means that the event that is triggered is not executed, the setting remains unchanged.

• (Sleep)Timer

• Blue mute

• Auto switch off

• Hotel or Hospitality Mode

• Child lock or Parental lock

• Skipping, blanking of “Not favourite” present/channels

• Automatic storing of Personal Preset settings

• Automatic user menu time-out

All other controls operate normally.

5.2.2 Special functions in SDM

Access to SAM

By pressing the "MENU“ button on the remote control until SAM is presented. (see fig. 5.1)

LLLL L9HBBC X.Y SDM

OP VALUE

OB1 OB2 OB3 OB4 OB5 OB6 OB7

ERR xx xx xx xx xx

MENU MENU

TV LOCK

MENU

INSTALLATION BRIGHTNESS COLOUR CONTRAST

S

TUNER WHITETONE GEOMETRY AKB

MENU

VSD

TV SETUP

L9HBBC X,Y

......

llllll

......

llllll

......

llllll

SAM

CL96532141_027.eps

S

31 31 31

171299

remains displayed in top of screen). Pressing the “MENU” key again will return to the SDM mode. Figure 5.1 Service Default Mode screens and structure

Explanation notes/references:

1. “LLLL” Operation hours timer (hexadecimal)

2. Software identification of the main micro controller (L9HBBC X.Y)

• L9H is the chassis name for L9H

• BBC is 2 letter and 1 digit combination to indicate the

software type and the supported languages:

• X = (main version number)

• Y = (subversion number) BB = (range specification )

3. “SDM” To indicate that the TV set is in the service default mode

4. “OP” Options Code which exists of 2 characters. It is possible to change each option code

5. “VALUE” The value of the selected option ( ON/OFF or a combination of 2 letters )

6. “XXX” Value of the options bytes ( OB1 .. OB7)

7. “ERR” The last five detected errors; The left most number indicates the most recent error detected.

The cursor Up or cursor DOWN command can be used to select the next/previous option; The cursor LEFT and cursor RIGHT command can be used to change the option value. Remark: When the option-code RC = OFF, the P+ and the Pkey have the same functions as the cursor UP/DOWN keys while the VOL+ and the VOL- key have the same function as the cursor LEFT/RIGHT keys. When the option RC = OFF it is not possible to change the channel preset or to adjust the volume when in SAM/SDM menu. Using a L9 remote control, option-code RC = ON, the P+, P-, VOL- and VOL+ can be used to change the preset and/or to adapt the volume, while the menu-cursor keys are used to select the option and to change its value. For an extended overview of the option codes see Chapter 8 Options

5.2.3 Service Alignment Mode (SAM)

The purpose of the SAM is to do tuning adjustments, align the white tone, adjust the picture geometry and do sound adjustments. For recognition of the SAM, “SAM” is displayed at the top of the right side of the screen

Entering SAM:

• By pressing the "ALIGN" button command on the DST RC7150 (Dealer Service Tool)

• When the set is in SDM by pressing the menu key or the local keyboard keys “vol +” and “vol -“ simultantanously by >4 seconds.

• Exit the SAM:

Switch the set to standby or press EXIT on the DST (the error buffer is cleared). Note: When the mains power is switched off while the set is in SAM, the set will switch to SAM immediately when the mains is switched on again. ( The error buffer will not be cleared ). In the SAM the following information is displayed on the screen:

Figure 5-1

Access to normal user menu

Pressing the “MENU” button on the remote control until the normal user menu (TV Set up; for TV lock, Installation, Brightness, colour and contrast ) is presented while “S”

Service Modes, DST, error messages, protections, fault finding and repair

MENU

GB 11L9H.2E 5.

AAABBC X.Y

TUNER WHITE TONE GEOMETRY AUDIO AKB VSD

L90 BBC X.Y SOUND

SAM

MENU

L90 BBC X.Y

TUNER IF-PLL IF-PLL POS AFA AFB

L90 BBC X.Y

NORMAL RED

L90 BBC X.Y

SAM

64

192

1 1

SAM

40

SAM

A-FM AT STEREO

Access to normal user menu

Pressing the “MENU” button on the remote control will enter the normal user menu ( TV lock, installation, brightness, colour and contrast ) while “SAM” remains displayed in top of screen. Pressing the “MENU” key again will return to the last SAM status.

Access to SDM

Pressing the “DEFAULT” button on the DST

SAM menu control

Menu items (AKB, VSD, Tuner, White tone, Geometry and Audio) can be selected with the cursor Up or cursor DOWN key. Entry into the selected items (sub menus) is done by the cursor LEFT or cursor RIGHT key. The selected item will be highlighted. With the cursor LEFT/RIGHT keys, it is possible to increase/ decease the value of the selected item.

232

4

15

Figure 5-2 Service Alignment Mode screens and structure

MENU

VAM

55

CL96532141_028.eps

071299

GB 12 L9H.2E5.

Service Modes, DST, error messages, protections, fault finding and repair

5.3 The menus and submenus

5.3.1 Tuner sub menu

The tuner sub menu contains the following items:

• IF_PLL : PLL Alignment for all PAL/SECAM systems, excluding SECAM-LL’

• IF-PLL Pos

• IF PLL ofset

• AFW : AFC Window

• AGC : AGC take-over point

• YD : Default value = 12 ; Do not align

• CL : Default value = 4 ; Do not align

• AFA

• AFB

The items AFA and AFB can not be selected, they are for monitoring purposes only. The commands cursor UP and cursor DOWN are used to select the next/previous item. The commands cursor LEFT and cursor RIGHT are used to increase/decrease the value of the selected item. The changed values will be send directly to the related hardware. The item values are stored in NVM if this sub menu is left.

5.3.2 White tone sub menu

The commands MENU UP and MENU DOWN are used to select the next/previous item. The commands MENU LEFT and MENU RIGHT are used to increase/decrease the value of the selected item. The changed values will be send directly to the related hardware. The item values are stored in NVM if this sub menu is left. The white tone sub menu contains the following items:

• NORMAL RED

• NORMAL GREEN

• NORMAL BLUE

• DELTA COOL RED

• DELTA COOL GREEN

• DELTA COOL BLUE

• DELTA WARM RED

• DELTA WARM GREEN

• DELTA WARM BLUE

OSD is kept to a minimum in this menu, in order to make white tone alignment possible. The Contrast Plus feature (black stretch) is set to OFF when the white tone submenu is entered.

5.3.3 Audio sub menu

5.3.4 Geometry sub menu

The geometry sub menu contains the following items:

• SBL : Service blanking

• VSL : Vertical slope

• VAM : Vertical amplitude

• VSH : Vertical shift

• HSH : Horizontal shift

• EW: E-W amplitude (only if option EW=on)

• PW: E-W parabola/width (only if option EW=on)

• TC: E-W trapezium (only if option EW=on)

• VSC : Vertical scroll (only if option EW=on and 88=on)

• VX: Vertical zoom (only if option EW=on)

• CP: E-W corner parabola (only if option EW=on)

• SC: S correction

• H60 Delta HSH for 60Hz.

• V60 : Delta VAM for 60Hz.

• W43: Delta EW for 4:3 (only if option EW=on)

• S43: Delta VSL for 4:3

• A43: Delta VAM for 4:3 (only if option EW=on)

• C43: Delta SC for 4:3 (only if option EW=on)

• X43: Delta VX for 4:3 (only if option EW=on)

5.4 Error code buffer and error codes

5.4.1 Error code buffer

The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right.

• when an error occurs that is not yet in the error code buffer, the error is written at the left side and all other errors shift one position to the right

• the error code buffer will be cleared in the following cases:

1. exiting SDM or SAM with the “Standby" command on

the remote control

2. transmitting the commands “EXIT” with the DST

(RC7150)

3. transmitting the commands “DIAGNOSE-9-9-OK” with

the DST.

• The error buffer is not reset when the set is switched off by the mains switch.

Examples:

• ERROR: 0 0 0 0 0 : No errors detected

• ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

• ERROR: 5 6 0 0 0 : Error code 6 was first detected and error code 5 is the last detected (newest) error

The audio sub menu (for stereo sets only) contains the following items:

• ST-NT : Stereo noise treshold (only if option SB=50)

• SAP-NT : SAP noise treshold (only if option SB=50)

• LA : Input level adjust (only if option SB=50/52/55)

• WIDEB : Stereo adjust for wide band expander (only if option SB=50/52/55)

• SPECT : Stereo adjust for special expander (only if option SB=50/52/55)

• AT : Attack time at AVL (only if option SB=52/55)

• STEREO : Stereo adjust MSP34xx (only if option SB=IT/NB/NDIT)

The sound adjustments sub menu is not available in Mono sets. The presence of an item in the menu strongly depends on the selected sound board (option SB).

5.4.2 Error codes

In case of non-intermittent faults, clear the error buffer before starting the repair to prevent that “old” error codes are present. If possible check the entire content of the error buffers. In some situations an error code is only the RESULT of another error code (and not the actual cause). Note: a fault in the protection detection circuitry can also lead to a protection. a. Error 0 = No error b. Error 1 = X-ray ( Only for USA sets ) c. Error 2 = High beam current protection

– High beam protection active; set is switched to

protection; error code 2 is placed in the error buffer; the LED will blink 2 times ( repeatedly ).

– As the name implies, the cause of this protection is a

too high beam current (bright screen with flyback lines). Check whether the +160V supply to the CRT panel is present. If the voltage is present, the most likely cause is the CRT panel or the picture tube. Disconnect the CRT panel to determine the cause. If

Service Modes, DST, error messages, protections, fault finding and repair

1 HHHH L9HAP-X.Y CSM 2 CODES xx xx xx xx xx 3 OP xxx xxx xxx xxx xxx xxx xxx 4 SYS: AUTO AUTO 6 7 MODE COMMERCIAL 8 SMARTPORT OFF 9 CHANNEL TV1

CL96532141_029.eps

071299

GB 13L9H.2E 5.

the +160V voltage is not present, check R3416 and D6409 ( Horizontal Deflection - A2 )

– EW protection: – If this protection is active, the cause could be one of the

following items;

• LOT 5445

• S-correction capacitor 2407

• flyback capacitor 2434

• line output stage

• short circuit of flyback diode 6434

• Line uotput transistor 7402 or driver-transistor

7400 d. Error 3 = Vertical Guard e. Error 4 = Sound processor ( IC7803 ) IIC error (

MSP3415D ) Sound processor does not respond to the micro controller a. Error 5 = Bimos ( IC7250 ) start-up error ( POR bit ) b. Bimos start-up register is corrupted or the IIC line to the

Bimos is always low or no supply at pin 12 of the Bimos).

This error is usually detected during start-up and hence will

prevent the set from starting up. c. Error 6 = Bimos (TDA884x ) IIC error Note that this error may also be reported as a result of error codes 4 (in that case the Bimos might not be the actual problem) a. Error 7 = General IIC error. This will occur in the following

cases:

• SCL or SDA is shorted to ground

• SCL is shorted to SDA

• SDA or SCL connection at the micro controller is open

circuit.

b. Error 8 = Microprocessor ( IC7600 ) internal RAM error ( A7

) The micro controller internal RAM test indicated an error of the micro controller internal memory (tested during start-up); a. Error 9 = EEPROM Configuration error ( Checksum error );

EEPROM is corrupted. b. Error 10 = IIC error EEPROM . NV memory (EEPROM)

does not respond to the micro controller c. Error 11 = IIC error PLL tuner. Tuner is corrupted or the IIC

line to the Tuner is low or no supply voltage present at pin

9, pin 6 or pin 7 of the tuner.

5.6 Customer Service Mode (CSM)

The set is equipped with the “Customer Service Mode” (CSM). CSM is a special service mode to identify the status of the set. It can be activated and deactivated with the set-up remote transmitter (RG4172BK). The CSM is a 'read only' mode, therefore modifications in this mode are not possible.

5.6.1 Entering the Customer Service Mode (in “Commercial mode)

The Customer Service Mode can be switched on by pressing RECALL on the set-up remote control RG4172BK. When the CSM is activated:

• picture and sound settings are set to nominal levels

•“Service unfriendly modes” are ignored

• In “Consumer mode”: RC “Mute” = local keyboard buton >4

seconds simultaneously

5.6.2 Exit the Customer Service Mode

The Customer Service Mode will switch off after:

• pressing one of the keys RECALL or MENU on the set-up

remote control RG4172BK

• switching off the TV set with the mains switch. All settings that were changed at activation of CSM are set back to the initial values

5.6.3 The Customer Service Mode information screen

The following information is displayed on screen:

5.5 The “blinking LED” procedure

The contents of the error buffer can also be made visible through the “blinking LED” procedure. This is especially useful when there is no picture. There are two methods:

• When the SDM is entered, the LED will blink the number of times, equal to the value of the last (newest) error code (repeatedly).

• With the DST all error codes in the error buffer can be made visible. Transmit the command: “DIAGNOSE x OK” where x is the position in the error buffer to be made visible x ranges from 1, (the last (actual) error) to 5 (the first error). The LED will operate in the same way as in point 1, but now for the error code on position x.

Example: Error code position1 2 3 4 5 Error buffer:8 9 5 0 0

• after entering SDM: blink (8x) - pause - blink (8x) - etc.

• after transmitting “DIAGNOSE- 2- OK” with the DST blink

(9x) - pause - blink (9x) - etc.

• after transmitting “DIAGNOSE- 3- OK” with the DST blink(5x) - pause - blink(5x) - etc.

• after transmitting “DIAGNOSE- 4- OK” with the DST nothing happens

Figure 5-3

Fig 5-3 cl96532141-029Screen lay-out CSM A line number is placed for every line in order to make CSM language independent. – Line 1: Operating hours/ Software version L9HBBC X.Y)/

Text “CSM”; to indicate that the set is in the Customer Service Mode

– Line 2: Error buffer contents (see paragraph 5.4.2) – Line 3: Option code information (see chapter 8) – Line 4: Configuration information. SYS: xxxx xxxx

indicates the colour and sound system preset

– Line 5: “ Not tuned when no signal is received ”. – Line 6: not used – Line 7: Mode. Indicates whether the set is in commercial or

consumer mode

– Line 8: SmartPort. Indicates whether the Smart Port is

selected or nor.

– Line 9: Channel. Indicates the selected channel.

GB 14 L9H.2E5.

Service Modes, DST, error messages, protections, fault finding and repair

5.7 ComPair

5.7.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips Consumer Electronics products. ComPair is a further development on the DST service remote control allowing faster and more accurate diagnostics. ComPair has three big advantages:

• ComPair helps you to quickly get an understanding how to repair the sets in short time by guiding you step by step through the repair procedures.

• ComPair allows very detailed diagnostics (on I is therefore capable of accurately indicating problem areas. You do not have to know anything about I yourself; ComPair takes care of this.

• ComPair speeds up the repair time since it can automatically communicate with the sets (when the micro processor is working) and all repair information is directly available. When ComPair is installed together with the SearchMan electronic manual, schematics and PCBs are only a mouse-click away.

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair interface box is connected to the PC via a serial or RS232 cable. In case of the L9H chassis, the ComPair interface box and the L9H communicate via an IIC cable (bidirectional) and via infra red communication (uni-directional; from ComPair interface box to L9H. The ComPair fault finding program is able to determine the problem of the defective television. ComPair can gather diagnostic information in 2 ways:

1. Communication to the television (automatic)

2. Asking questions to you (manually)

ComPair combines this information with the repair information in its database to find out how to repair the set.

Automatic information gathering

Reading out the error buffer, ComPair can automatically read out the contents of the entire error buffer. Diagnosis on I television. ComPair can send and receive I micro controller of the television. In this way it is possible for ComPair to communicate (read and write) to devices on the I busses of the

2

C level. ComPair can access the I2C bus of the

2

C commands to the

2

C level) and

2

C commands

By a combination of automatic diagnostics and an interactive question/answer procedure, ComPair will enable you to find most problems in a fast and effective way.

Additional features

Beside fault finding, ComPair provides some additional features like:

• Uploading/downloading of presets

• Managing of preset lists

• Emulation of the Dealer Service Tool

Connecting the ComPair interface

The ComPair Browser software should be installed and set-up before connecting ComPair to the set. (See the ComPair Browser Quick Reference Card for installation instructions.)

Connect the RS232 interface cable to a free serial

1.

(COMM) port on the PC and the ComPair interface PC connector (connector marked with "PC").

Place the ComPair interface box straight in front of the

2.

television with the infrared window (marked "IR") directed to the television LED. The distance between ComPair interface and television should be between

0.3 and 0.6 meter. (Note: make sure that (also) in the service position, the ComPair interface infra red window is pointed to the standby LED of the television set (no objects should block the infra red beam)

Connect the mains adapter to the connector marked

3.

"POWER 9V DC" on the ComPair interface

Switch the ComPair interface OFF

4.

Switch the television set OFF with the mains switch

5.

Remove the rear cover of the television set

6.

Connect the interface cable (4822 727 21641) to the

7.

connector on the rear side of the ComPair interface that is marked “I

Connect the other end of the interface cable to the

2

C

8.

ComPair connector on the mono-carrier (see figure 5-

2

C” (See Figure 5.5)

6)

Manual information gathering

Automatic diagnosis is only possible if the micro controller of the television is working correctly and only to a certain extend. When this is not the case, ComPair will guide you through the fault finding tree by asking you questions and showing you examples. You can answer by clicking on a link (e.g. text or an waveform pictures) that will bring you to the next step in the faultfinding process. A question could be: Do you see snow? (Click on the correct answer) YES / NO An example can be: Measure test point I7 and click on the correct oscillogram you see on the oscilloscope

I7 B7502

1V / div DC

10µs / div

Figure 5-4

Plug the mains adapter in the mains outlet and switch

9.

ON the interface. The green and red LED light up together. The red LED extinguishes after approx. 1 second (the green LED remains lit).

Start-up ComPair and select “File” menu, “Open...:;

10.

select “L9.2 Fault finding” and click “OK”

Click on the icon (fig. 5.6) to switch ON the

11.

communication mode (the red LED on the ComPair interface will light up)

Switch on the television set with the mains switch

12.

When the set is in standby. Click on “Start-up in

13.

ComPair mode from standby” in the ComPair L9H fault finding tree, otherwise continue.

Service Modes, DST, error messages, protections, fault finding and repair

5.9 TROUBLE SHOOTING TIPS

In this paragraph some trouble shooting tips for the deflection and power supply circuitry are described. For detailed diagnostics, check the fault finding tree or use ComPair.

GB 15L9H.2E 5.

Figure 5-5

PC VCR I2CPower

Figure 5-6

The set has now started up in ComPair mode. Follow the instruction in the L9.H fault finding tree to diagnose the set. Note that the OSD works but that the actual user control is disabled

5.8 Ordering ComPair

ComPair order codes:

• Starter kit ComPair + SearchMan software + ComPair interface (excluding transformer): 4822 727 21629

• ComPair interface (excluding transformer): 4822 727 21631

• ComPair transformer (continental) Europe: 4822 727 21632

• ComPair transformer United Kingdom: 4822 727 21633

• Starter kit ComPair software: 4822 727 21634

• Starter kit SearchMan software: 4822 727 21635

• Starter kit ComPair + SearchMan software: 4822 727

21636

• SearchMan CD (update): 4822 727 21638

• ComPair interface cable (for L9): 4822 727 21641

MAIN PANEL COMPONENT VIEW

HOT GROUND BORDER

13

0267

COMPAIR

9V DC

86532027_003.EPS

050898

0231

5.9.1 THE DEFLECTION CIRCUIT:

1. Measure the +VBATT ( 95V) is present across 2551 ( A2 Line deflection ). If the voltage is not present, disconnect coil 5551. (Horizontal deflection stage is disconnected). If the voltage is present then the problem might be caused by the deflection circuit. Possibilities:

• Transistor 7402 is faulty

• The driver circuit around transistor 7400 is faulty

• No horizontal drive signal coming from the BIMOS

7250-D pin 40 ( A4 - Synchronisation )

• Timer-IC 7607 or transistor 7608 is defect ( A7 -

Control )

2. Note: If the Collector of 7402 is shorted to the Emitter, hickup noise can be heard from the power supply. In this case the E/W protection is disabled. is correctly working ( a parabolic picture )

3. Also take note of protection circuits in the line output stage. If any of these circuits are activated, the set will shut down. Depending on the protection, the led will blink according to the fault defined. In order to determine which protection circuit is active, isolation of each separate circuit is necessary. These protection circuits are:

• High beam current protection ( LED blinks repetitively

2 times ) - CRT panel ( B )

• Vertical protection ( LED blinks repetitively 3 times ) -

Vertical deflection ( A3 )

5.9.2 THE POWER SUPPLY

To trouble shoot the L9 SMPS, first check the Vaux voltage on C2561. If this voltage is not present, check fuse F1572 and D6560. If F1572 or D6560 is not open circuit, the problem might be caused on the primary side of the switching supply. Check the output of the bridge rectifier on C2508 for approximately 300V DC at an input voltage of 230Vac. If this voltage is missing, check the bridge diodes 6502 .. 6505 and the fuse

1500. If fuse F1500 is found open, check MOSFET 7518 to

make sure that there is no short circuit present and check R3518. If the 300V DC is present on C2508, check for a startup voltage of approx. 13V on pin 1 of IC7520. If no start-up voltage is present, check if R3510 is open or diode 6510 is a short-circuit. It is necessary to have a feedback signal from the hot primary side of switch mode transformer T5545 at pin 1 and pin 2 for the power supply to oscillate. If the start-up voltage of 13V is present on pin 1 of IC7520 and the supply is not oscillating, check R3529 and D6540. Check for a drive signal at the gate of MOSFET 7518, square wave signal - P1. Check pin 3 of IC7520 and R3525. To determined whether OVP is active, check the presence of Vaux at C2561.

TUNER

1000

CL 96532028_013a.eps

220499

Figure 5-7

GB 16 L9H.2E5.

5.10 Faultfinding trees

Service Modes, DST, error messages, protections, fault finding and repair

100100

code

R3510,R3529

Check/Replace

1 11 1

Check/Replace

(A1);SW0231,F1500,D6502,D6503,D6504,D6505

Note: If F1500 is defective, then also check R3504

1 11 1

Yes

present?

(A1); <P1>

No

Any secondary

voltage present ?

No No

(A1);D6540,C2540,D6510,

Voltage

present?

(A1);<P3>

No No

startpuls

present?

(A1); <P2>

Yes

3V3,

Check

(A7); <C1>,<C4(reset)>

1 17 3

Yes

IC7600

Check/Replace

TS7602,TS7605

1 11 A

X1600

(A8);LED6690

R3525

(A1);IC7520

Check/Replace

Yes

(F), <P10>

System Sets

Check / Replace

Check/Replace

(A1);TS7518,L5552

1 11 1

No

present ?

TR5545 pin9

(A1); voltage on

(J); F1700

<P13>; T1, CR1

D1106, F1, L1, L2

<P11>; IC1, T1, IC2

<P12>; T1, CR2, IC4

Note 1:

Yes

Check/Replace

1 11 A

F1920

(H1); IC7920

NON System Sets

A

1 11 A

1 11

IRIS SYMPTOM CODE

(A1);L5540,D6540,C2540

Extended symptom

code

Main symptom

Note 2:

code

Condition

CL 06532004_006.eps

(A1) means Drawing A1

<P1> means Test point P1

hicking ?

Is the Power supply

Remark :

intensity and in

lights in full intensity

Red LED lights in half

standby-mode the LED

In normal operation the

continuously

Does the red LED

light in full intensity

No No

START

Does the red LED

full intensity, one time

Put the Mainsswitch : on.

PAL B/G (for France SECAM l).

Connect a pattern generator to the arial input.

Set Patt.gen. to 475,25 MHz, colourbar, stereosound,

picture and sound will appear.

after a few seconds more in half intensity while the

blinking for one second in full intensity, one time then

In normal conditions the set will start with the Red LED

blink for one second in

Yes

1 11 D

?

Yes

disappear.

is too high.

The load of the power supply

Isolate each branch of the load

Yes

A

No

?

appear properly

Do picture and sound

the overload.

one by one, until the hicking

for the branch, which causes

Continue with the fault finding

Ensure communication

Yes

Vaux

+VBATT

MainSupply

(A1);AudioSupply

The branches are:

(A8);IC7680

with the RC,

Check/Replace

Put the set into the

Service Default Mode

either via the DST or by

An error code is

LED via the SDM.

or via the service pins

the RC in the following

order :062596<MENU>,

pressing the buttons on

indicated by the blinking

error n.

detailled information

See also chapter 5.5 for

n-times blinking means

?

Yes

indication

Is there an error

If the mainsupply or

not be reliable. So in

EHT is missing, then

the error message may

Figure 5-9

the

schematics ;

(A1), (A2) and

the first place see

components of the

this state check/replace

(A4);IC7250-D <S2>

mainsupply and EHT in

B

GB 18 L9H.2E5.

ERR 10

No

and/or

ERR 4

Yes

11

EEPROM error

1 17 X

Yes

Check

+5 V Protection

Service Modes, DST, error messages, protections, fault finding and repair

100100

C

2

- When I signals or the

+5D are missing

on IC7601 the set

ERROR 11

(A2); +VLotAux+5V

Message :

store any data.

ERR 10 0 0 0 0

can function, but

will not be able to

C Tuner error

2

I

1 12 0

(A7); +5VD

IC7601 pin 5,6

Check/Replace

too

- It is possible

will be reported

that during +5V

protection Error 4

Message :

CheckReplace

ERR 11 0 0 0 0

(A5);Tuner1000

ERROR 9

New micro controller or

is defective

CL 06532004_007.eps

persists, then IC7601

were loaded. Re-align

the set. If the problem

EEProm.Default values

No

3, 12

ERR 1,

NoNo

or 6

ERR 5

Yes

ERROR 1 ERROR 3

BIMOS error.

1 11 A

ERROR 4

17 X

1

Protection.

Vertical / Frame

1 11 D

- Before the proctection

Protection.

- When the X-Ray

(USA version only)

X-Ray/Over-voltage

1 17 8

C

2

Message :

of the BIMOS

ERR 4 6 0 0 0

because there is no

The error is detected,

communications on I

Message :

ERR 4 0 0 0 0

In this situation the set

Fault in audio section

turns on without sound.

visible for 3 sec.

- During Vertical /

is really actived, a

horizontal line will be

set will hicc-up until the

protection is started, the

C

2

(A4,A5) ; the

CheckReplace

+8VBIMOS and the I

turn on and so the

Frame protection the

EHT will not be able to

protection mode.

voltage at pin 50 of

3.9 V the set is put in

IC7250 becomes >3.9

Volts. At the voltage of

lines pin7,8 of IC7250

Check/Replace

7803 pin9,10.

(A10); +VlotAux+5V,

Message :

available. As such

and Sound IC is not

VlotAux5V to the Tuner

to turn on and so the

the EHT will not be able

- During x-ray protection

ERR 11 4 3 0 0

11 will be reported too.

ERROR 4 and ERROR

available. As such

and Sound IC is not

VlotAux5V to the Tuner

11 will be reported too.

ERROR 4 and ERROR

Conn0222

(A3);IC7460

C2464,D6460

Check / replace

C error.

2

Yes

to each other.

line of all units for

General I

Check SCL and SDA

1 17 8

No

Yes

ERR 2 ERR 7

No

B

ERR 8

Yes

Protection.

High beamcurrent ,

E/W and Horizontal

1 11 D

error

1 17 8

uP Internal RAM

- When the High

Check / replace

only be read by

The Error code can

shortcircuit to ground or

putting the TV set into

protection.

beamcurrent protection

is started, fly-back lines

will be visible for 15 sec.

before the set is really in

(A7);IC7600

Check / replace

the SDM mode. The

- When E/W or Horizontal protection is

(A6);IC7250-C pin7,8

(A7);IC7600 pin49,50

(A5);Tuner1000 pin4,5

LED will blink 7 times.

activated.

- During E/W or

protection is really

up for 4sec. before the

started, the set will hicc-

(A7);IC7601 pin5,6

(A10); IC7833 pin9,10

to turn on and so the

Horizontal protection

the EHT will not be able

As far as

applicable

causes the error.

Replace the item, which

available. As such

and Sound IC is not

VlotAux5V to the Tuner

(H1); IC7904 pin 14, 15

(G1); IC7951 pin 23, 24

Message :

ERR 11 4 2 0 0

11 will be reported too.

ERROR 4 and ERROR

(I), D1, D2, U1

(J), Smart Card

or

+160V supply

(CRT);R3340,

Check/Replace

(A2);Conn.0221

E/W,Horizontal Prot.

Figure 5-10

Service Modes, DST, error messages, protections, fault finding and repair

C

Horizontal section

Picture unstable

horizontally.

Picture width too

small.

No sync.

E/W not ok

(A4) ; <S2>,

OK

?

1 53 0

Check / Replace

No

(A4);IC7250

Vertical section Vertical picture is too small or unstable

(A4);<S3>,<S4>

OK

?

Yes

No

GB 19L9H.2E 5.

1 53 0

Check / Replace

(A4); IC7250

1 17 8

Yes

1 33 A

Check / Replace

(A2) TS7400,TS7402,

LOT 5445,C2407,

(A7) IC7607,

TS7608

Figure 5-11

(A3);<F3>,<F4>,

<F5> OK

?

Yes

1 17 8

Check / Replace

(A3);Vertical defl. coil

L0222

Check / Replace

No

IC7460,R3463,

R3465,R3466,

D6460,C2464

CL 96532028_011.eps

290399

GB 20 L9H.2E5.

Personal notes:

Service Modes, DST, error messages, protections, fault finding and repair

Alignments

CL 96532141_007.eps

241199

1000

TUNER

LOT

HOT GROUND BORDER

7600

7518

MAIN PANEL COMPONENT VIEW

VBATT ADJ

95V

3540

AUDIO PANEL

uC

FOCUS VG2

8. Alignments

GB 47L9H.2E 8.

General: the Service Default Mode (SDM) and Service Alignment Mode (SAM) are described in chapter 5.

8.1 Alignment conditions

All electrical adjustments should be performed under the following conditions:

• Supply voltage : 220V - 240V ( 10% )

• Warm-up time: 10 minutes

• The voltages and oscillograms are measured in relation to the tuner earth.

• Test probe: Ri > 10MΩ Ci < 2,5 pF.

• Pattern generator (e.g. PM5518) set to 475.25 MHz and.default transmission system for your country with RF signal amplitude of 10mV connected to the aerial input of the TV.

• SDM switched on.

8.1.1 Entering Service Default Mode (SDM)

• By transmitting the "DEFAULT" command with the RC7150 Dealer Service Tool

• Standard RC sequence 062596 followed by the key “MENU”

8.1.2 Entering Service Alignment Mode (SAM)

• By pressing the "ALIGN" button command on the RC7150 Dealer Service Tool

• when the set is in SDM by pressing the MENU key until SAM is presented

values (do not switch the set to STANDBY first, this will change the default settings of the set).

• Switch ON the set. Switch the set to STANDBY to leave SDM.

8.2.3 Focusing

• Set the pattern generator to display a Circle with Small Squares pattern.

• Adjusted with focusing potentiometer, positioned at LOT 5445 (see Fig.8.1), for maximum sharpness of the picture.

8.2 Electrical Alignments

8.2.1 Adjustment of the Power Supply

• Set the pattern generator to display a Circle with Small Squares pattern.

• Connect a DC voltmeter to capacitor 2409.

• Adjust potentiometer R3540 (see Fig. 8.1) till the voltmeter indicates 95V.

8.2.2 VG2

• Set the pattern generator to display a black picture.

• Enter SDM.

• Select TV SETUP by pressing the MENU key on the RC once.

• Press the MENU DOWN key on the RC until the BRIGHTNESS sub-menu is selected and change the value to 50 with the MENU LEFT/RIGHT key. Select the CONTRAST sub-menu and change the value to 0.

• Select SAM by pressing the MENU key on the RC once.

• Press the MENU DOWN key on the RC until sub-menu VSD (Vertical Scan Disabled) is selected and change the value from 0 to 1 by pressing the MENU LEFT key. CAUTION!! Depending on the position of the VG2 potentiometer, a bright coloured line will appear on the middle of the screen or the screen will turn completely black.

• Adjust with VG2 potentiometer, positioned at LOT 5445 (see Fig.8.1), until the coloured line at the middle of the screen is just not visible.

• The alignment of the VG2 has been completed now. Switch OFF the set using the mains switch. The values adapted at the BRIGHTNESS- and the CONTRAST sub-menu during the alignment, will change back again to their default

Figure 8-1

8.3 Software adjustments

8.3.1 Geometry adjustments

• Set the pattern generator to display a Circle with Small Squares pattern.

• Enter SAM.

• Select GEOMETRY menu.

• Using the MENU UP/DOWN keys on the RC the respective items in the GEOMETRY menu can be selected. Use the left/right buttons to adjust the selected items to correct the picture geometry as stated below.

Vertical Amplitude and Position

• Select VSL (Vertical Slope) and shift the picture to the top. The text VSL and its value should be at the upper half of the screen.

• Select SBL (Service Blanking) and set it to 1. The lower half of the picture will be blanked.

• Press the MENU UP key once to select VSL and align it to start the blanking exactly at the horizontal white line at the centre of the test circle. VSL has the correct value now and should not be changed anymore.

• Press the MENU DOWN key once to select SBL and set it to 0. The full picture reappears.

GB 48 L9H.2E8.

Alignments

• Select VAM (Vertical Amplitude) and align the picture height such that the top horizontal line just disappears. This corresponds with an over scan of approx. 6%.

• Select VSH (Vertical Shift) and align for vertical centring of the picture on the screen.

• Repeat the last two steps if necessary.

• Select VSC (Vertical S-correction) to align the top/bottom squares till they have the same size as the squares in the middle of the screen.

Horizontal Amplitude and Phase

• Select HSH (Horizontal Shift) and adjust it for a correct horizontal centring of the picture

For sets with East/West correction follow the instructions below:

• Select EWW (East-West Width) and align the picture with substantial over scan.

• Select EWT (East-West Trapezium) and align for a rectangle if necessary

• Select EWP (East-West Parabola) and align for straight vertical lines.

• Select EWC (East-West Corner) and align the corners.

• Repeat if necessary.

• Set H60 to 10 and V60 to 10.

• To store the alignments in the NVM, press the STANDBYkey on the RC.

8.3.2 AGC

• Set the pattern generator to display colour bar pattern.

• Connect a DC voltmeter at pin 1 of the tuner 1000.

• Enter SAM.

• Enter TUNER menu.

• Select AFW and align it for the lowest value.

• Select AGC and adjust it until the voltage at pin 1 of the tuner is 1.0V +/- 0.1V.

• To store the alignments in the NVM, press the STANDBYkey on the RC.

• Enter WHITE TONE menu and select item NORMAL, DELTAWARM, or DELTACOOL depending on the item which has to be aligned. The items R, G and B can be aligned according personal preference.

The default values for the colour temperature are displayed in the table below:

NORMAL 11500K R = 40 G = 40 B = 40

DELTACOOL 13500K R = -2 G = 0 B = 6 DELTAWARM 8500K R = 2 G = 0 B = -7

• To store the alignments in the NVM, press the STANDBYkey on the RC.

8.3.6 Audio (for stereo sets only)

• Enter SAM.

• Enter Audio menu.

• Set A-FM to 232, set AT to 4, set STEREO to15 and set DUAL to15

• To store the alignments in the NVM, press the STANDBYkey on the RC.

8.3.7 Option setting

Options are used to control the presence / absence of certain features and hardware. Via the remote control the options can be set when in SDM via two ways By setting each single option code (two character-codes). By setting the decimal value of an option byte. Via an option byte a cluster of option codes can be set. There are 6 option bytes avaiable, see SDM menu, the first byte is numbered OB1 and the last byte is numbered OB7.

8.3.3 AFC

• Set pattern generator to display colour bar pattern.

• Enter SAM.

• Enter TUNER menu.

• Select AFW and select the lowest value.

• Select IF-PLL and adjust it until AFA becomes “1” and AFB alternates between 0 and 1.

• Switch the set to Standby or procede with next item in case of sets capable of receiving SECAM L'.

• Change the signal at the pattern generator to SECAM L’.

• Select IF-PLL POS and adjust it until AFA becomes 1 and AFB alternates between 0 and 1.

• To store the alignments in the NVM, press the STANDBYkey on the RC.

8.3.4 Tuner options CL, YD and IF-PLL OFFSET

• Enter SAM.

• Enter TUNER menu.

• Set CL ot 4, set YD 12 and set IF-PLL-OFFSET to 48.

• To store the alignments in the NVM, press the STANDBYkey on the RC.

Note: No Alignment needed for IF-PLL (fixed value at 64).

8.3.5 White tone

• Set the pattern generator to display colour bar and circle pattern.

• Enter SAM.

Alignments

GB 49L9H.2E 8.

MENU

AAABBC X.Y

TUNER WHITE TONE GEOMETRY AUDIO AKB VSD

L90 BBC X.Y SOUND

SAM

MENU

L90 BBC X.Y

TUNER IF-PLL IF-PLL POS AFA AFB

L90 BBC X.Y

NORMAL RED

L90 BBC X.Y

SAM

64

192

1 1

SAM

40

SAM

A-FM AT STEREO

232

15

4

Figure 8-2

MENU

VAM

55

CL96532141_028.eps

071299

GB 50 L9H.2E8.

Option codes

The various option codes and the descriptions of the two character-codes are explained below.

Option Symbol Option Description

IC I

PS Extra Power Supply Set PS=ON when EPS is installed. The power-switch must be modified for monitoring by microprocessor.

BZ Buzzer Enable/disable the tone generation to the input of the audio power amplifier. Port P2-0 must be electrically

DI Display Module Enable/disable the driver for the EU Clock (LED display module). If DI=ON, IC must be ON. RA Radio Module Enable/disable the driver for the EU Radio (external radio module). If DI=ON, IC must be ON. SC Smart clock Enable/disable the downloading of the time-of-the-day from a teletext carrying channel. TV software and

SS Smart sound Enable/disable Smart Sound. Treble and bass boost circuits (if available) are also disabled if SS=OFF. SP Smart picture Enable/disable Smart Picture. DT Step tuning DT=ON, tuning is done upon entry of any digit. DT=OFF, tuning is done upon entry of 2 digits (L9HAP and

WE West Europe Set WE=ON for West Europe. Not used in L9HAP and L9HAN. CH China Set CH=ON for tuner module with 38MHz IF (available in ITV set model /93). CC Closed caption Enable/disable close caption. Not used in L9HAP and L9HAN. AC Alternate channel Enable/disable the storage of previously tuned channel and the operation of this feature via the A/CH key

TP Channel management Enable/disable the organization of the channels in rings (TV, PAYTV, INFO, and RADIO). If TP=ON,

GP Channel group Enable/disable the organization of the channels in groups or tiers. Not used in L9HAP and L9HAN. TN Tuner Set TN=ON for Alps tuner module (available in ITV set model /71). FT Fine tuning Enable/disable fine-tuning. AA AV auto switching Enable/disable auto-detection of S-video at the SCART connector and auto switching between SCART1

X1 AV1 Enable/disable external 1 source input (AV1). The connector for AV1 may or may not be available. When

X2 AV2 Enable/disable external 2 source input (AV2). The connector for AV2 may or may not be available. When

YC AV2YC Enable/disable external S-video source input (S-VIDEO). The connector for S-VIDEO may or may not be

CD Auto cable detect Enable/disable automatic detection of cable and antenna (broadcast) during auto-store. CD=ON, auto-

NI No IDENT auto

NR Noise reduction Enable/disable the noise reduction appearance in the main menu and its usage in non-Smart picture

CP Contrast Plus Enable/disable the Contrast Plus appearance in the menu and its usage in non-Smart picture setting. Even

CT Colour temperature Enable/disable the Colour temperature appearance in the menu and its usage in non-Smart picture

EW East-West functions Enable/disable east-west alignment, EW, PW, CP, TC, VX, VSC. Set EW=ON for large screen (25" and

BS Bimos standby Enable/disable standby mode of the video processor. AS Bimos auto-startup Enable/disable the auto-startup mode of the video processor. If AS=ON, the video processor powers up

2

C Bus 1 Enable/disable I2C communication at the RJ11 socket and at the Smart 32-pin connector. Set IC=OFF if

the I uses this bus, will work even if IC=OFF.

The TV software will turn off treble and bass features. Microprocessor will ignore the treble and bass boost circuits.

connected to the audio power amplifier for buzzer to work.

hardware must support teletext inorder to use Smart Clock. (L9HAP and L9HAN both have teletext feature.)

L9HAN channel below 100 or 3 digits (L9HAN between channels 100 and 125).

on the remote controller.

remote RC2882/01 is needed to operate the set.

and SCART2. Not used in L9HAP and L9HAN, must be AA=OFF.

X1=ON, AV1 will be 1 of the user-selectable source inputs.

X2=ON, AV2 will be 1 of the user-selectable source inputs. It is possible to have AV2 without AV1, i.e. set X2=ON and X1=OFF. For example, AV2 can be available at the 32-pin SmartCard slot but there is no cinch for AV1.

available. When YC=ON, S-VIDEO will be 1 of the user-selectable source inputs. The settings for X1, X2 and YC are independent; it is possible to have any combination of ON and OFF. Since S-VIDEO shares lines with AV2, selecting AV2 implies a forced switching to AV2 at the video processor. Selecting S-VIDEO will cause a forced switching at the video processor also. There is no auto switching between AV2 and SVIDEO.

store will detect and set the cable/antenna mode. CD=OFF, auto-store uses the selected cable/broadcast mode.

standby

Enable/disable automatic switch to standby after 10 min of no video signal detected.

setting. Even if NR=OFF, it will still appear in the menu. (This option may be deleted in future.)

if CP=OFF, it can still be controlled via Smart picture. (This option may be deleted in future.)

setting. Even if CT=OFF, it can still be controlled via Smart picture. (This option may be deleted in future.)

above) TV.

(and the TV circuits) based on its own algorithm. If AS=OFF, the microprocessor commands the video processor when to switch on. For minimum TV switch on time, must set AS=ON.

Alignments

2

C is not needed and no proper pull-up resistors are connected. The Passive SmartLoader, which also

Alignments

Option Symbol Option Description

BT Bass/Treble control Enable/disable the bass and treble items in the menus and its usage in non-Smart sound setting. When

IS Incredible surround Enable/disable the operation of this feature via the INC. SURR. on the remote controller and its usage in

UB Ultra bass Enable/disable the ultra bass in the menu and its usage in non-Smart sound setting. When UB=OFF, ultra

LV Automatic Volume

DU Dual I/II or SAP Possibility of language selection when enabled AO 3435 audio out Default value is OFF SD Default sound type If SY=TM or SY=TD, = BG = I = DK = M

ST Sound type If SY=TM, = BG = I = DK = M If SY=TD, = BI, BG and I = BK, BG and DK = ID, I and DK

GB 51L9H.2E 8.

BT=OFF, the treble and bass are at the default values when Smart sound is not available or when it is in PRESET or PERSONAL. Even if BT=OFF, treble and bass can still be modified via Smart sound. (This option may be deleted in future.)

non-Smart sound setting. When IS=OFF, when incredible surround is off. Even if IS=OFF, it can still be controlled via Smart sound. (This option may be deleted in future.)

bass is 0. Even if UB=OFF, it can still be modified via Smart sound. (This option may be deleted in future.) Menu item AVL available when enabled

Leveller (AVL)

SB Sound board MA, Mono All (no sound board) MS, Mono with stereo playback (ITT BSP 3501C) ND, Stereo 2CS/

SM SmartPort Enable/disable SmartPort communication. SmartPort circuit must be available when SM=ON. SY System SS, Single System SP, Single System with NTSC Playback TD, True Dual TM, True Multi

Setting option codes:

• Enter SDM.

• Select with the MENU UP/DOWN keys the option to be set.

• Change its setting with the MENU LEFT/RIGHT keys.

• To store the alignments in the NVM, press the STANDBYkey on the RC.

Explenation of option bytes

An option byte is a figure representing a combination of maximum 8 option codes. When the valua of this option byte is set the refereng option codes are set. Option bytes make it possible to set very fast all options. The various option bytes are compiled as listed below.

Calculation of an option byte

An option byte value is calculated in the following way: OBx=b8x128+b7x64+b5x16+b4x8+b3x4+b2x2+b1x1

Setting option bytes

• Enter SDM.

• Select with the MENU UP/DOWN keys the option byte (OB1, OB2, etc.) to be set.

• Key in the calculated value.

• To store the setting in the NVM, press the STANDBY-key on the RC. Some changes will only take affect after the set has been switched OFF and ON with the mains switch (cold start).

NICAM (ITT MSP 3415D_ND) DB, BTSC DBX (ITT MSP 3415G) KS, Korea 2CS (ITT MSP 3415D_KS) IT, German 2CS (ITT MSP 3415D_IT) MM, Multi-Mono/Bilingual Mono (ITT MSP 3415D_MM) EC, BTSC non-DBX (TDA 9851)

Remark

When option RC = OFF, the P+ and the P- key on the remote control have the same functions as the MENU UP/DOWN keys while the VOL+ and the VOL- key have the same function as the MENU LEFT/RIGHT keys. When RC=OFF, it is not possible to change the channel preset or to adjust the volume in SAM/SDM with the remote control.

GB 52 L9H.2E9.

Circuit description new circuits

9. Circuit description new circuits

9.1 Introduction

9.1.1 General

The switch mode power supply (Fixed Frequency ) is mains isolated. The control IC7520 (MC44603A) produces pulses for driving FET 7518. Power supply regulation is achieved by using duty cycle control at a fixed frequency of nominal 70 kHz in normal operation. In stand-by, slow-start and overload situations the SMPS runs at frequencies other than 70 kHz. Basic characteristics of this SMPS :

• Mains Isolated flyback Converter type

• Input range : 150 - 276 Volts AC

• Secundaire voltage adjustment via potentiometer R3540 at the primary side

• IC7520 is featured with Slow-Start circuitry

• Protection Circuits

• Degaussing circuit

9.1.2 Output voltages

• AudioSupply 10V/14V ( +18V ) for the Sound amplifier ( D2 )

• Vbatt/MainSupply ( +95V ) for the Line deflection stage (A2), Tuner video IF ( A5 )

• Vaux / MainAux ( +9.5V ) for the Line Deflection ( A2 ) and the Control (A7)

9.1.3 The switching periods of TS7518

becomes high-ohmic which reduces the degaussingcurrent. During normal operation, the degaussing current is signal.very small, because of the high impedance of PTC R3504.

9.2.2 Start up and take over

• Start-up : The start-up circuitry consisting of 3510, 3530 and 3529 use the voltage coming from the 230V AC mains to start-up IC7520 via the supply pin 1. The output drive waveform (pin 3) is blocked by using the ICs internal logic until the voltage on pin 1 reaches 14.5 Volts however with less than 14.5 volts on Pin 1 the IC only consumes 0.3mA. Once pin 1 reaches the 14.5 Volts threshold, IC7520 will start up (FET 7518 will conduct) and pin 1 sinks a typical supply current of about 17 mA. This supply current cannot be delivered by the start-up circuitry, so a take-over circuit must be present. If take-over does not occur then the voltage on pin 1 will decrease below 9V and IC7520 will switch off. The supply begins a new Start-up cycle, see top of this paragraph. This cycle will repeat itself and can be noticed by an audible hick-up sounding noise.

• Take over : During start-up a voltage across winding 1-2 is gradually built up. At the moment the voltage across winding 1-2 reaches approx. (14.5 Volts, D6540 start conducting and takes over the supply voltage Vpin 1 of IC7520 (take over current is approx. 17mA).

Note: This power supply is a FFS (= Fixed Frequency Supply) and not a SOPS (= Self Oscillating Power Supply).

The power supply duty cycle is dependent on the T-on of FET

7518. The FET is driven by pin 3 of IC7520. This IC controls the secondary voltage (VBATT via potentiometer 3540. The primary voltage at pin1-2 of transformer 5545 is rectified by D6537 and smoothed by C2537. The switching period of TS7518 can be divided into three main phases: Duty cycle Ton, T-off and T-dead.

• During T-on, FET 7518 conducts.

• Energy is stored in the primary winding (4-7) of transformer T5545 by using a linear increasing primary current. The slope depends on the rectified mains-voltage present across C2508. The T-on period is varied to provide regulation of the drive waveform at pin 3 of IC7520. By controlling the duty cycle of the SMPS in this way the (VBATT is controlled.

• During T-off, FET 7518 is switched off and therefore does not conduct. The energy is now transferred to the secondary side of the transformer and then supplied to the load via the secondary diodes (D6550, D6560 and D6570). The current through the secondary side of the transformer decreases until it reaches zero.

• During T-dead FET 7518 does not conduct .The voltage at the drain of the FET decays and eventually reaches the input voltage of approximately 300V.

9.2 Primary side

9.2.1 Mains input and degaussing

• Mains voltage: this voltage is filtered by L5500 and L5501, rectified by the bridge diode 6502 .. 6505 and then smoothed by C2508 which provides a DC input voltage of 300V DC for an ac input voltage of 230V.

• Degaussing : R3504 is a PTC. When switching "on" the set, the PTC is cold and has a low-ohmic value. This allows a very high degaussing current at initial power on. The PTC will then heat up due to the high current involved and

9.3 Control circuitry

9.3.1 IC7520 control mechanisms

IC7520 controls the T-on time of FET 7518 in three different ways:

• "Primary-voltage-sensing" controls the secondary output voltages via the feedback voltage pin 14

• "Primary current sensing" controls the maximum primary current via the current sense voltage pin 7

• "Demagnetization control" prevents the transformer T5545 from going into saturation via the so-called "DEMAG" function at pin 8

9.3.2 Secondary voltage sensing (pin 14 of IC7520)

When the output voltage +VBATT increases (due to a reduction in the load ) the primary voltage at winding 1-2 will increase, therefore the voltage across capacitor 2537 increases. This will reduce the on-time of FET 7518 due to an increase of the voltage present on pin 14. In the event of an increase of the load (decrease of output voltage +VBATT ), the control circuit will work in the opposite way to the explanation above.

9.3.3 Primary sensing (pin 7 of IC7520)

The current sense voltage at pin 7 is used to measure the primary current through FET7518. The primary current is converted into a voltage by R3518.

9.3.4 Demagnetization control (pin 8 of IC7520)

Winding 1-2 has the same polarity as the secondary winding that supplies the load. When FET 7518 is turned off the voltage at winding 1 becomes positive. The power supply transfers the

Circuit description new circuits

GB 53L9H.2E 9.

stored energy at the secondary side. Until the transformer is demagnetized the voltage on the winding remains positive. At the moment that the energy is fully transferred to the load, the voltage at pin 9 of the transformer becomes negative. Additionally with a certain dead time the voltage at control pin 8 of IC 7520 also drops below zero which releases the output buffer (pin 3) and a new cycle starts.

9.3.5 Peak current limiting

An internal clamp at pin 7 allows peak current limiting to be achieved . This pin can never exceed 1V DC and so the maximum primary current through FET 7518, and also the maximum output power is determined. In case of an output being short-circuited or loaded excessively, the I-prim becomes too high which is detected by pin 7. As a result the primary current is limited to its maximum value and the secondary voltages will drop. The voltage at pin 1, which is coupled with the output voltage, will also drop. When the voltage at pin 1 drops below the 9V, IC7520 will stop functioning and the output voltage will rapidly drop to zero. Via start-up circuitry 3510, 3530 and 3529 the voltage originating from the 230V AC mains is used to start-up IC7520 via the supply pin 1. As soon as this voltage reaches the 14.5V, IC7520 starts functioning. If the load is still too much or the output is short-circuited the same cycle will happen again. This fault condition can be clearly identified as the power supply will be loudly tripping.

9.3.6 Slow-start

As soon as Vpin 1 > 14.5V the SMPS will start-up. During the slow-start procedure both the frequency and the duty cycle will be built up slowly. The duty cycle will initially slowly increase commencing with the absolute lowest possible duty cycle. The maximum duty cycle is determined by C2530 at pin 11 of IC7520, as C2530 is uncharged at start-up.

9.3.7 Standby mode

In standby mode the SMPS switches to the so-called "reduced frequency mode" and runs at about 20 kHz. During standby the SMPS only has to deliver a minimal level of output power. The minimal load threshold level is determined by R3532 at pin 12. In the L9 chassis the SMPS does not have a burst mode in standby but only a reduced frequency mode of about 20 kHz as stated above. In normal operation mode the internal oscillator is around 70 kHz. This frequency is controlled by C2531 at pin 10 of IC7520 and by R3537 at pin 16 of IC7520. In standby mode the frequency of operation is determined by R3536 at pin 15 of IC7520.

9.3.8 Protections

Over voltage protection of the secondary voltages.

After start-up the supply voltage pin 1 will be "taken over" by winding 1-2. Pin 1 of IC 7520 is used to detect an over voltage situation on the secondary side of the transformer. If this voltage exceeds 17V (typical ), the output buffer is disabled, and IC 7520 goes into over voltage protection and a complete restart sequence is required. Check in this case IC7520, D6537 and the secondary voltage +VBATT ( +95V ). REMARK: In the event of the over voltage situation remaining present, the SMPS will go in protection, start up cycle, protection, etc. The standby led on the front of the set starts flashing.

Under voltage protection of the secondary voltages

If the supply voltage at pin 1 of IC 7520 drops below 9V because of a short-circuit or excessive load, the drive pulse present at pin 3 will be disabled and IC7520 will switch off the

complete SMPS. Capacitor C2540 is charged up via start-up resistors if3529,3510 and 3530, however once the voltage exceeds 14.5V start up threshold, the SMPS will once again commence a re start cycle. In the event of the under voltage situation remaining, the SMPS will again go in protection mode, start up cycle, protection, etc. and so the cycle repeats. This effect is highly audible.

9.4 Audio processing

The following systems are available:

• BASIC : FM MONO ( M,BG, I and DK : single or dual system )

BASIC models use a TDA8841/42 BIMOS device (built-in Mono FM Demodulator circuit)

9.4.1 Mono sets

MONO AM SETS

1000 8842

7705

1701

451

1

AM MONO

2

16

DEMOD.

7001 7002

µP

9

EXT AUDIO

MONO

AH OUTEXT IN

6

Figure 9-1 "Mono AM Sets”

The video IF output is present at pin 11 of the tuner 1000. This signal goes through a sound SAW filter and is fed to the AM Mono Amplifier ( Schematic A9 - IC7705 ) via pins 1 and 16, where the signal is demodulated. Mono Audio signals, ExtAudioMono, coming from the REAR I/O panel are fed to pin 9 of IC7705. The demodulated AM-signal or the REAR I/O signal is switched by IC7705. One of these signals is present at pin 6 for the I/O SCART, and present at pin 8 going to pin 2 of the BIMOS IC 7250-A. This signal is switched inside the BIMOS to pin15. The signal at pin 15 is fed to diagram A10 - SMART SOUND + MONO SOUND AMPLIFIER. After adjustments of the bass and treble, the signal goes to sound amplifier 7953 ( 2W - Mono ).

MONO FM SETS

1204

48

6

7

1001

1000

µP

1005

8842

49

EXT AUDIO

Figure 9-2 "Mono FM sets "

The video IF output is present at pin 11 of the tuner 1000. This signal goes through a sound SAW filter and is fed to the BIMOS via pins 48 and 49, where the signal is demodulated. Depending on the required Tuner frequency band, the appropiate filter is selected. Signal LLp/Mtrap is used to switch between NICAM l or L'. At pin 6 of BIMOS IC 7250-A, the CVBS + SIF signal is fed to another SAW filter. The system hardware configuration, option code SY, is set at AD - Dual Mono for a Dual configuration, while option code SY is set at SS for the Mono configuration ( BG,I, DK, M ). Duall/

7280

8

72507250

MONO

+5V

8842

BASSTREBLE

15

SMART SOUND

2

SCART

BASSTREBLE

15

SMART SOUND

2

55

+5V

7254

7953

3

5

3

5

MONO

SOUND

AMP.

7953

SOUND

AMP.

SCART

LEFT

CL 96532028_008.eps

280100

LEFT

CL 96532028_007.eps

280100

GB 54 L9H.2E9.

Circuit description new circuits

Mono, a signal coming from the Micro-processor IC7600, switches between two Mono configurations ( BG/DK or BG/I or DK/I ) and selects SAW filter 1001 or SAW filter 1002. This signal goes back to pin 1 of the BIMOS , for further demodulation. The demodulated FM-signal or the REAR I/O audio signal, EXTAudioMono, is switched by the Bimos and is present at pin 15 and pin 55. Pin 55 goes directly to the I/O SCART - AudioOutL/Mono. The signal at pin 15 is fed to panel A11 - SMART SOUND. After adjustments of the bass and treble, the signal goes to sound amplifier 7953 ( 2W - Mono ). Signal Volume enables the output of the sound amplifier.

9.5 Tuner and Video IF (see circuit diagram A5)

9.5.1 Introduction:

In Figure 9-4 a simplified block diagram of the video path is shown. The main item in the block diagram shown in Fig.9.14 is the video processor item 7250. The IC performs the following functions, video IF demodulation, chroma processing and RGB processing. Additionally synchronisation processing, mono IF audio demodulation and audio selection takes place. The used video processor:

• TDA8842 N2 for SW CENELEC BG/DK, CENELEC I

For a detailed block diagram of the TDA8844/8845 see Figure 9-3.

9.5.2 Tuner

2

The PLL tuner (item 1000) is digitally controlled via the I The tuner is suitable to receive off-air, S-(cable) and hyper band channels. Tuner pin description:

• Pin 1: AGC, Automatic gain control voltage input (0.3 -

4.0V)

• Pin 2: VT, tuning voltage input (not connected)

• Pin 3: AS, address select (not connected)

• Pin 4: SCL, IIC-bus serial clock

• Pin 5: SDA, IIC-bus serial data

• Pin 6: not connected

• Pin 7: Vs, PLL supply voltage +5V

• Pin 8: not connected

• Pin 9: Vst, tuning voltage +33V

• Pin 10: ground

• Pin 11: IF, asymmetrical IF output Note: The +5V supply voltage and the +33V tuning voltage is derived from the line output stage, see diagram A2).

9.5.3 IF band pass filter (SAW FILTER)

C-bus.

The main functions of the video IF part are (see also figure 9-3):

• IF- amplifier

• PLL-demodulator

• Video buffer

• AFC

• IF-AGC

• Tuner AGC

9.5.5 IF- amplifier

The IF-amplifier incorporates symmetrical inputs (pins 48 and

49). By using IIC bus control (IFS) the AGC attenuation can be adjusted by up to -20dB. Remark: If the BIMOS is replaced the AGC value should be adjusted as part of the repair process. ( see Ch 8 - Alignments ).

9.5.6 PLL-demodulator

The IF-signal is demodulated with the assistance of the PLL detector. The video IF-demodulator can handle both negative and positively modulated IF signals; selection is achieved via the IIC bus (bit MOD).

9.5.7 Video buffer

The video buffer is present to provide a low ohmic video output with the required signal amplitude. Additionally, it provides protection against (pin 6) the occurrence of noise peaks. The video buffer stage also contains a level shifter and a gain stage for both the positive and negative video modulation formats, so that the correct video amplitude and DC level are always present at pin 6 regardless of the input signal.

9.5.8 Video-IF AGC

An AGC system controls the gain of the IF amplifier such that the video output amplitude is constant. The demodulated video signal is supplied, via a low pass filter inside the IC to an AGC detector. External AGC de coupling is provided by capacitor 2201 at pin 53. The AGC detector voltage directly controls the IF amplification stages.

9.5.9 The tuner AGC

Tuner AGC is provided to reduce the tuner gain and thus the tuner output voltage when receiving to strong RF signal. The tuner AGC starts working when the video-IF input reaches a certain input level. This level can be adjusted via the IIC bus. The tuner AGC signal is applied to the tuner via the open collector output pin 54 of the BIMOS.

Between the tuner output and the video IF input of the video processor the IF band pass filtering take place. For the IF band pass filtering SAW filters are used (item 1003 or 1005). 5 Types of SAW filters are used depending on the version of the set.

9.5.4 Video IF

General: Video IF-demodulation is achieved in combination with reference circuit L5006 connected at pin 3 and 4 of IC7250-A. The AGC control for the tuner is applied via pin 54 of IC7250-A. Internally the IC uses the top sync level as a reference for AGC control. The AGC adjustment can be readjusted via the SAM (service alignment menu). C2201 connected to pin 53 determines the time constant of the AGC. The Base band CVBS signal is present at pin 6 of IC7250-A (normal amplitude 3.2Vpp). From here the signal is fed via transistor 7266 to the sound trap filters and then on to the video source selection circuit.

9.5.10 AFC

The AFC output information is available for search tuning. The AFC output is available via the I For alignment purposes it is displayed in the TUNER submenu of the SAM (See chapter 8).

2

C bus ( AFA and AFB signals).

Circuit description new circuits

IC 7250-4A TDA 8845

48

49

54

55

56 15

IC 7250-4A TDA 8842/44

48

49

34 5

AFC

IF AMPLIFIER

+

PLL VIDEO DEMO.

AGC

53

SOUND

IF

AMPL.

AGC

VIDEO AMPL.

1

OR

34 5

AFC

IF AMPLIFIER

+

PLL VIDEO DEMO

VIDEO AMPL.

AFC

QSS MIXER

SOUND

AM DEM.

AFC

VIDEO-

BASE-

BAND

OUTPUT

+

VIDEO-

BASE-

BAND

OUTPUT

6

2

6

13

17

10

11

VIDEO IDENT

7250-4C TDA 8842/44/45

27

Y

CD MATRIX

31 32

SATURATION

U

CONTROL

V

7250-4D TDA 8842/44/45

7250-4B

38

TDA 8842/44/45

+

+ SKIN TINT

Y (TO SYNC PART)

LUM.

DELAY

PEAKING

CORING

CHROMA

BANDPASS

RGB

MATRIX

+

BLACK

STRETCH

+

RGB1

INPUT

41 42 37

DEMODULATOR

R G B

PAL/NTSC/

SECAM

169 36353433

78

IIC BUS

CONTROL

RGB

OUTPUT

CATH. CALIB.

2223 24 25 26

GB 55L9H.2E 9.

28

INPUT SELECT Y + CHROMA

RGB OUTPUT

29

PROCESSING

30

BASE-

BAND

DELAY

LINE

21

R

20

G

19

B

18

54

53

1

LIMITER

AGC

PLL-

AUDIO

FM DEMO.

AMPL.

+

MUTE

SYNC.

Y

SEPARATOR

43

55

OUTPUT

+

VOLUME

CONTROL

2

15

50

VERT. SYNC.

SEPARATOR

VCO

+

CONTROL

52514439

HORIZONTAL

OUTPUT

VERTICAL

OUTPUT

E/W

OUTPUT

40

46

SYNC

47

45

CL 86532104_021.EPS

120100

Figure 9-3 “BIMOS”

GB 56 L9H.2E9.

Circuit description new circuits

9.6 Video Signal Processing (see circuit diagram A6)

9.6.1 Introduction:

The video signal processing can be divided in the following parts:

• CVBS/Y/C input selection

• Luminance and chrominance signal processing

• PAL and SECAM demodulation /Auto system manager

• YUV/RGB processing/ black stretcher

• Second RGB insertion

• RGB processing

• Black current calibration loop

• Beaming current limiting Above mentioned processing circuits are integrated in the TVprocessor (parts B and C). The surrounding components are for the adaptation of the selected application. The I used for defining and controlling the signals.

TDA 8844/8845

OSD/TXT/SCART

Y

U

V

SOUND

BPF

SIF

(to sound proc..)

YC/CVBS EXT YC/CVBS EXT YC/CVBS EXT

CVBS_MON

V_PATH1.PPT 20/3/98

TUNER

SWITCH

SOUND

TRAP

CVBS + SIF

CVBS_INT CVBS_EXT

IF

48/49 25

6

IF

13

17

TDA884X

CHROMA

PROCESSING

30 29 28 27 31

Figure 9-4 “Videopath”

9.6.2 CVBS/Y/C selection

The input switches are used for selection of the input signal. Three input signals can be selected:

• Pin 13: terrestrial CVBS input.

• Pin 17: external AV1 input.

• Pin10/11: external AV2-Y, CVBS/C input When pin 11 is in the CVBS input mode then pin 10 is not used. When pin 11 is in the Y/C input mode then both pins are used and the CHROMA filter in the Y signal path is switched off.

RGBFBL

242326

RGB

PROCESSING

+SWITCH

MATRIX

CL 86532104_017.eps

2

C bus is

21

20

19

3238

160299

R

TO CRT

G B

9.6.4 PAL and SECAM demodulation via the Auto system manager

The colour decoder circuit detects whether the signal is a PAL signal. The result is made known to the auto system manager. The base-band delay line is activated when a PAL or SECAM signal is detected. For the SECAM colour standard a reference voltage is generated at pin16 of the TV-processor. Connected at Pin 9 of the TV-processor, is the band-gap decoupling circuit, which consists of (2214,2215). The band-gap circuit provides a very stable and temperature independent reference voltage. It ensures optimal performance of the TVprocessor and is used by almost all functional blocks inside the processor. The Y signal and the demodulator outputs R-Y and B-Y are present at pin 28, 29, 30 of the TV-processor. The auto system manager identifies PAL and SECAM colour standards and is controllable via the IIC bus. Connected on pin 36 of the TV-processor is the Loop Filter for the phase detector The filter chosen provides an optimal transient response, which ensures both an optimum for noise bandwidth and colour acquisition time.

9.6.5 YUV / RGB processing/ black stretching

The signal Y, R-Y and B-Y present on pins 27, 31, 32 of the TVprocessor are used as the input signals for the colour decoding section of the BiMOS (IC7520-C). The YUV processor enables the colour saturation control and also converts the Y, B-Y and B-Y signals to the R, G, B signal format via the colour matrix circuit. The black stretcher circuit , initial stage of the matrix circuit, extends the Grey signal level towards the actual black level. The amount of extension depends upon the difference between actual black level and the darkest part of the incoming video signal level. This feature is fully integrated. The user can switch this circuit on or off by using the Contrast Plus option in the user menu.

9.6.6 Second RGB insertion

Pins 23, 24, 25 are used as the inputs for the second R, G, B signals insertion. Pin 26 of the TV-processor is the input for the insertion control signal which is called "FBL". When the FBL signal level becomes higher than 0.9V (but less than 3V) the R, G, B signals at pins 23,24,25 are inserted into the picture by using the internal switches incorporated in the TV-processor. This second insertion possibility is used for insertion of the on screen display signals , TXT or R. G. B signals from the SCART socket.

9.6.7 RGB processing

9.6.3 Luminance / Chroma signal processing

Once the signal source has been selected, CHROMA filter calibration is performed. The received colour burst-sub-carrier frequency is used for the calibration. Correspondingly, the CHROMA band-pass filter for PAL processing or the cloche filter for SECAM processing is switched on. Pins 34, 35 have the crystals connected to them. These crystals are used for multi-purpose calibration of the burst sub-carrier. The selected luminance signal is then supplied to the Horizontal and Vertical synchronisation processing circuits and to the luminance processing circuits. In the Luminance processing block, the luminance signal is applied to the CHROMA trap. This trap is switched on or off depending upon on the colour burst detection of the CHROMA calibration circuit. Before the luminance signal is applied to pin 28 of the TV-processor the signal is applied to a "peaking" and "coring" circuit. In these circuits the sharpness and noise level of the signal can be influenced via the remote control (control menu in the user menu ).

The RGB processing circuit enables the picture parameters to be adjusted by using a combination of the user menus and the remote control. Additionally automatic gain control for the RGB signals via cut-off stabilisation is achieved in this functional block.. The block also inserts the cut off point "measuring pulses" into the RGB signals during vertical retrace period.. From outputs 19,20 and 21 the RGB signals are then applied to the output amplifiers on the CRT panel.

9.6.8 Black current calibration loop

The black current calibration loop ensures that the white balance at low signal levels and low light white balance is skipped. By means of the inserted measuring pulses, the black current calibration loop, tracks the beam current feed back of the RGB signals at the cathodes of the picture tube. As a result of this calibration, the individual black level of the RGB output signals is shifted to a level which allocates around 10uAof beam current to each of the RGB signals. Pin 18 (BC_info) of

Circuit description new circuits

GB 57L9H.2E 9.

the BIMOS is used as the feed back input from the CRT base panel.

9.6.9 Beam current limiting

A beam current limiting circuit inside the BiMOS handles the contrast and brightness control for the RGB signals. This prevents the CRT tube being over driven, which may cause serious damage in the line output stage. The reference used for this purpose is the DC voltage on Pin 22 (BLCIN) of the TVprocessor. Contrast and brightness reduction of the RGB output signals is therefore proportional to the voltage present on this pin. Contrast reduction starts when the voltage on pin 22 is lower than 3.0 V. Brightness reduction starts when the voltage on pin 22 is less than 2.0 V. The voltage on pin 22 is normally 3.3V (limitor not active). To enable correct operation however, an external adaptation to the circuit is required for the correct functioning of the limiting function. This is connected to Pin 22, the circuit therefore ensures that correct peak white limiting and the average beam current limiting takes place. Components 6212, 3246 are for the average beam current limiting. As a reference for the average beam current control the signal ABL_info is used. This signal is a measurement of the picture contents. As the time constant of the filter is much bigger than the frame period time, the DC at the anode of 6212 represents the average value of the picture content. Via 6212 and 2226 the DC voltage at pin 22 is slowly. The RGB output signals are applied to the CRT panel via connector 0243. Via diodes 6213, 6214 and 6215 and series resistor 3214, the RGB signals are also connected to the CRT_discharge signal. The level of this signal is only high during the time the set is switched off. And id due to the cathodes of the CRT are driven fully negative. That means that the beam current is increased. and consequently the CRT quickly discharged.

9.6.10 CRT panel (see circuit diagram B)

9.8 SP/LS (Smart-plug) Diagram I

9.8.1 SP (Smart Plug)

The smart plug is a modular jack connector used for communication with external set-top boxes for interactive TV. Beside this, the smart plug can be used with a “smart-loader” for copying TV settings from one TV to another. The “smart-loader” contains a 16K NVM. When the power is switched on the micro-computer is checking the smart plug if there is any smart-loader connected. If this is the case then the user is prompted via OSD to upload or download the VNM. Via connector 0238 the data on the smart-plug is applied to the micro-computer. The pin-configuration is:

• Pin 1 Clock signal

• Pin 2 Data in (signal is inverted by 7940)

• Pin 3 + 5V

• Pin 4 Data out

• Pin 5 Ground

• Pin 6 IR Data

9.8.2 LS(Loudspeaker socket for external bathroom speaker).

The socket for the external bathroom speaker is a 3.5mm headphone socket with switch. The bathroom speaker will be connected in series with the internal mono/right speaker. The switch takes care that when the jack is unplugged the TV speaker is muted.

9.9 Smart Card Interface panel (Diagram J)

On the Smart Card Interface the 32 pin connector is mounted for plug in the Smart Card. Moreover all interface circuits (buffers) are mounted on this panel needed for interfacing between Smart Card and TV chassis.

On the CRT panel the analog output amplifiers for the RGB signals are located. The B-signal is amplified by the analog amplifier formed by a circuit build around the transitors 7331, 7332 and 7333. The G- signal is amplified by the analog amplifier formed by a circuit build around the transitors 7321, 7322 and 7323. The R- signal is amplified by the analog amplifier formed by a circuit build around the transitors 7311, 7312 and 7313. The supply voltage for the transistors is +160VA and is derived from the line output stage.

9.7 EPS (External power supply, Diagram F)

For system executions the connected Smart Card needs to be powered at all times. There for an external power supply (EPS) is needed. The EPS panel is located inside the TV set at the right side of the main chassis. The external supply is connected in parallel to the TV mains supply, bypassing the TV mains switch. The EPS is a switched mode power supply with secondary voltage sensing via an opto coupler IC2. IC1 contains the control and FET- switching function. At the secondary side 2 DC voltages +12V and +5V are available. This 2 voltages are applied to the Smart Card Interface panel. For more details see the description of the interface panel.

9.9.1 Supply

At the interface panel .via connector 0228 the +5V and +12V delivered by the EPS panel are applied. The +12V(+12Veps) is used for supplying the Interface panel and the Smart Card. Also via the diodes 7611 and 6712 this voltage is applied to pin 1 of connector 0241. This voltages is used as supply voltage for the audio part in stand by position (needed for buzzer function). The +5V(+5Veps and +5Vchas) are used for supplying the interface panel and the Smart Card . Also the +5Vchas voltage is applied to pin 5 of connector 0241.This voltage is used for supplying:

• Micro-computer item 7600 (Diagram A7)

• EEPROM (NVM) item 7601 (Diagram A7)

• IR receiver item 7680 (Diagram A8)

• LED item 6680 (Diagram A8) This is necessary because above mentioned parts need always be powered. For a quick overview of the voltage connections see supply voltage diagram in this manual.

9.9.2 Additional reset circuit item 7710, 7702, 7703

In system executions the TV microprocessor is continuously powered by the EPS panel, therefore an adapted reset circuit is needed. In system sets the original reset circuit formed by TS7605 (diagram A7) is deleted and is replaced by the reset circuit on Diagram I formed by TS7702, TS7703 and reset pulse former IC 7710. Each time the Vaux is switched on 7702 is conducting for a short time and so pin 1 of IC 7710 is short circuit to mass. If 7702 is cut off again IC 7710 starts generating a reset pulse. This reset pulse is applied to the Smart Card

GB 58 L9H.2E9.

Circuit description new circuits

micro-computer via pin 6 of the 32 pin connector. After inverting by 7703 the same reset pulse is applied to the TV microcomputer 7600 on Diagram A7.

9.10 Clock display (Diagram G1)

The clock display is the same as already used previous ITV chassis.

9.11 Radio, SP/LS V

On diagram H1 next functions are located.

• Radio (FM-radio)

• SP (Smart-plug)

• LS (Loudspeaker socket for external bath room speaker)

9.11.1 FM-Radio item 1901

The FM radio panel is only available in non system executions. The FM tuner item 1901 is tuned by the micro-computer via the IIC bus and output expander 7904. The 12V (for internal varicap) tuning voltage on pin 8 of the FM tuner is derived from the Vbatt voltage via pin 2-0255. To give the Vbatt enough load to work properly also in stand-by position the Vbatt is in stand-by additional loaded via 3928 (3K3 5W) and 7925. In position ON this additional load is switched off via 7930. The outputs 9, 11 (L and R) of the tuner are applied to amplifier

7903. Via electronic switch IC7901 a selection can be made between TV and FM tuner sound. Only one audio channel (mono) is used (plug 0256 is not connected).

9.11.2 Smart-plug item 1950

The smart plug is a modular jack connector used for communication with external set-top boxes for interactive TV. Beside this, the smart plug can be used with a “smart-loader” for copying TV settings from one TV to another. The “smart-loader” contains a 16K NVM. On power up the micro-computer is checking the smart plug if there is any smartloader connected. If this is the case then the user is prompted via OSD to upload or download the VNM. Via connector 0238 the data on the smart-plug is applied to the micro-computer. The pin-configuration is:

• Pin 1 Clock signal

• Pin 2 Data in (signal is inverted by 7940)

• Pin 3 + 5V

• Pin 4 Data out

• Pin 5 Ground

• Pin 6 IR Data

9.11.3 Panel supply:

On pin 3-0255 the 9V MainAux supply voltage enters the panel and is stabilized to 5V (+5E) by 7920. The +5E is used for supplying the circuits on the panel itself but is also applied via fuse 1920 to pin 5 of connector 0255. This voltage is used for a stable supply voltage for the micro-computer and NVM on Diagram A7. Loudspeaker socket for external bathroom speaker. The socket for the external bathroom speaker is a 3.5mm headphone socket with switch. The bathroom speaker will be connected in series with the internal mono/right speaker. The switch takes care that when the jack is unplugged the TV speaker is muted

(Diagram H1)

BAT

9.12 List of abbreviations

2CS 2 Carrier Stereo A/P Asia Pacific; schematic/PCB

information (only) applicable for Asia

Pacific sets AFC Automatic Frequency Control AQUADAG Aquadag coating on the (outside of

the) picture tube AudioOutR Audio signal at Right output channel. AudioOutL/Mono Audio signal at Left output channel /

Mono output channel. AV_MUTE Signal to mute the sound on the Audio-

out of Cinch / Scart (Combined with

RBG_Blanking) Ext2Fun_SW (AV_Mute/ Ext2Fun_SW) Switching signal from Scart2 to micro

controller indicating the presence and

type of signal on Scart2. (no signal /

CVBS 16:9 / CVBS 4:3) AV Audio Video signal AVL Automatic Volume Level B_TXT_OSD Blue TXT or OSD signal from uC to the

video controller IC7250 (BIMOS) BASS Control signal for BASS BCI Beam Current information BTSC Broadcast Television Standard

Committee; sound standard for

America and Asia Pacific Buzzer Buzzer (only used in L9-ITV) CRT DISCHARGE Fast drop of VBATT during after switch

off the set. Which result in EHT voltage

reducing to less than 18 kv within 5

sec. CTI Colour Transient Improvement CVBS Colour Video Blanking

Synchronisation. Video signal

containing colour, black/white,

blanking and synchronisation

information. CVBS_EXT CVBS external = CVBS signal form

external source (VCR, DVD etc.) CVBS_INT CVBS internal = CVBS signal from the

tuner CVBS_MON CVBS monitor (CVBS) signal to Cinch

or Scart CVBS_Terr CVBS Terrestrial output signal CVBS_TXT CVBS for TXT processing in micro

controller DCM Data Communication Module Din Digital input signal only used in L9-

ITV) Dout Digital output signal (only used in L9-

ITV) DBX Dynamic Bass Expander (only used

for BTSC sound system) DNR Dynamic Noise Reduction EAR Earth (ground layer) EEPROM Electrically Erasable Programmable

Read Only Memory (also called NVM;

non-volatile memory) EHT-INFO Extra high tension information; Beam

current related signal from CRT to

BIMOS. Ext1 B RGB External 1 Blue input signal. Ext1 FB RGB External 1 Fast-blanking input

signal. Ext1 G RGB External 1 Green input signal. Ext1 R RGB External 1 Red input signal. Ext1 Video RGB External 1 Video input signal.

Circuit description new circuits

GB 59L9H.2E 9.

Ext2 AudioL/Mono External 2 Audio Left input signal /

Mono input signal.

Ext Audio/Mono External Audio input signal / Mono

input signal. Ext2 AudioR External 2 Audio Right input signal. Ext2C Exterial 2 SVHS Chrominance (C)

input signal. Ext2Video/Y External 2 Video input signal or SVHS

Luminance (Y) input signal. ESD Electrostatic Discharge EURO Europe; schematic/PCB information

(only) applicable for European sets EWD_dyn Dynamic East-West correction to

compensate for variations in EHT EWDRIVE East-West drive correction FB_TXT_OSD Fast blanking signal from micro

controller to IC7250 (BIMOS) for

inserting or displaying TXT and OSD

information (generated by the micro

processor) Filament Filament (heater voltage) from LOT to

CRT FBL Fast Blanking FFBL Full screen Fast Blanking FM/AM/ Ext_VC_AudioMono FM, AM or external mono signal from

BiMOS to audio processor input (only

used in Mono and Nicam L sets) Front/Ext1AudioL Front audio Left input signal / External

1 Audio Left input signal. Front/Ext1AudioR Front audio Right input signal /

External 1 Audio Right input signal. GND Ground GND_LOT Ground of LOT G_TXT_OSD Green TXT or OSD signal from micro

processor to the video controller

IC7250 (BIMOS) HD Horizontal pulse derivation HDRIVE Horizontal output drive HEW_protn Switching signal to (de)activate the

XRAY protection which is measured

via pin 50 of the BIMOS (only for USA

sets) Hflybk Horizontal flyback pulse used to

monitor the horizontal oscillator IF Intermediate Frequency signal from

the tuner 12C (or IIC) 2 Wire communication protocol

between micro controller and

integrated circuits IC Integrated Circuit I/O Input/Output INT Audio internal output IR Output signal from infrared receiver to

micro controller. KeyBd1 Local keyboard control signal to micro

controller KeyBd2 Local keyboard control signal to micro

controller (In protection mode KeyBd2

is Ground) KeyBd3 Local keyboard control signal to micro

controller L- Power amplifier output to headphone

and speaker L+ Power amplifier output to speaker LED LED control signal from micro

controller to LED LATAM Latin America; schematic/PCB

information (only) applicable for Latin

American (incl. Brazilian) sets LeftOut Audio Left signal output LTI Luminance Transient Improvement (=

steepness)

MainAudioL/Mono Audio Left/Mono signal to input power

MainAudioR Audio Right signal to input power

MON Audio monitor output NICAM Near Instantaneous Companded

NR Noise Reduction NTSC NTSC colour system OSD On Screen Display P0Sys1/AM Switching signal with several

BiMOS crystal selection (only for Latam sets) Selection of AM or FM signal (used in

Sys2/AMFM_ExtSel Switching signal with several

LLp/Mtrap Switching signal with several

Dual/Mono Switching signal to select the sound

ScartPin8/SVHS Switching signal from I/O to micro

BassSw Bass switching signal (only for some

TrebleSw Treble switching signal (only for some

Ext1/2 Used in L9-ITV sets (Hotel TV) stbyon+protn Signal from E-W and LOT output to

Mute/Volume Audio mute / Volume control signal pin POR/CLK Power on reset (only used in L9-ITV

R- Power amplifier output " R- " to

R+ Power amplifier output " R+ " to

RAM Random Access Memory RESET Reset signal to micro controller RF_AGC Automatic gain control signal from

RGB Red-Green-Blue RGB_Blanking Red Green Blue Blanking signal

RightOut Audio right signal output R_TXT_OSD Red TXT or OSD signal from uC to the

ROM Read Only Memory SAM Service Alignment Mode. Service

SAP Second audio program (only for USA

SCL Clock line of the I

amplifier

Audio Muliplex (digital audio)

functions:

combination with P1Sys2/ AMFM_ExtSel) (only for Europe)

functions: BIMOS crystal selection (only for Latam sets) Selection of internal AM/FM signal or an external signal (used in combination with P0Sys1/AM)

functions: M-trap (sound filtering) switching (only for A/P Pal Multi sets) BiMOS crystal selection (only for Latam sets), Selection of L or L' system (only for Europe sets)

filter in dual-system Mono sets (BG/I, BG/DK or I/DK).

controller with several functions: Scart1 I/O: detects signal type connected to Scart 1 (no signal, 16:9 signal, 4:3 signal) (only for Europe) Cinch I/O: detects signal type connected to cinch: SVHS or CVBS (not for Europe)

mono sets)

micro controller to (de)activate the protection mode

sets)

speaker

headphone and speaker

BiMOS output to tuner input.

(combined with AV_MUTE)

video controller IC7250 (BIMOS)

mode for alignments and error buffer display

& A/P sets)

2

C-bus

GB 60 L9H.2E9.

Circuit description new circuits

SCL2 2nd Clock line of the IIC-bus (only

SDA Data line of the I SDA2 2nd Data line of the I

SDM Service Default Mode. Service mode

SIF Sound IF signal for FM audio

SMPS Switching Mode Power Supply STANDBY Switching signal from micro controller;

SW_OUT Selected Output signal from source SYNC Synchronisation TBD To Be Defined TREBLE Control signal for treble TXT Teletext

µ

C Micro controller

USA United States; schematic/PCB

V_TUNE Tuning voltage for tuner Vdrive - Negative Vertical drive pulse signal Vdrive + Positive Vertical drive pulse signal VD Vertical pulse derivation VFL Vertical flyback pulse used to inform

Vflybk Vertical flyback pulse VG2 Voltage on grid 2 of the picture tube

VideoOut CVBS output signal VOLUME Control signal (from micro controller,

XRAY-PROT XRAY protection (only for USA sets) YC Luminance (Y) and Chrominance (C)

used in L9-ITV sets)

with predefined settings for waveform and voltage measurements, error buffer display and option (byte) setting.

demodulator

"low" for standby (power supply will be switched to stand-by mode), "high" for normal operation

information (only) applicable for North American sets

the micro controller that flyback is occurring. This is critical for the correct OSD and TXT

(screen control)

but on DC level via RC network) for sound processing in sound IC

2

C-bus

2

C-bus (only

Spare parts list

10. Spare parts list

GB 61L9H.2E 10.

Main Chassis [A]

Various

0025 3139 124 23831 Led holder

3122 358 72141 Fuse holder

0127

h

0130 3139 123 21331 Insulation plate 0139 4822 492 70788 Spring fix. IC

4822 265 20723 Conn. 2P

0211

h

0231

4822 276 14024 Power switch

h

4822 267 31014 Headphone socket

0232

h

0237 2422 025 16381 Conn. 2P 0237 4822 267 10565 Conn. 4P 0238 2422 025 16387 Conn. 5P 0238 4822 267 10734 Conn. 5P 0255 2422 025 16343 Conn. 2P 0259 2422 025 16383 Conn. 2P 0259 4822 267 10735 Conn. 3P 0264 2422 025 16379 Conn. 2p 0267 4822 267 10735 Conn. 3p Compair

4822 210 10841 Tuner UV1316/A I-2

1000

h

1001 4822 242 10314 Filter 5,5MHz 1002 4822 242 10316 Filter 6,5MHz 1002 4822 242 10362 Filter 6,0MHz 1003 4822 242 81737 Saw filter OFWG1965M

1005 4822 242 11055 Saw filter OFWK6289K

1200 4822 242 10315 Cer filter 5.5/5.7/6.5MHz 1200 4822 242 81712 Cer filter 5.5/5.74MHz 1201 4822 242 81301 Filter 6.5MHz 1201 4822 242 81572 Filter 6.0MHz 1205 4822 242 10695 X-tal 4.433619MHz 1208 4822 242 10776 X-tal 3.579545MHz

4822 070 34002 Fuse 4A

1500

h

4822 071 51002 Fuse 1A

1571

h

1572

4822 252 11194 Fuse 800mA)

h

4822 252 51174 Fuse 1,6A)

1572

h

1600 4822 242 10694 X-tal 12MHz 1680 4822 276 13775 Switch 1681 4822 276 13775 Switch 1682 4822 276 13775 Switch 1683 4822 276 13775 Switch 1701 4822 242 81423 Saw filter OFWL9453M

g

2001 4822 126 13751 47nF 10% 63V 2002 4822 124 40207 100µF 20% 25V 2003 4822 124 40207 100µF 20% 25V 2004 5322 122 32654 22nF 10% 63V 2005 5322 122 32531 100pF 5% 50V 2006 4822 126 13695 82pF 1% 63V 2008 4822 124 40248 10µF 20% 63V 2012 4822 051 20008 0R Jumper 2012 4822 122 33177 10nF 20% 50V 2101 5322 116 80853 560pF 5% 63V 2102 5322 122 32531 100pF 5% 50V 2103 5322 116 80853 560pF 5% 63V 2104 5322 122 32531 100pF 5% 50V 2105 4822 124 40207 100µF 20% 25V 2106 4822 124 40248 10µF 20% 63V 2106 4822 124 40769 4.7µF 20% 100V 2173 5322 122 31863 330pF 63V 2174 4822 124 40248 10µF 20% 63V 2176 5322 122 31863 330pF 63V 2177 4822 124 11947 10µF 20% 16V 2177 4822 124 40248 10µF 20% 63V 2201 4822 124 21913 1µF 20% 63V 2201 4822 124 22652 2.2µF 20% 50V 2202 5322 126 10465 3.9nF 10% 50V 2203 4822 124 40248 10µF 20% 63V 2205 4822 126 13838 100nF 50V 20% 2206 4822 122 33127 2.2nF 10% 63V 2207 4822 124 40207 100µF 20% 25V 2208 4822 126 14076 220nF 25V 2209 4822 051 20008 0R Jumper 2210 4822 126 13838 100nF 50V 20% 2211 4822 126 13482 470nF 80/20% 16V 2211 4822 126 14585 100nF 10% 50V 2212 5322 126 10511 1nF 5% 50V 2213 4822 126 13838 100nF 50V 20% 2214 5322 122 32654 22nF 10% 63V 2215 4822 124 22652 2.2µF 20% 50V

38,9MHz

2216 4822 126 14076 220nF 25V 2217 4822 126 13486 15pF 2% 63V 2218 5322 122 31866 6.8nF 10% 63V 2220 4822 126 13838 100nF 50V 20% 2221 5322 122 32531 100pF 5% 50V 2222 4822 126 13751 47nF 10% 63V 2223 4822 126 13751 47nF 10% 63V 2224 4822 126 13751 47nF 10% 63V 2225 4822 126 13751 47nF 10% 63V 2226 4822 124 40248 10µF 20% 63V 2227 4822 126 13482 470nF 80/20% 16V 2228 4822 126 13692 47pF 1% 63V 2229 4822 126 13692 47pF 1% 63V 2230 4822 126 13692 47pF 1% 63V 2231 4822 122 33127 2.2nF 10% 63V 2231 4822 122 33177 10nF 20% 50V 2232 4822 122 33127 2.2nF 10% 63V 2233 4822 124 21913 1µF 20% 63V 2234 5322 126 10223 4.7nF 10% 63V 2235 5322 126 10511 1nF 5% 50V 2236 4822 126 14076 220nF 25V 2237 5322 122 32531 100pF 5% 50V 2238 4822 126 13486 15pF 2% 63V 2239 5322 121 42386 100nF 5% 63V 2240 5322 126 10511 1nF 5% 50V 2241 5322 126 10511 1nF 5% 50V 2242 4822 124 21913 1µF 20% 63V 2243 4822 126 14076 220nF 25V 2244 4822 124 40248 10µF 20% 63V 2248 4822 126 13486 15pF 2% 63V 2250 5322 122 31863 330pF 63V 2255 5322 122 32531 100pF 5% 50V 2400 4822 121 43526 47nF 5% 250V 2401 4822 121 43526 47nF 5% 250V 2402 5322 122 31863 330pF 63V 2403 4822 122 31169 1.5nF 10% 500V

4822 126 14237 470pF 10% 2KV

2405

h

4822 126 13866 4.7nF 10% 1KV

2406

h

2407

4822 121 70434 11nF 5% 1.6KV

h

4822 121 70649 9.1nF 5% 1.6KV

2407

h

2408 4822 122 30103 22nF 80% 63V 2409 4822 124 11575 47µF 20% 160V 2410 4822 124 11767 470µF 20% 25V 2411 4822 124 21913 1µF 20% 63V 2412 2222 347 90236 33nF 100V 2412 2222 347 90239 18nF 250V 2413 4822 124 11845 22µF 20% 250V 2414 4822 124 81145 16V S 1000µF 2415 4822 124 81145 16V S 1000µF

4822 126 12239 560pF 10% 2KV

2416

h

2417 4822 124 80061 1000µF 20% 25V 2418 4822 126 13482 470nF 80/20% 16V 2420 4822 126 14096 560nF 5% 250V 2431 4822 124 12438 2.2µF 20% 100V 2432 4822 124 81188 100µF 20% 25V 2460 5322 122 32268 470pF 10% 50V 2461 5322 126 10184 820P 5% 50V 2462 5322 122 32268 470pF 10% 50V 2463 5322 121 42386 100nF 5% 63V 2464 4822 124 40255 100µF 20% 63V 2465 5322 121 42386 100nF 5% 63V 2466 4822 121 42408 220nF 5% 63V 2467 5322 121 42386 100nF 5% 63V 2470 5322 126 10223 4.7nF 10% 63V

4822 126 13589 470nF 275V

2500

h

2502

4822 126 14153 2.2nF 10%B 1KV

h

4822 126 14153 2.2nF 10%B 1KV

2504

h

4822 126 14153 2.2nF 10%B 1KV

2505

h

2508 4822 124 12439 100µF 20% 400V 2509

4822 126 11382 1nF 10% 1KV

h

4822 126 13517 820pF 10% 1000V

2509

h

2510

4822 126 11382 1nF 10% 1KV

h

4822 126 13517 820pF 10% 1000V

2510

h

2517 5322 122 32331 1nF 10% 100V 2518

4822 126 13337 220pF 10% 1KV

h

2520 4822 126 13695 82pF 1% 63V 2521 4822 122 32646 5.6nF 10% 50V 2521 5322 126 10223 4.7nF 10% 63V 2522 4822 122 32646 5.6nF 10% 50V 2522 5322 126 10223 4.7nF 10% 63V 2524 5322 122 32268 470pF 10% 50V 2529 4822 126 13838 100nF 50V 20% 2530 4822 124 22776 1µF 50V 2531 4822 126 14587 560pF 2% 50V 2533 5322 122 31863 63V 330pF 2534 5322 126 10511 1nF 5% 50V

2537 5322 121 42386 100nF 5% 63V 2540 4822 124 81188 100µF 20% 25V 2541 4822 121 10686 4.7nF 10% 50V

4822 126 14049 1.5nF 20% 250V

2545

h

4822 126 11382 1nF 10% 1KV

2550

h

2551 4822 124 42336 47µF 20% 160V 2560 5322 122 31647 1nF 10% 63V 2561 4822 124 81145 16V S 1000µF 2561 4822 124 81188 100µF 20% 25V 2562 4822 124 81188 100µF 20% 25V 2570 4822 122 33127 2.2nF 10% 63V 2570 5322 122 31647 1nF 10% 63V 2571 4822 124 12417 2200µF 20% 25V 2572 5322 122 32531 100pF 5% 50V 2600 4822 124 81151 22µF 50V 2601 4822 124 81151 22µF 50V 2604 4822 126 13838 100nF 50V 20% 2605 4822 126 13838 100nF 50V 20% 2606 4822 126 13838 100nF 50V 20% 2607 5322 126 10511 1nF 5% 50V 2608 4822 121 43897 1nF 5% 400V 2609 4822 126 13838 100nF 50V 20% 2610 4822 121 42687 3.3nF 10% 63V 2611 4822 126 13838 100nF 50V 20% 2612 5322 122 32654 22nF 10% 63V 2613 4822 126 13695 82pF 1% 63V 2614 4822 126 13695 82pF 1% 63V 2615 5322 122 32531 100pF 5% 50V 2616 5322 122 32658 22pF 5% 50V 2617 5322 122 32658 22pF 5% 50V 2618 4822 122 33177 10nF 20% 50V 2619 4822 126 13751 47nF 10% 63V 2619 4822 126 14076 220nF 25V 2620 5322 122 32531 100pF 5% 50V 2621 5322 122 32531 100pF 5% 50V 2622 5322 122 32531 100pF 5% 50V 2623 5322 122 32531 100pF 5% 50V 2624 4822 126 13838 100nF 50V 20% 2625 5322 122 32531 100pF 5% 50V 2651 4822 124 40207 100µF 20% 25V 2675 4822 126 13482 470nF 80/20% 16V 2675 4822 126 14043 1µF 20% 16V 2680 4822 124 11947 10µF 20% 16V 2680 4822 124 40248 10µF 20% 63V 2697 5322 126 10511 1nF 5% 50V 2702 4822 124 40769 4.7µF 20% 100V 2703 4822 124 40769 4.7µF 20% 100V 2704 4822 126 14076 220nF 25V 2705 4822 126 14076 220nF 25V 2706 4822 126 14076 220nF 25V 2707 4822 126 14076 220nF 25V 2709 4822 126 14043 1µF 20% 16V 2950 4822 124 81151 22µF 50V 2951 4822 124 40248 10µF 20% 63V 2952 4822 122 33127 2.2nF 10% 63V 2953 4822 126 14076 220nF 25V 2954 4822 126 14076 220nF 25V 2955 4822 124 11767 470µF 20% 25V 2971 4822 121 51252 470nF 5% 63V

f

3000 4822 051 20101 100Ω 5% 0.1W 3001 4822 051 20101 100Ω 5% 0.1W 3002 4822 116 52244 15k 5% 0.5W 3003 4822 116 52238 12k 5% 0.5W 3013 4822 051 20008 0Ω jumper 3013 4822 117 10833 10k 1% 0.1W 3014 4822 051 20392 3k9 5% 0.1W 3015 4822 116 83933 15k 1% 0.1W 3016 4822 116 52228 680Ω 5% 0.5W 3017 4822 051 20472 4k7 5% 0.1W 3018 4822 117 11449 2k2 1% 0.1W 3020 4822 051 20223 22k 5% 0.1W 3027 4822 117 11507 6k8 1% 0.1W 3028 4822 117 11449 2k2 1% 0.1W 3029 4822 117 11449 2k2 1% 0.1W 3030 4822 117 11449 2k2 1% 0.1W 3031 4822 051 20472 4k7 5% 0.1W 3032 4822 051 20223 22k 5% 0.1W 3100 4822 117 10353 150Ω 1% 0.1W 3101 4822 117 13579 220k 1% 0.1W 3102 4822 050 11002 1k 1% 0.4W 3103 4822 117 10834 47k 1% 0.1W 3104 4822 117 10353 150Ω 1% 0.1W 3105 4822 117 13579 220k 1% 0.1W

GB 62 L9H.2E10.

Spare parts list

3106 4822 050 11002 1k 1% 0.4W 3107 4822 117 10834 47k 1% 0.1W 3108 4822 116 52175 100Ω 5% 0.5W 3108 4822 116 52226 560Ω 5% 0.5W 3109 4822 117 11927 75Ω 1% 0.1W 3110 4822 117 11927 75Ω 1% 0.1W 3111 4822 116 52175 100Ω 5% 0.5W 3111 4822 116 52226 560Ω 5% 0.5W 3112 4822 117 11927 75Ω 1% 0.1W 3113 4822 116 52175 100Ω 5% 0.5W 3113 4822 116 52226 560Ω 5% 0.5W 3114 4822 116 52201 75Ω 5% 0.5W 3115 4822 116 52175 100Ω 5% 0.5W 3116 4822 116 52201 75Ω 5% 0.5W 3122 4822 116 52244 15k 5% 0.5W 3123 4822 051 20472 4k7 5% 0.1W 3130 4822 051 20339 33Ω 5% 0.1W 3131 4822 051 20339 33Ω 5% 0.1W 3132 4822 051 20339 33Ω 5% 0.1W 3133 4822 051 20471 470Ω 5% 0.1W 3135 4822 051 20008 0Ω jumper 3140 4822 051 20008 0Ω jumper 3141 4822 051 10102 1k 2% 0.25W 3156 4822 116 83876 270Ω 5% 0.5W 3157 4822 116 83876 270Ω 5% 0.5W 3200 4822 117 10361 680Ω 1% 0.1W 3201 4822 116 83881 390Ω 5% 0.5W 3202 4822 051 20155 1M5 5% 0.1W 3204 4822 117 10353 150Ω 1% 0.1W 3205 4822 051 10102 1k 2% 0.25W 3206 4822 117 10353 150Ω 1% 0.1W 3206 4822 117 11504 270Ω 1% 0.1W

4822 052 10338 3Ω3 5% 0.33W

3207

h

3208 4822 051 20829 82Ω 5% 0.1W 3208 4822 117 12521 68Ω 1% 0.1W 3212 4822 116 83883 470Ω 5% 0.5W 3213 4822 051 20561 560Ω 5% 0.1W 3214 4822 117 10353 150Ω 1% 0.1W 3216 4822 051 20008 0Ω jumper 3218 4822 051 20101 100Ω 5% 0.1W 3219 4822 051 10102 1k 2% 0.25W 3223 4822 117 11927 75Ω 1% 0.1W 3224 4822 117 11927 75Ω 1% 0.1W 3225 4822 051 20333 33k 5% 0.1W 3226 4822 051 20334 330k 5% 0.1W 3227 4822 116 52228 680Ω 5% 0.5W 3228 4822 051 20101 100Ω 5% 0.1W 3229 4822 117 11504 270Ω 1% 0.1W 3233 4822 116 52219 330Ω 5% 0.5W 3234 4822 117 13577 330Ω 1% 1.25W 3235 4822 117 13577 330Ω 1% 1.25W 3236 4822 051 20101 100Ω 5% 0.1W 3243 4822 117 12955 2k7 1% 0.1W 3246 4822 116 52283 4k7 5% 0.5W 3247 4822 051 20101 100Ω 5% 0.1W 3248 4822 051 20101 100Ω 5% 0.1W 3257 4822 051 20479 47Ω 5% 0.1W 3258 4822 051 20479 47Ω 5% 0.1W 3259 4822 051 20479 47Ω 5% 0.1W 3260 4822 051 10102 1k 2% 0.25W 3266 4822 116 83933 15k 1% 0.1W 3268 4822 051 20333 33k 5% 0.1W 3269 4822 051 20393 39k 5% 0.1W 3272 4822 051 20273 27k 5% 0.1W 3273 4822 117 10833 10k 1% 0.1W 3274 4822 051 10102 1k 2% 0.25W 3275 4822 117 13579 220k 1% 0.1W 3276 4822 051 10102 1k 2% 0.25W 3277 4822 051 20479 47Ω 5% 0.1W 3278 4822 051 20479 47Ω 5% 0.1W 3400 4822 053 12472 4k7 5% 3W 3402 4822 050 12709 27Ω 1% 0.4W 3403 4822 116 52289 5k6 5% 0.5W

4822 117 13671 12k 5% 0.33W

3404

h

4822 052 10472 4k7 5% 0.33W

3405

h

4822 052 10472 4k7 5% 0.33W

3406

h

3407 4822 112 21089 220Ω 5% 3.5W 3411

4822 052 10108 1Ω 5% 0.33W

h

4822 052 10108 1Ω 5% 0.33W

3412

h

3414 4822 051 20182 1k8 5% 0.1W 3415 4822 050 21003 10k 1% 0.6W 3415 4822 116 52238 12k 5% 0.5W 3416

4822 052 11398 3Ω9 5% 0.5W

h

4822 052 11108 1Ω 5% 0.5W

3417

h

3420 4822 117 11927 75Ω 1% 0.1W 3421 4822 051 20101 100Ω 5% 0.1W 3423 4822 050 21003 10k 1% 0.6W 3424 4822 117 11507 6k8 1% 0.1W 3425 4822 051 20101 100Ω 5% 0.1W 3431 4822 117 13579 220k 1% 0.1W 3432 4822 117 11149 82k 1% 0.1W

3433 4822 117 13579 220k 1% 0.1W 3434 4822 117 10834 47k 1% 0.1W 3435 4822 117 10833 10k 1% 0.1W 3436 4822 116 52256 2k2 5% 0.5W 3440 4822 050 21003 10k 1% 0.6W 3441 4822 051 20223 22k 5% 0.1W 3460 4822 050 22202 2k2 1% 0.6W 3461 4822 051 10102 1k 2% 0.25W 3462 4822 051 10102 1k 2% 0.25W

4822 052 10158 1Ω5 5% 0.33W

3463

h

3464 4822 050 22202 2k2 1% 0.6W 3465 4822 050 23308 3Ω3 1% 0.6W 3465 4822 050 24708 4Ω7 1% 0.6W 3465 4822 050 25608 5Ω6 1% 0.6W 3466 4822 050 24708 4Ω7 1% 0.6W 3466 4822 050 25608 5Ω6 1% 0.6W 3467 4822 116 83872 220Ω 5% 0.5W 3468 4822 116 83872 220Ω 5% 0.5W 3471 4822 051 20391 390Ω 5% 0.1W 3472 4822 116 52256 2k2 5% 0.5W 3473 4822 116 52175 100Ω 5% 0.5W 3474 4822 053 12229 22Ω 5% 3W 3476 4822 051 20475 4M7 5% 0.1W 3477 4822 051 20125 1M2 5% 0.1W 3479 4822 117 12822 4Ω7 5% 5W 3501 4822 117 12181 470Ω 20% 0.5W

4822 053 21225 2M2 5% 0.5W

3502

h

3504 4822 117 12728 9Ω 200V 100R 3506 4822 116 82776 2Ω2 3509 4822 117 12654 100Ω 5% 5W 3510 4822 117 12647 33k 5% 3W 3512 4822 117 10965 18k 1% 0.1W 3513 4822 117 13579 220k 1% 0.1W 3517 4822 050 21003 10k 1% 0.6W 3518 4822 117 10422 0.33Ω 5% 3W 3520 4822 117 11149 82k 1% 0.1W 3521 4822 116 52219 330Ω 5% 0.5W 3524 4822 051 20008 0Ω jumper

4822 052 10229 22Ω 5% 0.33W

3525

h

3528 4822 116 83872 220Ω 5% 0.5W 3528 4822 116 83876 270Ω 5% 0.5W 3529 4822 050 24708 4Ω7 1% 0.6W 3530 4822 116 52276 3k9 5% 0.5W 3532 4822 117 11507 6k8 1% 0.1W 3534 4822 117 13579 220k 1% 0.1W 3536 4822 051 20273 27k 5% 0.1W 3536 4822 117 10834 47k 1% 0.1W 3537 4822 117 10833 10k 1% 0.1W 3538 4822 116 52234 100k 5% 0.5W 3539 4822 116 52251 18k 5% 0.5W 3540 4822 100 12156 4k7 30% 3541 4822 053 11479 47Ω 5% 2W

4822 053 21475 4M7 5% 0.5W

3542

h

3570 4822 051 20109 10Ω 5% 0.1W 3600 4822 116 52195 47Ω 5% 0.5W 3600 4822 116 52213 180Ω 5% 0.5W 3601 4822 116 52206 120Ω 5% 0.5W 3601 4822 116 83881 390Ω 5% 0.5W 3602 4822 116 83883 470Ω 5% 0.5W 3603 4822 116 52263 2k7 5% 0.5W 3605 4822 117 11503 220Ω 1% 0.1W 3606 4822 051 20561 560Ω 5% 0.1W 3606 4822 117 10353 150Ω 1% 0.1W 3607 4822 051 20562 5k6 5% 0.1W 3607 4822 117 10833 10k 1% 0.1W 3608 4822 051 20471 470Ω 5% 0.1W 3609 4822 117 11454 820Ω 1% 0.1W 3610 4822 051 20471 470Ω 5% 0.1W 3611 4822 051 20822 8k2 5% 0.1W 3612 4822 117 11503 220Ω 1% 0.1W 3613 4822 051 20332 3k3 5% 0.1W 3614 4822 051 20332 3k3 5% 0.1W 3615 4822 117 11454 820Ω 1% 0.1W 3616 4822 117 12167 8k2 X 12 3617 4822 116 90885 8k2X6 3618 4822 051 20561 560Ω 5% 0.1W 3619 4822 051 20471 470Ω 5% 0.1W 3620 4822 050 12403 24k 1% 0.4W 3622 4822 051 20101 100Ω 5% 0.1W 3623 4822 051 20101 100Ω 5% 0.1W 3624 4822 117 13649 2k2 5% 7X Netw 3625 4822 051 20101 100Ω 5% 0.1W 3626 4822 051 20101 100Ω 5% 0.1W 3628 4822 116 52175 100Ω 5% 0.5W 3629 4822 051 20472 4k7 5% 0.1W 3630 4822 116 52269 3k3 5% 0.5W 3631 4822 117 11449 2k2 1% 0.1W 3632 4822 051 20472 4k7 5% 0.1W 3633 4822 116 52264 27k 5% 0.5W 3634 4822 051 20562 5k6 5% 0.1W 3635 4822 117 10361 680Ω 1% 0.1W

3636 4822 126 14043 1UF +80-20% 16V 3639 4822 117 10353 150Ω 1% 0.1W 3640 4822 051 20471 470Ω 5% 0.1W 3640 4822 117 11504 270Ω 1% 0.1W 3641 4822 051 20471 470Ω 5% 0.1W 3641 4822 117 11504 270Ω 1% 0.1W 3642 4822 051 20471 470Ω 5% 0.1W 3642 4822 117 11504 270Ω 1% 0.1W 3643 4822 117 10833 10k 1% 0.1W 3644 4822 117 10833 10k 1% 0.1W 3645 4822 051 20101 100Ω 5% 0.1W 3646 4822 051 20101 100Ω 5% 0.1W 3650 4822 051 20564 560k 5% 0.1W 3651 4822 051 10102 1k 2% 0.25W 3652 4822 117 11148 56k 1% 0.1W 3653 4822 051 20471 470Ω 5% 0.1W 3654 4822 051 20105 1M 5% 0.1W 3655 4822 116 52234 100k 5% 0.5W 3656 4822 050 11002 1k 1% 0.4W 3656 4822 116 52256 2k2 5% 0.5W 3657 4822 050 11002 1k 1% 0.4W 3657 4822 116 52256 2k2 5% 0.5W 3658 4822 050 11002 1k 1% 0.4W 3658 4822 116 52256 2k2 5% 0.5W 3670 4822 117 11449 2k2 1% 0.1W 3680 4822 117 10361 680Ω 1% 0.1W 3681 4822 117 11449 2k2 1% 0.1W 3682 4822 116 52303 8k2 5% 0.5W 3683 4822 051 20101 100Ω 5% 0.1W 3684 4822 051 20332 3k3 5% 0.1W 3685 4822 117 11503 220Ω 1% 0.1W 3707 4822 117 10834 47k 1% 0.1W 3709 4822 051 20273 27k 5% 0.1W 3710 4822 051 20472 4k7 5% 0.1W 3712 4822 116 83884 47k 5% 0.5W 3713 4822 116 52245 150k 5% 0.5W 3950 4822 051 20273 27k 5% 0.1W 3953 4822 051 20332 3k3 5% 0.1W 3971 4822 117 11504 270Ω 1% 0.1W 3972 4822 051 10102 1k 2% 0.25W 3974 4822 051 10102 1k 2% 0.25W 3974 4822 051 20008 0Ω jumper 3976 4822 116 83933 15k 1% 0.1W 3977 4822 051 20008 0Ω jumper 3978 4822 051 20008 0Ω jumper 4xxx 4822 051 10008 0Ω 5% 0.25W 4xxx 4822 051 20008 0Ω 5% 0.25W

b

5004 4822 157 71694 0,82µH 10% 5100 4822 157 11813 3.3µH 5% 5101 4822 157 11813 3.3µH 5% 5202 4822 157 11893 3.0µH 5245 4822 526 10704 100mH z 5260 4822 157 71401 27µH 5401 4822 157 53995 Coil 5404 2422 535 94644 47µH 5404 4822 157 11894 56µH 10% 5405 4822 157 11441 22µH 5% 5408 4822 157 11441 22µH 5% 5408 4822 157 71401 27µH 5410 4822 157 71401 27µH 5444 3112 338 30882 Line drive trafo

4822 140 10669 Line Output Trafo

5445

h

4822 157 11399 30mH

5501

h

5502 4822 526 10704 100MHz 5516 4822 157 60171 Bead coil 5521 4822 157 62552 2.2µH 5540 4822 157 11835 4.7µH 5%

4822 140 10668 Power trafo 14"

5545

h

4822 140 10671 Power trafo 20",21"

5545

h

5550 4822 157 60171 Bead coil 5551 4822 157 71401 27µH 5552 4822 526 10704 100mH z 5570 4822 526 10704 100mH z 5571 4822 157 50961 22µH 5573 4822 157 60171 Bead coil 5603 4822 157 11139 6.8µH 5% 5604 4822 157 10977 4.7µH 10% 5604 4822 157 11895 4.7µH 10% 9103 4822 157 11235 Coil

d

6003 4822 130 83757 BAS216 6004 4822 130 83757 BAS216 6005 4822 130 30621 1N4148 6006 4822 130 30621 1N4148 6007 4822 130 34142 BZX79-B33

Spare parts list

GB 63L9H.2E 10.

6008 4822 130 10414 BA792 6009 4822 130 10414 BA792 6107 4822 130 10852 BZX284-C6V8 6211 4822 130 31983 BAT85 6212 4822 130 30621 1N4148 6213 4822 130 30621 1N4148 6214 4822 130 30621 1N4148 6215 4822 130 30621 1N4148 6216 4822 130 10256 EGP20DL-5300 6400 4822 130 30621 1N4148 6401 4822 130 30621 1N4148 6402 4822 130 42488 BYD33D 6404 4822 130 32896 BYD33M 6405 4822 130 42488 BYD33D 6406 4822 130 30621 1N4148 6409 4822 130 42488 BYD33D 6410 4822 130 42488 BYD33D 6412 4822 130 42488 BYD33D 6413 4822 130 34197 BZX79-B12 6414 4822 130 83757 BAS216 6415 4822 130 83757 BAS216 6418 4822 130 30621 1N4148 6419 4822 130 30621 1N4148 6431 4822 130 30842 BAV21 6432 4822 130 30621 1N4148 6435 4822 130 83757 BAS216 6440 4822 130 83757 BAS216 6460 4822 130 42488 BYD33D 6461 4822 130 34379 BZX79-B27 6502 4822 130 31083 BYW55 6503 4822 130 31083 BYW55 6504 4822 130 31083 BYW55 6505 4822 130 31083 BYW55 6507 4822 130 42606 BYD33J 6508 4822 130 42606 BYD33J 6537 4822 130 30842 BAV21 6540 4822 130 30842 BAV21 6550 4822 130 10218 BY229X-800 6560 4822 130 10871 SBYV27-200 6570 4822 130 10256 EGP20DL-5300 6600 4822 130 11366 BZX284-C3V9 6601 4822 130 10852 BZX284-C6V8 6612 4822 130 34278 BZX79-B6V8 6669 4822 130 34233 BZX79-B5V1 6669 5322 130 31504 BZX79-B3V3

4822 130 10859 TLDR5400

6680

h

6953 4822 130 10756 BZX284-C2V7

ce

7000 4822 130 60511 BC847B 7001 4822 130 60511 BC847B 7002 4822 130 60511 BC847B 7010 4822 209 90008 L78M05CP 7130 5322 130 42755 BC847C 7131 5322 130 42755 BC847C 7132 5322 130 42755 BC847C 7133 5322 130 42755 BC847C 7140 4822 130 60511 BC847B 7250 4822 209 16775 TDA8842/N2/S1 7254 5322 130 42755 BC847C 7256 4822 130 60511 BC847B 7266 4822 130 60511 BC847B 7400 4822 130 41782 BF422 7401 4822 130 60373 BC856B 7402 4822 130 11575 BUT11APX 7431 4822 130 60373 BC856B 7460 4822 209 13176 TDA9302H 7469 4822 130 60511 BC847B 7518 4822 130 10806 STP6NA60FI 7518 4822 130 63787 STP4NA60FI 7520 4822 209 15684 MC44603AP 7600 3111 250 54420 SAA5543PS/M2 OTP (basic

7600 3111 250 54430 SAA5563PS/M2 OTP (basic

7600 t.b.f. OTP for SYSTEM 7601 4822 209 14928 ST24W16B6 7602 4822 130 41109 BD135-16 7605 4822 130 60511 BC847B 7607 5322 209 60154 NE555D 7608 4822 209 73852 PMBT2369 7609 4822 130 60511 BC847B 7610 4822 130 60511 BC847B 7611 4822 130 60511 BC847B 7612 4822 130 41109 BD135-16 7620 4822 130 40959 BC547B 7621 4822 130 60511 BC847B 7680 4822 218 12055 TSOP2836UH1 7703 4822 130 60511 BC847B

no TXT)

plus with TXT)

7704 4822 130 60511 BC847B 7705 4822 209 31555 TDA9830/V1 7951 4822 130 60511 BC847B 7953 4822 209 90462 TDA7056B/N1 7956 4822 130 60373 BC856B

CRT Panel [B]

Various

1015 3139 178 03361 CRT panel compl. 14" 1015 3139 178 03351 CRT panel compl. 20" 1015 3139 178 66531 CRT panel compl. 21"

4822 267 20466 Conn. 9P

0254

h

g

2313 4822 122 33216 270pF 5% 50V 2313 4822 122 33575 220pF 5% 63V 2323 4822 122 33172 390pF 5% 50V 2323 5322 122 32268 470pF 10% 50V 2331 4822 122 33172 390pF 5% 50V 2331 5322 122 31863 63V 330pF

4822 126 14588 2.2nF 10% 1KV

2341

h

2342 4822 121 43526 47nF 5% 250V 2343 4822 121 43526 47nF 5% 250V

f

3311 4822 051 10102 1k 2% 0.25W 3312 4822 117 13577 330Ω 1% 1.25W 3313 4822 051 20109 10Ω 5% 0.1W 3314 4822 053 12183 18k 5% 3W

4822 052 10221 220Ω 5% 0.33W

3316

h

3317 4822 052 11152 1k5 5% 0.5W 3321 4822 051 10102 1k 2% 0.25W 3322 4822 117 13577 330Ω 1% 1.25W 3323 4822 051 20109 10Ω 5% 0.1W 3324 4822 053 12183 18k 5% 3W

4822 052 10221 220Ω 5% 0.33W

3326

h

3327 4822 052 11152 1k5 5% 0.5W 3331 4822 051 10102 1k 2% 0.25W 3332 4822 117 13577 330Ω 1% 1.25W 3333 4822 051 20109 10Ω 5% 0.1W 3334 4822 053 12183 18k 5% 3W

4822 052 10221 220Ω 5% 0.33W

3336

h

3337 4822 052 11152 1k5 5% 0.5W 3341 4822 052 11152 1k5 5% 0.5W

4822 052 10102 1k 5% 0.33W

3347

h

3348 4822 052 11152 1k5 5% 0.5W

4822 052 10128 1Ω2 5% 0.33W

3349

h

3350

4822 052 10128 1Ω2 5% 0.33W

h

b

5341 4822 157 50961 22µH 5342 4822 526 10704 100mH z

d

6311 4822 130 30842 BAV21 6321 4822 130 30842 BAV21 6331 4822 130 30842 BAV21 6341 4822 130 30842 BAV21 6342 4822 130 30621 1N4148 6343 4822 130 11666 BZX284-C8V2

ce

7311 4822 130 41782 BF422 7312 4822 130 41782 BF422 7313 4822 130 41646 BF423 7321 4822 130 41782 BF422 7322 4822 130 41782 BF422 7323 4822 130 41646 BF423 7331 4822 130 41782 BF422 7332 4822 130 41782 BF422 7333 4822 130 41646 BF423

EPS Panel [F]

Various

1073 3139 178 53121 EPS Panel compl.

Clock Panel [G1]

Various

1072 3119 108 51861 Clock panel compl.

Radio-SP/LS-Vbat [H1]

Various

1070 3119 108 51851 Radio-SP/LS-Vbat Panel

0002 4822 265 30734 Conn. 4P 0215 2422 025 12488 Conn. 2P 0237 2422 025 16381 Conn. 2P 0238 2422 025 06353 Conn. 5P 0239 2422 025 16264 Conn. 7P 0240 2422 025 16264 Conn. 7P 0247 4822 267 10565 Conn. 4P 0255 4822 265 30735 Conn. 5P 0264 2422 025 16379 Conn. 2P 1901 t.b.f. Radio FM Tuner

4822 252 51169 Fuse 250mA

1920

h

1940 3119 100 21211 Jack Conn. Hosiden HSJ70 1950 3119 100 21221 Jack RJ11 Molex 95001-2

g

2901 4822 124 81151 22µF 50V 2902 4822 124 40248 10µF 20% 63V 2903 4822 124 40248 10µF 20% 63V 2904 4822 124 81151 22µF 50V 2905 4822 124 40248 10µF 20% 63V 2906 5322 122 32268 470pF 10% 50V 2907 5322 122 32268 470pF 10% 50V 2908 4822 124 40756 1µF 20% 100V 2909 4822 124 41751 47µF 20% 50V 2910 4822 124 81151 22µF 50V 2920 4822 124 40248 10µF 20% 63V 2930 5322 122 32268 470pF 10% 50V 2941 5322 122 32818 2.2nF 10% 100V 2942 4822 121 70621 100nF 5% 50V

f

3901 4822 050 11002 1k 1% 0.4W 3902 4822 116 83933 15k 1% 0.1W 3904 4822 050 11002 1k 1% 0.4W 3905 4822 051 10102 1k 2% 0.25W 3906 4822 116 83961 6k8 5% 3907 4822 116 83933 15k 1% 0.1W 3908 4822 051 20472 4k7 5% 0.1W 3909 4822 117 13579 220k 1% 0.1W 3910 4822 116 52186 22Ω 5% 0.5W 3911 4822 117 10834 47k 1% 0.1W 3912 4822 117 10834 47k 1% 0.1W 3913 4822 050 23303 33k 1% 0.6W 3914 4822 050 23303 33k 1% 0.6W 3915 4822 117 13579 220k 1% 0.1W 3916 4822 116 83872 220Ω 5% 0.5W 3917 4822 051 10102 1k 2% 0.25W 3918 4822 050 21003 10k 1% 0.6W 3919 4822 050 21003 10k 1% 0.6W 3925 4822 116 52269 3k3 5% 0.5W 3926 4822 116 52269 3k3 5% 0.5W 3927 4822 116 52269 3k3 5% 0.5W 3928 2322 257 41332 3.3k.5%.5W.Metaloxide 3930 4822 117 10837 100k 1% 0.1W 3931 4822 051 20472 4k7 5% 0.1W 3934 4822 117 10833 10k 1% 0.1W 3942 4822 116 52175 100Ω 5% 0.5W 3943 4822 050 21003 10k 1% 0.6W 3944 4822 050 21003 10k 1% 0.6W 3945 4822 050 21003 10k 1% 0.6W 3946 4822 116 52175 100Ω 5% 0.5W 3947 4822 116 52175 100Ω 5% 0.5W

d

6901 4822 130 31253 BZX79-C2V4 6925 4822 130 34488 BZX79-B11 6945 4822 130 34173 BZX79-B5V6 6946 4822 130 34173 BZX79-B5V6 6947 4822 130 34173 BZX79-B5V6

compl.

GB 64 L9H.2E10.

ce

7901 5322 209 10576 HEF4053BD 7903 4822 209 17284 TDA1308 7904 4822 209 63896 PCF8574AP 7920 4822 209 90008 L78M05CP 7925 4822 130 41782 BF422 7930 4822 130 60511 BC847B 7940 4822 130 40959 BC547B

SP/LS/Vbat[see also H1]

Various

1070 3119 108 51901 SP/LS-Vbat Panel compl. 0215 2422 025 12488 Conn. 2P 0237 2422 025 16381 Conn. 2P 0238 2422 025 06353 Conn. 5P 0239 2422 025 16264 Conn. 7P 0240 2422 025 16264 Conn. 7P 0247 4822 267 10565 Conn. 4P 0255 4822 265 30735 Conn. 5P

4822 252 51169 Fuse 250mA

1920

h

1940 3119 100 21211 JACK Hosiden HSJ70 P1-6 3119 100 21221 RJ11 Conn. Molex 95001-2

g

2920 4822 124 40248 10µF 20% 63V 2930 5322 122 32268 470pF 10% 50V 2941 5322 122 32818 2.2nF 10% 100V 2942 4822 121 70621 100nF 5% 50V

f

3925 4822 116 52269 3k3 5% 0.5W 3926 4822 116 52269 3k3 5% 0.5W 3927 4822 116 52269 3k3 5% 0.5W 3928 2322 257 41332 3K3 5% 5W Metaloxide 3930 4822 117 10837 100k 1% 0.1W 3931 4822 051 20472 4k7 5% 0.1W 3934 4822 117 10833 10k 1% 0.1W 3942 4822 116 52175 100Ω 5% 0.5W 3943 4822 050 21003 10k 1% 0.6W 3944 4822 050 21003 10k 1% 0.6W 3945 4822 050 21003 10k 1% 0.6W 3946 4822 116 52175 100Ω 5% 0.5W 3947 4822 116 52175 100Ω 5% 0.5W

d

6925 4822 130 34488 BZX79-B11 6945 4822 130 34173 BZX79-B5V6 6946 4822 130 34173 BZX79-B5V6 6947 4822 130 34173 BZX79-B5V6

ce

7920 4822 209 90008 L78M05CP 7925 4822 130 41782 BF422 7930 4822 130 40959 BC547B 7940 4822 130 40959 BC547B

SP/LS Panel [I]

Various

1070 3139 178 08542 SP/LS Panel compl.

Spare parts list

1215 2422 025 16343 Conn. 2P 1227 2422 025 16385 Conn. 4P 1237 4822 267 10565 Conn. 4P 1238 4822 267 10734 Conn. 5P 1259 2422 025 16383 Conn. 3P 1700 4822 252 51169 Fuse 250mA 1775 3139 120 20420 Conn. 1P 1800 3135 010 03531 Conn. 32P SD-52613-**27

g

2700 4822 126 13751 47nF 10% 63V 2701 4822 126 14585 100nF 10% 50V 2702 4822 126 14043 1µF 20% 16V CASE 2703 4822 126 14043 1µF 20% 16V CASE 2704 4822 126 14043 1µF 20% 16V CASE

f

3700 4822 117 10833 10k 1% 0.1W 3701 4822 117 10833 10k 1% 0.1W 3702 4822 117 11927 75Ω 1% 0.1W 3703 4822 117 11927 75Ω 1% 0.1W 3704 4822 051 20683 68k 5% 0.1W 3705 4822 051 20223 22k 5% 0.1W 3706 4822 051 20223 22k 5% 0.1W 3707 4822 051 20223 22k 5% 0.1W 3708 4822 051 20562 5k6 5% 0.1W 3711 4822 051 20472 4k7 5% 0.1W 3712 4822 117 10833 10k 1% 0.1W 3713 4822 051 20472 4k7 5% 0.1W 3714 4822 051 20472 4k7 5% 0.1W 3715 4822 117 10833 10k 1% 0.1W 3716 4822 117 10834 47k 1% 0.1W 3717 4822 117 10833 10k 1% 0.1W 3718 4822 051 20101 100Ω 5% 0.1W 3719 4822 117 10361 680Ω 1% 0.1W 3720 4822 051 10102 1k 2% 0.25W 3721 4822 117 11927 75Ω 1% 0.1W 3722 4822 117 11454 820Ω 1% 0.1W 4xxx 4822 051 10008 0Ω 5% 0.25W 4xxx 4822 051 20008 0Ω 5% 0.25W

b

5705 4822 157 11235 Coil

d

6700 4822 130 11666 BZX284-C8V2 6701 4822 130 11666 BZX284-C8V2 6702 4822 130 11666 BZX284-C8V2 6703 4822 130 11666 BZX284-C8V2 6704 4822 130 11666 BZX284-C8V2 6705 4822 130 11666 BZX284-C8V2 6706 4822 130 11666 BZX284-C8V2 6707 4822 130 11666 BZX284-C8V2 6710 4822 130 83757 BAS216 6711 4822 130 42488 BYD33D 6712 4822 130 42488 BYD33D

ce

7700 4822 130 60511 BC847B 7701 4822 130 60511 BC847B 7702 4822 130 60511 BC847B 7703 4822 130 60511 BC847B 7704 4822 130 60373 BC856B 7705 4822 130 60373 BC856B 7706 4822 130 60511 BC847B 7707 4822 130 60511 BC847B 7710 9322 119 29685 DS1813

Interface Panel [J]

Various

1074 3119 108 52001 Interface Panel compl. 0214 2422 025 16382 Conn. 3P 0216 4822 267 10565 Conn. 4P 0219 2422 025 15848 Conn. 5P 0228 2422 025 16407 Conn. 3P 0236 2422 025 16384 Conn. 4P 0237 4822 267 10565 Conn. 4P 0238 2422 025 16387 Conn. 5P 0241 2422 025 16386 Conn. 5P 0259 2422 020 00725 Conn. 3P

Spare parts list

GB 65L9H.2E 10.

Wiring diagram, blockdiagram, supply diagram and testpoints

6. Wiring diagram, blockdiagram, supply diagram and testpoints

Wiring diagram system

MAIN CHASSIS CRT EPS (External Power Supply)

0165

0245

0244

0236

0237

0238

0212

0219

21L9H.2E 6.

0259

02130211

0211

0228

LEFT

RIGHT

SP/LS SMART LOADER BATHROOM SPEAKER

0259

0238

SP LP

J3J0259

0240

0240 0239

0215

0216

0243

0214

0227

0241

0222

0221

0220

SMART CARD INTERFACE

J0215

J219 J214

J213

J1259

J0259

J0238

J1238

J1215

J236

J1227

J216

J1237

J0241

J1237

LINE

FRAME

CLOCK PANEL

DEGAUSSING COIL

DP1

CL 06532004_009.eps

130100

Wiring diagram, blockdiagram, supply diagram and testpoints

22L9H.2E 6.

I2C bus

IIC BUS INTERCONNECTION DIAGRAM

CONTROL

A7

7600

µC

+5VD

3622

50

3623

49

3624-C4

SDA

SCL

3624-C5

+5VD

3626

56

EEPROM

1-0237

2-0237

3625

7601

H1

3811

RADIO

+5VE

3919

3810

15 14

7904

PCF8574A

I/O

EXPANDER

A5

3001

RADIO CLOCK

+5VE

3918

1-0247

2-0247

TUNER + VIDEO/IF

3000

54

1000

TUNER

G1

1-DP1

2-DP1

3956

CLOCK DISPLAY

3955

23 24

7951

SAA1064

LED-DRIVER

VIDEO

A6

PROC.

3248783247

7250

TD8844

VIDEO

PROC.

a

4-0238

3-0238

1-0238

CLOCK

(NON SYSTEM)

SP/LS Vbat

H1

1950

SMART

PLUG

1Clock

2

Data-in

Data-out

5

Supply voltages

SUPPLY VOLTAGE DIAGRAM (FOR SYSTEM SETS)

POWER SUPPLY

A1

5545

14

13

POWER

TRAFO

SMPS

F

10

11

(PRESENT FOR

2W/3W AUDIO)

6550

5550

5570 (PRESENT FOR IN AUDIO)

5572

VBATT (MAIN SUPPLY 95V)

6560

1572

800mA

1571

T1.6A

6570

2561

PRESENT FOR SYSTEM SETS)

MAIN AUX

V

AUX

4510

(4510 NOT

2571

5571

AUDIO

SUPPLY

10V/14VA

0241

1

5

TUNER + VIDEO IF

A5

3002

3003

6007

-/C33

LINE DEFLECTIONA2

MAIN AUX

A7

V

AUX

A5

9507

To 3435

CONTROL

3601 3600

V

AUX-1

3602 3603

TUNER + VIDEO IF

AUDIO SUPPLY 10V/14VA

TO (9-1000) TUNER

2008

5601

3.3VD

7602

2600 2604 2605

5602

6600

-/3V9

7612

2601

6601

-/3V9

2606

FOR SYSTEM SETS ONLY USED FOR µC AND NVM SUPPLY

+5D

FRONT CONTROL

A8

SMART SOUND + MONO

A10

SOUND AMPLIFIER

2955

HORIZONTAL

DEFLECTION

(SEE DIAGRAM

FOR NON SYSTEM

SETS)

3V3A

3V3B

+5VD +5VD

FOR SYSTEM SETS ONLY

AUDIO SUPPLY 10V/14VA

TO

A2

0259

3645

52

3644

51

+5VD +5VD +5VD

3616-I10 3617-D5

CLOCK

9

D-IN

17

D-OUT

18

SDA2

SCL2

+5VD+5VD

3624-B3

3624-A2

3617-C4

a

1-0237

2-0237

4-0238

3-0238

1-0238

SMART CARD

J

INTERFACE

1-1237

2-1237

3-0238

4-0238

32-pole

SMART

2-0238

15 SDA2

14 SDL2

PLUG

7

8

9

4-1238

3-1238

2-1238

ONLY FOR

BASIC

SYSTEM

CLOCK

DCM DATA

TV DATA

4-0238

3-0238

1-0238

SMART CARD

µC ON SMART

CARD

SMART

I

LOADER

SMART

PLUG

1Clock

2

Data-in

Data-out

5

CL 06532004_004.eps

130100

FOR SYSTEM SETS ONLY

EPS (EXTERNAL POWER SUPPLY)

F

T1

CR2

B

A1

POWER

TRAFO

CR1

C

IC4

2

STABILISER

C11 C35

1

L5

C21 C23

+12V

3

1

0228

SMART CARD INTERFACE

J

0228

3

1

1700

250mA

6711 6712

+12Veps

+5Vchas

+5Veps

+5Vchas

+5Veps

+12Veps

+5Veps

0259

0241

1

5

1237

3

0259

1

0237

3

1800

3

10

DCM CONNECTOR

CONTROL

A7

0237

3

+5VD

SP/LS

I

0259

1

+5V

CLOCK DISPLAY

G1

0259

3

+5V

CL 06532004_002.eps

100100

Wiring diagram, blockdiagram, supply diagram and testpoints

Supply voltage

SUPPLY VOLTAGE DIAGRAM

POWER SUPPLY

A1

5545

6550

5550

14

13

POWER

TRAFO

SMPS LOT

(PRESENT FOR IN AUDIO)

5570

10

5572

11

(PRESENT FOR

2W/3W AUDIO)

VBATT (MAIN SUPPLY 95V)

6560

1572

800mA

1571

T1.6A

0255

1

MAIN AUX

2561

V

*

AUX

4510

NOT PRESENT

*

IN "RADIO" AND

"SYSTEM" SETS

6570

2

0241

3

2571

4

5571

SUPPLY

10V/14VA

5

AUDIO

TUNER + VIDEO IF

A5

3002

3003

6007

-/C33

LINE DEFLECTIONA2

MAIN AUX

A7

CONTROL

V

AUX

TUNER + VIDEO IF

A5

9507

V

AUX-1

To 3435

3601 3600

3602 3603

AUDIO SUPPLY 10V/14VA

7602

7612

2008

6600

-/3V9

6601

-/3V9

TO (9-1000) TUNER

5601

3.3VD

2600 2604

5602

2606

+5D

2601

23L9H.2E 6.

3V3A

2605

3V3B

FRONT

A8

CONTROL

+5VD

SMART SOUND + MONO

A10

SOUND AMPLIFIER

AUDIO SUPPLY 10V/14VA

2955

+5D

1

0259

A2

SUPPLY 95V

FOR BASIC SETS

SP/LS

I

0259

1

+5V

HORIZONTAL DEFLECTION

MAIN

2552

5551

2409

ON to

A2

3400 3431 3433 6431

5445

2

7

EHT FOCUS VG2

3416

6409

9 filement

ON to

6402

5

6

6410

4

9403

3417

+160 160V

2413

A2

6406 6418

2410

2414

0220

3

2

V

LOT AUX

ON to

A2

C-6406

-13V

ON to

A2

A-6403

V

LOT AUX

13V

5V

CRT

B

EHT FOCUS VG2

0244

A3

0240

4

A5

A13

ANODE CRT FOCUS VG2

3

3349

2

TO CRT

FILEMENT

3350

VERTICAL DEFLECTION

V

LOT AUX +

13V

TUNER + VIDEO IF

7010

LM7805

1

3

+5VA

2

REAR I/O SCART

3316

3326

3336

-13V

C-7312

C-7322

C-7332

to 2-7460

to 4-7460

to (6-1000) TUNER

+5VA

RADIO + SP/LS + Vbat

H1

OR SP/LS + Vbat

0244

1

2

3

4

5

LM7805

I

1920

7520

O

Vbat (for radio tuning)

+5E

3

0247

CLOCK DISPLAY

G1

0247

3

+5V

SYNCHRONISATION

A4

5405

VIDEO PROCESSING

A6

SMART SOUND + MONO

A10

SOUND AMPLIFIER

REAR I/O SCART

A13

V

LOT AUX

V

LOT AUX

V

LOT AUX

V

LOT AUX

3411

6412

3

2415

TUNER + VIDEO IF

A5

8V

3207

8V

ON to

2207

V

LOT

C-6400

8V

A2

V

LOT AUX

8V

+8VA

(BIMOS SUPPLY)

SYNCHRONISATION

A4

+8VA

CL 06532004_003.eps

130100

Wiring diagram, blockdiagram, supply diagram and testpoints

Blockdiagram

24L9H.2E 6.

REAR I/O SCART

A15

CVBS_TERR

A5

A6

OUT L (MONO)

A5,A10

A10

RADIO-SP/LS-Vbat

H1

0255

3

5

Vbat

1

0237

SDA2

196

211

SCL2

TUNER / IF / VIDEO DETECTOR

A5

VLOT

AUX+5V

ERR

1000

I6 I5

SDAA7

A7 SCL

POWER SUPPLY

A1

0231

150-276V SINGLE RANGE

7520 MC44603A

OSC

2.5V

14

HOT GROUND

EPS (EXTERNAL SUPPLY)

F

SCART 1

21

19

17

EXT1R

15

13

11

EXT1G

9

EXT1B

7

5

AUDIO

3

1

AUDIO OUT R

FOR SP/LS SEE

Vbat

7920-LM7805

1920

RADIO

7904 PCE8574A

I/O

EXPANDER

7010 L78M05

2

11

TUNER

49

5

1500

T 4 AL

1

BUFFER

CURRENT

SENSE

4

VBATT

3540

ADJ

A5

6

31

5500 5501

P3

3935

7

M

1

33V

3

7 8

3520

2

3528

20

18

16

14

12

10

8

6

4

2

6007

-/33V

1901

TUNER

11

6502:6505

EXT1VIDEO

EXT1FB

P4SCART FRONT EXT1

FRONT EXT1/ AUDIO R

I

+5VE

8

FM

I1

RF-AGC

3002

-

AC

3538

6925 BZX79C12

7903 TDA1308

2

DC

2540

2537

A6

A7 A5

A5

3525

SP/LS

I

SMART PLUG LOADER

BATHROOM SPEAKER CONNECTION

7

7250-A TDA 8842

1003

48 49

38,9

54

VBATT A1

P1

2508

P2

G

7518

STP6NA60

3518

1

6540

2

6537

IC1

CONTROL

1

U1

Clock

Data-in

+5V

Data-out

Ground

IR-data

RJI1

7901 HEF4053B

2

1

IF

5545

D

S

P11

IC2

TV

VIDEO

14

16

13

15

10

11

12

T1

1 2 3 4 5 6

DET

15

V

LOT AUX 8V

5573

PRESENT

2X2W

5570

5572

PRESENT

1X2W

GR2 GR1

0264

SMART CARD INTERFACE

J

32 PIN

0238

1 2 3 4 5 6

J3

1

2

4

2

1

A9

IF

2

3207

+8VA

12

3204

7266

6

I2

3206

6550

5550

1572

6560

800mA

1571

T1.6A

+5Vchas

IC4

SMART CARD CONNECTOR

VIDEO

AUDIO

IIC2

RESET

RESET FOR µC ON A7

Spk +

Spk -

0241

INTERFACE

CIRCUITS

Vaux

3

RESET

FORMER

AM MONO DEMODULATOR (FOR BG/I/LL'ONLY)

EXT AUDIO

1701

2561

6570

2571

+12Veps

7705 TDA 9830

16

A1

VIDEO OUT

5202

1200

5.5MHz

CVBS_INT

1201

6MHz

P4

MAIN SUPPLY 9.5V

P5

4510 NOT PRESENT IN SYSTEM SETS

4510

P4

5571

0241

1

2

3

4

5

0228

+12V

3

2

+5V

1

SOUND

AM

DEM.

A2

SIF

A5

A12

+VBATT

MAIN AUX

V AUX

(µP SUPPLY)

AUDIO SUPPLY

10V/14V

From 0241

J

(SMART CARD

INTERFACE)

To

0228

J

6

7703 7704

A6

CVBSTXT

A7

EXT1

VIDEO

A13

V1

A4

HFLYBK

A2

ABL INFO

A2

HEW_PROTN

A2

G1

SDA

SCL

9

7

8

3710

AUDIO MONO

VIDEO PROCESSING

7256

7250-B TDA8844

17 13

SYNC

7250-D TDA8844

SYNC

41

S1

CLOCK DISPLAY

7951 SAA1064

23

LED DRIVER 4x LED

24

MONO

A15

FM, AM EXT.

FM AUDIO

MONO

A5

A12

EXT2

EXT2C

38

10 11

VIDEO OUT

CVBS

Y/C

SWITCH

35 34

1205

4.43

G

50kHz

50

3423

VIDEO/Y

5205

16kHz

E/W

VERT. DRIVE

SMART SOUND + MONO AMPLIFIER

A10

(ONLY MONO SETS)

7951:7955

A9

SMART SOUND

MONO

BASS

TREBLE

FRONT HEADPHONE

A11

AUDIO FM DEMODULATOR

A5

(ONLY FOR MONO SETS)

4,5 MHz

1001

5,5 MHz 6,0 MHz

SIF

1002

A5

6,5 MHz

Y-DELAY

R-Y

PAL/NTSC

SECAM

B-Y

DECODER

1208

3.579

+8VA

37

H-DRIVE

G

A7

40

S2

45

S4 47 46

S3

-

DELAY

7953 TDA 7052B (2,3,4 W) 7954 TDA 7056B (1W)

3

A3

7250-A TDA 8844

FM

AUDIO

DET

I3

A7

V2

V3

28

Y

V4

29

U

30

V

EXT1B

EXT1R

EXT1G

A12

HORIZONTAL DEFLECTION

A2

5551

VBATT

3400

7400

L1

BF422

H-DRIVE µC

A7

HFLYBK

A4

VERTICAL DEFLECTION

A3

VDRIVE-

VDRIVE+

3461

3462

VLOT AUX +11V

F1

BASE BAND

1

6

A5

8

A4

VOLUME

MONO

HP

7250-C TDA 8844

27

31 32

23 24 25 26

EXT1FB

5444

TDA9302H

F2

2

RGB

MATRIX

RGB

INPUT

R G B

R-TXT OSD

24092551

7402

BU1508DX

L2

3404

7460

A7

I4

A7A7

SCL

V9 V10

7

R

CONTROL

G

CATHODE

B

CALIBRA-

6212

B-TXT OSD

G-TXT OSD

FB-TXT OSD

A7

6460

2

7

+

OP. AMP

1

-

3407

15

EXT AUDIODUAL / MONO

SDA

8

RGB

TION

22

L3

6

4

MONO

A10

A15

ERR5ERR

+

R G B

18

V8

6434

6404

3405

6461

2464

3

VLOT AUX

-13V

6

21 20 19

5

FRONT

A8

CONTROL

6680 LTL-307 X

7680 GP1U 280P

LOCAL

KEYBOARD

FOR SYSTEM SETS

J

Vaux

7605

uPreset

FORMER

FOR NON SYSTEM SETS

BCL_PROTN

HDRIVE

A4

7607 NE555D

LINE

63

DRIVE

START UP

CIRCUIT

HDRIVE µC

A2

V5

0243 0245

V6

V7

ERR

12

ABL INFO

A2

6409

0221

2440

3406

F4

V_GUARD

F5

0 222

1

F5

2

3401

LED

A7

IR RECIEVER

RC5

A7

7611, 7620, 7621

PROT.

CIRCUIT

7608

B

1 2 3 4 5 6

+160V

3416

2413

A7

VERT. DEFL. COIL

RESET

HORDEFLCOIL

A7

A10,D2

A7

CRT

V11

V12

V13

BLKCURINFO

+160

2

7

1

CONTROL

BUZZER (N.A) VOLUME + W_DISABLE

A7

BASS

A10

DUAL/MONO

A5

EXT 1/2

A5

TREBLE

A10

SCART PIN8

A13

0605

A13

RF/VIDEO 2 SWITCHING

KEY BD 1 KEY BD 2 KEY BD 3

STANDBY

A5

LED

A8

AV MUTE

A13

CVBS TXT

A6

7311:

-

7313

0244

0220

5445

10 11 12 13

14 15 16

17 18 19 20 21

22 23 24 25 26

3316 3326 3336

7321:

-

7323

7331:

-

7333

FILEMENT

3 2 1

FOCUS VG2

8

6402

5

3409

6410

11

6412

3

3411

10

9

6405

6403

6406

3412

1 2 3 4 5 6 7 8 9

7600 SAA

CVBS

3417

µC

ERR

P2

P3

ERR

8

HSYNC

P0

R

G B

VLOT AUX 13V

+

ERR9ERR

+

10

7601

EEPROM

4

7

52 51

C2

50

7

49

P1

48 47 46 45 44

C4

43

RESET

42 41 40 39 38 37

VSYNC

36 35

VDS

34

R

33

G

32

B

31 30

29 28 27

V14

V15

V16

3415

2410

2414

L6

2415

L7

2417

2411

+160V

7401

PROT

CIRCUIT

L4

L5

R

G

B

+3V2

C1

+3V3

SDA SCL

33503349

C3

SYS1/AM

VD HD

FB_TXT_OSD

R_TXT G_TXT_OSD B_TXT_OSD

LLP\M TRAP

G2

V

BCL_PROTN

ABLINFO

VLOTAUX 13V

VLOTAUX 5V

A3 VLOTAUX+8V

FILEMENT

VLOTAUX+13V

6415

HEW_PROTN

CL 06532004_001.eps

W_DISABLE

SDA SCL

VD

RC5

RESET

X - TAL 12MHz

7609

V-GUARD

7608

OSD

_

0267

1 2 3

V FOCUS

ERR

2

A5,A6,D1 A5,A6,D1 A9

A8

A7

ERR

HFLYBK

A6 A6 A6 A6

A5

FOR COMPAIR

CRT

25kV

EHT

A7

A4

130100

A7

3

A3

A2

Wiring diagram, blockdiagram, supply diagram and testpoints

25L9H.2E 6.

Waveform Overview

P1

50V / div DC

5ms / div

P1

300V DC P3 15V DC P3 13V DC

9V5 DC

P4

95V DC

P4 P5 9V5 DC P5

8V DC P6 17V DC P6

15V DC

P2

2V / div DC

10µs / div

P2

2V / div DC

10µs / div

L1

L3

100V / div DC

L3 0V DC

SDM

L4 L4 L5 8V DC

SDM

L5 L6 8V DC

SDM

L6 L7 -13V DC

SDM

L7 -0V2 DC

F1

F2

F3

20µs / div

13V DC 0V1 DC

0V2 DC

2V DC

0.5V / div DC 5ms / div

S2

1V / div DC

20µs / div

S3

1V / div DC

5ms / div

S4

1V / div DC

5ms / div

I1

0.2V / div DC

5µs / div

I3

1V / div DC

5µs / div

I4

V7

0.5V / div AC

20µs / div

V14

50V / div DC

20µs / div

V15

50V / div DC

10µs / div

V16

50V / div DC

10µs / div

C1

1V / div DC

0.5µs / div

C4

A3d

1V / div DC

0.5ms / div

A20 1V5 DC

A21

0.5V / div DC

0.5ms / div

A22

0.5V / div DC

0.2ms / div

A23 SCL uP

1V / div DC

10µs / div

A24 SDA uP

Testpoint overview

MAIN PANEL COMPONENT VIEW

13

0267

17

AUDIO PANEL

02390240

1

COMPAIR

A3

4

2

7954

5

6

A5 A4

7953

1

8

EEPROM

1

8

V3 V4

S2 S1

S3 S4

A3

A5

A4

7601

4

5

7250

TV PROC.

29 30

40

41

46

47

56

28

21 20 19 18

15

1

3

6

8 9

0232

7680

C5

31

7600

uC

27

26

42

C1

43

C4

49

C3

50

C2

52

1

V2

V5 V6 V7 V8

l4

8

V10

7

V9

6

I1

1

l3

3212

L1

V1

9636

9633

P4

9234

SDM

0225 0226

SDM

1572

6550

HOT GROUND BORDER

P6

6570

P5

6502

7518

SDG

P3

0231

2 4

1500

P2

1

7520

8

P1

16

9

1 3

VBATT ADJ

L2

L3

7402

2508

95V

3540

B

C

E

1V / div DC

20µs / div

L1

1V / div DC

20µs / div

L2

2V / div DC

20µs / div

0V DC

L2

10V / div DC

5ms / div

F4 V2

2V / div DC

5ms / div

F5

V5

0.5V / div DC 5ms / div

S1

V6

1V / div DC

20µs / div

1V / div DC

2µs / div

0.5V / div AC

20µs / div

0.5V / div AC

20µs / div

0.5V / div AC

20µs / div

1V / div DC

5µs / div

C5

1V / div DC

5µs / div

A1

10mV / div AC

5µs / div

A3b

1V / div DC

0.2ms / div

1V / div DC

20µs / div

= 0V

CL 96532028_053.eps

210499

17

1

1000

TUNER

11

5

4

I1

I6

I5

CRT PANEL (COPPER TRACK VIEW)

1

0244

9

4

10

B

V16

11

12

CRT

SOCKET

V13

R

V14

8

G

7

V15

6

G

V12

V11

16

R

B

5

0245

3417

F4

6461

L6

3411

L7

6405

9403

LOT

FOCUS

VG2

L4

CL 06532044_010.eps

100100

L5

F5

F1F3F2

7460

7 1

3465

3466

652

Schematics and PWB’s

7. Schematics and PWB’s

Power supply

26L9H.2E 7.

A

FOR NON SYSTEM SETS

150 - 276 V SINGLE RANGE

90 - 276 V FULL RANGE

B

FOR SYSTEM SETS

C

(EPS, EXTERAL

POWER SUPPLY)

D

E

F

G

H

12345678910

POWER SUPPLY

MAINS

To

0211

F

DEGAUSSING COIL

Not used

0212

B2P3-VH

0211

0213

2520

82p

3524

2531

560p 3536

39K 3532

6K8

2532

RES

2533

330p

3534

220K

1

2

9500

0231

2

4

1

9501

4M7

3542

2M2

3502

2

1

7520 MC44603A

82K

3520

Vdem in

8

0V3

9 2

Sync C

2V6

T

10

(2V6)

R standby

15

F

(2V5)

2V5

R standby

12

P

0V7

(1V7)

2.5V

14

VOLTAGE

2V5

FEEDBACK

(2V5)

13

E/A OUT

3V2

(2V2)

1n

2534

FOLDBACK INPUT

2504

SDKE

1

3

5689

DEMAGNETICATION

MANAGEMENT

Vdem out

Iref

OSCILLATOR

(REDUCED FREQUENCY)

ERROR

AMP

FOLDBACK

3512

15K

2n2

3504

2

9504

2501

33n

1500

T4A

3537

10K

Rref

Vosc prot

Vosc

Iref

STANDBY

CURRENT SENSE INPUT

5

1V1

5521

2U2

3513

220K

3

6501

3501

470R

2500

220n

2506

2V5

(2V5)

16

Vref

REFERENCE

BLOCK

2522

2n2

BZX79-C30

470n

Iref

Vref enable

7

2521

6500

3505 DSP

5501

DMF-2820

5500

DMF-2405

6510

BZX79-C20

2529

100n

CURRENT SENSE

Dmax & SOFT-START

Iref

2n2

+t

ZPB

3503

23

14

23

14

3510

3530

3529

INITIALIZATION BLOCK

Latch Reset

THERMAL

SHUTDOWN

CONTROL

33K

3K9

4R7

SUPPLY &

QSet

2530

3506

2R2

3547

B57237

Vovp out

Soft Start & Dmax

11

2V4 (2V4)(1V)

1u

2505

2502

t

BUFFER

Vref

OVERVOLTAGE

MANAGEMENT

2n2

1N5062

2n2

1N5062

P3

Vcc

UVLO1

OUTPUT

Vcc

OVERVOLTAGE

PROTECTION

UVLO1

Vref

6504

6503

9506

3548

B57237

5552

GND

t

100MHZ

(13V2) 14V

1

18V

Vc

(12V7)

13V

3

1V2

4

6

(2V)

9503

6502

1N5062

6505

1N5062

3525

33R

5502

2524

6507

6508

470p

3528

BYD33J

2517

330R

150R

P2

1n

3521

1V2

3517

6520

6521

2540

3539

3540

309V

2508

220u

7518

STP6NA60

G

S

0V

10K

1N5062

2590

330p 6540

BAV21

100u

3538

100K

18K

4K7

VBATT ADJ

2511

D

3519

(318V) 308V

470R

220u

2518

3518

P1

5516

100MHZ

470p

R27

100n

2537

P1

50V / div DC

5ms / div

3509

2509

2510

5540

4U7

6537

BAV21

G5P

1580

23

FOR USA ONLY

100R

5545 2084

7

820p

4

1

2

47R

3541

4n7

2541

2545

1n5

EAR

P1 P3 15V DC SDM P3 13V DC P4 9V5 DC SDM P4

14

16

13

15

10

11

12

MainSupplyGnd

300V DC

95V DC

6585

BAS216

13V

7591

BC847B

F01

TO SIN OF

P5 9V5 DC SDM P5 P6 17V DC SDM P6

3598

22K

6584

5573

*

100MHZ

*

100MHZ

8V DC

15V DC

BAS216

100MHZ

BYV27-200

5570

5572

2572

Europe Only

7590

BC847B

2560

1n

6560

3570

100p

0V7

123456789

10K

3597

100MHZ

2565

1572

800mA

1571

T1.6A

10R

P2

2V / div DC

10µs / div

3595

3596

10K

5550

220p

MP

1m

2561

SignalGnd

6570

EGP20DL

2570

2n2

AudioSupplyGnd

10 11 12

VlotAux13V

68K

6590

BAS216

220u

2586

6550

21

BY229X-600

2550

1n

NOT PRESENT IN SYSTEM AND "RADIO"SETS

4510

18V

2571

P2

2V / div DC

10µs / div

11 12

2509 2510 3528 7518

P4

95V

0255

2

1

(RADIO-SP/LS-Vbat)

P5

9V5

0241

5

4

3

9V5

2m2

(RADIO-SP/LS-Vbat)

2

1

5571

10u

P6

AUDIO O/P

*

2W/3W

5570

5572

1W

...V... Normal Operation

(...V...) StandBy Operation

20/21" 14"

820p 820p 220 6NA60FI

VBatt MainSupply95V

TO PIN 1-2

OF 0255

0241

H1

MainAux

Vaux

TO PIN 3,4,5

OF 0255

0241

H1

AudioSupply10V|14V

HOT GROUND

CL 06532004_012.eps

1n 1n 270 4NA60FI

TO

0241

OR

J

(SMART CARD

INTERFACE)

130100

C

D

G

H

F01 F9 0211 C2 0211A C2 0211B C2 0212 A2 0213 D2 0231 B2 0241 D11 0255 C11 1500 B3

A

1571 E10 1572 D10 1580 A8 2500 C3 2501 B3 2502 B5 2504 A3 2505 B5 2506 C3 2508 B6 2509 C7

B

2510 C7 2511 B7 2517 C6 2518 C7 2520 E2 2521 H4 2522 H3 2524 F6 2529 D4 2530 H4 2531 E2 2532 F2 2533 G2 2534 G2 2537 F7 2540 E6 2541 F7 2545 G8 2550 C10 2560 C9 2561 D10 2565 C10 2570 E10 2571 F10 2572 F9 2586 A10 2590 E7 3501 B3 3502 C2 3503 A4 3504 A3 3505 B4 3506 B5 3509 B7 3510 C4

E

3512 H2 3513 H3 3517 C6 3518 D7 3519 D7 3520 E2 3521 D6 3524 E2 3525 C6 3528 E6 3529 D4 3530 D4

F

3532 F2 3534 G2 3536 F2 3537 D3 3538 F7 3539 F6 3540 F6 3541 E7 3542 C2 3547 C5 3548 C5 3570 F9 3595 A10 3596 A10 3597 A10 3598 A9 4510 D10 5500 C4 5501 B4 5502 E6 5516 C7 5521 H3 5540 E7 5545 B8 5550 C10 5552 D5 5570 E9 5571 E11 5572 E9 5573 C9 6500 B4 6501 B3 6502 B6

6503 B5 6504 B5 6505 B6 6507 B6 6508 C6 6510 D4 6520 D6 6521 D6 6537 F7 6540 E7 6550 C10 6560 D9 6570 E10 6584 A9 6585 A8 6590 A10 7518 C6 7520 E2 7590 A9 7591 A9 9500 B2 9501 C2 9503 D5 9504 B3 9506 C5

Schematics and PWB’s

Main panel (component side)

27L9H.2E 7.

Schematics and PWB’s

Main panel (copper side)

28L9H.2E 7.

Schematics and PWB’s

Line deflection

29L9H.2E 7.

123456789101112

LINE DEFLECTION

MainAux

3435

CRT_Discharge

A6-63 A3-63

A7-32 A4-32

A7-8

2407 9.1nF 11nF 11nF 2411 1uF 1uF 1uF 2416 NA 2434 NA NA NA 3411 1R 3414 1K8 Jumper Jumper 3415 12K 10K 10K 5401 5404

56uH NA 5406 5408 27uH 27uH 27uH 6434

Jumper Jumper Jumper 9402 NA NANA 9408 9424 9425

14"

2407 8.2nF 10nF 11nF 2411 100uF 100uF 100uF 2416

680pF 680pF 330pF 2434 3411 1R 1R 2R2 3414 1K 1K8 2K2

15K 10K

3415 5401 5404

56 uH 5406 5408 15uH 6434

Jumper Jumper Jumper 9402 NA NA NA 9408 9424 9425

7431

BC857B

Hflybk

HdriveUC

NA 560pF

NA 100uH NA

NA NA Linearity Drum

NA NA NA NA

NA NA NA

NA NA

NA NA Linearity Drum

NA NA

Yes Yes NA

Ye s

NA

20" 21"BRAZIL

56uH NA

15uH 22uH

NA NA

2432

6432

10V

9V5

100u

L1

21"20"14"

56uH

NA NA NANAYe s

10K

NA

Ye s

10K

4435

1N4148

6435

BAS216

3421

100R

5410

5U6

VBatt

MainSupply95V

2431

3434

47K

Vlot8V

6400

1N4148

3404

12K

6401

1N4148

2402

USAEurope

2407

8.2nF 10nF 9.1nF

2411 100uF 100uF 100uF

680pF 560pF 330pF

2416 2434 NA NA NA 3411 1R1R 1R 3414 2K7 1K8 2K2 3415 12K 10K 10K 5401 5404

5408 15uH 15uH 22uH 6434 9402 9408 9424 9425

2407 9.1nF 2411 2416 2434 NA NA NA 3411 1R 1R 2R2 3414 3415 15K 10K 10K 5401 5404 5406 5408 15uH 15uH 22uH 6434 9402 NA NA NA 9408 9424 9425

NA NA NA

56uH 27uH 56uH

NA NA5406

Jumper Jumper Jumper

NA NA

Yes Yes NA

14" 20" 21"AP

100uF 100uF 100uF 680pF

1K 1K8

NA 100uH NA

56 uH NA NA

NA NA Linearity Drum

Jumper

NA NA

Ye s

5551

27u

47u

2551

9425

3433

220K

6431

2u2

BAV21

47n

2400

4n7

2406

0V4

75R

330p

3420

1R 2R2

NA NA

11nF 10nF

680pF 330pF

Jumper Jumper

NA NA NA NA

12u

5401

3431

220K

82K

3432

47n

2401

Linearity Drum

3400

5444

31V

7400 BF422

21"20"14"

NA NA NA

2K2

NA

Ye s

5406

4K7

3403

5K6

6433

BYD33M

9424 5404

56u

DC12

3402

U10

2403

3407

220R

3405

2405

470p

L2

27R

680p

2416

1n5

2407 11nF 2411 100uF 2416 2434 NA 3411 3414 3415 10K 5401 5404 5406 5408 22uH 6434 9402 NA 9408 9424 9425

2420

4K7

3406

-0V2

7402 BU1508DX

Linearity Drum

2404

560n

4K7

9402

L3

3436

2K2

21"CHINA

NA

2R2 2K2

NA

56uH

Jumper

NA NA NA

0221A

0221B

0221C

330n

2434

47n

6434

BYD33D

88V

FISH HOOKS FOR BRAZIL ONLY

0221

4

1

VH

3474

22R

6404

BYD33M

6419

1N4148

2409

2407

1N4148

HORIZONTAL DEFLECTION COIL

5408

27u

9408

2408

22n

47u

8n2

6418

FILEMENT

+160

1

7

2

6

9

10

3

4

5

6409

BYD33D

5445 AT2078

0220

1

2

3

3416

EHT

8

TO 0224 OF CRT PANEL

1V / div DC

20µs / div

3R9

22u

2413

TO PICTURE TUBE

TO CRT

VFOC

PANEL

VG2

L1

1V / div DC

20µs / div

+160

2412

6406

1N4148

3414

33n

3415

2K2

4401

15K

6403

2418

470n

6413

BZX79-C12

10K

3423

BAS216

1N4148

3412

1R

L2

2V / div DC

20µs / div

6402

BYD33D

6410

BYD33D

6412

BYD33D

6405

BYD33D

6415

3440

2411

6414

BAS216

10K

1u

3441

3424

9403

3417

3411

9404

3418

150K

1R

22K

6K8

5V7

3419

2410

2414

2415

2417

7403 BC847B

VlotAux13V

7401 BC857B

13V

470u

1m

ITV fish hook

1400

1m

470u

3426

8V7

6V1

47K

6408

L3L1

100V / div DC

20µs / div

13V

3425

100R

1K

10K

3427

BZX79-F6V2

L4

L5

L6

L7

BC857B 7404

2V4

3428

10K

For USA only

L3 0V DCL2 0V DC L4

13V DC 0V1 DC

L4 L5 8V DC L5

0V2 DC

BCL_Protn

ABLinfo

VlotAux13V

VlotAux5V

Vlot8V

-13V

Vlot8V

HEW_Protn

L6 8V DC L6 L7 -13V DC L7 -0V2 DC

A7-20

A6-62 A4-62

A4-81

2V DC

A

B

C

D

E

F

G

H

0220 F7 0221 B6 0221A A6 0221B A6 0221C A6 1400 D10 2400 D4 2401 D4 2402 E4 2403 E5 2404 B5 2405 D5 2406 E4 2407 D6 2408 C7 2409 C6 2410 C10 2411 F9 2412 C8 2413 A8 2414 D10 2415 E10 2416 D5 2417 E10 2418 B9 2420 B5 2431 C3 2432 D2 2434 C6 2551 B4 3400 D4 3402 D5 3403 E5 3404 D3 3405 B5 3406 B5 3407 B5 3411 D10 3412 F9 3414 B8 3415 B8 3416 A8 3417 D10 3418 F10 3419 F10 3420 E4 3421 E3 3423 B9 3424 B10 3425 C10 3426 F10 3427 F10 3428 F11 3431 C4 3432 D4 3433 C4 3434 C3 3435 C3 3436 E5 3440 F9 3441 F10 3474 C6 4401 B9 4435 C3 5401 B4 5404 B5 5406 B5 5408 B6 5410 E3 5444 D4 5445 B7 5551 B4 6400 D3 6401 E3 6402 C9 6403 F9 6404 D6 6405 E9 6406 F8 6408 G10 6409 A7 6410 D9 6412 D9 6413 B9 6414 B9 6415 E9 6418 E6 6419 E6 6431 C4 6432 C3 6433 B5 6434 C6 6435 C3 7400 E4 7401 B10 7402 D5 7403 F10 7404 F11 7431 C2 9402 B5 9403 C10

9404 E10 9408 C6 9424 B5 9425 B4

123456789101112

CL 96532028_036.eps

070499

Schematics and PWB’s

30L9H.2E 7.

Frame deflection

123456

FRAME DEFLECTION

A

B

C

D

CRT_Discharge

E

Europe

V_Guard A7-31

VdriveNeg A4-64

VdrivePos A4-65

A2-63

3465 3466 5R6 4R7 4R7

F4

3469

3461

1K

2K2

3460

3472

2K2

14" 20" 21"

5R6 4R7 3R3

6461

BZX79-C33

VlotAux13V

10K

2463

F1

2460

470p

2461

F2

2462

1K

3462

0V

4n7

2470

3471

390R

3465 5R6 3R9 4R7 3466 5R6

1V

3470

820p

1V

470p

3473

18K

100n

7460 TDA9302H

1V

1

7

100R

7469 BC847B

14" 20" 21"USA

IN-

IN+

-13V

POWER AMPLIFIER

6460

BYD33D

13V

2

VSUP6VSUPO

GND

4

100n

2465

3R34R7

2464

100u

-13V

3

FLYB

FLYBACK

GENERATOR

THERMAL

PROTECTION

3463

1R5

3464

2K2

OUT

Synchronisation

0222 C5 0222A C5 0222B C5 2460 C2 2461 C2 2462 C2 2463 B3 2464 B4 2465 D3 2466 C4 2467 C5

A

2470 E2 3460 C2 3461 C2 3462 D2 3463 D4 3464 D4 3465 D5 3466 D5 3467 D5 3468 C5 3469 B2 3470 B3

B

3471 E2 3472 D2 3473 D3 6460 B3 6461 B2

0222B

FISH HOOKS FOR

0222A

BRAZIL ONLY

F3

0V5

5

220n

2466

3468

220R

3467

220R

2467

100n

F5

0222

1

2

VERTICAL DEFLECTION COIL

7460 B3 7469 D3

C

D

A

B

C

D

4R7

3466

3465

E

123456

SYNCHRONISATION

+8VA

Hflybk

A2-32

2237

100p

3268

33K

2238

15p

2233

S1

3271

1u

4M7

3266

15K

2239

4V2

3270

4M7

100n

3V8

2234

0V7

3269

7250-D

TDA8842

43

4n7

41

51

52 4V

39K

PH1LF

FBISO

VSC

I_REF

VlotAux8V

3265

1M

2n2

2231

42

37

3V

8V

V_P2

PH2LF

VDRA46VDRB

1V4

1n

2240

2241

CL 96532028_040.eps

S3

S4

1K

3276

2232

47

1V4 2V4

1n

070499

3274

2n2

HOUT

DECDIG

EWD

GND2

EHTO

50

1K

2243

5205

2244

40 2V3

39

5V

45 0V2

44

VlotAux8V

220n

22u

3272

3273

100u

VlotAux8V

S2

2242

27K

3275

220K

10K

10u

2255

100p 2236

220n

AVL

5405

27u

2235

Vlot8V

Hdrive

1n

XRAY_Protn

ABLinfo

A7-7

A2-81

A2-62

A

B

C

D

E

2231 C3 2232 C4 2233 C2 2234 C3 2235 D5 2236 C5 2237 D2 2238 E2 2239 E2 2240 D4 2241 D4 2242 D5 2243 E4 2244 C4 2255 C5 3265 B4 3266 C2 3268 D2 3269 D3 3270 E3 3271 E2 3272 E5 3273 E5 3274 E4 3275 E5 3276 E4 5205 B4 5405 B5 7250-D C3

F

14" 20" 21"Brazil

3465 5R6 4R7 3R3 3466 5R6 3R9 4R7 3466

G

AP 21"20"14"

3R34R76R83465

4R7 3R35R6

F

StereoMono

1nF

2235

1nF--

2242

VdriveNeg

VdrivePos

A3-64

F

A3-65

G

F1 F2 F3 F5F4

H

0.5V / div DC 5ms / div

10V / div DC

5ms / div

2V / div DC

5ms / div

0.5V / div DC 5ms / div

CL 96532028_037.eps

H

070499

S1

1V / div DC

20µs / div

123456

1

S2 S3 S4

H

1V / div DC

20µs / div

1V / div DC

5ms / div

1V / div DC

5ms / div

CL 06532004_013.eps

110100

23456

Schematics and PWB’s

Tuner video IF

1

TUNER, VIDEO IF, VIDEO DET, FM-AUDIO DET.

SCL

A5-25 A7-25

SDA

A5-24 A7-24

FM|AM|ExtAudioMono A9-37

ExtAudioMono

A9-38 A13-38

LLp|Mtrap

A7-23

LLp|F1

A9-39

LLp|F2

A9-40

*

3031

4K7

234567891011

1000

12

13

MT

14

15

AS

3000

100R

3001

100R

1012

1011

1010

VlotAux8V

3029

*

7001

*

BC847B

1K

3033

3

I5

For EMC shield

2K2

6008

BAS216

**

5V

*

VBatt

SCL5SDA

4249

*

3032

0V7

3034

TUNER

4

I6

F02

SIN

6009

7002

*

22K

BC847B

1K

3002

15K

+58ADC

from SIN of

3030

BAS216

*

31L9H.2E 7.

F02 C3

9000 B6

0239 A11

9203 G6

0240 A9

9204 E4

1000 B2

ONLY USED FOR MECHANICAL FIXATION OF "RADIO -SP/LS-Vbat" PANEL

##

Dual|Mono

3021

#

3208

220R

A7-6

1K

4215

4221

3209

VlotAux8V

3003

13

2252

100n

2003

6003

6004

3013

10K

3015

3

1005 OFWK6272K

SWI

IN

ING

GND

38

7010

L78M05

2

3014

100u

3016

680R

100K

4

5

O1

O2

18K

4

5

2004

3277

3278

#

1K

2227

2200

22n

2V4

4V7

49

48

2

470n

1n

2208

#

+5VA

IFIN2

IFIN1

AUDIOEXT

4201

1V5

7254

#

BC847B

*

220n

#

12K

2008

6007

BZX55-C33

1

1V6

2

6

5V

NC

9

34V

10

11

7

I1

820n

5004

*

4000

*

4001

6K8

3027

*

2012

*

10n

2K2

3028

*

#

*

9204

4218

4248

10u

2001

4247

VlotAux5V

47n

2002

1

2

*

BAS216

*

BAS216

*

10u

1003

*

10

1

2

1V 54

AGCOUT

2201

3226

330K

53 4V4

1u

#

3V2

IntCarSIF

#

1N4148 #

1N4148

2K2

3018

2005

100p

##

IFDEM13IFDEM2

7250-A

TDA8842

DEC_AGC

AUDEEM

DECSDEM

55

56

4V7

33p

2202

2203

##

+5VA

3K3

3227

2209

220n

220R

0V9

3229

#

9000

6005

6006

4

10u

#

AUDIOOUT

15

3200

#

3017

3V4

I4

680R

4K7

#

3020

22K

I3

112

V_P1

SNDIF

GND1

IFVO

PLLLF

5

2V9

390R

3201

2205

100n

4200

#

9203

AudioSupply10V|14V

3V1

# 7000 BC847B

VlotAux8V

3R3

3207

100n

2206

2207

100u

14

I2

3205

6

1K

1M

3202

*

#

9220

#

9205

#

+8VA

2220

7266 BC847B

EGP20DL

6216 9279

1001 SFSH

1

1002 SFSH

1

100n

2

3204

8V6

3206

AudioSupply10V|14VA

3

#

2006

47p

3

100R

4210

4222

2256

220n

4223

#

2V6

560R

SDA

A5-24

SCL

A5-25

AudioOutL|Mono

A13-41

AudioOutR

A13-42

Ext2AudioL|Mono

A5-43 A13-43 A13-44

A5-45 A9-45

1K

Ext2AudioR

VlotAux8V

+5VA

FM|AM|Audio

5202

*

6u8

1200

*

TPS

1I3

O

G

2

1201

*

TPS

3

I1O

G

2

# SEE DIVERSITY LIST FOR A5

0240

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

3216

470R

3212

470R

3213

470R

I1 I3 I4

0.2V / div DC

5µs / div

1V / div DC

5µs / div

SIF

A5-46

Front|Ext1AudioL

A11-47

Front|Ext1AudioR

A11-48

Volume

A7-3

Buzzer

A7-2

MainAudioL|Mono

A10-49

AudioSupplyGnd

AudioSupply10V|14VA

SIF

VideoOut

CVBS_INT

FM|AM|Ext_VC_AudioMono

FM|AM|Audio

AudioOutL|Mono FM_AudioMono

1V / div DC

2µs / div

A5-46

A13-50

A6-51

A10-37

A5-45

A5-43

A9-53

0239

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

CL 06532004_014.eps

130100

A

B

C

D

E

G

H

A

B

C

D

E

F

H

1001 A7 1002 B7 1003 E4 1005 G4 1010 D2 1011 C2 1012 C2 1200 E9 1201 E9 2001 B4 2002 C4 2003 B4 2004 C5 2005 B5 2006 B8 2008 A3 2012 E3 2200 F5 2201 F5 2202 F5 2203 F6 2205 F6 2206 D7 2207 D7 2208 G5 2209 G6 2220 D7 2227 E5 2252 B4 2256 E8 3000 C2 3001 C2 3002 A3 3003 A3 3013 C4 3014 B4 3015 C4 3016 C5 3017 A6 3018 B6 3020 B6 3021 B8 3027 E3 3028 E3 3029 E2 3030 E3 3031 F1 3032 F2 3033 F2 3034 F2 3200 F6 3201 F6 3202 F7 3204 D7 3205 E7 3206 F7 3207 D7 3208 E8 3209 F8 3212 E9 3213 F9 3216 D9 3226 G5 3227 G5 3229 G6 3277 E5 3278 E5 4000 D3 4001 E3 4200 G6 4201 F5 4210 D8 4215 C8 4218 F4 4221 D8 4222 E8 4223 E8 4247 E4 4248 F4 4249 E2 5004 C3 5202 D9 6003 C4 6004 C4 6005 B6 6006 B6 6007 A3 6008 E2 6009 E2 6216 A7 7000 B7 7001 F2 7002 F2 7010 A4 7250-A E6 7254 G5 7266 E7

9205 G7 9220 G7 9279 A7

1234567891011

Schematics and PWB’s

Personal notes:

32L9H.2E 7.

DIVERSITY TABLE FOR A5

TUNER VIDEO IF (Europe)

*

1003 K3953M G1965M 1005 1200 1201 2012 2014 2201 3013 3027 3028 3029 3030 3031 3032 3202 4000 4247 4248 4249 5004 5006 5202 6003 6004 6008 6009 7001 7002 9207

B/G, D/K SW

-

TPT02 TPT02 TPWA04

- 6MHZTPS 6.5MHZTPS

10 n 10 n Jumper

5p6 2u2 10k 10k Jumper 6k8 6k8 6k8 2k2 2k2 2k2 2k2 2k2 2k2 2k2 2k2 4k7 22k 22k -

- - 1M5 Jumper Jumper 10n Jumper Jumper

-

- - Jumper

0u22 0u82 0u82

78MHzVCO - -

3u3 3u9 Bas216 Bas216 Bas216 -

BA792 BA792 BA792

BA792 BA792 BC847B BC847B BC847B BC847B

Jumper Jumper

- K6289K

2u2 1u

4k7 4k7

- Jumper

Bas216 -

BC847B -

3u9

G1984M J1980M

TPWA04 6MHZTPS

-

Jumper Jumper

-

Jumper Jumper Jumper Jumper

-

Jumper Jumper

BG ILL’ST LL’MN

--

1u 1u

-

--

-

--

1M5 1M5

--

0u82 0u82

--

6u8 6u8

--

-

--

-

TUNER SOUND IF (Europe)

#

BG I BG/DK

0239 0240 1001 1002 1204 2005 2006 2202 2203 2208 2209 2227 2245 3017 3018 3020 3200 3226 3227 3229 4202 4218 4221 4223 4283 4284 5204 6005 6006 7000 7254 9000 9203 9204 9205 9220 9253

--

---

5.5 6.0 5.5

- - 6.5

---

100p 100p

82p 3n9 3n9 3n9 10u 10u 10u

220n 220n 220n

Jumper Jumper Jumper

470n

--

- - 4k7

- - 2k2

- - 22k

680R

330k 330k 680R 680R 680R 270R 270R 270R

---

Jumper Jumper Jumper

-Jumper Jumper Jumper Jumper Jumper Jumper Jumper

---

- - 1N4148

--

BC847C

Jumper Jumper Jumper Jumper Jumper

---

--Jumper Jumper Jumper

Mono

-

100p

82p 82p

470n 470n

-

680R 680R

330k

-

Jumper Jumper

BC847B

BC847C BC847C

-

BG/I/LL’ BG/I/DK

-Yes

-

5.5

6.0

--

100p -

82p 3n9 10u -

220n -

Jumper -

470n Jumper

-4k7 2k2 22k -

680R -

330k 680R 270R

--

- Jumper Jumper Jumper Jumper Jumper Jumper Jumper

--

1N4148 -

1N4148 BC847B BC847C -

-

Jumper Jumper Jumper -

- Jumper

Ye s

-

Stereo

BG/I/LL’

Ye s Ye s

-

K9456M

-

Jumper

4u7

-

Jumper

-

1u8

-

Jumper

CL 96532028_041.eps

070499

Schematics and PWB’s

Video processing

33L9H.2E 7.

1 2 3 4 5 6 7 8 9 10 11 12

VIDEO PROCESSING (EUROPE)

SDA

A7-24 SCL

A7-25

Ext2Video|Y

A13-54 Ext2C

A13-55

CVBSTxt

A7-22

Ext1Video

A11-57 A13-57

CVBS_INT

A5-51

DIVERSITY TABLE

3218

100R

3223

75R

V1

SC1 (Mono)

2212 2213 3224

1208 3.58MhzXtl 3.58MhzXtl 3.58MhzXtl 2211 2248 15pF 3206

3213 3217 6K8 7250 TDA8845N1 TDA8842S1

-

-3228

LL’ST LL’MN

100nF 470nF 100nF 470nF

270R 270R

470R 560R 560R 470R

VlotAux8V

3219

560R

2210

470n

2211

470n

SC1

Front Cinch (Mono)

100nF-

100R

15pF 15pF

----

7256

BC847B

3V3

2V6

7250-B

TDA8842

17

13

22n

2214

--

75R

PAL/SECAM

NTSC

TDA8842S1 TDA8841S1 TDA8841S1

3V3 38

CVBS_EXT

CVBSO

DEC_BG

CVBS_INT

9 6V8

2u2

2215

2216

SC1, SC2

(Stereo)

1nF

100nF

75R

100R

3.58MhzXtl - -

150R 270R 270R 150R

82R68R68R3208

XTAL2

SECPLL

35

16 2V

220n

Front Cinch (Stereo)

PA L

NTSC

W/O NTSC

15pF - -

82R 82R 82R

3228

2213

2212

470n

1V3 3V6 10

11

CVBS_Y

CHROMA

1205

4M433619

2217

SC1

-

PAL/SECAM

PA L

W/O NTSC

470nF 470nF

560R 560R

-

TDA8842S1

75R

3224

100R

470n

33

REFO

1208

3M579545

15p

2248

SC1, SC2

Side AV (Stereo)

1nF

100nF

75R

100R

V2

27

2V9

LUMIN

31

2V4

28

LUMOUT

2V9 29

BYO

2V9 30

RYO

2V4

XTAL1

34 2V52V6

2222

3225

100K

100n

36 5V

2221

DET

3n3

A7-34

A13-58

A7-35

A13-59

A7-36

A13-60

A7-33

A13-61

V3

V4

R_Txt|Osd

Ext1R

G_Txt|Osd

Ext1G

B_Txt|Osd

Ext1B

FB_Txt|Osd

Ext1FB

2V4

BYI

32

RYI

3233

330R

3234

330R

3235

330R

3236

100R

3247

7

SCL

100R

3248

2223

2224

2225

3237

100R

4237

8

SDA

47n

100R

V10V9

5260

47p

2230

22u

6213

1N4148

6214

1N4148

6215

1N4148

47p

1

2

3

4

5

6

2250

1n

3214

220R

A2-63

CRT_Discharge

0243

2218

TO

0245

OF

CRT

PANEL

6n8

7250-C

TDA8844

V5

21

RO

2V6

20

GO

2V6

19

BO

2V6

18

BLKIN

GI

G

6211

24 3V73V7

BI

25 3V7

B

4206

1N4148

RGBIN

3243

BCLIN

26

22

2V9

6212

1N4148

4K7

3246

4K7

2226

ABLinfo

10u

A2-62

RI

23

R

3257

47R

V6

3258

47R

V7

3259

47R

V8

3260

1K

47p

2228

2229

A

B

C

D

E

F

G

0243 B12 1205 D4 1208 D5 2210 C2 2211 C2 2212 B4 2213 B4 2214 D2 2215 D3 2216 D3 2217 D4 2218 E12 2221 D6 2222 D5 2223 D8 2224 E8 2225 E8 2226 G9 2228 E11 2229 E11 2230 E11 2248 D4 2250 C11 3214 E11 3218 C2 3219 C2 3223 C2 3224 B4 3225 D6 3228 B4 3233 E8 3234 E8 3235 E8 3236 F8 3237 F8 3243 G9 3246 F10 3247 B8 3248 B8 3257 B10 3258 C10 3259 C10 3260 C10 4206 F9 4237 F8 5260 B11 6211 F9 6212 E9 6213 D11 6214 D11 6215 D11 7250-B C3 7250-C B10 7256 B3

12

0.5V / div AC

20µs / div

V2 V5

0.5V / div AC

20µs / div

0.5V / div AC

20µs / div

V6V7

0.5V / div AC

20µs / div

CL 06532004_015.eps

3 4 5 6 7 8 9 10 11 12

H

110100

Schematics and PWB’s

A13

Control

34L9H.2E 7.

2

1

12345678

2

3

4

CONTROL

3.3V Regulator Circuit

A

B

C

D

E

F

G

H

Vaux

6669

BZX79-F6V8

BCL_Protn A2-20

VlotAux13V

LED A8-21

AV_Mute

A12-13

CVBSTxt

A6-22

Hdrive-uC

A2-8

Hdrive

A4-7

Standby

A7-19

7602

BD135-16

9V5 3V5

4V1

1K2

3601

3600

BZX284-C3V9

4616 7612

BD135-16

9V5

3603

3602

470R

2675

470n

3650

1K

3651

2608

Startup Circuitry

3.3VD

2600

180R

6600

5V Regulator/Reset Circuit

5V3

6V

1K

6601

BZX284-C3V9

3606

22K

1n

BZX79-F6V2

3652

7620

BC547B

1K

13V

3n3

2610

8K2

3611

0V7

3605

6610

470R

2651

10u

3609

820R

6 THR

+5VD

3610

7 DISC

2V9

22u

3.3VD

22K

3636

12V

6612

BZX79-F8V2

+5VD

7607 NE555D

COMP

470R

2601

3607

2K2

GND

+5VD

22u

10K

7605 BC848B

7611

BC847B

7621

BC848B

3653

470R

8 VCC

COMP

FF

1

NOT PRESENT FOR SYSTEM SETS

Reset

5V3

1n

2607

4V7

5V3

5CTRL

2TR 2V4

4RES

3OUT

2V3

3615

820R

A7-1

3655

100K

1M

3654

0225

"SDM"

0226

Service alignment mode

9636

9633

PMBT2369

0V4

5V3

3613

3K3

A5-2 A10-2

A5-3 A10-3

A7-4

A5-5 A10-5

A5-6

A5-9

A7-10

A5-11

A10-11

ScartPin8|SVHS

A12-12 A13-12

A8-14

A8-15

A18-16

A7-17

A7-18

A7-19

7608

3K3

3614

Buzzer

Volume

W_Disable

BassSw

Dual|Mono

Ext1|2

POR|CLK

TrebleSw

KeyBd1

KeyBd2

KeyBd3

Din

Dout

Standby

SDM

GND

+5VD

3612

820R

1V1

3618 4614

3670

5

+5VD

3616-A

12

8K2

3616-B

13

8K2

3616-C

14

8K2

3616-D

15

8K2

3616-E

16

8K2

3616-H

19

8K2

3616-I

110

8K2

3616-J

111

8K2

3616-K

112

8K2

+5VD

3617-F

17

8K2

3617-E

16

8K2

3617-D

15

8K2

3617-C

14

8K2

3617-B

13

8K2

3617-A

12

8K2

3618

560R

3608

2K2

2625

100p

Sc1

(Mono)

Cinch(Mono)

560R

Ye s

Stereo Mono

3K9 2K2

4615

3619

Sc1,Front

560R

-

3635

2K2

2670

10u

4K7

RF/VIDEO2

SWITCHING

2609

100n

Sc1,Sc2 (Stereo)

3670

100R

TO 0105

A13

2624

560R

Ye s

6

4614

0605

2611

100n

Cinch(Stereo)

3.3VD

5V3

1V

5V3

1

5V3

2V8

0V9

1V2

0V7

1V3

100n

27K

3620

Sc1,Front

560R

Ye s

3637

4K7

7600

PAINTER

1

P2-0|TPWM

2

P2-1|PWM0

3

P2-2|PWM1

4

P2-3|PWM2

5

P2-4|PWM3

6

P2-5|PWM4

7

P2-6|PWM5

8

P2-7|PWM6

9

P3-0|ADC0

10

P3-1|ADC1

11

P3-2|ADC2

12

P3-3|ADC3

13

VSSC

14

P0-0

15

P0-1

16

P0-2

17

P0-3

18

P0-4

19

P0-5

20

P0-6

21

P0-7

22

VSSA

23

CVBS0

24

CVBS1

25

SYNC_FILTER

26

IREF

5601

8u2

2604

5602

8u2

5605

2U2

SAA5564PS

P3-4|PWM7

Sc1,Sc2,Side

AV(Stereo)

560R

Ye s

76

7

100n

P1-5|SDA1

P1-4|SCL1

P1-7|SDA0

P1-6|SCL0

P1-3|T1

P1-2|INT0

P1-1|T0

P1-0|INT1

VDDP

RESET

XTAOUT

XTAIN

OSCGND

VDDC

VSSP

VSYNC

HSYNC

VDS

VDDA

CORB

VPE

FRAME

2605

2606

R

G

B

100n

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

+5VD

8

81 10

3V3A

+5VD

3V3B

3645

100R

3646

100R

3622

100R

3623

100R

5V3

2616

1V7

C1

1V7

3V3A

5V1

4V3

3V3B

5V

10K

3643

10K

3644

1600

5604 0u10

12MHZ

22p

2617

22p

3649

4K7

9620

3648

4K7

9619

3647

4K7

9618

3624-A

2

1

8K2

3624-B

13

8K2

3624-C

14

8K2

3624-D

15

8K2

3624-E

16

8K2

3624-F

17

8K2

3624-G

18

8K2

2615

100n

2619

BC847B

3639

150R 2620

RES

2621

RES

3640

150R

2622

RES

3641

150R

2623

RES

3642

150R

9101112

9

911

5603

+5VD

6u8

3626

100R

C2

+5VD

7609

3629

3634

2614

82p

5V1

4K7

5K6

2613

82p

2618

220p

2626

3628

100R

100p

7610

C3

C4

+5VD

3632

BC847B

4K7

4V3

10

7601 ST24W16BS

10K

3627

3625

6

100R

5

EEPROM

16K BIT

1

SM

5V3

SDA2

SCL2

SDA

SCL

Sys1|AM

Sys2|AMFM_ExtSel

Reset

Horizontal & Vertical Pulse Derivation Circuit

3630

V_Guard

330K

3631

220K

3633

Hflybk

27K

68p

9652

6602

FB_Txt|Osd

1N4148

9653

6603

R_Txt|Osd

1N4148

9654

6604

G_Txt|Osd

1N4148

9655

6605

B_Txt|Osd

LLp|Mtrap

1N4148

12

11

8

W_Disable

5V3

7 4 3 2

VD

IR

VD

HD

2612

22n

A7-82

A7-83

A5-24 A6-24

A5-25 A6-25

A6-26 A9-26

A7-29

A5-27 A9-27

A8-28

A7-1

A7-29

A3-31

A7-30

A2-32 A4-32

A6-33 A13-33 A7-33

A6-34 A7-34

A6-35 A7-35

A6-36 A7-36

A6-23

A7-4

R_Txt|Osd

A7-34

G_Txt|Osd

A7-35

B_Txt|Osd

A7-36

FB_Txt|Osd

A7-33

Standby

A7-19

Dout

A7-18

Din

A7-17

POR|CLK

A7-10

Reset

A7-1

VD

A7-29

HD

A7-30

SDA2

A7-82

SCL2

A7-83

+5VD

TrebleSw

BassSw

SDA

SCL

12

ITV Connectors

0219

1

2

3

4

5

0238

1

2

3

4

5

0236

1

2

3

4

0237

1

2

3

4

0256

1

2

0267

1

2

3

For Compair

TO

0219

J

(INTERFACE)

TO

0238

J

(INTERFACE)

OR

T0

0238

I

(SP/LS)

OR TO

0238

H1

(RADIO-SP/LS)

TO

0236

J

(INTERFACE)

To

1237

J

(INTERFACE)

OR TO

0237

H1

(RADIO-SP/LS)

Not used

C1 C4

1V / div DC

0.5µs / div

1V / div DC

5µs / div

CL 09532004_017.eps

130100

A

B

C

DD

D

E

F

G

H

0219 A12 0224 A10 0225 F3 0226 F3 0228 A10 0236 D12 0237 E12 0238 C12 0256 F12 0267 G12 0605 D6 1600 D8 2600 B2 2601 C3 2604 A7 2605 A7 2606 B7 2607 E3 2608 G2 2609 F5 2610 G2 2611 F6 2612 A11 2613 B10 2614 B10 2615 D9 2616 D8 2617 D8 2618 E10 2619 D8 2620 E9 2621 F9 2622 F9 2623 G9 2624 G6 2625 G5 2626 E10 2651 F2 2670 B5 2675 D2 3600 B2 3601 B1 3602 C2 3603 C2 3605 D2 3606 D2 3607 C3 3608 F5 3609 F2 3610 G2 3611 G2 3612 G4 3613 H4 3614 H4 3615 H3 3616-A A5 3616-B A5 3616-C B5 3616-D B5 3616-E B5 3616-H B5 3616-I C5 3616-J C5 3616-K C5 3617-A F5 3617-B F5 3617-C E5 3617-D E5 3617-E E5 3617-F E5 3618 F5 3619 G5 3620 G6 3622 B8 3623 B8 3624-A A9 3624-B A9 3624-C B9 3624-D B9 3624-E B9 3624-F C9 3624-G C9 3625 A10 3626 A10 3627 A10 3628 C9 3629 D9 3630 D10 3631 E10 3632 E9 3633 E10 3634 E9 3635 C5 3636 E3 3637 B6 3639 E9 3640 F9 3641 F9 3642 G9 3643 F8 3644 F7

3645 B8 3646 B8 3647 G8 3648 F8 3649 F8 3650 E2 3651 F2 3652 E2 3653 F3 3654 E3 3655 E4 3670 A6 4614 C6 4615 D5 4616 B2 5601 A7 5602 A7 5603 A9 5604 E8 5605 B7 6600 B2 6601 C2 6602 E10 6603 F10 6604 F10 6605 G10 6610 E2 6612 E3 6669 D2 7600 B6 7601 A10 7602 A2 7605 D3 7607 G2 7608 G4 7609 D9 7610 E9 7611 D3 7612 B2 7620 E2 7621 E3 9618 G8 9619 G8 9620 F8 9652 E10 9653 F10 9654 F10 9655 G10

1 7

2 11

2

234567891011

3

41

4

5

61

6

7

8

9

10

11

12

Schematics and PWB’s

Personal notes:

Front control

35L9H.2E 7.

A

B

C

D

123

123456

456

FRONT CONTROL

+5VD

8K2

3682

3683

100R

A7-14

A7-15

A7-16

A7-21

KeyBd1

KeyBd2

KeyBd3

LED

1684

USA

MAINS

+5VD

3680

6680

3681

2697

680R

LTL-307X

4K7

+5VD

1n

16821683 1681 1680

CH

UP

DN

VOL

UP

FN

0259 E3 1680 B5 1681 B5 1682 B4 1683 B4 1684 B3 2680 E4 2697 B4 3680 C3 3681 D3 3682 B3 3683 B3

A

3684 E3 4600 E5 6680 C3 7680 D4

B

C

D

G

7680

3684

GP1U28QP

2

3K3

1

OUT

3

GND

VS

10u

2680

For Engg purpose only

46000259

E

C5

A7-28

E

TO

0259

For ITV only

I

SP/LS

OR

0259

IR

+5VD

1

2

3

J

F

H

(INTERFACE)

C5

G

F

H

1V / div DC

5µs / div

123456

12

34

56

CL 06532004_016.eps

110100

Schematics and PWB’s

Smart sound + Mono sound amplifier

36L9H.2E 7.

123456789101112

1701 D4 2702 E5 2703 E6

AM MONO DEMODULATOR

(for BG/I/LL’ Mono sets only)

2704 E7 2705 F7 2706 E7 2707 E9 2709 C7 2710 C7

A

3707 E8 3709 F7 3710 F8 3712 E9 3713 E9 4220 E8 7703 E8 7704 E9 7705 C5

B

+5VA

4u7

2710

100n

A5-39

A5-40

LLp|F1

LLp|F2

1

2

1701

2709

7705 TDA9830

4

CREF

4V4

16

2702

1V8

4u7

1

IFIN1

IFIN2

4

5

3

A1

13

GND

SUPPLY

BANDGAP

AGC

CONTROL

14

VP111VP2

AGC

DETECTOR

CAGC

3 2V4 1V2

2703

AMOUT

4u7

AMIN

6

A2

220n

2704

27K

3709

7

2V2

1552

NC

12

MUTE

SWITCH

EXTIN

9 2V2

0 dB

220n

2706

220n

2705

AFOUT

10 5V2

8

4220

2V2

3707

1V8

7703

47K

BC847B BC847B

3V1

4K7

3710

7704

3V7

2707

220n

3712

47K

FM|AM|ExtAudioMono

3713

150K

Sys2|AMFM_ExtSel

Sys1|AM

FM_AudioMono

FM|AM|Audio

ExtAudioMono

A7-27

A5-37

A7-26

A5-53

A5-45

A5-38

C

D

E

F

123456789

A1

10mV / div AC

5µs / div

CL 96532028_045.eps

10 11 12

G

H

070499

Schematics and PWB’s

Smart- and Mono sound Amplifier

37L9H.2E 7.

123456789101112

SMART SOUND + MONO SOUND AMPLIFIER

A

VlotAux8V

RES

3980

FM|AM|Ext_VC_AudioMono

A5-37

BassSw

A7-5

TrebleSw

A7-11

MainAudioL|Mono

A5-49

Buzzer

A7-2

Volume

A7-3

AudioSupply10V|14VA AudioSupply10V|14VA

4906

3V

3981

TO

0264

H1

(RADIO-SP/LS)

2955

470u

2V4

RES

SMART SOUND (MONO)

4907

3971

270R

7951 BC847B

3972

0264

2971

10u

1K

1

2

7952 BC847B

VlotAux8V

9953

2972

3975

3978

33n

5K6

12K

3973

470R

3974

6K8

3977

1K8

2950

10u

3983

RES

4908

1K8

3976

AudioSupply10V|14VA

100n

2973

3950

2976

RES

15K

3982

7955 BC847B

6953

BZX284-C3V3

27K

82n

2974

2975

3979

4905

* for ITV only

10n

220R

2953

220n

7956 BC857B

3953

2952

*

3K3

2956

*

A3

2951

10u

SpkrLpIn

AudioSupply10V|14VA

7953

*

3

2V4

5

0V7

Vref

NC

19

7954

*

NC1

7

2

4

Vref

19V

+

STABILIZER

TEMPERATURESTABILIZER

2954

*

2

VP

PROTECTION

AudioSupply10V|14VA

2957

1

+

-

TEMPERATURE

PROTECTION

0215A

RES

2959

0215B

1

2

RES

9V

8

9V

2958

764

A4

A5

*

5

8

SpkrLpOut

0215

A11-66

A11-67

Fishhooks for Brazil only

SpkrLp

SpkrLn

To loudspeakers

OR TO

0215

H1

(RADIO-SP/LS)

OR TO

L3

I

( SP/LS)

B

C

D

E

0215 C10 0215A B11 0215B B11 0264 D4 2950 E5 2951 E7 2952 C7 2953 B6 2954 B8 2955 E3 2956 D7 2957 D9 2958 C10 2959 C10 2971 B4 2972 B5 2973 C5 2974 C6 2975 C6 2976 B6 3950 E5 3953 E7 3971 B3 3972 C3 3973 B5 3974 B5 3975 C5 3976 C5 3977 C5 3978 C5 3979 D6 3980 B3 3981 C3 3982 C5 3983 B5 4905 D6 4906 B3 4907 B4 4908 B5 6953 E6 7951 B3 7952 C4 7953 B7 7954 D7 7955 D5 7956 E6 9953 E5 9958 F3

AudioSupplyGnd

9958

MainSupplyGnd

36

F

Sound Control

Smart Sound

33nF

100nF -2973

82nF -2974 10nF -2975 470R -3973

6K8 Jumper3974 5K6 -3975 1K8 1K8 -3977 12K -3978

7952 7955 -BC847B

220R

BC847B -

-2972

-3976

-3979

2952

ON

OFFLHLH

*

BassSw

Sound Amplifier

1W

- 220nF2954

2n2 -2956

220nF -2957

- TDA7052B7953

TDA7056B -7954

TrebleSw

2W/3W/4WBasic Sound

2n2-

G

A3bA3d

1V / div DC

0.5ms / div

1V / div DC

0.2ms / div

CL 06532004_018.eps

110100

H

123456789101112

Schematics and PWB’s

Front cinch + Headphone

38L9H.2E 7.

1 2 3 4 5 6 7 8 9 10 11 12

FRONT CINCH + HEADPHONE

FRONT CINCH

4151

LEFT

5

6

YKC21-5599

YKC21-5599 7

4151,4153 for stereo set without front cinch 9122 for mono set without front cinch 4152 For Mono set Only

YKC21-5599

A6-57

SpkrLpIn

A10-66

SpkrRpIn

A11-70

0218-B

0218-A

0218-C

RIGHT

VIDEO IN

Ext1|2

3158

4

8

9

2

3

1

47K

3159

4152

47K

1153

1154

2174

4u7

4154

2177

4u7

4156

3156

120R

3157

120R

3151

1K

47K

3150

2171

330p

4153

3153

1K

47K

3152

1152

6161

330p

2172

BZX79-C6V8

HEADPHONE / SPEAKER

330p

2173

1150

2176

330p

1151

0249

3155

75R

Front|Ext1AudioL

Front|Ext1AudioR

Front|Ext1Video

Ext1Video

4

3

2

1

2

3

A5-47

A5-48

0230

TO 0260 OF

OR

TO 0229 OF

OR

NOT USED

FOR ITV

NOT USED

FOR ITV

Front I/O Configuration

SC1

SC1,Front

Cinch Mono

Mono

0218 - 0230

-0249 2171 - 2172 - 3150 - 3151 - 3152 - 3153 - 3155 - 4151 - Yes 4152 - 4153 - Yes 4155 - 4156 - -

-----

6161

Ye s Ye s

SC1,SC2

Stereo

Ye s

-

SC1,Front

Cinch Stereo

A,B,C

Ye s

Ye s 330pF 330pF

47K

1K

47K

1K

-

Ye s

SC1,SC2,Side

AV Stereo

-B,C

-Ye s

--

-330pF

--

-47K

-1K

-

--

-

-Ye s

--

Headphone Configuration

Headphone

Stereo

0232

0232 YKB21-5099A1

6

5

4

2

3

7

8

9

4150

SpkrLpIn

SpkrLpOut

SpkrRpOut

SpkrRpIn

0217

1

2

3

1

2

3

4

5

0234

FOR INDIA ONLY

TO 0247

OF

OR

NOT USED

FOR ITV

NOT USED

FOR ITV

2173

330pF 2174 10uF 10uF 2176 330pF 330pF 2177 10uF 10uF 3156 270R 270R 3157 270R 270R 4154 - Yes

Headphone

Stereo

Ye sYes

-Ye s0234

330pF

C

D

0217 E6 0218-A C2 0218-B B2 0218-C D2 0230 C5 0232 E4 0234 F6 0249 B5 1150 E3 1151 F3

A

B

1152 D3 1153 B3 1154 C3 2171 B4 2172 C4 2173 E3 2174 E3 2176 F3 2177 F3 3150 B3 3151 A3 3152 C3 3153 B3 3155 D4 3156 E3 3157 F3 3158 E2 3159 E2 4150 F5 4151 A3 4152 B2 4153 B3 4154 F2 4156 D3 6161 D4

E

F

SpkrRpIn

SpkrLpIn

NOTE : 0191 use 242202604471 for INDIA only

for other regions use 242202604747

SpkrLpOut SpkrRpOut

A11-73

A10-67

CL 06532004_019.eps

1 2 3 4 5 6 7 8 9 10 11 12

G

H

110100

Schematics and PWB’s

Rear I/O scart

39L9H.2E 7.

123456789101112

1

2

3

4

5

6

7

8

9

10

11

12

REAR I/O SCART (EUROPE)

2101

2103

75R

3109

75R

3112

6107

BZX284-C6V8

47K

TO 0605

A7

75R

3124

150R

330p

3104

150R

330p

100R

3125

100R

3128

75R

3100

3108

3113

1109

3101

3105

220K

1113

1107

1108

2109

7141

BC847B

+5VA

3142

1K

1101

1103

330p

5V

1V8

3120

1K

680R

3143

3102

330p

2102

3106

330p

2104

3110

3114

Ext1AudioL|Mono

47K

3121

2V4

1K

1104

100R

75R

3115

100R

75R

3116

75R

Ext1AudioR

3111

3103

3107

4139

47K

3122

10K

4141

4142

4133

3123

6K8

7140

BC847B

4140

0229

1

2

3

+5VA

3140

1K

4147

5V

1V8

2105

100u

680R

3141

0227

1

2

3

4

2V4

To 0253 of

or 0230 of

TO 0252 OF

OR 0249 OF

NOT USED FOR ITV

4131

4132

7130

OR

7131

0V7 0V7

33R

TO

1227

3131

3130

J

33R

7132

4143

4148

0V7

3132

33R

7133

2106

10u

0V7

3133

33R

AudioOutL|Mono

Ext2AudioL|Mono

Ext1B

ScartPin8|SVHS

Ext1G Ext1R

Ext1FB

VideoOut

AV_Mute

Ext1Video

Ext2Video

Ext2AudioL|Mono

ExtAudioMono

Ext2C

VideoOut

Ext2Video

Ext2Video|Y

Ext1Video

A5-44 A13-44

A5-42

A5-43

A5-41

A6-60

A7-12

A6-59 A6-58

A6-61

A12-13 A6-50 A13-50 A6-57 A13-57 A13-76

A13-41

A5-38

A6-55 A13-55

A13-50

A13-76

A6-54

A13-57

AudioOutR

A13-44

A13-55

A13-50

A13-76

Ext2C

VideoOut

Ext2Video|Y

SC1

SC1,Front

Mono

Cinch Mono

AA,B

0223 0227 0229 - 2107 - 330pF 2109 3102 1K 1K 3103 - 3106 3107 47K 47K 3118 - 1K 3119 3120 3121 - 47K 3124 3125 3128 - 75R 3135 3136 3140 Jumper Jumper 3142 - Jumper 3143 - 1K 4133 - -

4140 4141 - Yes 4147 Yes 6110

7141-9649 Yes -

Ye s

-

- 330pF

1K 1K

Jumper

- 47K

-

- 75R

-

Ye s -

-

- BZX284

-

SC1,SC2

Stereo

Ye s

1K

100R

4K7 15K

Ye s-4139

C6V8

BC847B

for ITV only

0214

1

2

3

0216

1

2

3

4

SC1,Front

Cinch Stereo

Jumper

Ye s Ye s

47K

Ye s

A

-

1K

-

--Yes

TO

0214

J

(SMART CARD

INTERFACE)

TO

0216

J

(SMART CARD

INTERFACE)

SC1,SC2,Side

AV Stereo

A,BA Ye s

Ye sYe s 330pF330pF

1KJumper

47K-

1K

47K-

Jumper-

-

Jumper-

--

75R-

100R-

75R4K7-

15K JumperJumper Jumper-

1K

-Yes

--

-

Ye sYe s

-Yes

BZX284

C6V8

BC847B

A

B

C

D

E

F

G

H

Audio R O/P

Audio R I/P

Audio L O/P

Audio L I/P

RGB B I/P

RF/Video1 Switching

RGB G I/P

RGB R I/P

RGB FB I/P

CVBS O/P

Video 1 I/P

Audio R O/P

Audio R I/P

Audio L O/P

Audio L I/P

RF/Video2 Switching

C I/P

CVBS O/P

Video 2/Y I/P

0223-A

SCART 1

0223-B

SCART 2

1A

2A

3A

4A

5A

6A

7A

8A

9A

10A

11A

12A

13A

14A

15A

16A

17A

18A

19A

20A

21A

1B

2B

3B

4B

5B

6B

7B

8B

9B

10B

11B

12B

13B

14B

15B

16B

17B

18B

19B

20B

21B

1111

2107

1119

1110

1102

1105

1106

1132

3118

1K

330p

3136

15K

3135

1115

6110

1117

BZX284-C6V8

5100

1U

5101

1U

3119

0105

1

4K7

1118

0105 E3 0214 A11 0216 B11 0223-A A2 0223-B E2 0227 E6 0229 H6 1101 A4 1102 B3 1103 B4 1104 C5 1105 C3 1106 C3 1107 C4 1108 D4 1109 D3 1110 A3 1111 E2 1113 F3 1115 G2 1117 H2 1118 G3 1119 F2 1132 D3 2101 A3 2102 A4 2103 B3 2104 B4 2105 C6 2106 B8 2107 E2 2109 F3 3100 A3 3101 A4 3102 A5 3103 A5 3104 B3 3105 B4 3106 B5 3107 B5 3108 B3 3109 C3 3110 C4 3111 C5 3112 C3 3113 C3 3114 D4 3115 C5 3116 D5 3118 E3 3119 E3 3120 E4 3121 F4 3122 B5 3123 C6 3124 G3 3125 G3 3128 G3 3130 D7 3131 D7 3132 D8 3133 D8 3135 F3 3136 F3 3140 D6 3141 D6 3142 F4 3143 G4 4131 A7 4132 A7 4133 F6 4139 H5 4140 F6 4141 H5 4142 H5 4143 E8 4147 F6 4148 E8 5100 A3 5101 B3 6107 D3 6110 H3 7130 D7 7131 D7 7132 D8 7133 D8 7140 D6 7141 G4

1

1234

2

3

4

CL 06532004_020.eps

5

6

756789101112

9

10

11

130100

128

Schematics and PWB’s

CRT

40L9H.2E 7.

123456789101112

2

3

4

5

6

7

8

91

10

11

12

CRT PANEL

160V 160V

A

B

C

D

E

F

TO 0243

OF

0245

6

5

4

3

2

1

OLDGND

BLKCURINFO

BLUE

GREEN

RED

V13

V11

160V

33K

3334

129V

7331

2V4

BF422

1V9

2331

220p

1K

3332

3331

OLDGND

3321

OLDGND

3311

OLDGND

470R

33R

160V

V12

129V

7321

2V4 1V2

BF422

1V9

2323

1K

3322

330R

3323 3333

129V

7311 BF422

1V9

2313

1K

3312

470R

3313

220p

33R

220p

33R

3324

160V

3314

33K

9300

6342

1N4148

129V

3336

190V

7332 BF422

140V

7333 BF423

1V2

160V

3326

190V

7322 BF422

140V

7323 BF423

160V

3316

190V

7312 BF422

140V

7313 BF423

1V22V4

OLDGND

220R

6341

BAV21

6321

6311

BAV21

6331

BAV21

3347

0165

GND

1K5

3337

V16

V14

3317

1K5

3327

1K5

1300

1

3

4

5

6

7

8

9

Blue

Green

Blue

Green

Red

V15

0254

1

G

4

5

6

7

8

100R

NEWGND

9

10

11

12

1K5

3341

3348

NEWGND

3349

3350

100R

NEWGND

1K

2341

680p

Ground

Heater

CRT

9 Pin 12 Pin

GND

Green

Pin 7 Pin 8

Red Heater Pin 5 Pin 9 Heater Pin 4 Pin 10

Blue Pin 3 Pin 11

VG1 VG2

Pin 1 & 12Pin 1

Pin 5Pin 6VG1 Pin 6Pin 9 Pin 7Pin 8VG2

VG2

FROM MAIN CHASSIS

FOCUS

LOT OF

EHT

VG2 F10 0165 B8 0244 G3 0245 C2 0254 D8 1300 B8 2313 F4 2323 D4 2331 B4 2341 F6 2342 H3 2343 H4 3311 F3 3312 F4 3313 F4 3314 E4 3316 D5 3317 C6 3321 D3 3322 D4 3323 E4 3324 C4 3326 C5 3327 C6 3331 C3 3332 C4 3333 C4 3334 B4 3336 A5 3337 B7 3341 E6 3347 F5 3348 E6 3349 F7 3350 F7 5341 G3 5342 H3 6311 E5 6321 C5 6331 B5 6341 A5 6342 G4 6343 G6 7311 F4 7312 E5 7313 E5 7321 D4 7322 C5 7323 D5 7331 B4 7332 B5 7333 B5 9300 F4

G

070499

G

H

160V

0244

TO

0220 OF

123456789101112

1

3

2

1

37

2342

NEWGND

5341

47n

5342

22u

2343

OLDGND

FILEMENT

15n

4

5

6343

OLDGND

BZX284-C8V2

6

82 9

V14 V15 V16

50V / div DC

20µs / div

10

50V / div DC

10µs / div

11

50V / div DC

10µs / div

CL 96532028_049.eps

12

Schematics and PWB’s

41L9H.2E 7.

CRT panel (component side)

CRT panel (copper side)

External power supply

EPS (external power supply)

TO

(Power supply)

MAINS

HOT GROUND

0211

A1

live

neutral

ZD1

P6KE150

D1

UF4005G

IC1 TOP222P OR

MIP222P 1 2 3 4CONTROL

L6

HF50B

0211

live

1

neutral

2

0213

1

2

8 7 6 SOURCE

DRAIN5

400V

C38

RES

F1

T1A/250V

1

2

C4

RES

T1

C2

470P

P11

L2

22mH

B

C

A

3

4

R12

22R

R23

43R

C20 100n

C12

1n

CR2

SB3100

CR1

SB540

51DQ04

1N4148

C24

FF

+

L7

HF70B

R16 2k0

P10

300V

C5 33u

0228

+12V

P13

5V

C23 470u

R15 2k05

C36 100n

+

R24 1k0

L8

HF70B

+5V

TO

3

0228

2

J

(Interface)

1

J1

TO GROUND

1

MAIN CHASSIS

CL 96532141_026.eps

071299

+

C11 220u

+

C7 470u

C21 100n

6V

R11 22R

C6 47u

L1

22mH

IC4 KA78R12 AN7812

32

1

4V

IC3

UTC431/

AN431

-

12V

+

5V

C29

100n

C35 330u

R13 22R

DI106

P12

L5

12u

IC2 PS2561-V TLP-721

R14

2k0

2V5

C1

0u1

1n

19V

5V

D2

13V5

Schematics and PWB’s

42L9H.2E 7.

Clock display panel

1

2

3

4

5

6

7

CLOCK DISPLAY

A A

2V8

2V11

7955

3954

DP1

4

3

2

1

+5v+5v +5v+5v

BC817C

100R

TO 0247

(RADIO)

OR

TO

0237

(INTERFACE)

J

7

2V5

BC817C

8

DP

G F

6

1

7953

3952

100R

7951

SAA1064

+5v

6951

6952

ALARM

7957

3

PC

10

A

9

B

D

C

5

4E2

7

5137910816431220 18 16215 172319 21242211 14

P6

P2P1P3

MX2

MESSAGE

8

B656

2V8

6

DP

1

G F

P7

P8

P14

P12

P10

P9

10

9

7

P11

A

B C

P13

3

PC

D

5

4E2

P15

P16

LED-DRIVER WITH I2C-BUS INTERFACE

VCC P4

ADR P5

VEE

5V

2951

2953

100u

100nF

3

4

CEXT

2V9

2952

2n7

B653

SDA

4V8

SCL

7958

8

DP

G F

B652

4V6

2V8

BC817C

7952

B B

3951

C C

D D

100R

B655

2V11

7956

10

9

7

3

PC

A

B

D

C

5

4E2

E E

1

2

5

6

1

3953

MX1

100R

3956

BC817C

7954

100R

+5v

10

3955

100R

7959

3

8

PC

6

A

DP

1

9

B

G

D

C

F

5

4E2

7

B651

B650

+5V

SCL

SDA

6

2951 E 3 2952 E 4 2953 E 4 3951 B 1 3952 B 3 3953 B 5 3954 B 7 3955 E 6 3956 E 5 6951 B 4 6952 B 4 7951 D 3 7952 B 1 7953 B 3 7954 B 5 7955 B 7 7956 B 2 7957 B 3 7958 B 5 7959 B 6 B650 E 6 B651 E 6 B652 E 5 B653 E 5 B655 D 1 B656 B 4 DP1 D 7

Radio panel

1

EC

9942

LS

J1

J2

SP

1

6

11

B

EC

B

EC

3940

B

EC

3941

9940

AK

KA KA KA

AK

14

13

FM TUNER

1901

9941

1 2

11 12

AK

9941

B

8

11

1

717

C

B

E

9910

16 9

1

OG I

8

9912

1

9913

10 9

3900

9922

1

48

AK

1

CL0532004_025.pdf

270100

0237

0255

1

0247

1

0256 0264

4921

3908

2930

E

B

3934

7930

3930

C

3931

4930

9

8

12

16

1

111

2

3908

9

16

4920

8

1

3907

3902

3921

3920

3912

2906

2907

3915

3911

3909

3905

CL 06532004_023.pdf

170100

Schematics and PWB’s

Radio panel

43L9H.2E 7.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

RADIO - SP/LS - Vbat

2940

2942

100n

10K

3945

1920 MP25

7920 LM7805

IN

GND

G

B027

2

9942

3941

res

3940

res

2941

SP/LS

3944

0V

10K

3946

100

3947

100

6950

0V

res

2952

3948

0V

res

7950

res

Vbatt

B013

OUT

2n2

3952

res

+5E

2920

9943

9944

+5E

10K

3943

7940 BC547B

B006

B008

res

7951

res

3951

B012

1V6

7925

BF422

10uF

5940

res

5941

res

7952

+5E

res

3949

0V

3K3

3928

3

B025

SpkrLp

SpkrLn

B026

B007

5V

Dout

Din

POR-CLK

B009

0V

B010

res

3950

1V8

+5E

Vbat SUPPLY

res

3932

3930

100K

3933

SMD

5W

0215

1

2

res

5950

res

TO 0215

(AUDIO)

STANDBY

0238

1

2

3

4

5

3

2

1 0259

res

+5E

4K7

3931

SMD

2930

470p

4

TO 0238

(CONTROL)

N.C.

5V

10K

3934

7930

BC847B

0V7

SMD

ONLY FOR RADIO VERSION

+5E

3910

47K

3911

SMD

2908

2906

2907

3926

3K3

1uF

470p

SMD

470p

SMD

3914

5

6

3

2

33K

3927

3K3

+5E

B029

11V8

6

SMD

3912

3913

SMD

5

47K

33K

2V5 2V5

3925

3K3

22

7903

8

TDA1308

7

4

3915 220K

SMD

7903

B

TDA1308

1

3909 220K

SMD

1901

1

11

9

7

8 10

6925

BZX79C12

AERIAL

4930

res

2909

A

2V5

OM5610 FM TUNER

B016

47uF

3904

3905

SMD

2

12

5

6

3

4

1413

7

B017

1K

B018

1K

+5E

7904 PCF8574A

5V

STEREO

1V2

DATA

4V

WR-EN

4V8

CLK

B028

0V7

SEL-RADIO

2901 22uF

2904 22uF

13

NC

4 5 6 7

9 10 11 12

B015B014

RADIO

4920

SMD

3907

2V2

3901

1K

6901

P0

P1

P2

P3

P4

P5

P6

P7

VSS

8

2911

2902

10uF

SMD

15K

SMD

res

3921

15K

3902

2903

SMD

3920

10uF

BZX79C2V4

I/O EXPANDER FOR I2C BUS

READ IIC CONTROL

WRITE

8

9

res

3917

2V2

1V2

0V2

1V2

0V7

1K

IIC

16

1

2

3

5

13

12

SMD

+5E

678

H

L

1011

VDD

A0

A1

A2

SCL

SDA

10

9

5V

15

4

14

16

5V

1 2 3

14

5V

15

4V5

4V8

1V2

7901 HEF4053B

3916

220

22uF

2910

10K

3919

3918

+5E +5E

11

+5E

3908

2905

B023

B024

10K

4K7

10uF

+5E

4921

res

3906

6K8

9922

res

3922

res

SMD

SEL-RADIO

12

B019

2921

res

+5E

AUDIO-TV

AUDIO-OUT

B020

B021

B022

0247

4

3

0264

1

2

1

2

0256 res

TO DP1

SCL2

2

SDA2

(CLOCK)

1

4

3

SCL2

TO 0237

2

SDA2

1

(CONTROL)

0237

TO 0239 AND 0240

1

23456

7

0239

ONLY FOR MECHANICAL CLAMPING

23456

0240

CL 06532004_011.eps

13

TO 0264

(AUDIO)

7

130100

14

A A

1940

HEADPHONE CONNECTOR

J1

J2

B B

+5E

C C

1950

P3

P2

D D

B001

B002

100

3942

0V

6945

BZX79C5V6

B003

P4

E E

P1

SMART LOADER CONNRCTOR

RJ11

TO 0255

1-2

AND

TO 0241

3-4-5

P5

P6

F F

G G

H H

B004

B005

0255

1

2

3

4

5

4V5

6946

4V3

6947

0V

6948

95V

BZX79C5V6

res

B011

(SUPPLY)

5V

I I

1

1 F 6 2 F 6 3 G 6 4 G 6 5 F 6 6 F 6 7 G 6 8 G 6 9 F 6 10 G 6 11 F 6 12 F 6 13 G 6 14 G 6 0215 A 4 0237 H14 0238 D 4 0239 I12 0239 I12 0239 I13 0239 I13 0239 I13 0239 I13 0239 I13 0240 I13 0240 I14 0240 I14 0240 I14 0240 I14 0240 I14 0240 I14 0247 H13 0255 H 1 0256 C13 0259 F 4 0264 B14 1901 H 6 1920 H 2 1940 A 1 2901 C 8 2902 B 9 2903 E 9 2904 C 8 2905 E11 2906 D 5 2907 D 5 2908 C 5 2909 B 7 2910 F11 2911 B 9 2920 I 2 2921 B13 2930 I 4 2940 B 2 2941 B 3 2942 C 2 2952 F 3 3901 D 8 3902 D 9 3904 C 7 3905 C 7 3906 C12 3907 D 8 3908 E11 3909 D 6 3910 B 6 3911 B 5 3912 C 5 3913 E 5 3914 E 5 3915 C 6 3916 F11 3917 E 9 3918 H11 3919 H11 3920 D 9 3921 D 9 3922 C12 3925 G 3 3926 G 4 3927 G 4 3928 I 3 3930 I 3 3931 I 4 3932 I 3 3933 I 4 3934 G 5 3940 A 3 3941 A 3 3942 C 1 3943 C 3 3944 D 2 3945 D 2 3946 D 2 3947 E 2 3948 F 2 3949 F 3 3950 F 4 3951 G 3 3952 E 3 4920 C 8 4921 A12 4930 I 6 5940 A 3

5941 B 3 5950 G 4 6901 E 8 6925 H 4 6945 D 1 6946 E 1 6947 F 1 6948 G 1 6950 E 2 7901 C11 7903 B 6 7903 D 6 7904 F 7 7920 H 1 7925 I 3 7930 I 5 7940 D 3 7950 G 2 7951 F 3 7952 E 3 9922 C12 9942 A 3 9943 A 3 9944 B 3 B001 C 1 B002 D 1 B003 D 1 B004 E 1 B005 F 1 B006 D 4 B007 D 4 B008 E 4 B009 E 4 B010 E 4 B011 H 1 B012 G 3 B013 H 2 B014 I 5 B015 I 8 B016 G 5 B017 C 7 B018 C 7 B019 B13 B020 C13 B021 C13 B022 C13 B023 H12 B024 H12 B025 A 4 B026 B 4 B027 I 1 B028 G 7 B029 G 5 J1 A 2 J2 B 2 P1 E 1 P2 D 1 P3 C 1 P4 D 1 P5 F 1 P6 F 1

Schematics and PWB’s

CL96532159_032.pdf

060100

Personal notes:

44L9H.2E 7.

Interface panel

Schematics and PWB’s

45L9H.2E 7.

Smart plug / loudspeaker

I

SMART PLUG/LOUDSPEAKER SP/LS

+5V

SMART PLUG LOADER

CONNECTOR

U1

Clock

Data-in

+5V

Data-out

Ground

IR-data

RJI1

1

2

3

4

5

6

R6 100R

C3 100n

0V

D5

BZX79-C3V6

4V6

5V

D1

BZX79-C5V6

R7

100R

D0

BZX79-C5V5

0V

BC547B

Q3

R3 10K

D2

BZX79-C5V6

R2

10K

BC557B

Q2

R4

100R

R5

100R

+5V

R6 47K

R13 47K

+5V

Q1 BC547B

R6 10K

Smart plug / loudspeaker panel

TO/FROM

0238

1

2

3

4

5

0259

1

2

3

0238

A7

CONTROL

TO/FROM

1238

(SMART CARD

INTERFACE)

To/from

0259

(SMART CARD

INTERFACE)

To/from

0259

Stdby

Data-out

Data-in

CLK

Gnd

+5V

R11

5V

47K

+5V

IR-Data

DCM Disable

A8

CONTROL

0V

OR

J

I

or

FOR NON SYSTEM

FOR SYSTEM

FOR NON SYSTEM

BATHROOM SPEAKER

CONNECTION

U3

1 4

2

BZX79-C20

D4

0.1V 0V 0V 1N4148

D9

BZX79-C20

D8

R10

10R

C2 100n

R9

10R

JP3

R12

47K

Q4 BC547B

L3

1

Spk +

2

Spk -

J7

1

Not used

2

TO

0215

A10

(SOUND

AMPLIFIER)

CL 06532004_021.eps

110100

Schematics and PWB’s

Smart card interface

46L9H.2E 7.

12345678

SMART CARD INTERFACE

J J

330R

+5Veps

56u

1u

3704

4717

3720

2

68K

1700

250mA

MP

3721

75R

1K

7710

DS1813

RESET

PULS

FORMER

6710

3716

47K

1

3

0V

BAS216

2704

DCM DISABLE

+5Veps

3717

22K

3705

1u

10K

5V4

I

SP/LS

A8

FRONT

CONTROL

+5Veps

7702 BC847B

3708

2701

5K6

3706

100n

0259

1259

22K

1

2

3

1

2

3

3707

4716

IR DATA

0V7

22K

IR DATA

0V

7703 BC847B

+5Vchas

6700

BZX284-C8V2

3711

4K7

+5Veps

4V8

AUDIO OUT

MONO +

AUDIO OUT

BC847B

MONO -

3713

4K7

BC857B 7705

1V2

0V

7707

+5Veps

1215

1

2

3714

4V9

0V

4K7

3712

10K

BC857B 7704

3722

1K8

+5Veps

0V

3715

10K

FROM 0263

A13

I/O SCART

0214

AUDIO RIGHT

1

2

AUDIO LEFT

3

SMART CARD CONNECTOR

1800

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

GND-E GND

GND-D

21

22

23

24

25

26

27

28

29

30

31

32

A

B

C

D

E

F

EPS

I

SP/LS

A7

CONTROL

A7

CONTROL

A7

CONTROL

A13

I/O SCART

G1

CLOCK

DISPLAY

A13

I/O SCART

A1

SUPPLY

0228

1238

0238

0236

0219

0216

0237

1227

0241

1

2

3

1

2

3

4

5

1

2

3

4

5

1

2

3

4

1

2

3

4

5

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

5

+12Veps

GND-E

SDA2

+5Veps

GND-C

GND-D

+5Veps

TV DATA

DCM DATA

CLOCK

TV DATA

DCM DATA

CLOCK

RESET

ANALOG RED

ANALOG GREEN

ANALOG BLUE

FAST BLANKING

"C" IN

SCL2

AUDIO IN RIGHT

AUDIO IN LEFT

Vaux

VD

HD

6712

BYD33D

+5Vchas

4V6

6701

6707

3703

GND-E

+5Vchas

4V6

6702

BZX284-C8V2

6706

BZX284-C8V2

75R

3702

6711

BYD33D

2703

1u

+5Veps

47K

10K

3701

3700

6704

SDA2

SCL2

A7

4V6

7701

BC847B

+12Veps

BZX284-C8V2

3718

2V

100R

0V

3719

12V

7706 BC847B

1V4

GND-E

6703

BZX284-C8V2

6705

BZX284-C8V2

VIDEO OUT

CVBS/Y IN

75R

1237

1

2

3

4

7700

BC847B

BZX284-C8V2

0V

BZX284-C8V2

CONTROL

3723

5705

8V

2702

2700

47n

33R

+12Veps

4715

2345678

GND POWER

GND IIC

TV CLOCK

DCM DATA

CVBS_IN

2

CVBS_OUT

AUDIO OUT MONO+ (SPEAKER)

AUDIO OUT MONO(SPEAKER)

AUDIO RIGHT OUT

AUDIO LEFT OUT

CL 065320004_022.eps

110100

A

B

C

D

E

F

0214 E7 0216 D1 0219 C1 0228 A1 0236 C1 0237 E1 0238 B1 0241 F1 0259 A4 1215 E6 1227 E1 1237 E2 1238 A1 1259 B4 1700 A3 1800 B8 2700 F3 2703 A3 3700 B2 3701 B2 3702 E2 3703 E2 3704 F3 3705 F3 3711 C5 3712 C6 3713 C6 3714 C6 3715 C7 3716 B3 3717 B3 3718 D2 3719 D3 3721 D3 3722 D6 3723 F3 4715 F2 4717 B3 6701 C2 6702 C2 6703 C2 6704 D2 6705 E3 6706 D2 6707 D2 6710 F3 6711 F2 6712 F1 7700 B2 7701 B3 7704 C6 7706 D3 7707 D6 7710 F3

PHILIPS 14HT3153, 14HT3253, 14HT3303, 14HT4203, 17HT3153 Service manual & schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
