Philips 14837-9 User Manual

311/32"

2 "

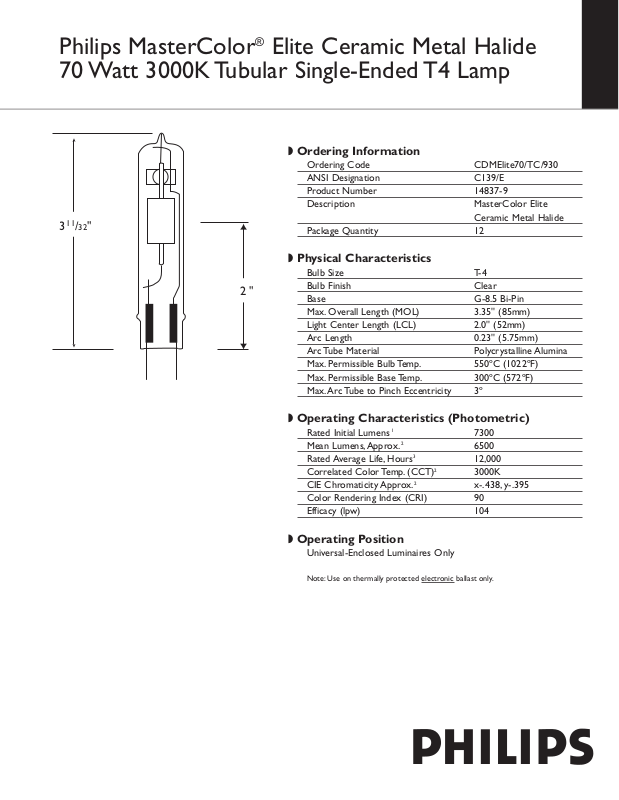

Philips MasterColor®Elite Ceramic Metal Halide
70 Watt 3000K Tubular Single-Ended T4 Lamp

◗ Ordering Information

Ordering Code CDMElite70/TC/930
ANSI Designation C139/E
Product Number 14837-9
Description MasterColor Elite

Ceramic Metal Halide

Package Quantity 12

◗ Physical Characteristics

Bulb Size T-4
Bulb Finish Clear
Base G-8.5 Bi-Pin
Max. Overall Length (MOL) 3.35'' (85mm)
Light Center Length (LCL) 2.0'' (52mm)
Arc Length 0.23'' (5.75mm)
Arc Tube Material Polycrystalline Alumina
Max. Permissible Bulb Temp. 550ºC (1022ºF)
Max. Permissible Base Temp. 300ºC (572ºF)
Max.Arc Tube to Pinch Eccentricity 3º

◗ Operating Characteristics (Photometric)

Rated Initial Lumens
Mean Lumens, Approx.
Rated Average Life, Hours
Correlated Color Temp. (CCT)
CIE Chromaticity Approx.
Color Rendering Index (CRI) 90
Efficacy (lpw) 104

1

2

3

2

2

7300
6500
12,000
3000K
x-.438, y-.395

◗ Operating Position

Universal-Enclosed Luminaires Only

Note: Use on thermally protected electronic ballast only.

Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050

A Division of Philips Electronics North America Corporation

Printed in USA 10/07 TDS-148379

www.philips.com

Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050

A Division of Philips Electronics Ltd.

Philips MasterColor®Elite Ceramic Metal Halide 70 Watt 3000K Tubular Single-Ended T4 Lamp

Electrical Data (Subject to change without notice)

Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Lamp Operating Voltage (rms) (Nominal)

Initial Lamp Voltage Range (rms)5. . . . . . . . . . . . . . . . . . . . . 80–100

Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 0.98

Lamp Current Crest Factor (Maximum) . . . . . . . . . . . . . . 1.8

Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . . 3 Minutes

Restrike Time for Hot Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4–8 Minutes

Ballast Type (Electronic Only) . . . . . . . . . . . . . . . . . . . . . . . . ANSI C139/E

Ballast Open Circuit Voltage (Minimum). . . . . . . . . . . . . . . 198 RMS Min.

Pulse Peak Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 Minimum, 4000 Maximum

Pulse Width @ 90% Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Micro Second Minimum

Pulse Repetition Rate (Minimum)

Minimum Operating Temperature . . . . . . . . . . . . . . . . . . . . -30º C (-22°F)

1) Measured at 100 hrs. life. Approximate lumen values listed are for vertical operation of the lamp.

2) Approximate lumen output at 40% of lamp rated average life.

3) Rated average life is obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours
per start. It is based on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.

4) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.

5) Measured with the lamp operating at rated watts.

6) Option-Pulse Width @ 90% Peak, 1 micro second minimum with 2 pulses per half cycle.

4

. . . . . . . . . . . . . 86

6

. . . . . . . . . . . . . . . . . . . . 1 per Half Cycle

Installation Information: MasterColor

®

Metal Halide T4 lamps must be used in combination with appropriate fully electronic ballast.

WARNINGS, CAUTIONS AND OPERATING INSTRUCTIONS

“WARNING: These lamps can cause serious skin burn and eye inflammation from

R

short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured.
Do not use where people will remain for more than a few minutes unless adequate shielding or
other safety precautions are used. Cer tain lamps that will automatically extinguish when the
outer envelope is broken or punctured are commercially available.”This lamp complies
with FDA radiation performance standard 21 CFR subchapter J. (USA:21CFR 1040.30
Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured,turn off at once and replace the lamp to
avoid possible injury from hazardous short wave ultraviolet radiation.Do not
scratch the outer bulb or subject it to pressure as this could cause the outer
bulb to crack or shatter.A partial vacuum in the outer bulb may cause glass to
fly if the envelope is struck.

WARNING: The arc-tube of metal halide lamps are designed to operate under high pressure

and at temperatures up to 1000º C and can unexpectedly rupture due to internal or external
factors such as a ballast failure or misapplication If the arc-tube ruptures for any reason, the
outer bulb may break and pieces of extremely hot glass might be discharged into the
surrounding environment. If such a rupture were to happen, THERE IS A RISK OF

PERSONAL INJURY, PROPERTY DAMAGE, BURNS AND FIRE.

Certain lamps that will retain all the glass particles should inner arc-tube
rupture occur are commercially available from Philips Lighting Company.

RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.Allowing
lamps to operate until they fail is not advised and may increase the
possibility of inner arc tube rupture.

This lamp contains an arc tube with a filling gas containing Kr-85 and is
distributed by Philips Lighting Company, a division of Philips Electronics
North America Corporation, Somerset,New Jersey, 08875.

CAUTION:TO REDUCE THE RISK OF PERSONAL INJURY, PROPERTY DAMAGE,

BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURE THE FOLLOWING
LAMP OPERATING INSTRUCTIONS

MUST BE FOLLOWED:

LAMP OPERATING INSTRUCTIONS:

1. RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE. Allowing lamps to
operate until they fail is not advised and may increase the possibility of inner arc tube
rupture.

2. Use only in fully enclosed fixtures capable of withstanding particles of glass having tem­peratures up to1000ºC. Lens/diffuser material must be heat resistant. Consult fixture
manufacturer regarding the suitability of the fixture for this lamp.

3. Do not operate a fixture with a missing or broken lens/diffuser.

4. Operate lamp only within specified limits of operating position.

5. Before lamp installation/replacement, shut power off and allow lamp and fixture to cool
to avoid electrical shock and potential burn hazards.

6. Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within voltage
limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation.
B. For total supply load refer to ballast manufacturers electrical data.
C. Operate CDM-T6 (G12 base) lamps only on thermally

protected ballasts.

D.Operate CDM-TC lamps (G8.5 base), and CDM-T6 Elite lamps, and

CDM-T6 39W/842 only on thermally protected electronic ballasts.

7. Periodically inspect the outer envelope. Replace any lamps that show scratches, cracks
or damage.
If a lamp bulb support is used, be sure to insulate the support electrically to avoid possible

8.
decomposition of the bulb glass.

9. Protect lamp base, socket and wiring against moisture, corrosive atmospheres and
excessive heat.

10. Time should be allowed for lamps to stabilize in color when turned on for the first

time.This may require several hours of operation, with more than one start. Lamp
color is also subject to change under conditions of excess vibration or shock and color
appearance may var y between individual lamps.

11. Lamps may require 4 to 8 minutes to re-light if there is a power interruption.

12. Take care in handling and disposing of lamps. If an arc tube is broken, avoid skin contact

with any of the contents or fragments.
