Philips 140S User Manual

Philips 140S Electronic User's Manual

file:///E|/Potomac/english/140S/index.htm [4/19/2000 4:24:02 PM]

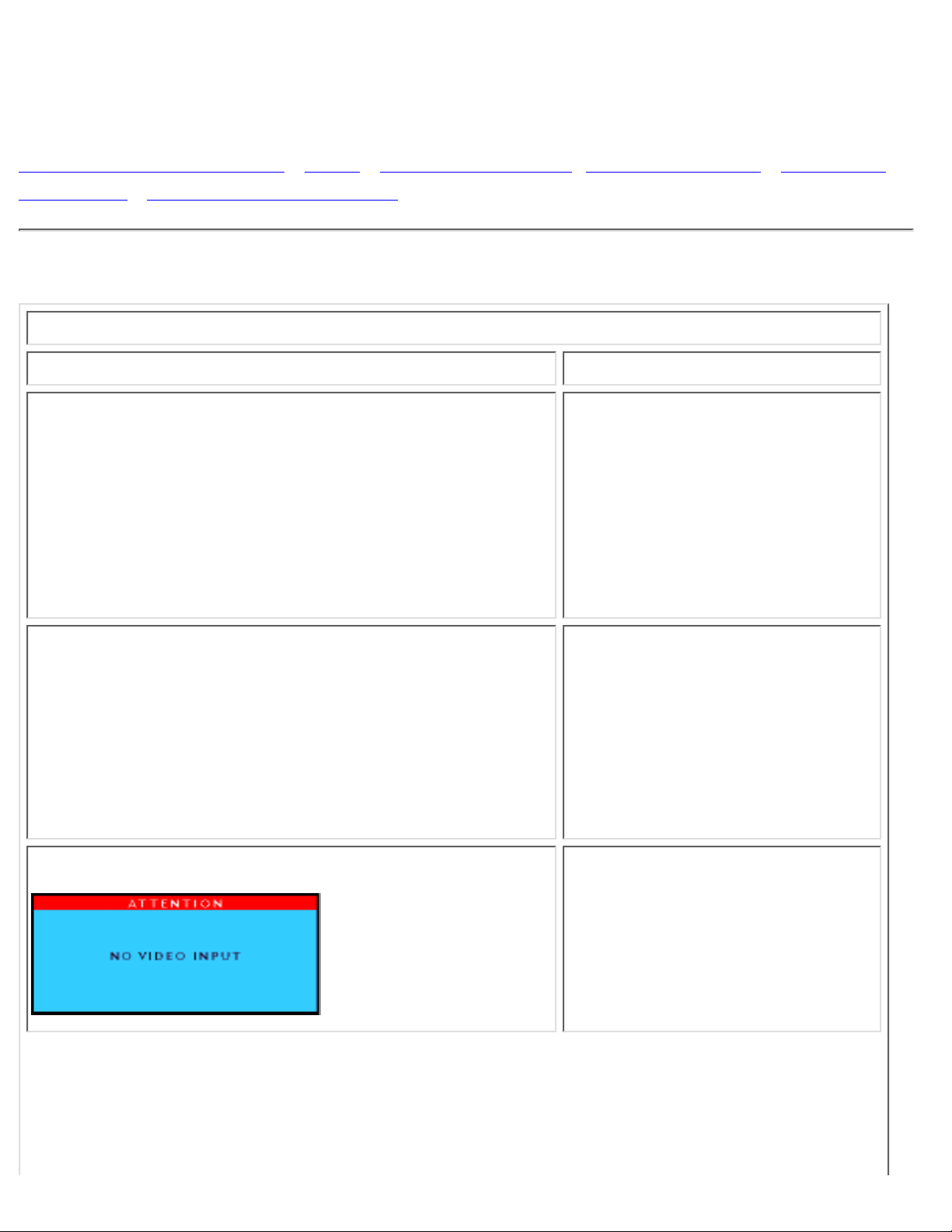

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Installation Locations • Correct Handling of the LCD Monitor • FAQs • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Unplug the monitor, if you are not going to use it for an extensive period of time.● Unplug the monitor, if you need to clean it with a slightly damp cloth. Wiping the screen with a dry

cloth is possible when the power is off. However, never use alcohol, solvents, or ammonia-based liquids.

●

Consult a service technician if the monitor does not operate normally when following the instructions in this manual.

●

The casing cover should be opened only by qualified service personnel.● Keep the monitor out of direct sunlight and away from stoves or any other heat source.● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics.● Do not block the ventilation holes on the cabinet.● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.● When positioning the monitor, make sure the power plug and outlet are easily accessible.● If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds, then attach

the power cable or DC power cord for normal operation.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or excessive moisture.

●

When positioning the monitor, make sure the power plug and outlet are easily accessible.●

Consult a service technician if the monitor does not operate normally when operating instructions of this manual are followed.

RETURN TO TOP OF THE PAGE

Installation Locations

Avoid Heat and Extreme Cold● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight, or extreme cold.● Avoid moving the LCD monitor between locations with large temperature differences. Choose a site●

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (1 of 3) [4/19/2000 4:28:13 PM]

falling within the following temperature and humidity ranges.

Temperature: 5-35°C 41-95°F❍ Humidity: 20-80% RH❍

Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD monitor inside a car trunk.

●

Take care not to mishandle this product by either knocking or dropping during operation or transportation.

●

Do not store or use the LCD monitor in locations exposed to high humidity or a dusty environment. Also do not allow water or other liquids to spill on or into the LCD monitor.

●

RETURN TO TOP OF THE PAGE

Correct handling of the monitor

When handling the monitor, grip the bottom firmly with both hands and ensure that the front panel faces outward before lifting. Please refer to the diagram on the right.

Handling the monitor with care prevents scratching and damage. If the monitor becomes damaged, immediately disconnect the power from the unit and have it checked by a qualified service person before using it again.

To prevent fire or electrical shock, do not drop the monitor.3.

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (2 of 3) [4/19/2000 4:28:13 PM]

When moving the monitor, be sure to unplug all power cords in order to avoid injury or damage to the equipment.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (3 of 3) [4/19/2000 4:28:13 PM]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips 140S LCD Monitor. It describes the LCD monitor's features, setup, operation and other pertinent information. Its contents are identical to the information in our printed version.

Sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems as well as

other related information you may need.

●

About This Electronic User's Manual gives an overview of information included, along with notation icon descriptions and other documentation for your reference.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

On Screen Display provides information on adjusting the settings on your monitor.● Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along

with help desk phone numbers and information on the warranty applicable to your product.

●

Glossary defines technical terms.● Download and Print Option transfers this entire manual to your hard drive for easy reference.●

RETURN TO TOP OF THE PAGE

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (1 of 5) [4/19/2000 4:28:14 PM]

• Input signal levels 700m Vpp

• Sync input signal

Separate sync Composite sync

• Sync polarities Positive and negative

• Input Frequency

XGA Hsync 48- 60 KHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 KHz, Vsync 60 - 75 Hz (N.I.)

• Video interface Analog (D-Sub)

OPTICAL CHARACTERISTICS

• Contrast ratio 200 (typ.)

• Brightness 200 nits (typ.)

• Peak contrast angle 6 o'clock

• White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K)

• Viewing Angle (C/R >5)

Upper >30 ° (typ.) Lower >55° (typ.) Left >63 ° (typ.) Right >63 ° (typ.)

• Response time <=50ms (typ.)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum 1024 x 768 at 75Hz

• Recommended 1024x768 at 60Hz

14 USER DEFINABLE MODES

14 factory preset modes:

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (2 of 5) [4/19/2000 4:28:14 PM]

dot rate

(MHz)

H. freq (KHz) Mode Resolution V. freq (KHz)

25.175 31.469 IBM VGA 10h 640*350 70.086

28.322 31.469 IBM VGA 3h 720*400 70.087

25.175 31.469 IBM VGA 12h 640*480 59.940

30.200 35.000 MACINTOSH 640*480 67.000

31.500 37.861 VESA 640*480 72.809

31.500 37.500 VESA 640*480 75.000

36.000 35.156 VESA 800*600 56.250

40.000 37.879 VESA 800*600 60.317

50.000 48.077 VESA 800*600 72.188

49.500 46.875 VESA 800*600 75.000

57.300 49.700 MACINTOSH 832*624 75.000

65.000 48.363 VESA 1024*768 60.004

75.000 56.476 VESA 1024*768 70.069

78.750 60.023 VESA 1024*768 75.029

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 23W Green Stand-by Blanked No Yes < 3W Amber Suspend Blanked Yes No < 3W Amber

OFF Blanked No No < 3W Amber

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (3 of 5) [4/19/2000 4:28:14 PM]

This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) 361 x 343 x 165 mm (incl. Pedestal)

• Weight 4.6 Kg

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 23 W

• Temperature (operating) 0° C to 35° C

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding LCD panel, CCFL)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable:

No.

Assignment

No.

Assignment

1 Red video input 9 No pin 2 Green video input 10 Logic ground

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (4 of 5) [4/19/2000 4:28:14 PM]

3 Blue video input 11

Identical output - connected to pin 10

12 Serial data line (SDA)

5 Self test 13 H. Sync / H+V 6 Red video ground 14 V. Sync (VCLK for DDC) 7 Green video ground 15 Data clock line (SCL)

8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (5 of 5) [4/19/2000 4:28:14 PM]

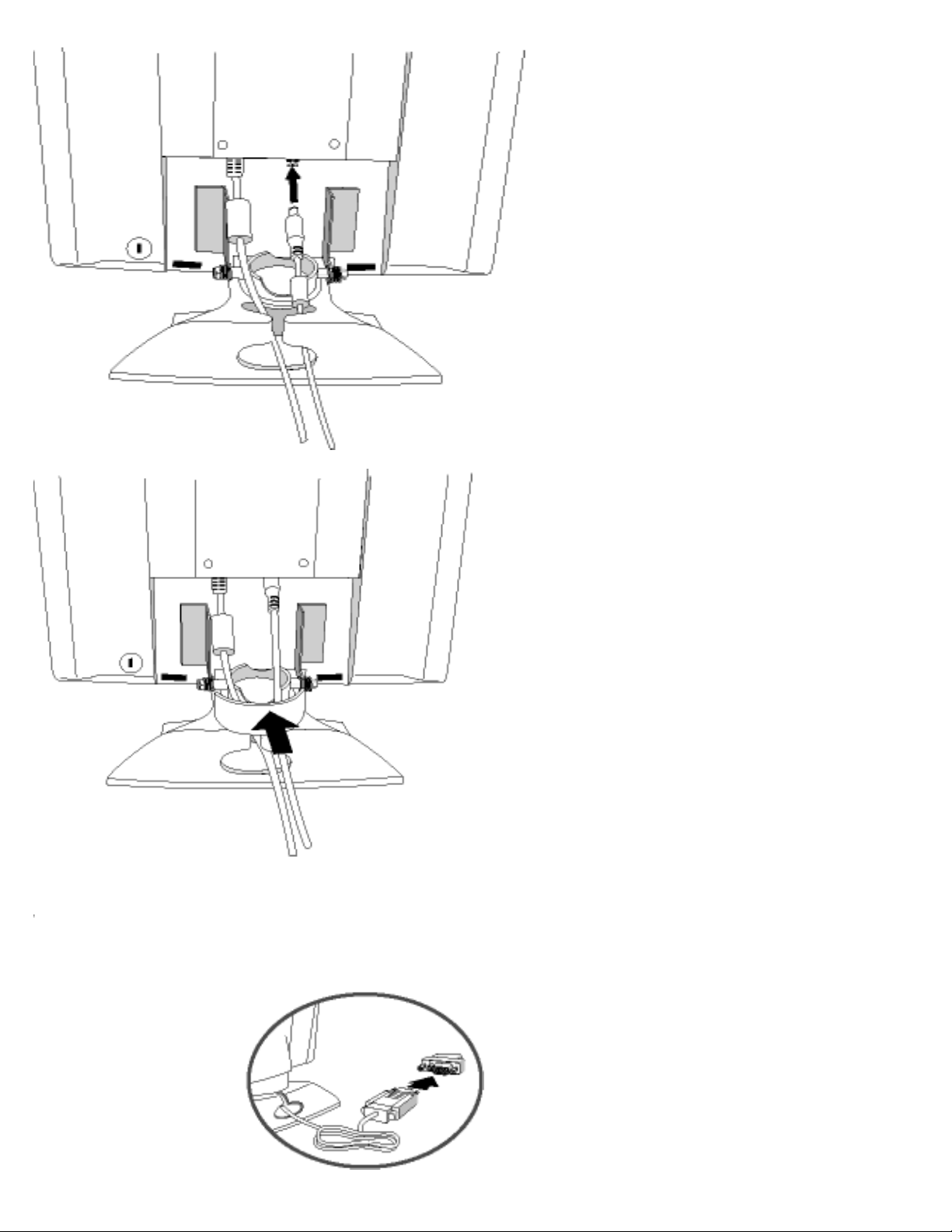

Installing your LCD Monitor

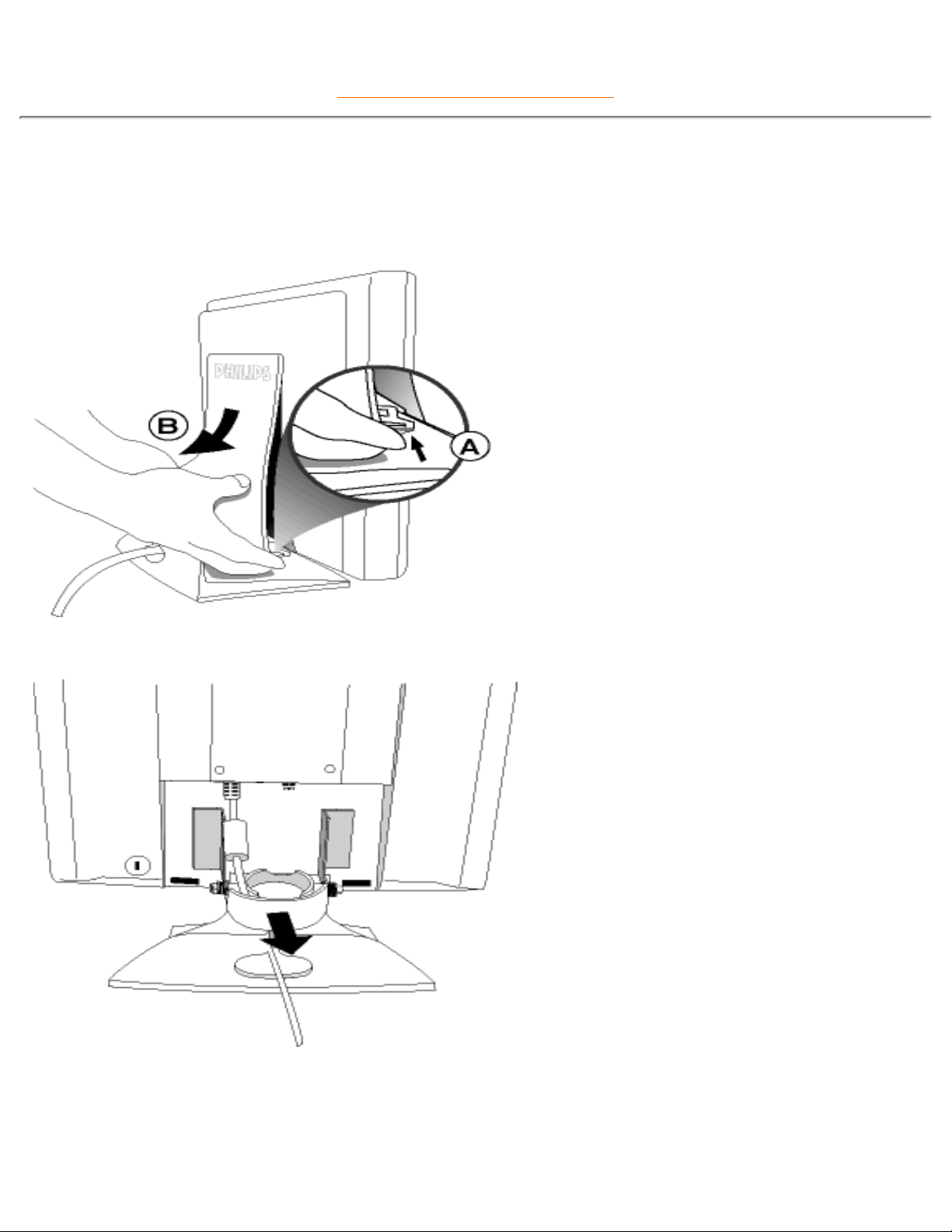

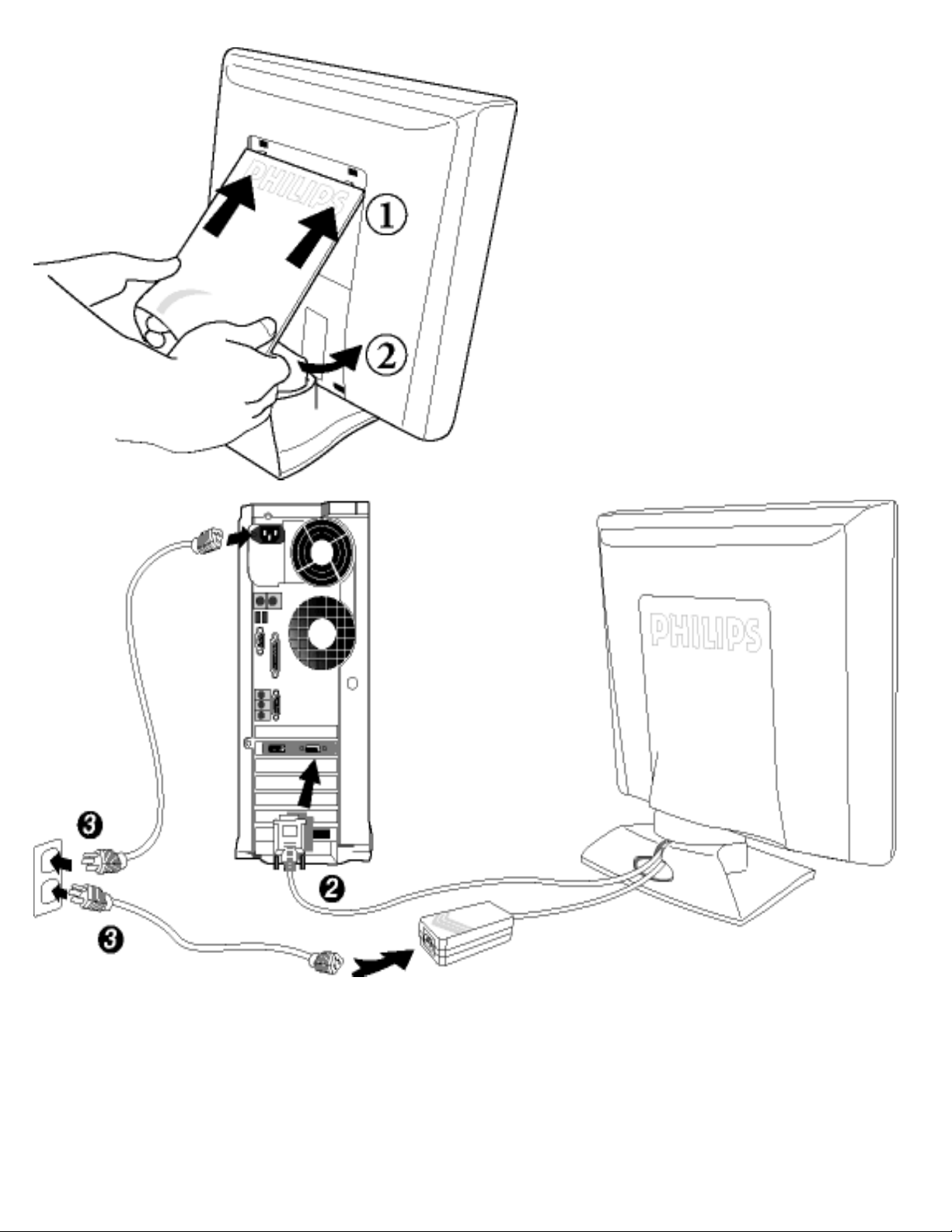

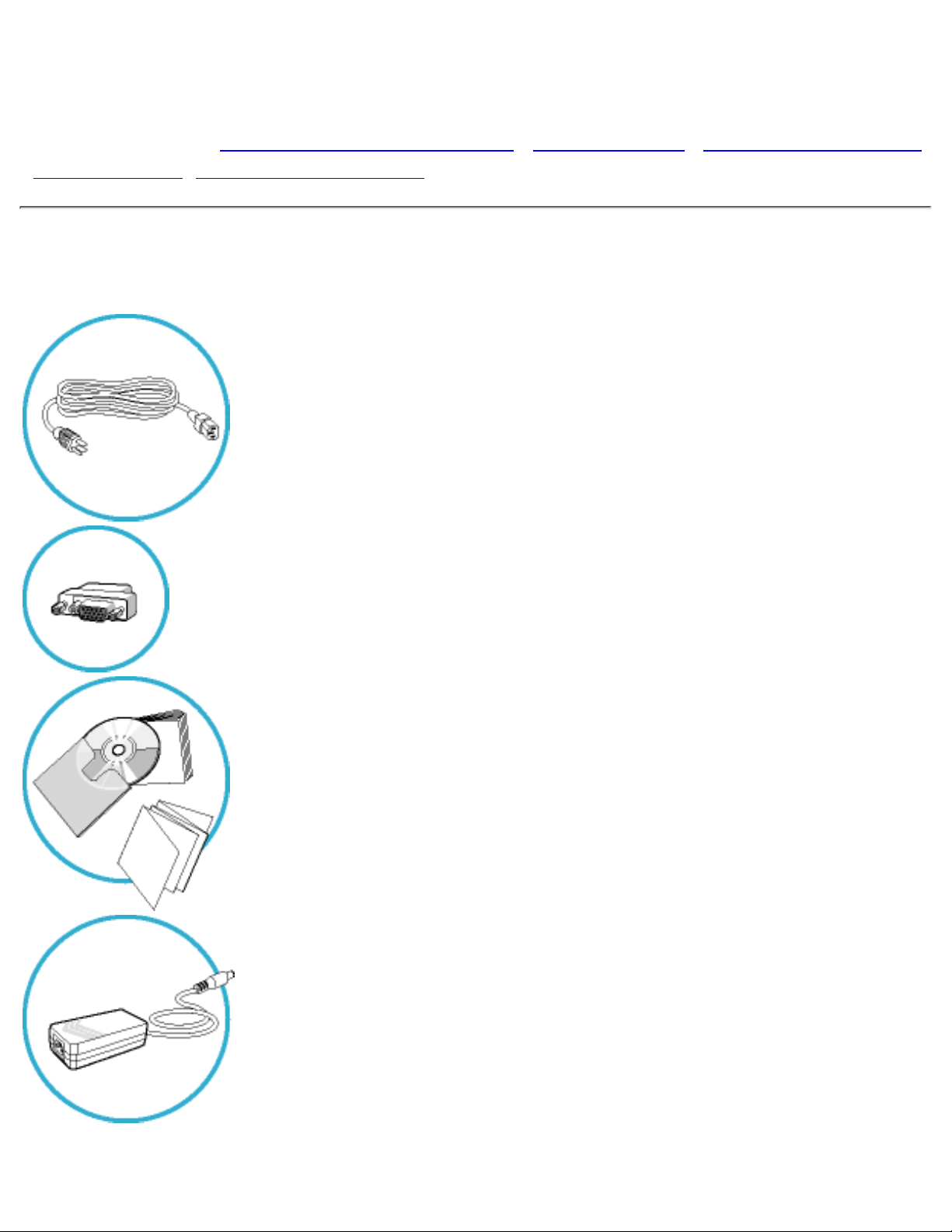

Your LCD Monitor : Front View Product Description • Connecting to Your PC • Getting

Started • Optimizing Performance

Front View

UP and DOWN buttons are used when adjusting the OSD of your monitor

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.

Installing your LCD Monitor

file:///E|/Potomac/english/140S/install/install.htm (1 of 2) [4/19/2000 4:28:15 PM]

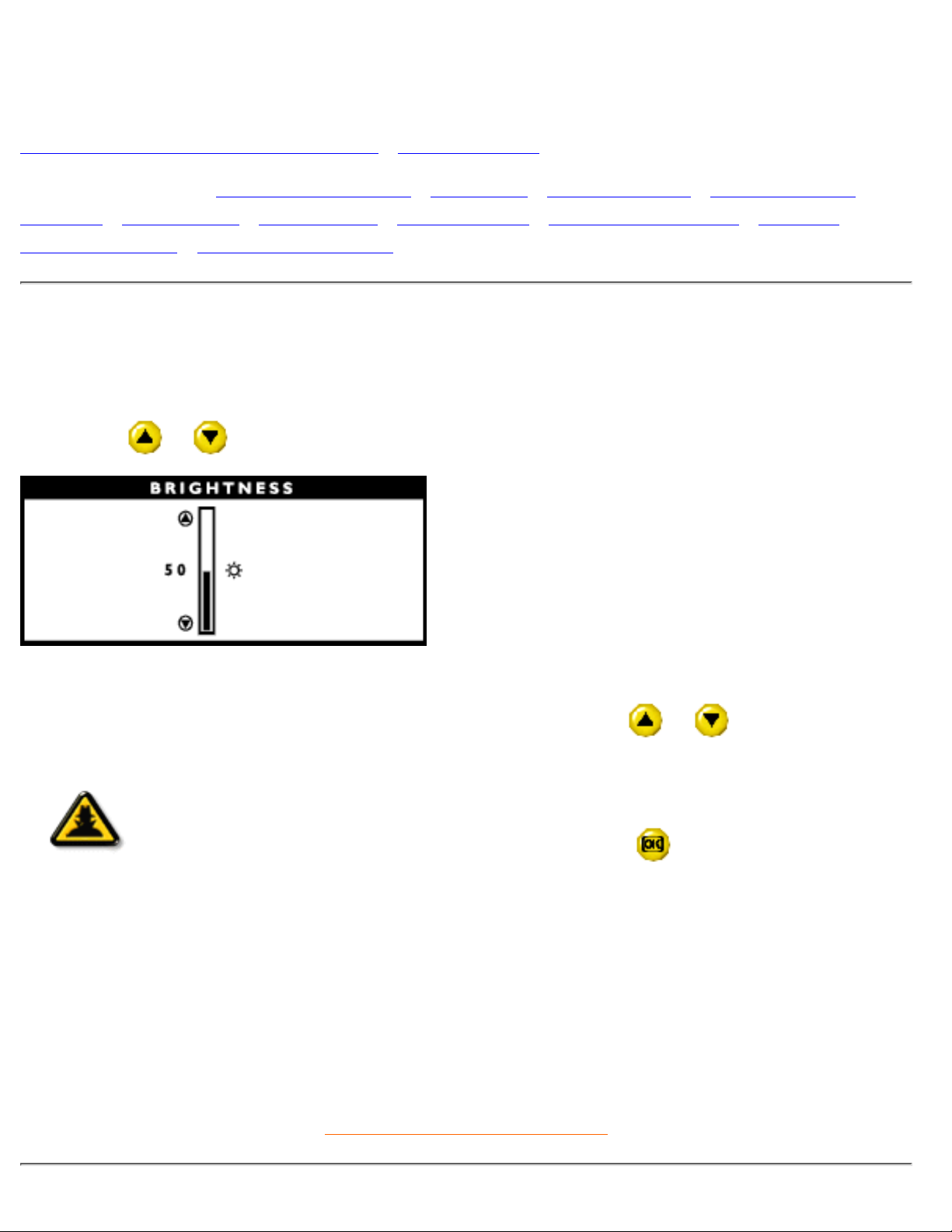

BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.

.OK button which when pressed will take you to the OSD controls

POWER button switches your monitor on

Automatically adjust the horizontal position, vertical position, phase and clock setting.

RETURN TO TOP OF THE PAGE

Optimizing Performance

For best performance, ensure that your display settings are set at 1024x768@60Hz (for 150P / 150B / 140S) or 1280x768, 60Hz (for 181AS).

●

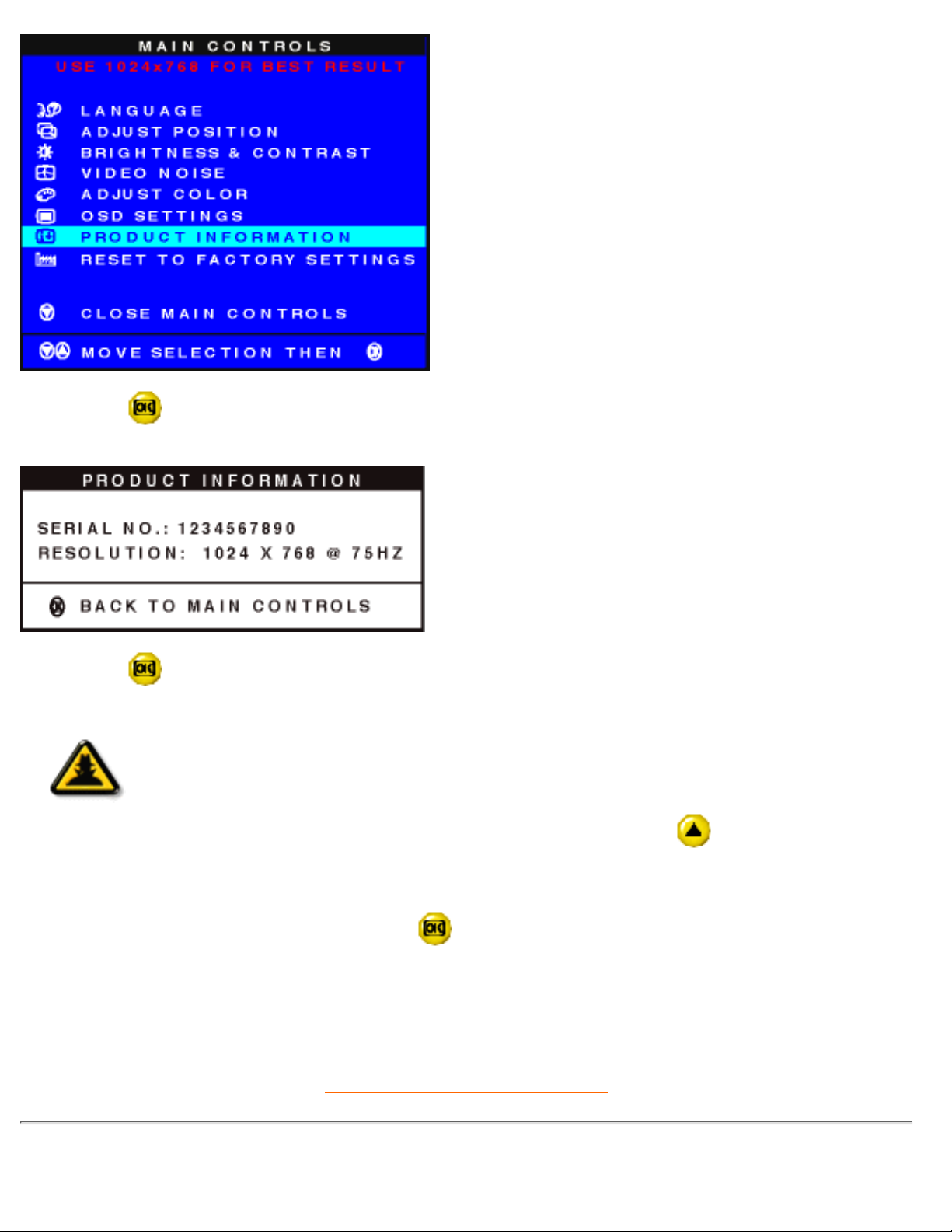

Note: You can check the current display settings by pressing the OSD "OK" button

once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor, included in this CD. A step-by-step instructions is provided to guide you through the installtion process. Click on the link to know more about this program.

More about

FPadjust Program

●

RETURN TO TOP OF THE PAGE

Installing your LCD Monitor

file:///E|/Potomac/english/140S/install/install.htm (2 of 2) [4/19/2000 4:28:15 PM]

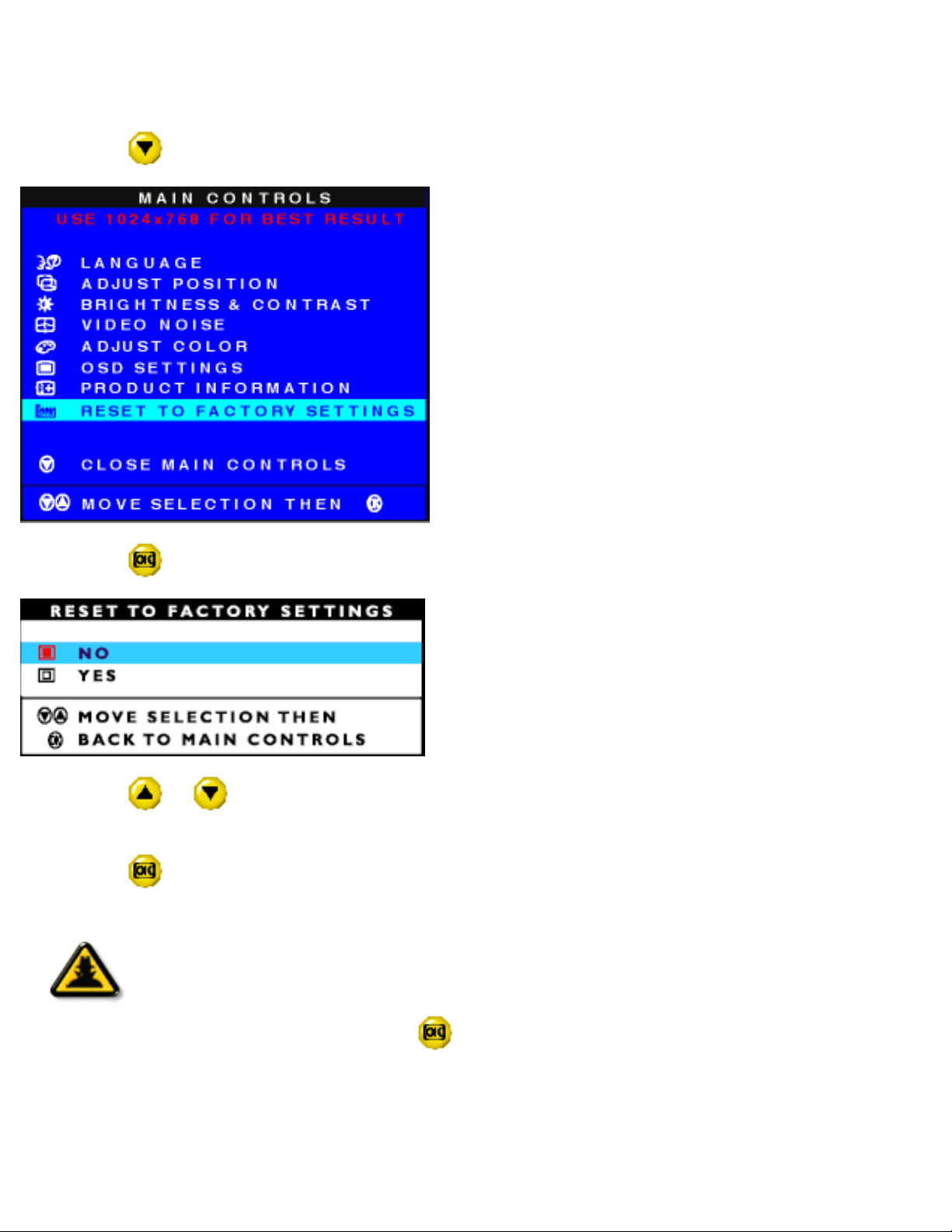

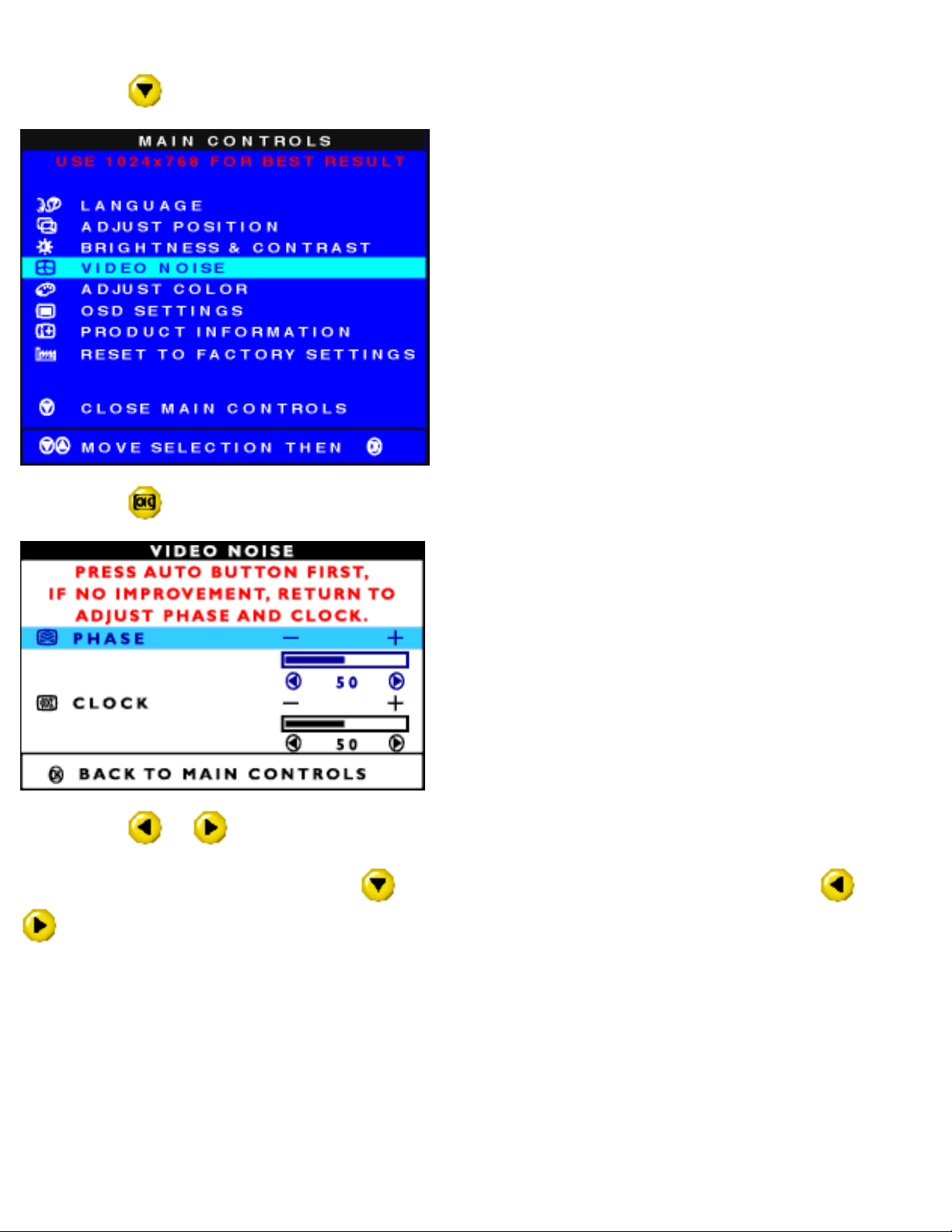

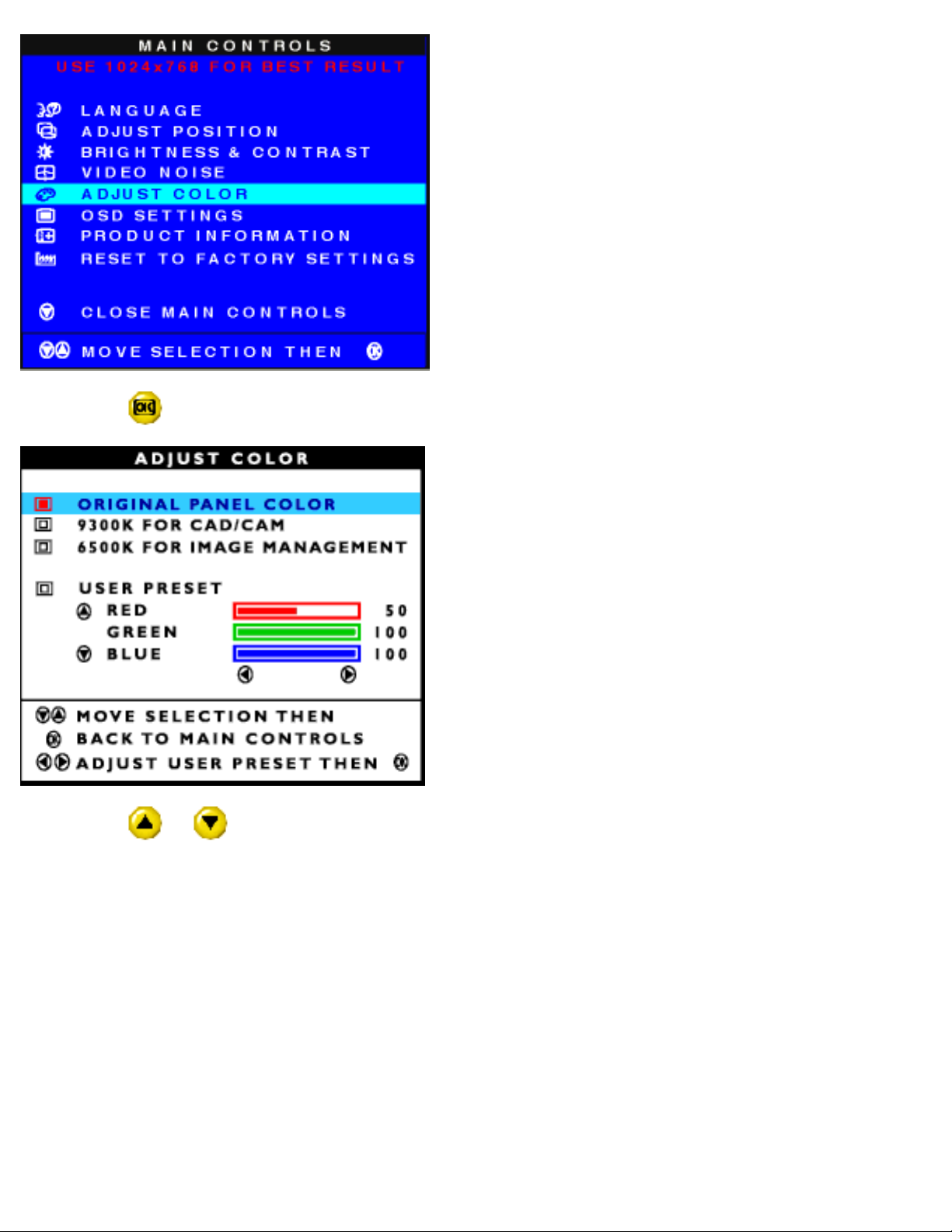

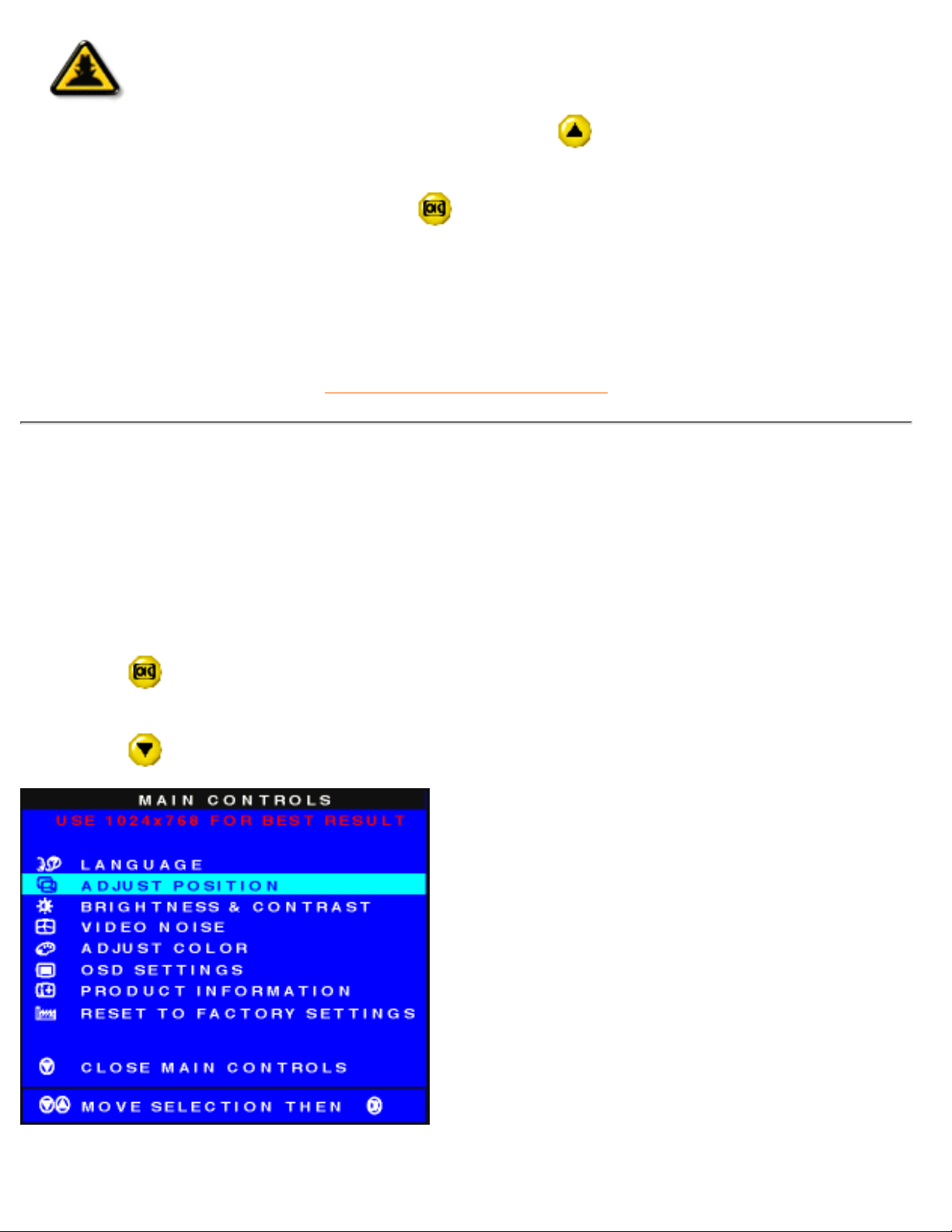

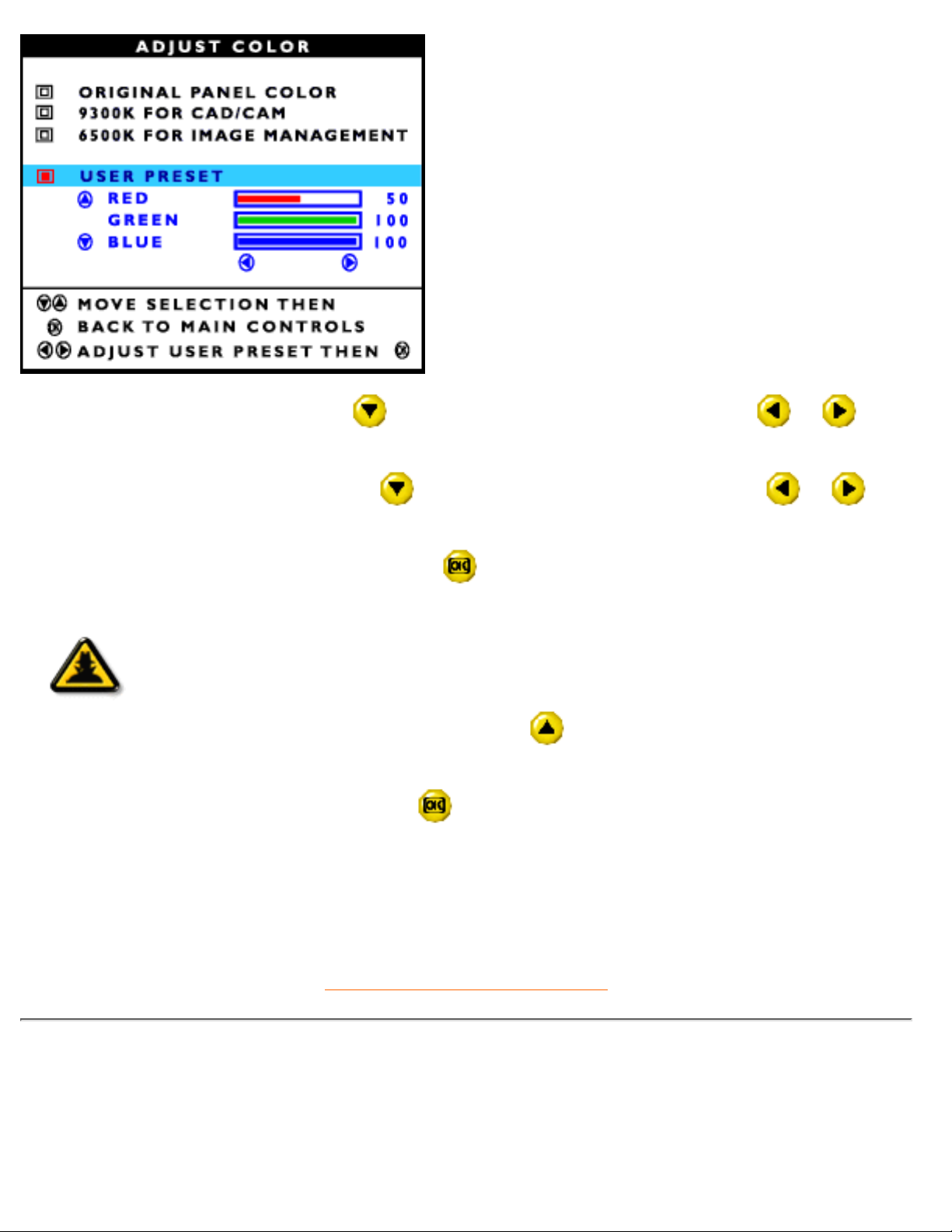

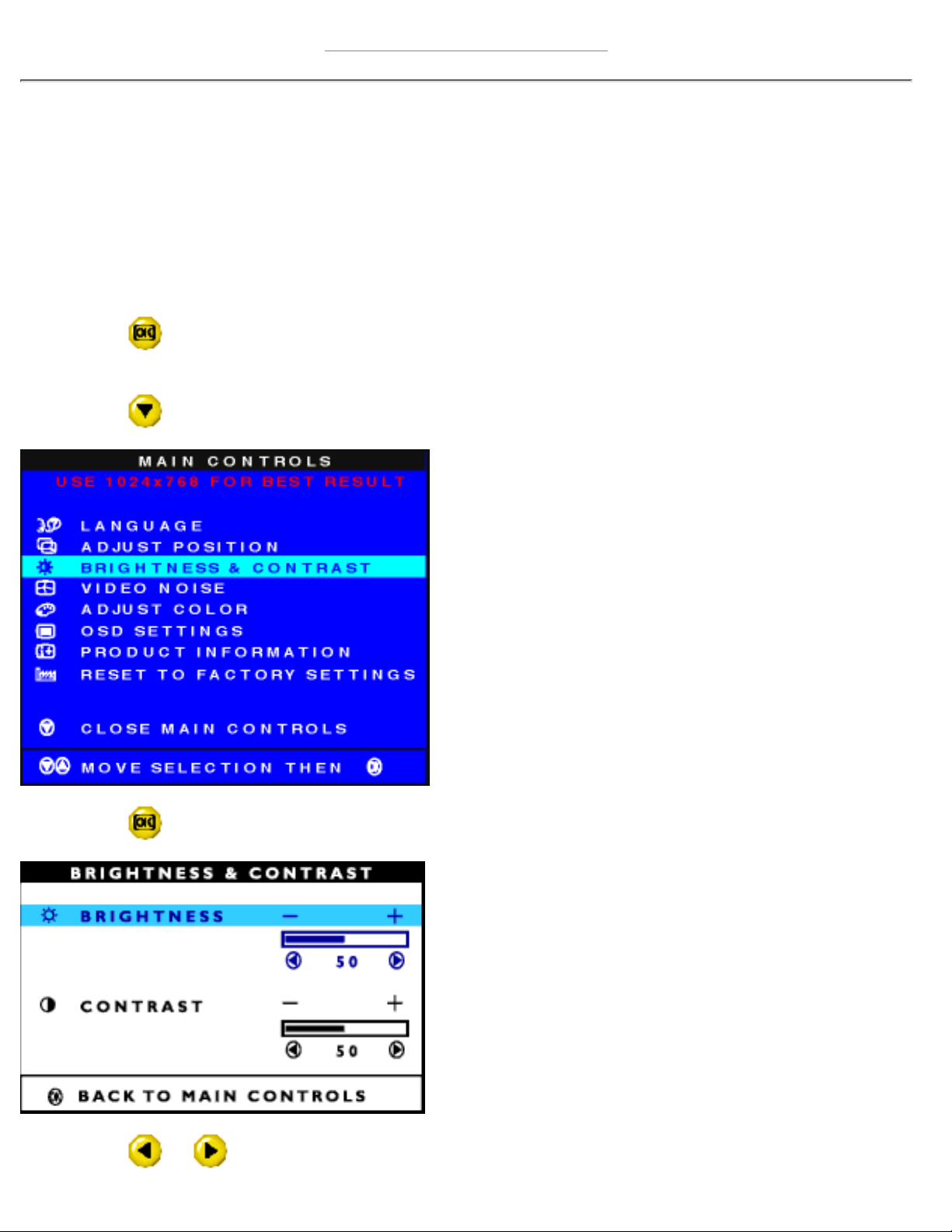

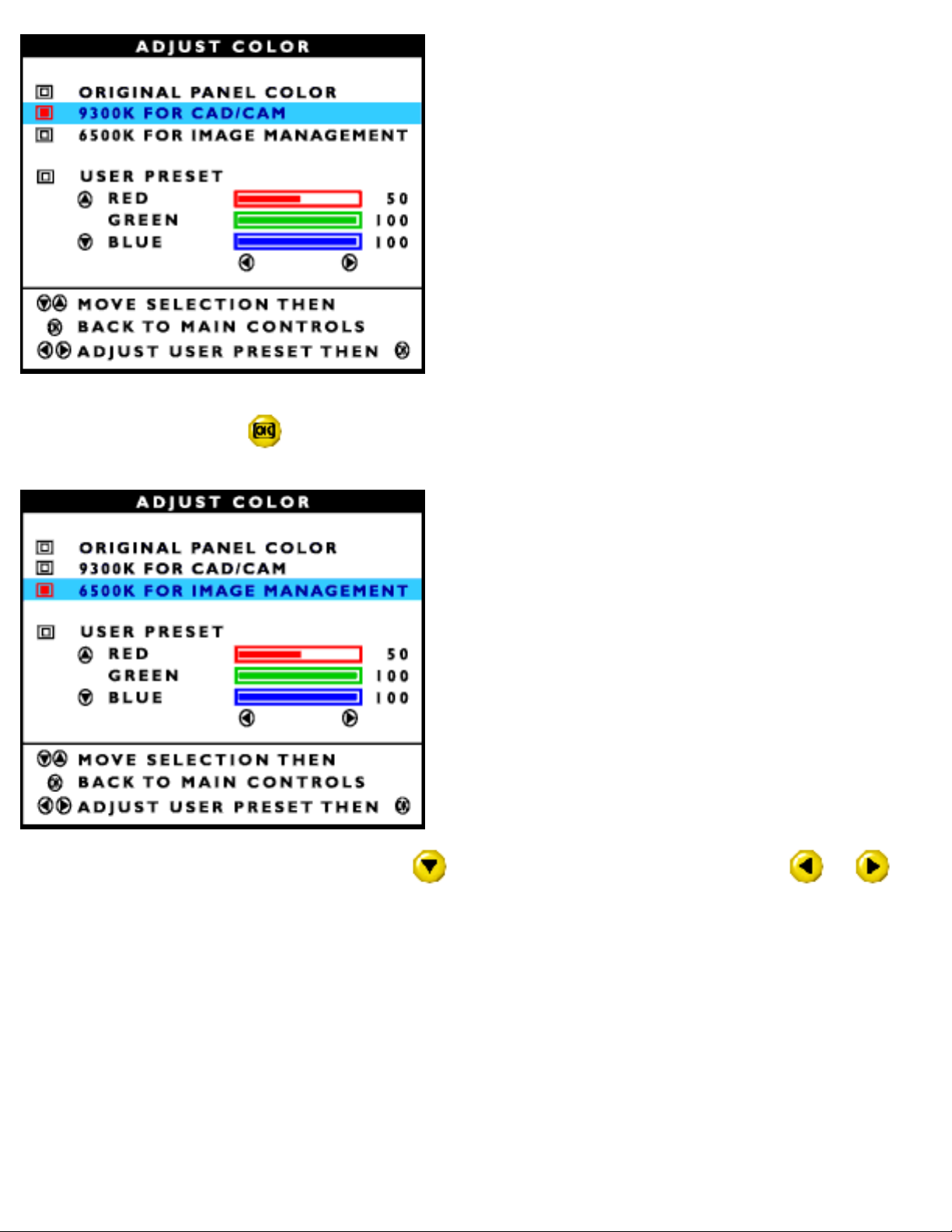

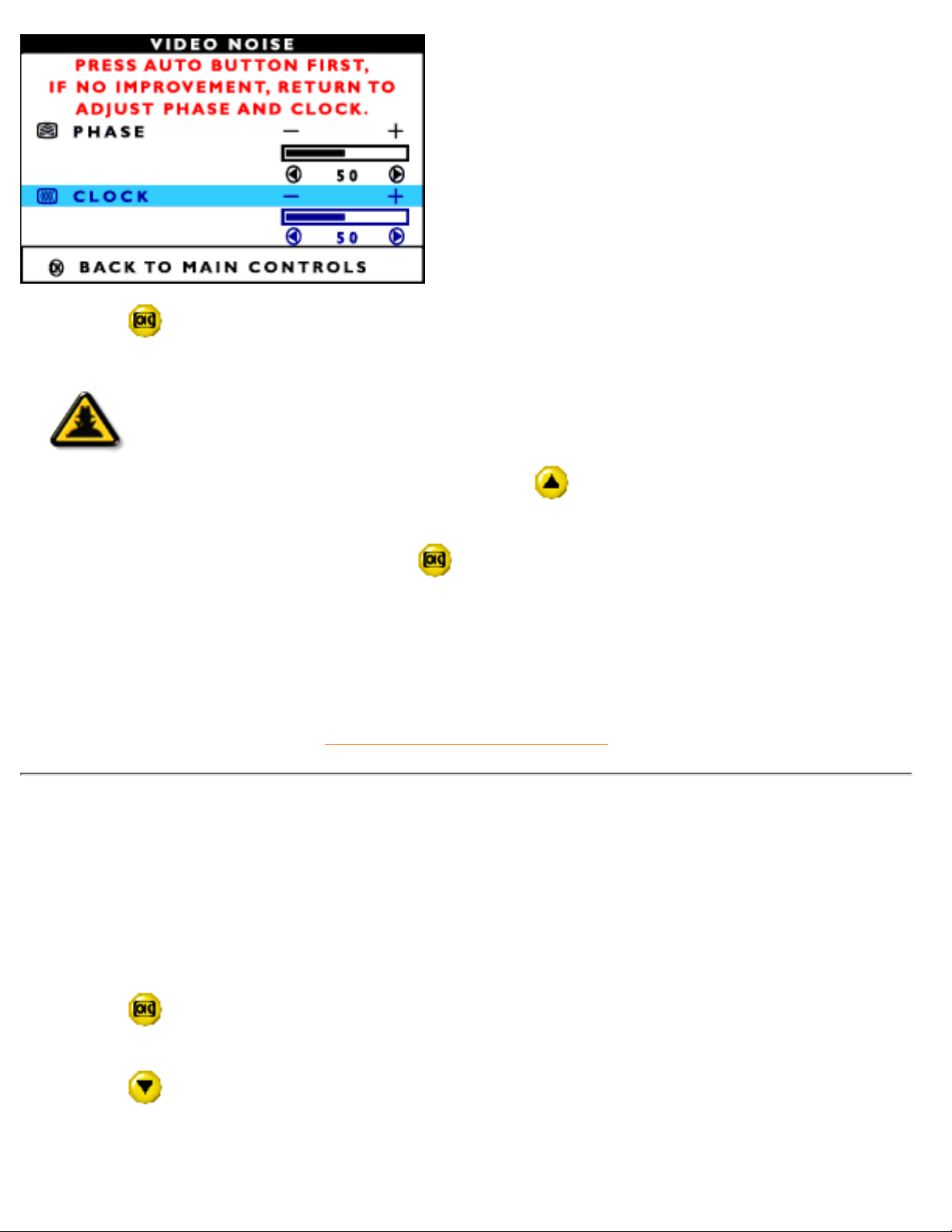

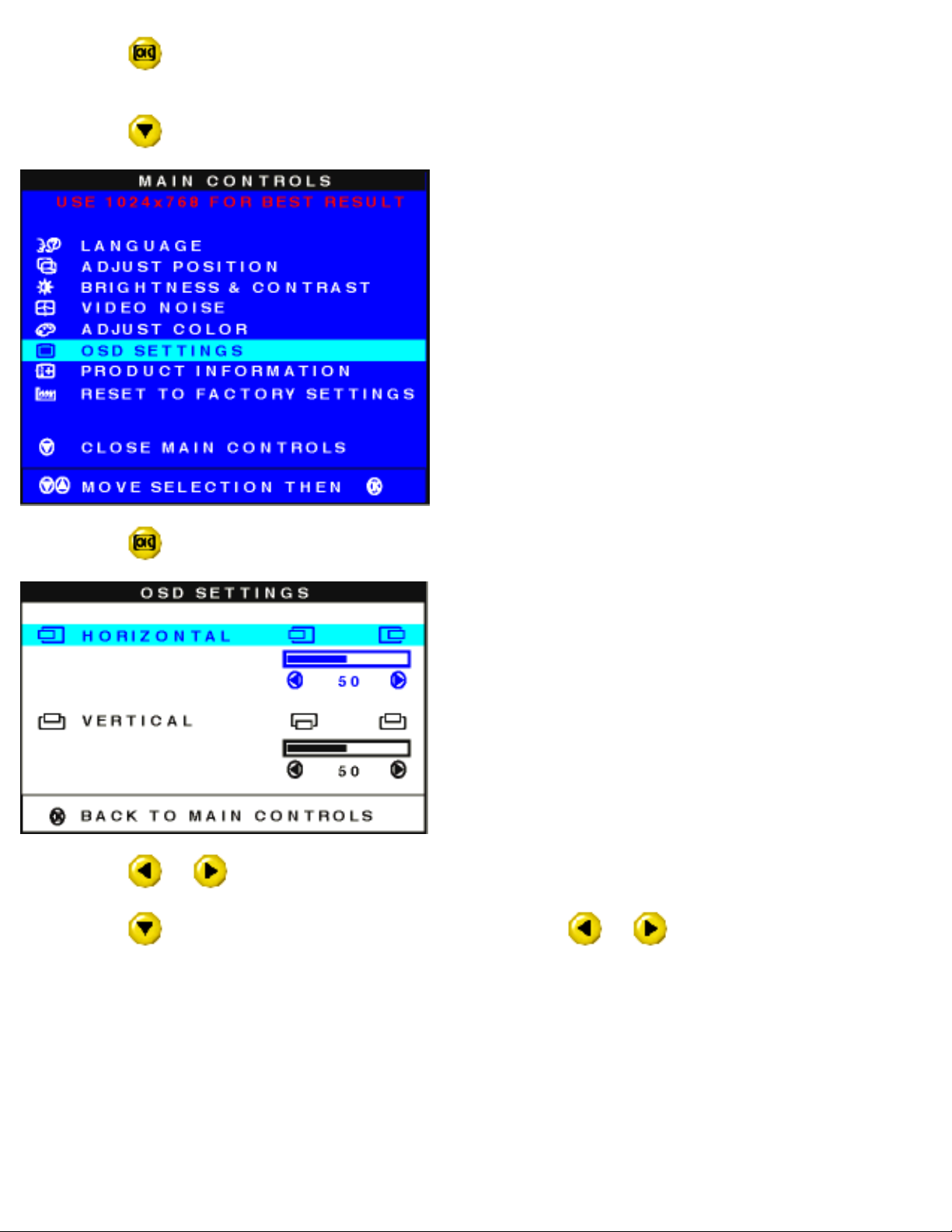

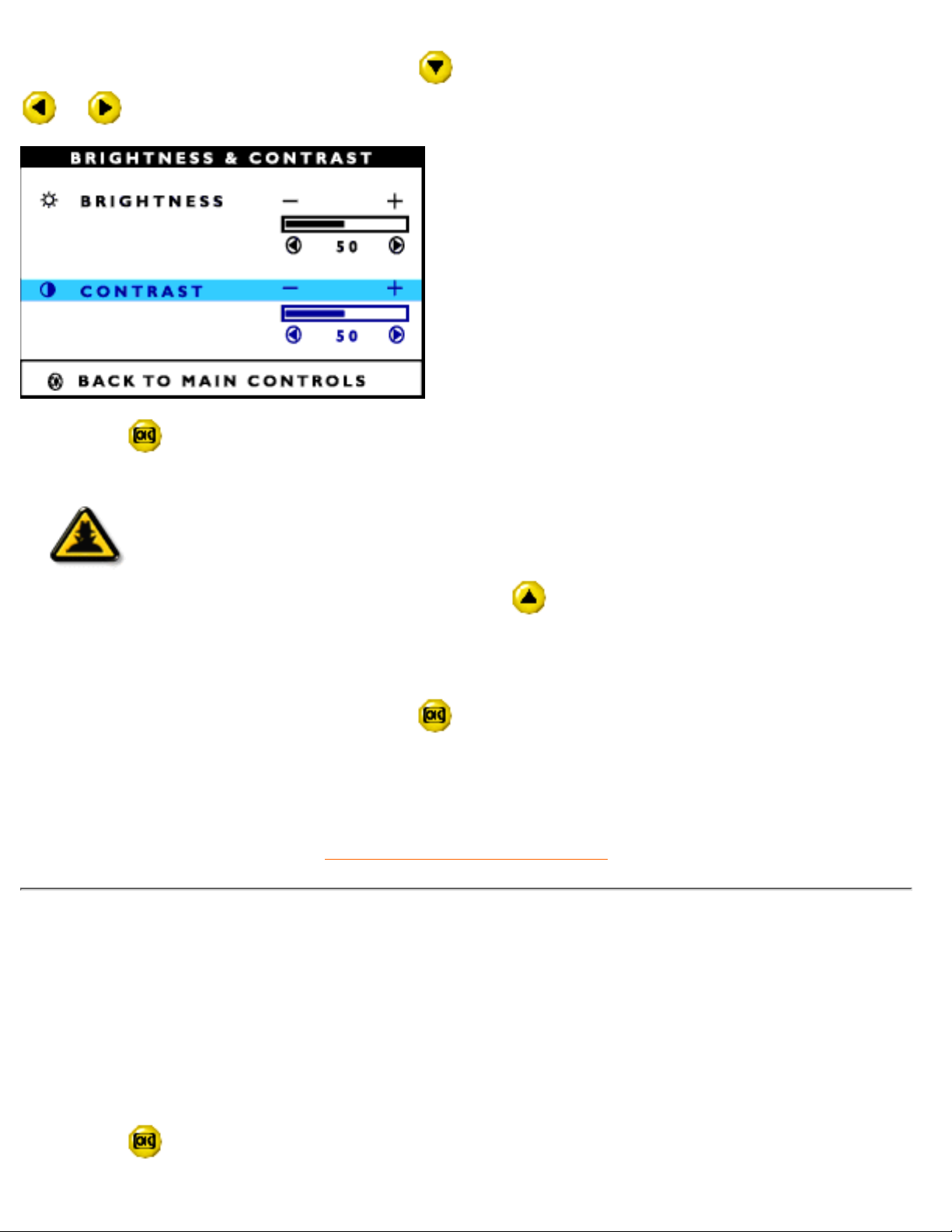

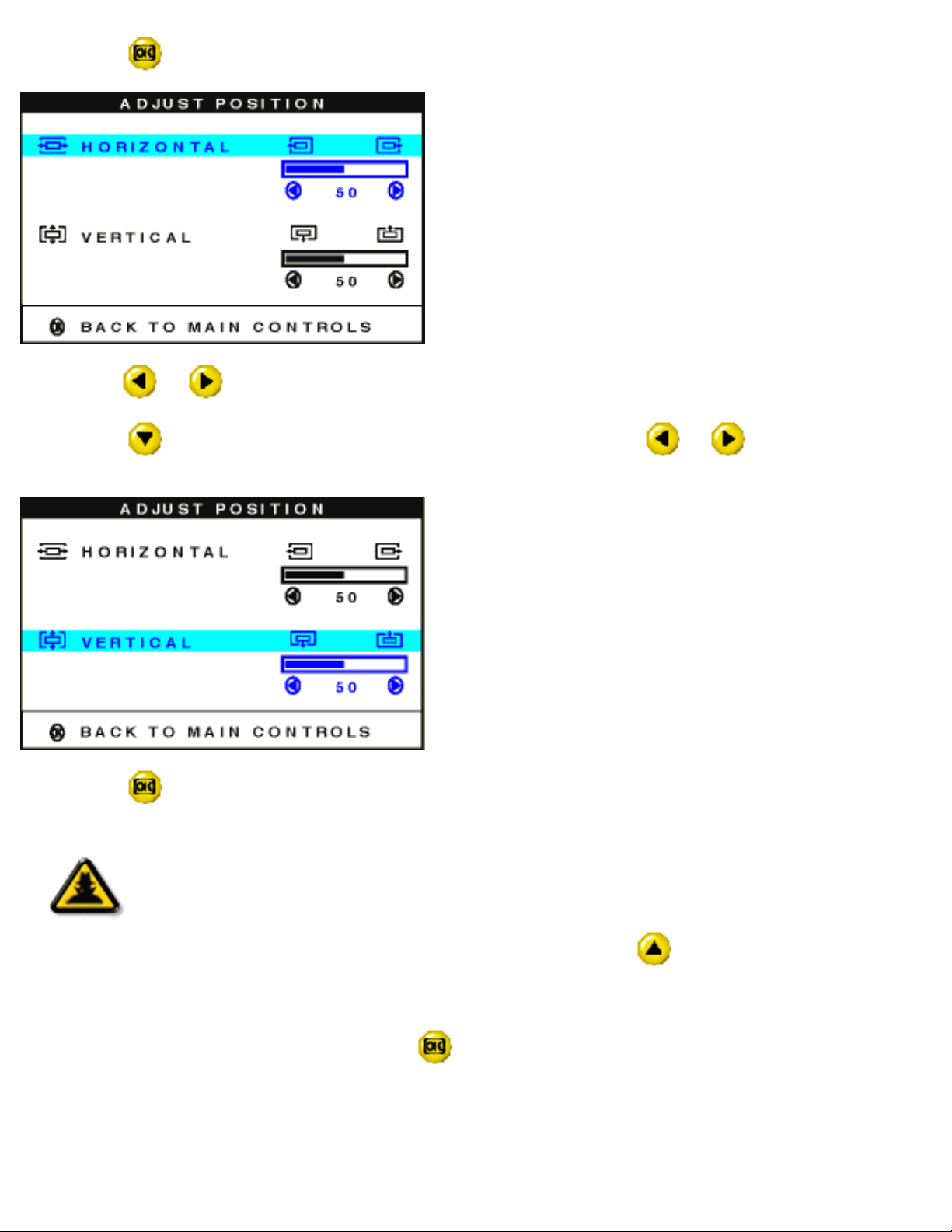

On-Screen Display

Description of the On-Screen Display • The OSD Tree • The OSD Controls

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips LCD monitors which allows an end-user to adjust screen performance of monitors directly though an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

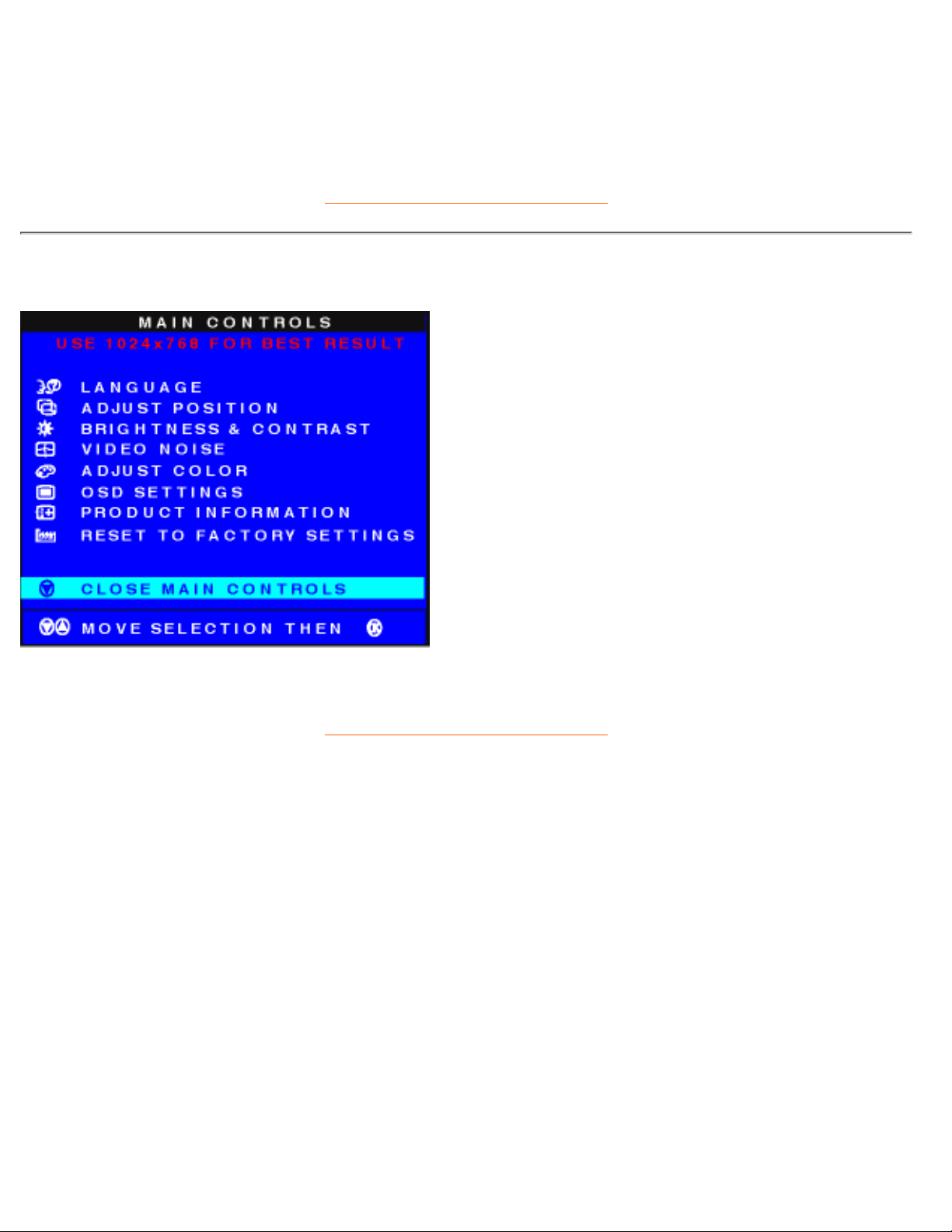

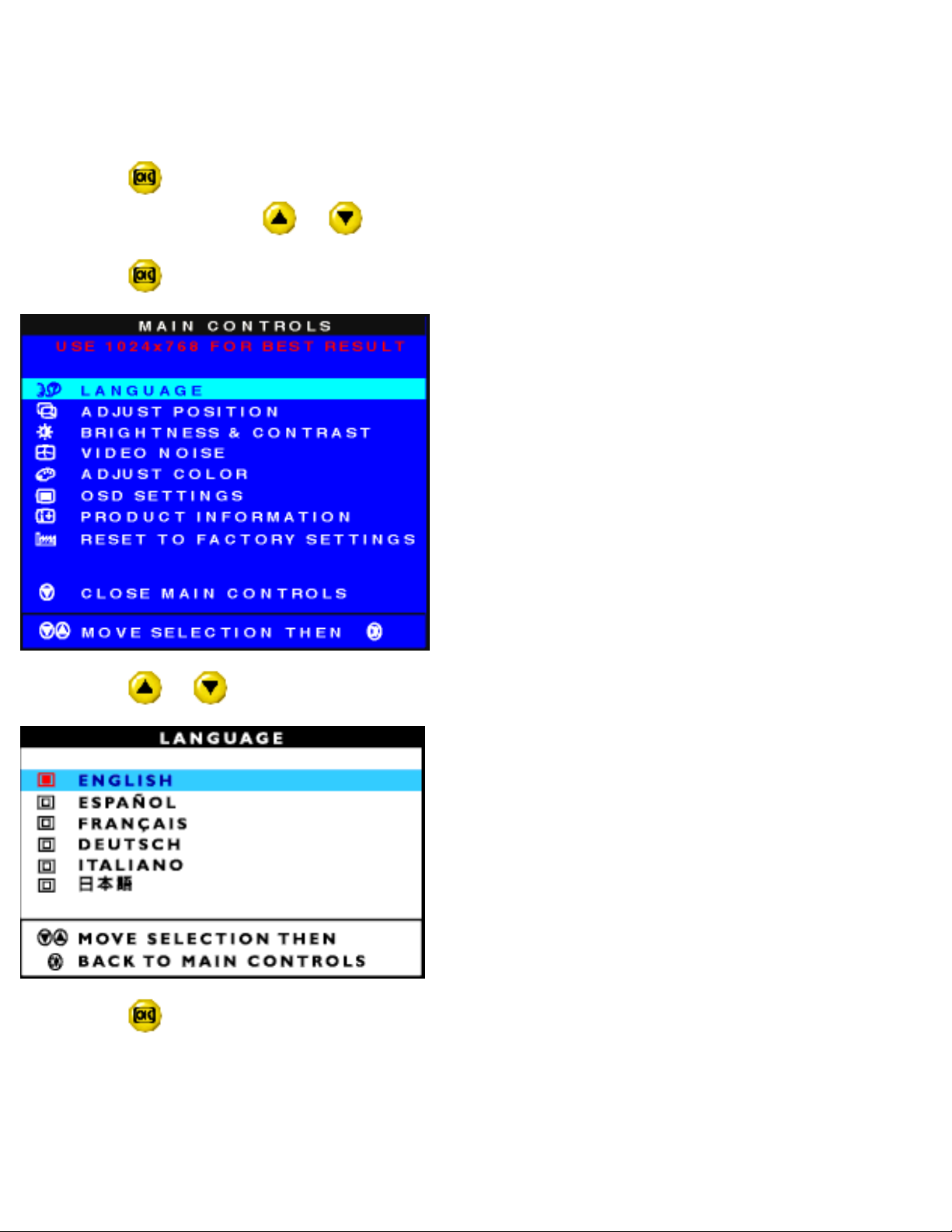

On the front controls of your monitor, once you press the

button, the On Screen Display (OSD) Main

Controls window will pop up and you can now start making adjustments to your monitor's various features. Use the

or the keys to make your adjustments within.

On-Screen Display

file:///E|/Potomac/english/140S/osd/osddesc.htm (1 of 4) [4/19/2000 4:28:16 PM]

RETURN TO TOP OF THE PAGE

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments.

On-Screen Display

file:///E|/Potomac/english/140S/osd/osddesc.htm (2 of 4) [4/19/2000 4:28:16 PM]

RETURN TO TOP OF THE PAGE

On-Screen Display

file:///E|/Potomac/english/140S/osd/osddesc.htm (3 of 4) [4/19/2000 4:28:16 PM]

On-Screen Display

file:///E|/Potomac/english/140S/osd/osddesc.htm (4 of 4) [4/19/2000 4:28:16 PM]

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE

WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •

Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay • Peru

• Uruguay • Venezuela

NORTH AMERICA: Canada • USA PACIFIC: Australia • New Zealand ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa MIDDLE EAST: Dubai • Egypt

Customer Care and Warranty

file:///E|/Potomac/english/warranty/warranty.htm [4/19/2000 4:28:16 PM]

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

RETURN TO TOP OF THE PAGE

D-SUB

Your monitor comes with a D-Sub cable.

RETURN TO TOP OF THE PAGE

Energy Star Computers Programme

An energy conservation programme launched by the US Environmental Protection Agency (EPA) with the primary aim of promoting the manufacture and marketing of energy-efficient office automation equipment. Companies joining this programme must be willing to commit themselves to manufacturing one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity or after a predetermined time selected by the user.

RETURN TO TOP OF THE PAGE

Glossary

file:///E|/Potomac/english/140S/glossary/glossary.htm (1 of 2) [4/19/2000 4:28:16 PM]

LCD Liquid Crystal Display

An alphanumeric display using the unique properties of liquid crystal to form characters. The latest flat-panel displays comprise a matrix of hundreds or thousands of individual LCD cells that generate text and colorful graphics on a screen. They consume little power though they do require external lighting to make them legible to the user.

RETURN TO TOP OF THE PAGE

Vertical refresh rate

Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.

RETURN TO TOP OF THE PAGE

Glossary

file:///E|/Potomac/english/140S/glossary/glossary.htm (2 of 2) [4/19/2000 4:28:16 PM]

Download and Print

Download and Printing Instructions • Installing FPadjust Program • Installing your LCD monitor driver

This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser.

If you do not have Adobe¨ Acrobat Reader installed, click on the link to install the application. Adobe®

Acrobat Reader for PC / Adobe® Acrobat Reader for Mac.

Download instructions:

To download the file:

1. Click-and-hold your mouse over the icon below. (Win95/98 users right-click)

Download

140S.pdf

Download

150B.pdf

Download

150P.pdf

2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'.

3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source').

Printing instructions:

To print the manual:

1. With the manual file open, follow your printer's instructions and print the pages you need.

RETURN TO TOP OF THE PAGE

Installing FPadjust Program

The FP Adjust program generates alignment patterns which will help you adjust monitor settings such as

Download and Print

file:///E|/Potomac/english/download/download.htm (1 of 3) [4/19/2000 4:28:16 PM]

CONTRAST, BRIGHTNESS, HORIZONTAL & VERTICAL POSITION, PHASE and CLOCK.

System requirements:

PC running Window 95, Window 98 or later

●

To install FPadjust Program:

Click on the link or icon to install FPadjustment Program.

●

Click-and-hold your mouse over the icon. (Win95/98 users right-click)●

Download

FPadjust (SETUP.EXE)

From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to Disk'.● Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or

'source', choose 'source').

●

Exit your browser and install the FPadjust Program.●

Read the "ReadMe.txt" file before installing.

RETURN TO TOP OF THE PAGE

Installing Your LCD monitor driver

System requirements:

PC running Window 95, Window 98 or later

●

To install the .inf/.icm driver:

Click on the link or icon to install the driver for this LCD monitor.

●

Click-and-hold your mouse over the icon. (Win95/98 users right-click)●

Download

Driver (PHILIPS.EXE)

Download and Print

file:///E|/Potomac/english/download/download.htm (2 of 3) [4/19/2000 4:28:16 PM]

+ 51 hidden pages
