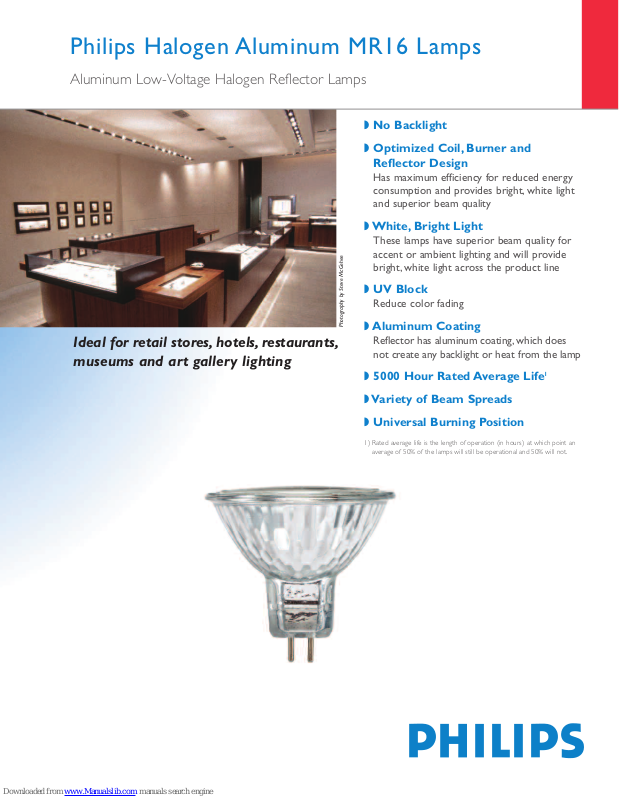

Philips Halogen Aluminum MR16 Lamps
Aluminum Low-Voltage Halogen Reflector Lamps
◗ No Backlight
◗ Optimized Coil, Burner and
Reflector Design
Has maximum efficiency for reduced energy
consumption and provides bright, white light
and superior beam quality
◗ White, Bright Light
These lamps have superior beam quality for
accent or ambient lighting and will provide
bright, white light across the product line
◗ UV Block
Reduce color fading
Photography by Steve McGehee
◗ Aluminum Coating
Ideal for retail stores, hotels, restaurants,
museums and art gallery lighting
Reflector has aluminum coating, which does
eate any backlight or heat from the lamp
not cr
◗ 5000 Hour Rated Average Life
1
◗ Variety of Beam Spreads
◗ Universal Burning Position
1) Rated average life is the length of operation (in hours) at which point an
average of 50% of the lamps will still be operational and 50% will not.
Page 2
Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
A Division of Philips Electronics North America Corporation
rinted in USA 07/05 P-5756
P
www.philips.com
Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
Division of Philips Electronics Ltd.
A
Philips Halogen Aluminum MR16 Lamps
Electrical,Technical and Ordering Data (
Product Ordering Pkg. Bulb Avg. Approx.
Number Code Watts Volts Qty Description Type Base Life (Hrs.)
13981-6 50 MRC16/NFL24/A 50 12 50 N. Flood 24º MRC-16 GU5.3 5000 3300 940
13982-4 50 MRC16/FL36/A 50 12 50 Flood 36º MRC-16 GU5.3 5000 2100 950
Subject to change without notice)
Rated
1
MBCP
2
Lumens
Shipping Data
(Subject to change without notice)
Outer Case Case SKUs SKU Case Pallet
Product SKU UPC Bar Code Case Weight Cube Pallet Per Layers Dimensions Dimensions Dimensions
Number (0 46677-) (5 004677-) Qty. (lbs.) (cu. ft.) Qty. Layer High (W x D x H) (In.) (W x D x H) (In.) (W x D x H) (In.)
13981-6 13981 0 13981 5 50 4.3 0.29 8250 1650 5 1.77 x 1.77 x 2.17 4.19 x 12.06 x 9.75 36.18 x 46.09 x 48.75
13982-4 13982 7 13982 2 50 4.3 0.29 8250 1650 5 1.77 x 1.77 x 2.17 4.19 x 12.06 x 9.75 36.18 x 46.09 x 48.75
1) Rated average life is the length of operation (in hours) at which point an average of 50% of the lamps will still be operational and 50% will not.
2) Maximum Beam Candlepower.
CAUTION: THIS LAMP IS PRESSURIZES AND COULD SHATTER so to avoid injury and to avoid exposure to ultraviolet radiation, this lamp should be used in a fixture that
provides a protective shield of tempered glass. Provide adequate ventilation to ensure that seal temperature does not exceed 350ºC and use only in fixtures rated for the wattage
stated on this package. To avoided risks of burns or other injury, turn power off and allow lamp to fully cool before attempting to replace. Socket condition may affect lamp life.
Inspect and replace socket if deterioration has occurred.
