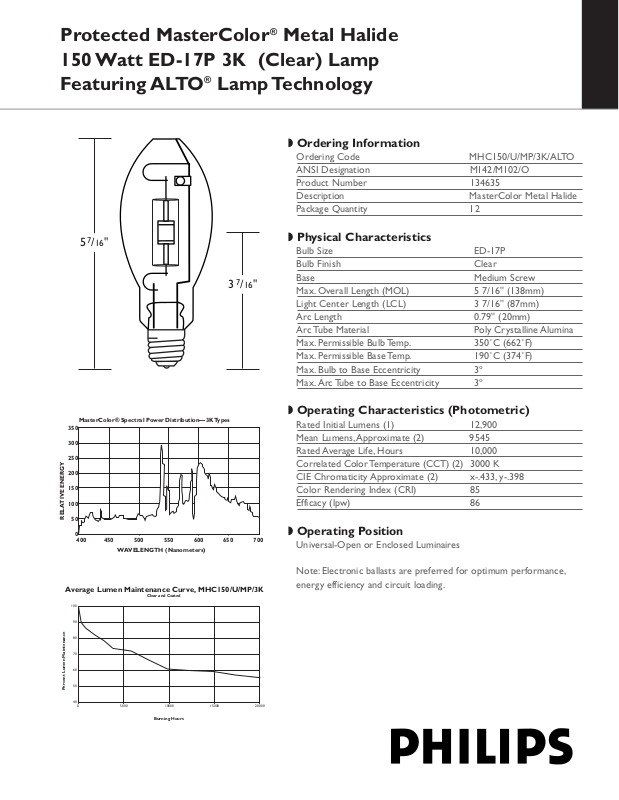

◗ Ordering Information

Ordering Code MHC150/U/MP/3K/ALTO
ANSI Designation M142/M102/O
Product Number 134635
Description MasterColor Metal Halide
Package Quantity 12

◗ Physical Characteristics

Bulb Size ED-17P
Bulb Finish Clear
Base Medium Screw
Max. Overall Length (MOL) 5 7/16'' (138mm)
Light Center Length (LCL) 3 7/16'' (87mm)
Arc Length 0.79'' (20mm)
Arc Tube Material Poly Crystalline Alumina
Max. Permissible Bulb Temp. 350˚C (662˚F)
Max. Permissible Base Temp. 190˚C (374˚F)
Max. Bulb to Base Eccentricity 3º
Max. Arc Tube to Base Eccentricity 3º

◗ Operating Characteristics (Photometric)

Rated Initial Lumens (1) 12,900
Mean Lumens,Approximate (2) 9545
Rated Average Life, Hours 10,000
Correlated Color Temperature (CCT) (2) 3000 K
CIE Chromaticity Approximate (2) x-.433, y-.398
Color Rendering Index (CRI) 85
Efficacy (lpw) 86

◗ Operating Position

Universal-Open or Enclosed Luminaires

Note: Electronic ballasts are preferred for optimum performance,
energy efficiency and circuit loading.

Protected MasterColor®Metal Halide
150 Watt ED-17P 3K (Clear) Lamp
Featuring ALTO

®

Lamp Technology

MasterColor® Spectral Power Distribution—3K Types

RELATIVE ENERGY

400 450 500 550 600 650 700

WAVELENGTH (Nanometers)

350

300

250

200

150

100

50

0

40

50

60

70

80

90

100

0 5000 15000

Percent Lumen Maintenance

Burning Hours

Average Lumen Maintenance Curve, MHC150/U/MP/3K

Clear and Coated

10000 20000

5 7/16"

3 7/16"

Warnings, Cautions and Operating Instructions

“WARNING:These lamps can cause serious skin burn and eye inflammation from

short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured.
Do not use where people will remain for more than a few minutes unless adequate
shielding or other safety precautions are used. Certain lamps that will automatically
extinguish when the outer envelope is broken or punctured are commercially
available.” This lamp complies with FDA radiation performance standard 21 CFR
subchapter J. (USA:21CFR 1040.30 Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured, turn off at once and replace the
lamp to avoid possible injury from hazardous short wave ultraviolet radia­tion. Do not scratch the outer bulb or subject it to pressure as this could
cause the outer bulb to crack or shatter. A partial vacuum in the outer
bulb may cause glass to fly if the envelope is struck.

WARNING: The arc-tube of metal halide lamps are designed to operate under high

pressure and at temperatures up to 1000º C and can unexpectedly rupture due to
internal or external factors such as a ballast failure or misapplication. If the arc-tube
ruptures for any reason, the outer bulb may break and pieces of extremely hot glass
might be discharged into the surrounding environment. If such a rupture were to
happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY DAMAGE,

BURNS AND FIRE.

These lamps are designed to retain all the glass particles should an arc
tube rupture occur. The following operating instructions are recommended
to minimize these occurrences.

RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.
Allowing lamps to operate until they fail is not advised and may increase
the possibility of inner arc tube rupture.

This lamp contains an arc tube with a filling gas containing Kr-85 and is
distributed by Philips Lighting Company, a division of Philips Electronics
North America Corporation, Somerset, New Jersey 08875-6800.

CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY, PROPERTY DAMAGE,

BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURE THE FOLLOWING

LAMP OPERA

TING INSTRUCTIONS MUST BE FOLLOWED.

Lamp Operating Instructions:

1) RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.Allowing lamps
to operate until they fail is not advised and may increase the possibility of inner
arc tube rupture.

2) Before lamp installation/replacement, shut power off and allow lamp and fixture to
cool to avoid electrical shock and potential burn hazards.

3) Use only auxiliary equipment meeting Philips and/or ANSI standards. Use within
voltage limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation.

B. For total supply load refer to ballast manufacturers electrical data.

4) Periodically inspect the outer envelope. Replace any lamps that show scratches,
cracks or damage.

5) If a lamp bulb support is used, be sure to insulate the support electrically to avoid
possible decomposition of the bulb glass.

6) Protect lamp base, socket and wiring against moisture, corrosive atmospheres and
excessive heat.

7) Time should be allowed for lamps to stabilize in color when turned on for the
first time. This may require several hours of operation, with more than one start.
Lamp color is also subject to change under conditions of excess vibration or
shock, and color appearance may vary between individual lamps.

8) Lamps may require 4 to 8 minutes to re-light if there is a power interruption.

9) Take care in handling and disposing of lamps. If an arc tube is broken, avoid skin
contact with any of the contents or fragments.

Philips Lighting Company
200 Franklin Square Drive■P. O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
www.lighting.philips.com/nam

A Division of Philips Electronics North America Corporation

Updated 9/03 MHC150/U/MP/3K/ALTO

Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
www.lighting.philips.com/nam

A Division of Philips Electronics Ltd.

Protected MasterColor®Metal Halide 150 Watt ED-17P 3K (Clear) Lamp Featuring ALTO®Lamp Technology

Electrical Data (Subject to change without notice)

Lamp Watts (Nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Lamp Operating Voltage (rms) (Nominal) (2) . . . . . . . . . 95

Initial Lamp Voltage Range (rms) (3) . . . . . . . . . . . . . . . . 85-105

Lamp Operating Current (Amps) (rms) (Nominal) . . . . . 1.5

Lamp Current Crest Factor (Maximum). . . . . . . . . . . . . . 1.8

Warm-up Time to 80% of Output . . . . . . . . . . . . . . . . . . 2 Minutes

Re-strike Time for Hot Lamp. . . . . . . . . . . . . . . . . . . . . . . 4-8 Minutes

Ballast Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI M142/M102/O

Ballast Open Circuit Voltage (Minimum) . . . . . . . . . . . . . . 382 RMS, 540 Peak

Pulse Peak Volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3300 Min.,4000 Max.

Pulse Width @ 90% Peak. . . . . . . . . . . . . . . . . . . . . . . . . . 2 Micro Second Minimum

Pulse Repetition Rate (Minimum) . . . . . . . . . . . . . . . . . . . 2 per Half Cycle

Minimum Operating Temperature . . . . . . . . . . . . . . . . . . . - 30 º C (-22º F)

1) Measured at 100 hrs of life in vertical position.

2) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.

3) Measured with the lamp operating at rated watts.
