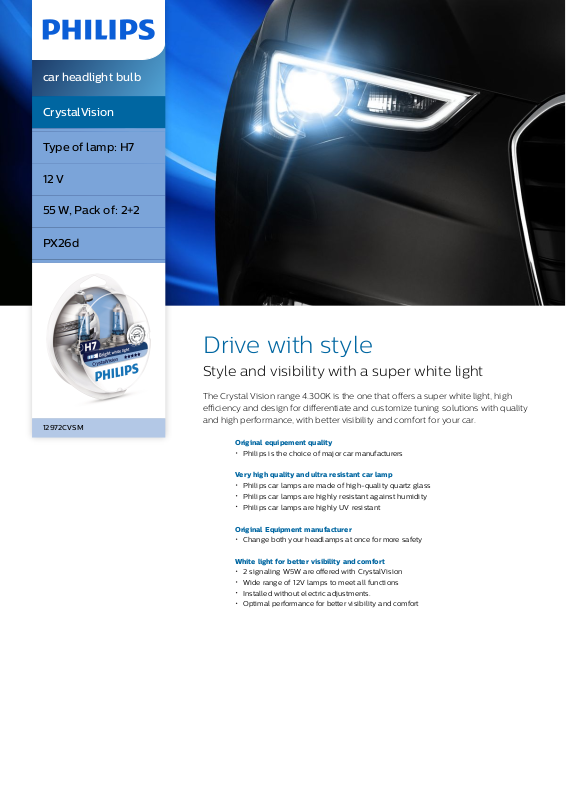

Page 1
car headlight bulb
CrystalVision
Type of lamp: H7
12 V
55 W, Pack of: 2+2
PX26d
12972CVSM
Drive with style
Style and visibility with a super white light
The Crystal Vision range 4.300K is the one that offers a super white light, high
efficiency and design for differentiate and customize tuning solutions with quality
and high performance, with better visibility and comfort for your car.
Original equipement quality
Phili ps is the choice of major car manufacturers
Very high quality and ultra resistant car lamp
Phili ps car lamps are made of high-quality quartz glass
Phili ps car lamps are highly resistant against humidity
Phili ps car lamps are highly UV resistant
Original Equipment manufacturer
Change both your headlamps at once for more safety
White light for better visibility and comfort
2 si gnali ng W5W are offered with CrystalVision
Wide range of 12V lamps to meet all functions
Installed without electric adjustments.
Optimal performance for better visibility and comfort
Page 2
car headlight bulb
12972CVSM/40
Highlights
2 signaling W5W offered
Give your car a full stylish blue look thanks to
the 2 blue W5W offered
Car manufactuer choice
For 100 years, Philips has been on the
forefront of the automotive lighting industry,
introducing technological innovations that have
become standard on modern automobiles.
Today, one i n two cars in Europe and one in
three worldwide is equipped with Philips
lighting
Change by pairs
Highly recommended to change them by pairs
for symetric light performance
Designed for multiple usage
Which 12V lamp for which function ? Phi lips
Automotive offering includes all car specific
functions : high beam, Low beal, front fog ,
front indicator, side indicator, rear indicator,
stop light, reversing li ght, rear fog light, license
plate lights, rear position/parking light, interior
lights
Easy to install
Easy to install, because it is not required any
modification to the car's electrical system.
High quality quartz glass
UV-Quartz glass is stronger than hard glass
and highly resistant to temperature extremes
and vibrations, which elimi nates the risk of
explosion. Philips quartz-glass lamps (filament
2 650º C and glass 800º C) are able to
withstand severe thermal shock. With the
capability of increased pressure inside the
lamp, UV-quartz glass is able to produce a
more powerful light
Optimal performance
Optimal performance in li ght emission with the
same consumption of conventional bulbs for
better visibility and driving comfort.
Resistance against humidity
Only a burning bulb made of quartz glass
(filament 2650°c, glass 800°c) can resist
thermal shocks : if a drop of cold water touches
the hot bulb, which can happen when you
drive through water with a broken headlight
unit.
UV Resistant
Phili ps special anti-UV coating technology
protects the headlights against harmful
ultraviolet radiation, making Philips UV-coated
quartz glass perfect for all driving conditions
and ensures their longevity
Page 3
car headlight bulb
12972CVSM/40
Specifications
Packaging Data
EAN1: 8711500489838
EAN3: 8711500489845
Packaging type: SM
Product description
Technology: Halogen
Application: High beam, Low beam, fog beam
Range: CrystalVisi on
Type: H7
Homologation ECE
Designation: KIT-12972CV-DI
Base: PX26d
Marking ECE : E1 22Z
Electrical characteristics
Wattage: 55 W
Voltage: 12 V
Marketing specifications
Expected benefits: Style
Product highlight: D rive with style
Light characteristics
Color temperature: 3700 K
Lumens: 1140 ±15% lm ±15%
Ordering information
Order entry: 12972CVSM
Ordering code: 48983828
Outerpack information
Gross weight per piece: 496 g
Height: 12 cm
Length: 28.6 cm
Net weight per piece: 0 g
Width: 14.1 cm
Packed product information
Gross weight per piece: 83.9 g
Height: 13.3 cm
Length: 11 cm
Net weight per piece: 0 g
Width: 5.3 cm
Pack Quantity / MOQ: 4
Lifetime
Life time: B3/Tc = 200/400 h
© 20 21 Philips Lighting Holding B.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks a re the
property of Philips Lighting Holding
B.V. or their res pective owners .
Issue date 202 1‑0 5‑2 4
Version: 1.0.1
12 NC: 8670 001 78939
www.phili ps.com
