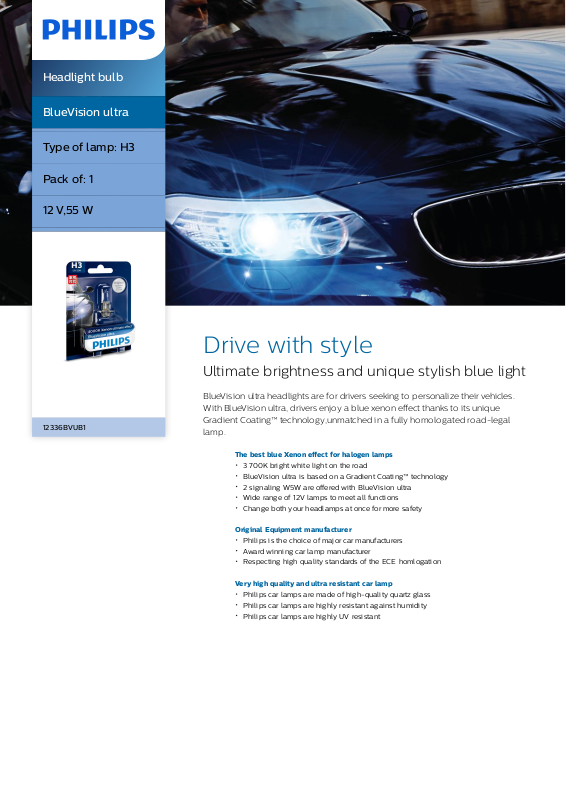

Page 1
Headlight bulb
BlueVision ultra
Type of lamp: H3
Pack of: 1
12 V,55 W
12336BVUB1
Drive with style
Ultimate brightness and unique stylish blue light
BlueVision ultra headlights are for drivers seeking to personalize their vehicles.
With BlueVision ultra, drivers enjoy a blue xenon effect thanks to its unique
Gradient Coating™ technology,unmatched in a fully homologated road-legal
lamp.
The best blue Xenon effect for halogen lamps
3 700K bright white light on the road
BlueVision ultra is based on a Gradient Coating™ technology
2 si gnaling W5W are offered with BlueVision ultra
Wide range of 12V lamps to meet all functions
Change both your headlamps at once for more safety
Original Equipment manufacturer
Phili ps is the choice of major car manufacturers
Award winning car lamp manufacturer
Respecting high quality standards of the ECE homlogation
Very high quality and ultra resistant car lamp
Phili ps car lamps are made of high-quality quartz glass
Phili ps car lamps are highly resistant against humidity
Phili ps car lamps are highly UV resistant
Page 2
Headlight bulb
12336BVUB1
Highlights
2 signaling W5W offered
Give your car a full stylish blue look thanks to
the 2 blue W5W offered
3 700 K bright white light
With a white light of 3 700 K, BlueVisi on Moto
lamps offer a greater visi bility on the road and
a unique effect in the optics which makes you
stand out amongst other riders.
A unique coating technology
Thanks its exclusive Gradient Coating™
technology, BlueVision ultra further improves
the xenon effect in the headlight.
Car manufactuer choice
For 100 years, Philips has been on the
forefront of the automotive lighting industry,
introducing technological innovations that have
become standard on modern automobiles.
Today, one in two cars in Europe and one in
three worldwide is equipped with Philips
lighting
Change by pairs
Highly recommended to change them by pairs
for symetric light performance
Designed for multiple usage
Which 12V lamp for which function ? Philips
Automotive offering includes all car specifi c
functions : high beam, Low beal, front fog ,
front indicator, si de indicator, rear indicator,
stop light, reversing light, rear fog light, license
plate lights, rear position/parking light, interior
lights.
ECE homlogation
Phili ps automotive products and services are
considered best-in-class i n the Original
Equipment Manufacturer market and the
aftermarket. Manufactured from high quality
products and tested to the highest
specifications, our products are designed to
maximize the safety and comfort of our
customers’ driving experience. Our entire
product range is thoroughly tested, controlled
and certified (ISO 9001, ISO 14001 and QSO
9000) to the highest ECE requirements. Put
simply, this is quality you can trust.
High quality quartz glass
UV-Quartz glass is stronger than hard glass
and highly resistant to temperature extremes
and vibrations, which elimi nates the risk of
explosion. Philips quartz-glass lamps (filament
2 650º C and glass 800º C) are able to
withstand severe thermal shock. With the
capability of increased pressure insi de the
lamp, UV-quartz glass is able to produce a
more powerful light
Resistance against humidity
Only a burning bulb made of quartz glass
(filament 2650°c, glass 800°c) can resist
thermal shocks : if a drop of cold water touches
the hot bulb, which can happen when you
drive through water with a broken headlight
unit.
Rewarded Car lamps
Our lamps are often rewarded by automotive
experts
Page 3
Headlight bulb
12336BVUB1
Specifications
Packaging Data
Packaging type: B1
EAN1: 8711500776884
EAN3: 8711500776891
Electrical characteristics
Voltage: 12 V
Wattage: 55 W
Lifetime
Life time: 350h
Light characteristics
Lumens: 1450 lm
Ordering information
Order entry: 12336BVUB1
Ordering code: 36216930, 77688430
Outerpack information
Gross weight per piece: 0.268 kg
Height: 11 cm
Length: 19.5 cm
Width: 15.3 cm
Product description
Type: H3
Application: High beam, Low beam
Designation: H3 BlueVisi on ultra
Homologation ECE
Range: BlueVisi on Ultra
Technology: Halogen
Base: PK22 s
Packed product information
Gross weight per piece: 26.8 g
Height: 13.5 cm
Length: 2.348 cm
Net weight per piece: 22 g
Pack Quantity / MOQ: 10
Width: 9.5 cm
Marketing specifications
Expected benefits: Style
© 20 21 Philips Lighting Holding B.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Philips Lighting Holding
B.V. or their re spective owners .
Issue date 2021‑03‑ 23
Version: 5.1.1
12 NC: 9247 584 17130
EAN: 87 11500 77688 4
www.phili ps.com
