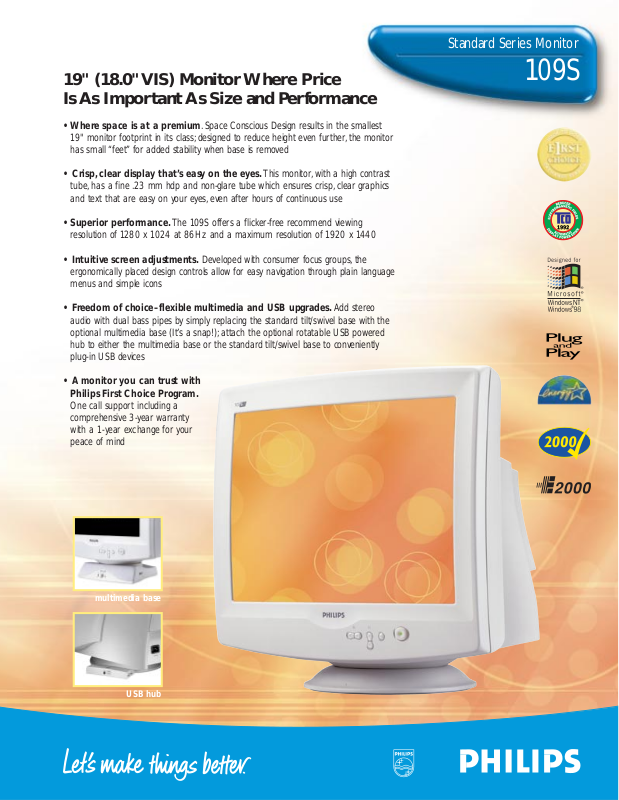

Philips 109S2014 User Manual

19" (18.0" VIS) Monitor Where Price
Is As Important As Size and Performance

• Where space is at a premium.Space Conscious Design results in the smallest
19" monitor footprint in its class; designed to reduce height even fur ther, the monitor
has small “feet” for added stability when base is removed

• Crisp, clear display that’s easy on the eyes.This monitor, with a high contrast
tube, has a fine .23 mm hdp and non-glare tube which ensures crisp, clear graphics
and text that are easy on your eyes,even after hours of continuous use

• Superior performance.The 109S offers a flic ker-free recommend viewing
resolution of 1280 x 1024 at 86Hz and a maximum resolution of 1920 x 1440

• Intuitive screen adjustments. Developed with consumer focus groups, the
ergonomically placed design controls allow for easy navigation through plain language
menus and simple icons

• Freedom of choice–flexible multimedia and USB upgrades. Add stereo
audio with dual bass pipes by simply replacing the standard tilt/swivel base with the
optional multimedia base (It’s a snap!);attach the optional rotatable USB powered
hub to either the multimedia base or the standard tilt/swivel base to conveniently
plug-in USB devices

• A monitor you can trust with
Philips First Choice Program.

One call support including a
comprehensive 3-year warranty
with a 1-year exchange for your
peace of mind

Standard Series Monitor

109S

USB hub

multimedia base

Product Number 109S13
Technical Specifications

CRT

• Size (inch/cm) 19"/46 cm (18.0" VIS)

• Deflection Angle (Degrees) 90°

• Dot Pitch 0.27 mm

• Horizontal Pitch 0.23 mm

-Tube Type Invar Shadow mask,Flat Square, High

Contrast, Anti-Glare,Anti-Static,
Anti-Reflection,Light T ransmission 46%

• Phosphor P22

• Recom.Display Area(mm) 355 x 265 mm

• Recom.Display Area(inch) 14" x 10.4"

• Max.Display Area(mm) 365 x 274 mm

• Max.Display Area(inch) 14.4" x 10.8"

Scanning

• Horizontal Scanning 30 - 92kHz

• Vertical Scanning 50 - 160Hz

Video

• Video Dot Rate 234MHz

• Input Impedance

-Video 75Ω

-Sync 2.2kΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync
Composite Sync

• Sync Polarities Positive and Negative

White Color Temperature

Chromaticity CIE coordinates:

• at 9300 K: x=0.283,y=0.297

• at 6500 K: x=0.313,y=0.329

Resolution and Preset Modes

• Max.Resolution 1920 x 1440

• Recom.Resolution 1280 x 1024

• 16 user Definable Modes

• 34 Factory Preset Modes:

H.freq (kHz)/ V.freq (Hz)

640 x 350 31.5K/70;37.9K/85
640 x 480 31.5K/60;37.9K/72;37.5K/75;43.3K/85; 50.6K/100
720 x 400 31.5K/70;37.9K/85
800 x 600 37.9K/60;48.1K/72;46.9K/75;53.7K/85; 63.9K/100
832 x 624 49.7K/75
1024 x 768 48.4K/60;56.5K/70;60.0K/75;68.7K/85
1152 x 864 67.5K/75;77K/85
1152 x 870 68.7K/75
1152 x 900 71.8K/76
1280 x 960 60.0K/60;85.9K/85
1280 x 1024 64.0K/60;80.0K/75;91.1K/85
1600 x 1200 75.0K/60;81.3K/65;87.5K/70
1792 x 1344 83.6K/60
1856 x 1392 86.3K/60
1920 x 1440 90.0K/60

Plug and Play Compatibility

• Display Data Channel DDC 1/2B

• Microsoft®,Windows®95/98/NT Compatible

Power Management

Complies with EPA Energy Star, NUTEK and E2000 Specifications•

Operation (typ.) 95 W

• Suspend/Stand-By mode (typ.) < 7 W

• Off Mode/Deep Sleep < 3 W

Low-Emission Characteristics

• Complies with MPR-II and TCO ’92 Specifications

Monitor Controls and Functions

• Main 5-button OSD
Brightness +/- direct access
Contrast+/- direct access

• OSD Language (English,Spanish,French,
German,Italian),Zoom,Horizontal,
Vertical,Pincushion,Balanced,
Trapezoid, Parallelogram, Color,Reset,
Degauss,Moire,Serial Number,
Resolution,Frequency

Connections and Cables

• Connections

-Video 15-pin D-Sub Input

• Cables Video (fixed) and Power

Regulatory Approvals

• TCO ‘92

• MPR-II Low Emission

• TüV/GS,TüV-Ergo

• FCC-B,UL,CSA,DHHS

• SEMKO, Poland-B sign,C-Tick

• VCC-I,CE,BCIQ,PSB

Physical Specifications

• Dim.Incl.Base (WxHxD)(mm) 440 x 447 x 440

• Dim.Incl.Base (WxHxD)(inch) 17.3" x 17.6" x 17.3"

• Dim.Excl.Base (WxHxD)(mm) 440 x 399 x 440

• Dim.Excl.Base (WxHxD)(inch) 17.3" x 15.7" x 17.3"

• Unit Weight 19.7 kg/43.3 lbs.

• Power Supply 90 - 264 VAC,50/60Hz

• UPC Code 0 37849 89460 6

• Carton Dimensions (WxHxD)(mm) 556 x 520 x 540

• Carton Dimensions (WxHxD)(inch) 21.9" x 20.5" x 21.3"

• Carton Weight 22kg/48.4 lbs.

• Temperature (Operational) 0°C to +40°C/ 32° to 104°F

• Temperature (Storage) -25°C to+65°C/ -13° to 149°F

• Relative Humidity 5% to 95%

• MTBF (excl.CRT) > 75,000 H

Other

• USB Hub Option Type PCUH411

• Multimedia Base Option Type 6G3B10

This monitor fulfills all Nutek requirements regarding power management
Philips is a partner in the EPA’s ENERGY STAR®Computers Program.
As an ENERGY STAR®partner,Philips has determined that this product meets the ENERGY STAR

®

guidelines for energy efficiency.
