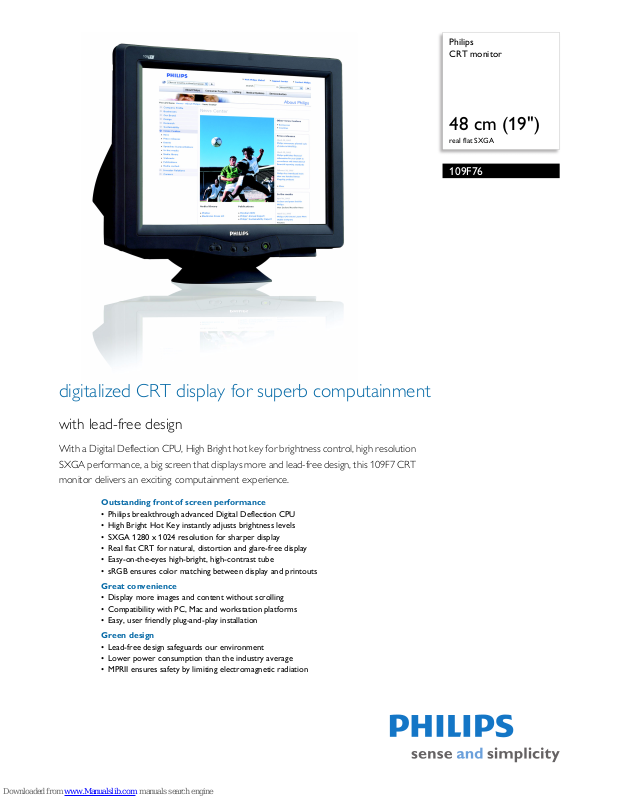

Philips
CRT monitor
48 cm (19")
real flat SXGA
109F76
digitalized CRT display for superb computainment
with lead-free design
With a Digital Deflection CPU, High Bright hot key for brightness control, high resolution
SXGA performance, a big screen that displays more and lead-free design, this 109F7 CRT
monitor delivers an exciting computainment experience.
Outstanding front of screen performance
• Philips breakthrough advanced Digital Deflection CPU
• High Bright Hot Key instantly adjusts brightness levels
• SXGA 1280 x 1024 resolution for sharper display
• Real flat CRT for natural, distortion and glare-free display
• Easy-on-the-eyes high-bright, high-contrast tube
• sRGB ensures color matching between display and printouts
Great convenience
• Display more images and content without scrolling
• Compatibility with PC, Mac and workstation platforms
• Easy, user friendly plug-and-play installation
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• MPRII ensures safety by limiting electromagnetic radiation
109F76/93
Highlights
CRT monitor
48 cm (19") real flat SXGA
Digital Deflection CPU
An exclusive Philips innovation -- the world's
first
one-chip CRT solution -- combines the
deflection and the Microcontroller in a single
chip to process and control input sync digitally.
This innovative technology prevents electronic
noise that can harm display quality, reduces
display jitter and improves geometry for better
front of screen performance.
High Bright Hot Key
A feature that delivers instant brightness
adjus
tment to the ideal level for viewing text,
Internet, game or multimedia applications,
providing comfortable viewing and an
enhanced experience for each type of
application.
SXGA, 1280 x 1024 resolution
For graphics monitors, the screen
resolution
signifies the number of dots (pixels) on the
entire screen. For example, a 1280-by-1024
pixel screen is capable of displaying 1280
distinct dots on each of 1024 lines, or about 1.3
million pixels.
Real flat CRT display
Philips advanced flat CRT technolo
gy reduces
glare and reflection more efficiently than a
conventional CRT. The special high-bright,
high-contrast shadow mask helps maintain
sharper focus and eliminates 'color blooming'
compared to standard tubes. It displays images
on a monitor that look like images on paper:
Viewing the image is more comfortable.
Straight lines are straight. Finding a reflectionfree viewing position is much easier. This adds
up to reduced eyestrain for a comfortable
viewing experience.
High-bright-high-contrast tube
A CRT tube designed to increase display
bright
ness and contrast by increasing the CRT
ray gun's beam current.
sRGB ready
sRGB is an industry standard that ensures the
be
st possible match between the colors
displayed on your screen and those in your
printouts.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
Platform compatibility
The ability to work with a variety of platforms;
Phil
ips monitors are compatible to connect
with PCs and workstation by employing a VGA
connection and connect with Macintosh.
Lead-free
Lead-free display products are designed and
p
roduced in compliance with strict European
Community directives on Restriction of
Hazardous Substances (RoHS) standards that
restrict lead and other toxic substances that
can harm the environment.
Energy efficiency
Reduction of the electrical power required to
operate
a device to achieve real savings.
MPRII compliant
The world standard setting stringent levels for
e
lectromagnetic radiation emitted by
monitors.
Issue date 2011-06-07
Version: 1.0.10
12 NC: 8639 000 16849
EAN: 87 10895 96792 1
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
109F76/93
Specifications
CRT monitor
48 cm (19") real flat SXGA
Picture/Display
• Display screen type: Real Flat picture tube
• Panel Size: 19"/ 46 cm
• Phosphor: P22
• Recommended display area(mm): 355 x 265 mm
• Recommended Display Area(inch): 14" x 10.4"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1600 x 1200 @ 65 Hz
• Optimum resolution: 1280 x 1024 @ 75 Hz
• Factory Preset Modes: 8 modes
• Factory Preset Mode: 640 x 480 @ 60 Hz, 640 x
48
0 @ 85Hz, 720 x 400 @ 70 Hz, 800 x 600 @ 75
Hz, 80
0 x 600 @ 85 Hz, 1024 x 768 @ 75 Hz,
10
24 x 768 @ 85 Hz, 1280 x 1024 @ 75 Hz
• Factory Preload Modes: 15 modes
• Video Dot Rate: 180 MHz
• Horizontal Scanning Frequency: 30 - 86 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 75 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflectio
n, Anti-Static, High Brightness, High
Contrast
• Digital deflection
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Cable Connection: AC Power in, D-sub
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Sync Input: Composite Sync, Separate Sync
• Video Sync Polarities: Positive and Negative
Convenience
• User convenience: Menu Languages, On-screen
Display
• Monitor Controls: Bright Direct Access, Contrast
Direct
Access, High Bright Hotkey, Left/Right,
Menu, Power On/Off, Up/Down
• OSD Languages: English, Fr
ench, German, Italian,
Spanish, Portuguese, Korean, Simplified Chinese
• Plug & Play Compatibility: DDC 2B, sRGB,
Windo
ws 98/ME/2000/XP
• Regulatory approvals: CE Mark, FCC-B, UL, CSA,
SEMK
O, MPR-II, Low Emission, TÜV/GS, TÜV
Ergo, FDA, CCC
•Swivel: +/- 90°
• Tilt: -5° to 25°
Accessories
• Included accessories: AC Power Cord
• User Manual
Dimensions
•Box dimensions (W x H x D):
495 x 466 x
520 mm
• Box dimensions in inch (W x H x D):
19
.94 x 18.35 x 20.47 inch
•Set dimensions (W x H x D):
43
9 x 422.5 x 457 mm
• Set dimensions in inch (W x H x D):
17
.28 x 16.63 x 18 inch
• Set weight: 20 kg
• Set weight (lb): 44 lb
• Weight incl. Packaging: 22.9 kg
• Weight incl. Packaging (lb): 9.02
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
Power
•Consumption (On mode): 63 W (Typical)
• Consumption (Off Mode): aroun
d 1 W
• Power LED indicator: Off - Amber, Operation gree
n
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
•
