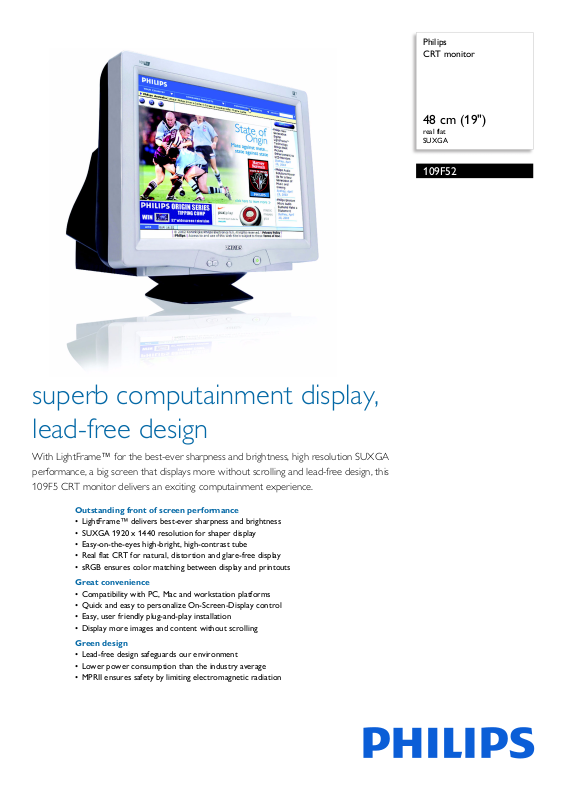

Page 1
Philips
CRT monitor
48 cm (19")
real flat
SUXGA
109F52
superb computainment display,
lead-free design
With LightFrame™ for the best-ever sharpness and brightness, high resolution SUXGA
performance, a big screen that displays more without scrolling and lead-free design, this
109F5 CRT monitor delivers an exciting computainment experience.
Outstanding front of screen performance
• LightFrame™ delivers best-ever sharpness and brightness
• SUXGA 1920 x 1440 resolution for shaper display
• Easy-on-the-eyes high-bright, high-contrast tube
• Real flat CRT for natural, distortion and glare-free display
• sRGB ensures color matching between display and printouts
Great convenience
• Compatibility with PC, Mac and workstation platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
• Display more images and content without scrolling
Green design
• Lead-free design safeguards our environment
• Lower power consumption than the industry average
• MPRII ensures safety by limiting electromagnetic radiation
Page 2
CRT monitor
48 cm (19") real flat, SUXGA
109F52/61
Highlights
LightFrame™
An intelligent and revolutionary technology for
enhancing monitor's brightness, sharpness, contrast,
and color. Images enhanced by LightFrame™ are
lively, realistic, clear, attractive and colorful.
SUXGA, 1920 x 1440 resolution
SUXGA (Super Ultra Extended Graphics Array) is a
screen resolution of 1920 x 1440 pixels.
High-bright-high-contrast tube
A CRT tube designed to increase display brightness
and contrast by increasing the CRT ray gun's beam
current.
Real flat CRT display
Philips advanced flat CRT technology reduces glare
and reflection more efficiently than a conventional
CRT. The special high-bright, high-contrast shadow
mask helps maintain sharper focus and eliminates
'color blooming' compared to standard tubes. It
displays images on a monitor that look like images on
paper: Viewing the image is more comfortable.
Straight lines are straight. Finding a reflection-free
viewing position is much easier. This adds up to
reduced eyestrain for a comfortable viewing
experience.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on
your screen and those in your printouts.
Platform compatibility
The ability to work with a variety of platforms;
Philips monitors are compatible to connect with PCs
and workstation by employing a VGA connection
and connect with Macintosh.
OSD On-Screen-Display control
An on-screen panel for adjusting a monitor. The
OSD is used for contrast, brightness, horizontal,
vertical positioning and other monitor adjustments.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A
plug and play display device can be connected to a PC
and operate without requiring user intervention to
adjust complicated settings.
Large viewing area
Viewing area is the visible portion of a monitor
screen available for displaying data.
Lead-free
Lead-free display products are designed and
produced in compliance with strict European
Community directives on Restriction of Hazardous
Substances (RoHS) standards that restrict lead and
other toxic substances that can harm the
environment.
Energy efficiency
Reduction of the electrical power required to
operate a device to achieve real savings.
MPRII compliant
The world standard setting stringent levels for
electromagnetic radiation emitted by monitors.
Energy Star partner
A manufacturer in compliance with power
conservation requirements set forth by the
Environmental Protection Agency of the U.S.
government.
Flame retardant cabinet
PC/ABS plastic composite is the industry's best and
toughest flame-retardant casing material; and is a
space-age compound deployed in the aerospace and
automotive industries as well as in fire detectors that
is compliant with most stringent fire safety
standards.
Specifications
Picture/Display
• Display screen type: Real Flat picture tube
• Panel Size: 19"/ 46 cm
• Phosphor: P22
• Recommended display area(mm): 355 x 265 mm
• Recommended Display Area(inch): 14" x 10.4"
• Dot pitch: 0.25 mm
• Dot Pitch (horizontal): 0.21 mm
• White Chromaticity, 5500K: x = 0.332 / y = 0.347
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1920 x 1440 @ 60 Hz
• Optimum resolution: 1280 x 1024 @ 85 Hz
• Factory Preset Modes: 7 modes
• Factory Preset Mode: 720 x 400 @ 70 Hz, 800 x
0 @ 75 Hz, 800 x 600 @ 85 Hz, 1024 x
60
8 @ 75 Hz, 1024 x 768 @ 85 Hz, 1280 x
76
24 @ 75 Hz, 1280 x 1024 @ 85 Hz
10
• Factory Preload Modes: 24 modes
• Video Dot Rate: 240 MHz
• Horizontal Scanning Frequency: 30 - 92 kHz
• Vertical Scanning Frequency: 50 - 160 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, Anti-
•LightFrame™
•sRGB
•GTF
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Sync Input: Composite Sync,
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in, D-sub
Convenience
• User convenience: Menu Languages, On-screen
• Monitor Controls: Brightness Control, Contrast
• OSD Languages: English, Fr
• Plug & Play Compatibility: DDC 2B, sRGB,
• Regulatory approvals: CE Mark, FCC-B, UL, CSA,
•Swivel: +/- 90°
• Tilt: -5° to 25°
n, Anti-Static, High Brightness, High
Reflectio
Contrast
on Green
Display
ntrol, LightFrame, Left/Right, Menu, Power On/
Co
Off, Up/Down
Spanish, Portuguese, Korean, Simplified Chinese
ws 98/ME/2000/XP
Windo
O, MPR-II, Low Emission, TÜV/GS, TÜV
SEMK
Ergo, FDA, CCC, Energy Star, E2000
Separate Sync, Sync
ench, German, Italian,
Issue date 2014-02-10
Version: 2.0.3
12 NC: 8639 000 15797
EAN: 87 10895 86347 6
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Accessories
• Included accessories: AC Power Cord
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
440 x 433 x 449 mm
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -25°C to 65°C
•Weight: 20 kg
Power
• Complies with: Energy Star, E2000
• Consumption (On mode):
• Consumption (Off Mode): 1 W
• Power LED indicator: Off - Amber, Operation -
green
• Power supply: Built-in
•
65 W (Typical)
