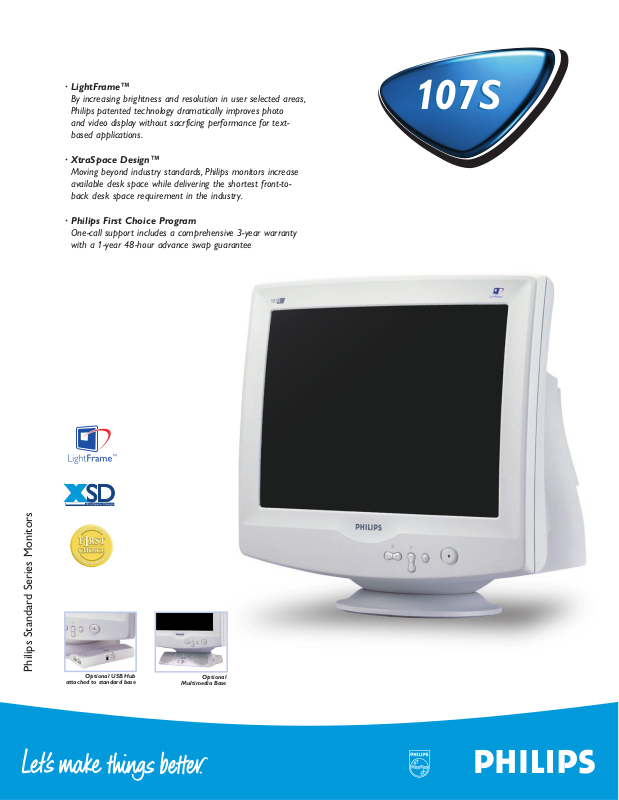

Philips 107S21-74 User Manual
· LightFrame™
By increasing brightness and resolution in user selected areas,
Philips patented technology dramatically improves photo
and video display without sacrficing performance for textbased applications.
· XtraSpace Design™
Moving beyond industry standards, Philips monitors increase
available desk space while delivering the shortest front-toback desk space requirement in the industry.
· Philips First Choice Program
One-call support includes a comprehensive 3-year warranty
with a 1-year 48-hour advance swap guarantee
Philips Standard Series Monitors
107S
107S
Optional
Multimedia Base
Optional USB Hub
attached to standard base
Specifications subject to change without notice.
Printed in the U.S.A., ©2000 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp.
Literature Order Number: 107S21 KID Design 200243 - 9/00
Product Number 107S21
Technical Specifications
CRT
• Size (inch/cm) 17"/41 cm (16.0" VIS)
• Deflection Angle (degrees) 90°
• Dot Pitch 0.27 mm
• Horizontal Pitch 0.23 mm
-Tube Type Invar Shadow Mask, Flat Square, High
Contrast, Anti-Glare, Anti-Static,
Anti-Reflection, Light Transmission 47%
• Phosphor P22
• Recom. Display Area (mm) 306 x 230 mm
• Recom. Display Area (inch) 12.0" x 9.0"
• Max. Display Area (mm) 327 x 245 mm
• Max. Display Area (inch) 12.9" x 9.7"
Scanning
• Horizontal Scanning 30 - 71kHz
• Vertical Scanning 50 - 160Hz
Video
• Video Dot Rate 108MHz
• Input Impedance
-Video 75Ω
-Sync 2.2kΩ
• Input Signal Levels 0.7 Vp-p
• Sync Input Signal Separate Sync
Composite Sync
• Sync Polarities Positive and Negative
White Color Temperature
Chromaticity CIE Coordinates:
• at 9300 K: x=0.283, y=0.297
• at 6500 K: x=0.313, y=0.329
Resolution and Preset Modes
• Max. Resolution 1280 x 1024
• Recom. Resolution 1024 x 768
• 16 User Definable Modes
• 22 Factory Preset Modes:
H.freq (kHz)/ V.freq (Hz)
640 x 350 31.5K/70; 37.9K/85
640 x 480 31.5K/60; 37.9K/72; 37.5K/75; 43.3K/85; 50.6K/100
720 x 400 31.5K/70; 37.9K/85
800 x 600 37.9K/60; 48.1K/72; 46.9K/75; 53.7K/85; 63.9K/100
832 x 624 49.7K/75
1024 x 768 48.4K/60; 56.5K/70; 60.0K/75; 68.7K/85
1152 x 864 67.5K/75
1152 x 900 71.8K/76
1280 x 960 60.0K/60
1280 x 1024 85.9K/85
Plug and Play Compatibility
• Display Data Channel DDC 1/2B
• Microsoft
®
,Windows®95/98/2000/NT Compatible
Power Management
Complies with EPA Energy Star, NUTEK and E2000 Specifications
• Operation (typ.) 74 W
• Suspend/Stand-By Mode (typ.)< 8 W
• Off Mode/Deep Sleep < 2.5 W
Low-Emission Characteristics
• Complies with MPR-II Specifications
Monitor Controls and Functions
• Main 5-Button OSD
Brightness +/- Direct Access
Contrast+/- Direct Access
• OSD Language (English, Spanish, French,
German, Italian),Zoom, Horizontal,
Vertical, Pincushion,Balanced,
Trapezoid, Parallelogram, Color,
Reset, Degauss,Moire, Serial
Number, Resolution, Frequency
Connections and Cables
• Connections
-Video 15-pin D-Sub Input
• Cables Video (fixed) and Power
Regulatory Approvals
• MPR-II Low Emission
• TüV/GS,TüV-Ergo
• FCC-B, UL,CSA, DHHS
• SEMKO, Poland-B Sign, C-Tick
• VCC-I, CE,BCIQ, PSB
Physical Specifications
• Dim. Incl. Base (WxHxD)(mm) 399 x 410 x 408
• Dim. Incl. Base (WxHxD)(inch) 15.7" x 16.1" x 16.1"
• Dim. Excl. Base (WxHxD)(mm) 399 x 373 x 408
• Dim. Excl. Base (WxHxD)(inch) 15.7" x 14.7" x 16.1"
• Unit Weight 15.0 kg/33 lbs.
• Power Supply 90 - 264 VAC, 50/60Hz
• UPC Code 0 37849 89849 9
• Carton Dimensions (WxHxD)(mm) 496 x 495 x 518
• Carton Dimensions (WxHxD)(inch) 19.5" x 19.5" x 20.4"
• Carton Weight 17.5 kg/38.5 lbs.
• Temperature (Operational) 0°C to +40°C/32° to 104°F
• Temperature (Storage) -25°C to +65°C/-13° to 149°F
• Relative Humidity 5% to 95%
• MTBF (excl. CRT) >75,000 H
Optional Accessories
• USB Hub Option Type PCUH411
• Multimedia Base Option Type 6G3B11
Carton contains: 107S Monitor, power cord and users’ manual.
This monitor fulfills all Nutek requirements regarding power management.Philips is a partner in the
EPA’s ENERGY STAR® Computers Program.As an ENERGY STAR® partner, Philips has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.Mac is a registered trademark of Apple Computer,Inc. MS-DOS is a registered trademark and Windows®
95/98/NT is a trademark of Microsoft Corp.All trademarks acknowledged.
