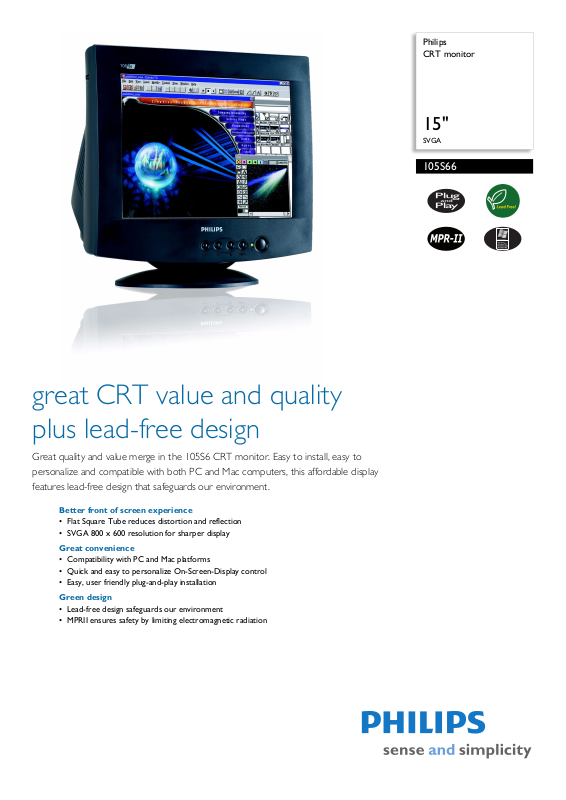

Philips
CRT monitor
15"
SVGA
105S66
great CRT value and quality
plus lead-free design
Great quality and value merge in the 105S6 CRT monitor. Easy to install, easy to
personalize and compatible with both PC and Mac computers, this affordable display
features lead-free design that safeguards our environment.
Better front of screen experience
• Flat Square Tube reduces distortion and reflection
• SVGA 800 x 600 resolution for sharper display
Great convenience
• Compatibility with PC and Mac platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
Green design
• Lead-free design safeguards our environment
• MPRII ensures safety by limiting electromagnetic radiation
CRT monitor
105S66/27
15" SVGA
Specifications Product highlights
Picture/Display
• Display screen type: Flat Square Tube
• Panel Size: 15"/ 36 cm
• Phosphor: P22
• Recommended display area(mm): 270 x 202 mm
• Recommended Display Area(inch): 10.6" x 8.0"
• Dot pitch: 0.28 mm
• Dot Pitch (horizontal): 0.24 mm
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1024 x 768 @ 60 Hz
• Optimum Resolution: 800 x 600 @ 85 Hz
• Factory Preset Modes: 6 modes
• Factory Preset Mode: 640 x 480 @ 60 Hz, 640 x
480
@ 75 Hz, 720 x 400 @ 70 Hz, 800 x
600
@ 75 Hz, 800 x 600 @ 85 Hz, 1024 x
768
@ 60Hz
• Factory Preload Modes: 9 modes
• Video Dot Rate: 75 MHz
• Horizontal Scanning Frequency: 30 - 54 kHz
• Vertical Scanning Frequency: 50 - 120 Hz
• Recommended Refresh Rate: 85 Hz
• Screen enhancement: Anti-glare Polarizer, AntiReflection, Anti-Static
Connectivity
• Cables: D-sub Video Cable, Power Cord
• Sync input impedance: 4.7k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
• Video Sync Input Signal: Separate Sync
• Video Sync Polarities: Positive and Negative
• Cable Connection: AC Power in
Convenience
• User convenience: Menu Languages, On-screen
Display
• Monitor Controls: Brightness Control, Contrast
Control, Left/Right, Menu, Power On/Off
• OSD Languages: English, French, German, Italian,
Spanish, Portuguese, Russian
• Plug & Play Compatibility: DDC 2B, Windows 98/
ME/2000/XP
• Regulatory Approvals: FDA, EZU, MEEI, PCBC,
MPR-II, Low Emission, GOST, SEMKO, CE Mark,
TÜV/GS, TÜV Ergo, FCC-B, UL, CSA, NUTEK
• Swivel: +/- 90°
• Tilt: -5° to 15°
Accessories
• Included Accessories: AC Power Cord
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
360
x 362 x 387 mm
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -25°C to 65°C
• Weight: 11.5 kg
Power
• Complies with: NUTEK
• Consumption (On mode): 62 W (Typical)
• Consumption (Off Mode): 5 W
• Power LED indicator: Off - Amber, Operation green
• Power supply: Built-in
•
Flat square tube
A tube designed to reduce distortion and reflection.
SVGA, 800 x 600 resolution
For graphics monitors, the screen resolution signifies the
numbe r o f dot s (p ix els) on the e nt ire s cre en . Fo r ex ampl e,
a 800-by-600 pixel screen is capable of displaying 800
di sti nct dot s on eac h of 600 l ine s, or ab out 600 tho usand
pixels. SVGA provides resolutions of 640 by 480 or 800
by 600 pixels.
Two-platform compatibility
The ability to work with a variety of platforms; Philips
monitors are compatible to connect with PC by employing
a VGA connection and connect with Macintosh.
OSD On-Screen-Display control
An on-screen panel for adjusting a monitor. The OSD is
used for contrast, brightness, horizontal, vertical
positioning and other monitor adjustments.
Easy plug-and-play
Plug-and-play is a peripheral connectivity standard. A plug
and play display device can be connected to a PC and
operate without requiring user intervention to adjust
complicated settings.
Lead-free
Lead-free display products are designed and produced in
compliance with strict European Community Restriction
of Hazardous Substances (RoHS) standards that restrict
lead and other toxic substances that can harm the
environment.
MPRII compliant
The world standard setting stringent levels for
electromagnetic radiation emitted by monitors.
Issue date 2009-02-12
Version: 1.0.2
12 NC: 8639 000 15713
UPC: 0 37849 95075 3
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
