Philips 105S61 User Manual

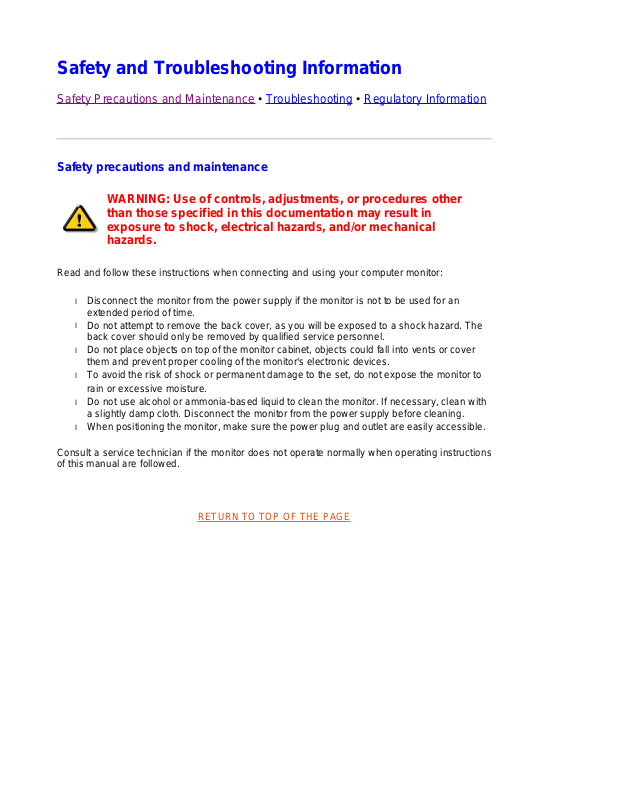

Safety and Troubleshooting Information

Consult a service technician if the monitor does not operate normally when operating instructions

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Disconnect the monitor from the power supply if the monitor is not to be used for an extended period of time.

Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover should only be removed by qualified service personnel.

Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and prevent proper cooling of the monitor's electronic devices.

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or excessive moisture.

l Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with

a slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

l When positioning the monitor, make sure the power plug and outlet are easily accessible.

of this manual are followed.

RETURN TO TOP OF THE PAGE

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.

The sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

l About This Electronic User's Manual gives overview of what information are included as

well as notation icon descriptions and other documentation you can refer to.

l Product Information gives an overview of the monitor's features and as well as the

technical specifications for this monitor.

Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

On Screen Display provides information on adjusting the settings on your monitor.

l Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your product..

Glossary provides more information for technical terms.

Download allows users to install the entire manual on their hard drive.

l Frequently Asked Questions provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views

Product Features

Model Regulation Color

105S61 MPRII Grey

105S68 TUV-Bauart Grey

105S69 TUV-Bauart Grey

105S6

z 15" -inch (14.0" VIS) color monitor with excellent front of screen performance z Autoscan covers horizontal frequencies up to 54kHz offering a maximum resolution of

1024 x 768

z Flat square high contrast CRT with high-resolution 0.28 mm dot pitch z FCC, CE (in selected countries only) and ISO9241, ISO14001 certified

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and deflection 15 inch / 38 cm ; 90° deflection angle

• Dot pitch 0.28 mm

• Tube type 29mm neck. non-glare screen

• Phosphor P22

SCANNING

• Horizontal scanning 30 - 54KHz

• Vertical scanning 50 - 120 Hz

VIDEO

• Video dot rate 72 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 degrees K x = 0.283 / y = 0.297

• at 6500 degrees K x = 0.313 / y = 0.329

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's

Mode

ON Active Yes Yes

OFF Blanked No No

This monitor is

has determined that this product meets the efficiency.

Video H-sync V-sync

ENERGY STAR

compliant. As an ENERGY STAR® Partner, PHILIPS

RETURN TO TOP OF THE PAGE

Physical Specifications

ENERGY STAR

Power

Used

Typical

≤

62W

≤

guidelines for energy

LED

color

Green

orange

14.2" x 14.3" x 15.3" / 360 x 362 x 387 mm (including base)

• Dimensions

• Weight 11.5 kg

• Power supply 90 - 264 VAC, 50/60Hz

14.2" x 12.7" x 15.3" / 360 x 321 x 387 mm (excluding base)

• Temperature (operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to +65°C / -13° to +149°F

• Relative humidity (storage) 5% to 95%

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

Assignment

No.

1 Red 9 NC

2 Green 10 Ground

3 Blue 11 Monitor Ground

4 Ground 12 DDC-Serial Data

5 Ground 13 H. Sync

6 R-Ground 14 V- Sync / * VCLK

7 G-Ground 15 DDC-Serial clock

8 B-Ground *

Assignment

No.

For DDC

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

Installing your Monitor

Front View • Rear View

Front View

6 5

Power Switch

Power Indicator

Contrast

Brightness

Exit

Rear View

RETURN TO TOP OF THE PAGE

1. Power in - attach power cable here.

2. Video In - this is a cable which is already attached to your monitor. Connect

the other end of the cable to your PC.

RETURN TO TOP OF THE PAGE

On-Screen Display

Description of the On-Screen Display • The OSD Tree • The OSD Controls

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips monitors which allows an end-user to adjust screen performance of monitors directly through an on-screen instruction window. The user interface provides userfriendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

On the front controls of your monitor, once you press the MENU (OSD) Main Controls window will pop up and you can now start making adjustments to your

monitor's various features. Use the Left or Right to make your adjustments within.

button, the On Screen Display

RETURN TO TOP OF THE PAGE

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments.

RETURN TO TOP OF THE PAGE

The OSD Controls

Description of the On-Screen Display • The OSD Tree

Brightness:

Brightness is the overall intensity of the light coming from the screen. A 50% brightness is recommended. To adjust your screen's brightness, follow the steps below.

With the menu off, press , then press

to decrease

brightness

to increase brightness

When the brightness is adjusted to the level desired,

press the Exit Key. The BRIGHTNESS menu will disappear with the new adjustment saved.

RETURN TO TOP OF THE PAGE

Contrast:

Contrast is the difference between the light and dark areas on the screen. A 100% contrast is recommended. To adjust your screen's contrast, follow the steps below.

With the menu off, press then press

to decrease contrast

to increase contrast

When the contrast is adjusted to the level desired, press the Exit Key. The CONTRAST window will disappear with the new adjustm saved.

How to Adjust a Setting

RETURN TO TOP OF THE PAGE

1. Press the Menu Key to make the OSD window appear.

2. Press the Up or Down Key to select the desired function.

3. Press the Menu Key again to select the function that you want to adjust.

4. Press the Up or Down Key to change the settings of the current function.

5. When the OSD window is active, it shows the input signal timing. The "H" stands for the horizo frequency and "V" for the vertical frequency.

6. To exit and save, either press the Exit Key, or leave the monitor alone for 10 seconds. If you wa adjust any other function, repeat steps 2-4.

Adjusting the Picture

Icon Adjustment

Contrast Adjusts the contrast between the foreground and

background of the screen image.

Brightness Adjusts the background brightness of the screen

image.

Horizontal position

Horizontal size Adjusts screen width.

Vertical position Moves screen image up or down.

Vertical size Adjusts screen height.

ZOOM Adjust the picture's horizontal and vertical size

Moves the screen image to the right or left.

simultaneously.

Pincushion Straightens the left and right vertical edges of the

display.

Trapezoid Adjusts the width of the top and bottom of the

screen.

Pin-Balance Adjust to compensate the pincushion unbalance.

Parallelogram Adjusts the viewing area when it is tilted left or

right.

Rotation Adjust the picture tilt to horizontal position.

6500°K/9300°K

The color temperature for 6500°K is x=0.313,

y=0.329 and 9300°K is x=0.283, y=0.297. It (Color Temperature)

presents two different color sets on the screen.

You can select 9300°K or 6500°K by pressing the

Shuttle Knob .

User Color (Red/Blue)

If the 9300°K normal white or 6500°K warmer

white do not satisfy your desire, properly adjust

R.B GAIN controls to obtain your optimum

whiteness level.

Degauss If color impurity occurs when moving or swiveling

the monitor, press the Shuttle Knob and degauss

to fix the picture condition.

Moiré Reduce Moiré is the result of interference between the

phosphor layout and the video signal. In some

cases, you may find the moiré very noticeable.

Press the Shuttle Knob to enter in the moiré

reduce setting. Please adjust the level to the

optimum condition.

Note: Too high of a setting will cause the picture to

shake.

Recall Press RECALL to restore the monitor to factory

settings.

Exit Close OSD window.

SELECT

Select the language you like. LANGUAGE

RETURN TO TOP OF THE PAGE

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:

WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France •

Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey •

Bulgaria

LATIN AMERICA: Antilles • Argentina • Brazil • Chile • Colombia • Mexico •

Paraguay • Peru • Uruguay • Venezuela

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea •

Malaysia • Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

NORTH AMERICA: USA & Canada

Frequently Asked Questions

multimedia computers come on the market every day. With USB, up to 127 devices can run

TCO95, which is "better" than TCO92, which, in turn, is better than MPRII. Below, we compare the

1. What does the "Designed for Windows" logo signify?

The "Designed for Windows" logo means your Philips monitor fulfills the requirements and recommendations of the PC9x (97, 98, or 99) System Design Guide and passes stringent WHQL tests.

What is USB?

Think of USB as a smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. Its three main benefits are:

USB eliminates "Case angst," the fear of removing the computer case to install circuit board cards - that often require adjustment of complicated IRQ settings -- for add-on peripherals.

l USB does away with "port gridlock." Without USB, PCs are normally limited to one printer,

two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick. More and more peripherals for

simultaneously on a computer.

l USB permits "hot plug-in." No need to shut down, plug in, reboot and run set up to install

peripherals. No need to go through the reverse process to unplug a device. Bottom line: USB transforms today's "Plug-and-Pray" into true Plug-and-Play!

3. What is a USB hub?

Think of USB hub as a extension of USB ports. Normally, the PC provides only one or two USB ports. To connect additional USB devices, you need a USB hub.

4. What is TCO?

TCO is a Swedish abbreviation for the Swedish Confederation of Professional Employees.

5. What is MPR?

MPR is a Swedish abbreviation for the Swedish National Board of Measurement and Testing.

6. What are the differences between MPRII, TCO92, TCO95, TCO99 and TCO'03?

In the general hierarchy of standards, TCO'03/TCO99 is the highest level of certification. Next is

standards in each category.

-TCO 92 Phase out: June 30, 2000

-TCO 95 Will be end December 31, 2003

Emissions:

MPRII: Set low emission rules for visual displays. TCO92: Imposed more stringent standards than MPRII. TCO95: Further toughened TCO92 rules.

TCO99: Delineated even more severe standards and test procedures than TCO95. TCO'03: Same as TCO99 standard + Testing uncertainty.

Safety:

MPRII: No requirement. TCO92/95/99/03: All set requirements.

Energy Saving:

MPRII: No requirement. TCO92: Standby mode < 30W, Off mode < 8W TCO95: Standby mode < 30W, Off mode < 8W TCO99: Standby mode < 15W, Off mode < 5W TCO'03:Standby mode < 15W, Off mode < 5W

Visual Ergonomics:

MPRII: No requirement. TCO92: No requirement. TCO95: Set ergonomic rules including minimum contrast level, flicker and jitter. TCO99: Tightened TCO95 rules. TCO'03: Tighten TCO99 rule for CRT and new requirement of screen color for TFT LCD Monitors.

Ecology:

MPRII: No requirement. TCO92: No requirement. TCO95: Set general ecological standards including recycling preparation, environmental policy and environmental certification. TCO99: Further tightened TCO95 norms. TCO'03:Require the recycling information to users.

7. How do I enable the energy saving function?

Go to 'My Computer' and select 'Control Panel' followed by 'Monitor Control.' Select "All default selection' and choose your Philips monitor model from the default driver list. Plug and Play will automatically enable the EPA tick box for you. In DOS or Windows 3.1, you must first make sure your PC supports power saving.

85 times per second. A higher the refresh rate means better image stability and less flicker. A high

refresh rate helps users who work long hours in front of a monitor avoid eye fatigue and stress. To

8. What is refresh rate?

"Refresh rate" describes the number of times an entire screen is vertically scanned each second. In other words: If a monitor's refresh rate is 85 Hz, its screen is refreshed - or vertically scanned -

change the refresh rate, go into "Start/Settings / Control Pannel / Display / Properties / Setting/Advance/Adaptor" Windows settings of the computer, the monitor will automatically adjust itself to the video card.

9. Why does the picture on the screen appear to flicker?

A low refresh rate or electrical interference typically causes flickering in the picture. Possible solutions include the following:

Verify that the proper drivers are installed for your video card

Make sure that all electrical devices (such as mobile phones) are at least 1m from the monitor

l Place the monitor in another physical location away from electrical interference l Adjust the refresh rate to 75hz or higher.

10. How do I adjust my monitor's resolution?

Available resolutions are determined by the capabilities of your video card and graphic driver. Under Windows '95, you may select the desired available resolution through the 'Display properties/Settings' menu.

11. How can I adjust the size, position and rotation of my screen?

Depending on the model you own, you can use your CustoMax Software, On Screen Display (OSD) or control knobs located on the monitor.

12. What if I get lost when making monitor adjustments?

Simply press MENU button then select "Recall" to restore all settings.

The video card installed in your computer may be too high for the monitor 's specifications. Please

16. My monitor appears to be missing one or more colors. How do I correct

1 3. My screen shows NO SIGNAL INPUT , how can I get rid of this?

Check the following for possible solutions:

Bent pins on the video cable

l Make sure the computer is turned on l

Ensure the VGA Cable is properly connected

Ensure the BNC/D-Sub connector on the rear of the monitor is in the correct position, newer models have this option in the On Screen Display under Input Signal Selection.

Video card may be not a VESA standard (try the monitor with another computer)

14. Why does my monitor display "Out of Range"?

contact your computer manufacturer for details on how to lower resolution for your operating system.

15. What is Moire? Why does my monitor have this wavy phenomenon?

Moire is a natural effect or phenomenon of CRT that has the appearance of a wavy pattern, which is repetitive and superimposed on the screen as ripple images. These are a few suggestions to help reduce or minimize the effects:

l Some monitors have a Moire cancellation feature, activate it to the on position or adjust the

Moire cancellation function via the OSD on the monitor.

l Change resolution to the recommended standard for the specific monitor size. l

Change Window viewing pattern/scheme to a pattern where the Moire is less visible.

l Change horizontal and vertical size to optimize the reduction of the Moire effect.

this?

If the OSD menu is also missing a color, please contact service for details

l Set color temperature to 9300 color coordination l Check the video cable for any bent pins l Video card could be defective (try the monitor with another computer).

17. When I degauss my monitor, it makes a loud noise. Is this normal?

which automatically degausses the monitor when it is switched on.

Yes, when degaussing your monitor via the OSD, it is normal for the monitor to make a relatively loud noise. Please be aware that many models will not degauss more than once within any given time period (up to 10 minutes). This is due to the unit having a temperature sensitive resistor. While the unit is degaussing, the resistor increases in value with heat and once it reaches a certain temperature, the resistance will rise and prevent voltage from reaching the degaussing coil. This is what stops the degausser, and this device's resistance will decrease as it cools back off, enabling the degauss function to operate again. This is an intentional design and is an industry standard, not just for Philips monitors. Please be aware that not all models in the Philips range has this manual degauss function. Some models are built with an auto degauss feature

18. How do I adjust the picture on the screen?

Please perform the following to correct the picture image:

l Reset your monitor via the OSD menu l Adjust the Horz (width) and/or Vert size (height) in the OSD l

Change monitor timing to work at the recommended resolution

19. The edge of the picture on the screen appears to be distorted. How can I correct this?

Please perform the following to correct the picture image:

l A magnetic or electrical interference typically causes poor geometry in the picture. Place

the monitor in a different physical location

l Reset the monitor to the factory preset via the OSD menu l

Access the Geometry Menu in the OSD of the Monitor and perform the necessary adjustments

Change the monitor timing to the recommended resolution

20. The picture appears too dim. How can I correct this?

Adjust Brightness and/or Contrast via the monitor 's OSD. Some models have a Video Input Select

under Advanced Controls in the monitor 's OSD. Most computers require it to be set at 0.7V.

+ 42 hidden pages

Philips 105S61 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Electronic User's Manual

Product Information

The OSD Controls

Frequently Asked Questions
