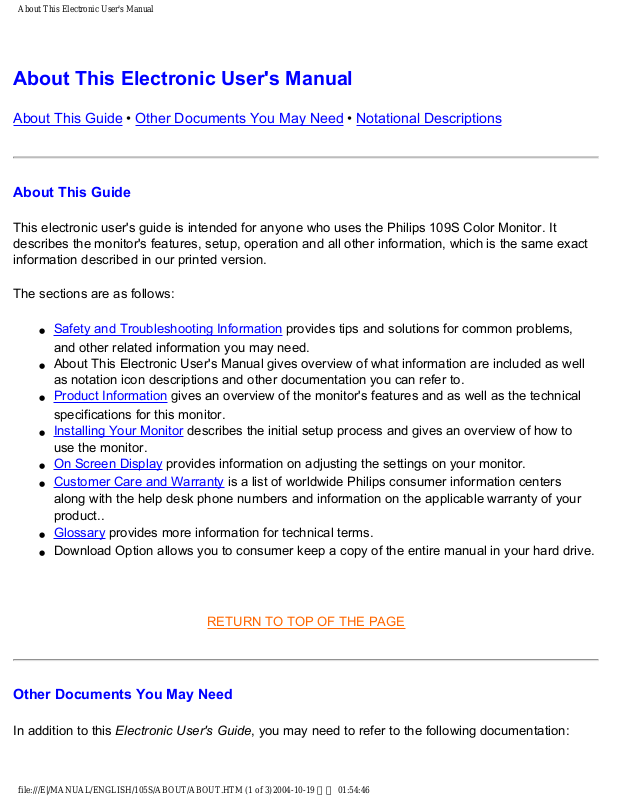

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips 109S Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.

The sections are as follows:

● Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

● About This Electronic User's Manual gives overview of what information are included as well

as notation icon descriptions and other documentation you can refer to.

● Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

● Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

● On Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your product..

● Glossary provides more information for technical terms.

● Download Option allows you to consumer keep a copy of the entire manual in your hard drive.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

● Disconnect the monitor from the power supply if the monitor is not to be used for an

extended period of time.

● Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The

back cover should only be removed by qualified service personnel.

● Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them

and prevent proper cooling of the monitor's electronic devices.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain

or excessive moisture.

● Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a

slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

Consult a service technician if the monitor does not operate normally when operating instructions of this manual are followed.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/safety/safety.htm2004-10-19 下午 02:02:11

105S Product Information

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views

Product Features

105S10

● 15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with

MACs and PCs

● Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280

x 960 with flicker free display of 800 x 600 at up to 96 Hz

● Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).

● Smallest footprint in its class requires minimum desk space: maximum depth is only 379

mm/14.9"

● Multimedia Base and USB Hub option

● TCO99, E2000, NUTEK, EPA, FCC, CE and ISO9241 certified

105S11

● 15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with

MACs and PCs

● Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280

x 960 with flicker free display of 800 x 600 at up to 96 Hz

● Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).

● Smallest footprint in its class requires minimum desk space: maximum depth is only 379

mm/14.9"

● Multimedia Base and USB Hub option

● MPR-II, NUTEK, EPA, FCC, CE and ISO9241 certified

105S15 (TCO99) / 105S16 (MPR II)

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (1 of 6)2004-10-19 下午 02:02:12

105S Product Information

● 15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with

MACs and PCs

● Autoscan covers horizontal frequencies up to 60 kHz offering a maximum resolution of 1280

x 960 with flicker free display of 800 x 600 at up to 96 Hz

● Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).

● Smallest footprint in its class requires minimum desk space: maximum depth is only 379

mm/14.9"

● Multimedia Base complete with 32 W PMPO stereo output, bass boost, headphones and

microphone connector

● TCO99, MPR II, E2000 (105S15), NUTEK, EPA, FCC, CE and ISO9241 certified

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and deflection 15 inch / 36 cm ; 90° deflection angle

• Dot pitch / Grille pitch 0.28 mm

• Horizontal pitch 0.24 mm

• Tube type

Shadow mask, flat square, high contrast, anti-glare, antistatic, anti reflection, light transmission 57%

• Phosphor P22

• Recommended display area 10.6" x 7.95" / 270 x 202 mm

• Maximum display area 11.2" x 8.4" / 284 x 213 mm

SCANNING

• Horizontal scanning 30 - 60 KHz

• Vertical scanning 50 - 120 Hz

VIDEO

• Video dot rate 108 MHz

• Input impedance

- Video 75 ohm

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (2 of 6)2004-10-19 下午 02:02:12

105S Product Information

- Sync 2.2 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal

Separate sync

Composite sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 K degrees x = 0.283 / y = 0.297

• at 6500 K degrees x = 0.313 / y = 0.329

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's

Mode

Video H-sync V-sync Power Used

Power

Saving

(%)

LED color

ON Active Yes Yes

< 65W

0 % Green

Stand-by Blanked No Yes

< 10W

85%

Yellow

Suspend Blanked Yes No

< 10W

85%

Yellow

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (3 of 6)2004-10-19 下午 02:02:12

105S Product Information

OFF Blanked No No

< 3W (105S10,

105S15)

< 8W (105S11,

105S16)

95%

88%

Amber

This monitor is

ENERGY STAR

compliant. As an ENERGY STAR® Partner, PHILIPS has

determined that this product meets the

ENERGY STAR

guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimensions

14.1"

x 14.6" x 14.9" / 358 x 370 x 379 mm (including base)

14.1"

x 13.2" x 14.9" / 358 x 335 x 379 mm (excluding base)

• Weight 11.9 kg

• Power supply 90 - 264 VAC, 50/60Hz

• Temperature (operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to +65°C / -13° to -149°F

• Relative humidity 5% to 95%

* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (4 of 6)2004-10-19 下午 02:02:12

105S Product Information

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No.

Assignment

No.

Assignment

1 Red video input 9 No pin 2 Green video input 10 Logic ground

3 Blue video input 11

Identical output connected to pin 10

12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V 6 Red video ground 14 V. Sync (VCLK for DDC) 7 Green video ground 15 Data clock line (SCL) 8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (5 of 6)2004-10-19 下午 02:02:12

105S Product Information

Rear View

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/product/product.htm (6 of 6)2004-10-19 下午 02:02:12

Installing your Monitor

Front View • Rear View • 6G3B10 Multimedia Base (option) • PCUH411 USB Hub (option)

Front View

Power button switches your monitor on.

OK button which when pressed will take you to the OSD controls

Contrast hotkey. When the UP arrow is pressed, the adjustment controls for the CONTRAST will show up.

file:///E|/MANUAL/ENGLISH/105S/install/install.htm (1 of 3)2004-10-19 下午 02:02:12

Installing your Monitor

UP and DOWN buttons are used when adjusting the OSD of your monitor

Brightness hotkey. When both the LEFT and RIGHT arrows are pressed at the same time, then the adjustment controls for BRIGHTNESS will show up.

LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.

RETURN TO TOP OF THE PAGE

Rear View

file:///E|/MANUAL/ENGLISH/105S/install/install.htm (2 of 3)2004-10-19 下午 02:02:12

Installing your Monitor

1. Power in - attach power cable here.

2. Video In - this is a cable which is already attached to your monitor. Connect

the other end of the cable to your PC.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/install/install.htm (3 of 3)2004-10-19 下午 02:02:12

On-Screen Display

Description of the On-Screen Display • The OSD Tree • The OSD Controls

Description of the On Screen Display

What is the On-Screen Display?

This is a feature in all Philips monitors which allows an end-user to adjust screen performance of monitors directly though an on-screen instruction window. The user interface provides userfriendliness and ease-of-use when operating the monitor.

Basic and simple instruction on the control keys.

On the front controls of your monitor, once you press the

button, the On Screen Display (OSD)

Main Controls window will pop up and you can now start making adjustments to your monitor's various features. Use the

or the keys to make your adjustments within.

file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (1 of 4)2004-10-19 下午 02:02:13

On-Screen Display

RETURN TO TOP OF THE PAGE

The OSD Tree

Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments.

file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (2 of 4)2004-10-19 下午 02:02:13

On-Screen Display

file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (3 of 4)2004-10-19 下午 02:02:13

On-Screen Display

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/osd/osddesc.htm (4 of 4)2004-10-19 下午 02:02:13

Customer Care and Warranty

Customer Care & Warranty

PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:

WESTERN EUROPE:

Austria • Belgium • Cyprus • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland • Spain • United Kingdom

EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey

LATIN AMERICA: Antilles • Argentina • Brasil • Chile • Colombia • Mexico • Paraguay •

Peru • Uruguay • Venezuela

NORTH AMERICA: Canada • USA

PACIFIC: Australia • New Zealand

ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •

Pakistan • Philippines • Singapore • Taiwan • Thailand

AFRICA: Morocco • South Africa

MIDDLE EAST: Dubai • Egypt

file:///E|/MANUAL/ENGLISH/warranty/warranty.htm2004-10-19 下午 02:02:14

Glossary

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Autoscan

A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and vertical frequencies of input signals with those of the installed video card. An autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered trademark of NEC, provides a similar function.

RETURN TO TOP OF THE PAGE

Balanced pincushion

See Geometric distortion

BNC connection

A special construction of connector used in some monitors with higher horizontal scanning frequency. The BNC connection can provide the optimum shielding and matching characteristic impedance of video signal path to ensure the best video performance.

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (1 of 22)2004-10-19 下午 02:02:15

Glossary

RETURN TO TOP OF THE PAGE

CE Mark

CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance with European Community safety, EMI and EMS requirements and is compulsory on products for sale in the European Community.

Color temperature

A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source.

Most Philips monitors offer the possibility of setting the color temperature to any desired value.

Contrast

The ratio between the brightness of the brightest and darkest parts of a picture. The darkest part of a

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (2 of 22)2004-10-19 下午 02:02:15

Glossary

picture is set by the brightness of the unexcited phosphor, which is governed by the degree with which ambient light is reflected. Contrast is therefore reduced in conditions of high ambient light levels. Black Matrix tubes reflect less ambient light so exhibit higher contrast than other tubes.

Convergence error

Bean misalignment causing one or more of the three beams passing through the wrong aperture in the shadow mask and striking a phosphor dot in the wrong triad.

Convergence error is expressed in mm often at three well-defined points on the screen, designated A, B and C (see figure ). Also known as misconvergence.

Points where convergence error is specified

Convergence-error correction

A method of correcting for convergence error to insure that all three beams land simultaneously in the same triad. This is usually accomplished by means of special convergence-error correction coils in the deflection yoke.

CRT

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (3 of 22)2004-10-19 下午 02:02:15

Glossary

Cathode-ray tube - the general term for all tubes in which one or more electron beams emitted by a cathode are periodically scanned across a phosphor screen by means of deflection circuitry. A special form of the cathode-ray tube is the TV and monitor picture tube.

CustoMax

Philips proprietary monitor control software that allows users to control parameters (e.g., Size, Color, Geometry) using software running in Windows. CustoMax is compatible with existing VGA cards. See CrystalClear FAQ and USB Bay FAQ.

RETURN TO TOP OF THE PAGE

DDC (Display Data Channel)

DDC is a communication channel for displays and computers. The DDC feature allows the monitor controller to be automatically configured to make optimal use of the display without manual user interaction. DDC is implemented as part of the new Plug & Play approach introduced into the PC market to increase user friendliness.

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (4 of 22)2004-10-19 下午 02:02:15

Glossary

The three levels developed for Plug & play are: (1) DDC1, monitor send data to the PC; (2) DDC2B, PC can request information from monitor; and (3) DDC2Bi which is a two-way communication monitor can be addressed and PC or graphics board can give commands to monitor.

DDC 1/2B

See DDC.

DDC 2Bi

See DDC.

Degaussing

The procedure of demagnetizing the shadow mask and associated metal parts of a picture tube at switch-on to minimize picture distortion. This is usually accomplished by means of a special degaussing coil through which a decaying alternating current is passed to generate an alternating magnetic field that gradually decays to demagnetize the tube. Some monitors offer a manual degaussing facility that can be activated at any time.

Digital control

Microprocessor-based digital control of picture parameters and video modes for complete control of picture settings and modes and instant recall of all settings at the push of a button. This is a very advanced feature that allows the user to switch to any required mode at any instant without having to spend time readjusting the picture. It is currently available in most Philips monitors.

Dot pitch

The shortest distance between two phosphor dots of the same color on the screen. The smaller the dot pitch, the better the resolution of the monitor.

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (5 of 22)2004-10-19 下午 02:02:15

Glossary

Dot rate

Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between the video card and subsequent processing circuitry.

Also known as video dot rate.

RETURN TO TOP OF THE PAGE

Electromagnetic radiation standards

International standards set to limit electromagnetic emissions from monitors. There are currently two

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (6 of 22)2004-10-19 下午 02:02:15

Glossary

important standards both derived from regulations originally laid down by Swedish authorities.

MPR-II

The standard originally proposed by the Swedish National Board of Measurement and Testing. It set maximum levels of electromagnetic radiation emitted by monitors, and has now been adopted as a world standard. MPR-II defines maximum permitted electrostatic, magnetic and electric field levels measured at a distance of 50 cm from the center of the monitor (see table).

TCO

In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of Professional Employees ) set a standard even more severe than MPR-II, especially for alternating electric fields (AEF). The TCO standard is more severe since not only are the permitted field levels reduced compared with MPR-II, but the measuring distance is also reduced (see table).

Electromagnetic radiation standards

EMI (Electrical Magnetic Interference)

The electrical and/or magnetic radiation coming from the working electrical or electronic equipment.

EMS (Electrical Magnetic Sustainment)

The ability of electrical or electronic equipment to function properly in the environment with electrical and/or magnetic interference.

RETURN TO TOP OF THE PAGE

Flicker

Very rapid variations in picture intensity caused by the finite time required for the electron beam to scan a picture onto the screen. Two kinds of flicker occur: line flicker caused by the electron beam scanning-in each line of the picture; and frame flicker (or field flicker if the picture is interlaced) caused by the frame repetition rate of 50 frames/second. Frame flicker is noticeable with GUI and DTP software (which have a light background), and can be very disturbing, especially for those who work regularly with displays - contributing to eye strain, headaches, visual blurring, stress, etc. The

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (7 of 22)2004-10-19 下午 02:02:15

Glossary

problem can, however, be eliminated by increasing the refresh rate (number of frames/second) of the monitor to a value above around 70 Hz. Sensitivity to flicker appears to diminish with increasing age.

RETURN TO TOP OF THE PAGE

Hertz

The unit of frequency named after the physicist Heinrich Hertz (1857-1894). 1 hertz (Hz) is equal to 1 cycle/second.

Horizontal dot pitch

See Dot pitch.

Horizontal scanning frequency

Also called line frequency and expressed in kHz, it is the number of video lines written on the screen every second (from left to right). The higher the horizontal scanning frequency, the better the resolution (i.e., the higher the resolution and/or the higher the refresh rate).

RETURN TO TOP OF THE PAGE

INF File

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (8 of 22)2004-10-19 下午 02:02:15

Glossary

INF file (Information File)

Information (INF) files store information in a specific format. The set-up functions retrieve information from the INF file to use when performing installation operations. Examples of the type of information stored in an INF file include INI and registry changes, file names, and locations of the source files on source media.

Interlaced/non-interlaced

Interlaced.

The method of writing a picture on the screen by initially writing all even lines and subsequently writing all odd lines of the picture. Result: The complete picture is composed of two interlaced half pictures (or fields). With interlacing, a vertical (or field) frequency of 50 Hz means a picture (or frame) frequency of 25 Hz.

Non-interlaced.

The method of writing a picture on the screen by successive video lines of the picture so that a full frame is written onto the screen in one vertical sweep of the beams. With a non-interlaced display, a vertical frequency of 50 Hz means a picture (or frame) frequency of 50 Hz. At any given resolution, non-interlaced modes are preferable to interlaced modes; however, generation of non-interlaced modes is more expensive.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (9 of 22)2004-10-19 下午 02:02:15

Glossary

Linearity

The degree to measure the actual location of a pixel on the screen corresponds with its intended location. ( see figure )

Line frequency

See Horizontal scanning frequency.

Low-emission monitor

A monitor that complies with international standards on radiation.

See Electromagnetic radiation standards.

Low-frequency electric and magnetic fields

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (10 of 22)2004-10-19 下午 02:02:15

Glossary

Alternating fields generated by the deflection yoke. These are subject to increasing attention, notably by governing authorities, the trade and the press. Although there is no scientific evidence that monitor emissions are harmful, much effort has gone into reducing emissions on the principle of better safe than sorry. Currently, there are two areas of interest: very-low frequency (VLF) electric and magnetic fields extending from 2 kHz to 400 kHz, and extreme low frequency (ELF) fields extending from 5 Hz to 2 kHz.

See also Electromagnetic radiation standards.

RETURN TO TOP OF THE PAGE

Moiré effect

A fringe pattern arising from the interference between two superimposed line patterns.

In a monitor it comes from the interference between the shadow mask pattern and the video information (video moiré), and between the shadow mask pattern and the horizontal line pattern (scan moiré). It shows itself as wavy patterns on the screen and becomes more noticeable as monitor resolution increases. Since the video signal varies continuously, little can be done about video moiré. Scan moiré depends on the horizontal scanning frequency and can be alleviated by appropriate choice of frequency. Autoscan (MultiSync) monitors, which operate over a range of scanning frequencies, may sometimes exhibit moiré in certain video modes.

MPR

See Electromagnetic radiation standards.

MultiSync monitor

See Autoscan monitor.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (11 of 22)2004-10-19 下午 02:02:15

Glossary

Non-interlaced

See Interlaced/non-interlaced.

RETURN TO TOP OF THE PAGE

OSD (On Screen Display)

The feature that allows an end user to adjust screen performance and parameters of monitors directly through an on-screen instruction window. See CustoMax in CrystalClear section.

Overscan

The practice in which areas without useful video information are scanned outside the visible screen area in order to make maximum use of the screen for display of active video information. This practice is occasionally necessary because some video cards generate a video pattern that is smaller than the visible screen area, resulting in an image that is smaller (and less legible) than it needs to be.

RETURN TO TOP OF THE PAGE

file:///E|/MANUAL/ENGLISH/105S/glossary/glossary.htm (12 of 22)2004-10-19 下午 02:02:15

+ 82 hidden pages
