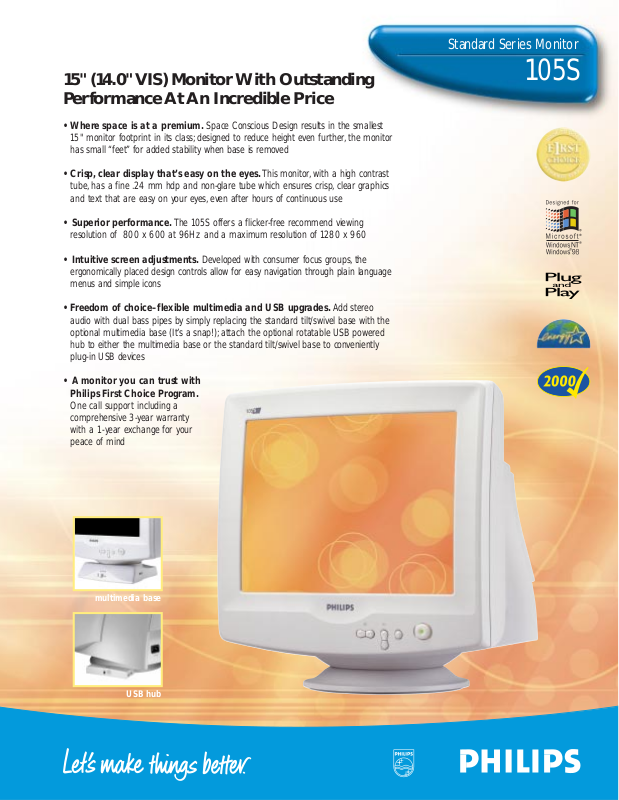

Standard Series Monitor

105S

1 5" (1 4.0" VIS) Monitor With Outstanding P erformance At An Incredible Price

• Where space is at a premium. Space Conscious Design results in the smallest 15" monitor footprint in its class; designed to reduce height even further,the monitor has small “feet”for added stability when base is removed

• Crisp, clear display that’s easy on the eyes.This monitor,with a high contrast tube, has a fine .24 mm hdp and non-glare tube which ensures crisp, clear graphics and text that are easy on your eyes,even after hours of continuous use

• Superior performance.The 105S offers a flicker-free recommend viewing resolution of 800 x 600 at 96Hz and a maximum resolution of 1280 x 960

• Intuitive screen adjustments. Developed with consumer focus groups, the ergonomically placed design controls allow for easy navigation through plain language menus and simple icons

• Freedom of choice–flexible multimedia and USB upgrades. Add stereo audio with dual bass pipes by simply replacing the standard tilt/swivel base with the optional multimedia base (It’s a snap!);attach the optional rotatable USB powered hub to either the multimedia base or the standard tilt/swivel base to conveniently plug-in USB devices

• A monitor you can trust with Philips First Choice Program.

One call support including a comprehensive 3-year warranty with a 1-year exchange for your peace of mind

USB hub

multimedia base

Product Number 105S11 Technical Specifications

CRT

• Size (inch/cm) 15"/38 cm (14.0" VIS)

• Deflection Angle (degr ees) 90°

• Dot Pitch 0.28 mm

• Horizontal Pitch 0.24 mm

-Tube Type Invar Shadow Mask,Flat Square,

Anti-Glare, Anti-Static, Anti-Reflection, Light T ransmission 57%

• Phosphor P22

• Recom.Display Area(mm) 270 x 202 mm

• Recom.Display Area(inch) 10.6" x 8.0"

• Max.Display Area(mm) 284 x 213 mm

• Max.Display Area(inch) 11.2" x 8.4"

Scanning

• Horizontal Scanning 30 - 60kHz

• Vertical Scanning 50 - 120Hz

Video

• Video Dot Rate 108MHz

• Input Impedance

-Video 75Ω

-Sync 2.2kΩ

• Input Signal Levels 0.7 Vp-p

• Sync Input Signal Separate Sync, Composite Sync

• Sync Polarities Positive and Negative

White Color Temperature

Chromaticity CIE coordinates:

• at 9300 K: x=0.283,y=0.287

• at 6500 K: x=0.313,y=0.329

Resolution and Preset Modes

• Max.Resolution 1280 x 960

• Recommended Resolution 800 x 600

• 16 User Definable Modes

• 18 Factory Preset Modes:

H.freq (kHz)/ V.freq (Hz)

640 x 350 31.5K/70;37.9K/85 640 x 480 31.5K/60;37.9K/72; 37.5K/75; 43.3K/85;50.6K/100 720 x 400 31.5K/70;37.9/85 800 x 600 37.9K/60;48.1K/72; 46.9K/75; 57.3K/85 832 x 624 49.7K/75 1024 x 768 48.4K/60;56.5K/70; 60.0K/75 1280 x 960 60.0K/60

Plug and Play Compatibility

• Display Data Channel DDC1/2B (VESA)

• Microsoft

,Windows®95/98/NT Compatible

Power Management

Complies with EPA Energy Star and NUTEK Specifications

• Operation (typ.) 65 W

• Suspend/Stand-By Mode (typ.) < 10 W

• Off Mode/ Deep Sleep < 8 W

Low-Emission Characteristics

• Complies with MPR-II Specifications

Monitor Controls and Functions

• Main 5-Button OSD Brightness +/- Direct Access Contrast+/- Direct Access

• OSD Language (English,Spanish, French, German,Italian), Zoom, Horizontal, Vertical, Pincushion, Balanced, Trapezoid, Parallelogram,Color, Reset,Degauss, Moire, Serial Number, Resolution, Frequency

Connections and Cables

• Connections

-Video 15-pin D-Sub Input

• Cables Video (fixed) and Power

Regulatory Approvals

• MPR-II Low Emission

• FCC-B,UL, CSA, DHHS

• Poland-B sign,C-Tick

• VCC-I,CE, BCIQ, PSB

Physical Specifications

• Dim.Incl. Base (WxHxD)(mm) 358 x 370 x 378

• Dim.Incl. Base (WxHxD)(inch) 14.1" x 14.6" x 14.9"

• Dim.Excl. Base (WxHxD)(mm) 358 x 335 x 379

• Dim.Excl. Base (WxHxD)(inch) 14.1" x 13.2" x 14.9"

• Unit Weight 12.0 kg/26.4 lbs.

• Power Supply 90 - 264 VAC,50/60Hz

• UPC Code 0 37849 89157 5

• Carton Dimensions (WxHxD)(mm) 432 x 419 x 456

• Carton Dimensions (WxHxD)(inch) 17.0" x 16.5" x 18.0"

• Carton Weight 14.2 kg/31.2 lbs.

• Temperature (Operational) 0°C to +40°C/32° to 104°F

• Temperature (Storage) -25°C to +65°C/-13° to149°F

• Relative Humidity 5% to 95%

• MTBF (Excl.CRT) > 75,000 H

Other

• USB Hub Option Type PCUH411

• Multimedia Base Option Type 6G3B10

This monitor fulfills all Nutek requirements regarding power management Philips is a partner in the EPA’s ENERGY STAR®Computers Program. As an ENERGY STAR®partner,Philips has determined that this product meets the ENERGY STAR

guidelines for energy efficiency. Mac is a registered trademark of Apple Computer, Inc . MS-DOS is a registered trademark and Windows®95/98/NT is a trademark of Microsoft Corp. All trademarks acknowledged.

INTERNET ADDRESS: http://www.pcstuff.philips.com FAX INFORMATION SYSTEM: (423) 521-4341 TECHNICAL SUPPORT: (877) 835-3506 (USA)

(903) 242-4804 (outside USA)

Specifications subject to change without notice.

Standard Series Monitor

105S

monitor back
