Philips 105G7 User Manual 2

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

z Disconnect the monitor from the power supply if the monitor is not to be used for an

extended period of time.

z Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The

back cover should only be removed by qualified service personnel.

z Do not place objects on top of the monitor cabinet, objects could fall into vents or cover

them and prevent proper cooling of the monitor's electronic devices.

z To avoid the risk of shock or permanent damage to the set, do not expose the monitor to

rain or excessive moisture.

z Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with

a slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

z When positioning the monitor, make sure the power plug and outlet are easily accessible.

Consult a service technician if the monitor does not operate normally when operating instructions of this manual are followed.

RETURN TO TOP OF THE PAGE

Troubleshooting

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information

Common Problems

Having trouble? Something not working? Before calling for help, try these suggestions.

Having this problem?

No Picture

(Power LED not lit)

Check these items

z Make sure the Power cable is plugged into the power

outlet and back of the monitor.

z Power button on the front of your monitor should be in the

ON position.

No Picture

(Power LED is flashing orange)

No Picture

(Power LED is orange)

z Make sure the computer is turned on. z Make sure the monitor cable is properly connected to your

computer.

z Check to see if the monitor cable has bent pins. z The Energy Saving feature may be activated

z Make sure the Brightness and Contrast controls are set

correctly.

z Make sure the monitor cable is properly connected to your

computer.

z Check to see if the monitor cable has bent pins.

Screen doesn't show

when you turn on the monitor

No color or intermittent color

Color appears blotchy

Missing one or more colors

Dim Picture

Picture is too large or too small.

z Make sure the monitor cable is properly connected to your

computer. (Also refer to the Quick Start Guide).

z Check to see if the monitor cable has bent pins. z Make sure the computer is turned on.

z If you are using a non-VESA-DDC standard video card,

turn the DDC1 / 2B feature Off.

z The picture may need degaussing. z Remove any nearby magnetic objects. z Face the monitor toward the East for the best picture

quality.

z Check the Color Temperature. z Make sure the monitor cable is properly connected to your

computer.

z Check to see if the monitor cable has bent pins. z Adjust the Brightness and Contrast controls.

z Check your video card and it's owner's manual

instructions for it may be a non-VESA-DDC Standard card.

z Adjust the Horizontal and/or Vertical Size.

Edges of the picture are not square.

z Adjust the geometry.

Picture has a double image.

z Eliminate the use of a video extension cable and/or video

switch box.

z Face the monitor toward the East for the best picture

quality.

Picture is not sharp.

z heck to make sure Moire Function is switched off.

Unstable Picture

z Increase your refresh rate.

Problem with On Screen Display

For further assistance, refer to the Consumer Information Centers list to contact your local Philips distributor.

z Refer to the instructions and troubleshooting information

in that chapter.

RETURN TO TOP OF THE PAGE

Regulatory Information

CE Declaration of Conformity• Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • North Europe Information (Nordic Countries) • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland)

Safety Precautions and Maintenance • Troubleshooting • Other Related

Information

CE Declaration of Conformity

z Philips Consumer Electronics declare under our responsibility that the product is in

conformity with the following standards

- EN60950:2000 (Safety requirement of Information Technology Equipment)

- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment)

- EN55024:1998 (Immunity requirement of Information Technology Equipment)

- EN61000-3-2:2000 (Limits for Harmonic Current Emission)

- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable

- 73/23/EEC (Low Voltage Directive)

- 89/336/EEC (EMC Directive)

- 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level.

z The product also comply with the following standards

- ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display)

- ISO13406-2 (Ergonomic requirement for Flat panels)

- GS EK1-2000 (GS specification)

- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display) MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)

- TCO99, TCO03 (Requirement for Environment Labelling of Ergonomics, Energy,

Ecology and Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions

RETURN TO TOP OF THE PAGE

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is

z Consult the dealer or an experienced radio/TV technician for help.

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

connected.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

RETURN TO TOP OF THE PAGE

Commission Federale de la Communication (FCC Declaration)

Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de

z Réorienter ou déplacer l'antenne de réception. z Augmenter la distance entre l'équipement et le récepteur. z Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. z Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision.

télévision, ce qui peut être décelé en ferm an t l'équ ip eme n t, pu is en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:

Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.

CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.

RETURN TO TOP OF THE PAGE

North Europe Information (Nordic Countries)

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ.

RETURN TO TOP OF THE PAGE

BSMI Notice (Taiwan Only)

RETURN TO TOP OF THE PAGE

Ergonomie Hinweis (nur Deutschland)

Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch Röntgenstrahlen" festgelegten Vorschriften.

Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Inbetriebnahme hinweist, da die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind.

Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß

Reparaturen nur durch Fachpersonal durchgeführt werden.

nur original-Ersatzteile verwendet werden.

bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird.

Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem Zeichenkontrast wären die Folge).

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.

ACHTUNG:

NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND.

BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß

RETURN TO TOP OF THE PAGE

Other Related Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information •Information for Users in the U. S. • Information for Users Outside

the U.S

Information for Users in the U. S.

For units set at 115 V :

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

For units set at 230 V:

Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.

Information for Users outside the U.S.

For units set at 230 V:

Use a Cord Set rated minimum 5 A, 250 V ( for units set at 230V ) or 10A, 125V (for units set at 115V). The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed.

RETURN TO TOP OF THE PAGE

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.

The sections are as follows:

z Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

z About This Electronic User's Manual gives overview of what information are included as

well as notation icon descriptions and other documentation you can refer to.

z Product Information gives an overview of the monitor's features and as well as the

technical specifications for this monitor.

z Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

z On Screen Display provides information on adjusting the settings on your monitor. z Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your product..

z Glossary provides more information for technical terms. z Download allows users to install the entire manual on their hard drive. z Frequently Asked Questions

provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

Product Information

Product Features • Lead-free product • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views

Product Features

Model Color 105G78 Black

105G79 105G7S

105G7

z 15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with

MACs and PCs

z Autoscan covers horizontal frequencies up to 54 kHz offering a maximum resolution of

1024 x 768 with flicker free display of 800 x 600 at up to 85 Hz

z Flat square High Contrast CRT with high-resolution 0.28 mm dot pitch .

Gray Silver/Black

RETURN TO TOP OF THE PAGE

Lead-free product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.

Technical Specifications*

CRT

• Size and deflection 15 inch / 38 cm ; 90° deflection angle

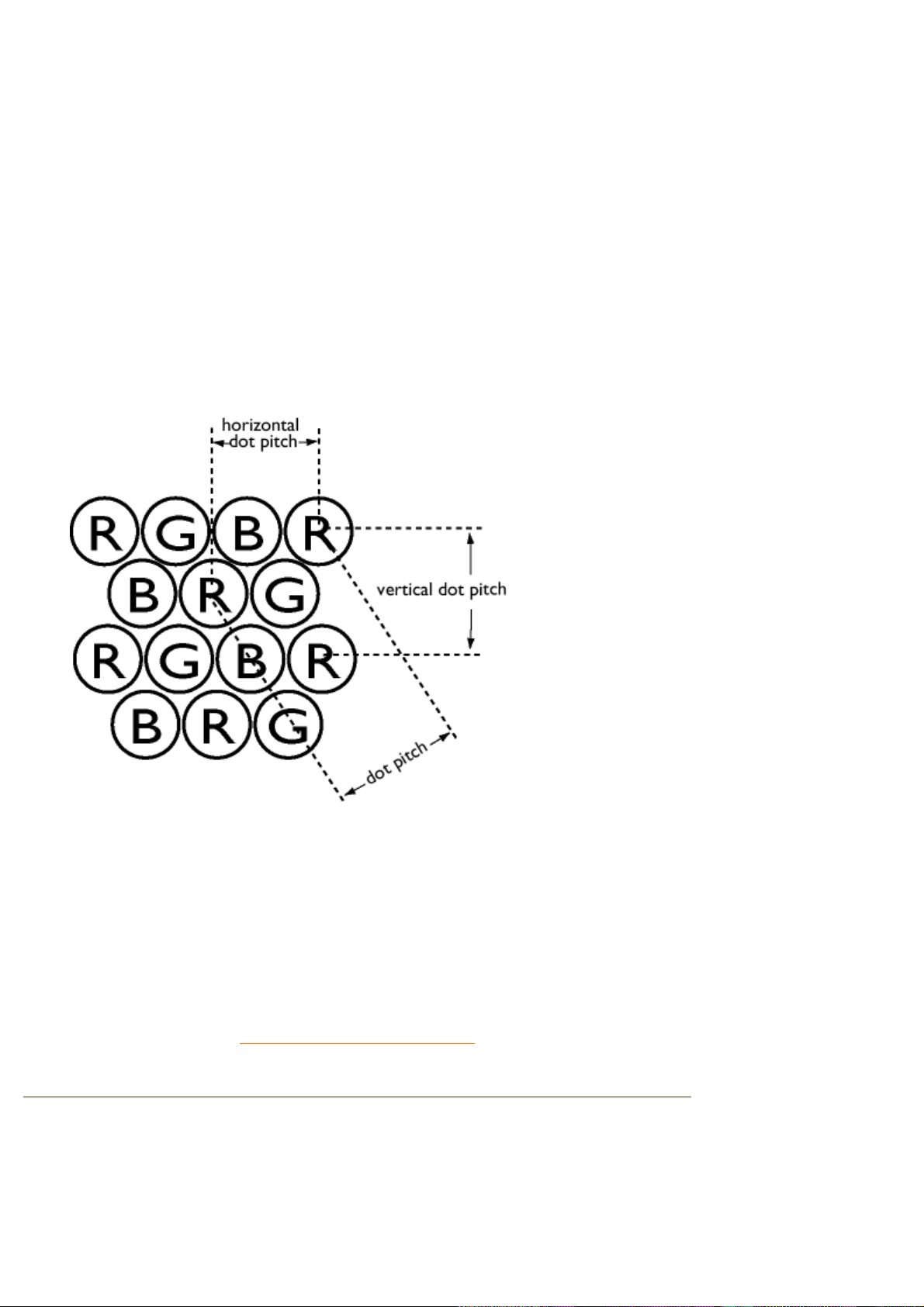

• Dot pitch 0.28 mm

• Tube type 29mm neck, glare screen

• Phosphor P22

SCANNING

• Horizontal scanning 30 - 54 KHz

• Vertical scanning 50 - 120 Hz

VIDEO

• Video dot rate 72 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7k ohm

• Input signal levels 0.7 Vpp

• Sync input signal

• Sync polarities Positive and negative

TTL Sync

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 K x = 0.283 / y = 0.297

• at 6500 K x = 0.313 / y = 0.329

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's Mode Video H-sync V-sync Power Used Power Saving (%) LED color

OFF

Active Yes

Blanked No

Yes Typical 62W

<5W

0 %

92%

Green

orange

Physical Specifications

RETURN TO TOP OF THE PAGE

• Dimensions

• Weight 11.5kg

• Power supply

• Temperature (operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to +65°C / -13° to +149°F

• Relative humidity(storage) 5% to 95%

14.2" x 14.3" x 15.3" / 360 x 362 x 387 mm (including base)

14.2" x 12.7" x 15.3" / 360 x 321 x 387 mm (excluding base)

90 - 264 VAC, 60-50Hz (Please refer to rating label)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

Assignment

No.

1 Red video input 2 Green video input 3 Blue video input 4 Ground

Assignment

No.

9 NC 10 Ground 11 Monitor Ground 12 DDC-Serial Data

5 Ground 6 Red video ground 7 Green video ground 8 Blue video ground

Views

Follow the links to see various views of the monitor and its components.

Front View Rear View

RETURN TO TOP OF THE PAGE

13 H. Sync 14 V- Sync/ * VCLK 15 DDC-Serial clock

* For DDC

RETURN TO TOP OF THE PAGE

Installing your Monitor

Front View • Rear View

Front View

1 Power Switch 2 Power Indicator 3 Menu 4 Contrast 5 Brightness 6 Exit

Rear View

RETURN TO TOP OF THE PAGE

Power in - attach power cable here.

Video In - this is a cable which is already attached to your monitor. Connect

the other end of the cable to your PC.

RETURN TO TOP OF THE PAGE

+ 35 hidden pages
