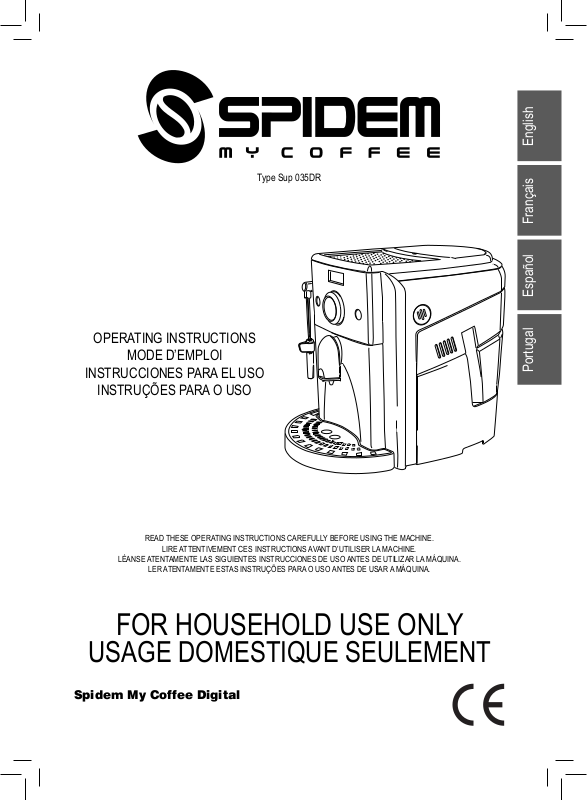

OPERATING INSTRUCTIONS

MODE D’EMPLOI

INSTRUCCIONES PARA EL USO

INSTRUÇÕES PARA O USO

EnglishFrançaisEspañolPortugal

Type Sup 035DR

READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.

LÉANSE ATENTAMENTE LAS SIGUIENTES INSTRUCCIONES DE USO ANTES DE UTILIZAR LA MÁQUINA.

LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT D’UTILISER LA MACHINE.

LER ATENTAMENTE ESTAS INSTRUÇÕES PARA O USO ANTES DE USAR A MÁQUINA.

FOR HOUSEHOLD USE ONLY

USAGE DOMESTIQUE SEULEMENT

Spidem My Coffee Digital

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not

immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near

children.

5. Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated

oven.

11. Always attach plug to appliance first, then plug cord into wall outlet.

To disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service centre. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only. 1 Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2 Never use warm or hot water to fill the water tank. Use cold water only. 3 Keep your hands and the cord away from hot parts of the appliance

during operation.

4 Never clean with scrubbing powders or harsh cleaners. Simply use a

soft cloth dampened with water.

5 For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6 Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to

be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marker electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the

counter top or table top where it can be pulled on by children or tripped over.

Congratulations! Thank you for purchasing this highest quality espresso coffee machine and for your conﬁ dence

in our company. Before operating the machine, we recommend carefully reading the operating instructions that explain how to use, clean and maintain it in perfect working order. Please refer to an authorized dealer, or to Saeco, if you have any questions. We will be happy to provide any clariﬁ cations.

Félicitations ! Nous vous félicitons pour l’achat de cette machine à café expresso de qualité supérieure et vous

remercions de votre conﬁ ance. Avant de mettre la machine en marche, nous vous recommandons de lire attentivement ce mode d’emploi qui vous explique comment utiliser, nettoyer et conserver la machine en parfait état de fonctionnement. Si vous avez des questions à poser, nous vous prions de contacter le revendeur ou directement notre service consommateurs. Nous vous donnerons avec plaisir toutes les informations nécessaires.

¡Enhorabuena! Enhorabuena por haber comprado esta máquina de café exprés de alta calidad y gracias por la

conﬁ anza depositada en nosotros. Antes de poner en funcionamiento la máquina se aconseja leer atentamente las instrucciones de uso que explican cómo utilizarla, limpiarla y mantenerla en perfectas condiciones. En caso de dudas, dirigirse a un revendedor o directamente al fabricante. Será un placer responderle.

Parabéns! Obrigado por ter adquirido esta máquina de café expresso, de qualidade superior, e pela conﬁ ança

demonstrada. Antes de pôr a funcionar a máquina, aconselhamos a ler atentamente as instruções de uso nas quais é explicado como utilizá-la, limpá-la e mantê-la em perfeita eﬁ ciência. Para outros esclarecimentos, dirija-se ao revendedor ou directamente ao fabricante. Teremos o prazer em esclarecer quaisquer outras dúvidas.

20 21

1110

1514

Le macchine possono differire per alcune dotazioni in funzione del mercato di destinazione.

Some of the machine accessories may differ according to the market of destination.

Die Ausstattungen der Maschinen können je nach Bestimmungsmarkt in einigen Teilen unterschiedlich sein.

Les machines peuvent présenter des différences dans les accessoires selon le marché de destination.

Los accesorios de las máquinas pueden variar de acuerdo con el mercado de destino.

Alguns equipamentos das máquinas poderão ser diferentes em função do mercado de destino.

De machines kunnen onderling verschillen voor wat betreft enkele onderdelen ten behoeve van de afzetmarkt.

Urządzenia mogą różnić się niektórymi dodatkami w zależności od rynku przeznaczenia.

Fig.1 - Abb.1 - Afb.1 - Rys.1

Fig.2 - Abb.2 - Afb.2 - Rys.2

Fig.4 Fig.5 Fig.6

Fig.3

Fig.7 Fig.8 Fig.9

Fig.10 Fig.11 Fig.12

English

Fig.13 Fig.14 Fig.15

Fig.16 Fig.17 Fig.18

Fig.19 Fig.20

Fig.22

Fig.25 Fig.26

Fig.23

Fig.21

Fig.24

Fig.27

Fig.28 - Abb.28 - Afb.28 - Rys.28

1 2 3

Fig.29

GENERAL INFORMATION - TECHNICAL SPECIFICATIONS

1 GENERAL INFORMATION

This coffee machine is made for brewing espresso coffee using whole coffee beans and is equipped with a device to dispense steam and hot water. The elegant machine housing has been designed for domestic use only and is not suitable for continuous, professional use.

Warning. No liability is held for damage caused by:

• Incorrect use not in accordance with the intended purposes;

• Repairs not carried out by authorized service centres;

• Tampering with the power cord;

• Tampering with any parts of the machine;

• Storage or use of the machine at temperatures below 0ºC (32ºF);

• The use of non-original spare parts and accessories.

In these cases, the warranty will be voided.

1.1 To Simplify Manual Reading

The warning triangle indicates the instructions that are important for user's safety. Please carefully

follow these instructions to avoid serious injury!

References to illustrations, parts of the appliance or controls, etc. are indicated by numbers or letters. Whenever possible, refer to the illustration.

This symbol is used to highlight information that is particularly important to ensure opti-

mal use of the machine.

The illustrations corresponding to the text can be found on the ﬁ rst pages of the manual. Please refer to these pages while reading the operating instructions.

1.2 How to use these Operating Instructions

Keep these operating instructions in a safe place and make them available to anyone who may use the coffee machine.

For further information or in case of problems that are not included or not completely explained in these instructions, please contact Saeco Customer Service.

2 TECHNICAL SPECIFICATIONS

The manufacturer reserves the right to make changes to the technical speciﬁ cations of the product.

Nominal Voltage - Power rating - Power supply

See label on the appliance

Housing

Thermoplastic material

Size (w x h x d)

370 x 370 x 480 mm / 14.6 x 14.6 x 18.9 in

Weight

9 kg / 19.8 lbs

Power cord length

1.2 m / 47.2 in

Control panel

Front

Pannarello

frothing attachment for making cappuccino

Water tank (removable)

1.7 litres / 57.5 oz

Coffee bean hopper capacity

230 g / 8 oz

Coffee grounds drawer capacity

14 portions

Pump pressure

15 bar

Boiler

Stainless steel

Safety devices

Thermal fuse

3 SAFETY REGULATIONS

Never allow water to come into contact with any of the electrical parts of the machine: Danger of short circuit! Steam and hot water may cause scalding! Do not direct the steam or hot water jet towards body parts. Handle the steam/hot water spout with care: Danger of scalding!

Intended Use of the Machine

The coffee machine is intended for domestic use only. Do not make any technical changes or use the machine for unlawful purposes since this would create serious hazards! The appliance is not to be used by persons (including children) with reduced physical, mental or sensory abilities or with scarce experience and/or competences, unless they are supervised by a person responsible for their safety, or they are instructed by him/

English

SAFETY REGULATIONS

her on how to properly use the machine.

Power Supply

Only connect the coffee machine to a suitable socket. The voltage must correspond to the indication on the machine's label.

Power Cord

Never use the coffee machine if the power cord is defective or damaged. If damaged, the power cord must be replaced by the manufacturer or the manufacturer's customer service center. Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil. Do not use the power cord to carry or pull the coffee machine. Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord hang freely from tables or shelves.

For the safety of others

Prevent children from playing with the machine. Children are not aware of the risks linked with electric household appliances. Do not leave the coffee machine packaging within the reach of children.

Danger of Burns

Never direct the jet of hot steam and/or hot water towards yourself or others: Danger of scalding! Always use the handles or knobs provided.

Machine Location

Place the coffee machine in a safe place, where there will be no danger of overturning or injury.

Hot water or overheated steam may spill out of the machine: Danger of scalding! Do not keep the machine at a temperature below 0ºC (32ºF). Frost may damage the machine. Do not use the coffee machine outdoors. Do not place the machine on very hot surfaces and close to open ﬂ ames in order to prevent its housing from melting or being damaged.

Cleaning

Before cleaning the machine, turn it off by pressing the power button, then pull out the plug from the socket. Wait for the machine to cool down. Never immerse the machine in water! It is strictly forbidden to tamper with the internal parts of the machine. Water left in the tank for several days should not be consumed. Wash the tank and ﬁ ll it with fresh drinking water.

Suitable Location for Operation and Maintenance

To ensure correct and efﬁ cient performance of the cof- fee machine, we recommend following the instructions below:

• Choose a level surface;

• Choose a location that is sufficiently well-lit, clean and near an easily reachable socket;

• Allow for a minimum distance from the sides of the machine as shown (Fig. A).

Storing the Machine

If the machine is to remain inactive for a long time, turn it off and unplug it. Store it in a dry place and out of the reach of children. Keep it protected from dust and dirt.

Servicing / Maintenance

In case of failure, problems or a suspected defect resulting from a fall, you should immediately remove the plug from the socket. Never attempt to operate a faulty machine. Servicing and repairs may only be carried out by authorized service centers. All liability for damages resulting from work not carried out by professionals is declined.

Fire Safety Precautions

In case of ﬁ re, use carbon dioxide (CO2) extinguishers. Never use water or powder extinguishers.

KEY TO MACHINE COMPONENTS - INSTALLATION

Key to Machine Components

Coffee bean hopper with cover

Service door Coffee grounds drawer Dispensing spout (height-adjustable) Drip tray + grill Control panel Hot water / steam wand with Pannarello frother Water Tank Power cord Hot water / steam knob Cup stacking surface Drip tray Brew group

Control panel

Small coffee brew button Long coffee brew button Steam button Power button Aroma button Digital display

Accessories

Grinder adjustment key Brew group lubricant

4 INSTALLATION

For your own safety and the safety of others, carefully follow the "Safety Regulations" in section 3.

4.1 Machine Packaging

The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the original packaging for possible future transportation.

4.2 Preliminary Operations

• Remove the drip tray (5) with grill from the packaging.

• Remove the coffee machine from the packaging and position it in a proper place in compliance with the requirements described in the safety regulations (section 3).

• (Fig.15) - Place the drip tray (5) into the machine.

• Before plugging the machine into the socket, be sure that all steps outlined in section 4.3 have been completed.

Important Note: Carefully read the expla-

nations of all the warnings the machine displays to the user on the control panel display (section 12).

4.3 Using the Machine for the First Time

• (Fig.3) - Lift the water tank (8) slightly and remove it

from its seat.

• (Fig.4) - Rinse and ﬁ ll it with fresh water taking care

not to overﬁ ll it. Replace the water tank.

English

Always use only fresh, non-sparkling water to

ﬁ ll the tank (8). Hot water or any other liquid may damage the tank and/or the machine. Do not turn on the machine with empty tank: make sure there is enough water in the tank.

• (Fig.1) - Remove the cover from the coffee bean hop-

per (1).

• (Fig.2) - Pour in coffee beans.

Note: The grill on top of the coffee bean hopper can not and does not need to be

removed.

Always add only coffee beans in the coffee

bean hopper (1). Pre-ground coffee, instant

INSTALLATION - ADJUSTMENTS

coffee or any other object may damage the machine.

• Replace the cover on the coffee bean hopper (1).

• (Fig.5A) - Insert the plug into the socket on the back

of the machine.

• (Fig.5B) - Insert the plug of the other end of the power

cord into a wall socket with suitable power voltage.

• Press the power button (17) to turn on the machine. A red icon appears on the display.

This indicates that the circuit must be primed.

• (Fig.7) - To prime the water circuit, place a container below the hot water/steam wand (Pannarello) (7).

• (Fig.8) - Turn hot water/steam knob (10) clockwise and wait. A pre-set amount of water will be dispensed from the Pannarello. An orange icon will immediately be displayed:

Turn the hot water/steam knob (10) to close the

Pannarello.

• Now an orange icon will be displayed:

• When the rinse cycle is complete, a green icon will be displayed:

The machine is now ready for use.

• To brew coffee, dispense hot water or steam, and for a proper use of the machine, carefully follow the instructions provided.

5 ADJUSTMENTS

The machine allows for certain adjustments that will permit you to use it to its full potential.

5.1 Coffee Grinder Adjustment

Coffee is a natural product and its features

may change according to its origin and blend. The Spidem coffee machine is equipped with a self-adjusting system that allows using all types of coffee beans available on the market (except caramelized ones). For this reason we recommend brewing several cups of coffee before adjusting the coffee grinder.

Warning! The grinder adjustment knob, inside

the coffee bean hopper, must be turned only when the grinder is running. Do not pour ground and/ or instant coffee into the coffee bean hopper.

This indicates that the machine is heating up to tem-

perature.

Note: Before starting the machine after long

periods of inactivity or if the water tank has been completely emptied, it is advisable to prime the circuit.

When warm-up is complete, the machine

performs a rinse cycle of the internal circuits. A small amount of water is dispensed. During this phase an orange icon will be displayed:

Wait for this cycle to be completed automatically.

Do not insert any material other than coffee

beans into the hopper. The grinder contains moving parts that may be dangerous. Therefore, do not insert ﬁ ngers and/or other objects. Switch the power button to off and remove the plug from the socket before carrying out any type of operation inside the bean hopper. Do not pour coffee beans when the grinder is running.

The machine lets you make slight adjustments to the coffee grinder to adapt it to the kind of coffee used.

This adjustment is carried out by adjusting the knob found on the inside of the coffee bean hopper; this knob must be pressed and turned only with the grinder adjustment key (20) provided with the coffee machine.

(Fig.28-29) - While the grinder is running, press and turn the knob (with the supplied key) one notch at a time and brew 2-3 cups of coffee; the grinder adjust-

ADJUSTMENTS - COFFEE BREWING

ment may only be noticed in this way. The references located inside the coffee bean hopper indicate the grind setting.

1 - Coarse Grind 2 - Medium Grind 3 - Fine Grind

5.2 Stand-by

The machine is designed for energy saving.

After 60 minutes of inactivity, the machine turns off automatically.

To turn the machine on again, simply press the power button (17); in this case the machine will go through the rinse cycle only if the boiler is cold.

5.3 Adjusting the Brewed Coffee

The machine allows you to adjust the amount of brewed coffee according to your tastes and/or the size of your coffee cup(s).

Each time you press and release the brew button (14) or (15) the machine brews a pre-programmed amount of coffee, which is different for each button. This amount may be re-programmed to your taste. Each button may be individually programmed for a speciﬁ c brew setting.

As an example, the following procedure describes the programming of button (14), which is normally associated with espresso coffee.

• (Fig.10) - Place a cup beneath the dispensing

spout.

• (Fig.12) - Press and hold down the brew button (14).

A green icon appears on the display:

• (Fig.12) - When the amount of coffee in the cup

reaches the desired level, release the brew button (14).

5.4 Dispensing Spout Adjustment

(Fig.9) - The height of the dispensing spout (4) may be

adjusted to better ﬁ t the dimensions of the cups that you wish to use.

Manually move the dispensing spout up or down to adjust its height. The recommended positions are:

(Fig.10) - for use with small cups; (Fig.11) - for use with large cups.

5.5 Aroma Adjustment

The machine allows you to adjust the amount of coffee to be ground for each cup.

When you press and release the aroma button (18) three selections are available (mild, medium, and strong). The system sets the aroma according to your personal taste.

Selection can be made when the beans appear on the display. Each time the aroma button (18) is pressed and released, the aroma changes by one step. Selection must be made prior to brewing coffee.

6 COFFEE BREWING

Note: Should the machine not brew coffee, make sure that the water tank contains

water.

Before brewing coffee, check the messages on the display. Check that the water tank and

coffee been hopper are full.

• (Fig.10 - Fig.11) - Place 1 or 2 cups beneath the

dispensing spout (4). You may adjust the height of the dispensing spout to your cups.

• Check that the machine is ready. At this point a green icon should be displayed.

English

This button (14) is now programmed; each time it is pressed and released, the machine will brew the same amount of coffee just programmed.

DISPENSING HOT WATER - PREPARING A CAPPUCCINO

• (Fig.12) - To brew coffee:

- If desired, press and release the aroma button (18) to select the desired aroma.

- Press and release small coffee button (14) for an espresso coffee, or long coffee button (15) for a long coffee.

• The brewing cycle is started:

- To dispense 1 cup of coffee, press the button once. A green icon appears on the display:

- To dispense 2 cups of coffee, press the button twice. A green icon appears on the display:

In this mode of operation, the machine

automatically grinds and doses the correct amount of coffee. Brewing two coffees requires two grinding cycles and two brewing cycles, which the machine carries out automatically.

• After the prebrewing cycle, coffee begins to dispense

out of the dispensing spout (4).

• Coffee brewing stops automatically when the pre-

programmed level is reached; however, it is possible to interrupt coffee brewing by pressing the button initially pressed.

The machine is adjusted to brew a real Italian

espresso. This feature may slightly lengthen the brewing time, allowing the intense ﬂ avor of the coffee to develop fully.

7 DISPENSING HOT WATER

Warning: At the beginning, short spurts of hot

water may come out: Danger of scalding. The hot water/steam wand may reach high temperatures: Never touch it with bare hands.

• Before dispensing hot water, check that the machine

is ready. At this point a green icon should be displayed:

When the machine is ready to brew coffee, proceed as follows:

• (Fig.7) - Place a cup or a container beneath the hot

water/steam wand (7).

• (Fig.8) - Turn the hot water/steam knob (10) clockwise

to open it. A green icon will be displayed:

• When the desired quantity of hot water has been

dispensed, turn the hot water/steam knob (10) counter-clockwise to stop it. The machine returns to the normal operating mode.

Occasionally, no hot water is dispensed when the hot water/steam knob (10) is turned and

an orange icon will appear on the display:

Should this happen, simply wait until the end of the pre-heating phase, at which point hot water will be dispensed from the Pannarello.

PREPARING A CAPPUCCINO - CLEANING AND MAINTENANCE

8 STEAM DISPENSING / PREPARING A CAP-

PUCCINO

Steam may be used to froth milk for cappuccinos, lattes or other beverages.

Danger of scalding! At the beginning, short

spurts of hot water may come out. The steam wand may reach high temperatures: Never touch it with bare hands.

• (Fig.13) - When the machine is ready to brew coffee,

press the steam button (16). The machine requires a preheating time. An orange icon will appear on the display:

• Steam can be dispensed when this green icon is

displayed:

Note: When this icon appears, coffee can be brewed following the procedure described

in section 6.

• (Fig.7 - Fig.8) - Place a container beneath the hot

water/steam wand (Pannarello) (7) and open the hot water/steam knob (10) for a few seconds so as to let the residual water come out of the wand. After a brief moment, a steady jet of steam will come out of the wand.

• Close the steam knob (10).

• Fill a cup or frothing pitcher 1/3 full with cold milk.

Use cold milk for better results when preparing a cappuccino.

• (Fig.14) - Immerse the steam wand (Pannarello) in

the milk to be heated and open the knob (10). Move the container gently up and down to evenly distribute the steam in the milk and level the foam formation.

• After using the steam for the desired time, close the

steam knob (10).

After using the steam wand (Pannarello frother), wash

it as described in the "Cleaning and Maintenance" section.

When the frothed milk is ready, follow the procedure described in section 6 to brew

coffee.

When not in use, the machine automatically reaches the temperature needed to brew cof-

fee to save energy.

9 CLEANING AND MAINTENANCE

General cleaning

• Maintenance and cleaning can only be carried out when the machine is cold and disconnected from the power supply.

• Do not immerse the machine in water or place any of its parts in a dishwasher.

• Do not use sharp objects or harsh chemical products (solvents) for cleaning.

• Use a soft, dampened cloth to clean the outside of the machine.

• Do not dry the machine and/or its components using a microwave and/or conventional oven.

• (Fig.16) - Every day, after steaming milk, remove the external part of the Pannarello frother and wash it with fresh drinking water.

• (Fig.17) - Clean the steam wand weekly. In order to do this, please:

- Remove the external part of the Pannarello (for

standard cleaning);

- Remove the upper part of the Pannarello from the

steam wand;

- Wash the upper part of the Pannarello with fresh

drinking water;

- Wash the steam wand with a wet cloth and remove

any milk residue;

- Replace the upper part of the steam wand (make

sure it is completely inserted).

Re-assemble the external part of the Pannarello.

• (Fig.4) - Clean the water tank on a daily basis.

- Remove the ﬁ lter in the water tank and wash it under

running drinking water.

- Re-insert the ﬁ lter into its seat by gently pressing

and turning it.

- Fill the water tank with fresh drinking water.

• (Fig.15) - Empty and clean the drip tray daily.

English

CLEANING AND MAINTENANCE - DESCALING THE MACHINE

• (Fig.9) - Each week remove the dispensing spout,

pulling it downwards, and wash it with lukewarm water. After washing it, place it back in position.

• (Fig.19-20) - Clean the service compartment. We

recommend emptying and cleaning (on a daily basis):

- The coffee grounds drawer (3)

- The drip tray (12).

9.1 Brew Group

• The brew group (13) must be cleaned every time the coffee bean hopper is ﬁ lled or at least once a week.

• Turn off the machine by pressing the power button (17) and remove the plug from the socket.

• (Fig.18 - Fig.19) - Open the service door (2). Remove the coffee grounds drawer (3) and drip tray (12).

• (Fig.21) - Remove the brew group (13) pulling it by the handle and press the "PUSH" button. The brew group must be rinsed only with lukewarm water with NO detergent/soap.

• (Fig.22) - Thoroughly rinse the brew group with lukewarm water and carefully clean the upper ﬁ lter.

• Thoroughly rinse and dry all the parts of the brew group.

• Thoroughly clean the inside of the machine.

• (Fig.23) - Make sure that the two reference signs match up.

• (Fig.24) - Make sure that the lever is in contact with the brew group. Press the "PUSH" button to make sure that the brew group is in the correct position.

Lubricate the brew group after approximately 500 brewing cycles. The brew group lubricant

may be purchased in authorized service centers.

• (Fig.25) - Lubricate the brew group guides using the supplied lubricant only.

• (Fig.26-27) - Apply the lubricant evenly to the guides on both sides of the brew group.

• Insert the brew group in its seat clicking it into place WITHOUT pressing the "PUSH" button.

• Insert the coffee grounds drawer and the drip tray. Close the service door.

10 DESCALING THE MACHINE

Limescale normally forms with the use of the appliance. Descaling is necessary every 1-2 months or if you notice a reduction in water ﬂ ow.

The display informs you that descaling is necessary:

• An orange icon is displayed before dispensing:

• During normal use, a triangle shaped icon appears in the lower left part of the display:

For the descaling process use a non-toxic

and/or non-harmful descaling solution for coffee machines, commonly available on the market.

Warning! Never use vinegar as a descaling solution.

(Fig.17) - Before descaling, remove the Pannarello

from the steam wand as described in the "Cleaning and Maintenance" section.

• Turn the machine on by pressing the power button

(17). Wait for the machine to complete the warm

up and rinse cycles.

• Mix the descaling solution with water as speciﬁ ed on

the package of the descaling product and ﬁ ll the water tank.

• (Fig.7) - Place a container beneath the steam wand

(7).

• (Fig.8) - By turning hot water/steam knob (10) clock-

wise, dispense water in intervals, one cup at a time; to stop dispensing, turn knob (10) counter-clockwise.

• Between each cup, you must allow the descaling solu-

tion to take effect for about 10-15 minutes, turning the machine off by pressing the power button (17). Empty the container.

• Continue until the descaling solution runs out and the

water tank is empty.

• When the descaling solution is ﬁ nished, rinse the water

DESCALING THE MACHINE - MACHINE DISPOSAL

tank and ﬁ ll it with fresh water.

• Turn the machine on by pressing the power button (17).

• (Fig.8) - Turning the hot water/steam (10) clockwise, empty the entire contents of the water tank; to stop dispensing, turn knob (10) counter-clockwise.

When descaling is complete, insert the Pannarello onto the steam spout as described in the “Cleaning and Maintenance" section.

Press the steam button (16) for 7 seconds to deactivate the descaling light.

If you are using a descaling solution other than

the one recommended, it is important that you carefully follow the manufacturer’s instructions detailed on the package of the descaling solution.

11 MACHINE DISPOSAL

- The packing materials can be recycled.

- Appliance: unplug the appliance and cut the power

cord.

- Deliver the appliance and power cord to a service

center or public waste disposal facility.

English

This product complies with eu directive 2002/96/ec.

The symbol ging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofﬁ ce, your household waste disposal service or the shop where you purchased the product.

on the product or on its packa-

CONTROL PANEL LIGHTS

12 CONTROL PANEL LIGHTS

Icon Red Light Orange Light Green Light

The machine is warming up to brew coffee and dispense hot water.

Fill the water tank and prime the circuit.

Fill the water tank.

The machine is performing the rinse cycle. Wait until the machine automatically stops brewing the beverage.

Refill the coffee bean hopper with coffee beans and restart the coffee brewing cycle.

The machine is ready to brew coffee and dispense hot water.

The machine is brewing one cup of espresso.

The machine is brewing two cups of espresso.

The machine is brewing one cup of coffee.

The machine is brewing two cups of coffee.

The machine is warming up to dispense steam.

The machine is dispensing hot water.

Icon Red Light Orange Light Green Light

The machine is ready to brew coffee and dispense steam.

The machine must be descaled.

Insert the coffee grounds drawer into place.

Insert the brew group into place. The brew group does not work

properly. Repeat the operation.

Close the service door.

Close the hot water/steam knob.

Empty the coffee grounds drawer and the drip tray.

The machine is in the programming mode.

English

Turn the machine off. After 30-seconds, turn it back on. Try this 2 or 3 times. If the machine does NOT start, contact an authorized service center.

The triangle on the lower left of the digital display reminds the user that the machine must be descaled.

TROUBLESHOOTING

Problems Possible Causes Resolutions

The machine does not turn on. The machine is not plugged into an

electrical socket.

The machine does not operate constantly.

The coffee is not hot enough. The cups are cold. Preheat the cups with hot water. Hot water or steam does is not

dispensed.

The coffee is not creamy enough. The blend needs to be adjusted, the

The machine requires too much time to warm-up, or not enough water is dispensed from the steam wand.

The brew group cannot be removed. The brew group is out of position. Turn the machine on. Close the service

The machine grinds the coffee beans but no coffee comes out. (see note)

The coffee is too weak.

(see note)

The coffee comes out slowly.

(see note)

Coffee comes out of the top or sides of the dispensing spout

Possible malfunction. When the machine is not brewing, turn

The hole of the steam wand is clogged.

The Pannarello is dirty. Clean the Pannarello.

coffee is not freshly roasted, or the grind is too coarse.

The water circuit is clogged with limescale.

The coffee grounds drawer is inserted. Remove the coffee grounds drawer

The brew group is dirty. Clean the brew group (section 9.1). Rare event that occurs when the

machine is automatically adjusting the dose.

The dispensing spout is dirty. Clean the dispensing spout. Rare event that occurs when the

machine is automatically adjusting the dose.

The coffee is too ﬁ ne. Change the coffee blend or adjust the

The brew group is dirty. Clean the brew group (section 9.1). The dispensing spout is clogged. Clean the dispensing spout, including

Plug the machine into an electrical socket.

off and unplug machine. Plug machine in again and power on.

Clean the hole of the steam wand with a pin.

Before attempting to unclog the steam wand be sure that the machine is off and cool.

Change the coffee blend, or adjust the grinder as described in section 5.1.

Descale the machine.

door. The brew group will automatically return to the proper position.

before removing the brew group.

Brew a few coffees as described in section 5.1.

grind setting as described in section 5.1.

the nozzles.

Note: These problems can be considered normal if the coffee blend has been changed or if the machine has just been installed; in this case wait until the machine performs a self-adjusting operation as described in section 5.1. Please contact the service center for any problems not covered in the above table or when the suggested solutions do not solve the problem.

Saeco Customer Service USA: 1-800-933-7876 Canada: 1-514-385-5551

+ 44 hidden pages
