PHILIA TECHNOLOGY PDS100 Users manual

Page 1

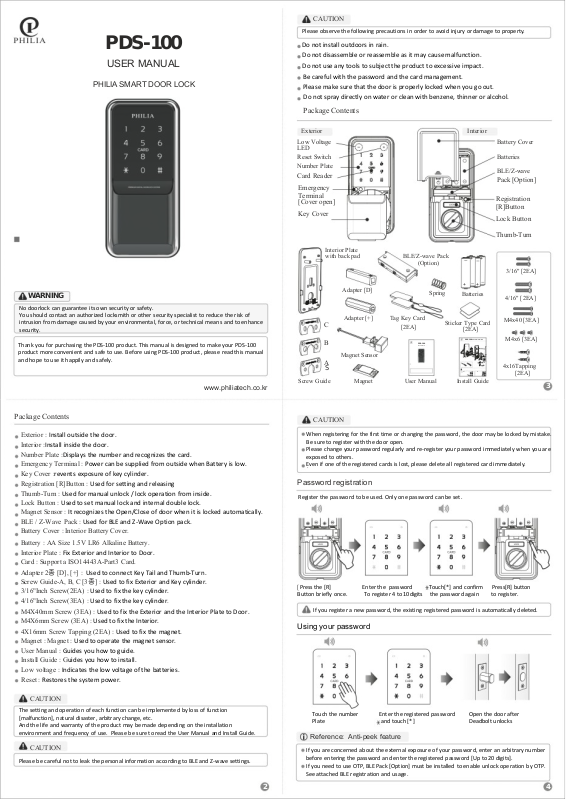

PDS-100

USER MANUAL

PHILIA SMART DOOR LOCK

WARNING

No doorlock can guarantee its own security or safety. You should contact an authorized locksmith or other security specialist to reduce the risk of intrusion from damage caused by your environmental, force, or technical means and to enhance security.

Thank you for purchasing the PDS-100 product. This manual is designed to make your PDS-100 product more convenient and safe to use. Before using PDS-100 product, please read this manual and hope to use it happily and safely.

www.philiatech.co.kr

CAUTION

Please observe the following precautions in order to avoid injury or damage to property.

Do not install outdoors in rain.

Do not disassemble or reassemble as it may cause malfunction.

Do not use any tools to subject the product to excessive impact.

Be careful with the password and the card management.

Please make sure that the door is properly locked when you go out.

Do not spray directly on water or clean with benzene, thinner or alcohol.

Package Contents

Exterior Interior

Low Voltage Battery Cover LED

Reset Switch Batteries Number Plate

Card Reader

Emergency Terminal

[Cover open]

Key Cover

Interior Plate with back pad

Adapter [D]

Adapter [+]

Magnet Sensor

Screw Guide Magnet

+ +

BLE/Z-wave Pack

(Option)

Spring

Tag Key Card

[2EA]

User Manual Install Guide

PDS-100

USERMANUAL

Sticker Type Card

+ +

Batteries

[2EA]

PDS-100InstallationInstructions

1 3

YES NO

+ +

4 6

BLE/Z-wave

Pack [Option]

Registration [R]Button

Lock Button

Thumb-Turn

3/16" [2EA]

4/16" [2EA]

M4x40 [3EA]

M4x6 [3EA]

4x16Tapping

[2EA]

Package Contents

Exterior : Install outside the door. Interior :Install inside the door. .

Number Plate :Displays the number and recognizes the card. Emergency Terminal : Power can be supplied from outside when Battery is low. Key Cover :revents exposure of key cylinder.

Registration [R]Button : Used for setting and releasing Thumb-Turn : Used for manual unlock / lock operation from inside. Lock Button : Used to set manual lock and internal double lock. Magnet Sensor : It recognizes the Open/Close of door when it is locked automatically. BLE / Z-Wave Pack : Used for BLE and Z-Wave Option pack. Battery Cover : Interior Battery Cover.

Battery : AA Size 1.5V LR6 Alkaline Battery. Interior Plate : Fix Exterior and Interior to Door. Card : Support a ISO14443A-Part3 Card.

Adapter 2종 [D], [+] : Used to connect Key Tail and Thumb-Turn. Screw Guide-A, B, C [3종] : Used to fix Exterior and Key cylinder. 3/16"Inch Screw(2EA) : Used to fix the key cylinder. 4/16"Inch Screw(3EA) : Used to fix the key cylinder.

M4X40mm Screw (3EA) : Used to fix the Exterior and the Interior Plate to Door. M4X6mm Screw (3EA) : Used to fix the Interior.

4X16mm Screw Tapping (2EA) : Used to fix the magnet. Magnet : Magnet : Used to operate the magnet sensor.

User Manual : Guides you how to guide. Install Guide : Guides you how to install. Low voltage : Indicates the low voltage of the batteries. Reset : Restores the system power.

CAUTION

When registering for the first time or changing the password, the door may be locked by mistake. Be sure to register with the door open. Please change your password regularly and re-register your password immediately when you are exposed to others. Even if one of the registered cards is lost, please delete all registered card immediately.

Password registration

[Press the [R] Enter the password Touch[*] and confirm Press[R] button

Button briefly once. To register 4 to 10digits the password again to register.

If you register a new password, the existing registered password is automatically deleted.

Using your password

CAUTION

The setting and operation of each function can be implemented by loss of function [malfunction], natural disaster, arbitrary change, etc. And the life and warranty of the product may be made depending on the installation environment and frequency of use. Please be sure to read the User Manual and Install Guide.

CAUTION

Please be careful not to leak the personal information according to BLE and Z-wave settings.

Touch the number Enter the registered password Open the door after Plate and touch [*] Deadbolt unlocks

Reference: Anti-peek feature

If you are concerned about the external exposure of your password, enter an arbitrary number before entering the password and enter the registered password [Up to 20 digits]. If you need to use OTP, BLE Pack [Option] must be installed to enable unlock operation by OTP. See attached BLE registration and usage.

2 4

Page 2

Card registration

RFID cards including Smartphone NFC can be registered up to 30. The same card will not be registered twice during registration.

Auto lock setting

Press and release the Touch the card to be When number 2580 are Press [R] bu tton to [R]button briefly once registered to the card blinking at the same time, register

Using CARD

Contact the registered card with the card receiver.

Sticker Type Card may not be registered depending on the smartphone model.

Receiver the card to be registered

is contacted continuously

If the sticker type card surface is metallic, the recognition rate may be significantly degraded or not recognized.

Depending on the location of the smartphone, the card may not be recognized. When using the Sticker Type Card, turn off the NFC function of the smartphone and use it.

Registering NFC Card on Smartphone [Use when Applying BLE Option]

[Press and release

the [R] Button once briefly

and touch [#] once.

Then if the numbers 2, 5, 8, and 0 are blinking at the same time, the smartphone NFC card contacts the card receiver.

Press [R] Button to register.

Press and hold the [R] Button for 3Sec.

Touch [4].

Press [R] Button to register.

If you keep the door unlock status after setting auto lock, Door Unlock beep sounds twice.

Auto lock function

In the door open state [Magnet Sensor Away].

The lock operation due to abnormal or malfunction of the magnet sensor may not be performed. Please check if the door is securely locked at the time of door close.

When the door is closed, the magnet sensor recognizes the magnet and locks automatically after 2sec..

Manual lock setting

Press and hold the [R] Button for 3 sec. Touch [7].

When the door is closed, the magnet sensor will not be recognized and the door will not lock even if the door is closed. To lock the door, touch the Number Plate for 2 seconds in the door close state or turn the Thumb-Turn to lock the door.

Press [R] Button to register.

Use after install BLE app and activate NFC Mode in Menu

Using Smartphone NFC Card

Touch the Number Plate.

All Delete Card

Press and hold the [R] Button for 3 seconds.

If the card is lost, it will cause a security problem. Please re-register the card to use.

Touch [#] once.

After touching [8]

When the numbers 2, 5, 8, and 0 are blinking after touching [#] once, the smartphone NFC card contacts the card receiver.

Hold [#] for 5 seconds to delete the entire registered card

Individual Delete Card

Open Door after Deadbolt Unlock operation..

Automatic Re-lock function

If the card is authenticated by a password or a card in the door lock state, it is switched to the door unlock state. After that, if the door is not opened, the door lock is automatically executed again after about 7 seconds.

Double Authentication Mode Setting [Password and Card must be registered.]

Press and hold the [R] Button for 3 seconds.

If double authentication mode is set, after the password is authenticated, the card is authenticated and the door unlock operation is performed

Touch [5]

Press [R] Button to register.

Disable Dual Authentication Mode

Press and hold the [R] Button for 3 seconds.

Please keep your password and registration method when you register your card so that it will not be exposed to the outside. If the registered password or card is deleted or not recognized, it is recommended to register or reset it immediately.

Touch the card to be deleted or the smartphone NFC card to be deleted to the card receiver

Press [R] Button to delete.

Press and hold the [R] Button for 3 seconds.

Touch [5]

Press [R] Button to cancel.

6 8

Page 3

Registration Authentication Mode Setting

Delete all guest passwords

Press and hold the [R] Button for 3 seconds.

Touch [6]

Press [R] Button to register.

After register authentication mode is set, pressing [R] Button generates two beeps.

Disable Registration Authentication Mode

Press and hold the [R] Button for 3 seconds.

If you turn off registration authentication mode, the registered guest password will be automatically deleted. [When registration authentication mode is set]

When setting the registration authentication mode, the guest passwordfunction is activated and the double lock mode is automatically released. Press the [R] Button when setting or canceling, then enter thepassword and touch [] to turn it on and off.

After enter the registered password and touch [* ]

Touch [6]

Press [R] Button to cancel.

Press and hold the [R] Button for 3 seconds.

If you turn off registration authentication mode, the registered guest password will be automatically deleted. Once the Guest password has been used, it must be deleted to ensure security.

Enter the registered password and touch [* ]

Touch [00]

Touch [#] for 5 seconds to delete.

Outgoing security mode setting function

After door lock, touch the Number Plate within 3 s ec.

An alarm sounds when the door is unlocked by Thumb-Turn. It does not work when the magnet sensor is abnormal or malfunction, or the magnet is not recognized.

While touching, the Number Plate flashes three times at 1 sec intervals, and the outgoing security mode is set.

It will be released by password or Card authentication

Internal security mode function

In the door lock state, press and hold the [LOCK] Button for 3 seconds Press the [LOCK] Button once to release it.

After unlocking the door with Thumb-Turn and open the door, it will be released.

The door can not be unlocked with an external password or card. It does not work when the magnet is not recognized according to the malfunction of the

magnet sensor or installation condition.

Guest Password Registration [Up to 10 Guest Passwords can be registered.]

[Press the [R]

Button briefly for 1 second.

Enter the guest password to register [4 ~ 10 digits]

After inputting the password, touch [*].

And then after touch [*]

The function can not be set with the Guest password, but only the Door Unlock function by password is executed.

Enter the number of the guest address to register [50 ~ 59] [50, 51, 52, ... 59]

Re-enter the Guest password

And then touch [#].

Press [R] Button to register.

Individual guest password deletion

BEEP Volume control

Press and hold the [R] Button for 3 seconds.

Select 1, 2, or 3 of the Number Plate and touch it. [1] Silent, [2] Bass, [3] Treble

Press [R] Button to set

Etiquette Mode

If the number plate is kept in the door lock state for 1sec by touching it, the Number Plate flashes once and then it is set

It operates normally with set volume after door unlock / lock operation with one-time function.

With the Number Plate on, enter the password or touch the registered card

It performs Door Unlock / Lock operation by silence.

Anti-peek function [imaginary function]

It is convenient to use when you are concerned about the password being exposed. [You can use up to 20 digits including password]

Press and hold the [R] Button for 3 seconds.

Enter the registered password and touch [*].

Enter the number of the Guest password to be deleted

Touch [#] for 1 second to delete

10 12

When the number is lit after touching the Number Plate

Enter any other number before entering the registered password, and enter the registered password finally.

Touch [*] to exit.

Page 4

High Temperature Alarm BLE Function [Option]

When an internal fire or high temperature occurs, an alarm sound is generated and the door unlock operation is executed automatically. The alarm sounds for 3 minutes continuously. [Internal temperature 70 ° C ± 5 ° C occurred] Temperature differences may occur depending on the installation environment.

It will be released when it is authenticated with registered password or Card

It is released when battery is removed.

Intrusion warning

When the door is unlocked or the door is unlocked abnormally, an alarm sounds continuously for 3 minutes. Applied after 7 seconds from door lock. It will be released when it is authenticated with registered password or Card. It is released when battery is removed.

3 min. Non-operating Alarm

An error sounds when authentication is attempted with an unregistered password or card, an authentication error occurs five times, and all operations stop for three minutes

STOP

Battery Low Voltage Alarm

If a low battery is detected, a warning sound will be generated when the door is unlocked / locked and the Low Voltage red light on the Number Plate will blink

Replace Batteries with new ones immediately.

If the replacement time has passed, use the [9V] Battery (6LR61) on the Emergency Terminal to open the door and replace the batteries

Deadbolt Jam Warning

In case of a door lock / unlock / lock operation, a beep sounds when there is a mechanical failure during installation failure or deadbolt operation. [Please check installation and deadbolt operation.]

Emergency Power [9V] Notification function

Contact 9VBattery (6LR61) [Sold separately] to the Emergency Terminal. Authenticate your password or card in contact.

9V 9V Battery(6LR61)

When you purchase the 9VBattery, please purchase the replacement batteries as well

[Change Batteries Spec : 1.5V LR6 AA Size ALKALINE(4ea)]

Execute Deadbolt Unlock / Lock with APP control through BLE

Execute Deadbolt Unlock when touching [Unlock] button in APP of smartphone Execute Deadbolt Lock when touching [Lock] button in APP of smartphone

How to register and use BLE

1. Download the Keywe for a smarter life app from the Google Play Store

2. Sign up after running Keywe app (Email registration)

3. Door lock registration

- Run the Keywe app.

- Press the menu button on the upper left of the screen and select the door lock registration item.

- On the door lock registration screen, select the + button and select OK on the registration menu with QR code.

- Scan the QR code inside the battery to register the BLE module.

- Register door lock name and location.

4. Open / Close door lock using BLE

- When you run the Keywe app, it tries to connect between the smartphone and the BLE module.

- Displays the status of door lock when connection is completed.

- Press the center of the screen to change the state of the door lock.

- You can set Smartphone NFC in the door lock menu -> App Settings.

- Disposable OTP is available in the door lock setting.

- You can delete the door lock from the door lock setting.

- Please refer to the following site for detailed explanation about APP. (FAQs -> APP) [http://keywe.thekeywe.com/index_en.php]

Available when Option is applied

Z-wave & BLE Code

The Z-wave & BLE code information to be registered is enclosed in the Communication Pack or Unit Box. Please attach it directly to the product before or after registration, or inside the battery cover. (The Z-wave Option product is attached to the bottom side of Interior product.)

Can not re-register when you lose the code information to register. [Z-wave & BLEcode] If the communication is not smooth when applying the Option, reinsert the Communication Pack or check that the Pin is not damaged.

KeyWe

Z-wave function [Option] / When the registration mode of the hub is set

Performs communication

Press and hold the [R] Button for 6 sec

If the communication connection is not established within 10 s ec, registration will be canceled and please try again

When the registration authentication mode is set, press and hold the [R] Button for 6 seconds, and the Number will flicker twice

Please check the status of Door Unlock / Lock as it may not be able to operate smoothly due to communication error when door unlock / lock using communication.

Enter [147] of the Number Plate in sequence.

Press the [R] Button to register

Execute deadbolt unlock / lock with APP control through Z-wave

Execute Deadbolt Unlock when touching [Unlock] button in APP of smartphone

Execute Deadbolt Lock when touching [Lock] button in APP of smartphone

Press and hold the [R] Button for 6 sec

The PDS-100 Z-Wave is a secure electronic door lock that supports the Z-Wave Plus standard, which is compatible with earlier versions of Z-Wave. A security enabled Z-Wave controller must be use. The PDS-100 supports the standard security S0 and the new security standard S2. The PDS-100 can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications.

All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

Enter [369] of the Number Plate in sequence.

Press the [R] Button to delete

connection between Zwave Module and Gate Way

Disconnect the

communication between

the Z-wave Module and

the Gate Way

User Mode Initialization

In case of suspicion of leakage of the used password, loss of registration card, etc., and security is judged to be weak, the password and card registered by the function used have been initialized to improve security.[When de leting BLE information, please delete it from registere d smartphone app.]

When user mode initialization is set, all setting values except BLE and Z-Wave information are initialized.

How to Initialize User

Press and hold the [R] Button for 9 sec

It is recommended to use it when registering incorrectly during registration and not to initialize it during use

Enter [1478963] of the Number Plate in sequence.

Press the [R] Button to initialize

Factory Mode Initialization

Press and hold the [R] Button for 9 sec

Factory Mode Initialization All settings except BLE information are initialized.

It is recommended to use it when registering incorrectly during registration and not to initialize it

Enter [1236547] of the Number Plate in sequence.

Press the [R] Button to initialize

User & Factory Mode Default setting after initialization

Password 1234

Volume Treble[3] Auto/Manual Auto

Dual authentication Disable

Registration authentication Disable

14 16

※ After initialization, register new password

and card

Page 5

Regulatory Compliance

This product complies with standards established by the following regulatory bodies:

• Federal Communications Commission (FCC)

• Industry Canada

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital dev ice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet ona circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

IMPORTANT! Changes or modifications not expressly approved by the manufacturer

could void the user’s authority to operate the equipment.

FCC Radiation Exposure Statement

The equipment complies with FCC Radiation exposure limits set forth for uncontrolled

environment. This equipment should be installed and operated with minimum distance 50 mm

Industry Canada

This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: ( 1 ) this device may not cause interference, and ( 2 ) this device must accept any interference, including interference that may cause undesired operation of the dev ice. This device complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets the ISED radio frequency (RF) Exposure Guidelines. It is desirable that it should be installed and operated keeping the radiator at least 50 mm or more away from person’s body.

Canada, avis d’Industrie Canada (IC)

Cet appareil est conforme aux normes RSS exemptes de licenced’Industrie Canada. Son utilisation est soumise aux deux conditions. suivantes : (1) cet appareil n’engendre pas d’interférences, et (2) cet appareil doit tolérer tout type d’interférences, notamment les interférences pouvant provoquer une utilisation non désirée del’appareil. Cet équipement est conforme aux limites établies par Industrie Canada en matière d’exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 50 mm entre le radiateur et votre corps.between the radiator and your body.

Specification

Components Specifications

Exterior

Interior

Battery

Card ISO14443A PART3 TYPE

Option Z-Wave Communication Pack

76.4mm(W) X 164.7mm(H) X 43mm(D) Polycabonate & Al Diecasting

71.3mm(W) X 151.8mm(H) X 39mm(D) Polycabonate & Zn Diecasting

4 X AA Alkaline 1.5V Batteries (LR6) (6V)

Rated Volt : DC 6V

Operation Temp. : -25~50 C

High Temp. Alarm : 70 C ±5 C

BLE Communication Pack

BLE + Z-Wave Communication Pack

Batteries are used for 15 months when used 10 times a day.

※ Battery life may vary depending on the environment and frequency of use.

Summary of how to use PDS-100

Usage function

Password registration

Card registration

Card Delete [All]

Auto lock setting Manual lock setting

Dual Authentication Setting

Dual Authentication Disable

Setting Registration Authentication

Disable Registration Authentication

Set guest password

Delete Guest Password (Individual)

Delete Guest Password (all)

Setting outgoing security mode

Setting Internal Security Mode

Disable internal security mode

Volume adjustment [Silent]

Volume adjustment [Bass]

Volume adjustment [Treble]

Z-wave Delete

User Initialize

Factory Mode Initialize

Default

1234 [R] Button> Password to register> [*]> Re-enter password> [R] Button

[R] Button> Card to register(Continuous registration)> [R] Button

None

Press [R] Button Hold for 3 seconds> [8]> [*] Hold Touch for 5 seconds

Press [R] Button Hold for 3 seconds> [4]> [R] Button

Auto

Press [R] Button Hold for 3 seconds> [7]> [R] Button

Press [R] Button Hold for 3 seconds> [5]> [R] Button

None

Press [R] Button Hold for 3 seconds> [5]> [R] Button

Press [R] Button Hold for 3 seconds> [6]> [R] Button

None

Press [R] Button Hold for 3 seconds> Enter Password> [*]> [6]> [R] Button

R] Button> Enter the password> [*]> Enter the address [51 ~ 59]>[#]> Guest

None

Password > [*]> Re-enter Guest Password> [R] Button

Press [R] Button Hold for 3 seconds> Enter Password> [*]> Address to delete

None

input [50 ~ 59]> [#] Hold Touch for 1 second

Press [R] Button Hold for 3 seconds> Enter Password> [*]> [00]> [R]

None

Button

Within 3 seconds after Door Lock Maintain Number Plate Touch> Blinking 3 times

None

Press and hold the [LOCK] Button for 3 seconds in the Door Lock state.

Turn Thumb-Turn or press the [Lock] Button

Disable

Press [R] Button Hold for 3 seconds> [1]> [R] Button

Press [R] Button Hold for 3 seconds> [2]> [R] Button

Treble

Press [R] Button Hold for 3 seconds> [3]> [R] Button

Press [R] Button Hold for 6 seconds> [147]> [R] Button

None

Press [R] Button Hold for 6 seconds> [369]> [R] Button

Press [R] Button Hold for 9 seconds> [1478963]>[R] Bu tton

Factory

Mode

Press [R] Button Hold for 9 seconds> [1236547]>[R] Bu tton

Set up

Remarks
