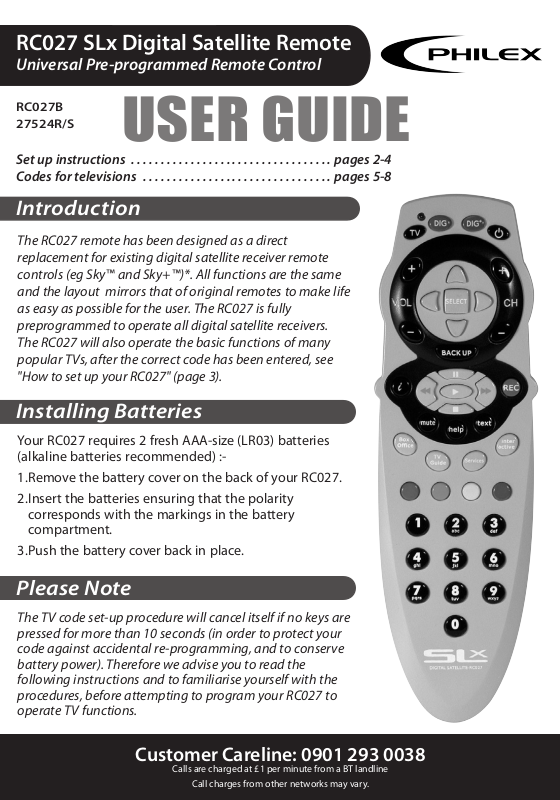

Philex RC027 SL, 27524R, RC027B, 27524S User Manual

RC027 SLx Digital Satellite Remote

Universal Pre-programmed Remote Control

RC027B 27524R/S

USER GUIDE

Set up instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pages 2-4

Codes for televisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pages 5-8

Introduction

The RC027 remote has been designed as a direct replacement for existing digital satellite receiver remote controls (eg Sky™ and Sky+™)*. All functions are the same and the layout mirrors that of original remotes to make life as easy as possible for the user. The RC027 is fully preprogrammed to operate all digital satellite receivers. The RC027 will also operate the basic functions of many popular TVs, after the correct code has been entered, see "How to set up your RC027" (page 3).

Installing Batteries

Your RC027 requires 2 fresh AAA-size (LR03) batteries (alkaline batteries recommended) :-

1. Remove the battery cover on the back of your RC027.

2. Insert the batteries ensuring that the polarity corresponds with the markings in the battery compartment.

3. Push the battery cover back in place.

Please Note

The TV code set-up procedure will cancel itself if no keys are pressed for more than 10 seconds (in order to protect your code against accidental re-programming, and to conserve battery power). Therefore we advise you to read the following instructions and to familiarise yourself with the procedures, before attempting to program your RC027 to operate TV functions.

Customer Careline: 0901 293 0038

Calls are charged at £1 per minute from a BT landline

Call charges from other networks may vary.

Function keys

1

2

TV

DIG

+

VOL

-

CH

-

SELECT

BACK UP

i

REC

Sets your RC027 to control your TV

+

Sets the RC027 to control your SKY™ Plus receiver

Sets the RC027 to control your SKY™ receiver

Turns your SKY™ receiver (or TV) on and o

Changes the TV volume

+

Changes the channel

Arrow buttons move the highlight around menu screens to highlight the option you want SELEC T Chooses the option you have highlighted or conrms your choice

Shows the previous screen

Shows information about the program highlighted

Controls recording/playback on SKY™+ box includes: Pause, Fast Forward, Play, Rewind and Stop

Records to hard drive on SKY™+ box

6

5

4

mute

help

text

Box Oce

TV Guide

Services

Inter

active

2

abc

Turns the TV sound o/on

For help on using the Sky Guide

Switches to text mode

Shows the Box Oce screen

Shows the TV Guide screen

Shows the customer Services screen

Shows the interactive Services screen

4x colour buttons used to select the corresponding colour option on-screen

For selecting channel numbers or on-screen options

2

3

1. Red status indicator LED

2. Power on/off

3. Battery compartment

4. Number keypad

5. SKY™+ recording/playback keys

6. Screen navigation keys

7. Device Indicator keys

How to set up your RC027

The RC027 has 3 Device Modes (T V, DIG & DIG+) The TV section of your RC027 can be set-up either by entering the appropriate codes from the list of codes supplied or by using the TV Setup by Library Search facility. Instructions for these two methods follow.

PLEASE NOTE: When you input codes in the list use the CH-, CH+, V-, V+, and 'mute' keys. See the conversion table below.

RC027 Conversion Table

CH- CH+ V- V+ mute

0 1 2 3 4

TV Set up by manually entering code

1. Turn on your TV

2. Look up the brand name of your TV in the DE VICE CODE List (See pages 6-8). There should be one or more codes listed for your brand. If there is more than one code listed for your brand, start with the first code listed and follow the instructions below:

3. Press the TV key.

4. Hold down both POWER and MUTE keys on your RC027 simultaneously until the STATUS INDICATOR LED lights up and stays red (about 4 seconds).

TV Device Indicator Key

Step 3

Code Digit 3

Code Digit 2

Code Digit 4

Red Status Indicator

Code Digit 1

Code Digit 0

Step 4

6 Try the keys on your RC027 that correspond to similar keys on your original remote control, especially those you use most. (Note that the RC027 will exit the set-up sequence if you do not press any keys on the RC027 for more than 10 seconds). If your TV works on all or most of the keys on your RC027, you have entered a suitable Device Code and it will have been stored automatically. (Note: Your RC027 will only operate functions controlled by your original remote nor are the supplied codes guaranteed to operate all these functions)

TV set up by library search

1. Turn on your TV

2. Press the TV key, the STATUS INDICATOR LED flashes once.

3. Hold down both POWER and MUTE keys on your RC027 simultaneously until the STATUS INDICATOR LED lights up and stays red (about 4 seconds)

4. Release the POWER and MUTE keys the STATUS INDICATOR LED should still be lit. If not repeat step 3.

5. Press CH+ key down for 2 seconds, the STATUS INDICATOR LED will start to flash as the RC027 sends library codes one by one automatically until the TV changes to the next TV channel. When you see the channel change, press the TV key once to stop the Library Search. Now try the keys on your RC027 that correspond to similar keys on your original remote, especially those you use most. NOTE: If you accidentally skipped a code that changed the channel on your TV, you can go one code back by pressing the Mute key.

6. Once you are happy with the code found, press and hold down the TV key for 4 seconds until the STATUS INDICATOR LED switches off and the code is stored.

7. If no keys are pressed within 10 seconds, the STATUS INDICATOR LED will switch off and and the RC027 will exit the search sequence automatically.

TV Device Indicator Key

Step 2 & 6

Red Status Indicator

Step 5

5. Use the keys shown in the RC027 Conversion Table to enter the 4 digit Device Code. The STATUS INDICATOR LED should flash once if the Device Code is entered correctly.. If you have entered an incorrect code the STATUS INDICATOR LED will switch off without flashing and the RC027 will exit the setup sequence.

Step 3

3

Operating the RC027

Once you have set up your RC027, it should operate similarly to your original remote control and perform most or all of the main functions. To operate, just aim it at your equipment, press the appropriate DEVICE INDICATOR key and press the required function key. The DEVICE INDICATOR flashes during signal transmission to confirm that a function key is in operation. Please Note: The RC027 can only duplicate functions that are on your original remote control. Any extra keys on the RC027 which are not on the original will not function.

Recording device codes

It is recommended that you record your device code in case it is lost from storage when the batteries run out or are changed.

TV DEVICE CODE

Maintenance

LOW BATTERY LEVEL If the indicator flashes twice slowly after pressing a key function, the battery level is low and you will need to fit new batteries. If the batteries are removed, your RC027 will retain its memory for approximately 10 minutes only.

• Do not use old and new batteries together as old batteries tend to leak.

• We do not recommend the use of rechargeable batteries.

• Please follow manufacturers instructions when disposing of used batteries

• Do not expose the RC027 to dust, strong sunlight, humidity, high temperature or mechanical shock.

• Do not use corrosive or abrasive cleansers on your RC027.

• Keep the unit dust free by wiping it with a soft, dry cloth.

• Do not disassemble your RC027, it contains no user serviceable parts.

Frequently asked questions

Q. I am unable to program or operate my RC027, but the indicator lights on my RC027 operate correctly. A. Check your A/V device. If the device’s mains switch is turned off, your RC027 can not operate your device. A. Check if the batteries are low and replace the batteries. A. If several TV Codes are listed under the brand name of your A/V device, try each code one by one until most or all of the keys work correctly. Q. The STATUS INDICATOR light does not stay ON when entering set up mode. A. Make sure both the POWER and MUTE buttons are pressed simultaneously

Q. My A/V equipment responds only to some commands. A. You may have selected a code for which only some commands work correctly. Try the other codes listed for your brand. A. Try the Library Search if you are still unsuccessful. Q. Some of my equipment will not work with any of the codes listed. A. Try the Library Search function as some more recent codes may be available on the RC027 but have not been listed yet or have not been listed under all applicable brands.

Disclaimer: Whilst we have tried to supply a comprehensive library of codes we cannot guarantee that your RC027 will be fully compatible with all equipment. Some brands, models or functions may not be available in the code library due to differences in operation to your original remote or where the code has not yet been added to the library. The manufacturer cannot accept any liabilities resulting from incorrect use of this product.

Specifications

Operating system:- Pre-programmed infra-red remote control system. Compatibility:- Operates most brands of infra-red remote controlled TVs and digital satellite receivers Power requirement:- 2 x AAA-size alkaline batteries. Effective range:- 7.65M (25 feet), +/- 25 degrees. Alkaline battery life:- Normal operation 6 months. Dimensions:- 199 (L) x 56 (W) x 24 (H) mm. Weight without batteries:- 105g

Technical support

For further information, please contact:

Customer Careline: 0901 293 0038

Calls are charged at £1 per minute from a BT landline. Call charges from other networks may vary.

Technical Support: http://technical.philex.com

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or Retailer for recycling advice.

4

BRAND CODE BRAND CODE BRAND CODE BRAND CODE

TV CODES

ACTIO N 0144 0223 0321 0330 1022 1024 1241 ACURA 0032 ADMIR AL 0044 0113 1241 0313 0401 0402 1014 1041 ADVEN TURA 1034 ADYSON 0223 1241 AGAZI 1014 AKAI 0020 0022 0023 0100 0103 0104 0113 0124 0142 0223 0321 0424 AKAI 0432 0441 0032 1012 1024 1313 0424 1040 1241 AKIBA 0432 AKUR A 1241 0432 0441 1014 ALBA 0214 0032 0313 0432 0441 0232 1024 1241 2031 1124 ALLORGA N 0222 ALLSTAR 1241 AMBAS SADOR 1040 AMERI CAN HIGH 1022 AMSTR AD 0213 2010 0111 ANGA 1040 ANGLO 1024 ANITE CH 0223 1241 1014 1024 ANSON IC 1024 0322 AOC 0223 1241 ARC E N CIEL 0330 0334 ARISTO NA 0420 1114 1222 1241 ARTHU R MARTIN 1102 1001 1012 1020 ASA 0404 0401 0303 0402 ASBER G 1201 ASOR A 1024 ASUK A 0432 1014 0441 ATLANTIC 1241 ATORI 1024 AUDIO T ECHNICA 1201 AUDIOS ONIC 0330 0432 1241 1014 AUDIOV OX 1241 AUTOVOX 0024 0401 0303 BAIRD 1313 BANG & OLUFSEN 0401 BASIC LINE 0432 0441

1024 1241 BAUR 0023 0024 0100 0104 0113 0114 0140 1434 1241 1024 1034 1042 1101 1103 BEC 0100 0144 0321 1241 BECRE SE 0100 0113 0140 1241 0142 0144 0212 0223 1034 0330 0404 0424 BEKO 0012 2124 1144 1241 1340 2103 2102 1441 BELL&H OWELL 0132 1041 1241 BENCH MARK-BEAU MARK 0223 1022 1024 1241 BESTAR 1241 BLACKS TRIPE 0132 0140 1202 0424 1022 BLAUP UNKT 1434 BLUE S KY 0432 1241 BPL 0433 BRAN DT ELECTR ON 0330 0334 0341 1444 BRINK MANN 0313 BRION VEGA 0402 BRIOR RYEGA 0401 1241 BROKS ONIC 0113 0223 0424 1034 1040 BROK WOOD 0113 0223 0424 1034 1040 BROTHE R 1014 BRUNS 0104 0402 0401 BSR 0003 0222 BTC 0432 BUSH 0003 0100 0120 0214 1241 0230 0424 0432 0441 0221 1032 0232 BUSH 0433 2031 0032 0430 1124 CAMPL E 0113 0223 0424 1034 1040 CAND LE 0223 CAPE HART 0321 0424 1241 CAPS ONIC 1014

CARR EFOUR 1241 CDMAR CY’S 0424 CENTU RION 1241 CENTU RY 0401 0402 1223 CGE 1223 0313 CIE 0213 1033 CIHAN 0414 CIMLI NE 0214 1024 CIRCU IT CITY 0113 0223 0424 1034 1040 CITIZ EN 1241 0223 1022 CITY 1024 CLATRONI C 1024 0322 0432 COLORTYM E 1022 1241 COMTEL 0414 CONCOR DE 1024 CONDOR 1104 1241 1024 CONIC 0144 0223 0424 1241 CONTEC 0412 0421 0424 1024 CONTIN ENTAL E DISON 0330 0334 0341 CORONA DO 0223 COSMEL 1024 CRAI G 1241 CROSL EY 0144 1241 1034 0424 0401 0402 CROWN 0113 0223 0032 1241 1041 1024 0322 CS EL ECTR. 0432 CURTI S MATHES 0132 1241 0223 0424 1022 DAEWOO 0223 1120 1024 1033 1042 1241 1302 2044 0032 0430 0243 0312 DAINIC HI 0432 DANSAI 0223 DAYTRON 0140 0223 1024 DE GR AAF 0041 0113 DECCA 0323 0413 0414 0230 1241 DESME T 1241 DIXI 1024 1241 DORIC 0403 DTS 1024 DUAL 0024 0333 0432 DUMON T 0113 0223 1040 0303 1034 0322

5

0401 0402 0424 DUMON T-FINLUX 0033 DYNATECH 0113 0223 0424 1040 1034 EATON 1022 ECR 0424 ELBIT 0414 1241 ELCIT 0401 0322 ELEC TRATUNE 0223 ELEC TROBAND 1034 ELEC TROHOME 0113 0132 0144 0223 0424 1034 1040 ELEC TRONICA 1422 ELEKTA 1014 ELEKT RONIKA 1241 ELIN 1241 0404 1104 ELITE 1022 0132 1241 0223 0424 0432 ELMAN 0322 ELTA 1024 EMERS ON 0113 0223 0402 0424 1034 1040 EON 0424 1022 ERRES 0420 1241 ETRON 0131 1024 EURO- FEEL 1014 EUROM ANN 1241 1014 EUROP HON 0322 1241 FENNE R 1024 FERGU SON 0241 0303 0320 0342 2120 1144 2034 2001 1330 1434 1444 FIDEL ITY 0024 FINLA NDIA 0043 FINLUX 0003 0033 0141 0133 0404 1241 0303 0130 0323 0401 FIRST LINE 0222 1241 1024 FISHE R 0024 0132 0140 1223 0423 0424 0401 0421 FLINT 1241 FORME NTI-PHOE NIX 0401 1241 FORTR ESS 0223 0401 0421 0424 1041 FRONT ECH 0100 0120 0224 1024 1014 FUJIT SU 0113 0223 0321 0424

BRAND CODE BRAND CODE BRAND CODE BRAND CODE

DEVICE CODES

1040 1034 FUNAI 0113 0222 0223 0424 1014 1034 1040 0231 GALAX IS 1024 0313 GBC 0044 1024 GEC 0014 0040 0144 0323 GELOSO 0100 1024 0432 GENEX XA 0432 0441 1241 GOLDH AND 1024 GOLDS TAR 0003 0120 0144 0223 0101 0032 0321 0330 0434 1014 1022 1024 GOLDS TAR 1104 1241 GOODM ANS 0232 1024 1033 1104 1241 2031 0430 1004 0032 1124 GOREN JE 1223 0442 GPM 0432 GRAD IN 1241 0432 1024 GRAE TZ 0043 0100 0102 0104 1020 1102 1113 1121 1242 GRAN ADA 0113 0142 0321 0403 0420 0232 0240 1241 GRUND IG 0113 0332 0303 0311 1240 1434 2021 0440 2143 HALIFAX 1014 HALLM ARK 0113 0223 0404 0424 1034 1040 HANSE ATIC 0024 1024 0100 0222 1241 HANTARE X 1024 HARLE Y DAVIDSON 0113 0223 0424 1022 1034 1040 HARR AD 0113 0223 0424 1034 1040 HARVARD 0113 0223 0424 1034 1040 HCM 1024 0432 1014 HEATHKIT 1034 1241 HEMME RMANN 0024

HIFIV OX 0330 0334 HINAR I 0131 0424 0432 0441 1012 1024 1032 1104 1241 1313 0232 0032 HISAWA 0432 HIT 0402 HITACHI 0004 0010 0014 0022 0033 0040 0041 0043 0100 0113 0114 0140 HITACHI 2101 0142 0144 0200 0201 0202 0203 0204 0210 0211 0212 0223 HITACHI 2024 0133 0321 0330 0334 0340 0404 0424 0220 1000 1001 1032 HITACHI 1034 1200 1210 1241 1310 1332 1342 1343 1400 0232 2002 2020 HORIZ ONT 1241 HORNY PHON 1241 HOSHA I 0432 HUSPI ELEKTRO NIK 0313 HYPER 1024 HYPSO N 1241 1014 ICE 0432 1241 1024 1014 IMA 0113 0223 0424 1034 1040 IMPER IAL 1241 0100 1223 0313 0001 INGEL EN 1020 1102 1113 1121 1242 INGER SOL 1024 INNO HIT 1331 0321 0432 1241 1024 INTER BUY 1014 1024 INTER FUNK 0014 0030 0031 0100 0103 0104 0110 0113 0131 0233 0401 0402 0420 1101 1102 1103 1113 0330 INTER VISION 1014 0322

0432 IRRA DIO 1241 1024 0432 IST 0432 1241 ISUK AI 0432 1024 ITS 0432 1024 ITT 0044 0100 0113 0140 1333 0032 ITT- NOKIA 1020 1102 1113 1121 1141 1242 1313 ITV 0032 0302 JACSON 0323 JBL 1241 JCB 1034 JET P OINT 1022 JUMBOT RONIC 1241 JVC 0424 0441 0232 1032 1134 1201 1233 1241 KAID O 0120 KAIS UI 0432 1241 0441 1024 KAPS CH 0014 0030 0031 0100 0113 KARC HER 1331 1241 KATHREI N 0442 KENDO 0100 0214 0322 1104 1241 KENWO OD 0223 KLH 0113 0223 0321 0424 1034 1040 KLOSS 1022 KOLSTE R 1241 KONKA 0432 KORPEL 1241 KORTIN G 0401 KRIES LER 0420 1114 1222 KTV 0113 0223 0424 1040 1034 KUASH O 0223 1241 KUBA ELECTR. 0024 0113 LENCO 1014 1024 1033 1241 LENOI R 1024 LEYCO 0222 0321 1014 1241 LG 0003 0120 0144 0223 0444 0434 0321 0330 0101 1014 1022 1024 LG 1104 1241 0302 0032 2201 LIFET EC 1014 1024

6

LINIT RON 0223 0421 0424 1041 LLOYD’S 0113 0223 0424 1034 1040 LOEWE 0401 0402 1103 1241 0324 0331 LOGIK 0412 0413 LUMA 0044 1012 1241 LUXOR 0004 0023 0043 0100 0103 0104 0113 0114 0142 1313 0233 0321 LUXOR 1001 1012 1141 1113 LXI 0132 1041 1202 1241 M. ELE CTRONIC 1024 1241 0330 0404 1144 MACYS 0223 0424 MAGNADY NE 0024 0402 0322 0401 MAGNAF ON 0322 MAGNAS ONIC 0132 0223 1024 1041 1104 1202 1241 MAGNAVOX 0144 0424 1241 MANDO R 1014 MANES TH 1014 0214 1241 MARK 1241 MATSLI 2144 MATSUI 0230 0024 0120 0213 0214 0320 0413 0232 0032 0231 1024 0111 MATSUI 1032 1104 1241 0443 0311 1403 1411 2014 2021 2022 0001 MAVA 0223 MCMIC HAEL 0144 MEDIATOR 1241 MEGATRON 0142 MEMOR EX 0132 1014 1024 1040 MEMPH IS 0321 1024 METZ 1434 0402 0401 MGA 1040 MIDLA ND 0223 MINER VA 1434 0303 MINOK A 1241

BRAND CODE BRAND CODE BRAND CODE BRAND CODE

DEVICE CODES

MITSU BISHI 0021 0331 0401 0402 0403 0244 0423 0424 0442 0242 0240 1032 MITSU BISHI 1040 1101 1103 1123 1224 1241 1341 1412 1434 2012 2104 2110 MITSU BISHI 2111 2112 0332 0232 1011 MONITO R 1022 MOTOROL A 1041 1241 MRELL I 0401 MTC 0113 0223 1022 MULTISTANDA RD 0322 MULTITEC H 0100 0113 0120 0223 0322 0424 1223 1040 1024 1034 MURPH Y 2031 0403 NAD 0424 1202 NAONIS 0044 NATIONAL 1110 1241 NEC 0424 1022 NECKE RMANN 0100 0113 0114 1241 1223 0401 0402 1104 1012 1034 1042 1101 NECKE RMANN 1103 NEI 0432 1241 NEW WORLD 0432 NEWT ECH 1024 1241 NIKK AI 1241 0223 0321 0432 1014 0441 NIKKO 1104 NISSA N 1022 NOBLI KO 0303 NOGAM ATIC 0330 0334 NOKIA 0004 0014 0022 0023 0030 0031 0042 0043 0044 0100 0102 0103 NOKIA 0104 0110 0113 0121 0123 0124 0131 0132 0140 0233 0420 1014 NOKIA 1020 1022 2114 1102 2041 1322 1113 1242 1121 1334

NORDM ENDE 0030 0330 0334 0340 0401 1144 1220 1330 1332 1444 0221 NOVA 800 NOVABEAM 1241 OCEAN IC 0031 0043 0100 0104 0113 0121 0132 0222 ONWA 0432 OPER A 1241 OPTANKA 1041 ORBIT 1241 ORION 0024 0443 0113 0213 0214 0222 0223 0412 0413 0424 1010 1024 ORION 1034 1040 1241 1301 0032 0111 0231 OSAKI 0321 0432 OSUME 0321 0421 OTHERS 2202 OTTO VERS AND 0003 0024 1144 0100 0104 0113 0114 0120 0140 0214 0222 1434 OTTO VERS AND 1104 1241 0330 0424 1221 1024 1034 1041 1042 1101 1103 OVP 1241 P.T.ACTRON 0414 PACIFIC 1421 1422 1423 2031 PALLADI UM 0100 1241 0401 1101 PANAMA 1024 1014 PANASONI C 0030 0100 0122 0300 0431 1021 1043 1100 1110 1221 1241 1243 PANASONI C 2130 2131 2132 2133 2134 0332 2141 1003 1044 PATHE MARCON I 0330 0334 PAUSA 1024 PCE/PE C 0132 0140 1202 0223 0424 1022

0140 PENNE Y 1022 0223 PERFE KT 1241 PERFO RMANCE 0412 0424 1034 PHILCO 0144 1241 0313 1223 0401 0402 0424 PHILI PS 0144 0430 0321 0340 0343 0401 0414 0420 0424 1034 1042 1101 PHILI PS 1104 1114 1222 1241 1331 0304 2023 0302 PHOEN IX 0401 1241 PHONO LA 0401 0420 1114 1222 1241 PILOT 1022 PIONE ER 0112 0330 0340 1332 1241 PLANT RON 1014 1241 POPPY 1024 PORTL AND 0223 1034 PRAN DONI-PRI NCE 0044 0100 PRIMA 0132 1241 0223 0424 1022 1024 PRINZ 0321 PROELCO 1241 PROFE X 0120 1024 PROFI LO 1124 PROFI TRONIC 1104 1241 PROLI NE 1124 PROSC AN 1022 PROTEC 0100 0322 1241 1014 1024 PROTON 0223 1024 PROVI SION 1104 PULSE R 0144 0223 0321 0330 1022 1024 1241 PYE 0420 1114 1222 2030 PYMI 1024 QUELL E 0003 0024 0100 0104 0110 0120 0140 0213 0214 0222 0223 0424 QUELL E 1434 1042 1241 1221 0303 1034 1024 1104 1103 0330 1102 1101

7

QUELL E 0412 0421 0423 QUESTA 0424 R.LINE 1241 RADI ALVA 0330 RADI OLA 0420 1114 1222 1241 RADI OMARELLI 0403 0401 RADI OSHACK 0132 0223 1041 RADI OTONE 1014 1024 1104 1241 RADI X 0140 RANK 0003 0100 0120 0214 2031 1032 0424 0432 0441 1241 RCA 1022 REALI STIC 0132 REDIF FUSION 0403 REDIF USION 0403 REVOX 1241 REX 0100 1444 0333 RFT 0402 0401 RICE CLUB 1022 RMB 0223 ROADSTAR 0432 1014 1024 0032 RUNCO 1022 SABA 0014 0100 0113 0131 0330 0334 0340 0341 0401 1444 1012 1144 SABA 1220 1332 SAISH O 0213 0214 0413 0111 0032 1241 SAKIO 1014 SALORA 0004 1313 0023 0042 0043 0100 0103 0104 0113 0114 0132 1102 SALORA 1141 0321 1001 1012 1020 SAMBE RS 0322 SAMPO 0223 SAMSU NG 0224 0411 1122 0321 1030 1014 1022 1104 1223 1240 1241 1311 SAMSU NG 1331 0032 0310 SAMSU NG 2200 SAMSU X 0223 SANSU I 0412 1022 1241

BRAND CODE BRAND CODE BRAND CODE BRAND CODE

DEVICE CODES

SANYO 0132 0423 0134 0140 0234 0141 0133 0321 0323 0412 0421 0232

SANYO 0424 1242 1313 1032 1223

SASO 0330

SBR 0420 1241

SCHAUB LORENZ 0043 0100 1020 1102 1113 1121 §1242

SCHNE IDER 0024 0131 1114 1104 1031 0333 0420 0432 1241 1014 1104 1322

SCHNE IDER 1222

SCOTT 0113 0223 0424 1034 1040

SEARS 0132 1202

SEG 0223 0322 0424 0432 1024 1014

SEI-S INUDYNE 0024 0044 0100 0213 0214 0222 0322 0401 0402 1034 1101 1241

SELECO 0044 0232 0333 0423 1444

SEMUA 0223

SENCOR A 1024

SENTU RA 0131 0432

SHARP 0223 0421 0423 0424 1032 1041 0232 1324 0002 2011 1111 0234

SHINTO M 1034 1104

SHOR AI 0222

SIARE M 0322 0401 0402

SIEME NS 0041 0223 1434 0421 1241

SIER A 0420 1114 1222

SIERR A 1241

SIGMA X 1022

SIGNATUR E 1034

SILVER 0424 0432

SINGE R 0322 0401 0402

SINOTE C 1104

SKAN TIC 0100

SKY 2142

SNYDE R 1241 SOLAVOX 0131 SONIT RON 0140 SONOKO 1241 1014 1024 SONOLOR 0031 SONTE C 1241 SONY 0422 0412 0423 0424 0032 0301 1034 0234 0232 2040 SOUND &VISION 0322 0432 SOUND ESIGN 0113 0223 0424 1022 1034 1040 SPEC TRA 1033 SPEC TRICIAN 0223 1241 SR2000 0132 1202 STANDARD 1024 0432 STERN 0100 SUNK AI 0214 0222 0432 SUNSTAR 1024 SUNWO OD 1241 SUPER ME 1034 SUPER TECH 0024 1024 SUTRO N 1024 SYLVANIA 0421 1241 SYMPH ONIC 0113 0223 0424 1034 1040 TADISTAR 1104 TANDY 0321 0432 1041 0441 TASHIKO 0120 0144 0424 1032 TATUNG 0143 0212 0321 0412 0414 0230 2113 2100 1241 2003 2043 TEC 1033 1024 TECHL INE 0322 TECHN ICS 1110 1241 TECHN IMAGEN 1421 TECHW OOD 1022 1034 TECNS ON 1104 TEKNI KA 0223 1022 1040 TEKNO N 1022 1024 TELEAVI A 0330 0334 0344 TELECO 1104 TELEF UNKEN 0330 1040 1144 1332 1444 TELET ECH 1024 TELETO N 0100 0113 TELIVA 0330 TENSA I 0110 1241 0222 0231 0404 0432 0032 0141

1024 1104

TENSO N 1024 TESLA 1241

THOMA S 0144 0223 0321 0330 1022 1024 1034 1241

THOMS ON 0011 0400 0113 0330 0334 0340 0341 0344 1144 1220 1332 1404

THOMS ON 1413 1444 0243 0332

THORN 0040 0103 0104 0110 0131 0134 0140 1241 0144 0204 0240 0141

THORN 1144 0323 0330 0342 0412 0423 0424 1103 1023 1034

THORN -FERGUSO N 0241 0303

TMK 1022

TOKAI 0321 1241

TOKYO 1022

TOSHIB A 0132 0140 2122 1112 0320 0424 1002 1022 1023 0232 1202 2123

TOSHIB A 2121 2203 2204

TOSONI C 1022

TOTEVIS ION 0223

TOWADA 0100 0322

TRILUX 1241

TRISTAR 0432

TRIUM PH 0213

UHER 0303 1241 0322

ULTRAVOX 0321 0322 0401 0402 1012

UNIMO R 1241

UNIVE RSUM 0033 1014 1434 1241 0404

UNIVOX 0402

VECTOR /VICTOR 1201

VESTE L 1241 1423 2031 0410 0434

VEXA 1024 1241

VIDEO LOGIQUE 0432

VIDEOTO N 0004 0340 0344 1241

VISIO N 1241

VOXSON 0044 1241 0401 0402

8

WALTHAM 0004 0100 0344 WARDS 1201 1241 WATSON 1434 0432 1024 1241 WATT RADI O 0024 0322 WEGA 0401 0424 WELTBLIC K 1241 WHITE WESTINGH OUSE 0132 WORLDT ECH 1033 YOKO 0120 1241 0432 1033 1014 1024 YORK 0140 1241 YORX 0432 ZANU SSI 0044 ZENIT H 1034 1241
