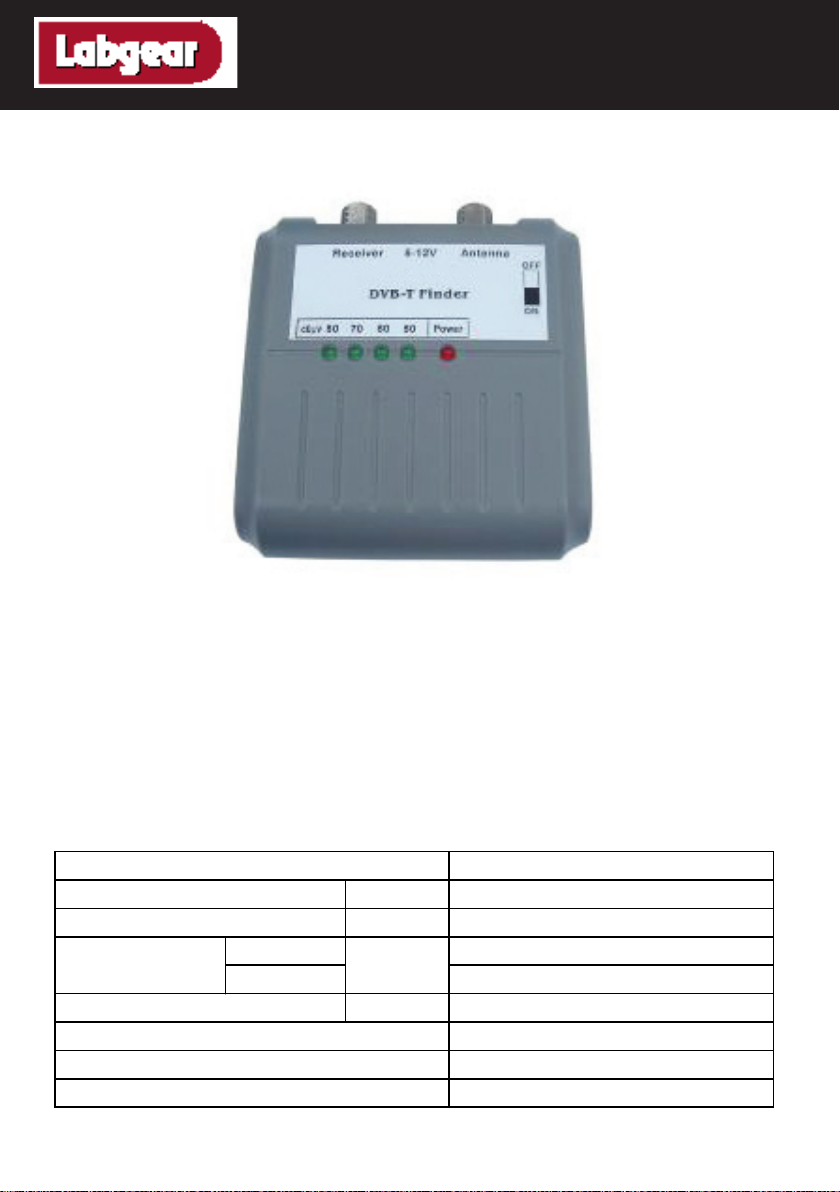

Page 1

DVB-T Signal Finder

Features:

□ With LED level indicator

□ Built-in amplifier compensates insertion loss

□ Pocket size and lightweight

Specifications:

Frequency (MHz)

Insertion Loss (dB)

Input

Output

Input Level (dBμV)

Return Loss

Battery used 6F22 9V

≥8

50-90

(dB)

5-12VDC

Power Requirement

External Power Supply

Model 4649

4649

Item

5VDC, 40m A

JESMAY ELECTRONICS CO., LTD.

Room 1004, STANHOPE HOUSE

738 KING'S ROAD, QUARRY BAY, HONG KONG

TEL: (+852) 2562 6212 / 2563 4292

URL: http://www.jesmay.com.hk

FAX: (+852) 2565 7026 / 2516 9417

40~862

≤10

AUDIO~VIDEO~TELEPHONE~MATV~CATV~SMATV ACCESSORIES

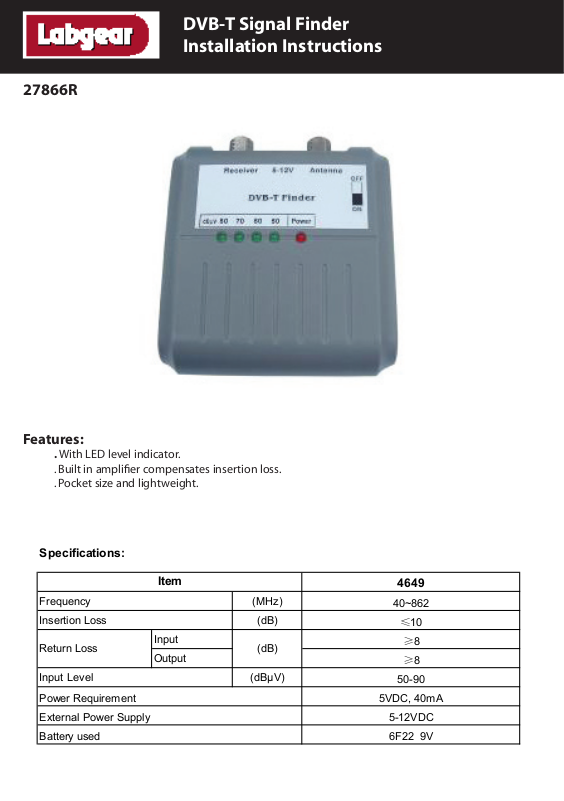

Installation Instructions

27866R

Features:

. With LED level indicator.

. Built in ampliﬁer compensates insertion loss. . Pocket size and lightweight.

Page 2

Variable Gain Power Supply Installation Instructions

AERIAL

AERIAL LEAD

DVB-T SIGNAL FINDER

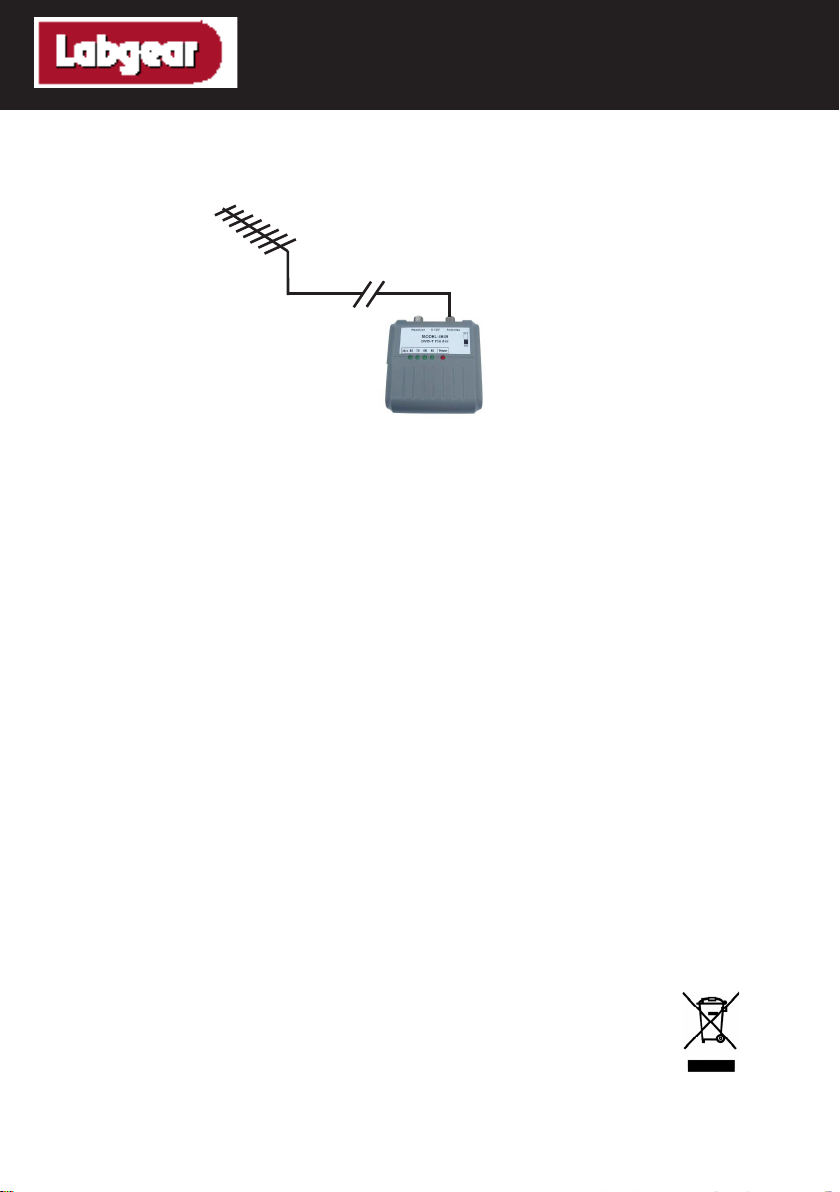

Fig. 1

Connection

Fit a 9V (PP3, 6LR61, 6AM6, MN1604) into the holder at the rear of the DVB-T Finder. Plug in lead from aerial into the socket marked Antenna (A Coax to F-connector adaptor is also provided) (See Fig. 1). Turn on the power switch on the right hand side of the DVB-T Finder the Red power indicator will light (You can also power the unit with a 5 to 12 Volt DC Adaptor ﬁtted with a 3.5mm Jack Plug not supplied). As a starting position look at any neighbouring aerials and then turn slowly. Continue turning the Aerial to get the greatest number of LED’s lit, if there is more than one point of similar pick up level then select the one with greatest signal.

Labgear Reserve the right to modify their designs or speciﬁcations, In the light of future developments, without prior notice. Performance ﬁgures quoted are typical and subject to normal manufacturing and service tolerances

For further information or any queries please contact

Customer Careline: 08457 573 479 (Local rate – UK only)

Technical Support: http://technical.philex.com

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice.
