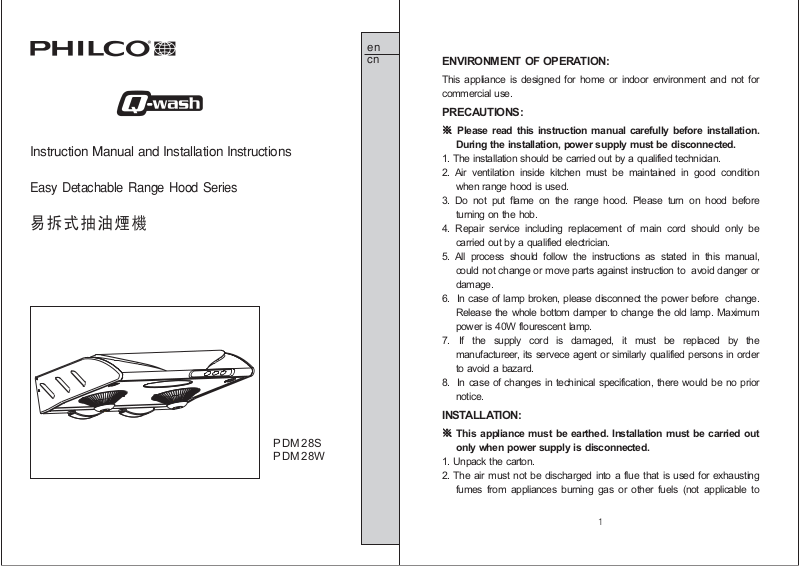

PHILCO SPDM28W installation Guide
Instruction Manual and Installation Instructions
Easy Detachable Range Hood Series
en
cn
ENVIRONMENT OF OPERATION:
This appliance is designed for home or indoor environment and not for
commercial use.
PRECAUTIONS:
Please read this instruction manual carefully before installation.
During the installation, power supply must be disconnected.
1. The installation should be carried out by a qualified technician.
2. Air ventilation inside kitchen must be maintained in good condition
when range hood is used.
3. Do not put flame on the range hood. Please turn on hood before
turning on the hob.
4. Repair service including replacement of main cord should only be
carried out by a qualified electrician.
5. All process should follow the instructions as stated in this manual,
could not change or move parts against instruction to avoid danger or
damage.
6. In case of lamp broken, please disconnect the power before change.
Release the whole bottom damper to change the old lamp. Maximum
power is 40W flourescent lamp.
7. If the supply cord is damaged, it must be replaced by the
manufactureer, its servece agent or similarly qualified persons in order
to avoid a bazard.
8. In case of changes in techinical specification, there would be no prior
notice.
PDM28S
PDM28W
INSTALLATION:
This appliance must be earthed. Installation must be carried out
only when power supply is disconnected.
1. Unpack the carton.
2. The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels (not applicable to
1
appliances that only discharge the air back into the room ), regulations
concerning the discharge of air have to be fulfilled.
3. The installation height is measured vertically from the bottom of hood to
the top of stove, the minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of the range hood.
When the range hood is located above a gas appiliance, this distance
shall be at least 650mm and the best recommended height is 650800mm, avoid left-right or up-down inclination.
4. This hood could be wall-mounted or built-under kitchen cabinet.
5. 6-inch diameter exhaust duct is recommended to use in order to
maximize suction efficiency. To increase the efficiency of hood, the length
of exhuast duct should be minimized, and avoid acute truns.
6. Check the voltage on the rating label which should match the national or
local code.
Wall Mounting Instruction
Wall
Insert the screw
Hanging Bracket
Built-under Instruction
Cabinet
Insert the screw
Mount the hood
Paddle Switch
Rlease the bottom
damper and screw it
tightly
Grille
Oil Cup
Lamp
FUNCTION:
1. The Paddle switch design has stable function, reliable safety and
long lifetime.
2. Left and right Blower Wheel work separately and at one time; 2-fan
speed control to suit different types of cooking.
3. The Strong Suction Design effectively drain the oil and smoke entirely;
The newly designed oil collecting device in 15 drain the oil and
water entirely to the oil cup.
Bottom damper
Unscrew the screws
then pull up to the end
and lock tightly
Align the Hanging
Bracket holes mounting
the hood on the wall
Operation:
1. Button
Press once for lamp on and second for off.
2. L and R Button
Press L or R , left motor on or right motor on; Press
2
3
L
and R at one time, both motors on. L and R control the left
and right motor separately; is the low speed is the high
speed; O is off.
Adjust the fan speed or according to your requirements.
L MOTOR
Low Speed
High Speed
Off
R MOTOR
Low Speed
High Speed
Off
LAMP
on
off
WIRING DIAGRAM:
SAFETY SWITCH
L
BROWN
YELLOW-GREEN
N
PLUG
BLUE
ORANGE
GRAY
BLACK
GRAY
ORANGE
BLACK
ORANGE
BLACK
MAINTENANCE:
Caution: Always disconnect the machine from the power supply
before cleaning.
1. Please clean your hood regularly, do not use abrasive cleaner. Always
clean the oil cups and retainers by detaching or turning in anti-clockwise
and re-install, to prevent oil spillage and prolong the life of the hood.
2. After each operation, please wipe the machine with a dry cloth or a wet
cloth.
3. Must use foamless hood cleaner for cleaning process to avoid damage
to the hood. Dilute the hood cleaner with water for cleaning. (We
recommend water to cleaner=20:1 to save the environment, as the inner
compartment is coated with easy clean layer that makes cleaning very
easy.)
4. Do not distort the exhaust fan, do not use abrasive cleaner.
ORANGE
WHITE
MOTOR
BLUE
BLACK
YELLOW
ORANGE
RL
MOTOR
BLUE
BLACK
YELLOW
PERFORMANCE AND DIMENSIONS:
MODEL
PDM28S
PDM28W
RATED
VOLTAGE
220V-240V~
220V-240V~
RATED
FREQUENCE
50Hz 80W 2 40W
50Hz 80W 2 40W
MOTOR
WATTS
SPECIFICA TIONS MA Y CHANGE WITHOUT PRIOR NOTICE.
LAMP
WATTS
MAX.
WHITE
DIMENSION
(mm)
W705 D520 H136
W705 D520 H136
WHITE
4
5
