Page 1

BUILTIN ELECTRIC OVEN

USER’S MANUAL

is a registred trademark used under license from Electrolux Home Products, Inc.

POB 16 XP

Page 2

Dear customer, thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual.

Page 3

CONTENTS

PART 1: SAFETY PRECAUTIONS ..................................................................................................................... 2

PART 2: PRODUCT DESCRIPTION .................................................................................................................. 4

PART 3: OPERATION INSTRUCTIONS ............................................................................................................ 5

PART 4: ACCESSORIES .................................................................................................................................... 8

PART 5: SHELF PLACEMENT ........................................................................................................................... 9

PART 6: BULB REPLACEMENT ........................................................................................................................ 9

PART 7: SECURING THE OVEN TO THE CABINET .......................................................................................... 9

PART 8: VENTILATING OPENINGS ............................................................................................................... 10

PART 9: CONNECTION OF THE OVEN .......................................................................................................... 10

PART 10: INSTALLATION ............................................................................................................................... 10

A INSTRUCTIONS FOR INSTALLATION ................................................................................................ 11

B TECHNICAL DRAWINGS FOR INSTALLATION .................................................................................. 11

PART 11: CLEANING AND MAINTENANCE .................................................................................................. 12

PART 12: INFORMATION SHEET ................................................................................................................... 13

EN - 1

Page 4

PART 1: SAFETY PRECAUTIONS

WARNING

≐ When the oven is ﬁ rst switched on, it may give oﬀ an unpleasant smell. This is due to the bonding agent

used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250 °C, 90 minutes to clean oil impurities inside the cavity.

≐ During the ﬁ rst use, it is completely normal that there will be a slight smoke and odors. If it does occur, you

merely have wait for the smell to clear before putting food into the oven.

≐ Please use the product under the open environment. ≐ The appliance and its accessible parts become hot during use. Care should be taken to avoid touching

heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

≐ If the surface is cracked, switch oﬀ the appliance to avoid the possibility of electric shock. ≐ This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements

≐

inside the oven.

≐ Do not allow children to go near the oven when it is operating, especially when the grill is on. ≐ Ensure that the appliance is switched oﬀ before replacing the oven lamp to avoid the possibility of electric

shock.

≐ The means for disconnection must be incorporated in the ﬁ xed wiring in accordance with the wiring

speciﬁ cations.

≐ Children should be supervised to ensure that they do not play with the appliance. ≐ This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

≐ Accessible parts may become hot during use.

Young children should be kept away.

≐ An all-pole disconnection means must be incorporated in the ﬁ xed wiring in accordance with the wiring

rules.

≐ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualiﬁ ed persons in order to avoid a hazard.

≐ Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can

scratch the surface, which may result in shattering of the glass.

≐ Only use the temperature probe recommended for this oven. ≐ A steam cleaner is not to be used. ≐ The appliances are not intended to be operated by means of an external timer or separate remote-control

system.

≐ Appliance must not be installed behind a decorative door in order to avoid overheating.

This appliance is intended to be used only in househol

EN - 2

Page 5

SAFETY HINTS

≐ Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or

damp hands or feet.

≐ For oven: Oven door should not be opened often during the cooking period. ≐ The appliance must be installed by an authorized technician and put into use. The producer is not

responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.

≐ When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance

or break the door.

≐ Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before

touching onto the points that are exposed to the heat directly.

≐ If you will not use the appliance for a long time, it is advised to plug it oﬀ .

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be ﬁ tted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two ﬁ xing holes in the frame. To locate the ﬁ xing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when ﬁ xing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can with stand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be ﬁ rmly ﬁ xed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualiﬁ ed person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

EN - 3

Page 6

PART 2: PRODUCT DESCRIPTION

Remind buttonK1 K2

Start button

Time button

Symbol Function description

Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions.

Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It‘s a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream ﬁ lled produce etc.

Bottom heater: A concealed element in the bottom of the oven provides a more concentrative heat to the base of food without browing. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature can be set within the range of 60-120 °C. The default temperature is 60 °C.

Conventional cooking: The top and bottom work together to provide convectional cooking. The temperature can be set within the range of 50-250OC. The default temperature is 220OC.

Convention with fan: Combination of the fan and both heating element provides more even heat penetration, saving up to 30-40 % of energy. Dishes are lightly browned on the outside and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temperature can be set within the range of 50-250 °C. The default temperature is 220 °C.

Gril: Radiant grilling: The inner grill element switches on and oﬀ to maintain temperature. The temperature can be set within the range of 150-240 °C. The default temperature is 210 °C. This is optional function that can be work with rotisserie motor.

Double grilling: The inside radiant element and top element are working. The temperature can be set within the range of 150-240 °C. The default temperature is 210 °C. This is optional function that can be work with rotisserie motor.

Turbo gril (double gril with fan): The inside radiant element and top element are working with fan The temperature can be set within the range of 150-240 °C. The default temperature is 210 °C.

Warm air heated: An element around the convection fan provides an additional source of heat for convection style cooking. In convenction mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking. The temperature can be set within the range of 50-240 °C. The default temperature is 180 °C.

Stop button

except ECO function.

For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

EN - 4

Page 7

PART 3: OPERATION INSTRUCTIONS

1. Clock Setting

After connectiong the unit to the power, the symbols “0:00” will be visible on the display. 1> Press “

2> Rotate “K2” to adjust the hour ﬁ gures, (time should be within 0--23). 3> Press “

4> Rotate “K2 “ to adjust the minutes setting, (time should be within 0--59). 5> Press “

Note: The clock is 24 hours. After power on, if not set, the clock will show “0:00”.

2. Function Setting

1> Rotate “K1” to choose the cooking function you require. The related symbol will illuminated. 2> Rotate “K2” to adjust the temperature.

3> Press “ 4> If step 2 is ignored, Press “

temperature will display on the LED.

NOTE:

1> The step quantities for the adjustment time of the knobs are as follow:

0--0:30min: step 1 minute 0:30--9:00hour: step 5 minutes

2> The step quantities for the adjustment of temperature is 5 °C. 3> Rotate “K1” to adjust the cooking time when cooking begins. Then press “

If “ cooking.

4> Rotate “K2” to adjust the temperature when cooking begins. The related indicator will be illuminated.

Then press “ previous temperatrue to continue cooking.

3. Lamp Setting

1> Rotate “K1” to select the relevant function, then the corresponding icon will be on. 2> Press “

”, the hour ﬁ gures will ﬂ ash.

”, the minutes will ﬂ ash.

” to ﬁ nish the clock settings. “:” will ﬂ ash, and the time will be illuminated.

” to conﬁ rm the start of cooking.

” to conﬁ rm the start of cooking and the default time is 9 hours, the default

” to conﬁ rm.

” not pressed within 3 seconds, the oven will revert back to the previous time to continue

” to start cooking. If “ ” not pressed in 3seconds, the oven will revert back to the

” button to start, “0:00” and lamp icon “ ” will light up, “:” will ﬂ ash.

4. Inquiring function

In the following states, you can use inquiring function, after 3 seconds return to the current state. 1> During working state, if the clock was set, press “

function was set, press “ 2> In reminding state, if the clock was set, press “ 3> In clock display state, if the reservation function was set, press “

5. Child lock function

To Lock: press “ will be illuminated.

Lock quitting: press “ indicating the child-lock is released. Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long pressing on stop button, it is invalid.

” and “ ” simultaneously for 3 seconds, there will be a long “beeping” sound and the “ ”

” button to see the time of reminder.

” and “ ” simultaneously for 3 seconds, there will be a long “beeping” sound

” button to see the current time; if the reminder

” button to see the current time.

” button to see the time of reservation.

EN - 5

Page 8

6. Reminder Function:

This function will help to remind you to start cooking in a certain time from 0:01 to 9:59. Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:

1> Press reminder setting button “ 2> Rotate “K2” to set the hour time of reminder. (Time should be within 0--9).

3> Press reminder setting button “ 4> Rotate “K2” to set minute time of reminder. (Time should be within 0--59).

5> Press “

Note:

The oven buzzer will sound for 10 times after the time back to the zero hour. You can cancel the reminder during setting by pressing the stop button; After the reminder has been set, you can cancel it by pressing stop button twice.

7. Start/Pause/Cancel Function

1> If the cooking time has been set, press “

2> During cooking process, press “ ” once to pause the cooking. Press “ ” twice to cancel the cooking.

8. Energy-Saving Function

1> In waiting state and reminding state, press “

2> If no operation in10 minutes under waiting state, the LED display will go oﬀ and go into energy-saving

3> Under the energy-saving mode, press any key or rotate any knob can quit the energy-saving mode.

9. Meat probe function:

1> In waiting state, insert the meat probe, the LED will display “PROB” and the icon “ 2> Rotate “K1” to choose function you need. The related indicator will illuminated.

3> Rotate “K2” to adjust the temperature. Press “

4> The buzzer will sound ﬁ ve times when cooking ﬁ nish. The setting temperature lights when the setting

” to conﬁ rm setting. The time will count down.

resume cooking.

energy-saving mode.

mode.

Functional sequence diagram:

The small LED display the temperature and the big LED display “PROB”.

temperatures arrives. If the meat probe pulled out, it will turn back to waiting state.

Note:

A). The range of the temperature is 50-150 degrees. B). During probe function, the cooking time can

not be set. C) During cooking process, press stop button once, it will stop cooking, LED ﬂ ash;

Press stop button again, cancel the current cooking. D) Pull out the meat probe from the oven, it will

cancel all the program. E) If the display shows “Er-3” after the programme has been started, it means

that the temperature sensor short circuit. Please check the sensor carefully by authorized.

”;

” again;

” to start cooking. If the cooking is paused, press “ ” to

” for three seconds, the LED display will go oﬀ and set to

” will light.

. Press “ ” to conﬁ rm function setting.

” to conﬁ rm temperautre probe.

10. Reservation function (Delay start):

1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock,

reserved time that oven starts to cook must be set (a> Press reservation setting button “ b> Rotate “K2” to set the hour time of reservation. Time should be within 0--23. c> Press reservation

setting button “

0--59.), but don’t press clock this time. Next, turn knob “K1” to chosse function. 2> Press “

” button to set cooking time and temperature. Then turn knob “K1” to adjust time, and “K2” to

adjust temperature.

” again; d> Rotate “K2” to set minute time of reservation. Time should be within

”;

EN - 6

Page 9

3> Press the “ ” button to ﬁ nish cooking setting, and the clock will be on the screen with reservation

sign “

” always lighting. But no other function signals are presented. Reservation time can be checked

by pressing “

”, 3 seconds later the screen will show clock again.

4> At the time of reservation, cooking will start automatically after a buzzing sound. The reservation symbol

“

” will put out, and other indicating signs will work normally.

Note:

1. Lamp, defrost, probe can’t be reserved.

2. During the status of reservation, press cancel button once, time and temperature of reservation menu

will be shown with menu icon lighting constantly. Press again, screen returns to clock, or press start

button to return to reservation status.

3. Reminder function is invalid during reservation status.

11. Note

1> The oven lamp will be on for all functions. 2> Once the cooking programme has been set and the “

except ECO function.

” button is not pressed within 5 minutes,

the current time will be displayed or turn back to waitting state. The setting program will be invalid. 3> The buzzer will sound once when eﬀ ectively pressed, if not eﬀ ectively pressed there will be no

response. 4> The buzzer will sound ﬁ ve times to remind you when cooking has ﬁ nished.

Recipes for ECO mode

Recipes Temperature (

Potato

Cheese

Gratin

Cheese

Cake

Meatloaf 190 1 110-130 No

180 1 90-100 No

160 1 100-150 No

) Level Time (min) Pre-heat

EN - 7

Page 10

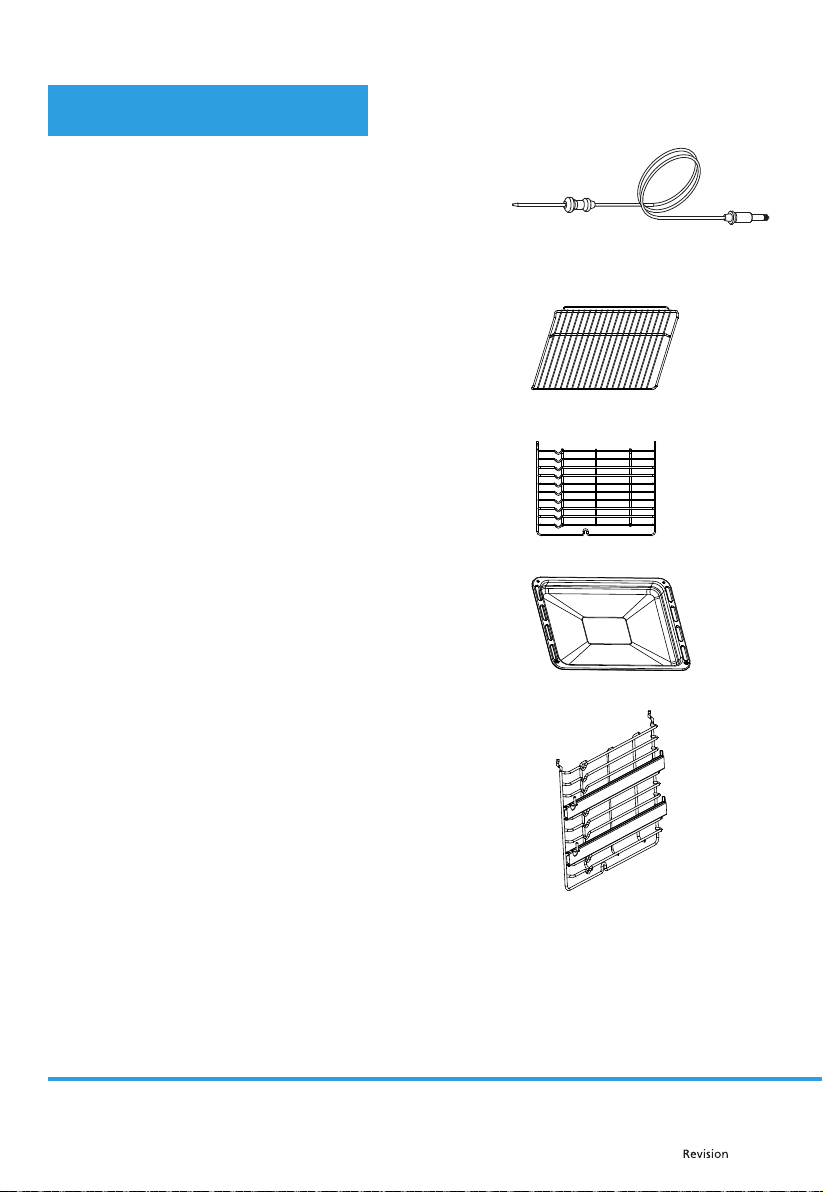

PART 4: ACCESSORIES

Meat probe: Before using, insert the probe into the center of the thickest portion of meat or into the inner thigh or breast of poultry, away from fat or bone. Place food in oven and connect the meat probe. Keep probe as far away from heat source as possible. Close oven door.

Wire shelf: For grill .dishes, cake pan with items for roasting and grilling.

Slider bracket: These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (only for speciﬁ c modles)

Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

Telescopic runner: Some of models might with telescopic runners to facilitate the use of oven. These telescopic runners could be disassembled for cleaning by unscrew the screws use to ﬁ x it. (only for speciﬁ c modles)

EN - 8

Page 11

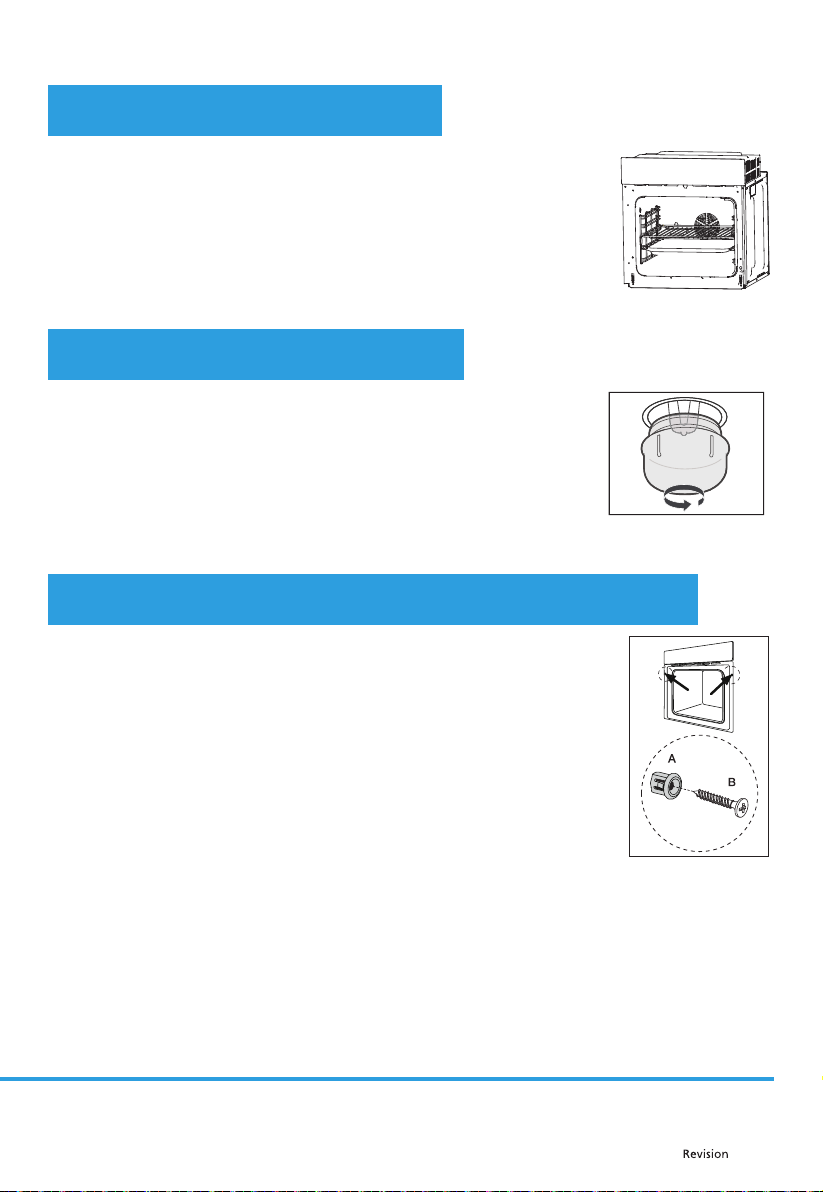

PART 5: SHELF PLACEMENT

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. This will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

PART 6: BULB REPLACEMENT

For replacement, process as follows: 1>.Disconnect power from the mains outlet or switch oﬀ the circuit breaker of the unit’s mains outlet. 2>.Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiﬀ ) and replace the bulb with a new one of the same type. 3>.Screw the glass lamp cover back in place.

NOTE: Only use 25-40W/220V-240V, T300 °C halogen lamps.

PART 7: SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.

2. Open the oven door.

3. Secure the oven to the kitchen cabint with two distance holders “A” which ﬁ t the holes in the oven frame and ﬁ t the two screws “B”.

EN - 9

Page 12

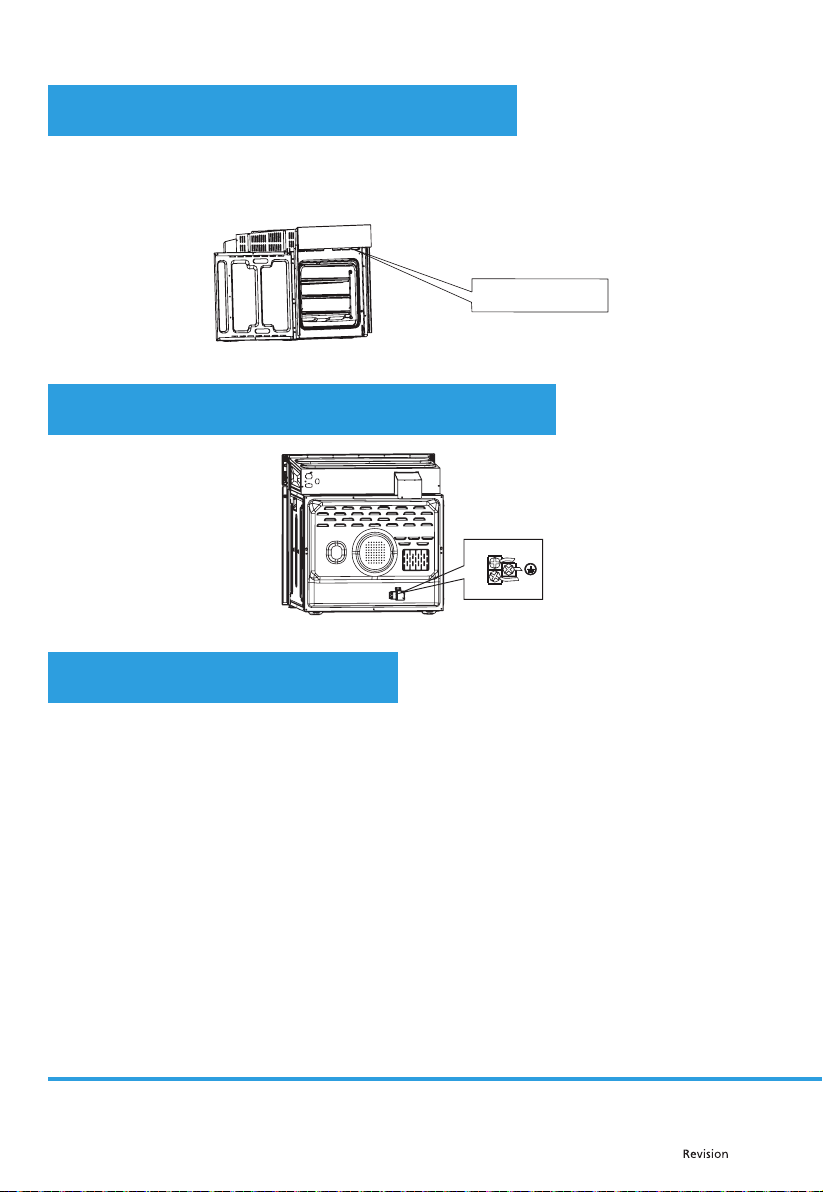

PART 8: VENTILATING OPENINGS

When cooking is ﬁ nished or in pause state or in waiting state, if the oven’s center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven’s center temperature becomes lower than 75 degree, the cooling fan will stop in advance.

Ventilating openings

PART 9: CONNECTION OF THE OVEN

PART 10: INSTALLATION

A) INSTRUCTIONS FOR INSTALLATION

Installation

Warning! Only a qualiﬁ ed person mustinstall this appliance.

≐ Remove all the packaging. ≐ Do not install or use a damaged appliance. ≐ Obey the installation instruction supplied with the appliance. ≐ Always be careful when you move the appliance because it is heavy. Always wear safety gloves. ≐ Do not pull the appliance by the handle of the door. ≐ Keep the minimum distance from the other appliances and units. ≐ Make sure that the appliance is installed below and adjacent safe structures. ≐ The sides of the appliance must stay adjacent to appliances or to units with the same height.

EN - 10

Page 13

Electrical connection

Warning! Risk of ﬁ re and electrical shock.

≐ All electrical connections should be made by a qualiﬁ ed electrician. ≐ The appliance must be earthed. ≐ Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact

an electrician.

≐ Always use a correctly installed shockproof socket. ≐ Do not use multi-plug adapters and extension cables. ≐ Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an elec-

trician to change a damaged mains cable.

≐ Do not let mains cables to come in touch with the appliance door, specially when the door is hot. ≐ The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed

without tools.

≐ Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is

access to the mains plug after the installation.

≐ If the mains socket is loose, do not connect the mains plug. ≐ Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. ≐ Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the hold-

er), earth leakage trips and contactors.

≐ The electrical installation must have an isolation device which lets you disconnect the appliance from the

mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

B) TECHNICAL DRAWINGS FOR INSTALLATION

G560

A595

F570

min.

100

H560

250

E600

D606

B595

C575

Remark:

1. Only plus deviations are admissible for all dimension.

2. The cabinet is not include the power switch or socket.

NOTE: The number of accessories included depends on the particular appliance purchased.

EN - 11

Page 14

PART 11: CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

≐ Before any maintenance and cleaning, disconnect the power. ≐ Set all controls in the OFF position. ≐ Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm. ≐ Clean the surface of the unit with a damp cloth, soft brush or ﬁ ne sponge and then wipe dry.

In case of heavy soiling, use hot water with non- abrasive cleaning product.

≐ For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can

scratch the surface or lead to the glass being damaged.

≐ Never leave acidic substances (lemon juice, vinegar) on stainless steel parts. ≐ Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

Warning! Risk of injury, ﬁ re or damage to the appliance.

≐ Be careful when you remove the door from the appliance. The door is heavy! ≐ Clean regularly the appliance to prevent the deterioration of the surface material. ≐ Remaining fat or food in the appliance can cause ﬁ re.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment(WEEE). By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste dispoasl. For more detailed information about treatment, recovery and recycling of this product, please contact your local city oﬃ ce, your household waste disposal service or the shop where you purchased the product.

EN - 12

Page 15

PART 12: INFORMATION SHEET

Name Philco

Model identiﬁ cation number POB 16 XP

Energy eﬃ ciency index *

Energy eﬃ ciency class A

Power consumption per cycle for baking area ** 0.99 kWh/cycle

Power consumption per cycle for baking area *** 0.79 kWh/cycle

Number of baking areas 1

Heat source electricity

Oven volume **** 70 l

Type of oven built-in

Gross / net weight (kg) 36/32

Complies with norm EN 60350/-1.

*(EEI of baking area) ** in natural convection mode (convection heat function) *** in forced convection air mode **** Volume of individual baking zones

EN - 13

Page 16

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for ﬁ nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical speciﬁ cations may occur without prior notice and we reserve the right to make these changes.

EN - 14

Page 17

Manufacturer/Výrobce/Výrobca: PHILCO Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC

is a registred trademark used under license from Electrolux Home Products, Inc.
