Size
522 532 894(mm)
Weight of the product
33Kg
Rated input power
Rated voltage
Rated frequency
400W
220V~
50Hz
Rate volume of wash
and spinning
Maximum water pressure
permitted in the water inlet
Minimum water pressure
permitted in the water inlet
6.0Kg(dry clothes)
0.6MPa
0.1MPa
INDEX
NAMES OF RESPECTIVE PARTS
Names of respective parts-----------------------------------------------------------------2
Installation----------------------------------------------------------------------------3
Placement of the washing machine----------------------------------------------3
Installation of water inlet hose---------------------------------------------------3
Installation of drain hose----------------------------------------------------------4
Power source and grounding-----------------------------------------------------5
Installation of the base cover-----------------------------------------------------6
Volume of washing and detergent------------------------------------------------------6
Functions of buttons -----------------------------------------------------------------------8
Way of use -----------------------------------------------------------------------------------9
Preparations before using---------------------------------------------------------9
Full automatic program----------------------------------------------------------10
Self program-------------------------------------------------------------------------11
Function-----------------------------------------------------------------------------12
Soak wash----------------------------------------------------------------------------13
Wash of blanket ------------------------------------------------------------------13
Use of fabric softener---------------------------------------------------------------13
Precautions---------------------------------------------------------------------------------13
Trouble shooting --------------------------------------------------------------------------14
Method of maintenance------------------------------------------------------------------16
Specifications -------------------------------------------------------------------Back cover
1
2
3
8
XQ
B48-
97
6G
88
66
4 4
7 7
2 2
5 5
3 3
1 1
ˮλ
Ï´µÓ
Ưϴ
Ô¤Ô¼£¨Ð¡Ê±£©
ÍÑË®
Ê£Óࣨ·Ö£©
Ô¤Ô¼
±ê×¼
ÇáÈá
ͯÒÂ
¿ìÏ´
Å£×Ð
½þÅÝ
4
´óÎï
·ÀÖå
Æô¶¯
Æô¶¯
ÔÝÍ£ ÔÝÍ£
µçÔ´µçÔ´
7
5
1. Top lid 2. Washing tub 3.Top frame 4. Lint filter 5. Bottom cover
6. Operation panel 7. Pulsator 8. Drain hose
6
Accessories
Drain hose (1)
1
Universal connector (1)
Water inlet hose assembly(1)
2
Base cover (1)
Self-tapping screw (1)
INSTALLATION
INSTALLATION
Placement of the washing machine
The washing machine should be placed inside the room with a flat floor, where is convenient for water
supply and drainage, has low moisture and no direct sunshine, and does not freeze in winter. All foam packing
(including the fixing frame on the base foam) should be taken off.
Levelling the washing machine according to the instructions below to make the washing machine run
steadily in low noise.
1. Loose the fixing pole on the adjusting foot, screw in or screw out the adjustable foot to make the four
braces placed even on the floor. (the adjustable foot is on the left front bottom of the cabinet).
2. When the floor is slanting or uneven, the rubber band can be added to the unflat place.
3. Use a thread tied with bulky object, hang it on the side face and face side, or see the hole of the top
frame and the washing tub are found to be basically in alignment, that is to show that the washing
machine is placed flat, just like followed figure.
4. After the adjustment the fixing pole should be screwed back and tight.
Notices:
If the washing machine is not placed flat (the inclination angle is over 2 ), it may cause great vibration or
automatic check and rectification or other abnormal circumstances will often take place in the course of
spinning .
o
Base foam Fixing frame
6. Grasp the water inlet hose by hand and pull it downward to see whether it is secured
7. Screw the nut on the other end of the water inlet hose into the water inlet of the washing machine to the most.
Tap
File
If the calibre of the tap
is big, the connecting
ring can be taken off.
Connecting ring
Locking ring
Skirt
Notices:
After installation, do not start the washing machine in haste. First open the tap to let the water press into
the water inlet hose to check whether there is any leakage in the connectors on the both ends. Sometimes it is
difficult to fix the water inlet hose due to the problem of the tap, you can ask an experienced man for help or
contact the local customer service department. When the pressure is too high, please shut the tap a little to avoid
water leakage.
Loose
Adjustable foot
Screw in
Fixing pole
Tight
Screw out
Installation of the water inlet hose
1. Check the tap mouth. If it is not even, it can be filed even.
2. Screw loose the locking ring, but do not let the locking ring drop off. Screw the four screws at the same
distance.
3. Put the universal connector into the tap and stick to the tap mouth at the most and then screw in the screws.
4. Screw tight the locking ring to the right at the most.
5. Pull the skirt of one end of the water inlet hose downwards, and then plug in the universal connector. A
sound of "KA-TA" means proper connection.
3
Installation of the drain hose
Nip the fixing ring with hand to make it loose and engaged on the drain hose and put the drain hose into the
leading skirt of drain hose in the bottom of the washing machine to the end at the most (soak the head of the drain
hose in warm water, it will make the engagement easy), and loose the fixing ring to let it clasp the drain hose.
It had better put the outlet of the drain hose into the nearby
drainage permanently, which can save the trouble that the drain
hose has to be connected each time before use. If the drainage is far
from the washing machine, it can be solved by connection of the
drain hoses head with end to extend.
Notices: Drain faults will be caused when the drain hose
is blocked or after the extension of the hose, it is above the
water outlet.
Inner hose
Leading ring
Cabinet
Fixing ring
Drain hose
INSTALLATION
Notices:
1. Needs a 3cm minimum diameter drain hose with minimum carry away capacity of 30liters per minute.
2. Drain hose must be placed at least 86cm (34inches) from the bottom of washer but not higher than 120cm.
INSTALLATION / VOLUME OF WASHING AND DETERGENT
Installation of the base cover
1. Slant the washing machine with angle of 45 in the direction of the arrows showed in the figure, put the side with the clasper
to the washing machine and the other side to the ground, insert back lid along the direction of the upper slot of the base from
the back side of the washing machine.
2. Put the base cover straight to the point and then press the back lid upward till there is a sound of "Gaba" and then screw in a
self-tapping screw.
Base cover
o
Power source and grounding
The washing machine employs alternative current with the voltage of 220V and frequency of 50Hz. When the
voltage fluctuates between 187V to 242V, the washing machine can work normally. A special power socket for the
washing machine had better be set beside the washing machine for convenience and safety. The method of
connection of the socket is as the figure below:
Notices:
The socket and the grounding wire must be
installed by an electrician to prevent incorrect
installation or use of the socket, and to guarantee
the safety of use of electricity.
The power wire of the washing machine
employs Y connection and the replacement of the
power wire should be carried out by professionals
No connection of the grounding wire with
the neutral wire, otherwise the cabinet will be
charged, which is likely to cause the danger of
electric shock.
220V ~
Grounding wire
Hole for Self-tapping screw
Volume of washing and detergent
1. Check
Whether the drain hose
is hang.
Whether the tap is open.
Whether the power
socket is plugged in.
Take out the coins and
other sundries from the
pockets and shake off
the mud or sand on the
clothes.
Slot
2. Washing put in and detergent
Dosage of common no foam washing powder
Weight of washing
3.6 - 6kg 80g
2.5 - 3.7kg 70g
1.5 - 2.5kg 60g
< 1.5kg 50g
No foam washing powder is recommended, and the
washing powder had better be dissolved by warm
water and be poured into the tub.
Please refer to the manual of the washing powder
about the dosage.
Dosage of the washing powder
5
6
VOLUME OF WASHINGS AND DETERGENT
FUNCTIONS OF BUTTONS
3. Determine water level by pressing the water level button.
4. Close the lid, press start/pause button, start the washing machine.
Weight of the washing and comparison with the water level
5
6
3
4
1
2
Water level
Weight of the washing
3.7-6kg
2.5-3.7kg
1.5-2.5kg
<1.5kg
In time of washing, you can press the button to change
water level in any time.
Notice: When the volume of the clothes is small, the
water level can't be too high, otherwise it will waste the
washing powder and water will splash out.
Washer will delay ten seconds after water inlet finish,
it is not fault.
Water level
Weight standard of the clothes
Union suit including coat and
trousers(blended) about 800g
Short sleeves shirt
(cotton) about 130g
Bath towel (cotton)
about 300g
Pyjamas including coat and
trousers (cotton) about 500g
Trunks (cotton)
about 50g
Water volume
7~8
5~6
3~5
1~2
Long sleeves shirt
(blended) about 200g
About 45~50L
About 40~45L
About 35~40L
About 30~35L
Socks (blended)
about 50g
Water level
Press water level button, the user
can set water level freely. Each
press of the button, the light for
the water level will move in turn.
The program can supply water
automatically in washing or
rinsing.
Wash time setting
Press "wash"button can set wash
time, when press the wash button
one time the wash time will
increase one minute.
Rinse time setting
Press "rinse" button can set rinse
time, when press the rinse button
one time the rinse will increase
one time.
Spin time setting
Press "spin"button can set spin
time, when press the spin button
one time the spin time will
increase one minute.
Preset
Press the button to preset the
time. Each press the button
the digit will add 1 hour.
When the digit more than 24,
the digit will go to original.
When press continually, the
indicator digit will change
automatically.
When it is not in state of preset,
the digit shown is remaining
time.
Program
"Normal" "Rapid" "Soak"
"Delicate" "Child s clothes",
"Heavy Wash" and other fully
automatic programs are
available.
The indicator lights move in
turn at each press on the button
to set the program. Every
program has a default wash,
rinse and spin time, see follow
sheet, you can set the program
by yourself.
Start / Pause
After program selection, press
the button to start.
Press the button to pause in the
course of operation, and the
program continues at another
press till the program is
finished.
Power
Press the button, the washer is power
on, and the washer is set at the normal
program automatically.
Press the button in the course of
operating end the program, and the
washer is power off.
In order to protect controller, the interval of switching on and off power
!
r
should be more than 30 seconds.
7
8
WAY OF USE
WAY OF USE
Preparations before using
1. Hang the drain hose.
2. Connect the water inlet hose. The loading and unloading method of the water inlet hose can be seen in .
3. Connect the power..
4. Take out the coins and other sundries and shake off the mud and sand on the clothes.
Washing
Program
Normal
program
Rapid
program
Bulky
program
Child s clothes
program
Heavy wash
program
Feature and usage
Powerful in washing and
widely applicable, especially
in spring, autumn and winter.
Washing time is short and
applicable for small volume,
not more than 3.5Kg, and the
degree of stain of the clothes
is light.
Washing intensity is high and
spinning time is long, water
level is high.
The times for rinse is much, and
the water level is high, so it can
rinse the clothes clearly, avoiding
the remaining detergent in the
clothes hurts the skin of children.
Powerful in washing, applicable
for seriously stained clothes.
Way of use
Step1-step4 is same with usual
program.
Step5: Press button "Power", switch
on, all lights flash three times.
Step6: Press any button of "Normal",
"Delicate" , "Rapid", "Soak", "Child s
clothes", "Heavy wash", "Bulky",
"Anti-crease" to select the program
you want and the corresponding light
is on.
Step7: Press button "Start/Pause", the
washing machine will be started. Press
again during the process of running
the washer will be stopped.
Wash light flashes
Washing for 12 minutes
Washing for 6 minutes
Washing for 18 minutes
Water injection
Washing for 12 minutes
Washing for 15 minutes
page 3~4
Fully automatic program
There are eight fully automatic programs that can automatically complete the whole courses
of "Wash","Rinse","Spin",and features and usage of each process and the method of use are
as below: (preparations before use are the same as the above-mentioned preparations).
Rinse for the first time
Spinning for
3 minutes
Spinning for
2 minutes
and soak 30
seconds with
spraying
Spinning for
4 minutes
Drain
Spinning for
3 minutes
Spinning for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Water injection
Washing for
4 minutes
Washing for
4 minutes
Rinse / Rinse light flashes
Rinse for the second time
Spinning for
3 minutes
Spinning for
4 minutes
Drain
Spinning for
3 minutes
Spinning for
3 minutes
Water injection
Washing for
3 minutes
Washing for
3 minutes
Washing for
4 minutes
Water injection
Washing for
4 minutes
Rinse for the third time
Water injection
Drain
Spinning for
3 minutes
Washing for
4 minutes
Spinning/Spinning
light flashes
Spinning for
6 minutes
Spinning for
3 minutes
Spinning for
6 minutes
Drain
Spinning for
5 minutes
Spinning for
5 minutes
Total
time
About
38 minutes
About
19 minutes
About
47 minutes
About
50 minutes
About
43 minutes
Delicate
program
Anti-crease
program
Soak
program
Water flow is soft, applicable
for delicate clothes such as
silk clothes.
Spinning at low speed.
Applicable for the most
stained clothes.
Washing for 10 minutes
Washing for 12 minutes
Soaking for
20 minutes
Washing for
12 minutes
Spinning for
2 minutes
Spinning for
3 minutes
Spinning for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Spinning for
2 minutes
Spinning for
3 minutes
Spinning for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Washing for
3 minutes
Spinning for
2 minutes
Spinning for
1 minutes
Spinning for
6 minutes
About
31 minutes
About
34 minutes
About
58 minutes
Notice: The total time needed is subject to the pressure of the tap water in your family, and the time may prolong in case of low water pressure.
9
10
WAY OF USE
WAY OF USE
SELF-PROGRAM
Program
Feature and
usage
Way of use
Washing
Wash light flashes
Soaking
Soak light flashes
Spinning
Spin light flashes
Self-program
Set applicable way for clothes:
Set washing time, soaking times, spinning time.
Step1~step5 is same with full automatic program.
Step6, set wash time by pressing "Wash" button and every press the wash time will add a minute.
Step7, set soak times by pressing "Soak" button.
Step8, set spin time by pressing "Spin" button, the way is like step 6.
Step9, the self-program will run until press the "Start/Pause".
Wash (min)
Circulating Selection
Soak (times)
Circulating Selection
Spin (min)
Circulating Selection
Including soak
Circulating Selection
Program
Feature
and
usage
Way of
use
Show
Soak
Wash
Rinse
FUNCTION
Soak / Wash / Rinse / Spin
It is applicable when temperature
is very low in winter and the
clothes are very dirty.
Step1~step5 are the same as those of the full automatic program. Step2/step4 can be selected by need.
Step6 : Select the function needed by pressing function button, the corresponding light is turned on.
Step7 : Select the program needed by pressing program button, the corresponding light is turned on.
Step8 : Press "Start/Pause" to start washer, if press at the process of running, the washer will stop.
Wash, soak, spin, rinse lights
all are turned on. The soak
light will flash after start.
Water injection
Ï´¡±¡¢¡°ÍÑË®¡±¶ÔÓ¦ÊýÂë¹Ü
Soak
Wash
first time
Rinse for the
second time
Rinse for the
Drain
Spin
Water injection
Soak
Drain
Spin
Water injection
Wash Only Wash / Rinse
The time for washing
only in each program
is different. It does not
drain after the end of
wash cycle, it is
applicable when the
cleansing solution is
used for two times.
The button "Wash"
is turned on and
flash after starting.
Water injection
Wash
The flows, washing time,
rinse time of different wash
and spin program are
different from each other
and it does not drain after
the end of rinse, applicable
for the case of clothes need
not spinning.
The buttons "Wash" and
"Rinse" are turned on
and flash after starting.
Wash
Drain
Spin
Water injection
Soak
Drain
Spin
Water injection
¡°Ï´µÓ¡±¶ÔÓ¦µÄÊýÂë¹ÜÉÁ˸¡£
Rinse / Spin
The rinse times and the
spinning time of all the
rinse spin programs are
different from each
other, applicable for
pre-washing serious
stained clothes.
The buttons "Rinse"
and "Spin" are turned
on and flash after
starting.
Ë® ¡±¶ÔÓ¦µÄÊýÂë¹Ü¼°ËùÑ¡µÄ³ÌÐò
ºó¡°Ï´µÓ¡±¶ÔÓ¦µÄÊýÂë¹ÜÉÁ˸¡£
Drain
Spin
Water injection
Soak
Drain
Spin
Water injection
Spin
The spin time of
programs are different
from each other,
applicable for drain the
residual water or only
for spinning the wet
clothes.
The button "Spin" is
turned on and flash
after starting.
¶ÔÓ¦µÄÊýÂë¹ÜÉÁ˸¡£
Total time
Automatic add
11
Spin
Soak
Drain
Spin Spin Spin
Soak
Soak
Drain
12
WAY OF USE / PRECAUTIONS
Soak wash
1. Switch on the power.
2. Open the tap and hang the drain hose.
3. Put in the stuff and detergent.
4. Select proper water level according to the weight of clothes.
5. Press "Soak" the icon "Soak" will flash..
6. Press "Start/Pause" button and close the lid.
Confirmation of soak:
After the washing machine is on, "Remaining time" will gradually decrease.
Wash of blanket
The weight of the blanket should be less than 3kg, and please select the "Bulky" program to wash and it had better use
particular mesh bag for the heavy washing and the method is as follows:
1. After the detergent is dissolved with proper amount of warm water (below 50¡æ), pour it into the tub of the washing
machine.
2. Fold up the blanket and put it into the washing tub.
3. Switch on the power and press the "Program" button to select the "Bulky" program and "Level 6" or "Level 5" water
level.
4. Press the "Start/Pause" button, and close the lid.
5. After ending of washing, put it to air dry in the ventilated place with sunshine.
6. Only the blanket with marks "Hand Wash" can be washed.

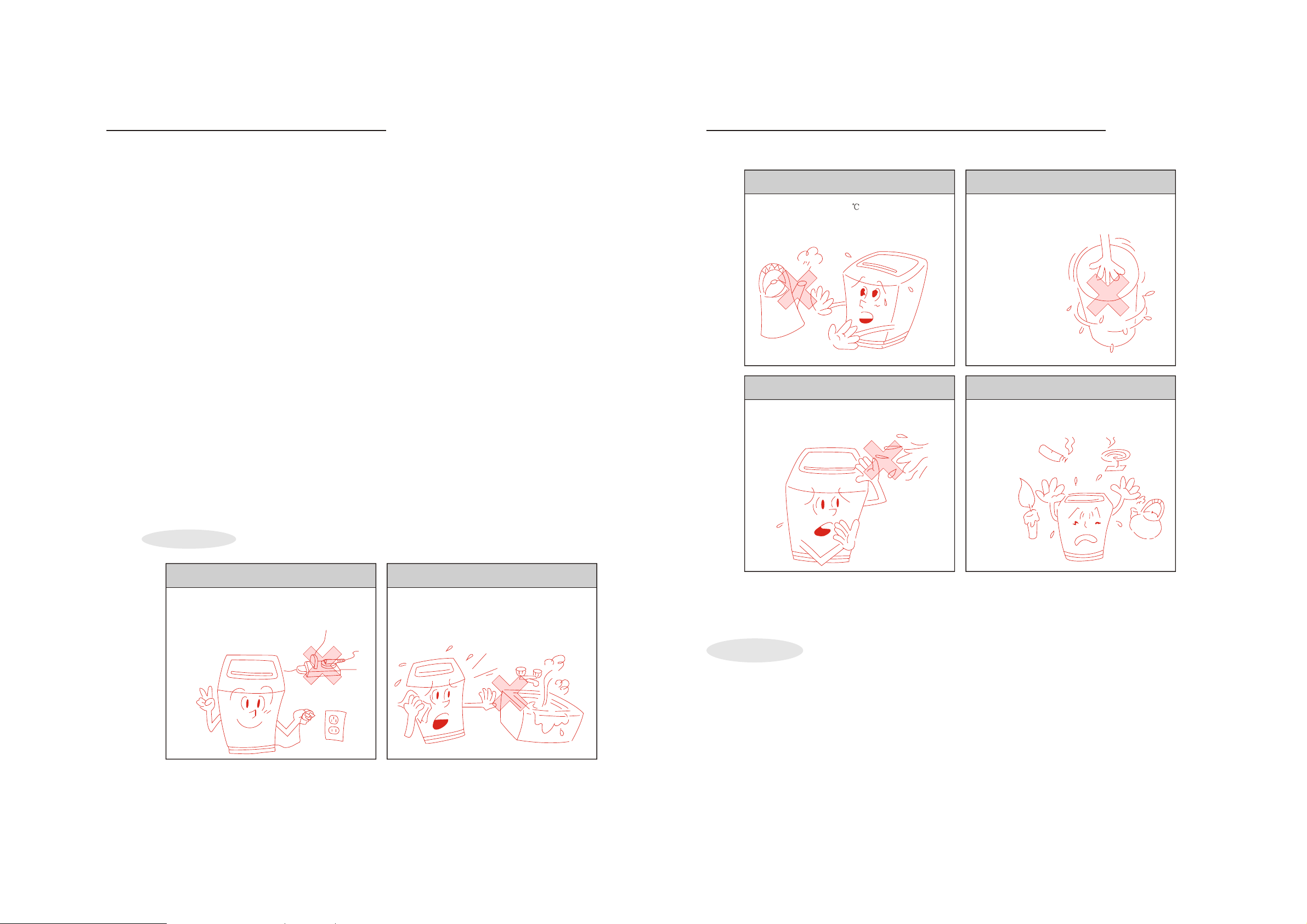

PRECAUTIONS AND TROUBLE SHOOTING
Don't use hot water
Don't use hot water over 50 to avoid deformation of
the plastics.
Avoid spray of water
Don't spray water onto the control panel. It will cause
electric shock and faults.
Don't open the lid in time of spinning
If the lid is open during spinning, the washing machine
will stop at once, which will shorten the service life.
Please avoid opening the
lid in the course of
operation and don't put
hands into the tub as it
is very dangerous that
the clothes wind the
hand despite of low
speed of rotation.
Keep away from smoke and fire
Don't place lighted candles, cigarettes, or thermo
bottles nearby to avoid fire accidents or deformation
of the plastics.
Use of fabric softener
Fill the softener into the injection mouth for softener (at the tub mouth), and it can be injected automatically in time of
rinse.
Precautions
Safe use of power
Please put the power plug into the special 220V
socket to avoid fire accidents. The plug-in and plugout of the wire should go on with the plug held with
hand.
Don't place the washing machine in humid
environment. It will affect the insulation of the
machine, and may cause electric shock.
Avoid damp
Trouble shooting
Diagnosis of faults
The washing machine is able to automatically judge some faults by sending out buzzing sound to alarm and indicate the cause
of faults with several indicator light flittering.
13
14
TROUBLE SHOOTING
METHOD OF MAINTENANCE
Symptom
Does not work
completely
Do not reach the
setting water level
after water inlet
16 minutes.
Do not spin
Scuff the shell
in time of spin
Cause
The power is cut off.
Plug is not plugged tight, or
the power switch is not on.
No electricity in the socket
or the fuse is broken.
No water in water tap.
Water pressure is low.
Open the cover lid before
spinning.
The clothes are uneven, the
washer will self-rectificate two
times. If washer still work, it
buzz alert.
Signal
Nothing
Nothing
The screen show
E2 and the buzz
alert.
The screen show
E3 and the buzz
alert.
Solution
Using again after the power on.
Plug the power plug tightly and switch
on the power switch.
Ask electrician to check and repair the
socket or the fuse.
Open the hose and check the water
pressure.
Close the cover lid.
Open the cover lid and distribute
the clothes evenly, and then close
the lid.
The following cases are not faults
1. There is the phenomenon of incoming water in time of wash or rinse, which is due to that the water level switch checks the
water level and it supplies water automatically due to the water level drop.
2. There is the phenomenon of intermittent spinning in the beginning of spinning, which is performed to achieve better
spinning effects.
3. In time of rinse with water injection, there may be no drain in the drain hose, which is caused by that the water level does
not reach the overflow mouth due to low water pressure or the low water level set.
4. In the course of spinning, there is a phenomenon of rinsing, which is caused by the automatic rectification.
Method Of Maintenance
After the end of program
The washing machine will send off the sound of
"DOU-DOU" after end of any program operation
to remind you to take out the washings or operate
it again.
Please shut off the tap, pull out the plug in time of
not in use to avoid water leakage or fire accidents.
Use soft cloth to wipe off the water and dirt on the
surface each time after use of the washing machine.
Detergent, propellant and other chemicals are not
allowed to use to avoid the damages on the surface.
Maintenance of shell
Do not drain
water completely
after 4 minutes
The drain hose is not installed
properly.
The screen show
E4 and the buzz
alert.
Open the cover lid, eliminate the trouble
and close the cover lid.
Notices:
If the machine is not drain when startup drainage because of air pressure, please lay down the drain hose then put it
in the normal position.
A washing machine stops the spinning automatically. It is changed into water
" utomatic rectification" is that the
injection and the pulsator will frequently mix the clothes clockwise and couterclockwise (which equals to rinse). The
weight of the clothes is too much or too little, or the washing machine is not placed flat which will cause unbalance
during spinning and is likely to switch into the automatic rectification and increase the times of rinse. If there is still
abnormal circumstances after checking the above-mentioned points, please pull out the power plug and contact with
the customer service center as soon as possible. Don't repair it by yourself at home, which is very dangerous.
15
Cleaning of the lint filter
After using the washing
machine for a period, please
clean according the
following steps:
1. Take out the lint filter.
2. Turn the mesh bag outside
and wash it clean in the
water.
3. Restore it and refix it.
Clasper
Slot
Cleaning of the water inlet
After long time use, the water inlet mesh bag may be
blocked, please clean it according to the following steps:
1. Shut off the tap and switch on the power.
2. Start the washing machine and continue for 5 seconds
(let the water flow in the water inlet hose run into the
tub)
3. Load off the water inlet hose, take out the water inlet
mesh bag from the water inlet valve, clean the mesh bag,
then assemble the mesh bag in the valve and load the
water inlet hose.
16
Loading...
